Parts book and Schematics for Maytag Models MAYTAG M700

These popular supplies are compatible with Maytag Model M700

Maytag Vacuums were manufactured by Tacony – the manufacturer of Simplicity and Riccar vacuums – Maytag branded products are no longer available. However Riccar and Maytag brands are identical, genuine OEM products and the compatible counter part is interchangeable within brands.

[products skus="RMH62,B014-1300,RF20DP,B0140714" columns="4"]

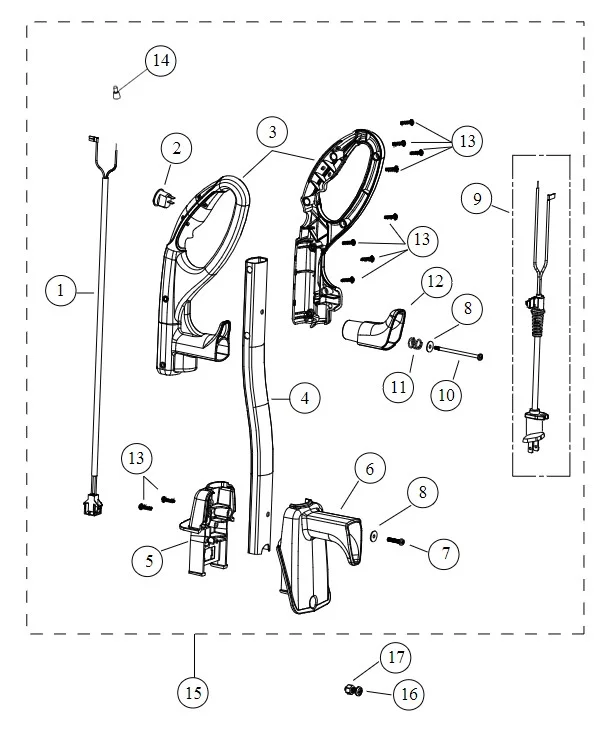

HANDLE ASSEMBLY schematic and parts book for Maytag Model/s M700

Key Part # Part Description
1 B435-0600B Handle Harness
2 A328-1500 ON OFF Switch
3 C435-0414 Handle Grip Assembly Left & Right
4 Not Available Gun Metal Handle Tube
4 B435-1500B Silver Gray Handle Tube
5 B435-0214 Handle Mount Front
6 B435-0314 Handle Mount Back
7 A430-0900 Lower Cord Hook Screw
8 A430-0405 Upper Cord Hook Washer
9 D435-1114 Power Cord Assembly
10 A430-0600B Upper Cord Hook Screw
11 B430-0200 Upper Cord Hook Spring
12 B430-0114B Upper Cord Hook
13 A732-8314 Screw Phillips Pan Head Hi Lo #8X5/8
14 B123-0100 Wire Connector
15 D432-0110 Hadnle Assembly Complete Gun Metal
16 A432-0405B Handle Bolt
17 A432-0605 Handle Bolt Nut

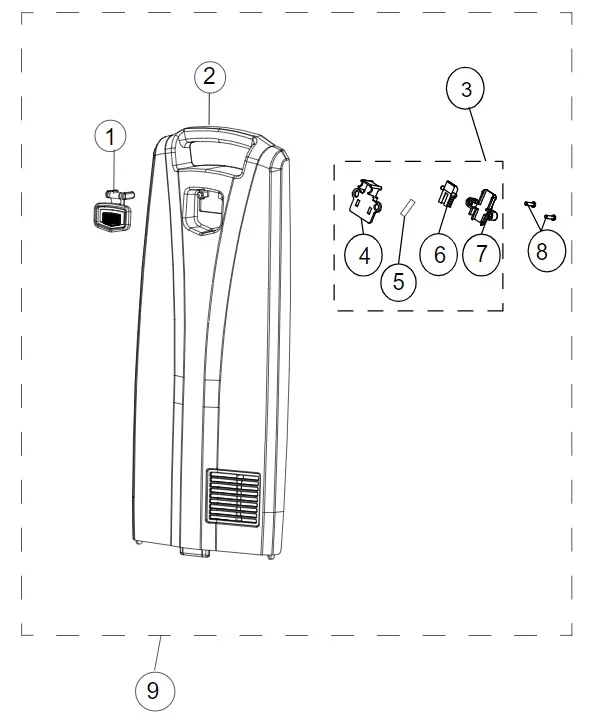

DUST COVER ASSEMBLY schematic and parts book for Maytag Model/s M700

Key Part # Part Description
1 Not Available Dust Cover Lever Assembly
2 Not Available Dust Cover Lever Assembly
3 D480-3200 Dust Cover Latch Assembly
4 B480-0814 Dust Cover Latch Body
5 B480-6800 Dust Cover Spring
6 B480-1014 Dust Cover Latch
7 B480-0914B Latch Cover
8 A732-8414 Screw Phillips Pan Head Hi Lo #8X7/16
9 Not Available Dust Cover Assembly Painted Pearl White
9 D434-0140 Dust Cover Assembly Pearl Metallic White

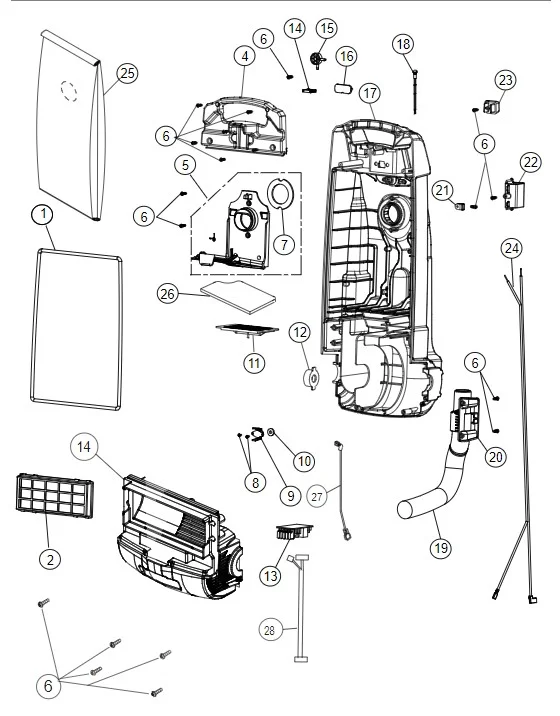

MAIN BODY ASSEMBLY schematic and parts book for Maytag Model/s M700

Key Part # Part Description
1 B434-6414 Dust Compartment Gasket
2 B434-2000 HEPA Post Filter
2 RF20DP HEPA & Electrostatic Filter Set ( Has the #26 B434-6100 Secondary Filter and #2 B434-2000 HEPA Filter)
3 B434-1214 Motor Cover
4 B434-0314B Carry Handle Insert
5 D434-22A6 Bag Mount Assembly w/Spring
6 A732-8314 Screw Phillips Pan Head Hi Lo #8X5/8
7 B434-2514 Bag Mount Base Seal
8 A732-7300 Screw Phillips Pan Head #4
9 B333-0400B Thermal Switch Manual Reset
10 B333-0600 Thermal Switch Seal
11 B222-0600 Filter Support Screen
12 B017-0214 Plastic Bushing
13 B228-0120K Hall Sensor Board
14 B227-0014 Pressure Switch Mount
15 B227-1200 Pressure Switch
16 D235-0400 Electrical Connector in Body
17 B434-0114B Dust Compartment
18 C434-0100 FBI Bright LED
19 B434-2414C Wand to Nozzle Wire Hose
20 B434-1514B Wand Docking Holster
21 B626-1414 Upholstery Tool Clip
22 B434-1414C Crevice Tool Holster
23 B434-1114 Wand Retainer
24 B224-3900B Motor Cord Hall Sensor (R20P, R20UP)
25 RMH-6.2 HEPA Bag Pkg of 6
26 B434-6100 Secondary Filter
26 RF20DP HEPA & Electrostatic Filter Set ( Has the #26 B434-6100 Secondary Filter and #2 B434-2000 HEPA Filter)
27 B333-3500 Thermal Breaker Lead
28 B228-0200 Hall Sensor Wire Harness
Not Shown A480-0100B Motor Cover Seal

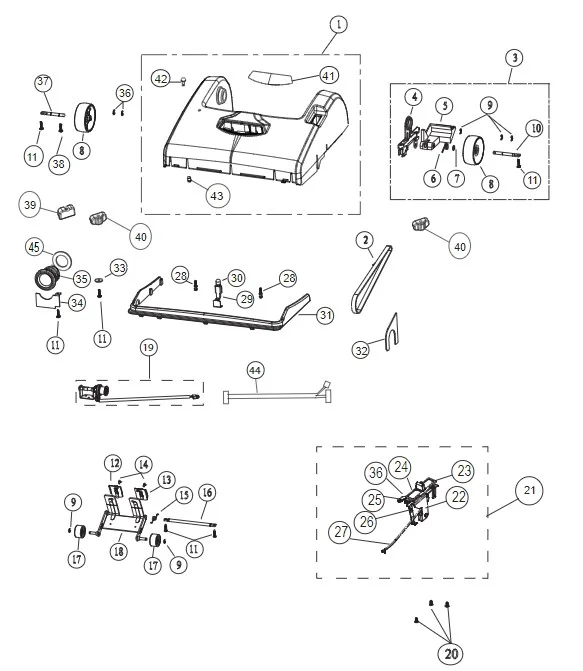

NOZZLE ASSEMBLY schematic and parts book for Maytag Model/s M700

Key Part # Part Description
1 Not Available Nozzle Assembly (First Generation)
1 Not Available Nozzle Assembly (.2 Models)
2 B014-1300 Belt
3 D020-0600 Foot Pedal Assembly (First Generation)
3 D020-0700 Foot Pedal Assembly (.2 Models)
4 B020-0800 Foot Pedal Frame (First Generation)
4 B020-0900 Foot Pedal Frame (.2 Models)
5 B020-0614B Foot Pedal Release (First Generation)
5 B020-1114 Foot Pedal Release (.2 Models)
6 B020-0700 Spring
7 A732-6500 Nylon Washer
8 B010-1731 Rear Wheel
9 A732-0200 E-Clip
10 B020-0500 Pedal Shaft
11 A732-8314 Screw Phillips Pan Head Hi Lo #8X5/8 (First Generation)
11 A732-7906 Screw (.2 Models)
12 B432-1014 Skid Plate Left (First Generation)
12 B432-1514 Skid Plate Left (.2 Models)
13 B432-1114 Skid Plate Right (First Generation)
13 B432-1414 Skid Plate Right (.2 Models)
14 A732-0500 Skid Plate Screw
15 B008-0500 Frame Shaft Spring (First Generation)
15 B008-1100 Frame Shaft Spring (.2 Models)
16 B008-0100 Roller Frame Shaft
17 B010-1813 Roller Frame Wheel
18 B008-0400B Roller Frame (First Generation)
18 B008-1000B Roller Frame (.2 Models)
19 D375-1400 Hall Sensor Assembly
20 A732-7300 Screw Phillips #4X5/16
21 D017-5200 Carpet Floor Switch Assembly (First Generation)
21 D017-5200.2 Carpet Floor Switch Assembly (.2 Models)
22 C017-3800 Carpet Floor Switch Bracket
23 B017-3814B Carpet Floor Switch Rocker
24 B017-4000 Carpet Floor Switch Detent
25 B017-4100 Carpet Floor Switch Pivot Arm
26 B017-4200 Carpet Floor Switch Pivot Arm Pin
27 B017-4800 Clutch Rod (R20D, R20P, R20UP)
27 B012-3300 Clutch Rod (R20D.2, R20P.2, R20UP.2)
28 B015-0305B Baseplate Stud
29 A018-1800 Light Socket and Harness
30 A350-0000 Light Bulb
31 B432-0614 Furniture Guard
32 B432-0300B Agitator Packing Seal
33 B017-2500 Nylon Washer
34 B432-0500 Wire Hose Retainer
35 B432-0414 Wire Hose Threaded Tube
36 A732-0300 E-Clip
37 B010-0100 Wheel Shaft
38 A732-7400 Screw
39 B010-2700 Axle Spacer Single Wheel Non- Foot Pedal Outside (.2 Models)
40 B010-2900 Axle Spacer for Foot Pedal and Non-Foot Pedal inside (.2 Models)
41 B018-0015C Headlight Lens
42 A018-1100 Hall Sensor Lens
43 A018-1200 Lens Spacer
44 B228-0200 Hall Sensor Harness
45 Not Available Hose Connector Seal

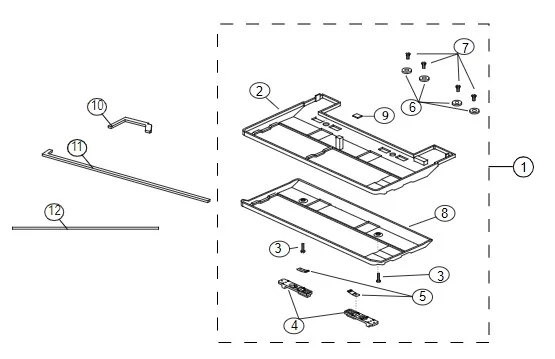

BASE PLATE ASSEMBLY schematic and parts book for Maytag Model/s M700

Key Part # Part Description
1 D015-0800 Baseplate Assembly
2 B015-0214B Plastic Base Plate
3 A732-5300 Screw for Baseplate Cladding
4 B015-0900 Baseplate Clip Spring
5 B015-0814 Baseplate Clip Latch
6 B732-0000 Washer Shoulder
7 A732-0600 Screw Phillips #4X7/16
8 B015-1004B Metal Cladding
9 B015-1800 Foam Pad
10 A432-1600 Basetray Seal Small (.2 Models)
11 A432-1700 Basetray Seal Large (.2 Models)
12 A432-1800 Basetray Seal EVA (.2 Models)


AGITATOR ASSEMBLY schematic and parts book for Maytag Model/s M700

Key Part # Part Description
1 B012-0214 Brush Roll Rubber End (D012-2700, D012-1600)
1 Not Available Brush Roll Rubber End (D012-0400, D012-1200)
2 B012-2300 Left End Cap
3 B012-0600 Agitator Bearing Felt Cover
4 C012-1500 Agitator Bearing Holder Assembly
5 B012-2400B 10.3MM Red & Gold Nylon Brush Strip (First Generation Models)
5 B012-4500 9.7MM Blue & Gold Nylon Brush Strip (.2 Models)
6 C012-0400 Clutch Rubber Pad Assembly
7 B012-1700 Agitator Compression Spring
8 C012-1800B Poly V Pulley Assembly
9 B012-1414 Metal Cam (D012-2700, D012-1600)
9 Not Available Metal Cam (D012-1100, D012-1200)
10 B012-1514 Clutch Plate Clocking Plastic (D012-2700, D012-1600)
10 Not Available Clutch Plate Clocking Plastic (D012-1100, D012-1200)
11 B012-1100 Right End Cap (D012-2700, D012-1600)
11 Not Available Right End Cap (D012-1100, D012-1200)
12 B012-1200 Spring Pin
13 Not Availble Agitator Shaft Pinned Clutch
14 A732-0400 Agitator Spring Clip
15 D012-1600 Agitator Assembly Red & Gold Poly V Pulley (First Generation)
15 D012-1200 Agitator Assembly Blue & Gold Poly V Pulley (.2 Mod- els)
Not Shown B40 Washer Adjustment Kit

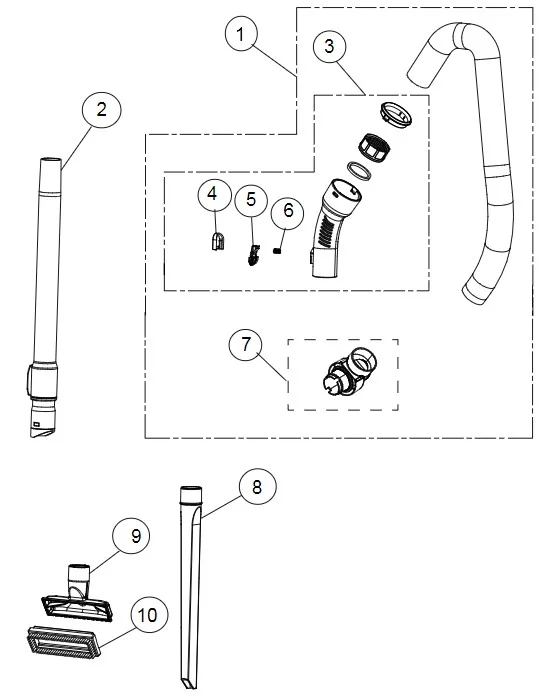

HOSE AND ACCESSORIES schematic and parts book for Maytag Model/s M700

Key Part # Part Description
1 D434-2000 Hose Assembly w/Handle
2 Not Available Quick Draw Wand Gun Metal
2 B434-5400B Quick Draw Wand Silver
3 D434-0800 Hose Handle Assembly
4 B434-5114 Button Lock Cover
5 B434-5214 Button Lock Button
6 B434-5300 Button Lock Spring
7 C625-0414 Suction Inlet Complete
8 B226-0314C Crevice Tool
9 B435-0814 Upholstery Tool
10 B226-0214 Upholstery Brush Nylon
10 B226-0614 Upholstery Brush Natural Hair (Standard)

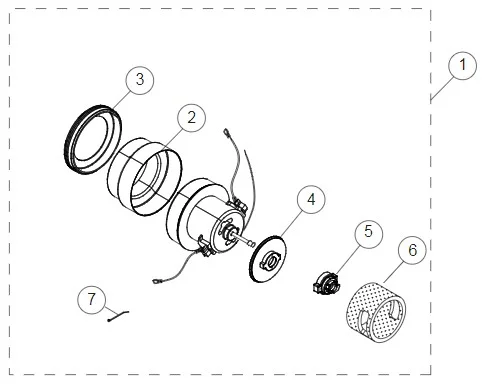

MOTOR ASSEMBLY schematic and parts book for Maytag Model/s M700

Key Part # Part Description
1 D113-6100 12 Amp Motor Assembly Complete
2 B113-3200 Motor Mount Adaptor
3 B113-0230 Rear Motor Mount
4 B434-1014 Front Motor Mount
5 B123-1300 Metal Pivot
6 B123-1900 Motor Sound Suppressor
7 A732-0100 Zip Tie
