Parts book and Schematics for Riccar supraquik Models RSQ1.6
These popular supplies are compatible with Riccar supraquik Model/s RSQ1.6

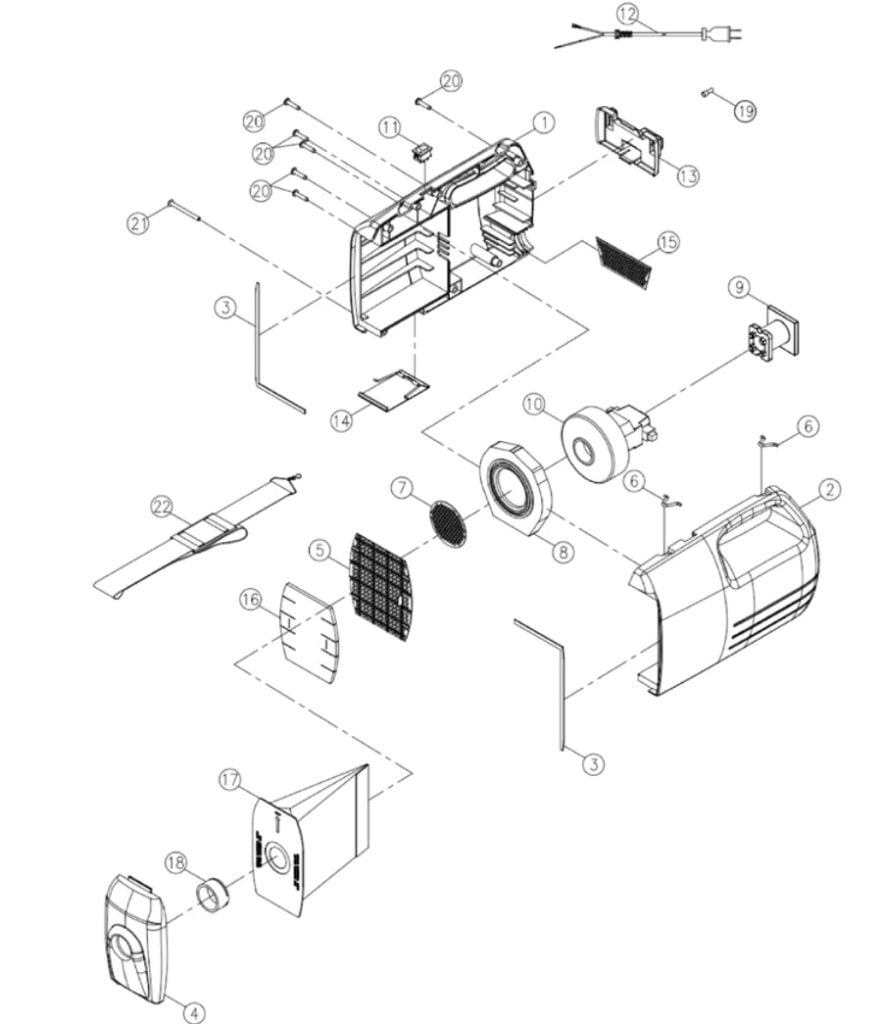

[products skus="FA00011,RSQ6" columns="3"]MAIN BODY schematic and parts book for Riccar Model/s RSQ1.6
| Key | Part # | Part Description |
| 1 | Not Available | Vacuum Housing (Left) |
| 2 | Not Available | Vacuum Housing (Right) |
| 3 | BB00071B | Gasket (2 Required) |
| 4 | BA00551B | Vacuum Housing (Front) |
| 5 | Not Available | Baffle |
| 6 | BF00051 | V-Hook Tri Ring |
| 7 | Not Available | Round Mesh Screen |
| 8 | Not Available | Front Motor Mount |
| 9 | BB00031 | Rear Mount |
| 10 | C345-0800B | Motor with Improved Mounts (Includes #8 and #9) |
| 11 | DB00011B | Switch |
| 12 | DG00011B | Power Cord |
| 13 | BD00261 | Front Cover Clamp |
| 14 | Not Available | Mesh Screen |
| 15 | FA00011 | Motor Filter |
| 16 | RSQ-6 | Paper Bag (6 Pack) |
| 17 | BB00051 | Hose Inlet Cover |
| 18 | Not Available | Wire Joints |
| 19 | FC00011 | Strap |
| 20 | AA00551 | Reusable Cloth Bag |

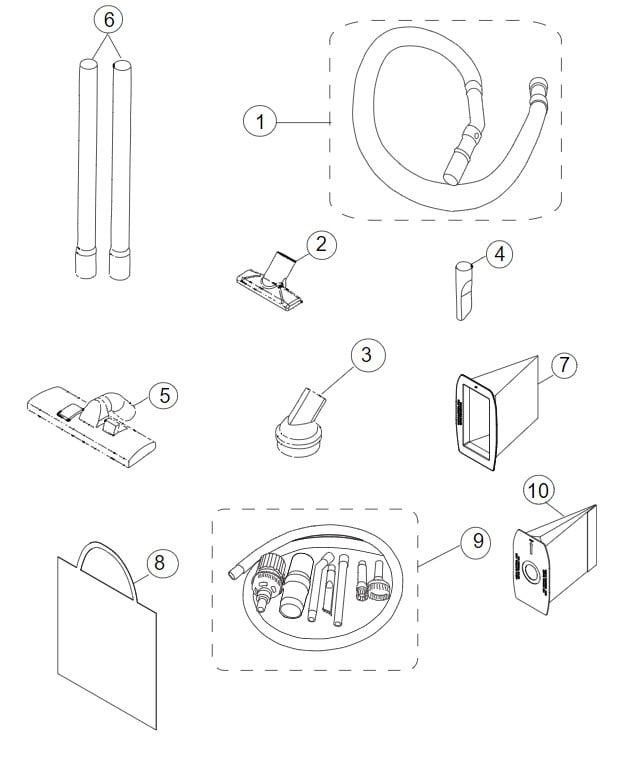

ACCESSORIES schematic and parts book for Riccar Model/s RSQ1.6
| Key | Part # | Part Description |
| 1 | FB00081 | Hose Assembly |
| 2 | BA00391B | Upholstery Tool With Brush |
| 3 | BA00411B | Dusting Brush |
| 4 | BA00371B | Crevice Tool |
| 5 | BA00401 | Carpet Floor Tool |
| 6 | BA00381 | Extension Wand |
| 7 | AA00551 | Reusable Cloth Bag |
| 8 | BA00372 | Mesh Bag |
| 9 | Included in Mini Vacuum Attachment Kit FB-05081 | Hose Adapter |
| 9 | Mini Blow Hose Assembly | |
| 9 | Mini Round Brush | |
| 9 | Mini Oval Brush | |
| 9 | Mini Straight Wand | |
| 9 | Mini Curve Wand | |
| 9 | Mini Crevice Tool | |
| 10 | RSQ-6 | Paper Bag (6 Pack) |
