Parts list and schematic diagram for Miele Models: AQUARIUS capriblau, S5580, S5580 Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
Popular Supplies

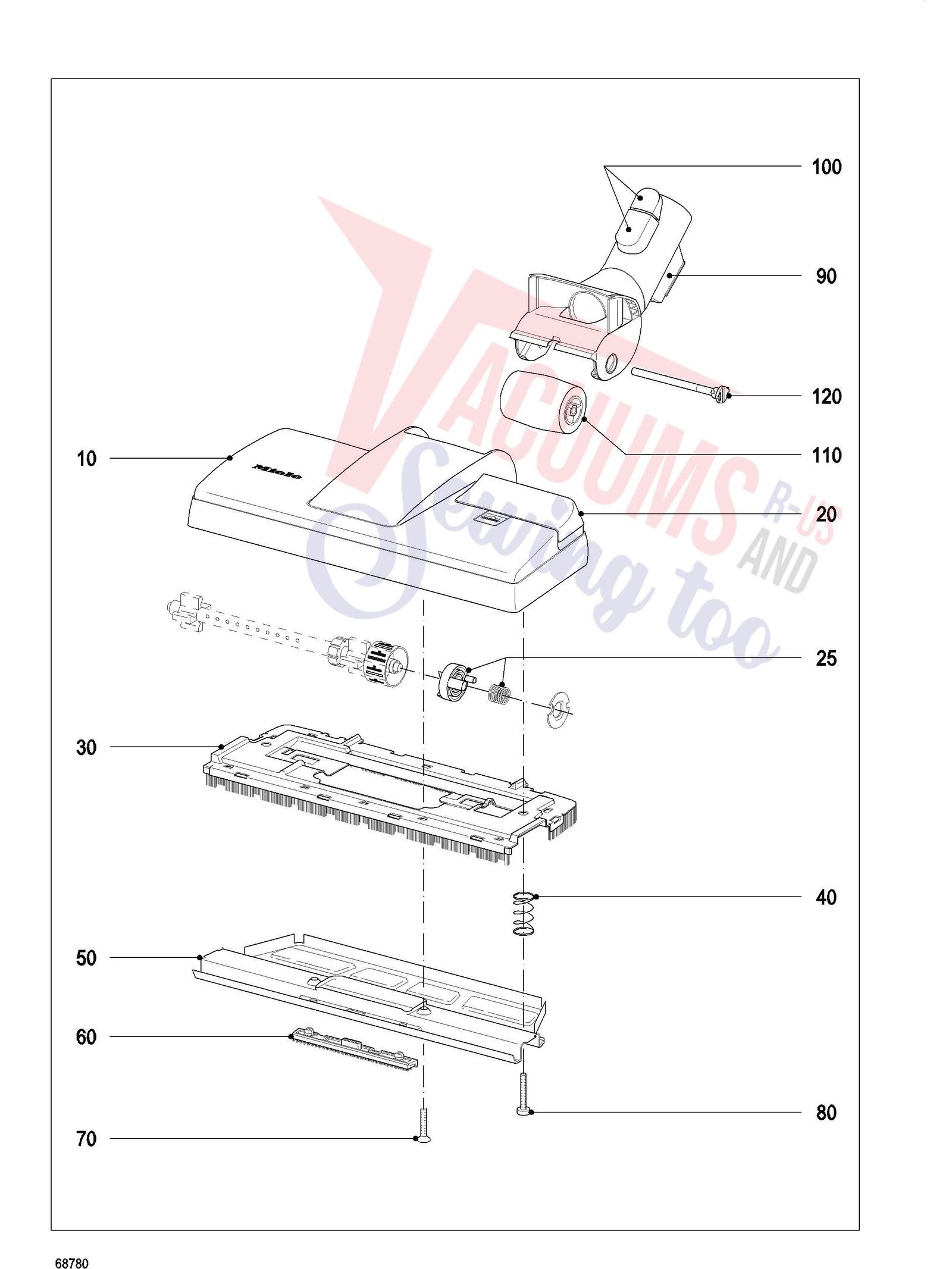

| # | Part image | Description | SKU | Price |
| xx | Not Available | undefined For Miele AQUARIUS capriblau S5580 | noop | Not Available |
| 10-120 | Not Available | Floor nozzle SBD285-3 AllTeQ For Miele AQUARIUS capriblau S5580 | 7253830 | Not Available |
| 20 | Not Available | undefined For Miele AQUARIUS capriblau S5580 | noop | Not Available |
| 25 |  | Genuine Miele Carrier SBD550-3 | 7605701 | $18.00Read more |
| 30 | | Genuine Miele Bristle supp.plate SBD550-3 | 6577970 | $36.48Read more |
| 40 | Not Available | undefined For Miele AQUARIUS capriblau S5580 | noop | Not Available |
| 50+60 | Not Available | undefined For Miele AQUARIUS capriblau S5580 | 6577960 | Not Available |
| 60 | | Genuine Miele Thread lifter 2 Pcs. | 6440411 | $22.79Read more |
| 70 | Not Available | undefined For Miele AQUARIUS capriblau S5580 | noop | Not Available |
| 80 | Not Available | undefined For Miele AQUARIUS capriblau S5580 | noop | Not Available |
| 90+100 | | Genuine Miele Linkage SBD550-3 | 6599791 | $30.74Read more |
| 100 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele Support roller | 5235530 | $13.64Read more |
| 120 | | Genuine Miele Shaft Bayonett fitting | 5235520 | $11.98Read more |

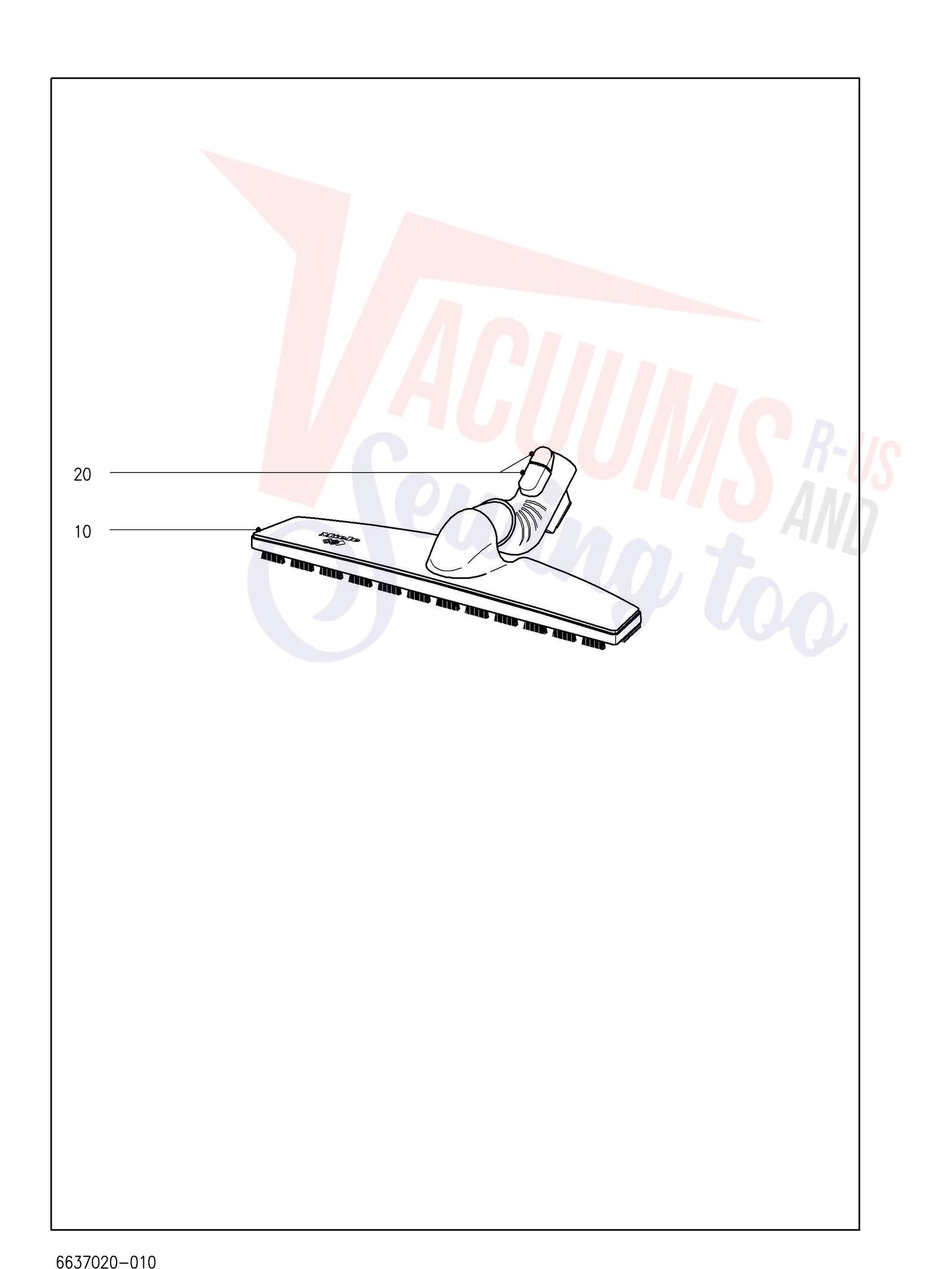

| # | Part image | Description | SKU | Price |
| 10+20 | | Genuine Miele ST Floor brush Parq.Twister-3 | 7155710 | $83.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10+20 | Not Available | Floor brush Parq.Twister-3 For Miele AQUARIUS capriblau S5580 | 6622123 | Not Available |
| 20 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |

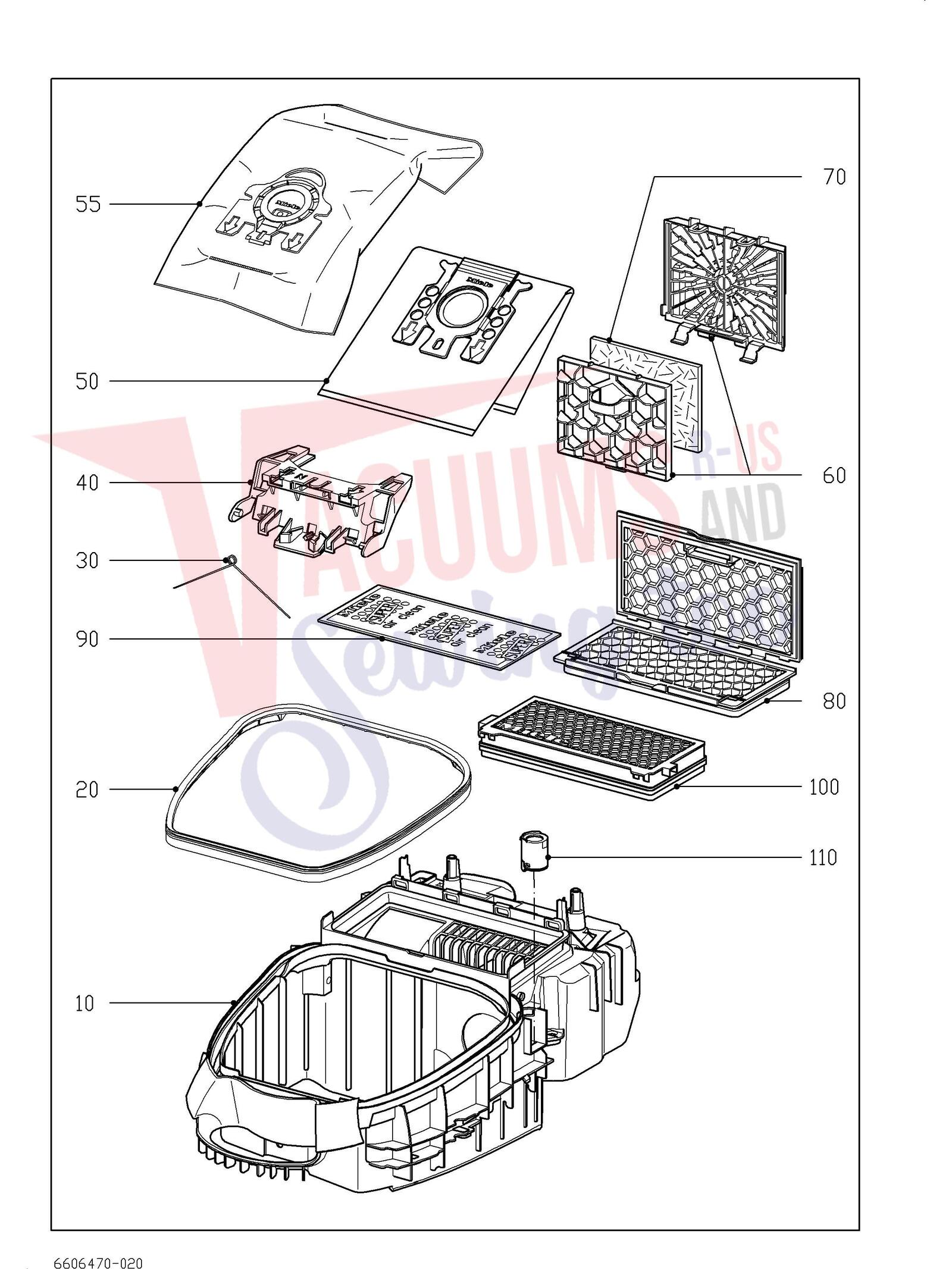

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Casing insert S5xxx | 12073090 | $65.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Sealing ring | 6141480 | $11.98Read more |
| 30 | | Genuine Miele Torsion spring Bracket | 6434090 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Bracket vacuum cleaner bag | 6081322 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | Miele HEPA Vacuum Bags Type GN - 4pk | 4002515578971 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | Aftermarket Miele GN Bags 5pk with Filters | WP10968 | $14.99Add to cart |
| 60+70 | | Genuine Miele Filter frame Brilliant blue | 6241011 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Spacer bracket Air-Clean filter | 11690520 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $11.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 |  | Miele HEPA AirClean with TimeStrip SF-HA 50 | 4002515317013 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 |  | Miele ActiveAir Clean Filter SF-AA50 | 9616110 | $45.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 |  | Aftermarket Miele SF-HA 50 HEPA Filter | 54236401 | $25.99Add to cart |
| 110 | | Genuine Miele End plug Suction control | 6175470 | $2.01Read more |

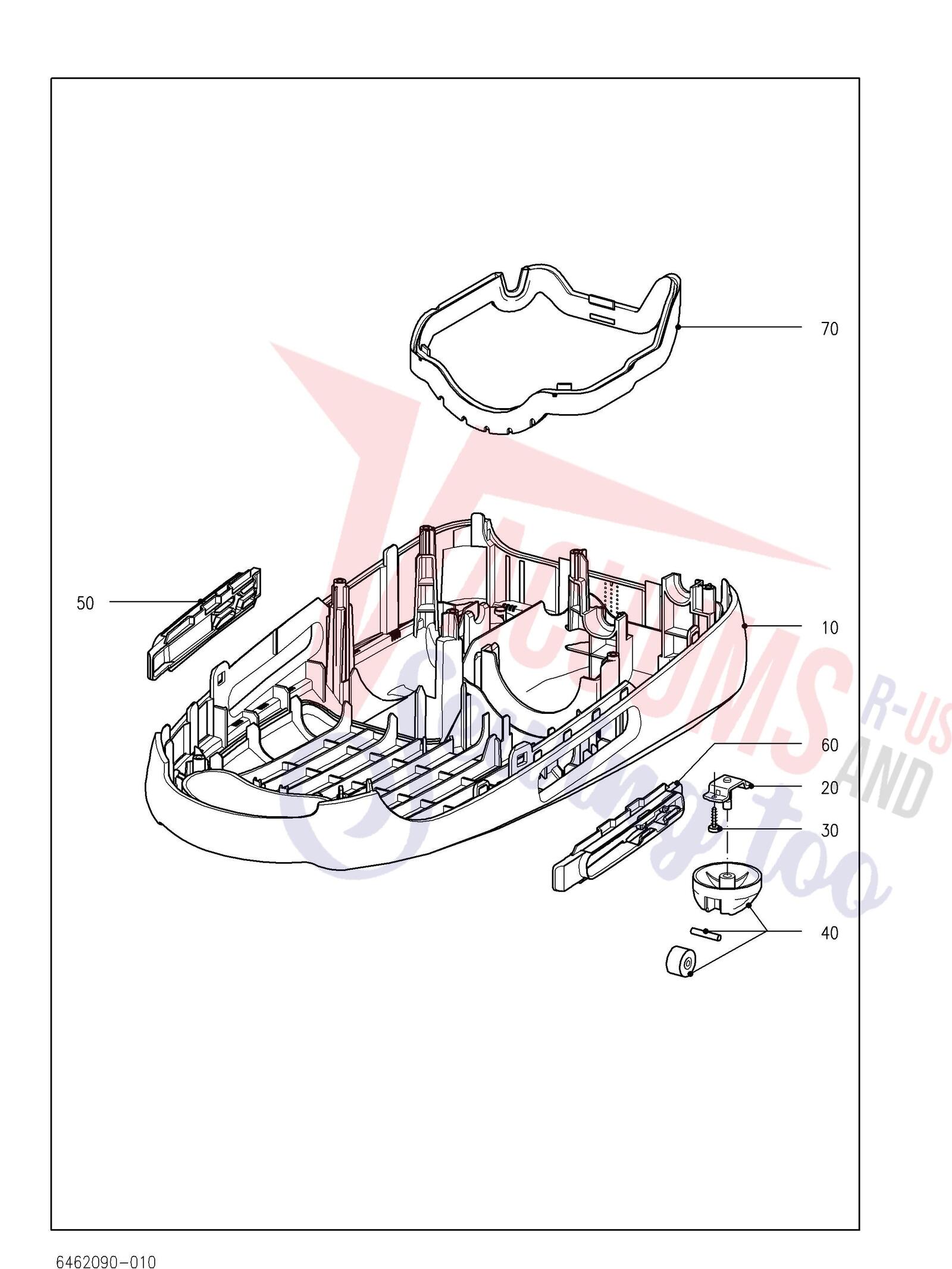

| # | Part image | Description | SKU | Price |
| xx | Not Available | Casing bottom anthracite For Miele AQUARIUS capriblau S5580 | 6515350 | Not Available |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $7.49Read more |
| 30 | Not Available | undefined For Miele AQUARIUS capriblau S5580 | noop | Not Available |
| 40 | | Genuine Miele Slide skid assy | 10459340 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Suspension right | 6065240 | $4.27Read more |
| 60 | Not Available | undefined For Miele AQUARIUS capriblau S5580 | 6065270 | Not Available |
| 70 | Not Available | undefined For Miele AQUARIUS capriblau S5580 | 6049590 | Not Available |

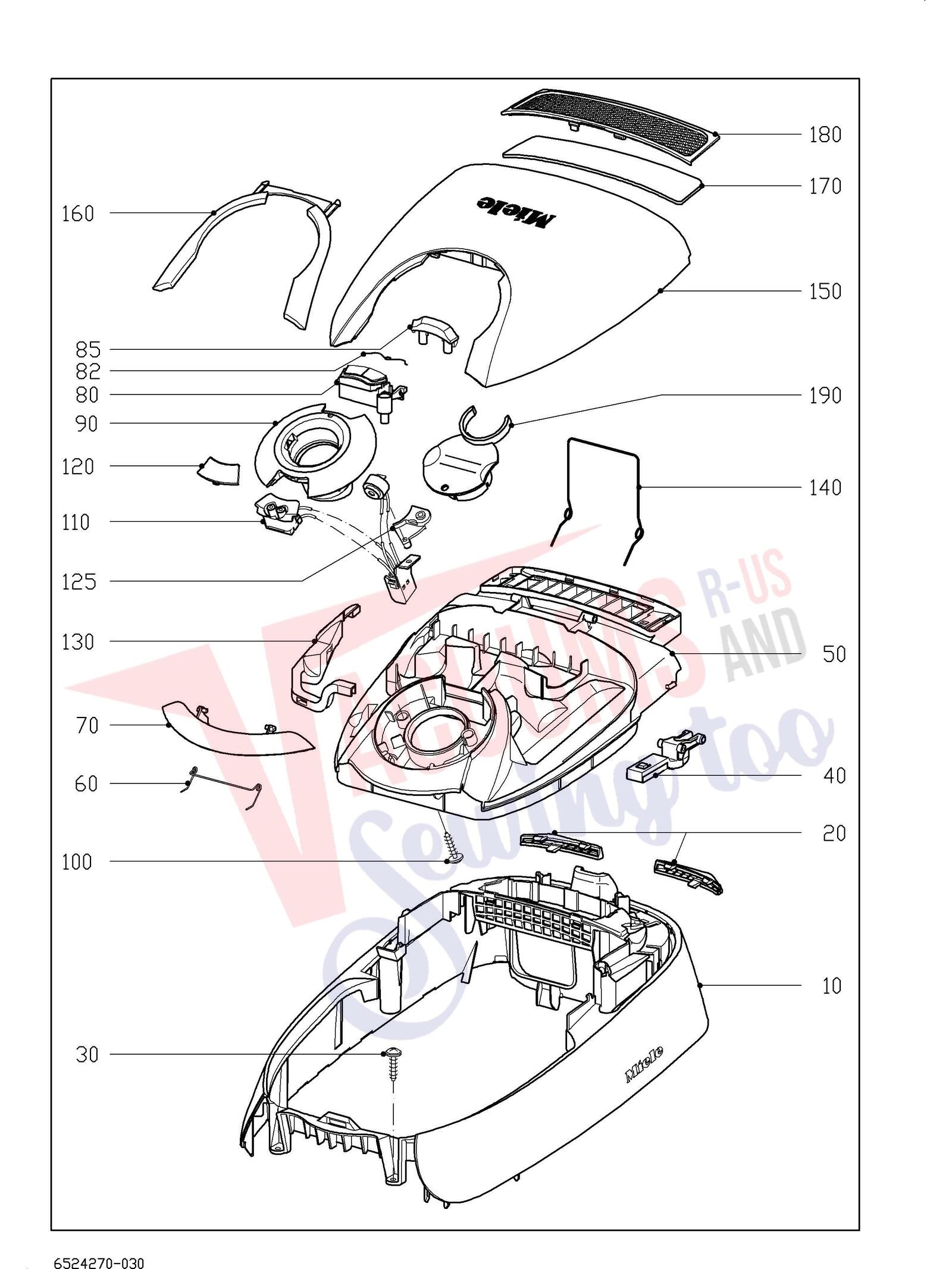

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | --Raised head screw 4,0X18 TORX T20 For Miele AQUARIUS capriblau S5580 | 6238630 | Not Available |
| 10+20 | | Genuine Miele Cover frame Polar ice | 6515080 | $83.51Read more |
| 10+20 | | Genuine Miele Cover frame Marine blue | 6643260 | $83.51Read more |
| 10+20 | | Genuine Miele Cover frame Luna silver | 6515260 | $109.64Read more |
| 10+20 | | Genuine Miele Cover frame Tizia red metallic | 6515250 | $109.64Read more |
| 10+20 | Not Available | Cover frame Tealite blue met. For Miele AQUARIUS capriblau S5580 | 6515230 | Not Available |
| 10+20 | | Genuine Miele Cover frame Capri blue | 6515220 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10+20 | | Genuine Miele Cover frame deep black | 6515170 | $83.51Read more |
| 10+20 | | Genuine Miele Cover frame Lava grey | 6515140 | $83.51Read more |
| 20 | | Genuine Miele Strip Left and right | 6515290 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | undefined For Miele AQUARIUS capriblau S5580 | noop | Not Available |
| 40 | | Genuine Miele Hinge 2 Pcs. | 6515311 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Casing top S5xxx | 11997180 | $90.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Genuine Miele Torsion spring Lock | 6079920 | $2.71Read more |
| 70 | | Genuine Miele Lock | 6079890 | $2.71Read more |
| 80-85 | | Genuine Miele Change filter ind. SF TYPE 1 USA/J | 10292782 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 82 | | Genuine Miele Torsion spring Change filter ind. | 5463553 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 85 | | Genuine Miele interlock | 6122782 | $2.01Read more |
| 90 | | Genuine Miele Ring alu-silver S5500 | 6426520 | $18.00Read more |
| 100 | Not Available | undefined For Miele AQUARIUS capriblau S5580 | noop | Not Available |
| 110 | | Genuine Miele Flush socket outlet S5500/81 USA | 6648550 | $70.93Read more |
| 120 | | Genuine Miele Fascia panel alu-silver | 6217170 | $7.95Read more |
| 125 | Not Available | Air shield Ring For Miele AQUARIUS capriblau S5580 | 6141491 | Not Available |
| 130 | Not Available | Cover strip Casing top For Miele AQUARIUS capriblau S5580 | 6128230 | Not Available |
| 140 | | Genuine Miele Torsion spring Lid | 6409260 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150+160 | | Genuine Miele Lid Tizia red metallic | 6515011 | $57.39Read more |
| 150+160 | | Genuine Miele Lid Lava grey | 6473641 | $47.37Read more |
| 150+160 | | Genuine Miele Lid deep black | 6473661 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150+160 | | Genuine Miele Lid deep black | 6473661 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150+160 | Not Available | Lid Polar ice For Miele AQUARIUS capriblau S5580 | 6473611 | Not Available |
| 150+160 | | Genuine Miele Lid Marine blue | 6643281 | $47.37Read more |
| 150+160 | | Genuine Miele Lid Capri blue | 6473721 | $47.37Read more |
| 150+160 | | Genuine Miele Lid Obsidian black | 9375340 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 160 | | Genuine Miele Fascia panel Lid | 6126401 | $4.27Read more |
| 180 | Not Available | Air shield alu-silver For Miele AQUARIUS capriblau S5580 | 6764550 | Not Available |
| 180+170 | | Genuine Miele Air shield alu-silver | 6835790 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 190 | Not Available | Hygiene cap For Miele AQUARIUS capriblau S5580 | 6622030 | Not Available |
| # | Part image | Description | SKU | Price |
| xx | Not Available | No spare part For Miele AQUARIUS capriblau S5580 | noop | Not Available |
| xx | Not Available | Elec.suction hose SES119 1800mm For Miele AQUARIUS capriblau S5580 | 6594694 | Not Available |
| xx | | Genuine Miele Elec.suction hose SES119 USA | 10715742 | $118.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Tubular handle SES119 KD | 6699702 | $160.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | undefined For Miele AQUARIUS capriblau S5580 | 7104880 | Not Available |
| xx | Not Available | undefined For Miele AQUARIUS capriblau S5580 | noop | Not Available |
| xx | Not Available | For Miele AQUARIUS capriblau S5580 | noop | Not Available |
| xx | Not Available | Thread lifter For Miele AQUARIUS capriblau S5580 | noop | Not Available |
| 20 | | Genuine Miele Ring Tubular handle | 6677130 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | --Coun.self-tap.screw SPAX 3 x 9,5Torx T10 For Miele AQUARIUS capriblau S5580 | 6167230 | Not Available |
| 40 | | Genuine Miele Inset handle Printed | 6157660 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Elec.suction hose SES119 KD | 6699681 | $281.63Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60-80 | | Genuine Miele Elec.telescop.tube SET220 | 6594726 | $118.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Push button Round | 9160460 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Push button anthracite | 5064430 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90+80 | | Genuine Miele connecting piece Floor nozzle | 5449760 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $24.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120+130 | | Genuine Miele Upholstery nozzle | 9442620 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Fan Mrg742/81-42/2 120V | 6514630 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Rubber cushion 2 Pcs. | 6207001 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Bearing ring | 7752870 | $13.64Read more |
| 30 | | Genuine Miele Bearing ring | 5964034 | $13.64Read more |
| 40 | | Genuine Miele Hose Nebenluft | 7196500 | $7.95Read more |
| 50-70 | | Genuine Miele Cable reel S5000 6,5m 120V USA | 6454293 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Genuine Miele Connecting cable S5000 100-120V | 6437871 | $54.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | Not Available | -Supply cable 6,65m 17AWG 120V USA For Miele AQUARIUS capriblau S5580 | 5241032 | Not Available |
| 80 | | Genuine Miele Damping plate | 6518591 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Bracket Electronic unit | 6134771 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Spring | 2733371 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Spring | 3982390 | $2.71Read more |
| 40 | Not Available | Pushbutton S5000 For Miele AQUARIUS capriblau S5580 | 6138870 | Not Available |
| 50-70 | Not Available | Electronic unit EDW5500/81 120V 60Hz For Miele AQUARIUS capriblau S5580 | 6715390 | Not Available |
| 60 | | Genuine Miele Switch 250V | 4487791 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Switch 1 pole 1681.3103 | 9023231 | $7.91Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | Not Available | Reflector For Miele AQUARIUS capriblau S5580 | 6084380 | Not Available |
| 90 | | Genuine Miele Fascia panel Reflector | 6165241 | $2.01Read more |
| 100-130 | Not Available | Control panel Luna silver For Miele AQUARIUS capriblau S5580 | 6561020 | Not Available |
| 100-130 | Not Available | Control panel Polar ice For Miele AQUARIUS capriblau S5580 | 6560960 | Not Available |
| 100-130 | Not Available | Control panel deep black For Miele AQUARIUS capriblau S5580 | 6560980 | Not Available |
| 100-130 | Not Available | Control panel Lava grey For Miele AQUARIUS capriblau S5580 | 6770770 | Not Available |
| 100-130 | Not Available | Control panel Capri blue For Miele AQUARIUS capriblau S5580 | 6561000 | Not Available |
| 100-130 | Not Available | Control panel Tealite blue met. For Miele AQUARIUS capriblau S5580 | 6721650 | Not Available |
| 100-130 | Not Available | Control panel Marine blue For Miele AQUARIUS capriblau S5580 | 6897630 | Not Available |
| 100-130 | | Genuine Miele Control panel Tizia red metallic | 6561010 | $57.39Read more |
| 110 | Not Available | undefined For Miele AQUARIUS capriblau S5580 | 6403040 | Not Available |
| 120 | | Genuine Miele Spring | 5457311 | $7.49Read more |
| 130 | | Genuine Miele Push button | 6084420 | $7.49Read more |
| 140 | | Genuine Miele Pushbutton Left and right | 6518600 | $30.74Read more |
| 150 | | Genuine Miele Foot switch alu-silver SF printed | 11168540 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 160 | | Genuine Miele Foot switch alu-silver SF print | 11168551 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| xx | Not Available | No spare part For Miele AQUARIUS capriblau S5580 | noop | Not Available |
| xx | Not Available | Thread lifter For Miele AQUARIUS capriblau S5580 | noop | Not Available |
| 10+20 | | Genuine Miele Tubular handle S4, S5 | 6163661 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Inset handle Printed | 6157660 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Suction hose silver-coloured 1,8m | 6614661 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40-70 |  | HES Telescopic Wand for Miele | 10615280 | $65.45Read more |
| 50 | Not Available | undefined For Miele AQUARIUS capriblau S5580 | 6151391 | Not Available |
| 60 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $24.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100+110 | | Genuine Miele Upholstery nozzle | 9442620 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 |  | Genuine Miele ST Flexible hose SFS10 | 7252210 | $39.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130+140 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $30.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 140 | | Genuine Miele Thread lifter | 5056530 | $7.49Add to cart Product is special order please allow 2-4 weeks for delivery. |
