Parts list and schematic diagram for Miele Models: BLIZZARD CX1 SKCR3, SKCR3, Blizzard Turbo Team Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
| # | Part image | Description | SKU | Price |
| xx | Not Available | undefined For Miele BLIZZARD CX1 SKCR3 SKCR3 | noop | Not Available |
| 10 |  | Genuine Miele Top anthracite | 5235512 | $25.32Read more |
| 10-140 | Not Available | Floor nozzle SBD285-3 AllTeQ For Miele BLIZZARD CX1 SKCR3 SKCR3 | 7253830 | Not Available |
| 20 |  | Genuine Miele Suction channel anthracite | 5235541 | $22.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 |  | Genuine Miele Foot switch anthracite | 5235503 | $13.64Read more |
| 40 |  | Genuine Miele Fixing | 5235480 | $7.49Read more |
| 50 |  | Genuine Miele Bristle supp.plate | 5235463 | $30.74Read more |
| 60 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70+80 |  | Genuine Miele Lower section | 5235453 | $40.34Read more |
| 80 |  | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $22.79Read more |
| 90 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $2.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | Not Available | --Countersunk screw 35X20 For Miele BLIZZARD CX1 SKCR3 SKCR3 | 5289870 | Not Available |
| 110+120 |  | Genuine Miele Linkage SBD285-3 assy | 6578132 | $30.74Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 |  | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 |  | Genuine Miele Support roller | 5235530 | $13.64Read more |
| 140 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $11.98Read more |

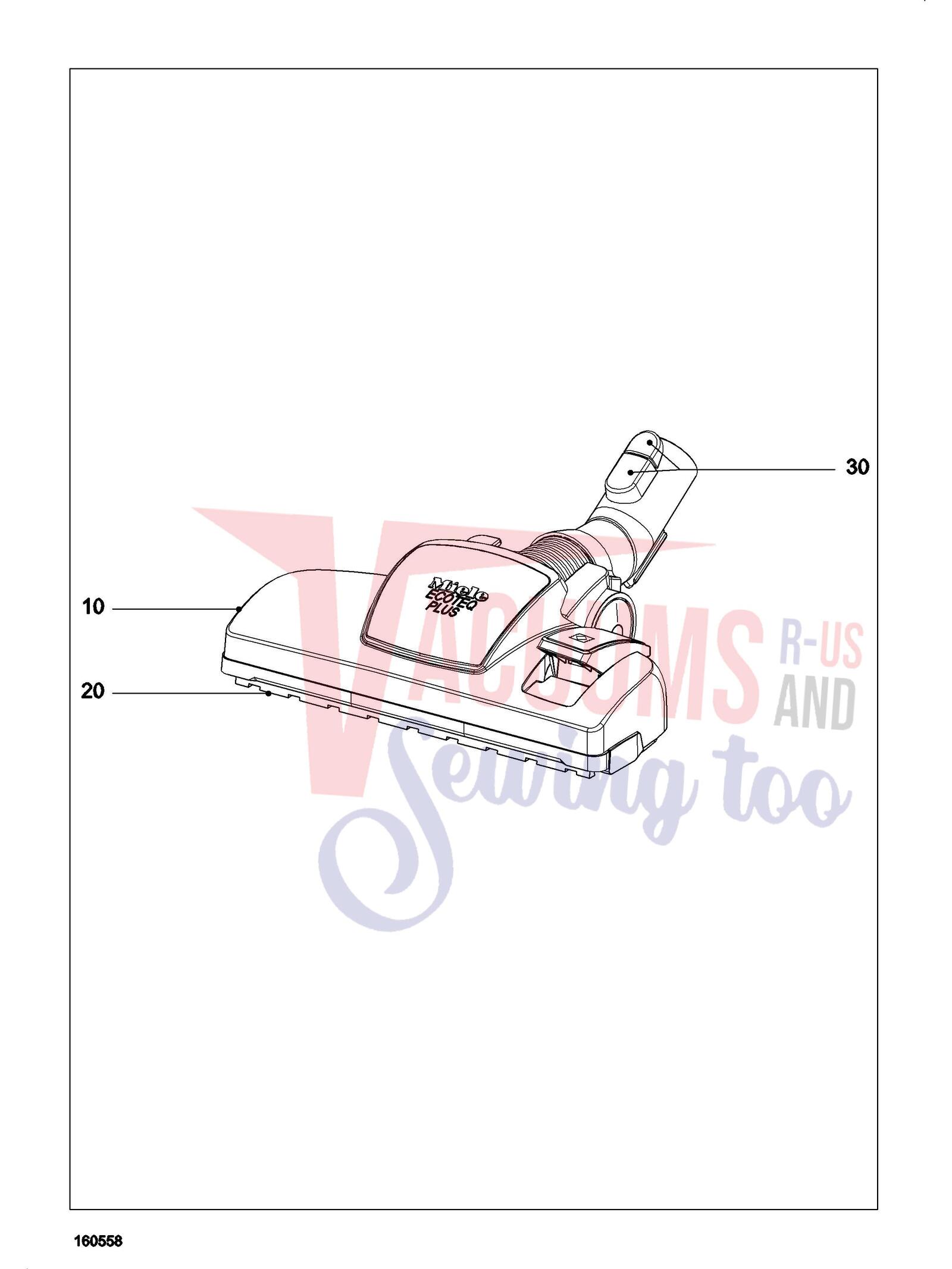

| # | Part image | Description | SKU | Price |
| xx |  | Genuine Miele EcoTeQPlus Floor nozzle SBD 660-3 | 10367800 | $145.13Read more |
| 20 | | Genuine Miele Bristle supp.plate SBD 660-3 assy | 10331720 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| xx |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Casing bottom Standard assy | 9607644 | $139.36Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Casing bottom Dynamic Drive assy | 9890836 | $155.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Seal Casing bottom SK | 9631961 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Lip seal | 9608902 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 |  | Genuine Miele Slide skid assy | 10459340 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Slide skid Dynamic Drive kpl. | 7781437 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | Not Available | undefined For Miele BLIZZARD CX1 SKCR3 SKCR3 | noop | Not Available |
| 70+80 | | Genuine Miele Casing insert kpl. | 9607903 | $97.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Suction control S2/S5/S8 | 6455390 | $6.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Damping plate Casing insert | 9608961 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Seal Motor housing | 9799030 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |

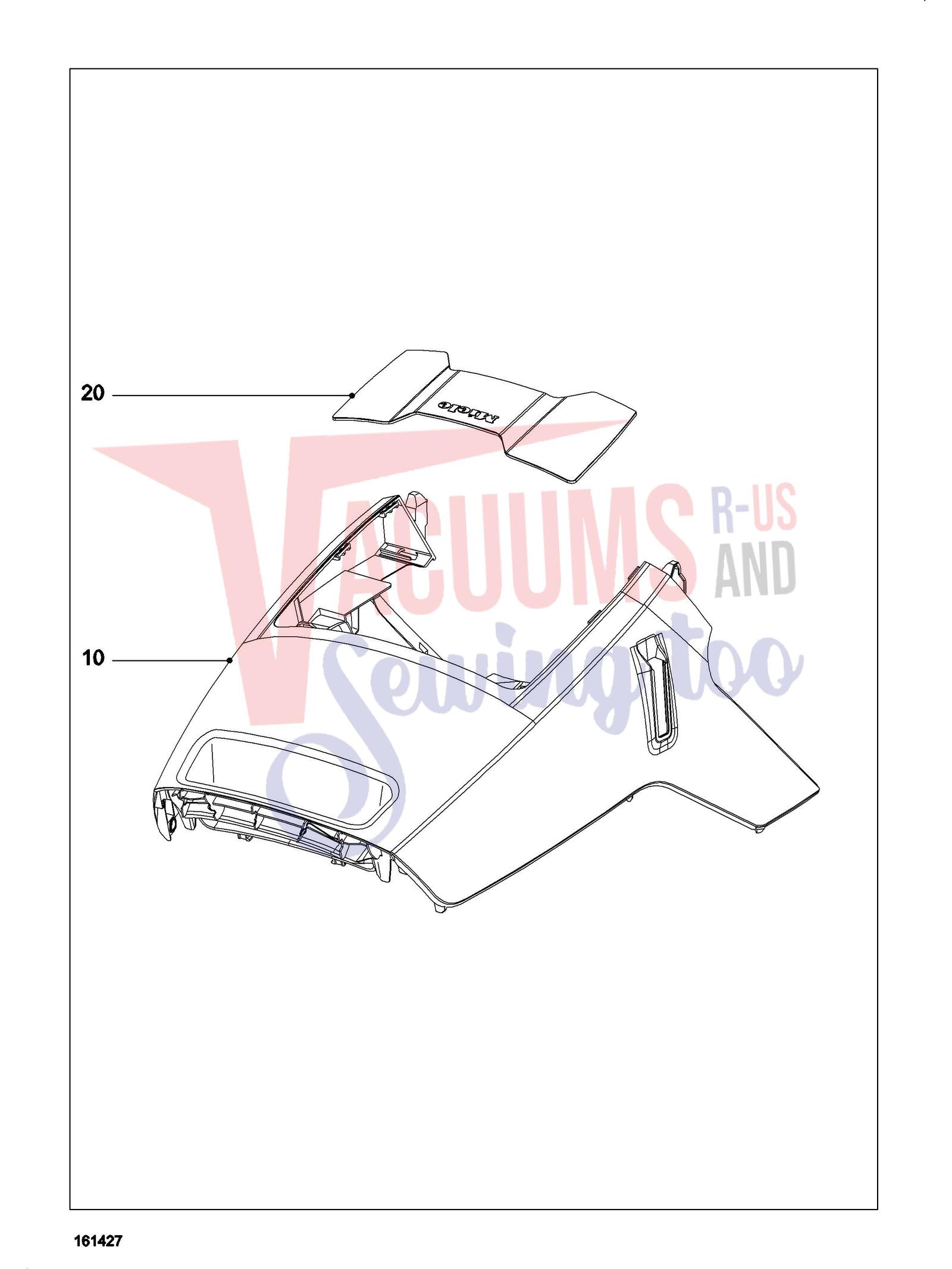

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Cover frame TEBL SK | 10327063 | $90.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Genuine Miele Cover frame GRGR SK | 10327053 | $90.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Genuine Miele Cover frame OBSW SK | 10327163 | $83.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Genuine Miele Cover frame MART SK | 10327153 | $83.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Genuine Miele Cover frame LOWE SK | 10327143 | $83.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Viewing screen Blizzard CX1 (KD) | 10547820 | $65.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Viewing screen rot Blizzard CX1 KD For Miele BLIZZARD CX1 SKCR3 SKCR3 | 10980460 | Not Available |

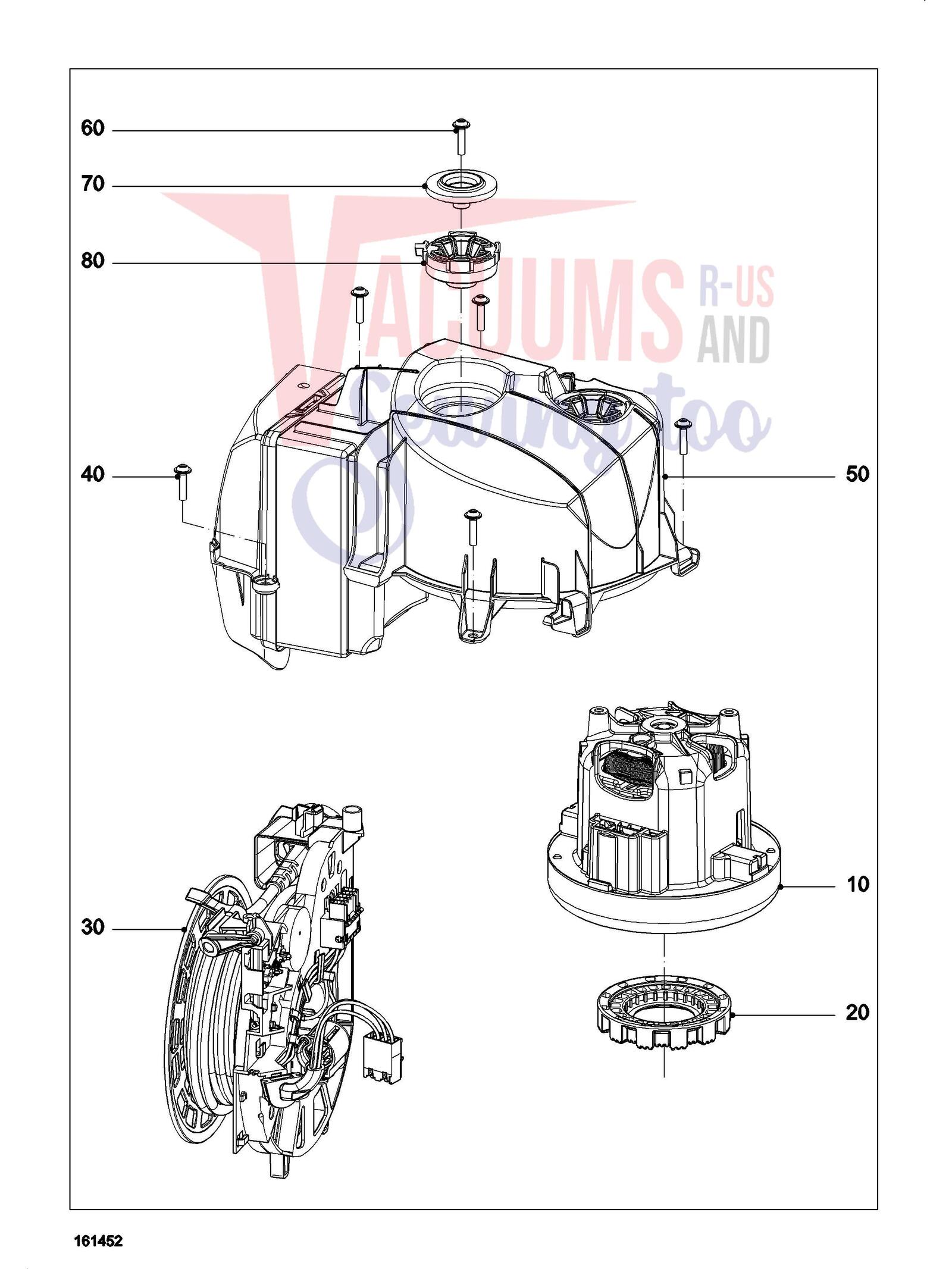

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Bearing ring V18 | 7714533 | $7.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Cable reel CX1 7,5m EU | 10170177 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | undefined For Miele BLIZZARD CX1 SKCR3 SKCR3 | noop | Not Available |
| 50+80 | | Genuine Miele Air shield Hepa-Lifetime H13 | 9739495 | $139.36Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | Not Available | undefined For Miele BLIZZARD CX1 SKCR3 SKCR3 | noop | Not Available |
| 70 | Not Available | Disc For Miele BLIZZARD CX1 SKCR3 SKCR3 | 9734800 | Not Available |
| 80 | Not Available | Rubber cushion Baureihe SK For Miele BLIZZARD CX1 SKCR3 SKCR3 | 9632041 | Not Available |

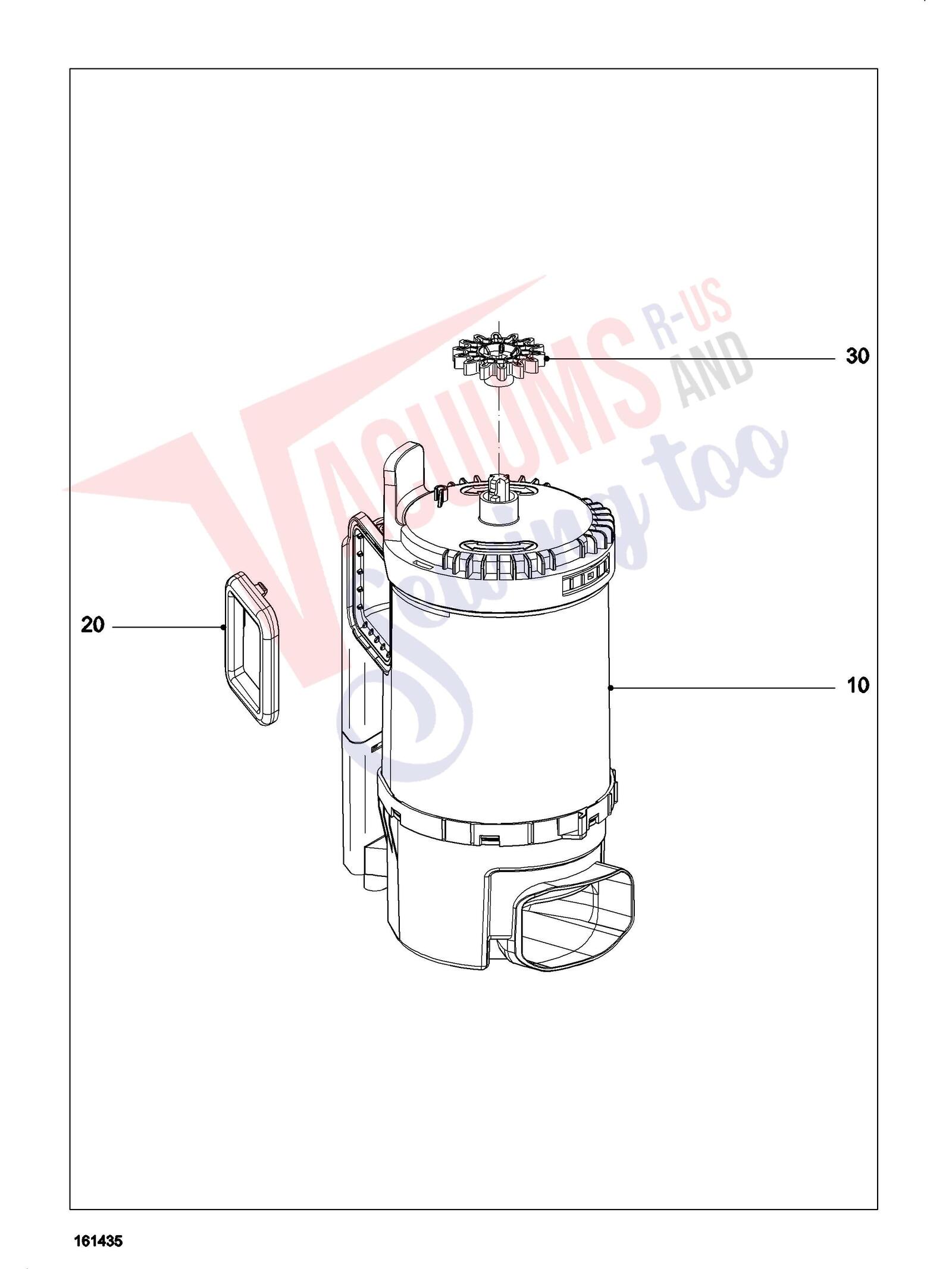

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Fine dust cartridge assy | 9607999 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Seal Fine dust cartridge | 9878151 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Cogwheel Filter cleaning | 9631410 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |

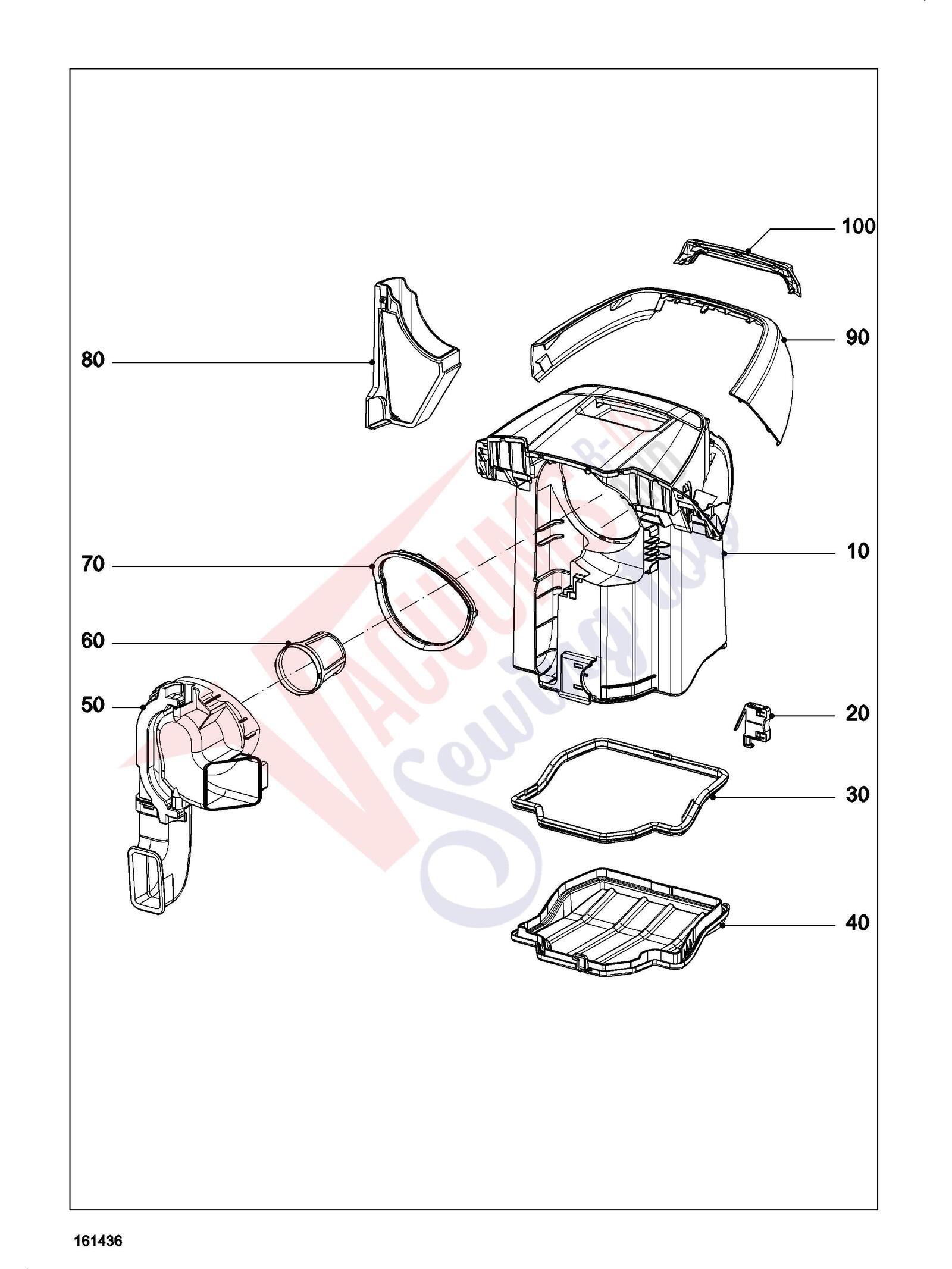

| # | Part image | Description | SKU | Price |
| xx | Not Available | For Miele BLIZZARD CX1 SKCR3 SKCR3 | noop | Not Available |
| xx | | Genuine Miele Separator TP assy | 9607978 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Separator KRRT assy | 10973668 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Lock Flap | 9631542 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Seal Flap | 9631553 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Flap Interceptor | 9631563 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Vent duct Interceptor | 11343630 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Genuine Miele Pre-filter kpl. SK | 9631491 | $54.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Seal Vent duct | 10132501 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Filter frame Separator | 10132491 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Cover Interceptor LOWE SK | 10327091 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Cover Interceptor MART SK | 10327111 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Cover Interceptor OBSW SK | 10327131 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Cover Interceptor GRGR SK | 10327071 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Cover Interceptor TEBL SK | 10327081 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Strip | 9608131 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Bracket Electronic unit For Miele BLIZZARD CX1 SKCR3 SKCR3 | 9631603 | Not Available |
| 20 | | Genuine Miele Switch 1 pole 1681.3103 | 9023231 | $7.91Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Harness EDW CX1203/81 | 9739391 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Electronic unit EDW S16203/81 | 11256380 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | Not Available | undefined For Miele BLIZZARD CX1 SKCR3 SKCR3 | noop | Not Available |
| 60 | | Genuine Miele Motor Filter cleaning | 9889852 | $70.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Conv.kit cogwheel | 10523400 | $40.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Cap Rotary knob bedruckt | 9608892 | $70.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 85 | Not Available | undefined For Miele BLIZZARD CX1 SKCR3 SKCR3 | noop | Not Available |
| 90 | | Genuine Miele Leaf spring S8 | 7781641 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Foot switch On-off bedruckt | 9609071 | $22.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele Foot switch Cable reel bedruckt | 9609032 | $22.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | Not Available | Pushbutton Filter cleaning bedruckt For Miele BLIZZARD CX1 SKCR3 SKCR3 | 9608941 | Not Available |
| 130 | | Genuine Miele Rotary knob | 10523380 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Suction hose EFS kpl. SK | 9632453 | $54.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Tubular handle EFS OBSW assy | 12442080 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 |  | HES Telescopic Wand for Miele | 10615280 | $65.45Add to cart |
| 40 | | Genuine Miele ST Flex. crev. nozzle SFD20 560mm | 7252100 | $34.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Genuine Miele ST Universal brush SUB20 | 11607330 | $45.00Read more |
| 70 | | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $24.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele ST Radiator brush SHB30 | 9660490 | $30.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Upholstery nozzle 2K kompakt | 11322570 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $30.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Thread lifter | 5056530 | $7.49Add to cart Product is special order please allow 2-4 weeks for delivery. |
