Parts list and schematic diagram for Miele Models: QUICKSTEP mangorot, S194, QUICKSTEP mangorot Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.

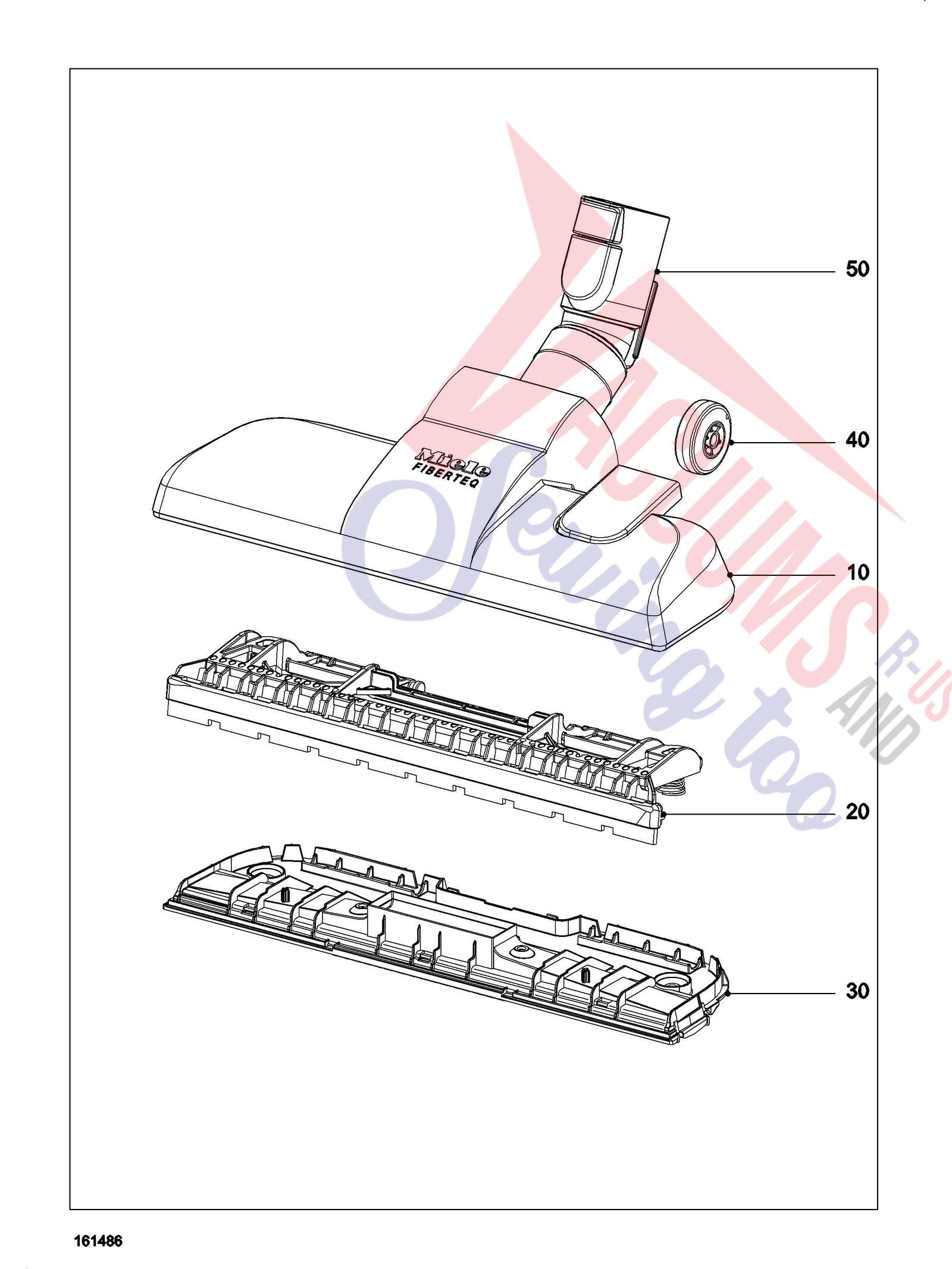

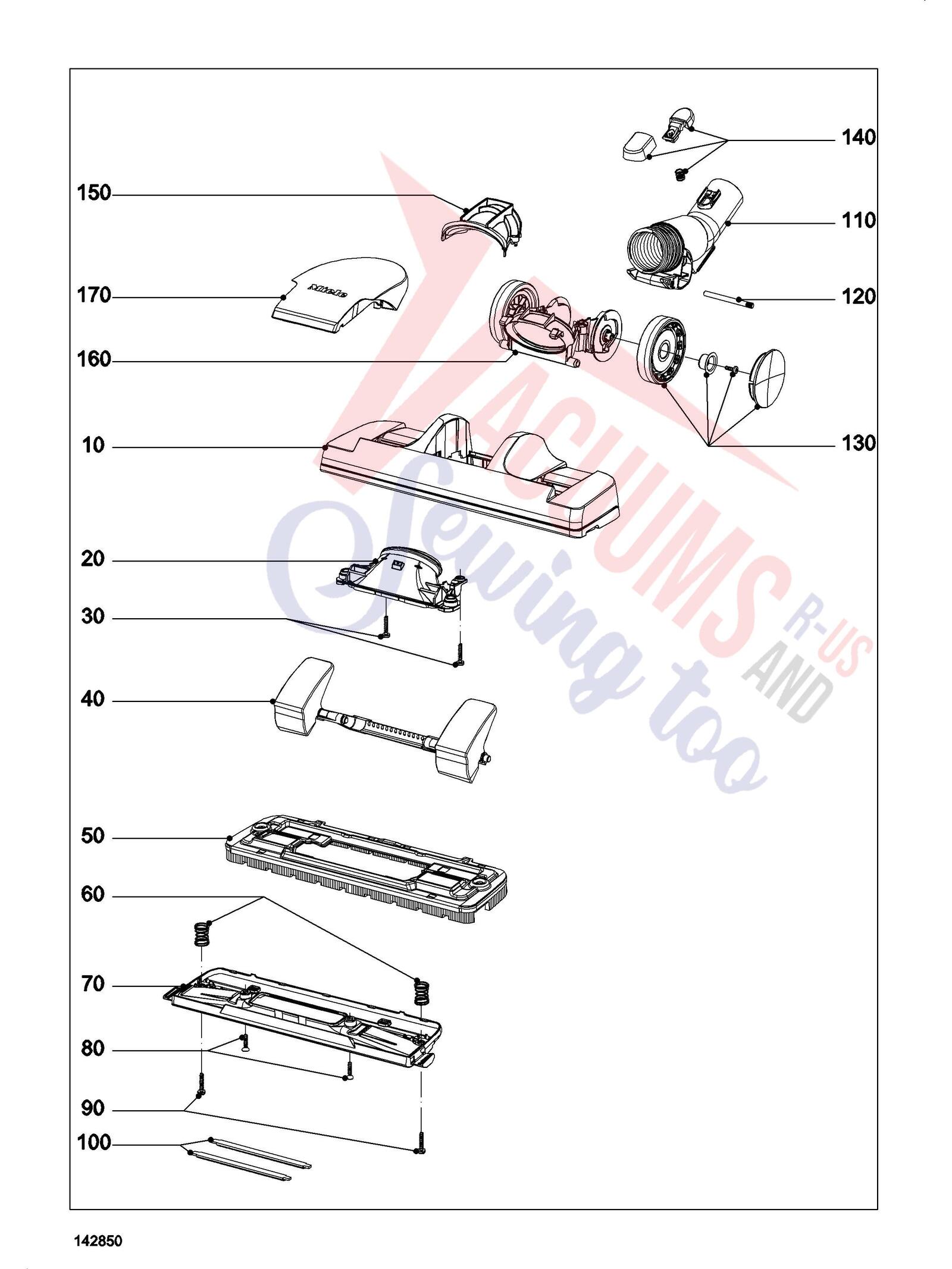

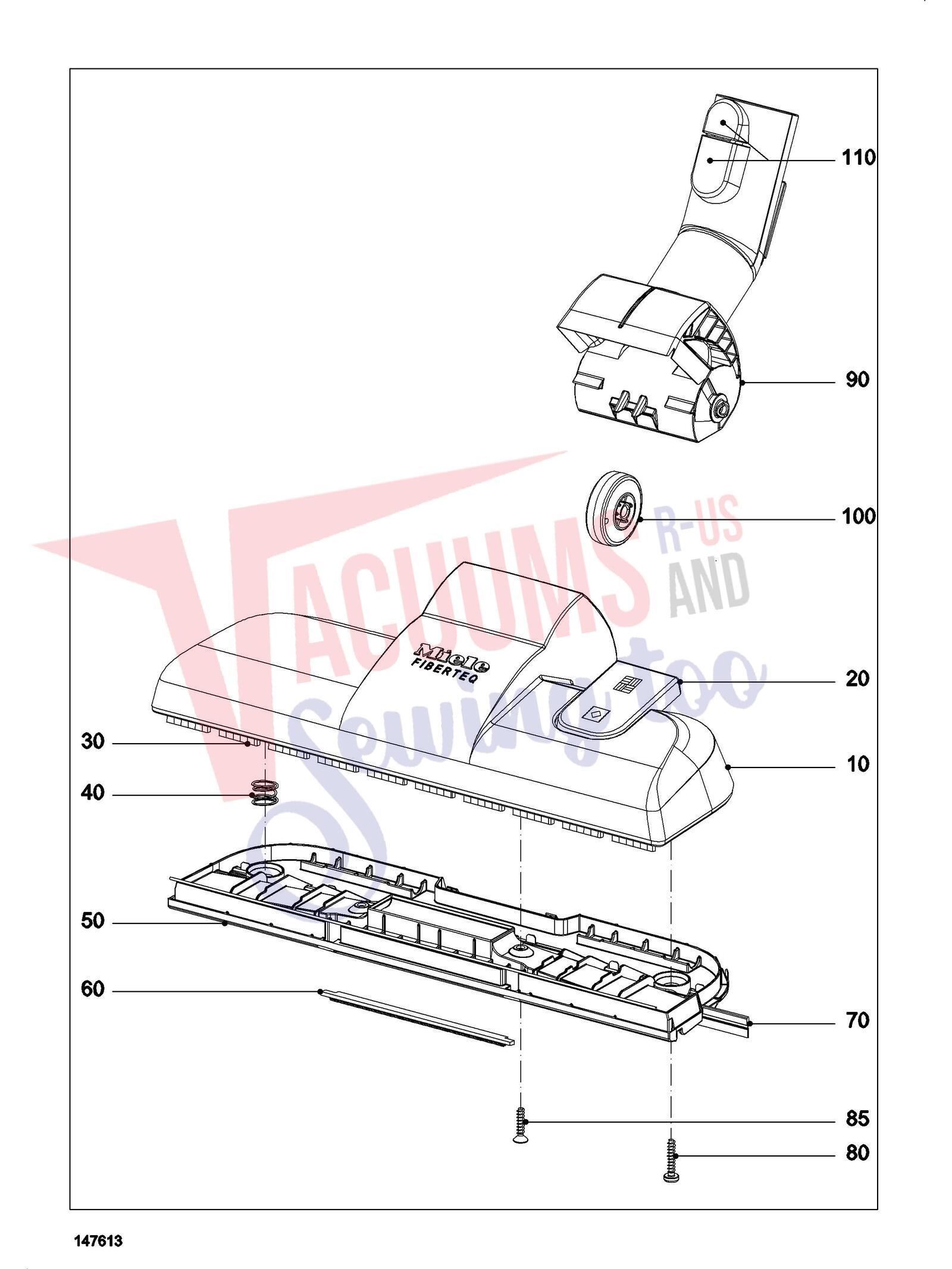

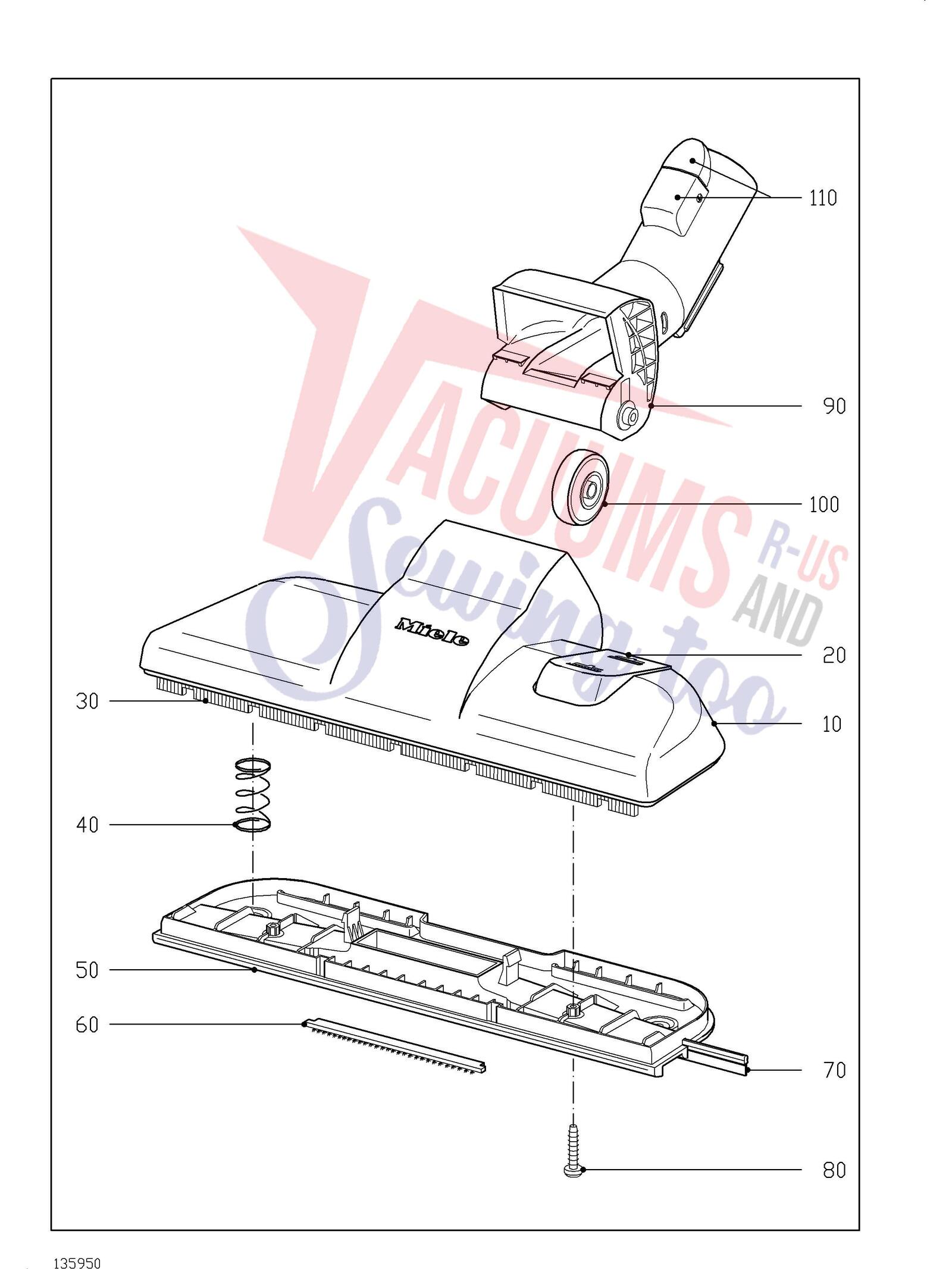

| # | Part image | Description | SKU | Price |
| xx |  | Genuine Miele FiberTeQ Floor nozzle SBD 355-3 | 10367830 | $73.53Read more |
| 20 | | Genuine Miele Bristle supp.plate | 7274680 | $54.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Lower section SBD350/55-3 | 7274701 | $40.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Support roller 2 Pcs. | 7516120 | $16.70Read more |
| 50 |  | Genuine Miele Swivel joint Component AZ | 12837660 | $30.74Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| xx | Not Available | undefined For Miele QUICKSTEP mangorot S194 | noop | Not Available |
| xx | Not Available | undefined For Miele QUICKSTEP mangorot S194 | 9017800 | Not Available |
| 10-110 | Not Available | Floor nozzle SBD470-3 FiberTeQ For Miele QUICKSTEP mangorot S194 | 9274750 | Not Available |
| 20 | | Genuine Miele Foot switch SBD350-3 | 7274671 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Bristle supp.plate | 7274680 | $54.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Coil spring 2 Pcs. | 5478660 | $18.00Read more |
| 50-70 | | Genuine Miele Lower section kpl. | 9010081 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | Not Available | -Thread lifter 2 Pcs. For Miele QUICKSTEP mangorot S194 | 7516080 | Not Available |
| 70 | | Genuine Miele Sealing strip SBD355 | 10242100 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | Not Available | --Screw 3,5x20 For Miele QUICKSTEP mangorot S194 | 7292290 | Not Available |
| 90-110 | | Genuine Miele Linkage | 7274641 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Support roller SBD350/355 | 10455370 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 |  | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| xx | Not Available | Top SBD470-3 For Miele QUICKSTEP mangorot S194 | 9316870 | Not Available |
| 10-110 | Not Available | Floor nozzle SBD470-3 FiberTeQ For Miele QUICKSTEP mangorot S194 | 9274750 | Not Available |
| 10-110 | Not Available | Floor nozzle SBD470-3 For Miele QUICKSTEP mangorot S194 | 10484833 | Not Available |
| 20 | | Genuine Miele Foot switch SBD470-3 | 9316890 | $30.74Read more |
| 30 | | Genuine Miele Bristle supp.plate SBD470-3 | 9316850 | $30.74Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | Coil spring SBD470-3 For Miele QUICKSTEP mangorot S194 | 9316860 | Not Available |
| 50 | Not Available | Lower section SBD470-3 For Miele QUICKSTEP mangorot S194 | 9316820 | Not Available |
| 60 | Not Available | Thread lifter 2 Pcs. For Miele QUICKSTEP mangorot S194 | 9340531 | Not Available |
| 70 | Not Available | Sealing strip SBD470-3 For Miele QUICKSTEP mangorot S194 | 9316840 | Not Available |
| 80 | Not Available | Raised head screw For Miele QUICKSTEP mangorot S194 | 9316920 | Not Available |
| 85 | Not Available | Low head screw For Miele QUICKSTEP mangorot S194 | 9316930 | Not Available |
| 90-110 | | Genuine Miele Linkage SBD470-3 | 9316900 | $65.11Read more |
| 100 | | Genuine Miele Support roller SBD470-3 | 9316910 | $18.00Read more |
| 110 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| xx | Not Available | undefined For Miele QUICKSTEP mangorot S194 | noop | Not Available |
| 10 | | Genuine Miele Top | 7874810 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10-170 | Not Available | Floor nozzle AirTeQ SBD650-3 For Miele QUICKSTEP mangorot S194 | 7879500 | Not Available |
| 20 | | Genuine Miele Fixing | 7874800 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Raised head screw 3,5x18 | 6269840 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 |  | Genuine Miele Foot switch Printed | 7874782 | $30.74Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | Genuine Miele Bristle supp.plate | 7874771 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | Not Available | Double cone spring For Miele QUICKSTEP mangorot S194 | 7874640 | Not Available |
| 70+100 | | Genuine Miele Lower section kpl. | 9010110 | $70.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $2.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Raised head screw 3,5x18 | 6269840 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 |  | Genuine Miele Thread lifter 2 Pcs. | 7898590 | $30.74Read more |
| 110+140 |  | Genuine Miele Linkage kpl. | 7874901 | $70.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Shaft | 7874910 | $6.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 | Not Available | Support roller For Miele QUICKSTEP mangorot S194 | 7898700 | Not Available |
| 140 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 | | Genuine Miele Suction channel top | 7874921 | $7.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 160 | | Genuine Miele Suction channel bottom | 7874823 | $11.98Read more |
| 170 | Not Available | Cover Printed For Miele QUICKSTEP mangorot S194 | 7874930 | Not Available |
| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Screw KA35X16 EJOT-PT | 4863580 | $2.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | undefined For Miele QUICKSTEP mangorot S194 | noop | Not Available |
| xx | | Genuine Miele Screw KA35X27 EJOT-PT | 3484490 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Floor plate SEB217 | 4929763 | $83.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Wheel 2 Pcs. | 4919170 | $25.32Read more |
| 30 |  | Genuine Miele Strip | 4929021 | $7.49Add to cart |
| 40 | | Genuine Miele Screw 2 Pcs. | 4919190 | $13.64Read more |

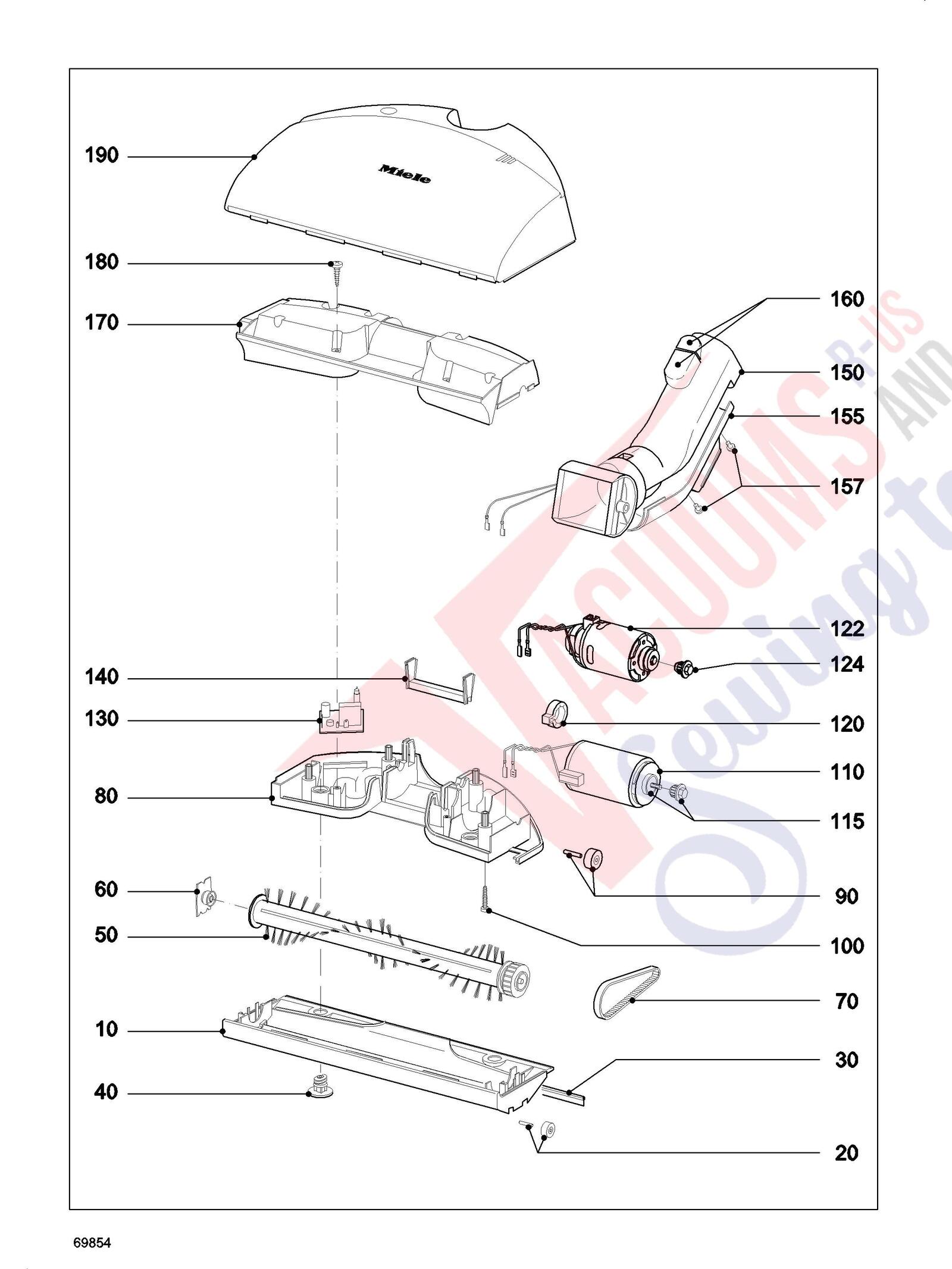

| 50+60 |  | Genuine Miele Brush roller | 4929740 | $90.72Add to cart |
| 60 |  | Genuine Miele Bearing plate 2 Pcs. | 4941340 | $18.00Add to cart |
| 70 |  | Genuine Miele Tooth belt | 4897760 | $25.32Add to cart |
| 80+90 | | Genuine Miele Lower section SEB217 | 4929771 | $65.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Wheel 2 Pcs. | 4919180 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | Not Available | undefined For Miele QUICKSTEP mangorot S194 | noop | Not Available |
| 110+115 | | Genuine Miele AC motor 100-120V | 5011271 | $155.25Read more |
| 115 |  | Genuine Miele Pinion | 6808920 | $18.00Add to cart |
| 120 | Not Available | Bearing For Miele QUICKSTEP mangorot S194 | 4929730 | Not Available |
| 122+124 | | Genuine Miele AC motor 100-120V | 6828100 | $155.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 124 | Not Available | undefined For Miele QUICKSTEP mangorot S194 | noop | Not Available |
| 130 |  | Reconditioned Miele SEB213 PC Board 100-120v PN: 5604210 | 5604210 | $39.99Add to cart |
| 140 | | Genuine Miele Cable duct | 4841770 | $18.00Read more |
| 150-160 | | Genuine Miele Linkage SEB217-3 | 9197521 | $83.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 155 | | Genuine Miele Lid SEB216-3,SEB217-3 | 6603810 | $30.74Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 157 | Not Available | undefined For Miele QUICKSTEP mangorot S194 | noop | Not Available |
| 160 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 170 | | Genuine Miele Cover anthracite | 4841731 | $47.37Read more |
| 180 | Not Available | undefined For Miele QUICKSTEP mangorot S194 | noop | Not Available |
| 190 | | Genuine Miele Top anthracite | 5604200 | $65.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| xx | Not Available | No spare part For Miele QUICKSTEP mangorot S194 | noop | Not Available |
| xx | Not Available | Thread lifter For Miele QUICKSTEP mangorot S194 | noop | Not Available |
| xx | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |

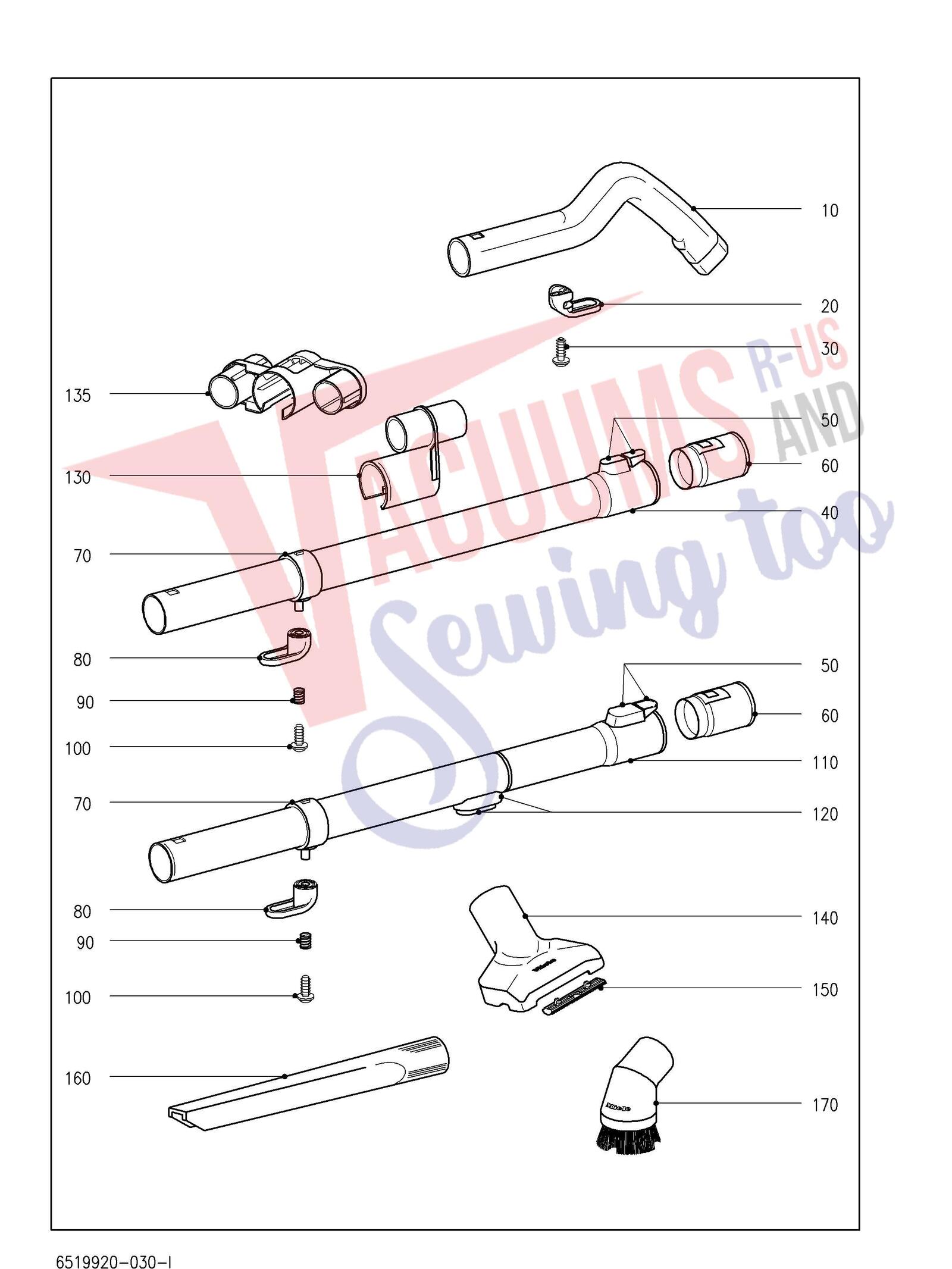

| xx | | Genuine Miele Tubular handle S163-S168 | 6527792 | $47.37Read more |
| 20 | | Genuine Miele Hook anthracite | 4718080 | $6.10Read more |
| 30 | Not Available | undefined For Miele QUICKSTEP mangorot S194 | noop | Not Available |
| 50+60+ | Not Available | For Miele QUICKSTEP mangorot S194 | noop | Not Available |
| 50 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Sleeve anthracite | 4718052 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Hook anthracite | 4718040 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Spring | 29289 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | Not Available | undefined For Miele QUICKSTEP mangorot S194 | noop | Not Available |
| 110+120 | | Genuine Miele Telescopic pipe ohne Haken f. Hand. | 5964482 | $90.72Read more |
| 120 | | Genuine Miele Push button Round | 5780932 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 | | Genuine Miele Bracket Accessory | 5455120 | $22.79Read more |
| 135 | | Genuine Miele Holder 3-piece accessory | 6423360 | $30.74Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 140+150 | | Genuine Miele Upholstery nozzle | 9442620 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 160 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 170 | | Genuine Miele Dusting brush L | 12187780 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |

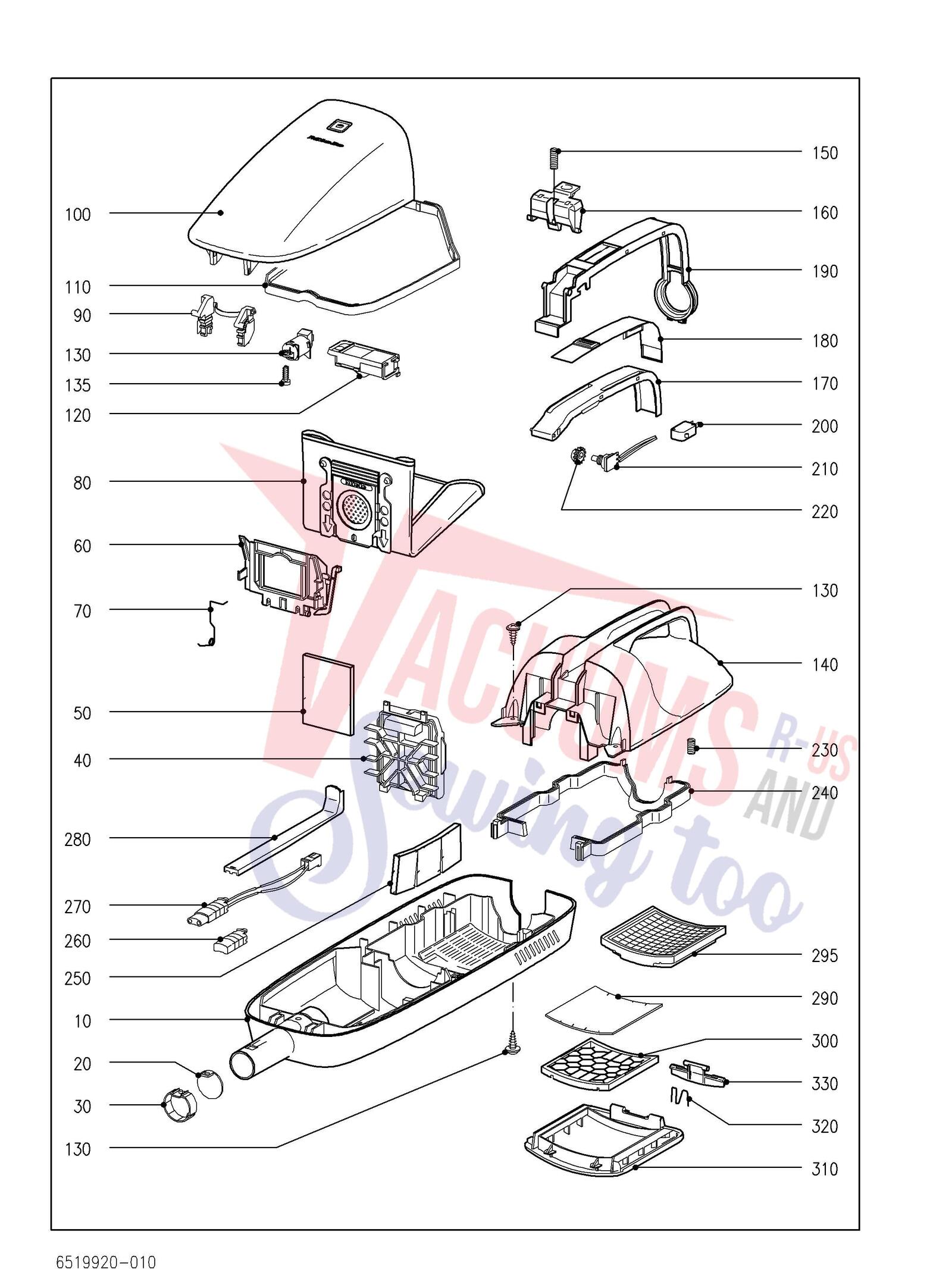

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Casing bottom Obsidian black | 9193521 | $160.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | Casing bottom Lotos white For Miele QUICKSTEP mangorot S194 | 7758242 | Not Available |
| xx | | Genuine Miele Casing bottom Sprint blue | 9193501 | $160.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | Casing bottom Canary yellow For Miele QUICKSTEP mangorot S194 | 9193511 | Not Available |
| xx | | Genuine Miele Casing bottom Chili red | 10809290 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | Casing bottom Graphite grey For Miele QUICKSTEP mangorot S194 | 10809320 | Not Available |
| xx | Not Available | undefined For Miele QUICKSTEP mangorot S194 | noop | Not Available |
| xx | Not Available | From mach.no 142578733 For Miele QUICKSTEP mangorot S194 | noop | Not Available |
| xx | | Genuine Miele Casing bottom Autumn red | 6535962 | $109.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Casing bottom Lava grey | 6535982 | $109.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | Up to mach.no 156513000 For Miele QUICKSTEP mangorot S194 | noop | Not Available |
| 20 | | Genuine Miele Flap | 1087860 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Bush anthracite | 4695090 | $2.71Read more |
| 40 | | Genuine Miele Filter frame S190er | 4695161 | $7.95Read more |
| 50 | | Genuine Miele Dust compart.filter 3 S140 | 4781420 | $13.64Read more |
| 60 | | Genuine Miele Bracket S190er | 4695085 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Torsion spring | 4774821 | $2.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | Not Available | vacuum cleaner bag KK HyClean For Miele QUICKSTEP mangorot S194 | 10123260 | Not Available |
| 90 | Not Available | Hinge anthracite For Miele QUICKSTEP mangorot S194 | 4715900 | Not Available |
| 100-120 | | Genuine Miele Dust compart.lid Autumn red | 10082552 | $83.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100-120 | | Genuine Miele Dust compart.lid Graphite grey | 10809341 | $97.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100-120 | | Genuine Miele Dust compart.lid Chili red | 10809311 | $97.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100-120 | | Genuine Miele Dust compart.lid Obsidian black | 10082461 | $70.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100-120 | | Genuine Miele Dust compart.lid Canary yellow | 10082492 | $83.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100-120 | | Genuine Miele Dust compart.lid Sprint blue | 10082511 | $70.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100-120 | | Genuine Miele Dust compart.lid Lava grey | 10082531 | $57.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100-120 | | Genuine Miele Dust compart.lid Lotos white | 10082481 | $57.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele Seal Dust compart.lid SA | 10706600 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Change filter ind. | 4715924 | $13.64Read more |
| 130 | | Genuine Miele Suction control | 5607611 | $30.74Read more |
| 135 | Not Available | --Raised head screw 3,5X10 For Miele QUICKSTEP mangorot S194 | 1816311 | Not Available |
| 140 | | Genuine Miele Casing top Graphite grey SA | 10682911 | $47.37Read more |
| 140 | | Genuine Miele Casing top Chili red 2 SA | 10713341 | $54.95Read more |
| 140 | Not Available | Casing top Obsidian black For Miele QUICKSTEP mangorot S194 | 9148921 | Not Available |
| 140 | Not Available | Casing top Canary yellow For Miele QUICKSTEP mangorot S194 | 9148901 | Not Available |
| 140 | Not Available | Casing top Sprint blue For Miele QUICKSTEP mangorot S194 | 9148891 | Not Available |
| 140 | Not Available | Casing top Lava grey For Miele QUICKSTEP mangorot S194 | 6486341 | Not Available |
| 140 | Not Available | Casing top Lotos white For Miele QUICKSTEP mangorot S194 | 7734911 | Not Available |
| 140 | | Genuine Miele Casing top Autumn red | 6486321 | $90.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 | | Genuine Miele Spring | 2733371 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 160 | | Genuine Miele SA Lock | 4703783 | $22.79Read more |
| 160 | | Genuine Miele Conversion kit Lock Swing | 10989130 | $11.98Read more |
| 170 | | Genuine Miele Cover strip anthracite | 4651950 | $16.70Read more |
| 180 | | Genuine Miele Slide 0-Min-Max | 6515921 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 190 | Not Available | Cover alu-silver For Miele QUICKSTEP mangorot S194 | 6527640 | Not Available |
| 200 | | Genuine Miele Switch 250V | 4664140 | $25.32Read more |
| 230 | Not Available | Spring For Miele QUICKSTEP mangorot S194 | 2924730 | Not Available |
| 240 | | Genuine Miele Seal | 4988401 | $13.64Read more |
| 250 | Not Available | Damping plate For Miele QUICKSTEP mangorot S194 | 4821850 | Not Available |
| 270 | | Genuine Miele Flush socket outlet 2 pole | 4760692 | $57.39Read more |
| 280 | | Genuine Miele Strip anthracite | 4695100 | $7.49Read more |
| 290 | Not Available | Air-Clean filter 3 pcs. For Miele QUICKSTEP mangorot S194 | 4781210 | Not Available |
| 295 | Not Available | Act.Air Cleanfilter SF-AAC10 For Miele QUICKSTEP mangorot S194 | 7496330 | Not Available |
| 295 | | Genuine Miele Filter SF-H10 AirClean Plus | 7364560 | $49.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 300 | | Genuine Miele Grille anthracite | 4695110 | $7.95Read more |
| 310-330 | | Genuine Miele Filter cap Autumn red | 6536140 | $40.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 310-330 | Not Available | Filter cap Lava grey For Miele QUICKSTEP mangorot S194 | 6536210 | Not Available |
| 310-330 | Not Available | Filter cap Sprint blue For Miele QUICKSTEP mangorot S194 | 9193530 | Not Available |
| 310-330 | Not Available | Filter cap Canary yellow For Miele QUICKSTEP mangorot S194 | 9193540 | Not Available |
| 310-330 | | Genuine Miele Filter cap Obsidian black | 9193550 | $40.34Read more |
| 310-330 | | Genuine Miele Filter cap Chili red | 10809300 | $54.95Read more |
| 310-330 | Not Available | Filter cap Graphite grey For Miele QUICKSTEP mangorot S194 | 10809330 | Not Available |
| 310-330 | Not Available | Filter cap Lotos white For Miele QUICKSTEP mangorot S194 | 7758191 | Not Available |
| 320 | | Genuine Miele Torsion spring | 5117270 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 320 | | Genuine Miele Torsion spring | 5117270 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 320 | Not Available | undefined For Miele QUICKSTEP mangorot S194 | 4814940 | Not Available |
| 330 | | Genuine Miele Lock | 4814951 | $4.27Read more |
| 330 | | Genuine Miele Lock | 4814951 | $4.27Read more |
| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Raised head screw 3,5X10 TORX T20 | 6238770 | $2.01Read more |
| xx | Not Available | For Miele QUICKSTEP mangorot S194 | noop | Not Available |
| xx | | Genuine Miele Cable holder | 7113160 | $2.24Add to cart Product is special order please allow 2-4 weeks for delivery. |

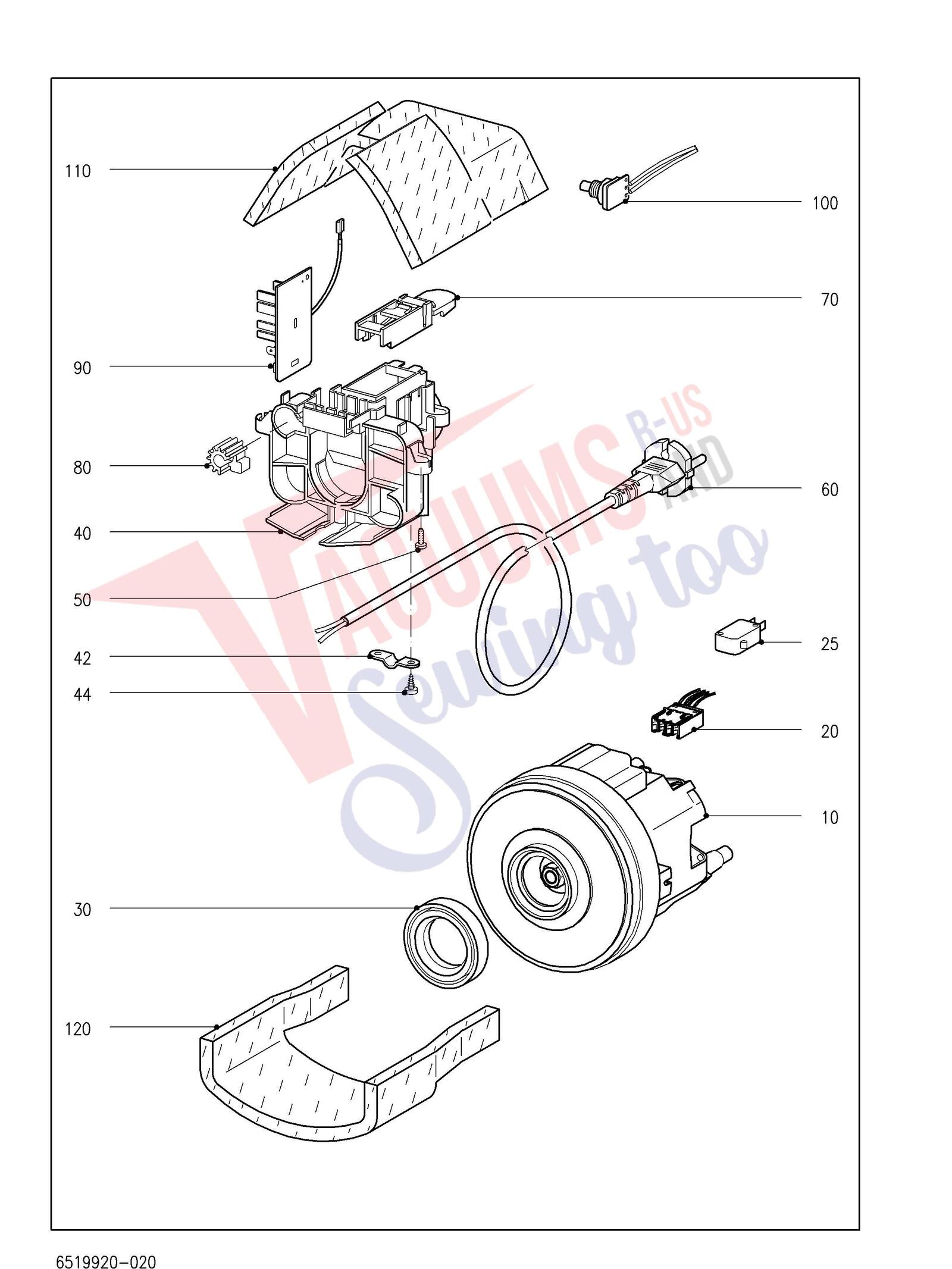

| 10 |  | Miele Motor Fan for H1 Upright Vacuums | 5420954 | $199.99Read more |
| 10 | | Genuine Miele Fan Mrg146-42/2 230V | 6471351 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20+25 | | Genuine Miele Connecting cable Swing m. Steckdose | 10509470 | $47.37Read more |
| 20+25 | | Genuine Miele Connecting cable Swing USA | 10509480 | $54.95Read more |
| 30 | | Genuine Miele Bearing ring | 4695150 | $22.79Read more |
| 40-44 | | Genuine Miele Motor bracket anthracite | 4880007 | $47.37Read more |
| 42 | | Genuine Miele Cable clamp | 5032020 | $13.64Read more |
| 44 | Not Available | undefined For Miele QUICKSTEP mangorot S194 | noop | Not Available |
| 50 | Not Available | undefined For Miele QUICKSTEP mangorot S194 | noop | Not Available |
| 52 | | Genuine Miele Plug housing | 4664131 | $7.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 | Not Available | Terminal block 2 POL. For Miele QUICKSTEP mangorot S194 | 75448 | Not Available |
| 56 | | Genuine Miele insulating piece | 4715970 | $4.27Read more |
| 60 | | Genuine Miele Supply cable 8,50m 120V USA | 6731242 | $59.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Lever | 5396811 | $13.64Read more |
| 80 | | Genuine Miele Rubber cushion black | 3928380 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Electronic unit EDL140/81 120V 60HZ | 6715691 | $77.69Read more |
| 90 | | Genuine Miele Electronic unit EDL140 230V 50HZ | 6715681 | $57.39Read more |
| 110+120 | | Genuine Miele Damping plate | 4816470 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
Report errors on this page HERE
