Parts list and schematic diagram for Miele Models: S 510, S510 Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
Popular Supplies
| # | Part image | Description | SKU | Price |
| xx | Not Available | undefined For Miele S 510 S510 | noop | Not Available |
| 10 |  | Genuine Miele Top anthracite | 5235512 | $25.32Read more |
| 10-80+ | Not Available | For Miele S 510 S510 | noop | Not Available |
| 10-80+ | Not Available | For Miele S 510 S510 | noop | Not Available |
| 10-80+ | Not Available | For Miele S 510 S510 | noop | Not Available |
| 10-70+ | Not Available | For Miele S 510 S510 | noop | Not Available |
| 10-70+ | Not Available | For Miele S 510 S510 | noop | Not Available |
| 10-70+ | Not Available | For Miele S 510 S510 | noop | Not Available |
| 20 | | Genuine Miele Suction channel anthracite | 5235541 | $22.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Foot switch anthracite | 5235503 | $13.64Read more |
| 40 | | Genuine Miele Fixing | 5235480 | $7.49Read more |
| 50 | | Genuine Miele Bristle supp.plate | 5235463 | $30.74Read more |
| 60 | | Genuine Miele Spring 2 Pcs. | 4818720 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70+81 | | Genuine Miele Lower section | 5235453 | $40.34Read more |
| 80 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |

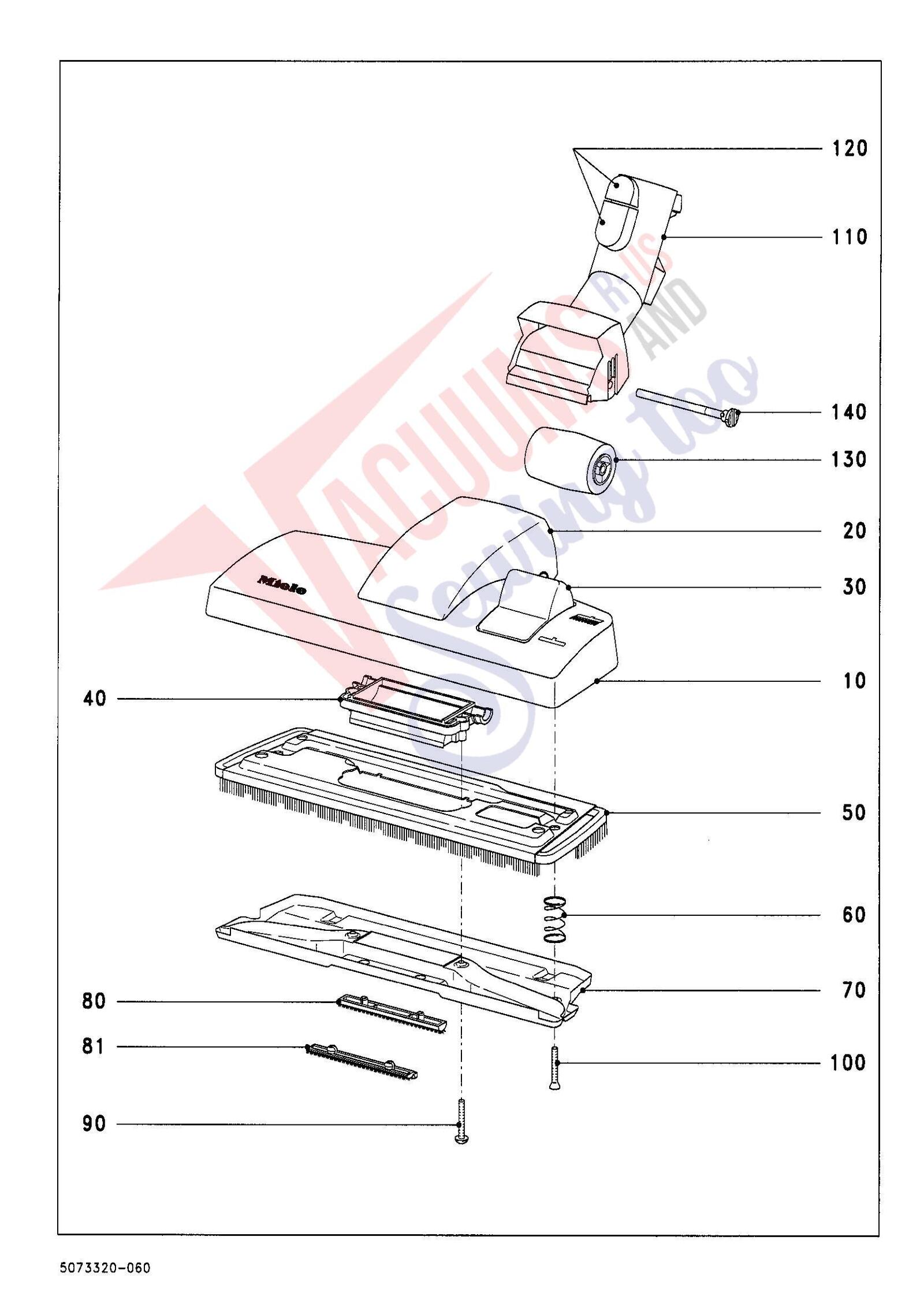

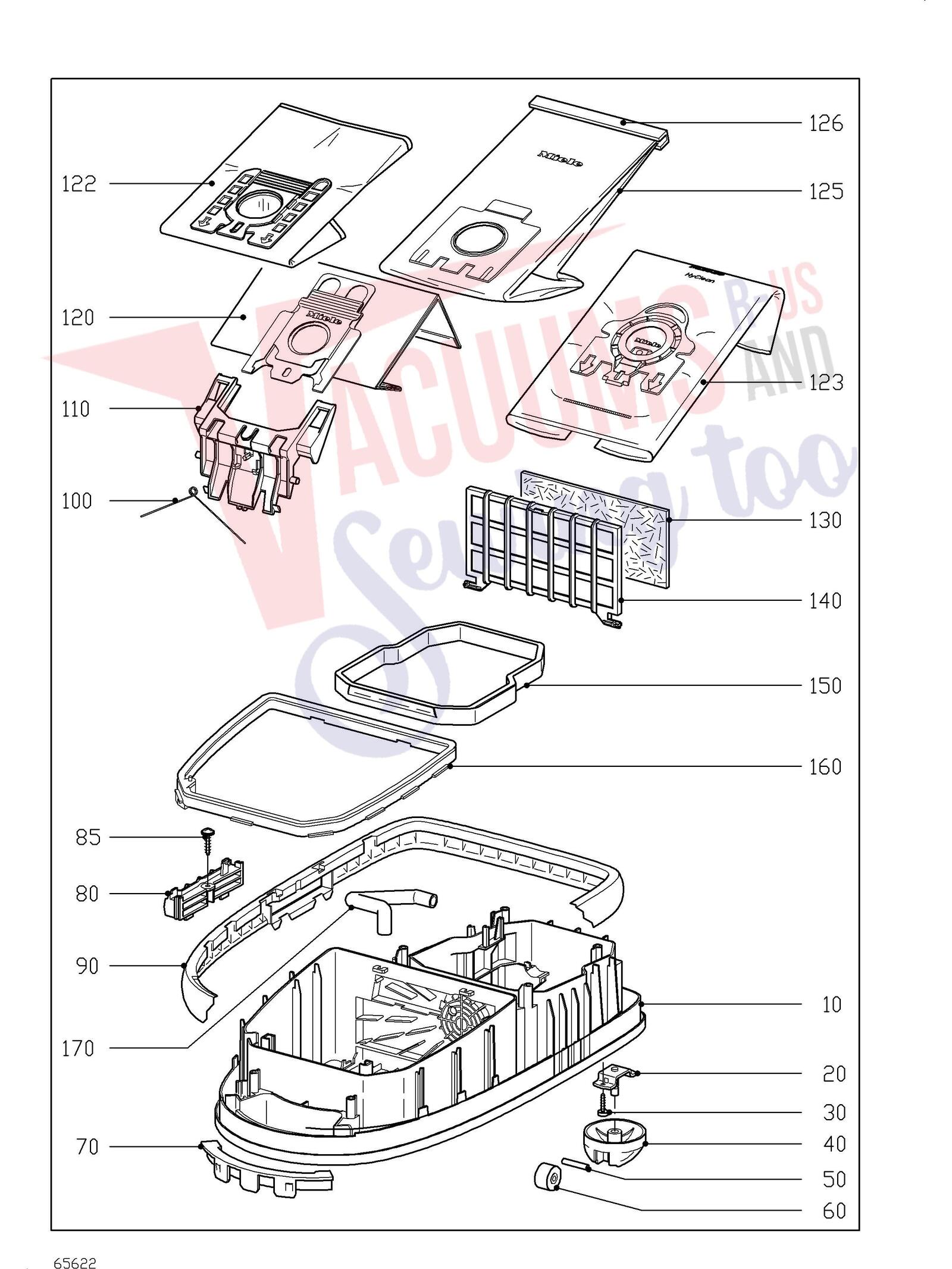

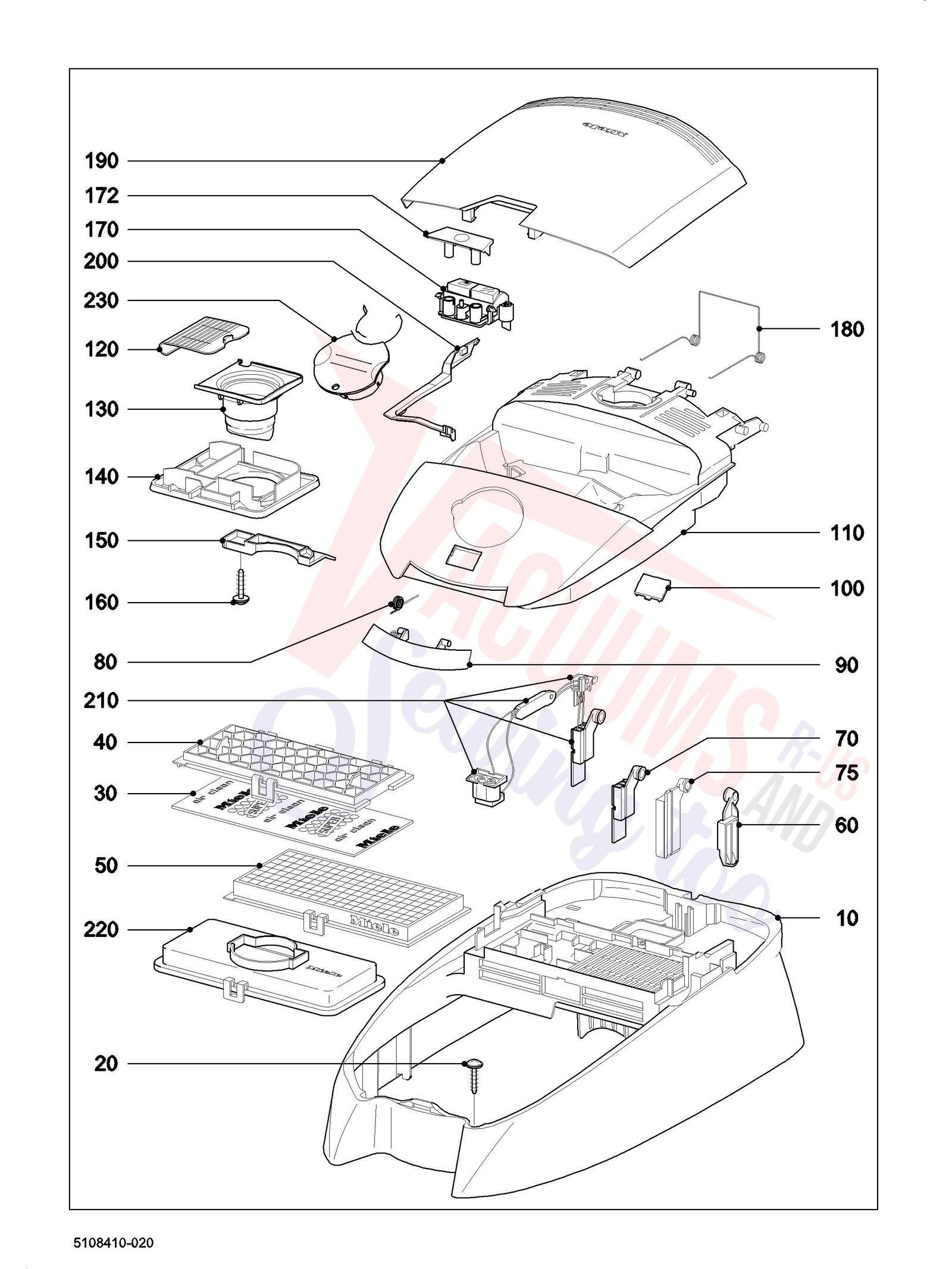

| 81-140 | Not Available | Floor nozzle SBD285-2 AllTeQ For Miele S 510 S510 | 7253820 | Not Available |
| 81 | | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $22.79Read more |
| 90 | | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $2.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | Not Available | --Countersunk screw 35X20 For Miele S 510 S510 | 5289870 | Not Available |
| 110+120 | | Genuine Miele Linkage anthracite | 5235552 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 | | Genuine Miele Support roller | 5235530 | $13.64Read more |
| 140 | | Genuine Miele Shaft Bayonett fitting | 5235520 | $11.98Read more |
| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | Cable reel For Miele S 510 S510 | noop | Not Available |
| xx | Not Available | Casing bottom For Miele S 510 S510 | noop | Not Available |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | From mach.no 43/ For Miele S 510 S510 | noop | Not Available |
| xx | | Genuine Miele Casing bottom anthracite | 5266835 | $97.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $7.49Read more |
| 30 | Not Available | undefined For Miele S 510 S510 | noop | Not Available |
| 40-60 | | Genuine Miele Slide skid assy | 10459340 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40-60 | | Genuine Miele Slide skid assy | 10459340 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Grip handle anthracite | 5088880 | $6.10Read more |
| 80 | | Genuine Miele Suspension Telescopic pipe | 6855820 | $6.10Read more |
| 80 | | Genuine Miele Suspension anthracite | 5088800 | $6.10Read more |
| 85 | Not Available | undefined For Miele S 510 S510 | noop | Not Available |
| 90 | | Genuine Miele Buffer | 5088850 | $40.34Read more |
| 100 | | Genuine Miele Torsion spring | 5088960 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 |  | Miele Bag Bracket to fit C2 and S6 | WP11830 | $30.00Add to cart |
| 123 |  | Aftermarket Miele FJM Bags 5pk with Filters | WP10969 | $14.99Add to cart |
| 123 |  | Miele HEPA Vacuum Bags Type FJM - 4pk | 4002515578964 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 123 |  | Miele HEPA Vacuum Bags Type FJM - 8pk | 10455190 | $44.99Read more |
| 125+126 | Not Available | Cloth filter bag S227-S858 For Miele S 510 S510 | 5188842 | Not Available |
| 126 | | Genuine Miele Lock | 1058641 | $18.00Read more |
| 130 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 140 | | Genuine Miele Filter frame | 5117170 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 | | Genuine Miele Seal | 5088860 | $16.70Read more |
| 160 | | Genuine Miele Sealing ring | 5088870 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 170 | | Genuine Miele Hose | 5088980 | $13.64Read more |
| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Genuine Miele Cover frame Royal blue of 2 Parking | 5223522 | $83.51Read more |
| 10 | Not Available | Cover frame tropical green For Miele S 510 S510 | 5223572 | Not Available |
| 10 | Not Available | Cover frame Mint green of 2 Parking For Miele S 510 S510 | 5223532 | Not Available |
| 10 | Not Available | Cover frame brick red of 2 Parking For Miele S 510 S510 | 5223512 | Not Available |
| 10 | | Genuine Miele Cover frame Indian red of 2 Parking | 5982392 | $83.51Read more |
| 20 | Not Available | undefined For Miele S 510 S510 | noop | Not Available |
| 30 | | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $11.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Grille anthracite | 5089130 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | Aftermarket Miele AH-30 HEPA Filter | 54236207 | $22.00Add to cart |
| 50 | | Miele ActiveAir Clean Filter SF-AA30 | 9616080 | $39.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | HEPA AirClean filter withTimeStrip SF-HA30 | 4002515315606 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Genuine Miele Hinge left anthracite | 5089000 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | Not Available | Hinge For Miele S 510 S510 | noop | Not Available |
| 80 | | Genuine Miele Torsion spring | 5108160 | $7.95Read more |
| 90 | | Genuine Miele Lock anthracite | 5089024 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | Not Available | Fascia panel brick red For Miele S 510 S510 | 5184991 | Not Available |
| 100 | Not Available | Fascia panel Royal blue For Miele S 510 S510 | 5185011 | Not Available |
| 100 | Not Available | Fascia panel Mint green For Miele S 510 S510 | 5185031 | Not Available |
| 100 | Not Available | Fascia panel sun yellow For Miele S 510 S510 | 5185051 | Not Available |
| 100 | Not Available | Fascia panel tropical green For Miele S 510 S510 | 5185101 | Not Available |
| 110 | Not Available | Casing top tropical green For Miele S 510 S510 | 5184832 | Not Available |
| 110 | Not Available | Casing top sun yellow For Miele S 510 S510 | 5184772 | Not Available |
| 110 | | Genuine Miele Casing top deep black | 5184862 | $90.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele Casing top Royal blue | 5184632 | $90.72Read more |
| 110 | | Genuine Miele Casing top deep black | 5184862 | $90.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Coupler link anthracite | 5091021 | $2.71Read more |
| 130 | | Genuine Miele Slide sleeve anthracite | 5089043 | $7.95Read more |
| 140 | | Genuine Miele Dust channel anthracite | 5089011 | $11.98Read more |
| 150 | | Genuine Miele Holder Dust channel | 5223481 | $4.27Read more |
| 160 | Not Available | undefined For Miele S 510 S510 | noop | Not Available |
| 170+172 | | Genuine Miele Change filter ind. vollst. | 5089055 | $30.74Read more |
| 172 | | Genuine Miele interlock | 5089091 | $7.49Read more |
| 180 | | Genuine Miele Torsion spring | 5124520 | $4.27Read more |
| 190 | | Genuine Miele Lid deep black | 5271302 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 190 | | Genuine Miele Lid Royal blue | 5271212 | $47.37Read more |
| 190 | Not Available | Lid tropical green For Miele S 510 S510 | 5271282 | Not Available |
| 190 | | Genuine Miele Lid deep black | 5271302 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 190 | Not Available | Lid Mint green For Miele S 510 S510 | 5271222 | Not Available |
| 220 | | Genuine Miele Blower plate | 5109310 | $18.00Read more |

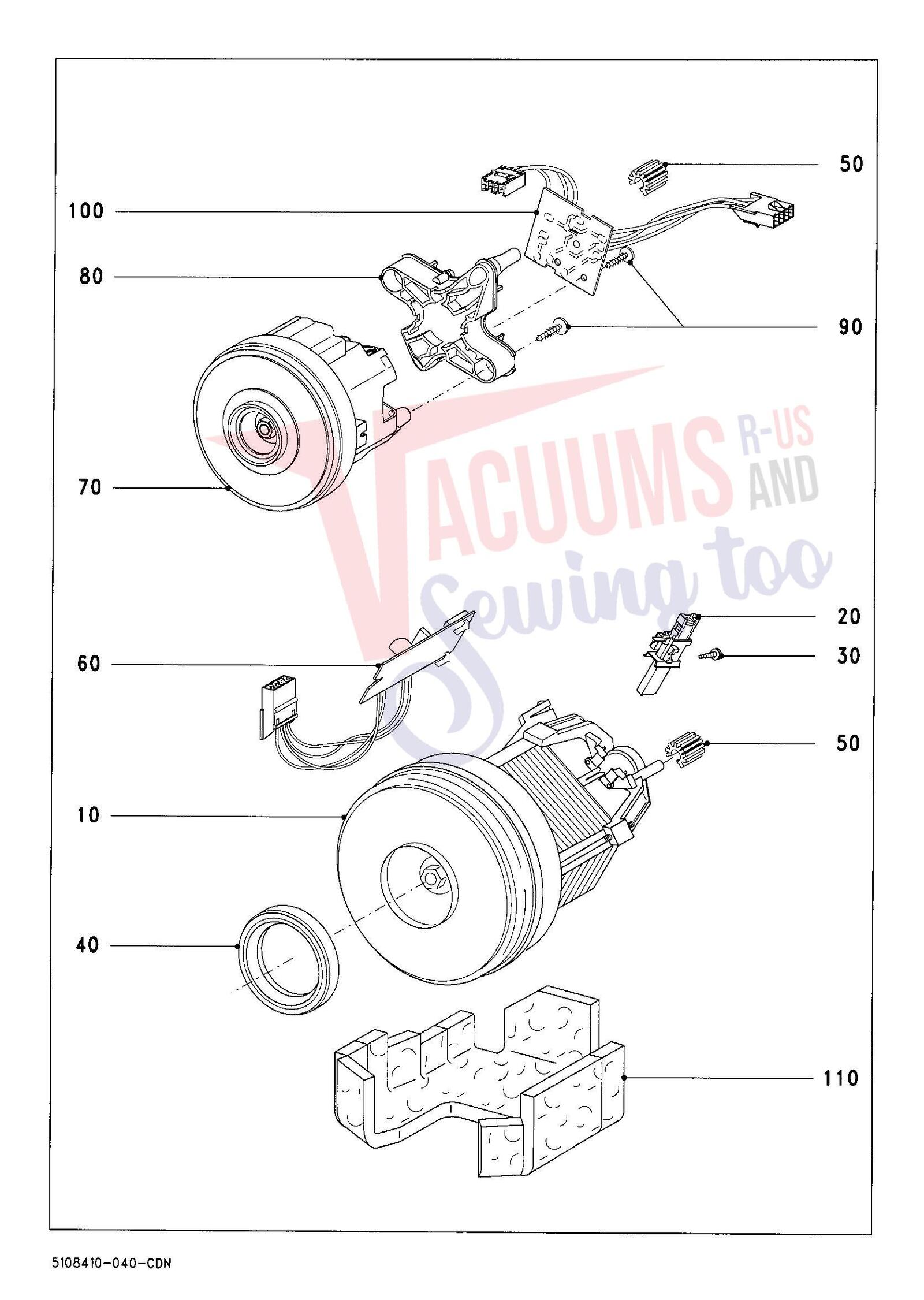

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Raised head screw 3,9X9,5 | 3903441 | $0.00Read more |
| xx | Not Available | Fan Mrg44-43/2 230V For Miele S 510 S510 | 5093951 | Not Available |
| 20 | Not Available | Carbon brush 2 Pcs. For Miele S 510 S510 | 5419810 | Not Available |
| 30 | Not Available | undefined For Miele S 510 S510 | noop | Not Available |
| 40 | | Genuine Miele Bearing ring | 5089170 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Rubber cushion | 5089190 | $6.10Read more |
| 62 | Not Available | Electronic unit For Miele S 510 S510 | noop | Not Available |
| 70 | | Genuine Miele Fan Mrg722/81-42/2 120V | 5709492 | $101.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80-100 | | Genuine Miele Electronic unit EDL7161/81 vollst. | 6836741 | $109.64Read more |
| 90 | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | Not Available | Conv.kit fan S700In addition to this spare part, the next-listed part is also required. For Miele S 510 S510 | 10126311 | Not Available |
| 110 | | Genuine Miele Damping plate | 5088890 | $7.95Read more |

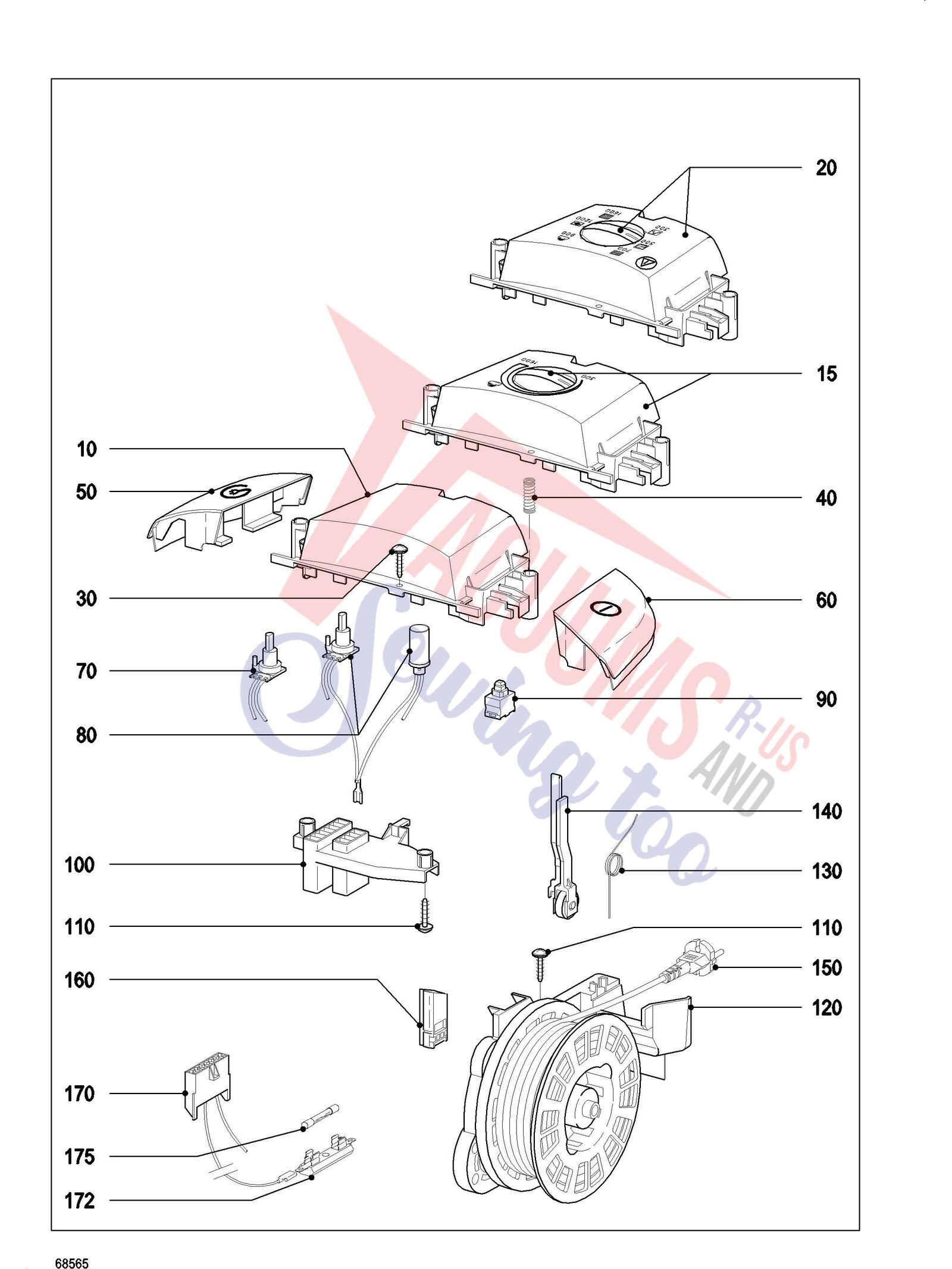

| # | Part image | Description | SKU | Price |
| xx | Not Available | Plug housing For Miele S 510 S510 | noop | Not Available |
| xx | Not Available | Cable reel For Miele S 510 S510 | noop | Not Available |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | --Raised head screw 4,0X14 For Miele S 510 S510 | 6498750 | Not Available |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | undefined For Miele S 510 S510 | noop | Not Available |
| 40 | | Genuine Miele Spring | 2733371 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Foot switch right (Relaunch) | 7737071 | $7.49Read more |
| 60 | | Genuine Miele Foot switch left (Relaunch) | 7737081 | $7.49Read more |
| 70 | Not Available | Potentiometer For Miele S 510 S510 | noop | Not Available |
| 90 | | Genuine Miele Switch 1 pole 1681.3103 | 9023231 | $7.91Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 |  | Genuine Miele Plug housing | 5090752 | $58.67Add to cart |
| 110 | Not Available | undefined For Miele S 510 S510 | noop | Not Available |
| 120-150 | | Genuine Miele Cable reel S500 7,3M 230V EU | 5093723 | $159.71Read more |
| 130 | | Genuine Miele Torsion spring S300-S5000 | 6217500 | $6.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 | Not Available | -Torsion spring KS 131 For Miele S 510 S510 | 4305810 | Not Available |
| 140 | Not Available | undefined For Miele S 510 S510 | 4312183 | Not Available |
| 150 | Not Available | -Supply cable 7,50m For Miele S 510 S510 | 5290790 | Not Available |
| 160 | Not Available | Bush anthracite For Miele S 510 S510 | 5065580 | Not Available |
| 170 | Not Available | Connecting cable For Miele S 510 S510 | noop | Not Available |
| # | Part image | Description | SKU | Price |
| xx | Not Available | No spare part For Miele S 510 S510 | noop | Not Available |
| xx | Not Available | Thread lifter For Miele S 510 S510 | noop | Not Available |

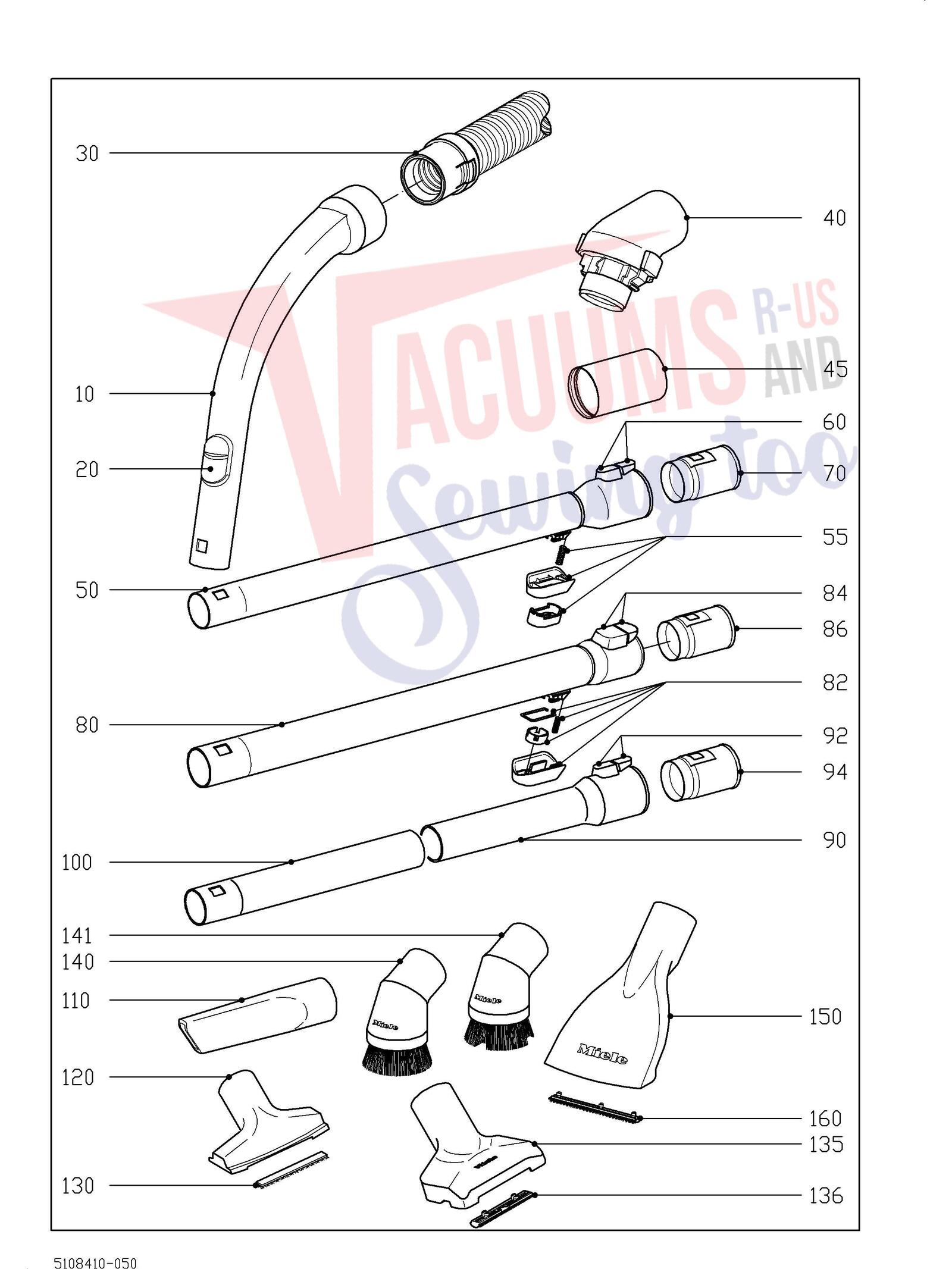

| xx | Not Available | Suction hose S500/S600 For Miele S 510 S510 | 5269604 | Not Available |
| 10+20 | | Genuine Miele Tubular handle anthracite | 9442601 | $27.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Suction control anthracite | 5141090 | $10.99Read more |
| 30 | | Genuine Miele Suction hose silver-coloured 1,8m | 5230830 | $50.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | undefined For Miele S 510 S510 | 5108111 | Not Available |
| 45 | Not Available | Connecting tube Suction hose For Miele S 510 S510 | 5527410 | Not Available |
| 90-94 | | Genuine Miele Suction pipe top stainless steel | 9266001 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 92 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 92+94 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Suction pipe top stainless steel | 9266001 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 135+136 | | Genuine Miele Upholstery nozzle | 9442620 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 136 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 141 | | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $24.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150+160 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $30.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 160 | | Genuine Miele Thread lifter | 5056530 | $7.49Add to cart Product is special order please allow 2-4 weeks for delivery. |
