Parts list and schematic diagram for Miele Models: S 534, S534 Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
Popular Supplies

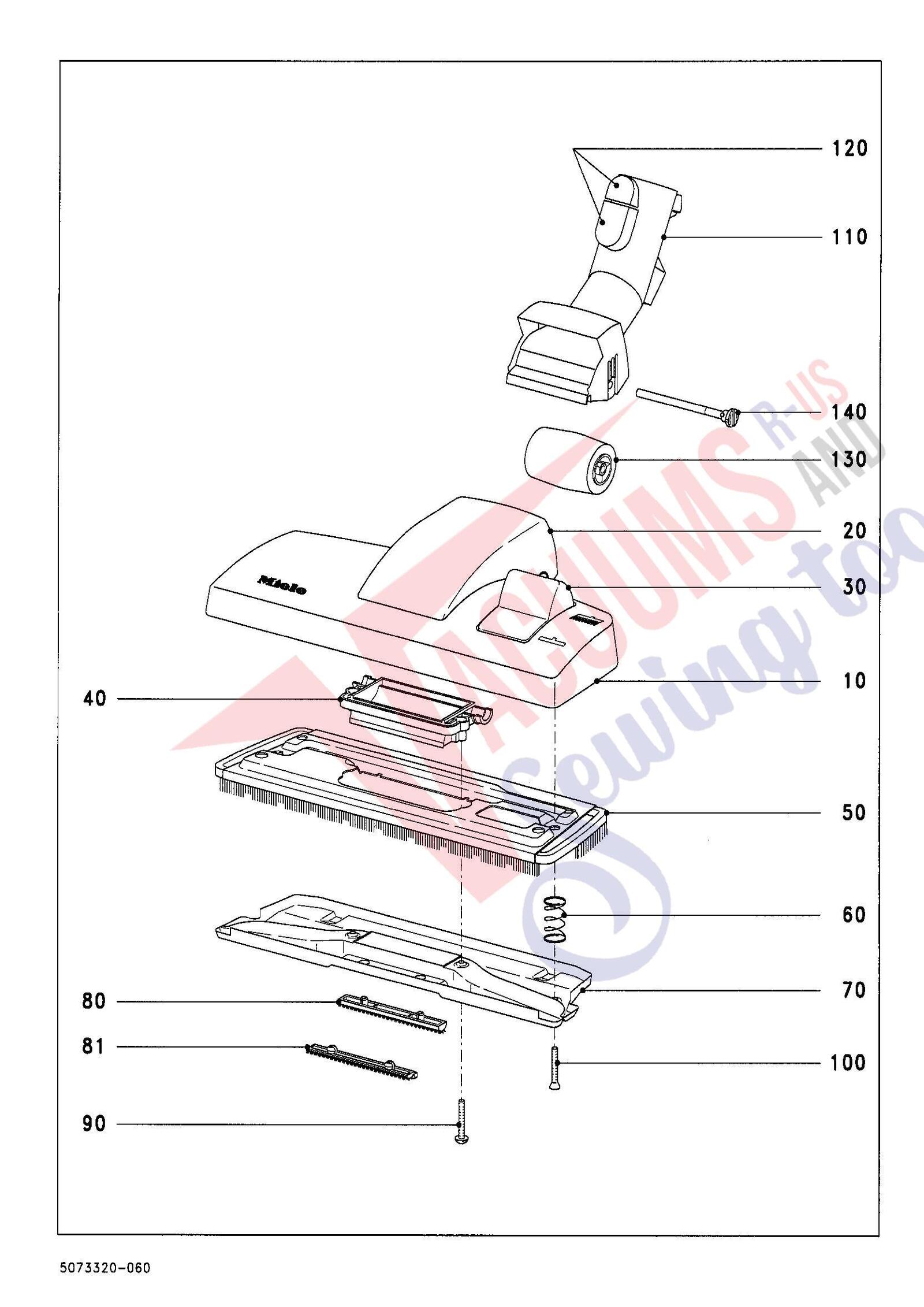

| # | Part image | Description | SKU | Price |
| xx | Not Available | undefined For Miele S 534 S534 | noop | Not Available |
| xx | Not Available | For Miele S 534 S534 | noop | Not Available |
| 10 |  | Genuine Miele Top anthracite | 5235512 | $25.32Read more |
| 10-80+ | Not Available | For Miele S 534 S534 | noop | Not Available |
| 10-80+ | Not Available | For Miele S 534 S534 | noop | Not Available |
| 10-80+ | Not Available | For Miele S 534 S534 | noop | Not Available |
| 10-70+ | Not Available | For Miele S 534 S534 | noop | Not Available |
| 10-70+ | Not Available | For Miele S 534 S534 | noop | Not Available |
| 10-70+ | Not Available | For Miele S 534 S534 | noop | Not Available |
| 20 | | Genuine Miele Suction channel anthracite | 5235541 | $22.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Foot switch anthracite | 5235503 | $13.64Read more |
| 40 | | Genuine Miele Fixing | 5235480 | $7.49Read more |
| 50 | | Genuine Miele Bristle supp.plate | 5235463 | $30.74Read more |
| 60 | | Genuine Miele Spring 2 Pcs. | 4818720 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70+81 | | Genuine Miele Lower section | 5235453 | $40.34Read more |
| 80 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 81 | | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $22.79Read more |
| 81-140 | Not Available | Floor nozzle SBD285-2 AllTeQ For Miele S 534 S534 | 7253820 | Not Available |
| 90 | | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $2.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | Not Available | --Countersunk screw 35X20 For Miele S 534 S534 | 5289870 | Not Available |
| 110+120 | | Genuine Miele Linkage anthracite | 5235552 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 | | Genuine Miele Support roller | 5235530 | $13.64Read more |
| 140 | | Genuine Miele Shaft Bayonett fitting | 5235520 | $11.98Read more |

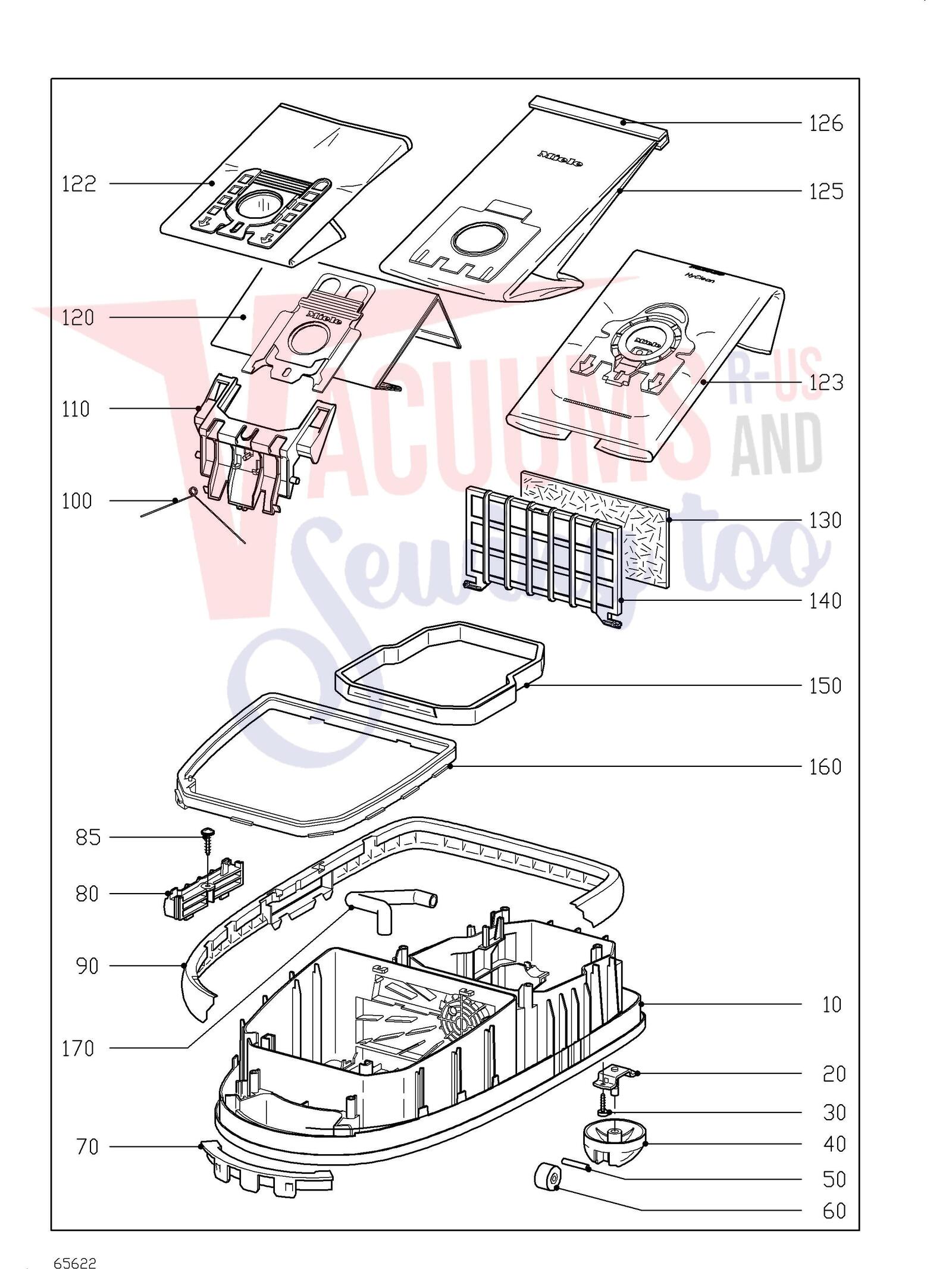

| # | Part image | Description | SKU | Price |
| xx | Not Available | Cable reel For Miele S 534 S534 | noop | Not Available |
| xx | Not Available | Casing bottom For Miele S 534 S534 | noop | Not Available |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Casing bottom anthracite | 5266835 | $97.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $7.49Read more |
| 30 | Not Available | undefined For Miele S 534 S534 | noop | Not Available |
| 40-60 | | Genuine Miele Slide skid assy | 10459340 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40-60 | | Genuine Miele Slide skid assy | 10459340 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Grip handle anthracite | 5088880 | $6.10Read more |
| 80 | | Genuine Miele Suspension anthracite | 5088800 | $6.10Read more |
| 85 | Not Available | undefined For Miele S 534 S534 | noop | Not Available |
| 90 | | Genuine Miele Buffer | 5088850 | $40.34Read more |
| 100 | | Genuine Miele Torsion spring | 5088960 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 |  | Miele Bag Bracket to fit C2 and S6 | WP11830 | $30.00Add to cart |
| 123 |  | Aftermarket Miele FJM Bags 5pk with Filters | WP10969 | $14.99Add to cart |
| 123 |  | Miele HEPA Vacuum Bags Type FJM - 4pk | 4002515578964 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 123 |  | Miele HEPA Vacuum Bags Type FJM - 8pk | 10455190 | $44.99Read more |
| 125+126 | Not Available | Cloth filter bag S227-S858 For Miele S 534 S534 | 5188842 | Not Available |
| 126 | | Genuine Miele Lock | 1058641 | $18.00Read more |
| 130 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 140 | | Genuine Miele Filter frame | 5117170 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 | | Genuine Miele Seal | 5088860 | $16.70Read more |
| 160 | | Genuine Miele Sealing ring | 5088870 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 170 | | Genuine Miele Hose | 5088980 | $13.64Read more |

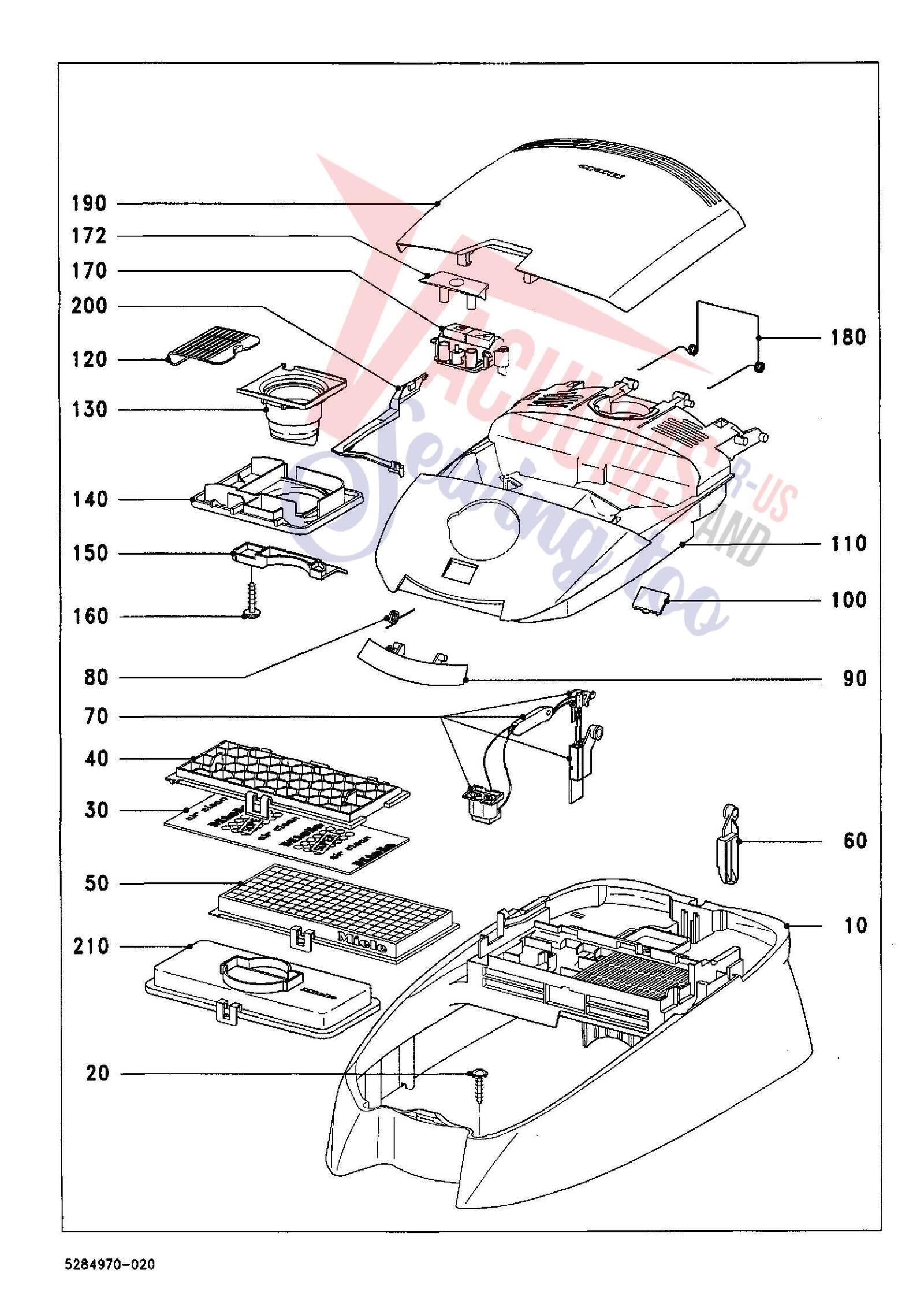

| # | Part image | Description | SKU | Price |
| xx | Not Available | For Miele S 534 S534 | noop | Not Available |
| xx | Not Available | For Miele S 534 S534 | noop | Not Available |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Genuine Miele Cover frame Achat grey metallic of 2 Par | 5752592 | $109.64Read more |
| 10 | Not Available | Cover frame blue/green For Miele S 534 S534 | 5323171 | Not Available |
| 20 | Not Available | undefined For Miele S 534 S534 | noop | Not Available |
| 30 | | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $11.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Grille anthracite | 5089130 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Miele ActiveAir Clean Filter SF-AA30 | 9616080 | $39.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | HEPA AirClean filter withTimeStrip SF-HA30 | 4002515315606 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | Aftermarket Miele AH-30 HEPA Filter | 54236207 | $22.00Add to cart |
| 60 | | Genuine Miele Hinge left anthracite | 5089000 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Torsion spring | 5108160 | $7.95Read more |
| 90 | | Genuine Miele Lock anthracite | 5089024 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Cap anthracite | 5089032 | $2.71Read more |
| 110 | Not Available | Casing top blue/green For Miele S 534 S534 | 5322950 | Not Available |
| 110 | Not Available | Casing top opal green For Miele S 534 S534 | 5585482 | Not Available |
| 120 | | Genuine Miele Coupler link anthracite | 5091021 | $2.71Read more |
| 130 | | Genuine Miele Slide sleeve anthracite | 5089043 | $7.95Read more |
| 140 | | Genuine Miele Dust channel anthracite | 5089011 | $11.98Read more |
| 150 | | Genuine Miele Holder Dust channel | 5223481 | $4.27Read more |
| 160 | Not Available | undefined For Miele S 534 S534 | noop | Not Available |
| 170+172 | | Genuine Miele Change filter ind. vollst. | 5089055 | $30.74Read more |
| 172 | | Genuine Miele interlock | 5089091 | $7.49Read more |
| 180 | | Genuine Miele Torsion spring | 5124520 | $4.27Read more |
| 190 | Not Available | Lid opal green For Miele S 534 S534 | 5654742 | Not Available |
| 190 | Not Available | Lid blue/green For Miele S 534 S534 | 5334202 | Not Available |
| 200 | | Genuine Miele Cover strip anthracite | 5108170 | $2.01Read more |
| 210 | | Genuine Miele Blower plate | 5109310 | $18.00Read more |

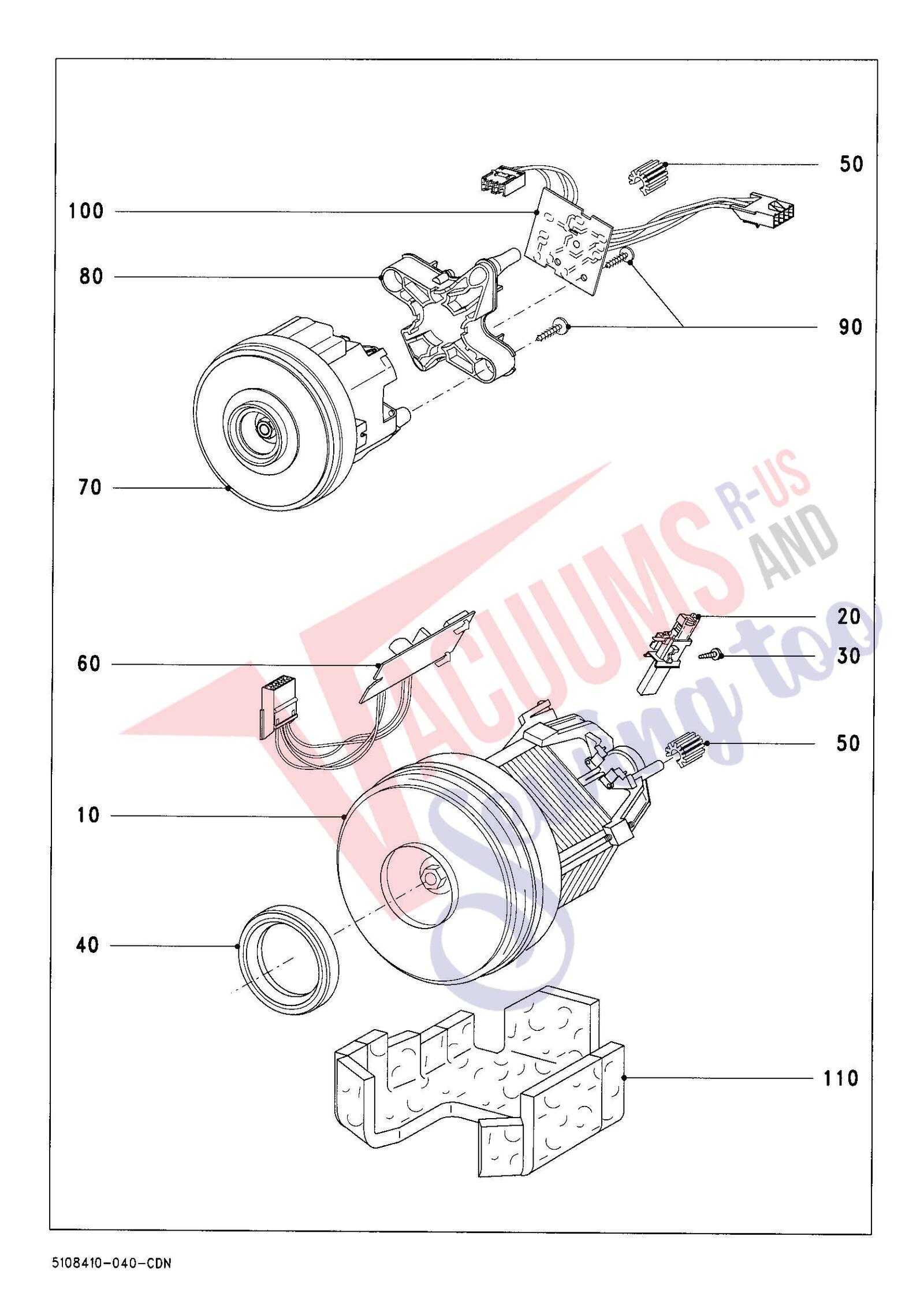

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Raised head screw 3,9X9,5 | 3903441 | $0.00Read more |
| xx | Not Available | Fan Mrg44-43/2 230V For Miele S 534 S534 | 5093951 | Not Available |
| 20 | Not Available | -Carbon brush 2 Pcs. For Miele S 534 S534 | 5419810 | Not Available |
| 30 | Not Available | undefined For Miele S 534 S534 | noop | Not Available |
| 40 | | Genuine Miele Bearing ring | 5089170 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Rubber cushion | 5089190 | $6.10Read more |
| 60 | | Genuine Miele Electronic unit EL530 220-240V | 5304512 | $83.51Read more |
| 70 | | Genuine Miele Fan Mrg722/81-42/2 120V | 5709492 | $101.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80-100 | | Genuine Miele Electronic unit EDL7161/81 vollst. | 6836741 | $109.64Read more |
| 90 | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Electronic unit EL700 230-240V | 6716260 | $77.69Read more |

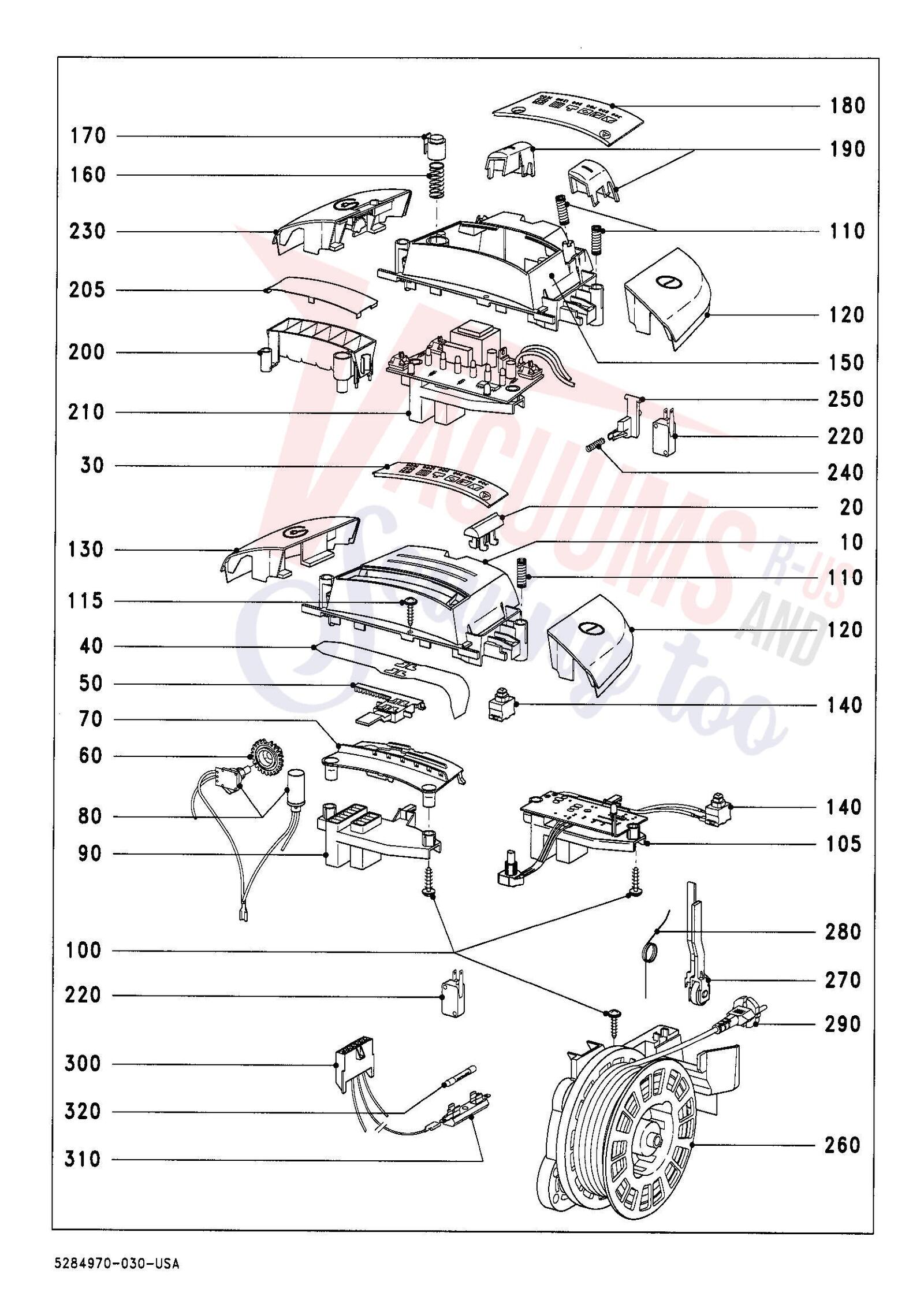

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | Not Available | undefined For Miele S 534 S534 | noop | Not Available |
| 110 | | Genuine Miele Spring | 2733371 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Foot switch left (Relaunch) | 7737081 | $7.49Read more |
| 130 | | Genuine Miele Foot switch right (Relaunch) | 7737071 | $7.49Read more |
| 140 | | Genuine Miele Switch 1 pole 1681.3103 | 9023231 | $7.91Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 140-220 | Not Available | Cap 1600W For Miele S 534 S534 | 5418063 | Not Available |
| 150 | Not Available | undefined For Miele S 534 S534 | 5129902 | Not Available |
| 160 | | Genuine Miele Spring | 3092700 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 170 | | Genuine Miele Push button | 5159490 | $4.27Read more |
| 180 | Not Available | -Viewing screen 1600W For Miele S 534 S534 | 5277130 | Not Available |
| 190 | Not Available | undefined For Miele S 534 S534 | 5333210 | Not Available |
| 200 | Not Available | undefined For Miele S 534 S534 | 5252300 | Not Available |
| 205 | Not Available | undefined For Miele S 534 S534 | 5252340 | Not Available |
| 210+220 | Not Available | -Electronic unit EDW530 220-240V For Miele S 534 S534 | 5304504 | Not Available |
| 220 | Not Available | -Switch 250V For Miele S 534 S534 | 5305040 | Not Available |
| 240 | | Genuine Miele Spring | 3982390 | $2.71Read more |
| 250 | | Genuine Miele Switch lever anthracite | 5281003 | $2.71Read more |
| 260-290 | | Genuine Miele Cable reel S500 7,3M 230V EU | 5093723 | $159.71Read more |
| 270 | Not Available | undefined For Miele S 534 S534 | 4312183 | Not Available |
| 280 | | Genuine Miele Torsion spring S300-S5000 | 6217500 | $6.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 290 | Not Available | -Supply cable 7,50m For Miele S 534 S534 | 5290790 | Not Available |
| 300 | Not Available | Connecting cable For Miele S 534 S534 | 5338471 | Not Available |

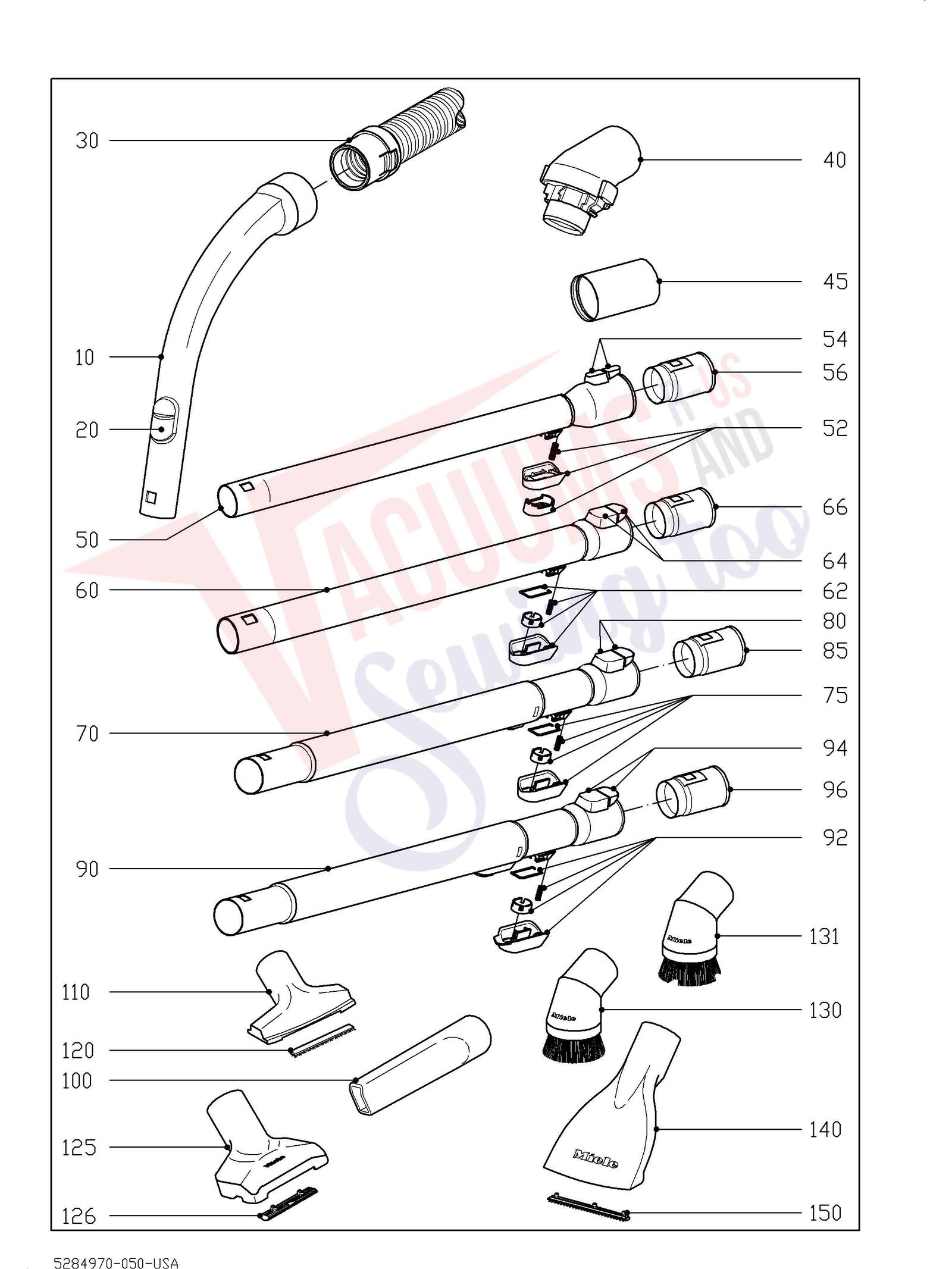

| # | Part image | Description | SKU | Price |
| xx | Not Available | No spare part For Miele S 534 S534 | noop | Not Available |
| xx | Not Available | Thread lifter For Miele S 534 S534 | noop | Not Available |
| xx | Not Available | For Miele S 534 S534 | noop | Not Available |
| xx | Not Available | Suction hose S500/S600 For Miele S 534 S534 | 5269604 | Not Available |
| 10+20 | | Genuine Miele Tubular handle anthracite | 9442601 | $27.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Suction control anthracite | 5141090 | $10.99Read more |
| 30 | | Genuine Miele Suction hose silver-coloured 1,8m | 5230830 | $50.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Suction hose black 1,8m | 5364750 | $70.93Read more |
| 40 | Not Available | undefined For Miele S 534 S534 | 5108111 | Not Available |
| 45 | Not Available | Connecting tube Suction hose For Miele S 534 S534 | 5527410 | Not Available |
| 52 | | Genuine Miele Push button 15x30mm | 4832460 | $7.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54+56 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60-66 | | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 62 | | Genuine Miele Push button Round | 5780932 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 64 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 64+66 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $11.98Read more |
| 125+126 | | Genuine Miele Upholstery nozzle | 9442620 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 126 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 131 | | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $24.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 140+150 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $30.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 | | Genuine Miele Thread lifter | 5056530 | $7.49Add to cart Product is special order please allow 2-4 weeks for delivery. |
