Parts list and schematic diagram for Miele Models: S 538, S538, Monte Verde Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
Popular Supplies
| # | Part image | Description | SKU | Price |
| xx | Not Available | For Miele S 538 S538 | noop | Not Available |
| 10 |  | Genuine Miele SES 118 USA | 5497860 | $135.00Add to cart Product is special order please allow 2-4 weeks for delivery. |

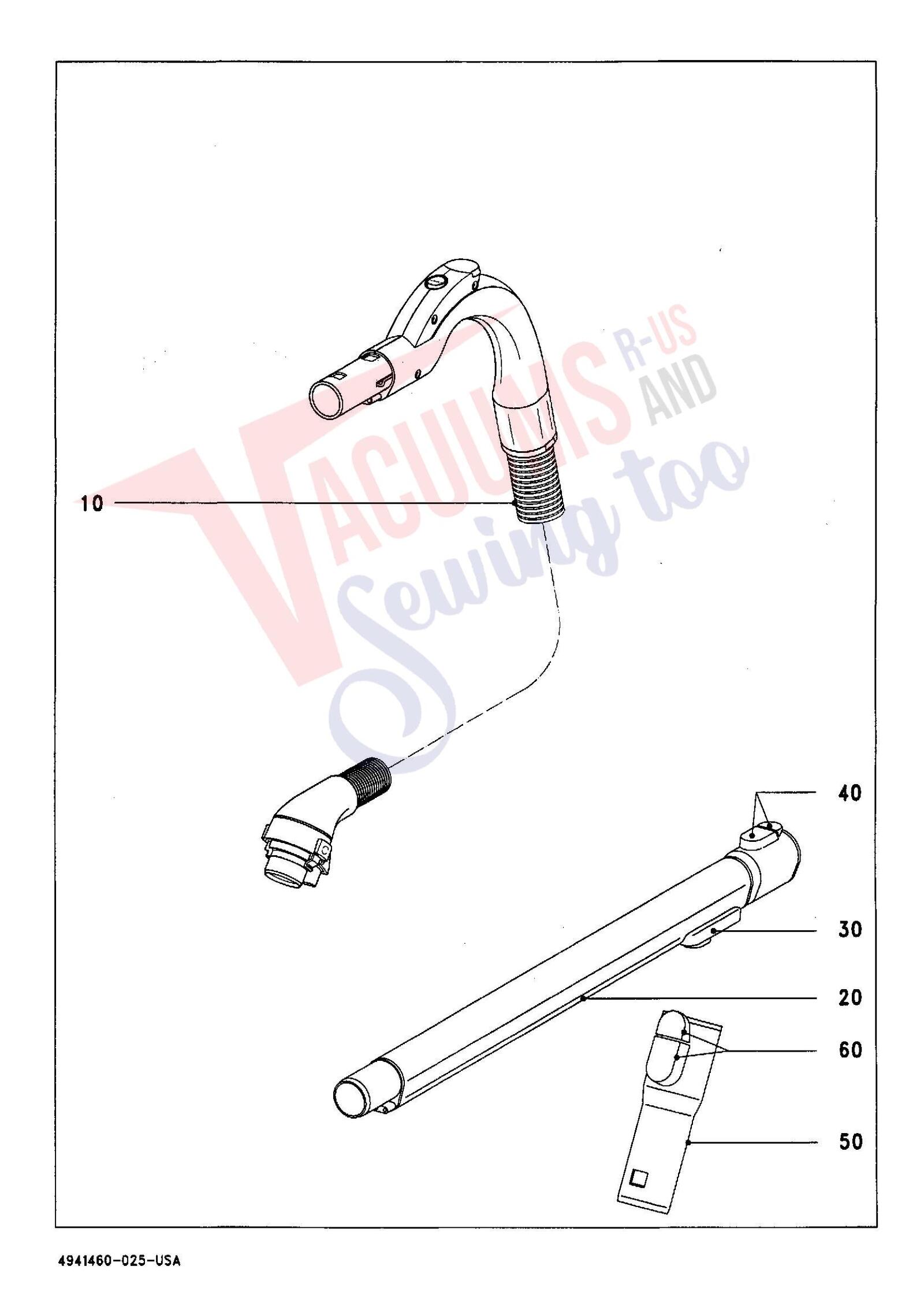

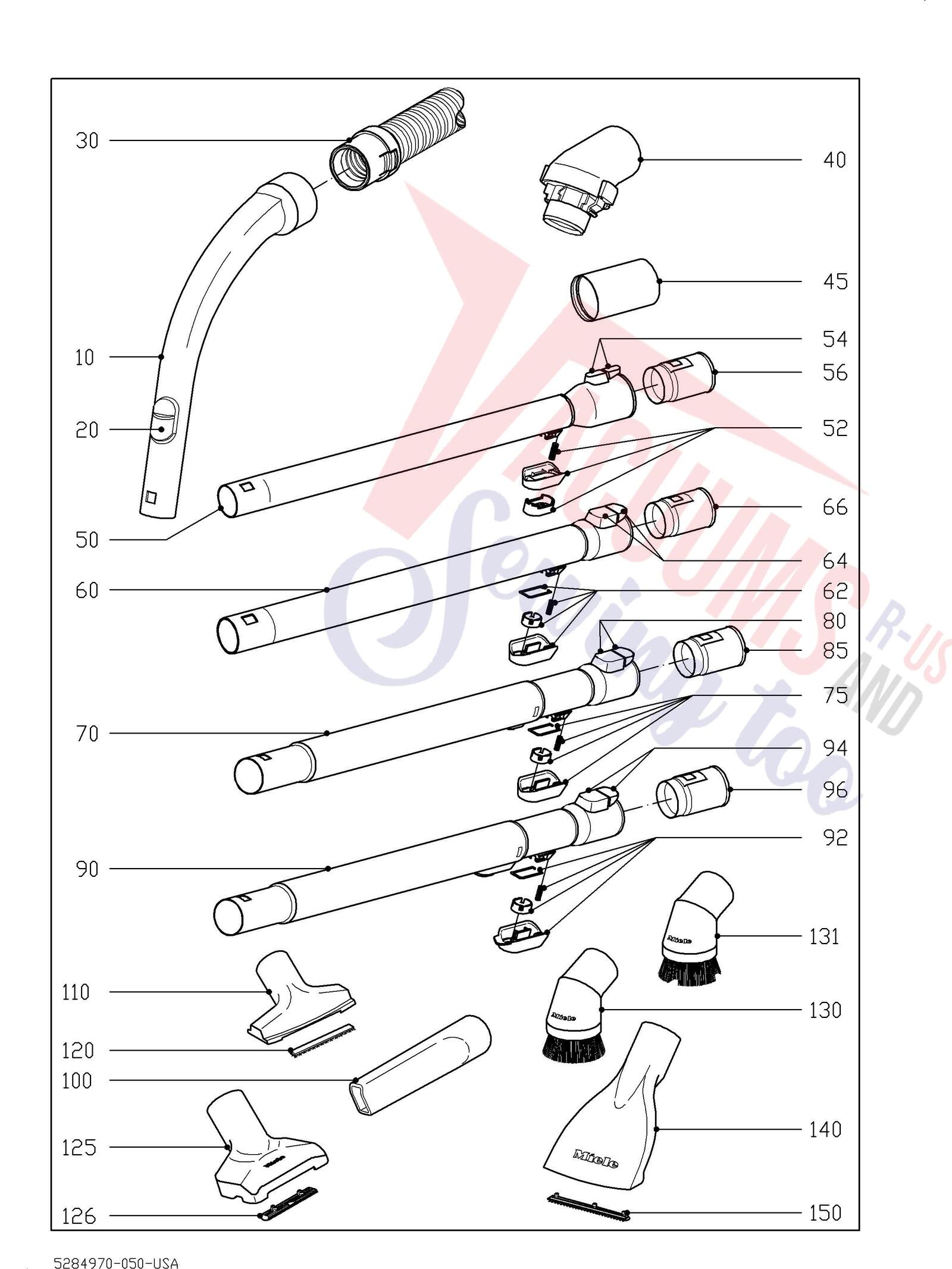

| 20-40 | | Genuine Miele Elec.telescop.tube SET220 | 6594726 | $118.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Push button anthracite | 5064430 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Push button Round | 9160460 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 |  | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50+60 | | Genuine Miele connecting piece Floor nozzle | 5449760 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| xx | Not Available | undefined For Miele S 538 S538 | noop | Not Available |
| xx | Not Available | For Miele S 538 S538 | noop | Not Available |

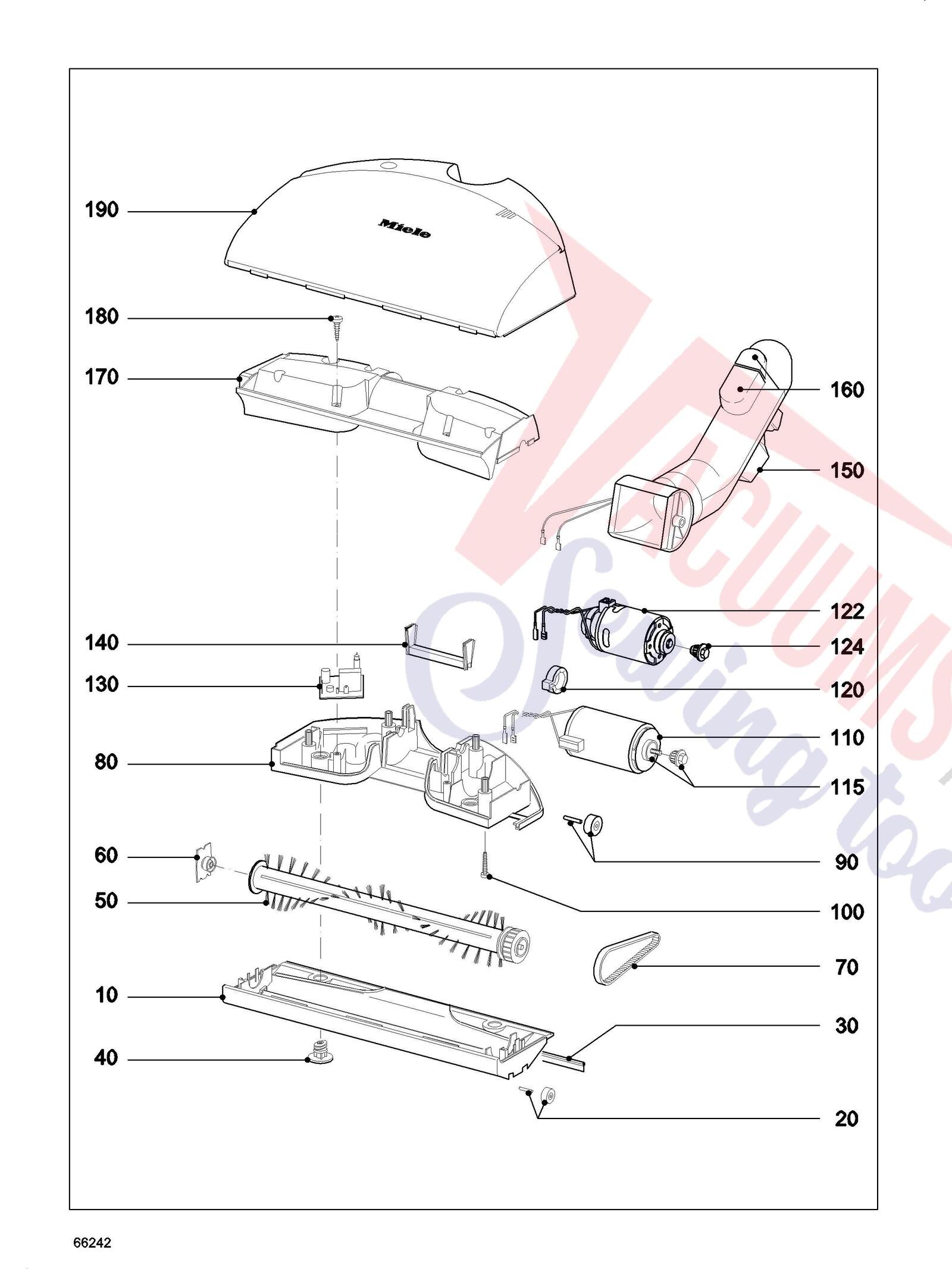

| 10 |  | Genuine Miele Top anthracite | 5235512 | $25.32Read more |
| 10-80+ | Not Available | For Miele S 538 S538 | noop | Not Available |
| 10-80+ | Not Available | For Miele S 538 S538 | noop | Not Available |
| 10-80+ | Not Available | For Miele S 538 S538 | noop | Not Available |
| 10-70+ | Not Available | For Miele S 538 S538 | noop | Not Available |
| 10-70+ | Not Available | For Miele S 538 S538 | noop | Not Available |
| 10-70+ | Not Available | For Miele S 538 S538 | noop | Not Available |
| 20 |  | Genuine Miele Suction channel anthracite | 5235541 | $22.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 |  | Genuine Miele Foot switch anthracite | 5235503 | $13.64Read more |
| 40 |  | Genuine Miele Fixing | 5235480 | $7.49Read more |
| 50 |  | Genuine Miele Bristle supp.plate | 5235463 | $30.74Read more |
| 60 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70+81 |  | Genuine Miele Lower section | 5235453 | $40.34Read more |
| 80 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 81 |  | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $22.79Read more |

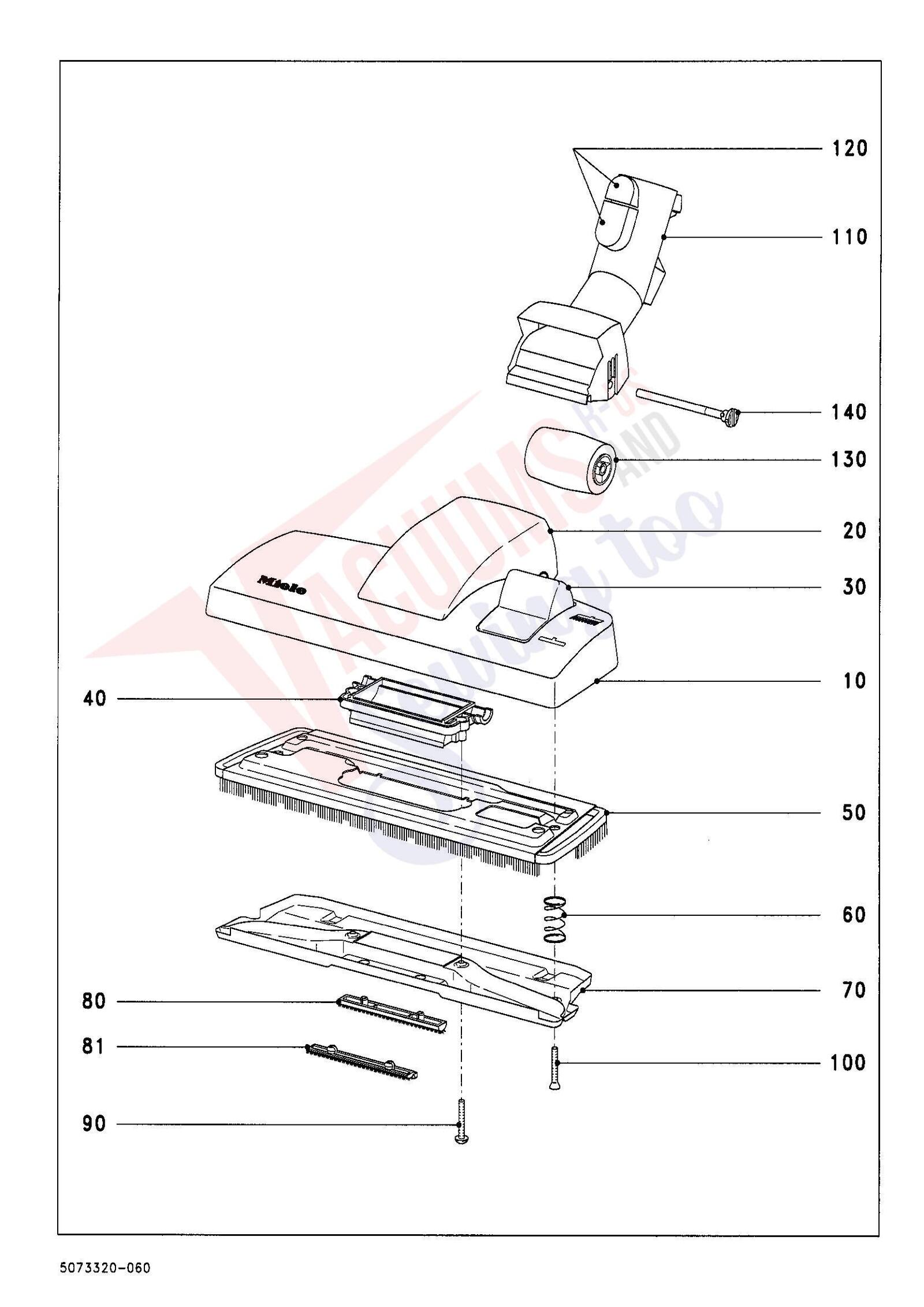

| 81-140 | Not Available | Floor nozzle SBD285-2 AllTeQ For Miele S 538 S538 | 7253820 | Not Available |
| 90 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $2.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | Not Available | --Countersunk screw 35X20 For Miele S 538 S538 | 5289870 | Not Available |
| 110+120 | | Genuine Miele Linkage anthracite | 5235552 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 |  | Genuine Miele Support roller | 5235530 | $13.64Read more |
| 140 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $11.98Read more |
| # | Part image | Description | SKU | Price |
| xx | Not Available | --Screw 3,5X22 For Miele S 538 S538 | 4922760 | Not Available |
| 20 | Not Available | undefined For Miele S 538 S538 | 4922800 | Not Available |
| 30 | Not Available | undefined For Miele S 538 S538 | noop | Not Available |
| 40 | Not Available | undefined For Miele S 538 S538 | 5081180 | Not Available |
| 50 | | Genuine Miele Wheel 2 Pcs. | 4928740 | $13.64Read more |
| 60 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |

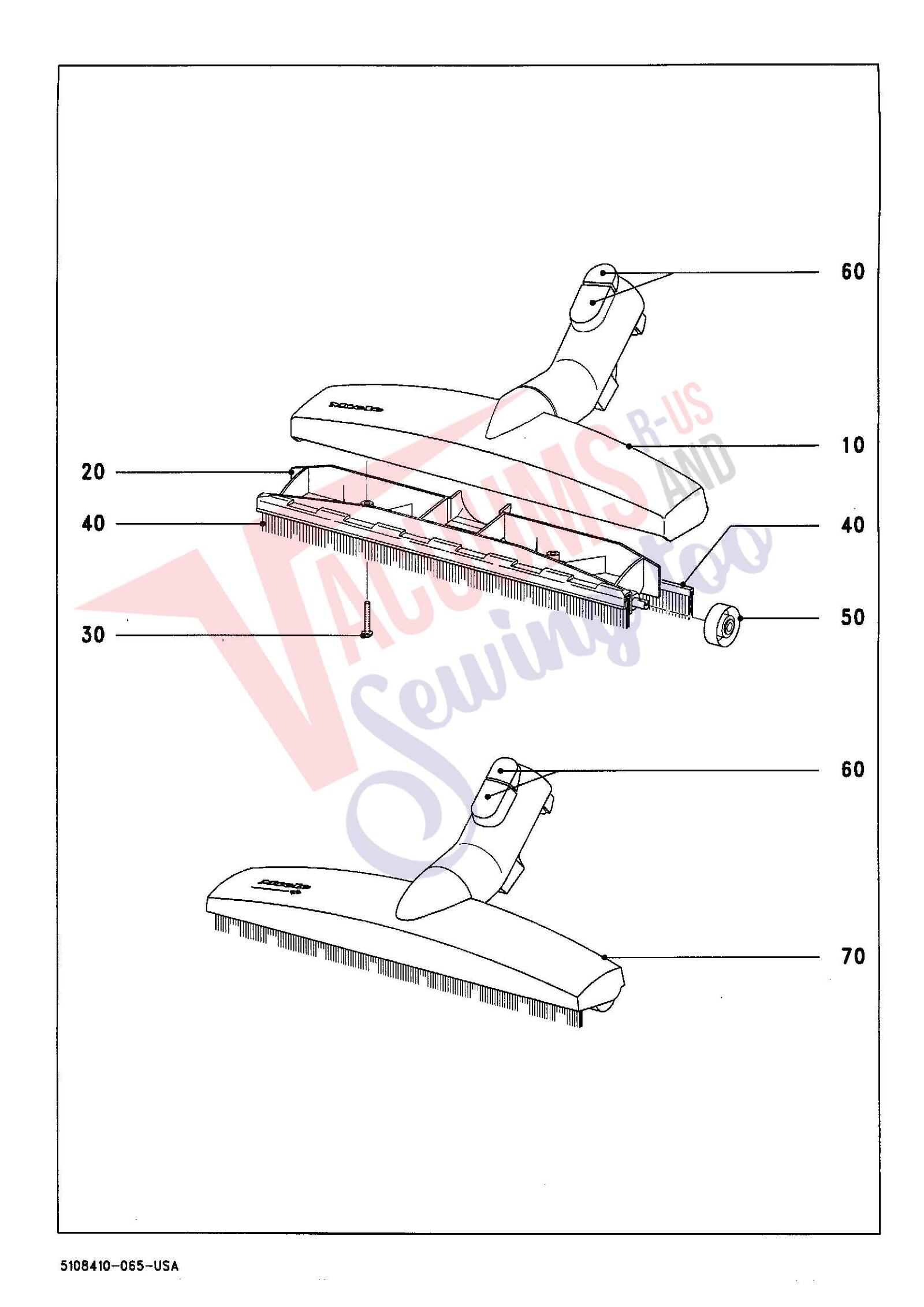

| 70+60 | Not Available | Floor brush SBB Parquet-2 For Miele S 538 S538 | 7236210 | Not Available |
| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Screw KA35X16 EJOT-PT | 4863580 | $2.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Screw KA35X27 EJOT-PT | 3484490 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Floor plate SEB217 | 4929763 | $83.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Wheel 2 Pcs. | 4919170 | $25.32Read more |
| 30 |  | Genuine Miele Strip | 4929021 | $7.49Add to cart |
| 40 | | Genuine Miele Screw 2 Pcs. | 4919190 | $13.64Read more |
| 50+60 |  | Genuine Miele Brush roller | 4929740 | $90.72Add to cart |
| 60 |  | Genuine Miele Bearing plate 2 Pcs. | 4941340 | $18.00Add to cart |
| 70 |  | Genuine Miele Tooth belt | 4897760 | $25.32Add to cart |
| 80+90 | | Genuine Miele Lower section SEB217 | 4929771 | $65.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Wheel 2 Pcs. | 4919180 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | Not Available | undefined For Miele S 538 S538 | noop | Not Available |
| 110+115 | | Genuine Miele AC motor 100-120V | 5011271 | $155.25Read more |
| 115 |  | Genuine Miele Pinion | 6808920 | $18.00Add to cart |
| 120 | Not Available | Bearing For Miele S 538 S538 | 4929730 | Not Available |
| 122+124 | Not Available | AC motor For Miele S 538 S538 | noop | Not Available |
| 124 | Not Available | undefined For Miele S 538 S538 | noop | Not Available |
| 130 |  | Reconditioned Miele SEB213 PC Board 100-120v PN: 5604210 | 5604210 | $39.99Add to cart |
| 140 | | Genuine Miele Cable duct | 4841770 | $18.00Read more |
| 150+160 | Not Available | Linkage SEB217-2 D For Miele S 538 S538 | 9195950 | Not Available |
| 160 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 170 | | Genuine Miele Cover anthracite | 4841731 | $47.37Read more |
| 180 | Not Available | undefined For Miele S 538 S538 | noop | Not Available |
| 210 | | Genuine Miele Top anthracite | 5604200 | $65.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| xx | Not Available | Cable reel For Miele S 538 S538 | noop | Not Available |
| xx | Not Available | Casing bottom For Miele S 538 S538 | noop | Not Available |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Casing bottom anthracite | 5266835 | $97.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $7.49Read more |
| 30 | Not Available | undefined For Miele S 538 S538 | noop | Not Available |
| 40-60 |  | Genuine Miele Slide skid assy | 10459340 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40-60 | | Genuine Miele Slide skid assy | 10459340 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Grip handle anthracite | 5088880 | $6.10Read more |
| 80 | | Genuine Miele Suspension anthracite | 5088800 | $6.10Read more |
| 85 | Not Available | undefined For Miele S 538 S538 | noop | Not Available |
| 90 | | Genuine Miele Buffer | 5088850 | $40.34Read more |
| 100 | | Genuine Miele Torsion spring | 5088960 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |

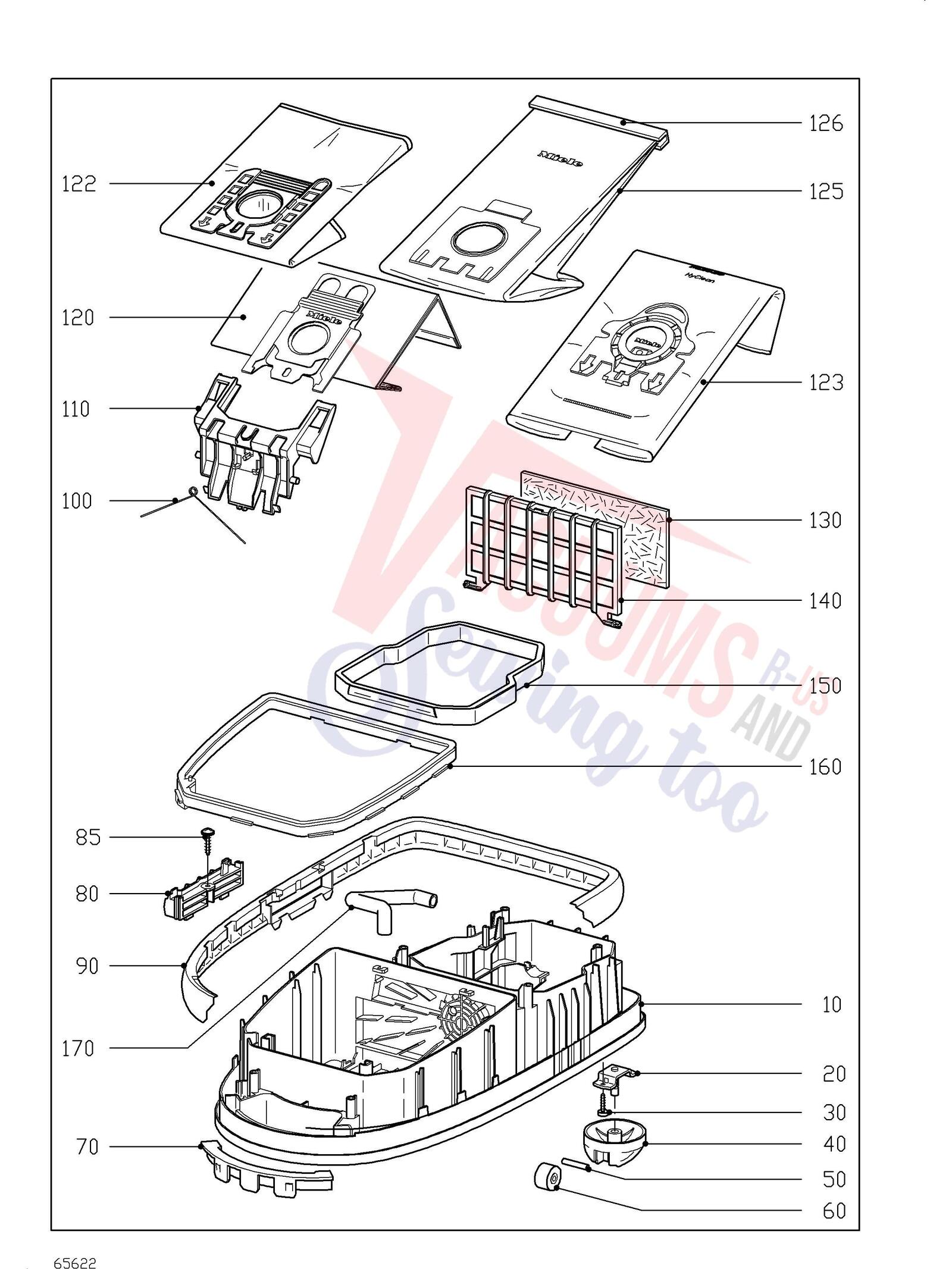

| 110 |  | Miele Bag Bracket to fit C2 and S6 | WP11830 | $30.00Add to cart |
| 123 |  | Aftermarket Miele FJM Bags 5pk with Filters | WP10969 | $14.99Add to cart |
| 123 |  | Miele HEPA Vacuum Bags Type FJM - 4pk | 4002515578964 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 123 |  | Miele HEPA Vacuum Bags Type FJM - 8pk | 10455190 | $44.99Read more |
| 125+126 | Not Available | Cloth filter bag S227-S858 For Miele S 538 S538 | 5188842 | Not Available |
| 126 | | Genuine Miele Lock | 1058641 | $18.00Read more |
| 130 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 140 | | Genuine Miele Filter frame | 5117170 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 | | Genuine Miele Seal | 5088860 | $16.70Read more |
| 160 | | Genuine Miele Sealing ring | 5088870 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 170 | | Genuine Miele Hose | 5088980 | $13.64Read more |
| # | Part image | Description | SKU | Price |
| xx |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | For Miele S 538 S538 | noop | Not Available |

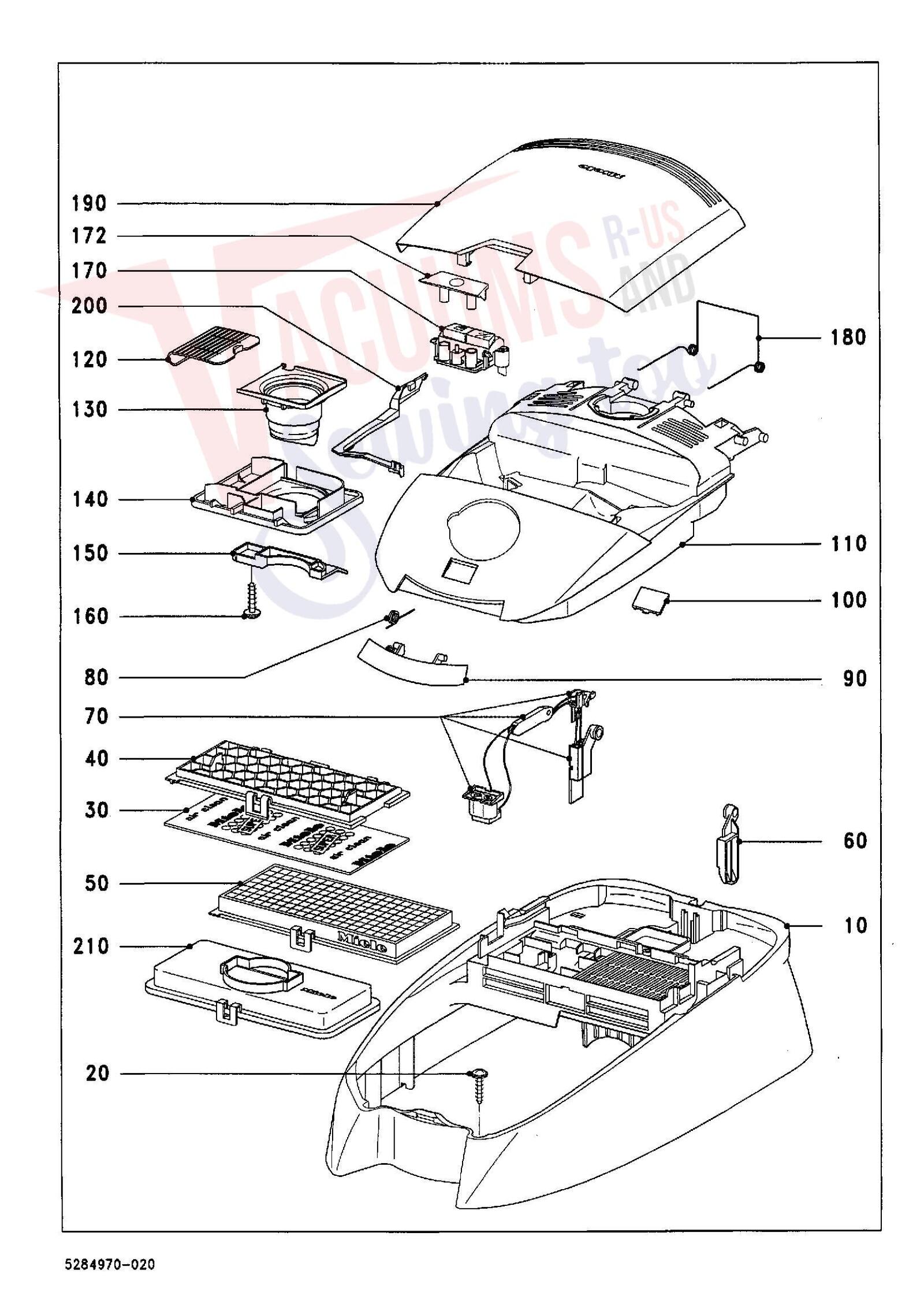

| 10 | | Genuine Miele Cover frame light blue of 2 Parking | 5223562 | $83.51Read more |
| 10 | Not Available | Cover frame Brilliant white of 2 Parking For Miele S 538 S538 | 5323162 | Not Available |
| 10 | | Genuine Miele Cover frame Gold bronze metallic of 2 Pa | 5752682 | $109.64Read more |
| 10 | | Genuine Miele Cover frame irish green metallic of 2 Pa | 5271762 | $109.64Read more |
| 10 | | Genuine Miele Cover frame deep black of 2 Parking | 5223582 | $83.51Read more |
| 20 | Not Available | undefined For Miele S 538 S538 | noop | Not Available |
| 30 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $11.95Add to cart |
| 40 | | Genuine Miele Grille anthracite | 5089130 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Miele ActiveAir Clean Filter SF-AA30 | 9616080 | $39.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | HEPA AirClean filter withTimeStrip SF-HA30 | 4002515315606 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | Aftermarket Miele AH-30 HEPA Filter | 54236207 | $22.00Add to cart |
| 60 |  | Genuine Miele Hinge left anthracite | 5089000 | $4.27Add to cart |
| 70 | Not Available | Flush socket outlet 2 pole For Miele S 538 S538 | 5398100 | Not Available |
| 80 | | Genuine Miele Torsion spring | 5108160 | $7.95Read more |
| 90 | | Genuine Miele Lock anthracite | 5089024 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Cap anthracite | 5089032 | $2.71Read more |
| 110 | Not Available | Casing top irish green metallic For Miele S 538 S538 | 5184902 | Not Available |
| 110 | | Genuine Miele Casing top Gold bronze metallic | 5752712 | $109.64Read more |
| 110 | Not Available | Casing top Brilliant white For Miele S 538 S538 | 5322960 | Not Available |
| 110 | | Genuine Miele Casing top deep black | 5184862 | $90.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele Casing top light blue | 5184812 | $90.72Read more |
| 120 | | Genuine Miele Coupler link anthracite | 5091021 | $2.71Read more |
| 130 | | Genuine Miele Slide sleeve anthracite | 5089043 | $7.95Read more |
| 140 | | Genuine Miele Dust channel anthracite | 5089011 | $11.98Read more |
| 150 | | Genuine Miele Holder Dust channel | 5223481 | $4.27Read more |
| 160 | Not Available | undefined For Miele S 538 S538 | noop | Not Available |
| 170+172 | | Genuine Miele Change filter ind. | 5535191 | $30.74Read more |
| 172 | | Genuine Miele interlock | 5089091 | $7.49Read more |
| 180 | | Genuine Miele Torsion spring | 5124520 | $4.27Read more |
| 190 | | Genuine Miele Lid light blue | 5271272 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 190 | Not Available | Lid Gold bronze metallic For Miele S 538 S538 | 5752912 | Not Available |
| 190 | Not Available | Lid Brilliant white For Miele S 538 S538 | 5325662 | Not Available |
| 190 | Not Available | Lid irish green metallic For Miele S 538 S538 | 5483962 | Not Available |
| 190 | | Genuine Miele Lid deep black | 5271302 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 200 | | Genuine Miele Cover strip anthracite | 5108170 | $2.01Read more |
| 210 | | Genuine Miele Blower plate | 5109310 | $18.00Read more |
| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Raised head screw 3,9X9,5 | 3903441 | $0.00Read more |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |

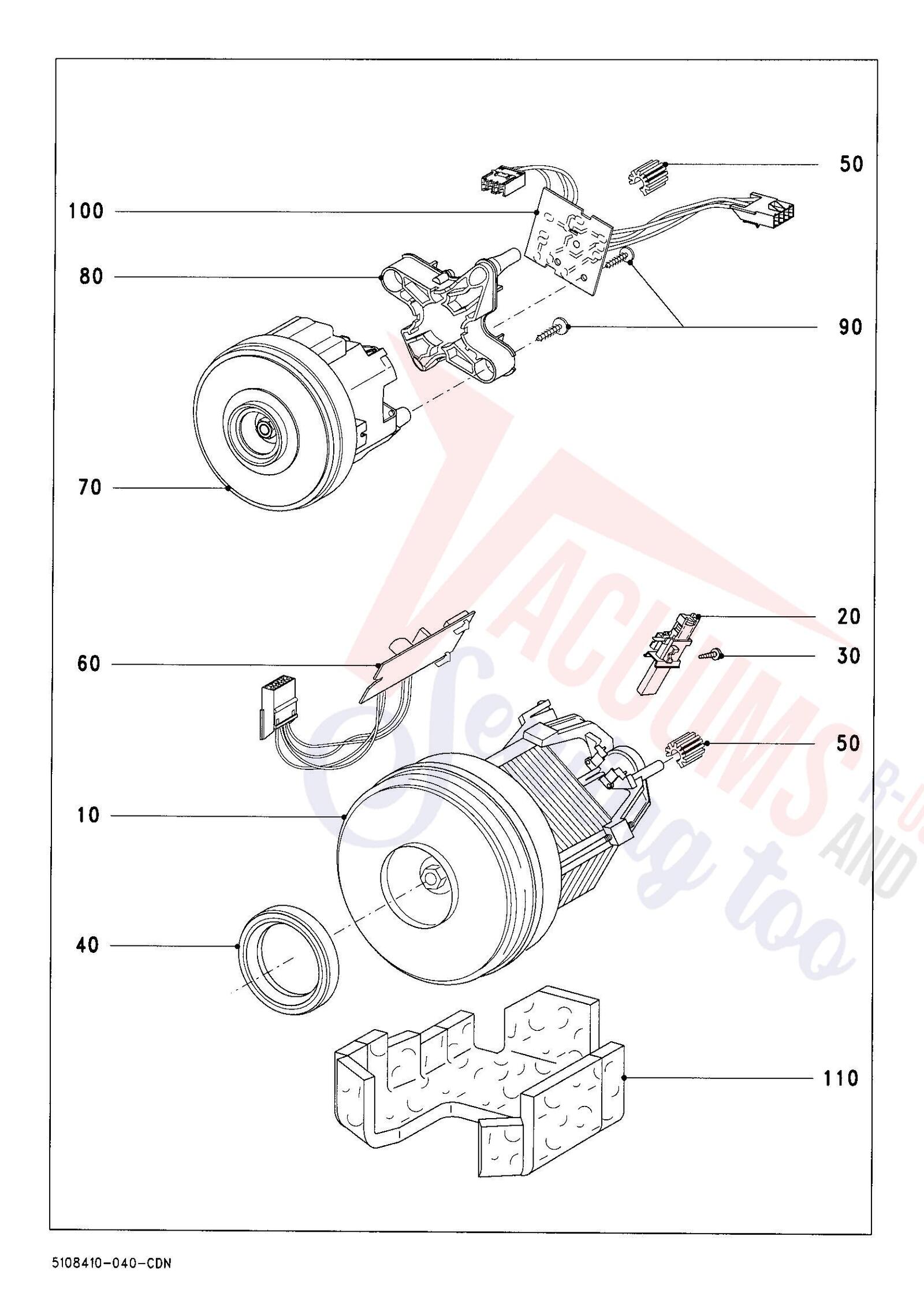

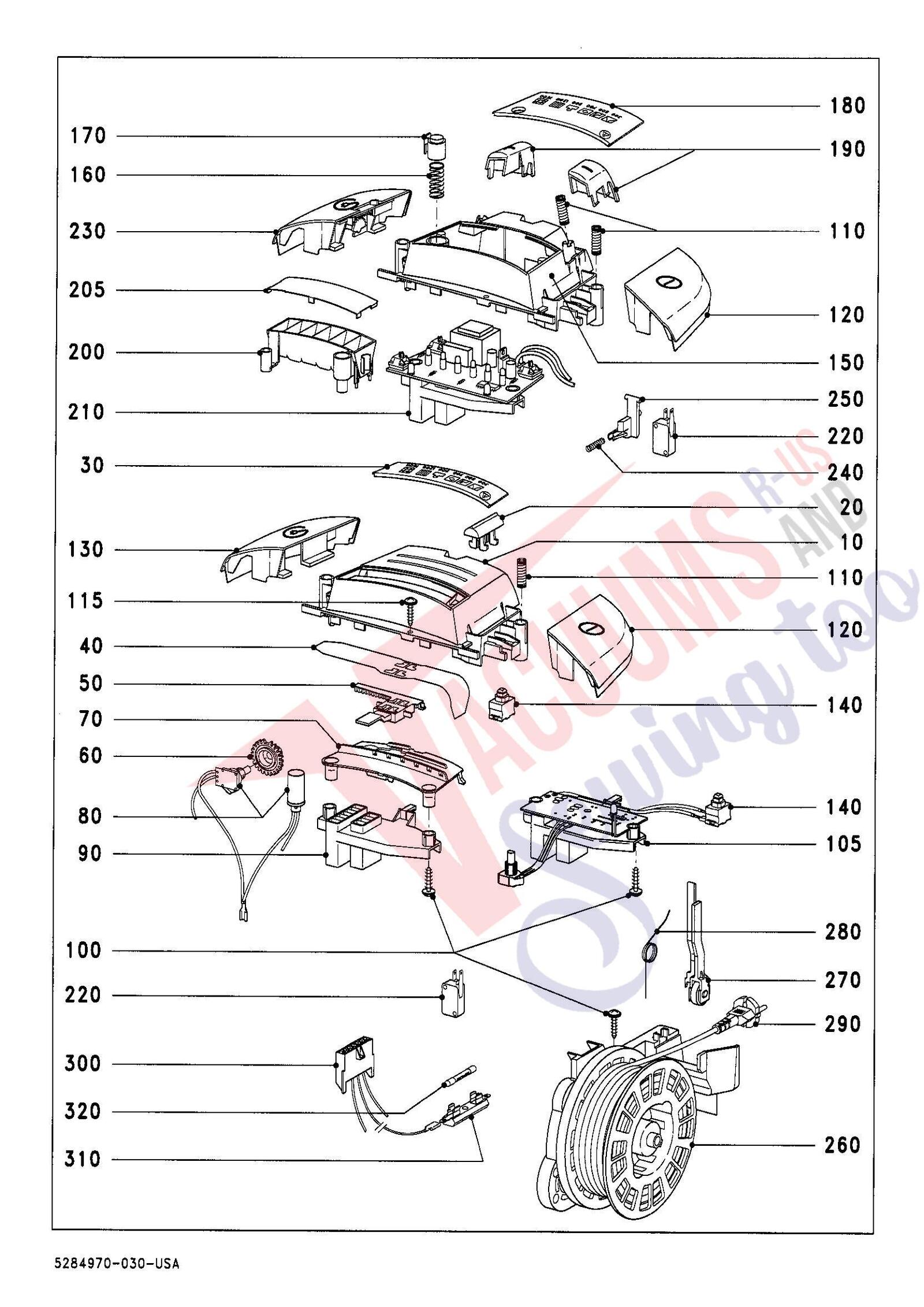

| xx |  | Reconditioned Miele Main Motor with PCB for S Series Canisters | 4698861R | $80.00Read more |
| 20 | Not Available | -Carbon brush 2 Pcs. For Miele S 538 S538 | 5419810 | Not Available |
| 30 | Not Available | undefined For Miele S 538 S538 | noop | Not Available |
| 40 | | Genuine Miele Bearing ring | 5089170 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Rubber cushion | 5089190 | $6.10Read more |
| 60 |  | Genuine Miele Electronic unit EL530/81 120V/60Hz | 5408631 | $77.69Add to cart |
| 70 | | Genuine Miele Fan Mrg722/81-42/2 120V | 5709492 | $101.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | Not Available | Fan Mrg722/81-42/2 120V For Miele S 538 S538 | 5709490 | Not Available |
| 80-100 | Not Available | Electronic unit EDL716/81 120V 60Hz For Miele S 538 S538 | 6836740 | Not Available |
| 80-100 | | Genuine Miele Electronic unit EL700/81 120V/60Hz | 6836720 | $97.30Read more |
| 80 | Not Available | Adapter Fan For Miele S 538 S538 | 5704060 | Not Available |
| 90 | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | Not Available | undefined For Miele S 538 S538 | noop | Not Available |
| 110 | | Genuine Miele Damping plate | 5088890 | $7.95Read more |
| # | Part image | Description | SKU | Price |
| xx | Not Available | Flush socket outlet For Miele S 538 S538 | noop | Not Available |
| xx | Not Available | Plug housing For Miele S 538 S538 | noop | Not Available |
| xx | Not Available | Cable reel For Miele S 538 S538 | noop | Not Available |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | Not Available | undefined For Miele S 538 S538 | noop | Not Available |
| 110 | | Genuine Miele Spring | 2733371 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Foot switch left (Relaunch) | 7737081 | $7.49Read more |
| 140-220 | Not Available | Cap 1200W For Miele S 538 S538 | 6099800 | Not Available |
| 140-220 | Not Available | Cap 1100W For Miele S 538 S538 | 5514072 | Not Available |
| 140 | | Genuine Miele Switch 1 pole 1681.3103 | 9023231 | $7.91Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 | Not Available | undefined For Miele S 538 S538 | 5129902 | Not Available |
| 160 | | Genuine Miele Spring | 3092700 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 170 | | Genuine Miele Push button | 5159490 | $4.27Read more |
| 180 | Not Available | -Viewing screen 1200W For Miele S 538 S538 | 6076230 | Not Available |
| 180 | Not Available | -Viewing screen 1100W For Miele S 538 S538 | 5390100 | Not Available |
| 190 | Not Available | undefined For Miele S 538 S538 | 5333210 | Not Available |
| 200 | Not Available | undefined For Miele S 538 S538 | 5252300 | Not Available |
| 205 | Not Available | undefined For Miele S 538 S538 | 5252340 | Not Available |
| 210+220 | | Genuine Miele Electronic unit EDW530/81 120V/60Hz | 5410133 | $318.46Read more |
| 220 | Not Available | -Switch 250V For Miele S 538 S538 | 5305040 | Not Available |
| 230 | Not Available | Foot switch AutoReverse For Miele S 538 S538 | 5363731 | Not Available |
| 240 | | Genuine Miele Spring | 3982390 | $2.71Read more |
| 250 | | Genuine Miele Switch lever anthracite | 5281003 | $2.71Read more |
| 260-290 | | Genuine Miele Cable reel S500 6,5m 120V | 5240303 | $160.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 270 | Not Available | undefined For Miele S 538 S538 | 4312183 | Not Available |
| 280 | | Genuine Miele Torsion spring S300-S5000 | 6217500 | $6.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 290 | Not Available | -Supply cable 6,65m 17AWG 120V USA For Miele S 538 S538 | 5241032 | Not Available |
| 300+310 | Not Available | Connecting cable USA For Miele S 538 S538 | 5483511 | Not Available |
| 310 | | Genuine Miele Fuse holder | 3604030 | $30.74Read more |
| 320 | | Genuine Miele Micro fuse T6,3A 500V 6,3X32MM | 3595980 | $4.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| xx | Not Available | No spare part For Miele S 538 S538 | noop | Not Available |
| xx | Not Available | Thread lifter For Miele S 538 S538 | noop | Not Available |
| xx | Not Available | Suction hose S500/S600 For Miele S 538 S538 | 5269604 | Not Available |
| 10+20 | | Genuine Miele Tubular handle anthracite | 9442601 | $27.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Suction control anthracite | 5141090 | $10.99Read more |
| 30 | | Genuine Miele Suction hose silver-coloured 1,8m | 5230830 | $50.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | undefined For Miele S 538 S538 | 5108111 | Not Available |
| 45 | Not Available | Connecting tube Suction hose For Miele S 538 S538 | 5527410 | Not Available |
| 52 | | Genuine Miele Push button 15x30mm | 4832460 | $7.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54+56 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60-66 | | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 62 | | Genuine Miele Push button Round | 5780932 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 64+66 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 64 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $11.98Read more |
| 125+126 | | Genuine Miele Upholstery nozzle | 9442620 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 126 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 131 | | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $24.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 140+150 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $30.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 | | Genuine Miele Thread lifter | 5056530 | $7.49Add to cart Product is special order please allow 2-4 weeks for delivery. |
Report errors on this page HERE
