Parts list and schematic diagram for Miele Models: S 724, S724, s724 Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
Popular Supplies

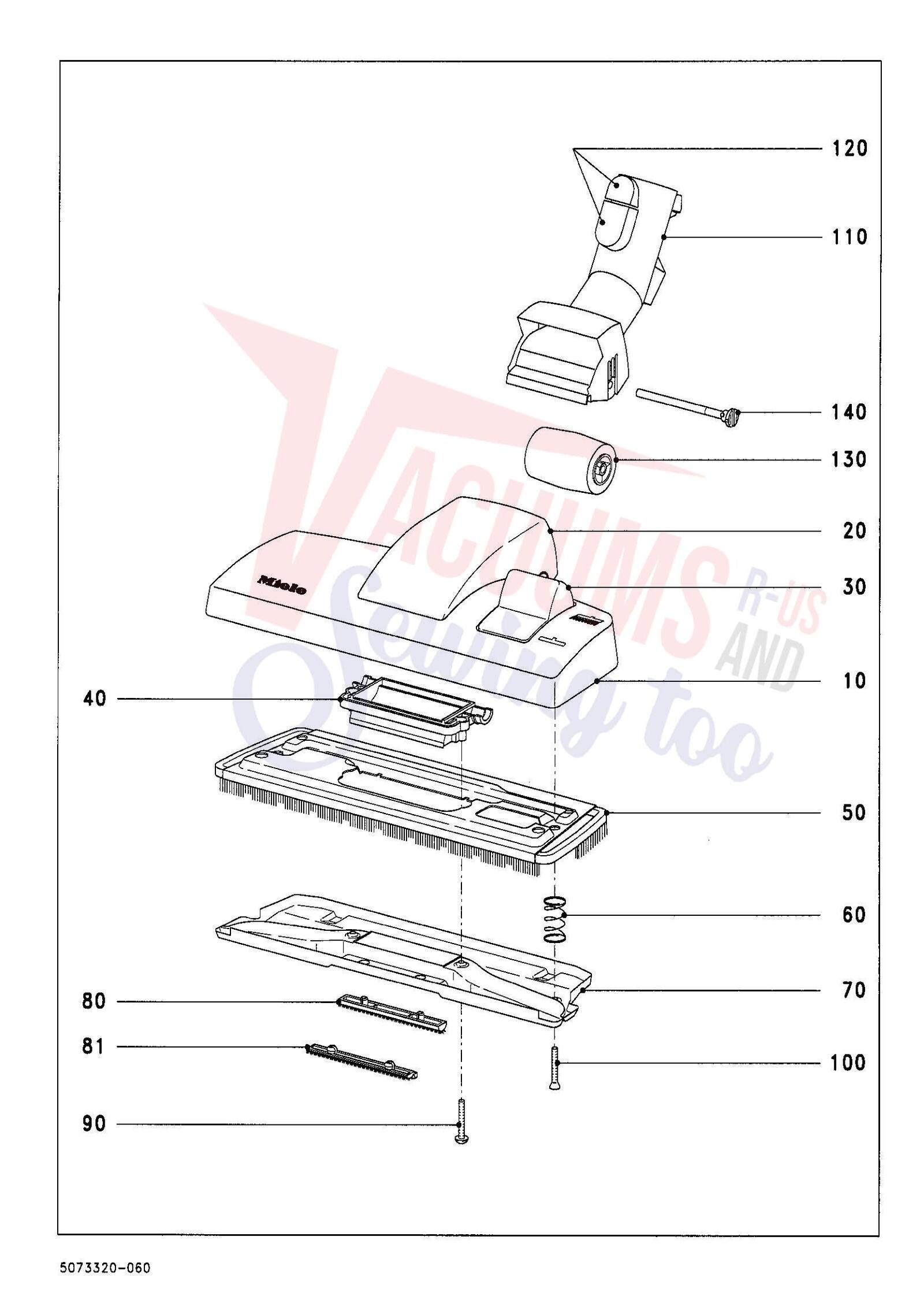

| # | Part image | Description | SKU | Price |
| xx | Not Available | undefined For Miele S 724 S724 | noop | Not Available |
| 10 |  | Genuine Miele Top anthracite | 5235512 | $25.32Read more |
| 10-80+ | Not Available | For Miele S 724 S724 | noop | Not Available |
| 10-80+ | Not Available | For Miele S 724 S724 | noop | Not Available |
| 10-70+ | Not Available | For Miele S 724 S724 | noop | Not Available |
| 10-70+ | Not Available | For Miele S 724 S724 | noop | Not Available |
| 10-70+ | Not Available | For Miele S 724 S724 | noop | Not Available |
| 20 | | Genuine Miele Suction channel anthracite | 5235541 | $22.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Foot switch anthracite | 5235503 | $13.64Read more |
| 40 | | Genuine Miele Fixing | 5235480 | $7.49Read more |
| 50 | | Genuine Miele Bristle supp.plate | 5235463 | $30.74Read more |
| 60 | | Genuine Miele Spring 2 Pcs. | 4818720 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70+81 | | Genuine Miele Lower section | 5235453 | $40.34Read more |
| 80 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 81-140 | Not Available | Floor nozzle SBD285-2 AllTeQ For Miele S 724 S724 | 7253820 | Not Available |
| 81 | | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $22.79Read more |
| 90 | | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $2.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | Not Available | --Countersunk screw 35X20 For Miele S 724 S724 | 5289870 | Not Available |
| 110+120 | | Genuine Miele Linkage anthracite | 5235552 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 | | Genuine Miele Support roller | 5235530 | $13.64Read more |
| 140 | | Genuine Miele Shaft Bayonett fitting | 5235520 | $11.98Read more |

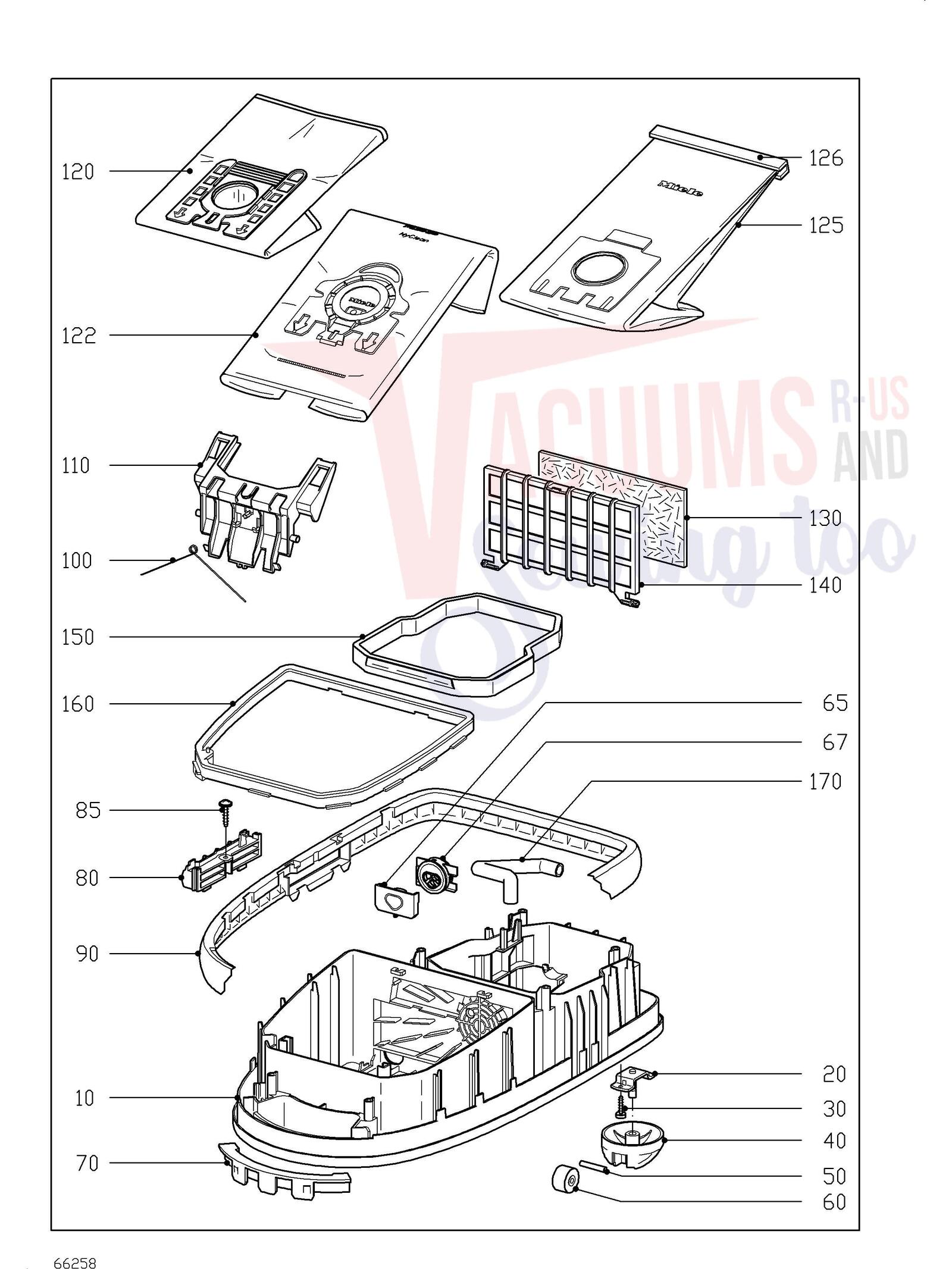

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Casing bottom anthracite | 5266835 | $97.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | Cable reel For Miele S 724 S724 | noop | Not Available |
| xx | Not Available | Casing bottom For Miele S 724 S724 | noop | Not Available |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $7.49Read more |
| 30 | Not Available | undefined For Miele S 724 S724 | noop | Not Available |
| 40-60 | | Genuine Miele Slide skid assy | 10459340 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40-60 | | Genuine Miele Slide skid assy | 10459340 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50+60 | Not Available | undefined For Miele S 724 S724 | 3946930 | Not Available |
| 65 | Not Available | undefined For Miele S 724 S724 | 6083930 | Not Available |
| 67 | | Genuine Miele Suction control | 5388511 | $0.00Read more |
| 70 | | Genuine Miele Grip handle anthracite | 5088880 | $6.10Read more |
| 80 | | Genuine Miele Suspension anthracite | 5088800 | $6.10Read more |
| 85 | Not Available | undefined For Miele S 724 S724 | noop | Not Available |
| 90 | | Genuine Miele Buffer | 5088850 | $40.34Read more |
| 100 | | Genuine Miele Torsion spring | 5088960 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 |  | Miele Bag Bracket to fit C2 and S6 | WP11830 | $30.00Add to cart |
| 122 |  | Aftermarket Miele FJM Bags 5pk with Filters | WP10969 | $14.99Add to cart |
| 122 |  | Miele HEPA Vacuum Bags Type FJM - 4pk | 4002515578964 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 122 |  | Miele HEPA Vacuum Bags Type FJM - 8pk | 10455190 | $44.99Read more |
| 125+126 | Not Available | Cloth filter bag S227-S858 For Miele S 724 S724 | 5188842 | Not Available |
| 126 | | Genuine Miele Lock | 1058641 | $18.00Read more |
| 130 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 140 | | Genuine Miele Filter frame | 5117170 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 | | Genuine Miele Seal | 5088860 | $16.70Read more |
| 160 | | Genuine Miele Sealing ring | 5088870 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 170 | | Genuine Miele Hose | 5088980 | $13.64Read more |

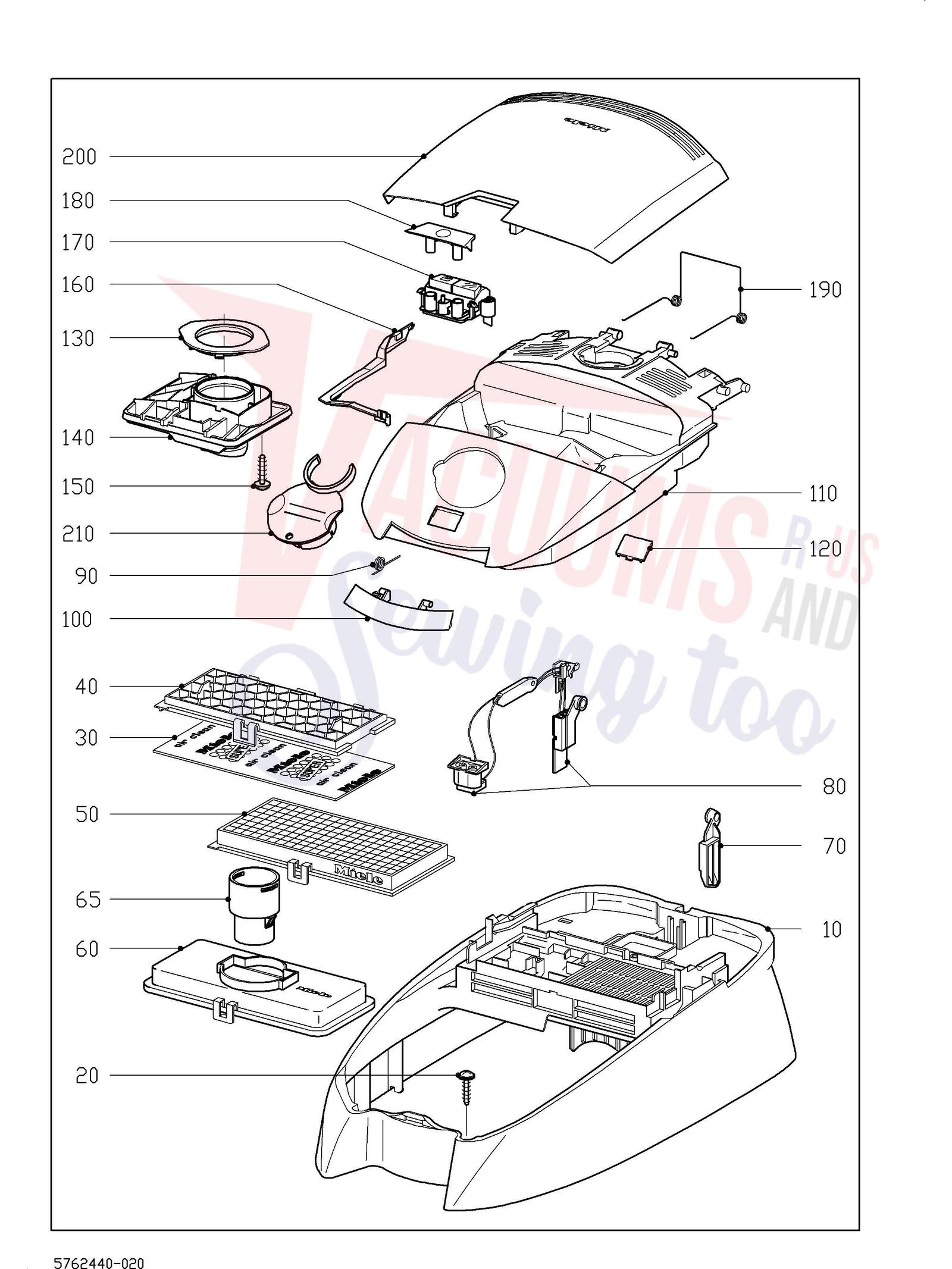

| # | Part image | Description | SKU | Price |
| xx | Not Available | For Miele S 724 S724 | noop | Not Available |
| xx | Not Available | For Miele S 724 S724 | noop | Not Available |
| xx | Not Available | For Miele S 724 S724 | noop | Not Available |
| xx | Not Available | For Miele S 724 S724 | noop | Not Available |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | --Raised head screw 4,0X18 TORX T20 For Miele S 724 S724 | 6238630 | Not Available |
| xx | Not Available | For Miele S 724 S724 | noop | Not Available |
| xx | Not Available | For Miele S 724 S724 | noop | Not Available |
| 10 | | Genuine Miele Cover frame Royal blue of 2 Parking | 5223522 | $83.51Read more |
| 10 | Not Available | Cover frame M.-of-pearl silver of 2 Parking For Miele S 724 S724 | 5752672 | Not Available |
| 10 | | Genuine Miele Cover frame ice green metallic of 2 Park | 5271742 | $109.64Read more |
| 10 | | Genuine Miele Cover frame irish green metallic of 2 Pa | 5271762 | $109.64Read more |
| 10 | | Genuine Miele Cover frame Achat grey metallic of 2 Par | 5752592 | $109.64Read more |
| 10 | | Genuine Miele Cover frame Gold bronze metallic of 2 Pa | 5752682 | $109.64Read more |
| 10 | | Genuine Miele Cover frame Electric blue met. of 2 Park | 5923812 | $109.64Read more |
| 10 | Not Available | Cover frame Silver of 2 Parking For Miele S 724 S724 | 5681522 | Not Available |
| 20 | Not Available | undefined For Miele S 724 S724 | noop | Not Available |
| 30 | | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $11.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Grille anthracite | 5089130 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Miele ActiveAir Clean Filter SF-AA30 | 9616080 | $39.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | HEPA AirClean filter withTimeStrip SF-HA30 | 4002515315606 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | Aftermarket Miele AH-30 HEPA Filter | 54236207 | $22.00Add to cart |
| 60 | | Genuine Miele Blower plate | 5109310 | $18.00Read more |
| 65 | | Genuine Miele Adapter Blower plate | 5751130 | $7.49Read more |
| 70 | | Genuine Miele Hinge left anthracite | 5089000 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | Not Available | Flush socket outlet For Miele S 724 S724 | noop | Not Available |
| 90 | | Genuine Miele Torsion spring | 5108160 | $7.95Read more |
| 100 | | Genuine Miele Lock anthracite | 5089024 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | Not Available | Casing top electricblue-met. For Miele S 724 S724 | 5923832 | Not Available |
| 110 | Not Available | Casing top Silver For Miele S 724 S724 | 5644542 | Not Available |
| 110 | Not Available | Casing top irish green metallic For Miele S 724 S724 | 5184902 | Not Available |
| 110 | Not Available | Casing top opal green For Miele S 724 S724 | 5585482 | Not Available |
| 110 | Not Available | Casing top ice green metallic For Miele S 724 S724 | 5184872 | Not Available |
| 110 | | Genuine Miele Casing top Royal blue | 5184632 | $90.72Read more |
| 110 | | Genuine Miele Casing top Gold bronze metallic | 5752712 | $109.64Read more |
| 110 | | Genuine Miele Casing top deep black | 5184862 | $90.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Cap anthracite | 5089032 | $2.71Read more |
| 130 | | Genuine Miele Ring Dust channel | 5739640 | $4.27Read more |
| 140 | | Genuine Miele Dust channel Casing top | 5754751 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 | Not Available | undefined For Miele S 724 S724 | noop | Not Available |
| 170+180 | Not Available | Change filter ind. For Miele S 724 S724 | noop | Not Available |
| 180 | | Genuine Miele interlock | 5089091 | $7.49Read more |
| 190 | | Genuine Miele Torsion spring | 5124520 | $4.27Read more |
| 200 | | Genuine Miele Lid Royal blue | 5271212 | $47.37Read more |
| 200 | Not Available | Lid Gold bronze metallic For Miele S 724 S724 | 5752912 | Not Available |
| 200 | Not Available | Lid M.-of-pearl silver For Miele S 724 S724 | 5875400 | Not Available |
| 200 | Not Available | Lid Silver For Miele S 724 S724 | 5687682 | Not Available |
| 200 | | Genuine Miele Lid deep black | 5271302 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 200 | Not Available | Lid ice green metallic For Miele S 724 S724 | 5483972 | Not Available |
| 210 | Not Available | Hygiene cap For Miele S 724 S724 | 6622030 | Not Available |

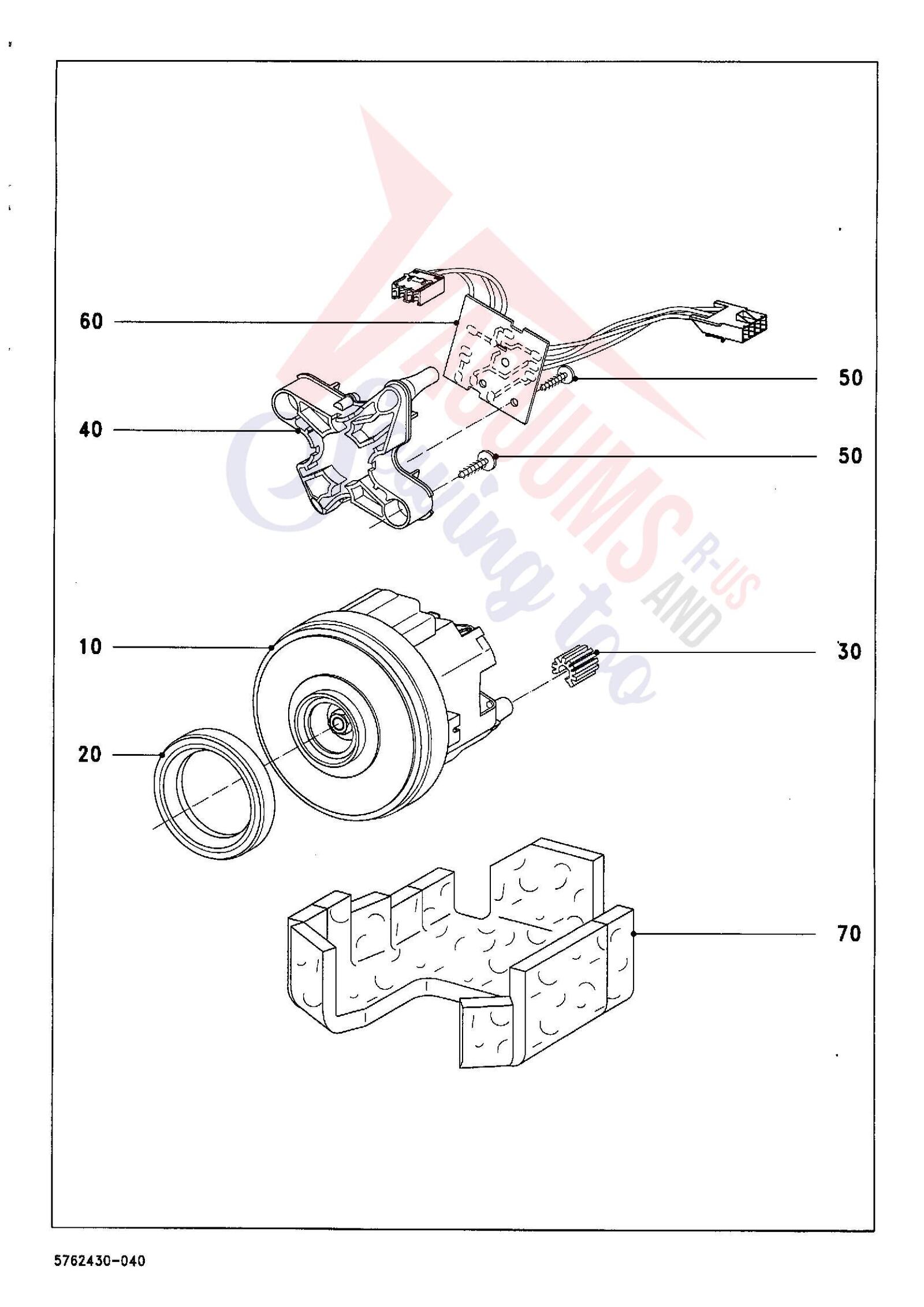

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Fan For Miele S 724 S724 | noop | Not Available |
| 10 | | Genuine Miele Fan Mrg410-42/2 230V | 7499465 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Bearing ring | 5089170 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Rubber cushion | 5089190 | $6.10Read more |
| 40 | Not Available | Adapter Fan For Miele S 724 S724 | 5704060 | Not Available |
| 50 | Not Available | undefined For Miele S 724 S724 | noop | Not Available |
| 60 | Not Available | Electronic unit For Miele S 724 S724 | noop | Not Available |
| 70 | | Genuine Miele Damping plate | 5088890 | $7.95Read more |

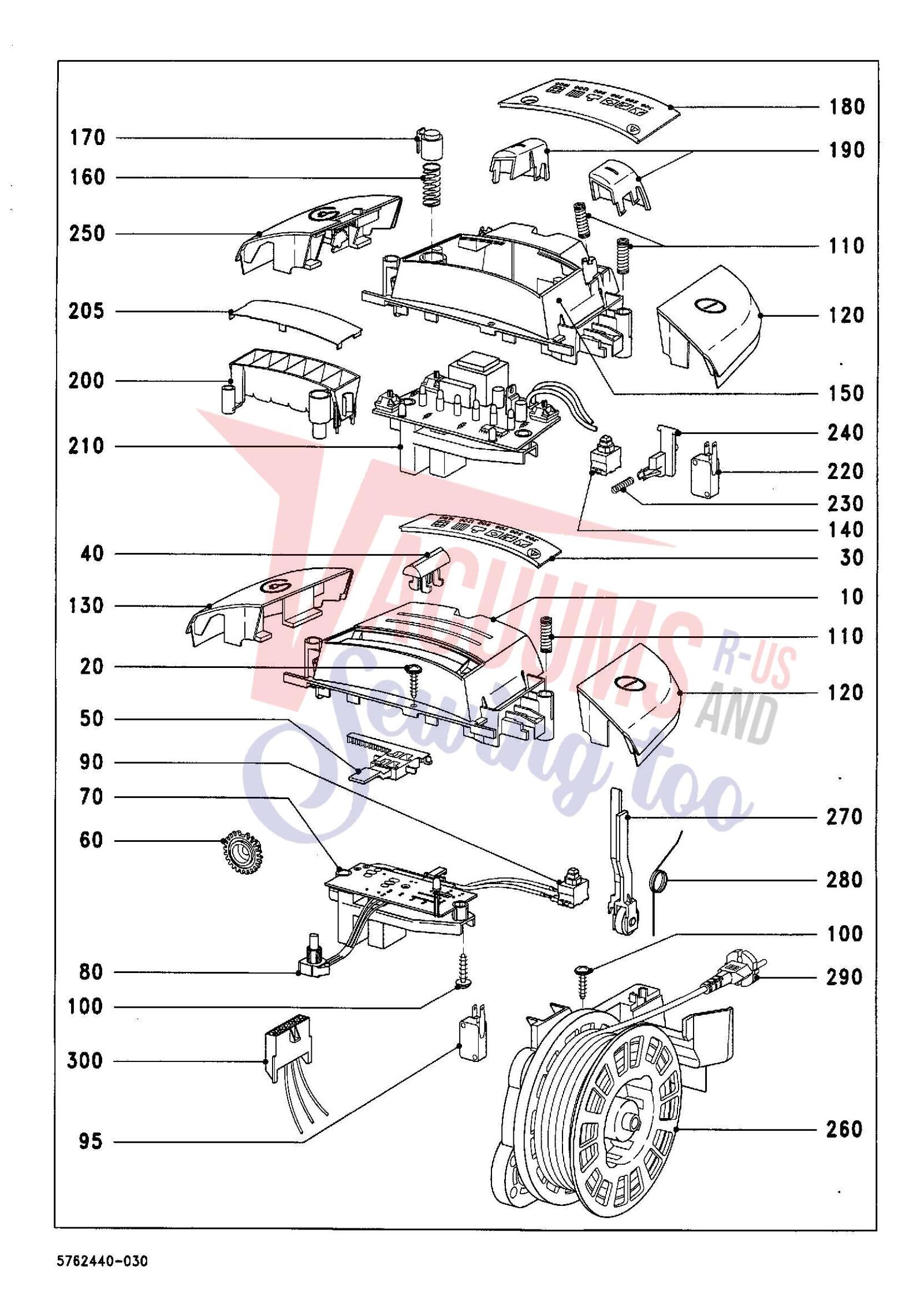

| # | Part image | Description | SKU | Price |
| xx | Not Available | Flush socket outlet For Miele S 724 S724 | noop | Not Available |
| xx | Not Available | Plug housing For Miele S 724 S724 | noop | Not Available |
| xx | Not Available | Cable reel For Miele S 724 S724 | noop | Not Available |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | undefined For Miele S 724 S724 | 5148913 | Not Available |
| 10-100 | Not Available | Cap 1800W For Miele S 724 S724 | 5782950 | Not Available |
| 10-100 | Not Available | Cap 2000W For Miele S 724 S724 | 6130400 | Not Available |
| 20 | Not Available | undefined For Miele S 724 S724 | noop | Not Available |
| 30 | Not Available | -Viewing screen 1800W For Miele S 724 S724 | 5755030 | Not Available |
| 30 | Not Available | -Viewing screen 2000W For Miele S 724 S724 | 6093330 | Not Available |
| 40 | Not Available | Slide anthracite For Miele S 724 S724 | 5148920 | Not Available |
| 50 | Not Available | undefined For Miele S 724 S724 | 5148960 | Not Available |
| 60 | Not Available | undefined For Miele S 724 S724 | 5148950 | Not Available |
| 70+80 | Not Available | Electronic unit For Miele S 724 S724 | noop | Not Available |
| 70+80 | Not Available | undefined For Miele S 724 S724 | noop | Not Available |
| 80 | Not Available | undefined For Miele S 724 S724 | noop | Not Available |
| 90 | | Genuine Miele Switch 1 pole 1681.3103 | 9023231 | $7.91Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 95 | | Genuine Miele Switch 250V | 4487791 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | Not Available | undefined For Miele S 724 S724 | noop | Not Available |
| 110 | | Genuine Miele Spring | 2733371 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Foot switch left (Relaunch) | 7737081 | $7.49Read more |
| 130 | | Genuine Miele Foot switch right (Relaunch) | 7737071 | $7.49Read more |
| 140 | | Genuine Miele Switch 1 pole 1681.3103 | 9023231 | $7.91Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 230 | | Genuine Miele Spring | 3982390 | $2.71Read more |
| 240 | | Genuine Miele Switch lever anthracite | 5281003 | $2.71Read more |
| 260-290 | Not Available | Cable reel For Miele S 724 S724 | noop | Not Available |
| 260-290 | Not Available | Cable reel S700 6,5m 230V EU For Miele S 724 S724 | 5755463 | Not Available |
| 270 | Not Available | undefined For Miele S 724 S724 | 4312183 | Not Available |
| 280 | | Genuine Miele Torsion spring S300-S5000 | 6217500 | $6.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 290 | Not Available | undefined For Miele S 724 S724 | noop | Not Available |
| 300 | Not Available | Connecting cable For Miele S 724 S724 | noop | Not Available |

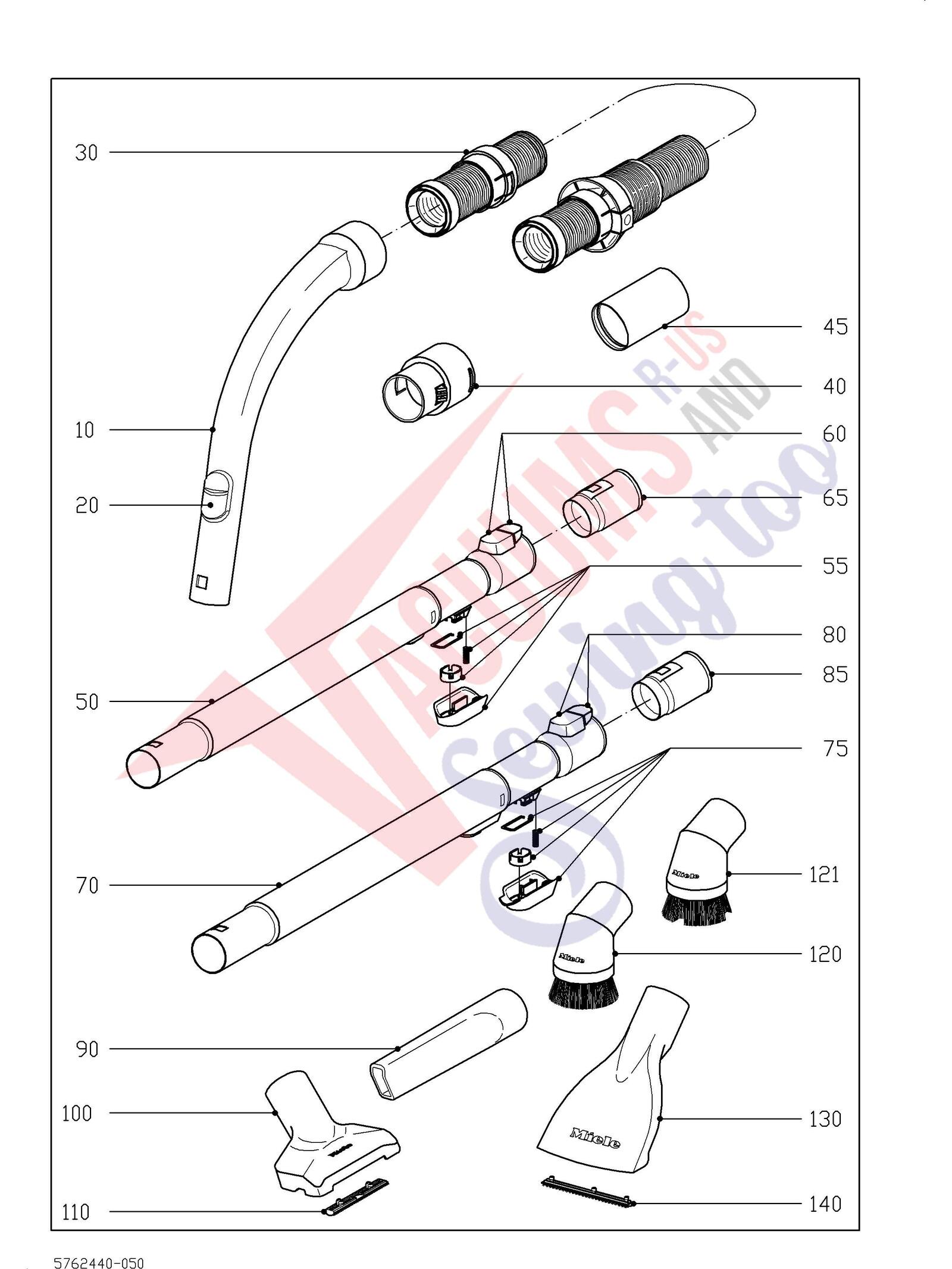

| # | Part image | Description | SKU | Price |
| xx | Not Available | No spare part For Miele S 724 S724 | noop | Not Available |
| xx | Not Available | Thread lifter For Miele S 724 S724 | noop | Not Available |
| 10+20 | | Genuine Miele Tubular handle anthracite | 9442601 | $27.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Suction control anthracite | 5141090 | $10.99Read more |
| 30 | | Genuine Miele Suction hose silver-coloured 1,8m | 7316571 | $59.25Read more |
| 30 | Not Available | Suction hose silver-coloured 1,8m For Miele S 724 S724 | 5749830 | Not Available |
| 40 | | Genuine Miele Adapter Blower plate | 5751130 | $7.49Read more |
| 45 | Not Available | Connecting tube Suction hose For Miele S 724 S724 | 5527410 | Not Available |
| 55 | | Genuine Miele Push button Round | 5780932 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60+65 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70-85 |  | HES Telescopic Wand for Miele | 10615280 | $65.45Read more |
| 75 | Not Available | undefined For Miele S 724 S724 | 6151391 | Not Available |
| 80+70 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100+110 | | Genuine Miele Upholstery nozzle | 9442620 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 121 | | Genuine Miele Dusting brush L | 12187780 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 121 | | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $24.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130+140 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $30.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 140 | | Genuine Miele Thread lifter | 5056530 | $7.49Add to cart Product is special order please allow 2-4 weeks for delivery. |
Report errors on this page HERE
