Parts list and schematic diagram for Miele Models: S 812, S812, xtra power Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
Popular Supplies

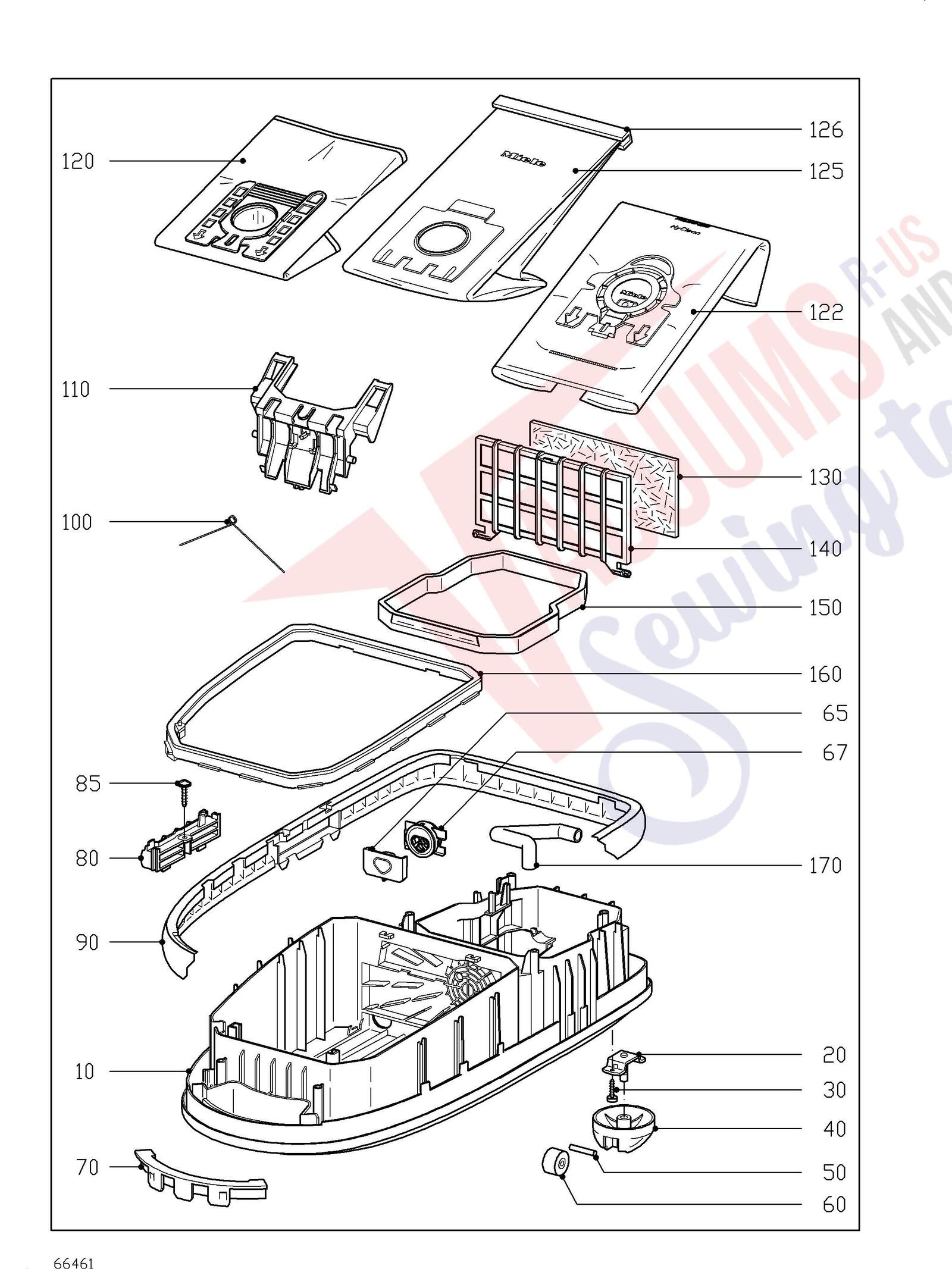

| # | Part image | Description | SKU | Price |
| xx | Not Available | Cable reel For Miele S 812 S812 | noop | Not Available |
| xx | Not Available | Casing bottom For Miele S 812 S812 | noop | Not Available |
| xx |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | Casing bottom anthracite For Miele S 812 S812 | 5314134 | Not Available |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $7.49Read more |
| 30 | Not Available | undefined For Miele S 812 S812 | noop | Not Available |
| 40-60 |  | Genuine Miele Slide skid assy | 10459340 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40-60 | | Genuine Miele Slide skid assy | 10459340 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 65 | Not Available | undefined For Miele S 812 S812 | 6083930 | Not Available |
| 67 | | Genuine Miele Suction control | 5388511 | $0.00Read more |
| 70 | | Genuine Miele Grip handle anthracite | 5088880 | $6.10Read more |
| 80 | | Genuine Miele Suspension anthracite | 5088800 | $6.10Read more |
| 85 | Not Available | undefined For Miele S 812 S812 | noop | Not Available |
| 90 | Not Available | Buffer For Miele S 812 S812 | 5093610 | Not Available |
| 100 | | Genuine Miele Torsion spring | 5088960 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | Not Available | Bracket Dustbag For Miele S 812 S812 | 5088942 | Not Available |
| 122 |  | Miele HEPA Vacuum Bags Type GN - 8pk | 10455150 | $44.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 125+126 | Not Available | Cloth filter bag S227-S858 For Miele S 812 S812 | 5188842 | Not Available |
| 126 | | Genuine Miele Lock | 1058641 | $18.00Read more |
| 130 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 140 | | Genuine Miele Filter frame | 5117170 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 | | Genuine Miele Seal | 5088860 | $16.70Read more |
| 160 | | Genuine Miele Sealing ring | 5093620 | $18.00Read more |
| 170 | | Genuine Miele Hose | 5088980 | $13.64Read more |

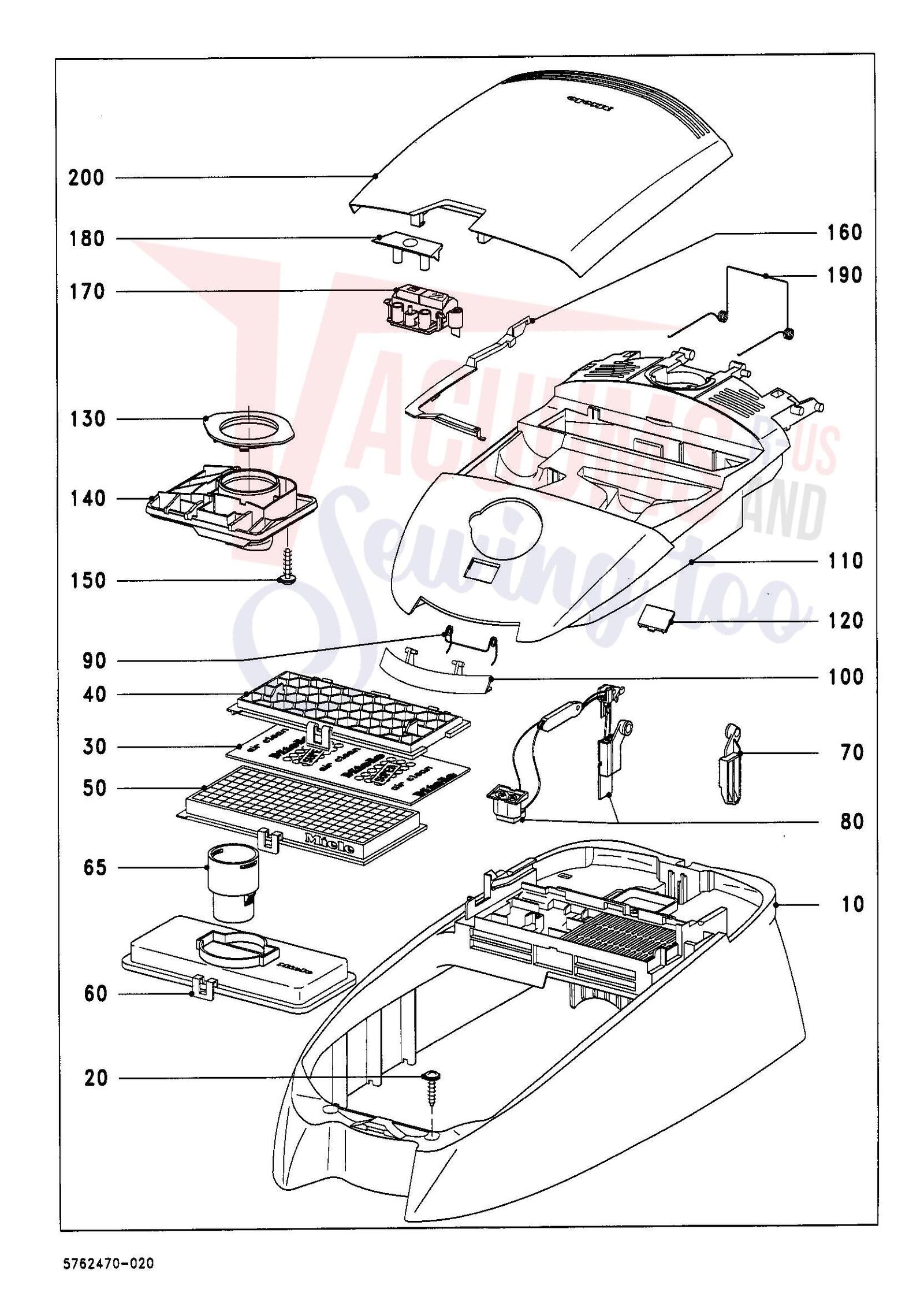

| # | Part image | Description | SKU | Price |
| xx | Not Available | For Miele S 812 S812 | noop | Not Available |
| xx |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | For Miele S 812 S812 | noop | Not Available |
| xx | Not Available | For Miele S 812 S812 | noop | Not Available |
| 10 | | Genuine Miele Cover frame Royal blue | 5225822 | $83.51Read more |
| 10 | Not Available | Cover frame Achat grey metallic For Miele S 812 S812 | 5752142 | Not Available |
| 10 | Not Available | Cover frame indigo For Miele S 812 S812 | 5586512 | Not Available |
| 10 | Not Available | Cover frame ice green metallic For Miele S 812 S812 | 5271872 | Not Available |
| 10 | Not Available | Cover frame Caramel For Miele S 812 S812 | 5982822 | Not Available |
| 10 | Not Available | Cover frame sun yellow For Miele S 812 S812 | 5225842 | Not Available |
| 10 | Not Available | Cover frame brick red For Miele S 812 S812 | 5225812 | Not Available |
| 20 | Not Available | undefined For Miele S 812 S812 | noop | Not Available |
| 30 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $11.95Add to cart |
| 40 | | Genuine Miele Grille anthracite | 5089130 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | HEPA AirClean filter withTimeStrip SF-HA30 | 4002515315606 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | Aftermarket Miele AH-30 HEPA Filter | 54236207 | $22.00Add to cart |
| 50 | | Miele ActiveAir Clean Filter SF-AA30 | 9616080 | $39.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Genuine Miele Blower plate | 5109310 | $18.00Read more |
| 65 | | Genuine Miele Adapter Blower plate | 5751130 | $7.49Read more |
| 70 |  | Genuine Miele Hinge left anthracite | 5089000 | $4.27Add to cart |
| 80 | Not Available | Flush socket outlet For Miele S 812 S812 | noop | Not Available |
| 90 | | Genuine Miele Torsion spring | 5124500 | $18.00Read more |
| 100 | Not Available | Lock anthracite For Miele S 812 S812 | 5093642 | Not Available |
| 110 | Not Available | Casing top sun yellow For Miele S 812 S812 | 5231192 | Not Available |
| 110 | Not Available | Casing top deep black For Miele S 812 S812 | 5231302 | Not Available |
| 110 | | Genuine Miele Casing top Royal blue | 5231172 | $90.72Read more |
| 110 | Not Available | Casing top Caramel For Miele S 812 S812 | 5982902 | Not Available |
| 110 | Not Available | Casing top ice green metallic For Miele S 812 S812 | 5231312 | Not Available |
| 110 | Not Available | Casing top indigo For Miele S 812 S812 | 5586342 | Not Available |
| 110 | Not Available | Casing top night blue metallic For Miele S 812 S812 | 5231322 | Not Available |
| 120 | | Genuine Miele Cap anthracite | 5089032 | $2.71Read more |
| 130 | | Genuine Miele Ring Dust channel | 5739640 | $4.27Read more |
| 140 | | Genuine Miele Dust channel Casing top | 5754751 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 | Not Available | undefined For Miele S 812 S812 | noop | Not Available |
| 160 | | Genuine Miele Cover strip anthracite | 5108170 | $2.01Read more |
| 170+180 | Not Available | Change filter ind. For Miele S 812 S812 | noop | Not Available |
| 180 | | Genuine Miele interlock | 5089091 | $7.49Read more |
| 190 | | Genuine Miele Torsion spring | 5108200 | $6.10Read more |
| 200 | Not Available | Lid Caramel For Miele S 812 S812 | 5991052 | Not Available |
| 200 | Not Available | Lid Achat grey metallic For Miele S 812 S812 | 5752272 | Not Available |
| 200 | Not Available | Lid indigo For Miele S 812 S812 | 5777730 | Not Available |
| 200 | Not Available | Lid deep black For Miele S 812 S812 | 5271652 | Not Available |
| 200 | Not Available | Lid Royal blue For Miele S 812 S812 | 5271442 | Not Available |
| 200 | Not Available | Lid deep black For Miele S 812 S812 | 5271652 | Not Available |
| 200 | | Genuine Miele Lid night blue metallic | 5271712 | $70.93Read more |
