Parts list and schematic diagram for Miele Models: S 834, S834 Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
Popular Supplies

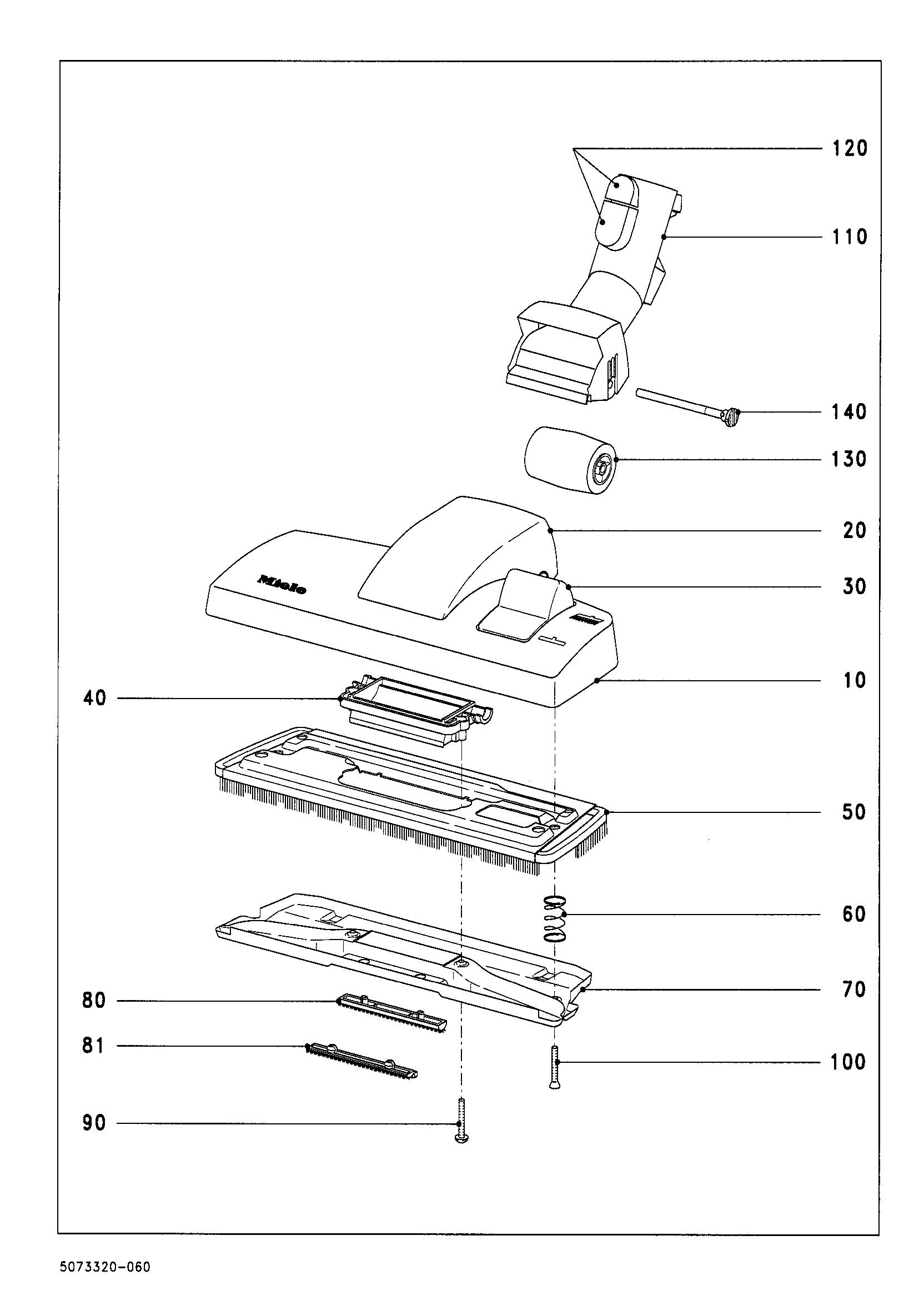

| # | Part image | Description | SKU | Price |
| xx | Not Available | undefined For Miele S 834 S834 | noop | Not Available |
| 10 |  | Genuine Miele Top anthracite | 5235512 | $25.32Read more |
| 10-80+ | Not Available | For Miele S 834 S834 | noop | Not Available |
| 10-80+ | Not Available | For Miele S 834 S834 | noop | Not Available |
| 10-70+ | Not Available | For Miele S 834 S834 | noop | Not Available |
| 10-70+ | Not Available | For Miele S 834 S834 | noop | Not Available |
| 10-70+ | Not Available | For Miele S 834 S834 | noop | Not Available |
| 20 | | Genuine Miele Suction channel anthracite | 5235541 | $22.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Foot switch anthracite | 5235503 | $13.64Read more |
| 40 | | Genuine Miele Fixing | 5235480 | $7.49Read more |
| 50 | | Genuine Miele Bristle supp.plate | 5235463 | $30.74Read more |
| 60 | | Genuine Miele Spring 2 Pcs. | 4818720 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70+81 | | Genuine Miele Lower section | 5235453 | $40.34Read more |
| 80 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 81-140 | Not Available | Floor nozzle SBD285-2 AllTeQ For Miele S 834 S834 | 7253820 | Not Available |
| 81 | | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $22.79Read more |
| 90 | | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $2.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | Not Available | --Countersunk screw 35X20 For Miele S 834 S834 | 5289870 | Not Available |
| 110+120 | | Genuine Miele Linkage anthracite | 5235552 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 | | Genuine Miele Support roller | 5235530 | $13.64Read more |
| 140 | | Genuine Miele Shaft Bayonett fitting | 5235520 | $11.98Read more |
| # | Part image | Description | SKU | Price |
| xx | Not Available | Cable reel For Miele S 834 S834 | noop | Not Available |
| xx | Not Available | Casing bottom For Miele S 834 S834 | noop | Not Available |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | Casing bottom anthracite For Miele S 834 S834 | 5314134 | Not Available |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $7.49Read more |
| 30 | Not Available | undefined For Miele S 834 S834 | noop | Not Available |
| 40-60 | | Genuine Miele Slide skid assy | 10459340 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40-60 | | Genuine Miele Slide skid assy | 10459340 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 65 | Not Available | undefined For Miele S 834 S834 | 6083930 | Not Available |
| 67 | | Genuine Miele Suction control | 5388511 | $0.00Read more |
| 70 | | Genuine Miele Grip handle anthracite | 5088880 | $6.10Read more |
| 80 | | Genuine Miele Suspension anthracite | 5088800 | $6.10Read more |
| 85 | Not Available | undefined For Miele S 834 S834 | noop | Not Available |
| 90 | Not Available | Buffer For Miele S 834 S834 | 5093610 | Not Available |
| 100 | | Genuine Miele Torsion spring | 5088960 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | Not Available | Bracket Dustbag For Miele S 834 S834 | 5088942 | Not Available |
| 122 |  | Miele HEPA Vacuum Bags Type GN - 8pk | 10455150 | $44.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 125+126 | Not Available | undefined For Miele S 834 S834 | 5188842 | Not Available |
| 126 | | Genuine Miele Lock | 1058641 | $18.00Read more |
| 130 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 140 | | Genuine Miele Filter frame | 5117170 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 | | Genuine Miele Seal | 5088860 | $16.70Read more |
| 160 | | Genuine Miele Sealing ring | 5093620 | $18.00Read more |
| 170 | | Genuine Miele Hose | 5088980 | $13.64Read more |
| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Cover frame brick red For Miele S 834 S834 | 5225812 | Not Available |
| 20 | Not Available | undefined For Miele S 834 S834 | noop | Not Available |
| 30 | | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $11.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Grille anthracite | 5089130 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | Aftermarket Miele AH-30 HEPA Filter | 54236207 | $22.00Add to cart |
| 50 | | Miele ActiveAir Clean Filter SF-AA30 | 9616080 | $39.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | Not Available | Act.Air Cleanfilter SF-AAC30 S300-800 For Miele S 834 S834 | 4306918 | Not Available |
| 50 |  | HEPA AirClean filter withTimeStrip SF-HA30 | 4002515315606 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Genuine Miele Blower plate | 5109310 | $18.00Read more |
| 65 | | Genuine Miele Adapter Blower plate | 5751130 | $7.49Read more |
| 70 | | Genuine Miele Hinge left anthracite | 5089000 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | Not Available | Flush socket outlet For Miele S 834 S834 | noop | Not Available |
| 90 | | Genuine Miele Torsion spring | 5124500 | $18.00Read more |
| 100 | Not Available | Lock anthracite For Miele S 834 S834 | 5093642 | Not Available |
| 110 | Not Available | Casing top deep black For Miele S 834 S834 | 5231302 | Not Available |
| 120 | | Genuine Miele Cap anthracite | 5089032 | $2.71Read more |
| 130 | | Genuine Miele Ring Dust channel | 5739640 | $4.27Read more |
| 140 | | Genuine Miele Dust channel Casing top | 5754751 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 | Not Available | undefined For Miele S 834 S834 | noop | Not Available |
| 160 | | Genuine Miele Cover strip anthracite | 5108170 | $2.01Read more |
| 170+180 | Not Available | Change filter ind. For Miele S 834 S834 | noop | Not Available |
| 180 | | Genuine Miele interlock | 5089091 | $7.49Read more |
| 190 | | Genuine Miele Torsion spring | 5108200 | $6.10Read more |
| 200 | Not Available | Lid deep black For Miele S 834 S834 | 5271652 | Not Available |

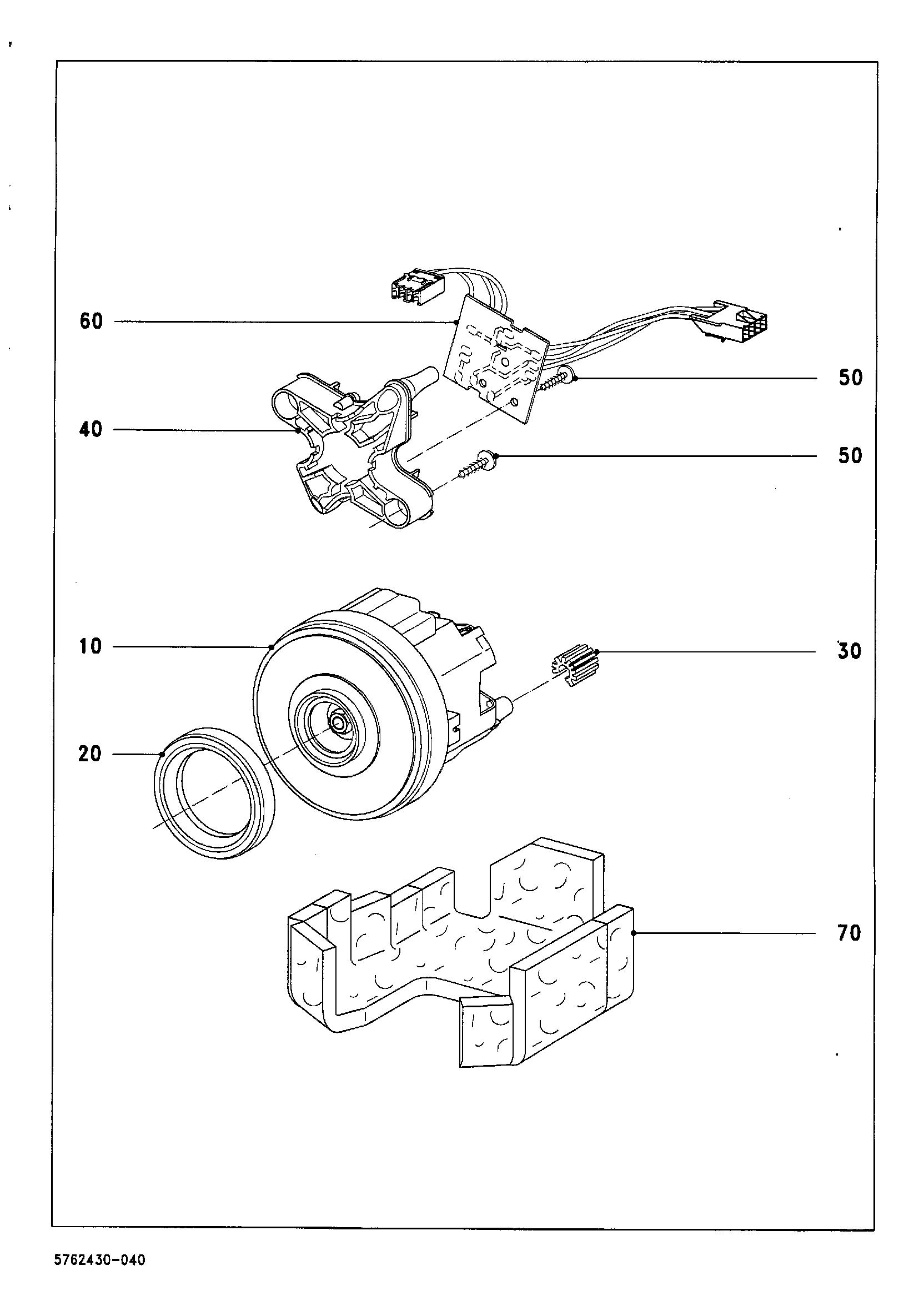

| # | Part image | Description | SKU | Price |
| xx | Not Available | --Raised head screw 4,0X14 For Miele S 834 S834 | 6498750 | Not Available |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Fan For Miele S 834 S834 | noop | Not Available |
| 20 | | Genuine Miele Bearing ring | 5089170 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Rubber cushion | 5089190 | $6.10Read more |
| 40 | Not Available | Adapter Fan For Miele S 834 S834 | 5704060 | Not Available |
| 50 | Not Available | undefined For Miele S 834 S834 | noop | Not Available |
| 60 | Not Available | Electronic unit For Miele S 834 S834 | noop | Not Available |
| 70 | | Genuine Miele Damping plate | 5088890 | $7.95Read more |
| # | Part image | Description | SKU | Price |
| xx | Not Available | Flush socket outlet For Miele S 834 S834 | noop | Not Available |
| xx | Not Available | Plug housing For Miele S 834 S834 | noop | Not Available |
| xx | Not Available | Cable reel For Miele S 834 S834 | noop | Not Available |
| 120 | Not Available | Foot switch left anthracite For Miele S 834 S834 | 5093680 | Not Available |
| 140 | | Genuine Miele Switch 1 pole 1681.3103 | 9023231 | $7.91Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150-220 | Not Available | Cap 2000W For Miele S 834 S834 | 6130390 | Not Available |
| 150-220 | Not Available | Cap 1800W For Miele S 834 S834 | 5782940 | Not Available |
| 150 | Not Available | undefined For Miele S 834 S834 | 5129902 | Not Available |
| 160 | | Genuine Miele Spring | 3092700 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 170 | | Genuine Miele Push button | 5159490 | $4.27Read more |
| 180 | Not Available | -Viewing screen 2000W For Miele S 834 S834 | 6093340 | Not Available |
| 180 | Not Available | -Viewing screen 1800W For Miele S 834 S834 | 5755040 | Not Available |
| 190 | Not Available | undefined For Miele S 834 S834 | 5333210 | Not Available |
| 200 | Not Available | undefined For Miele S 834 S834 | 5252300 | Not Available |
| 205 | Not Available | undefined For Miele S 834 S834 | 5252340 | Not Available |
| 210 | Not Available | undefined For Miele S 834 S834 | noop | Not Available |
| 220 | Not Available | -Switch 250V For Miele S 834 S834 | 5305040 | Not Available |
| 230 | | Genuine Miele Spring | 3982390 | $2.71Read more |
| 240 | | Genuine Miele Switch lever anthracite | 5281003 | $2.71Read more |
| 250 | Not Available | Foot switch AutoReverse For Miele S 834 S834 | 5368031 | Not Available |
| 260-290 | | Genuine Miele Cable reel S800 8,5m 230V | 5756900 | $93.09Read more |
| 270 | | Genuine Miele Brake lever S400/600/800 | 4312191 | $16.70Read more |
| 280 | | Genuine Miele Torsion spring S300-S5000 | 6217500 | $6.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 290 | Not Available | -Supply cable 8,65m 1qmm 230V For Miele S 834 S834 | 5768100 | Not Available |
| 300 | Not Available | Connecting cable For Miele S 834 S834 | noop | Not Available |

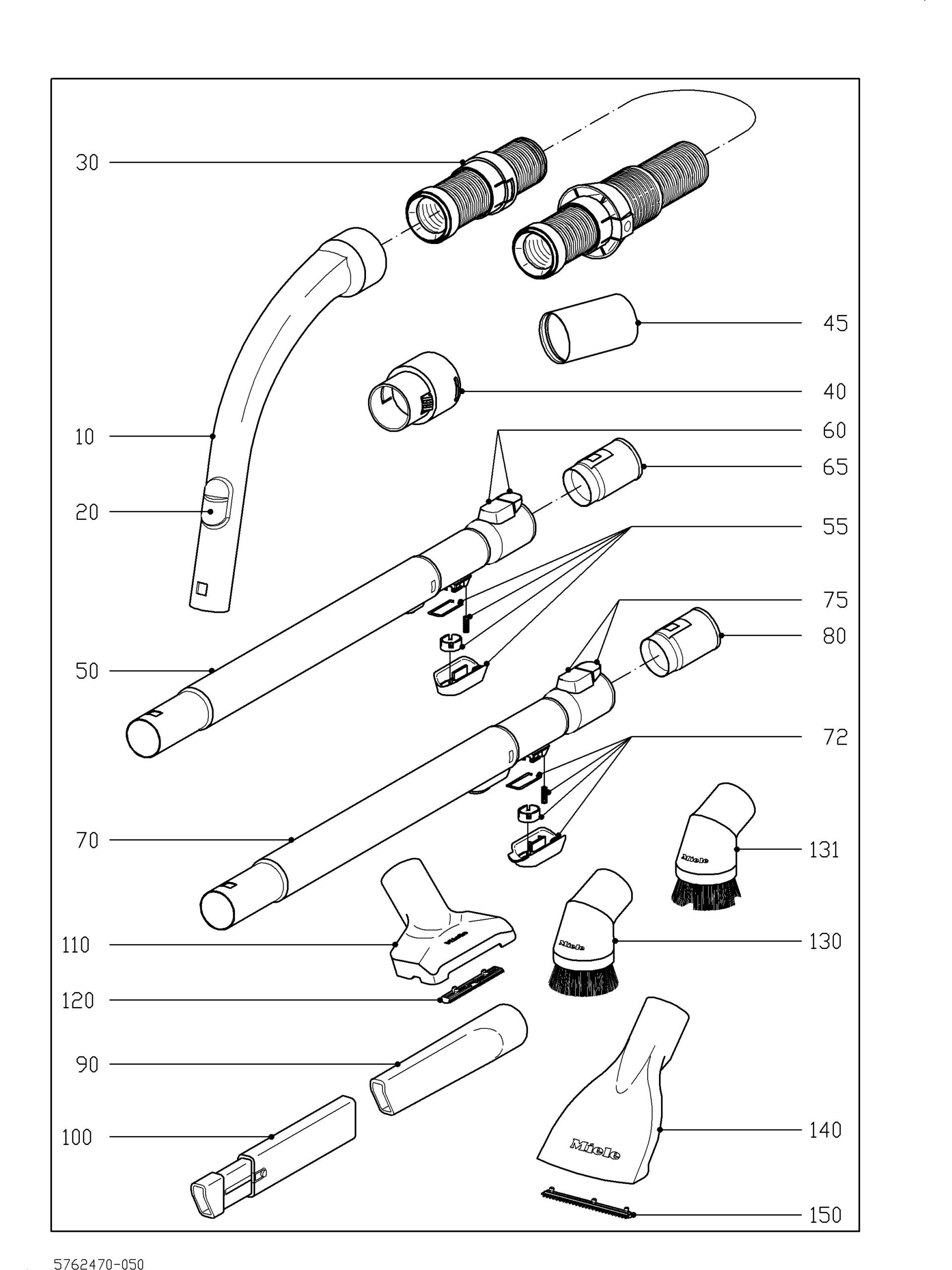

| # | Part image | Description | SKU | Price |
| xx | Not Available | No spare part For Miele S 834 S834 | noop | Not Available |
| xx | Not Available | Thread lifter For Miele S 834 S834 | noop | Not Available |
| 10+20 | | Genuine Miele Tubular handle anthracite | 9442601 | $27.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Suction control anthracite | 5141090 | $10.99Read more |
| 30 | Not Available | Suction hose silver-coloured 1,8m For Miele S 834 S834 | 5749830 | Not Available |
| 40 | | Genuine Miele Adapter Blower plate | 5751130 | $7.49Read more |
| 45 | Not Available | Connecting tube Suction hose For Miele S 834 S834 | 5527410 | Not Available |
| 50+60+ | Not Available | For Miele S 834 S834 | noop | Not Available |
| 50+60+ | Not Available | For Miele S 834 S834 | noop | Not Available |
| 55+ | Not Available | For Miele S 834 S834 | noop | Not Available |
| 55 | | Genuine Miele Push button Round | 5780932 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60+65 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70-80 |  | HES Telescopic Wand for Miele | 10615280 | $65.45Read more |
| 72 | | Genuine Miele Push button Round | 6151392 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 75 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80+75 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Crevice nozzle anthracite | 3571671 | $9.44Read more |
| 100 | | Genuine Miele Nozzle extension anthracite | 5120360 | $30.74Read more |
| 110+120 | | Genuine Miele Upholstery nozzle | 9442620 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 | | Genuine Miele Dusting brush L | 12187780 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 131 | | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $24.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 140+150 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $30.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 | | Genuine Miele Thread lifter | 5056530 | $7.49Add to cart Product is special order please allow 2-4 weeks for delivery. |
