Parts list and schematic diagram for Miele Models: S5421 Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
Popular Supplies

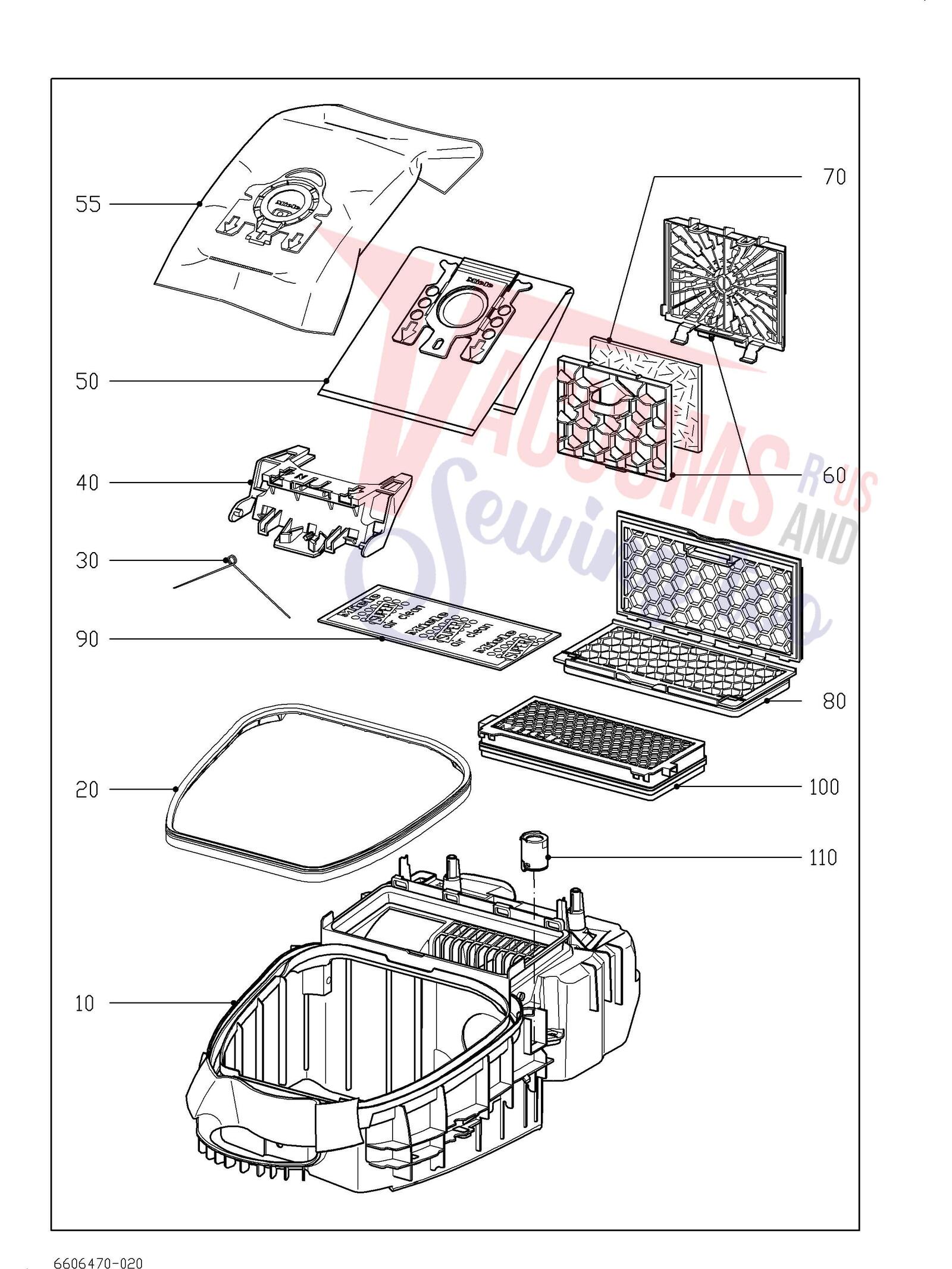

| # | Part image | Description | SKU | Price |
| 10 |  | Genuine Miele Casing insert S5xxx | 12073090 | $65.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Sealing ring | 6141480 | $11.98Read more |
| 30 | | Genuine Miele Torsion spring Bracket | 6434090 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Bracket vacuum cleaner bag | 6081322 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | Miele HEPA Vacuum Bags Type GN - 4pk | 4002515578971 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | Aftermarket Miele GN Bags 5pk with Filters | WP10968 | $14.99Add to cart |
| 60+70 | | Genuine Miele Filter frame Brilliant blue | 6241011 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Spacer bracket Air-Clean filter | 11690520 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $11.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 |  | Miele HEPA AirClean with TimeStrip SF-HA 50 | 4002515317013 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 |  | Miele ActiveAir Clean Filter SF-AA50 | 9616110 | $45.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 |  | Aftermarket Miele SF-HA 50 HEPA Filter | 54236401 | $25.99Add to cart |
| 110 | | Genuine Miele End plug Suction control | 6175470 | $2.01Read more |

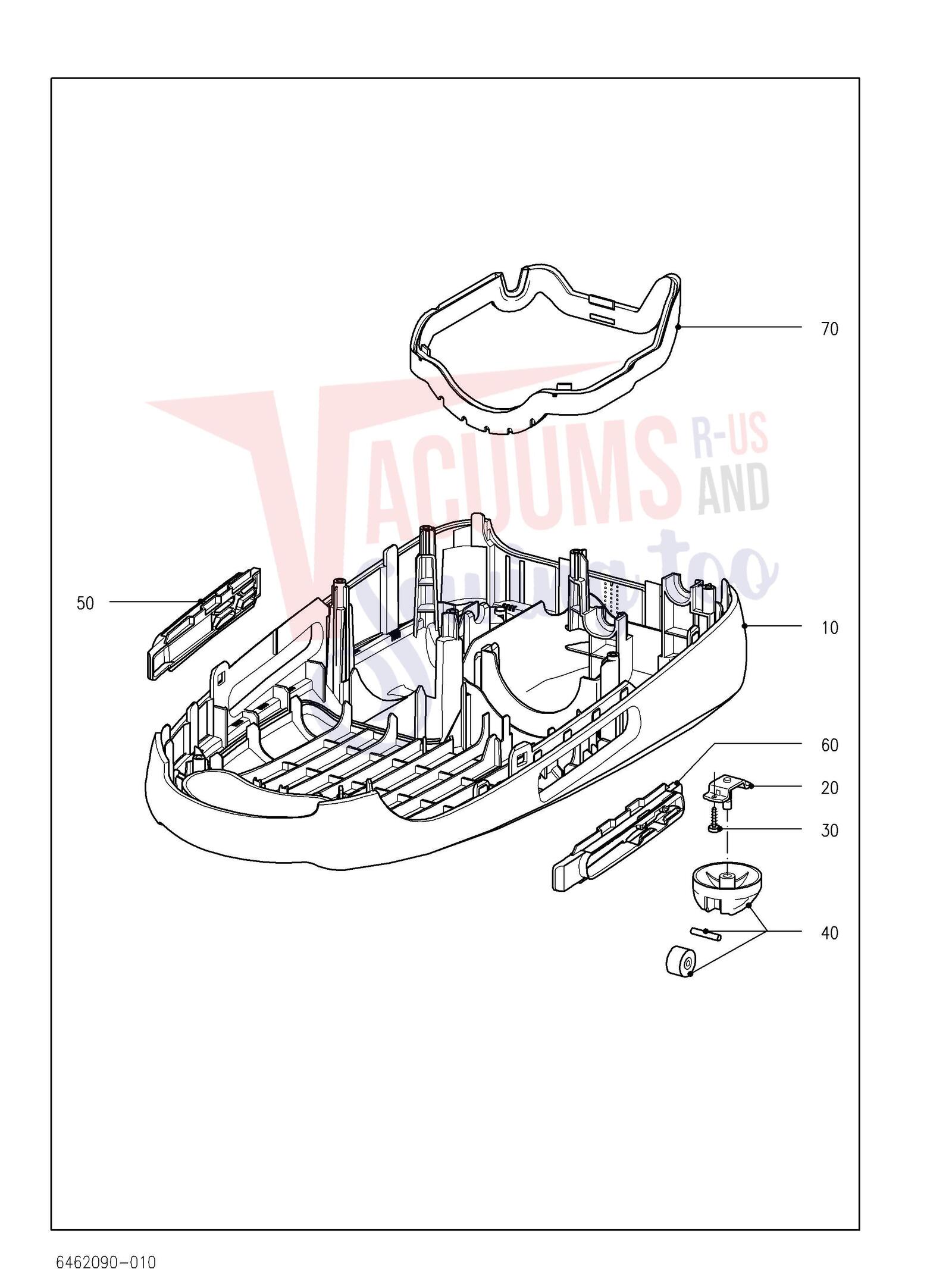

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Casing bottom anthracite | 9895502 | $97.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $7.49Read more |
| 30 | Not Available | undefined For Miele S5421 S5421 | noop | Not Available |
| 40 | | Genuine Miele Slide skid assy | 10459340 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Suspension right | 6065240 | $4.27Read more |
| 60 | Not Available | undefined For Miele S5421 S5421 | 6065270 | Not Available |
| 70 | Not Available | undefined For Miele S5421 S5421 | 6049591 | Not Available |

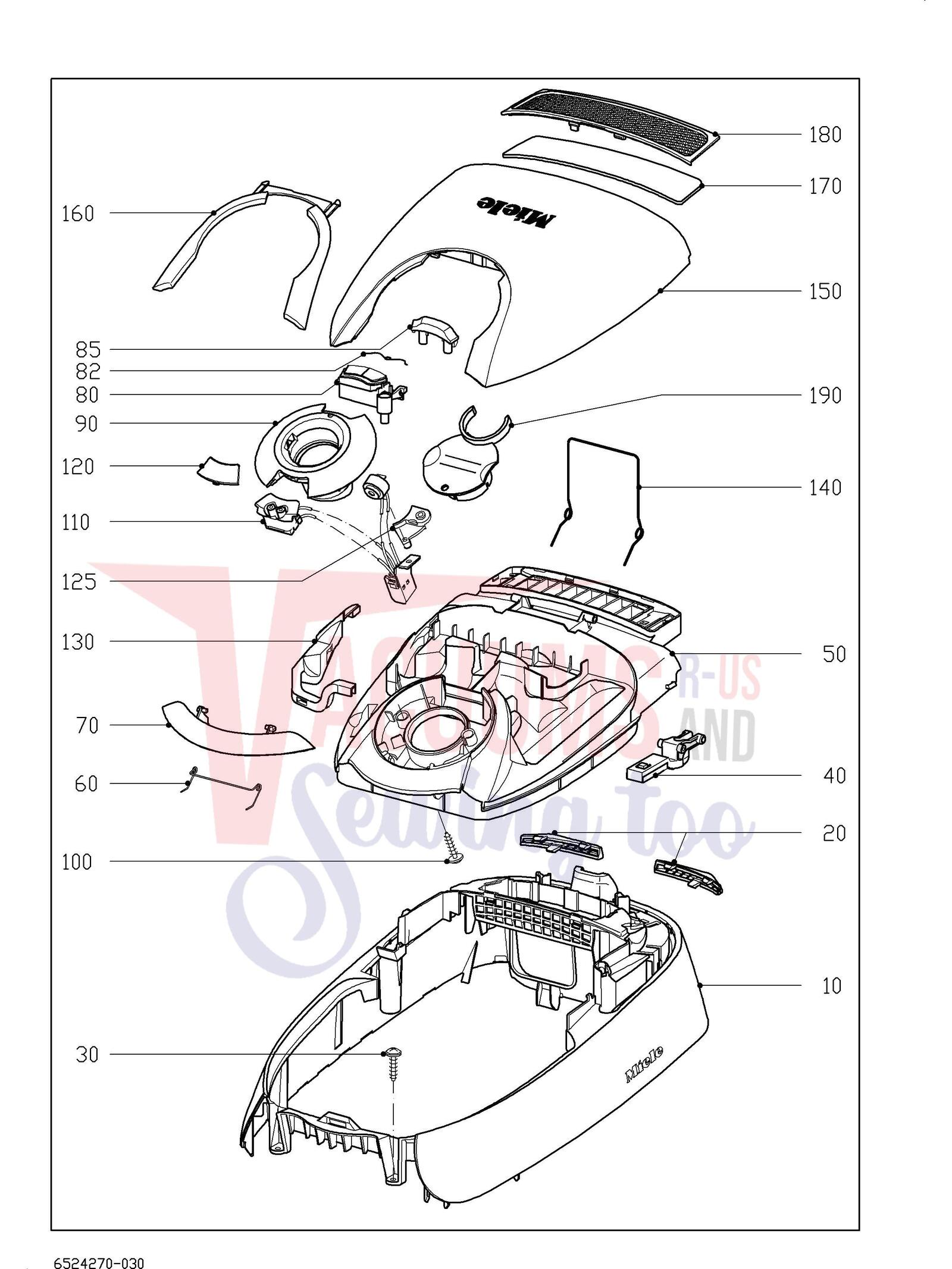

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | --Raised head screw 4,0X18 TORX T20 For Miele S5421 S5421 | 6238630 | Not Available |
| 10+20 | | Genuine Miele Cover frame Luna silver | 6515260 | $109.64Read more |
| 20 | | Genuine Miele Strip Left and right | 6515290 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | undefined For Miele S5421 S5421 | noop | Not Available |
| 40 | | Genuine Miele Hinge 2 Pcs. | 6515311 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Casing top S5xxx | 11997180 | $90.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Genuine Miele Torsion spring Lock | 6079920 | $2.71Read more |
| 70 | | Genuine Miele Lock | 6079890 | $2.71Read more |
| 80-85 | | Genuine Miele Change filter ind. SF TYPE 1 USA/J | 10292782 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 82 | | Genuine Miele Torsion spring Change filter ind. | 5463553 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 85 | | Genuine Miele interlock | 6122782 | $2.01Read more |
| 90 | | Genuine Miele Ring alu-silver S5500 | 6426520 | $18.00Read more |
| 100 | Not Available | undefined For Miele S5421 S5421 | noop | Not Available |
| 110 | Not Available | Flush socket outlet S5400 For Miele S5421 S5421 | 6873422 | Not Available |
| 120 | | Genuine Miele Fascia panel alu-silver | 6217170 | $7.95Read more |
| 125 | Not Available | Air shield Ring For Miele S5421 S5421 | 6141491 | Not Available |
| 130 | Not Available | Cover strip Casing top For Miele S5421 S5421 | 6128230 | Not Available |
| 140 | | Genuine Miele Torsion spring Lid | 6409260 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150+160 | | Genuine Miele Lid Obsidian black | 9375340 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 160 | | Genuine Miele Fascia panel Lid | 6126401 | $4.27Read more |
| 180+170 | | Genuine Miele Air shield alu-silver | 6835790 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 190 | Not Available | Hygiene cap For Miele S5421 S5421 | 6622030 | Not Available |

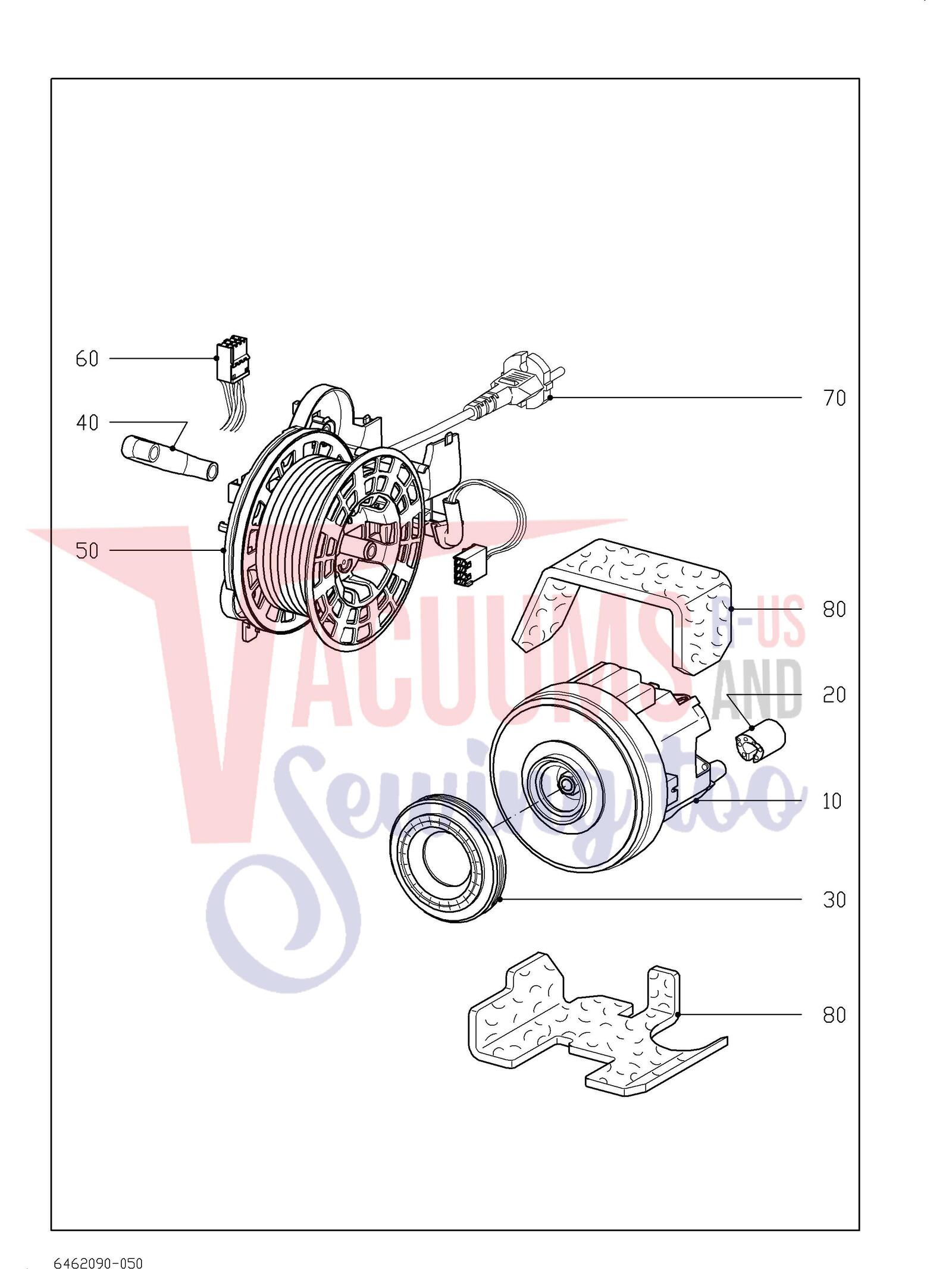

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Fan Mrg412-42/2 230V | 7890582 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Rubber cushion 2 Pcs. | 6207001 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Bearing ring | 7752870 | $13.64Read more |
| 30 | | Genuine Miele Bearing ring | 5964034 | $13.64Read more |
| 40 | | Genuine Miele Hose Nebenluft | 7196500 | $7.95Read more |
| 50-70 | | Genuine Miele Cable reel S5000 6,5m EU/PRC | 9931334 | $93.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Genuine Miele Connecting cable S5000 100-120V | 6437871 | $54.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | Not Available | -Supply cable 6,65m 1qmm 230V For Miele S5421 S5421 | 5766340 | Not Available |
| 80 | | Genuine Miele Damping plate | 6518591 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |

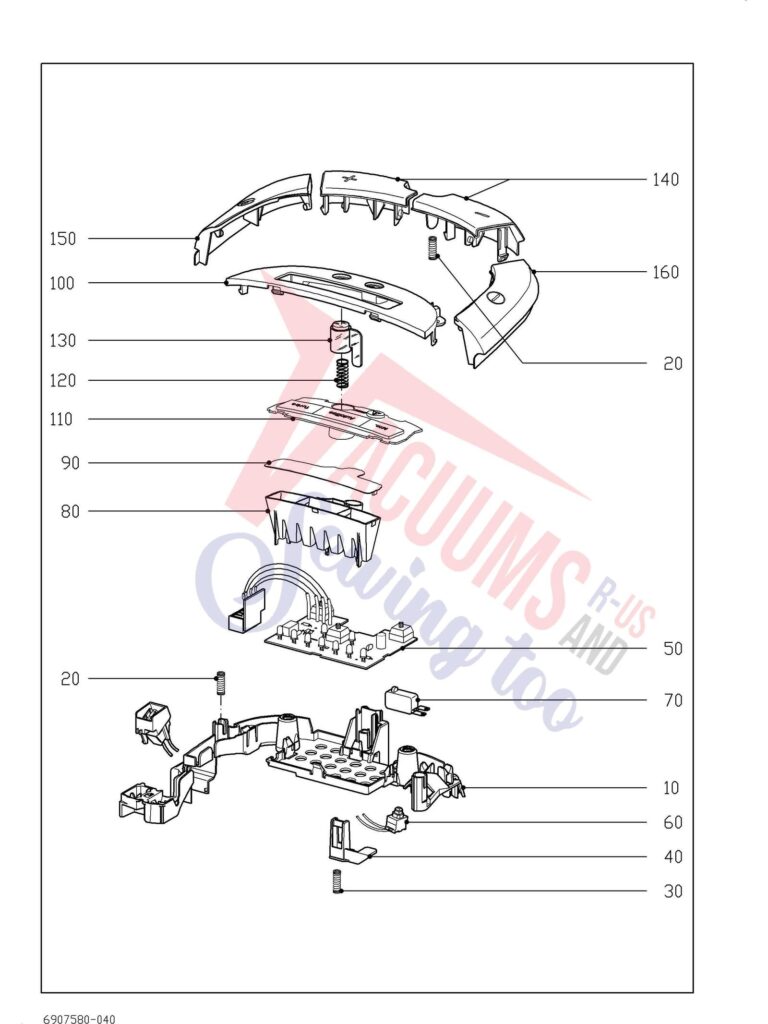

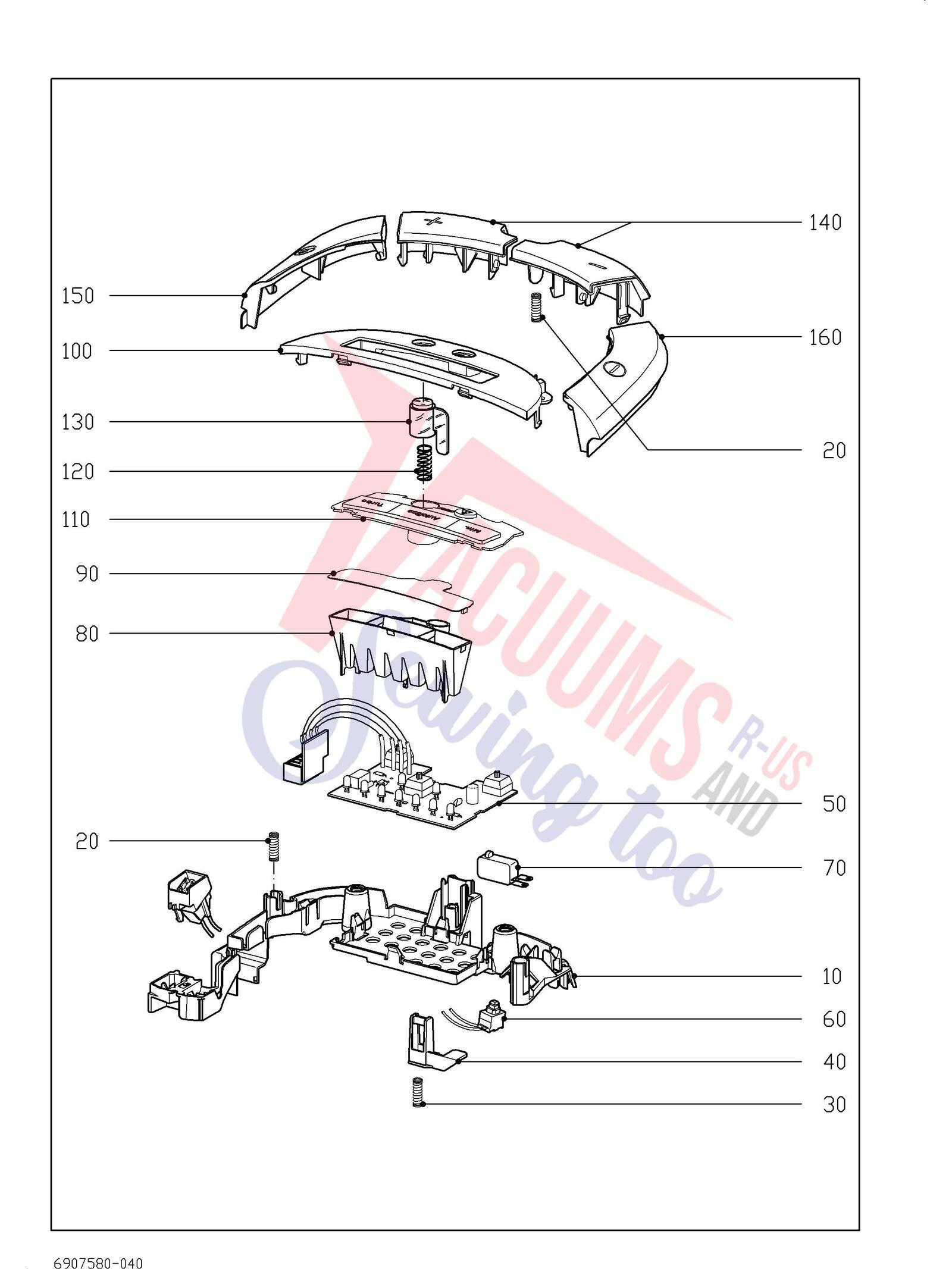

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Bracket Electronic unit | 6134771 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Spring | 2733371 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Spring | 3982390 | $2.71Read more |
| 40 | Not Available | Pushbutton S5000 For Miele S5421 S5421 | 6138870 | Not Available |
| 50+60 | | Genuine Miele Electronic unit EDW5412 | 7493761 | $155.25Read more |
| 60 | | Genuine Miele Switch 1 pole 1681.3103 | 9023231 | $7.91Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Switch 250V | 4487791 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | Not Available | Reflector S5400 For Miele S5421 S5421 | 6935120 | Not Available |
| 90 | Not Available | Fascia panel Reflector For Miele S5421 S5421 | 6165240 | Not Available |
| 100-130 | Not Available | Control panel Luna silver For Miele S5421 S5421 | 7190570 | Not Available |
| 110 | Not Available | undefined For Miele S5421 S5421 | 6944160 | Not Available |
| 120 | | Genuine Miele Spring | 5457311 | $7.49Read more |
| 130 | | Genuine Miele Push button | 6084420 | $7.49Read more |
| 140 | | Genuine Miele Pushbutton Left and right | 6518600 | $30.74Read more |
| 150 | | Genuine Miele Foot switch alu-silver SF printed | 11168540 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 160 | | Genuine Miele Foot switch alu-silver SF print | 11168551 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
