Parts list and schematic diagram for Miele Models: SBAG1, Classic C1 Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
Popular Supplies

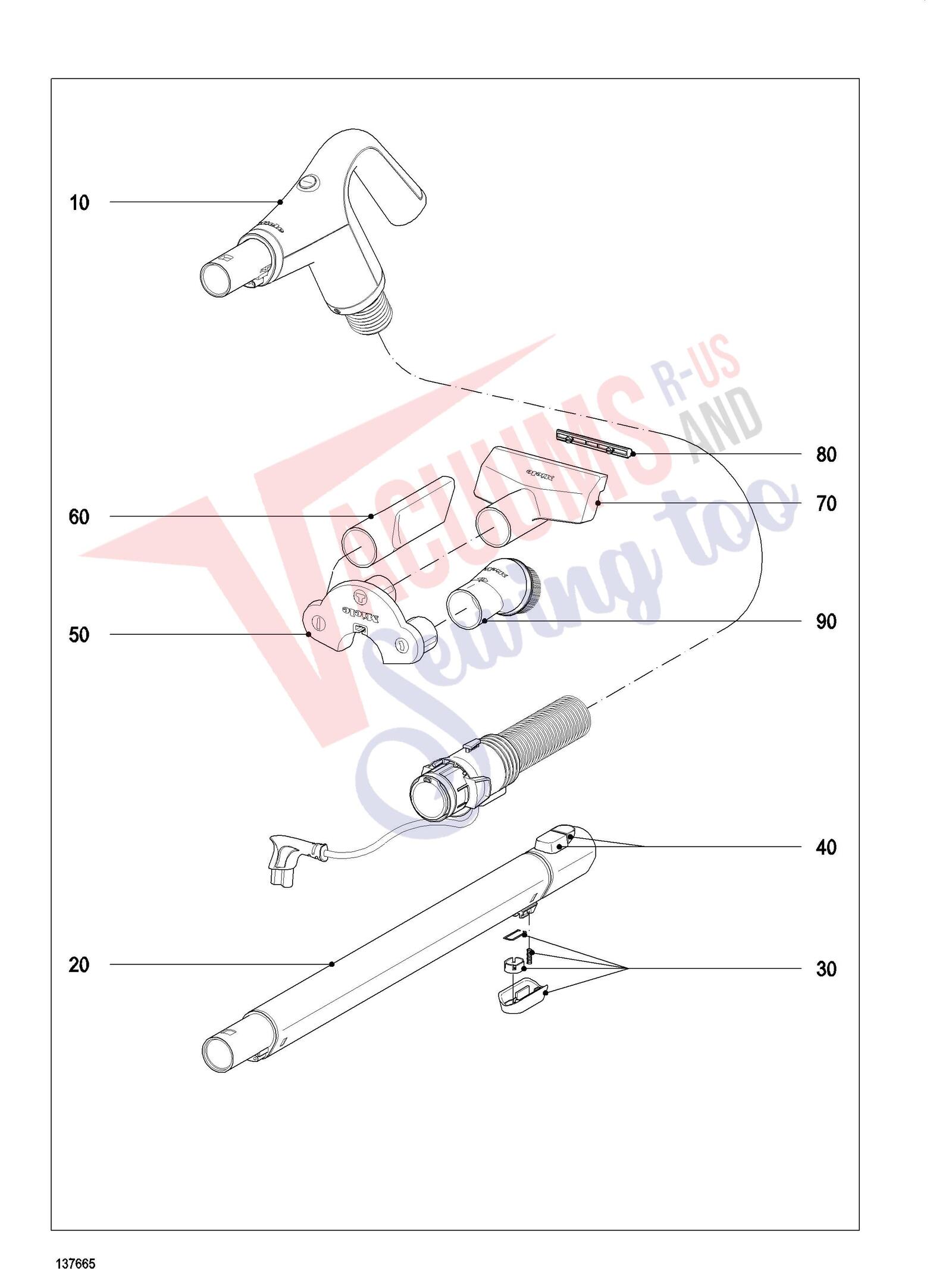

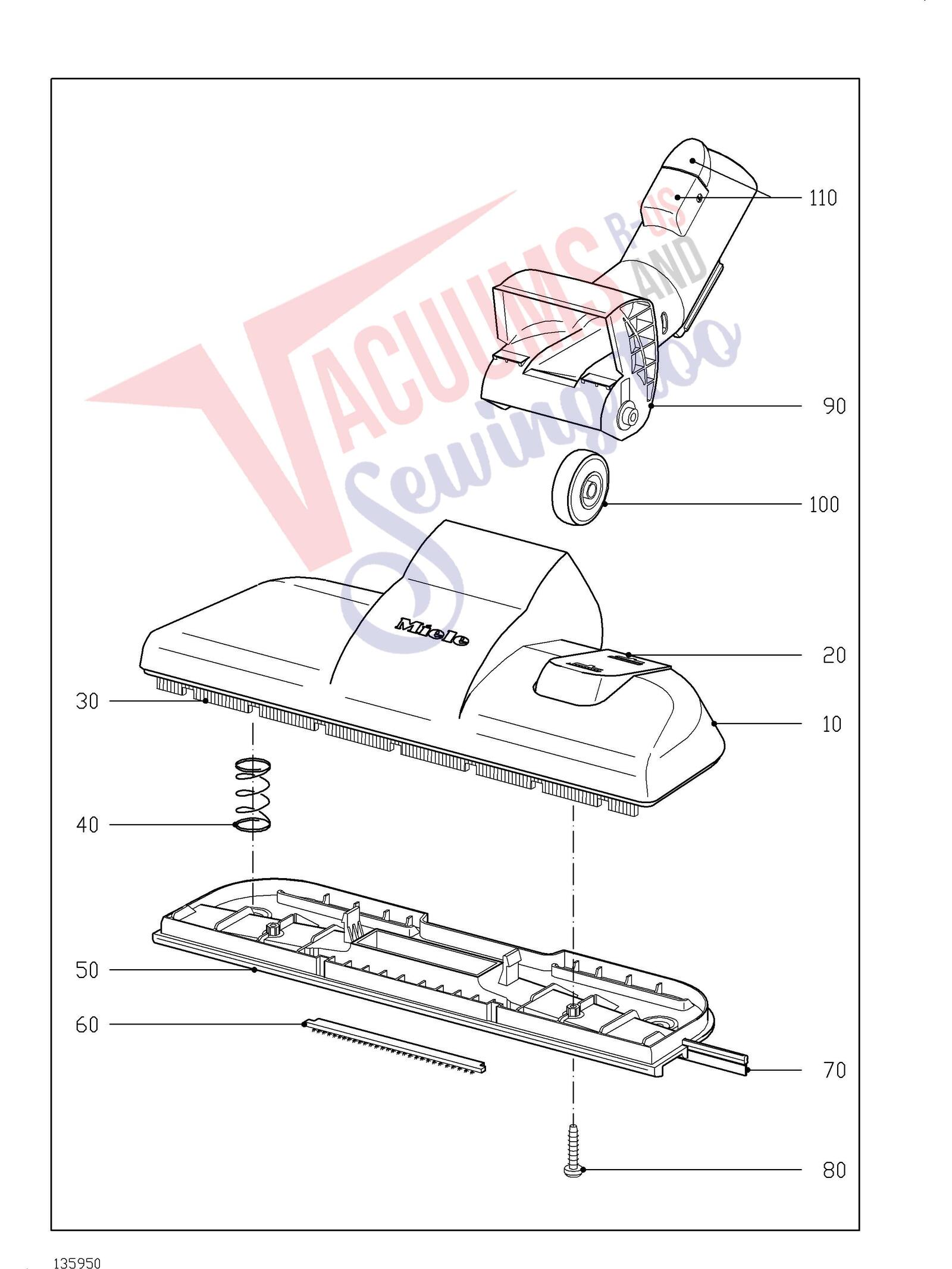

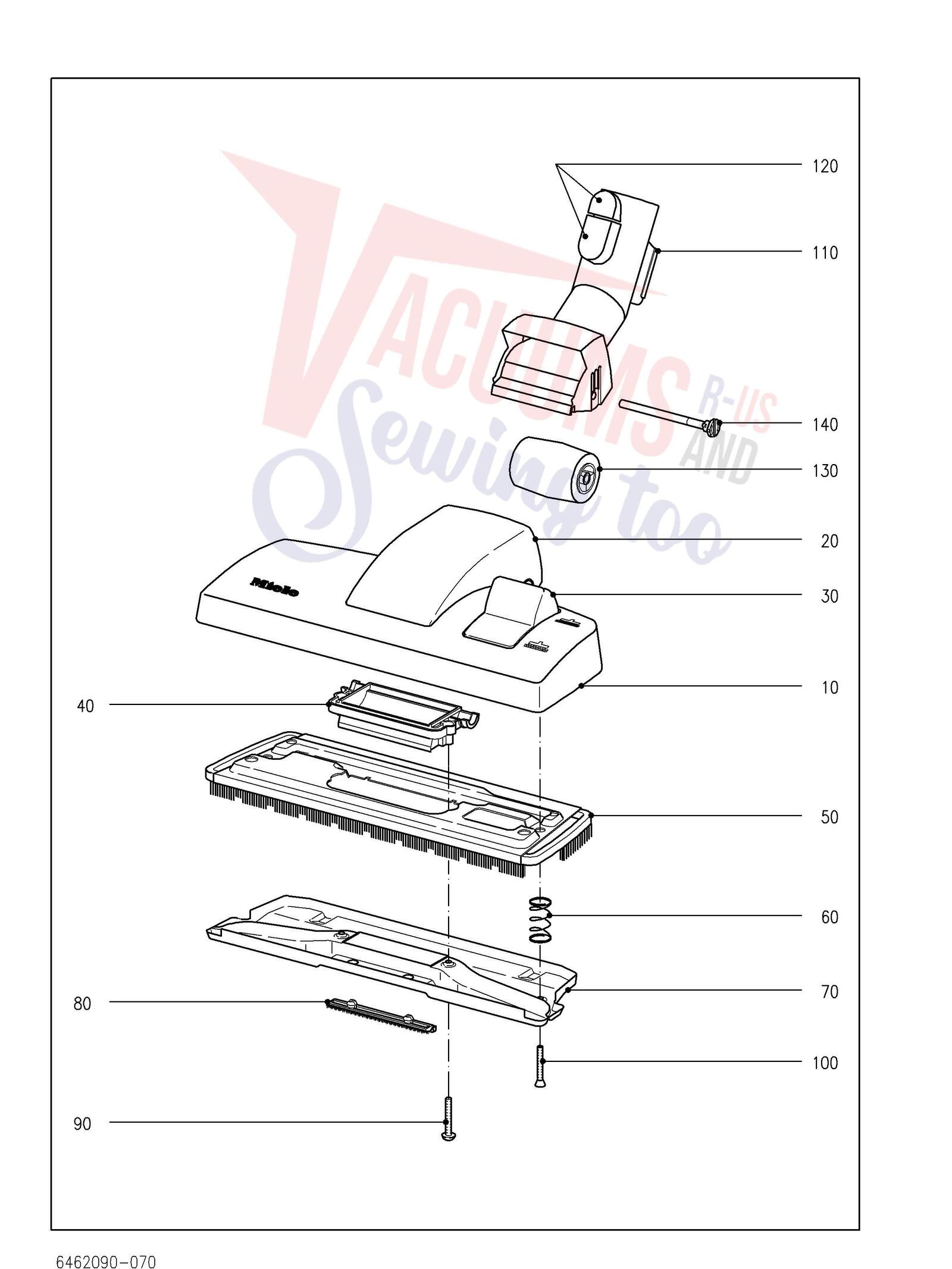

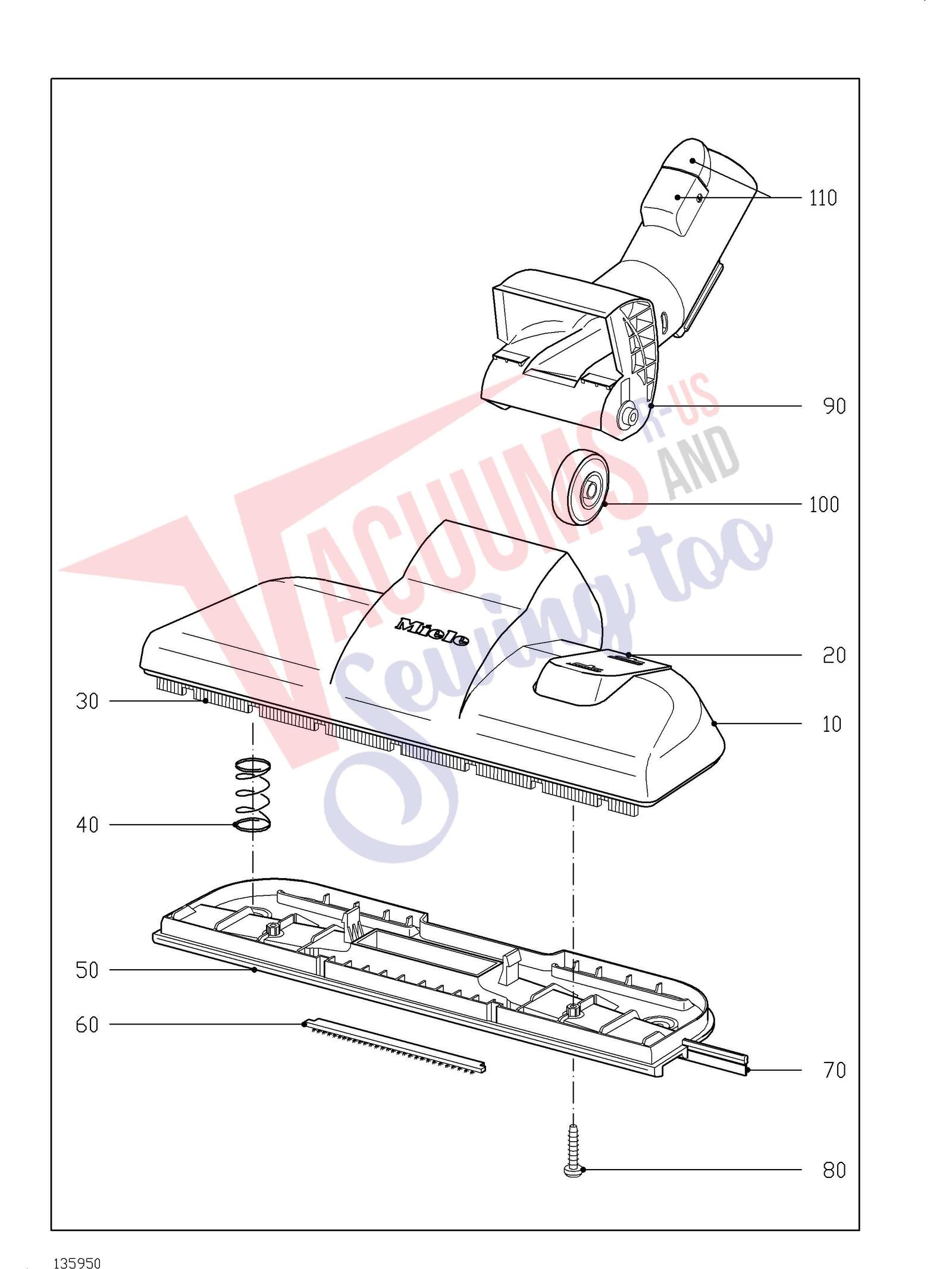

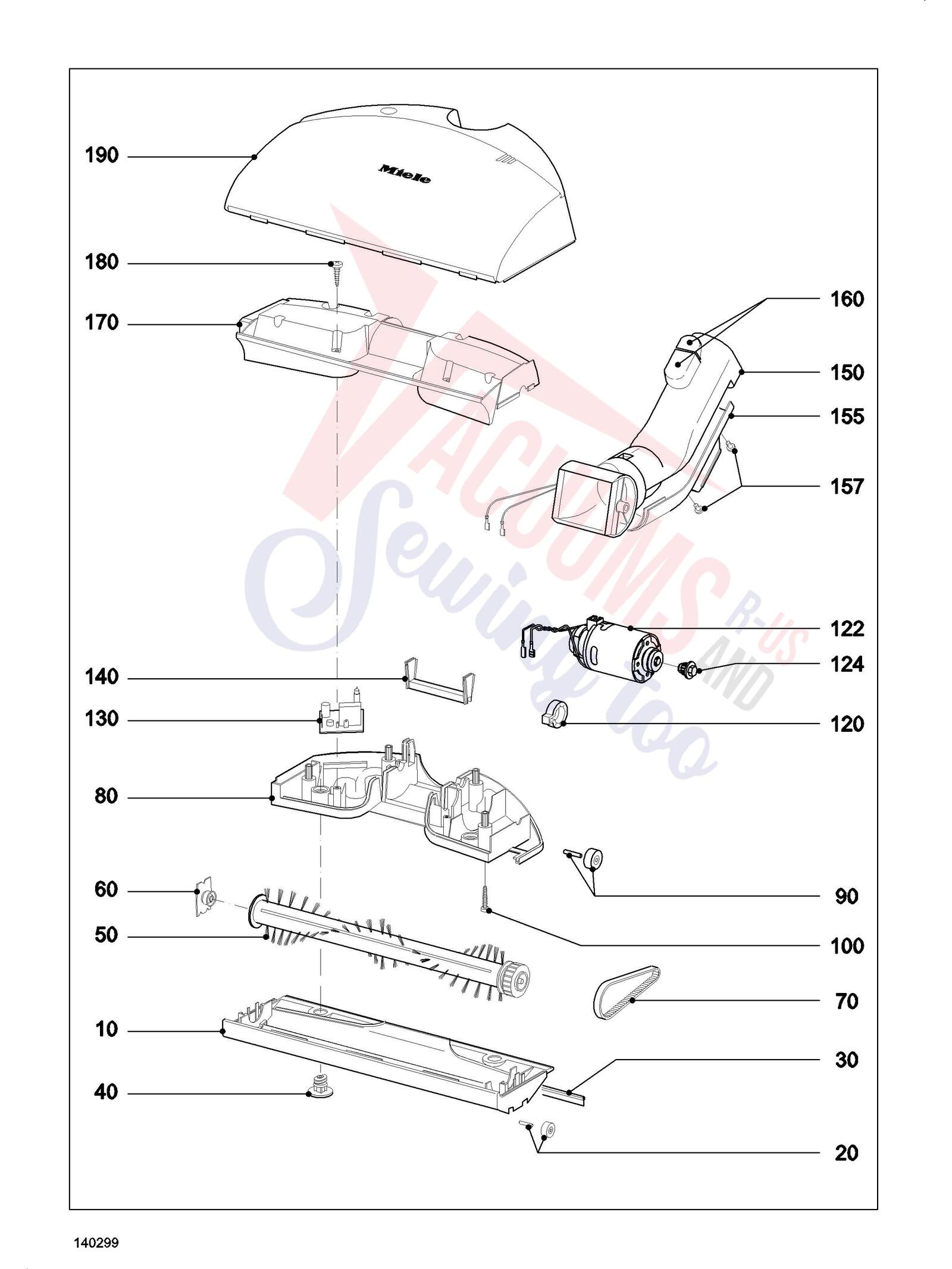

| # | Part image | Description | SKU | Price |
| xx | Not Available | No spare part For Miele SBAG1 SBAG1 | noop | Not Available |
| xx | Not Available | Thread lifter For Miele SBAG1 SBAG1 | noop | Not Available |
| 10 |  | Genuine Miele Elec.suction hose SES116 | 7762550 | $176.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20-40 | | Genuine Miele Elec.telescop.tube SET220 | 6594726 | $118.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Push button Round | 9160460 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | Genuine Miele Holder Accessory | 6991370 | $7.49Add to cart |
| 60 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70+80 | | Genuine Miele Upholstery nozzle | 9442620 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Dusting brush L | 12187780 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| xx | Not Available | undefined For Miele SBAG1 SBAG1 | noop | Not Available |
| 10 | | Genuine Miele Top anthracite | 5235512 | $25.32Read more |
| 10-140 | Not Available | Floor nozzle Eco SBD 290-3 For Miele SBAG1 SBAG1 | 10228750 | Not Available |
| 20 | | Genuine Miele Suction channel anthracite | 5235541 | $22.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Foot switch anthracite | 5235503 | $13.64Read more |
| 40 | Not Available | undefined For Miele SBAG1 SBAG1 | 10104390 | Not Available |
| 50 | | Genuine Miele Bristle supp.plate | 5235463 | $30.74Read more |
| 60 | | Genuine Miele Spring 2 Pcs. | 4818720 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70+80 | Not Available | undefined For Miele SBAG1 SBAG1 | 10007791 | Not Available |
| 80 | | Genuine Miele Thread lifter 2 Pcs. | 7898590 | $30.74Read more |
| 90 | | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $2.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | Not Available | --Countersunk screw 35X20 For Miele SBAG1 SBAG1 | 5289870 | Not Available |
| 110+120 | | Genuine Miele Linkage SBD285-3 assy | 6578132 | $30.74Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 | | Genuine Miele Support roller | 5235530 | $13.64Read more |
| 140 | | Genuine Miele Shaft Bayonett fitting | 5235520 | $11.98Read more |
| # | Part image | Description | SKU | Price |
| xx | Not Available | undefined For Miele SBAG1 SBAG1 | noop | Not Available |
| xx | Not Available | undefined For Miele SBAG1 SBAG1 | 7274660 | Not Available |
| 10-110 | Not Available | Floor nozzle SBD470-3 For Miele SBAG1 SBAG1 | 10484833 | Not Available |
| 20 | | Genuine Miele Foot switch SBD350-3 | 7274671 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Bristle supp.plate | 7274680 | $54.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Coil spring 2 Pcs. | 5478660 | $18.00Read more |
| 50-70 | | Genuine Miele Lower section SBD350/55-3 | 7274701 | $40.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | Not Available | -Thread lifter 2 Pcs. For Miele SBAG1 SBAG1 | 7516080 | Not Available |
| 70 | | Genuine Miele Sealing strip SBD355 | 10242100 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | Not Available | --Screw 3,5x20 For Miele SBAG1 SBAG1 | 7292290 | Not Available |
| 90-110 | | Genuine Miele Linkage | 7274641 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Support roller SBD350/355 | 10455370 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| xx | Not Available | undefined For Miele SBAG1 SBAG1 | noop | Not Available |
| xx | Not Available | undefined For Miele SBAG1 SBAG1 | 9017800 | Not Available |
| 10-110 | Not Available | Floor nozzle SBD470-3 FiberTeQ For Miele SBAG1 SBAG1 | 9274750 | Not Available |
| 20 | | Genuine Miele Foot switch SBD350-3 | 7274671 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Bristle supp.plate | 7274680 | $54.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Coil spring 2 Pcs. | 5478660 | $18.00Read more |
| 50-70 | | Genuine Miele Lower section kpl. | 9010081 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | Not Available | -Thread lifter 2 Pcs. For Miele SBAG1 SBAG1 | 7516080 | Not Available |
| 70 | | Genuine Miele Sealing strip SBD355 | 10242100 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | Not Available | --Screw 3,5x20 For Miele SBAG1 SBAG1 | 7292290 | Not Available |
| 90-110 | | Genuine Miele Linkage | 7274641 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Support roller SBD350/355 | 10455370 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Screw KA35X16 EJOT-PT | 4863580 | $2.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | undefined For Miele SBAG1 SBAG1 | noop | Not Available |
| xx | | Genuine Miele Screw KA35X27 EJOT-PT | 3484490 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Floor plate SEB217 | 4929763 | $83.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Wheel 2 Pcs. | 4919170 | $25.32Read more |
| 30 |  | Genuine Miele Strip | 4929021 | $7.49Add to cart |
| 40 | | Genuine Miele Screw 2 Pcs. | 4919190 | $13.64Read more |
| 50+60 |  | Genuine Miele Brush roller | 4929740 | $90.72Add to cart |
| 60 |  | Genuine Miele Bearing plate 2 Pcs. | 4941340 | $18.00Add to cart |
| 70 |  | Genuine Miele Tooth belt | 4897760 | $25.32Add to cart |
| 80+90 | | Genuine Miele Lower section SEB217 | 4929771 | $65.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Wheel 2 Pcs. | 4919180 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | Not Available | undefined For Miele SBAG1 SBAG1 | noop | Not Available |
| 120 | Not Available | Bearing For Miele SBAG1 SBAG1 | 4929730 | Not Available |
| 122+124 | | Genuine Miele AC motor 100-120V | 6828100 | $155.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 124 |  | Genuine Miele Pinion | 6808920 | $18.00Add to cart |
| 130 |  | Reconditioned Miele SEB213 PC Board 100-120v PN: 5604210 | 5604210 | $39.99Add to cart |
| 140 | | Genuine Miele Cable duct | 4841770 | $18.00Read more |
| 150-160 | | Genuine Miele Linkage SEB217-3 | 9197521 | $83.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 155 | | Genuine Miele Lid SEB216-3,SEB217-3 | 6603810 | $30.74Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 157 | Not Available | undefined For Miele SBAG1 SBAG1 | noop | Not Available |
| 160 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 170 | | Genuine Miele Cover anthracite | 4841731 | $47.37Read more |
| 180 | Not Available | undefined For Miele SBAG1 SBAG1 | noop | Not Available |
| 190 | | Genuine Miele Top anthracite | 5604200 | $65.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| xx | Not Available | From mach.no 49/ For Miele SBAG1 SBAG1 | noop | Not Available |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |

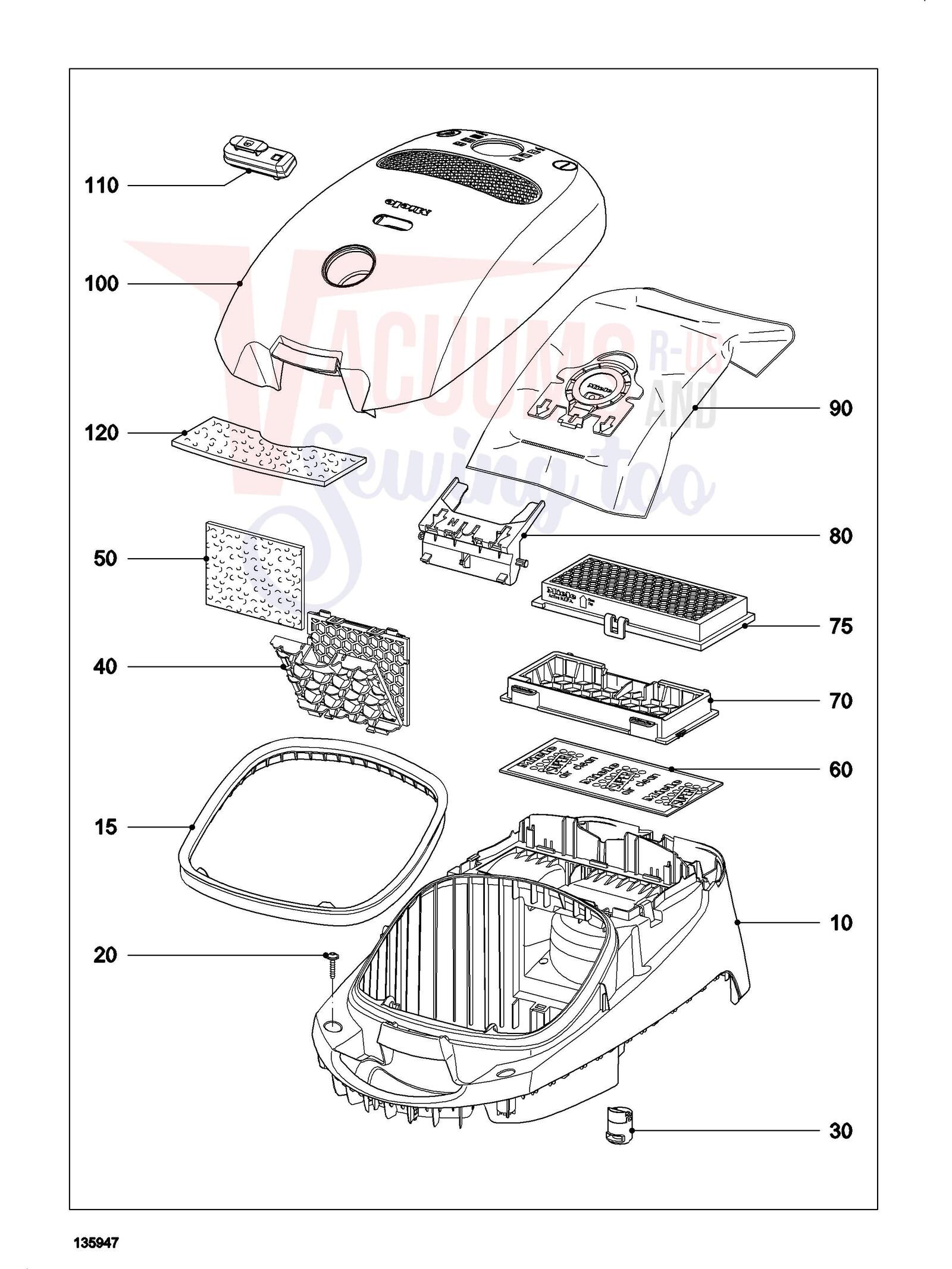

| 10+15 | | Genuine Miele Cover frame With seal assy | 10540465 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | | Genuine Miele Seal für Staubraum SB* | 10471722 | $40.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | undefined For Miele SBAG1 SBAG1 | noop | Not Available |
| 30 | | Genuine Miele Suction control S2/S5/S8 | 6455390 | $6.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Filter frame für Motorschutz | 6843091 | $54.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $11.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Grille Sup.Air-Cleanfilter | 6843131 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 75 |  | HEPA AirClean filter withTimeStrip SF-HA30 | 4002515315606 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 75 | | Miele ActiveAir Clean Filter SF-AA30 | 9616080 | $39.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 75 |  | Aftermarket Miele AH-30 HEPA Filter | 54236207 | $22.00Add to cart |
| 80 | | Genuine Miele Bracket vacuum cleaner bag | 6843173 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 |  | Miele HEPA Vacuum Bags Type GN - 4pk | 4002515578971 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 |  | Aftermarket Miele GN Bags 5pk with Filters | WP10968 | $14.99Add to cart |
| 100+110 | | Genuine Miele Casing top Graphite grey | 10713233 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100+110 | | Genuine Miele Casing top Lotos white | 7839906 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100+110 | | Genuine Miele Casing top Graphite grey | 10713233 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100+110 | | Genuine Miele Casing top Graphite grey | 10713230 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100+110 | | Genuine Miele Casing top Technoblue | 10713223 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100+110 | | Genuine Miele Casing top Autumn red | 7839925 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100+110 | | Genuine Miele Casing top Graphite grey | 10713233 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100+110 | | Genuine Miele Casing top Sprint blue | 9969073 | $90.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele Change filter ind. kpl. | 10386521 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Insulation matting Air shield | 7295010 | $6.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| xx | Not Available | From mach.no 124338020 For Miele SBAG1 SBAG1 | noop | Not Available |
| xx | Not Available | For Miele SBAG1 SBAG1 | noop | Not Available |

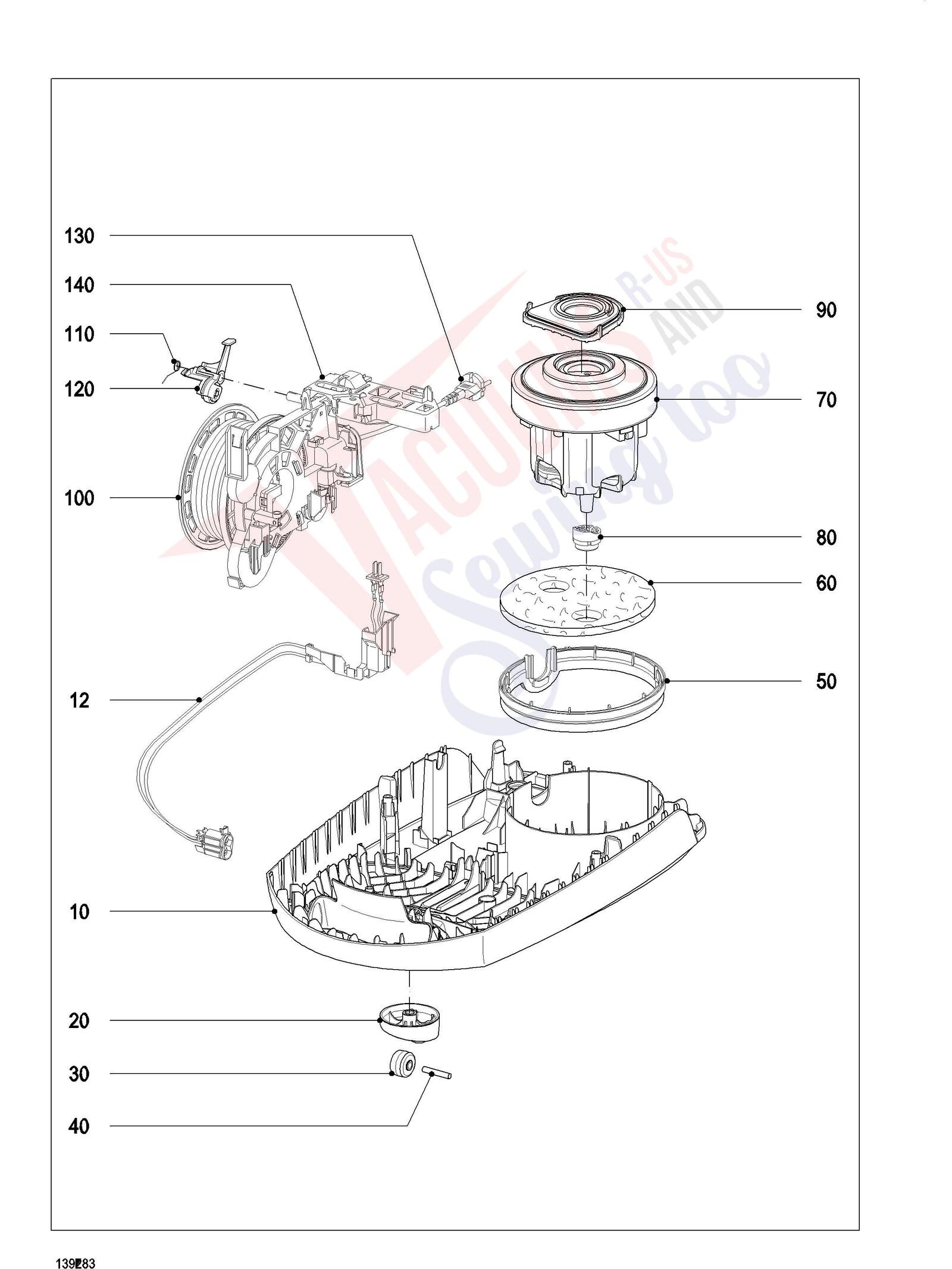

| xx | | Genuine Miele Casing bottom anthracite | 7606093 | $109.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | | Genuine Miele Flush socket outlet S2 | 7093573 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20-40 | | Genuine Miele Slide skid assy | 10459340 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Slide skid assy | 10459340 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Shaft Support roller | 3928151 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | Not Available | Seal For Miele SBAG1 SBAG1 | 7293590 | Not Available |
| 60 | | Genuine Miele Damping plate | 6843121 | $6.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Fan Mrg134/81-42/2 120V | 7022163 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Rubber cushion 2 Pcs. | 7290080 | $22.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Bearing ring | 6976850 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100-140 | | Genuine Miele Cable reel S2000 EU 5,5m 230V | 10483193 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100-140 | | Genuine Miele Cable reel S2 USA 5,5m 120V | 7255085 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele Torsion spring S2000 | 5708570 | $2.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Brake lever compl. S2000 | 7227152 | $6.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 | Not Available | -Supply cable 5,65m 17AWG 120V USA For Miele SBAG1 SBAG1 | 6264932 | Not Available |
| 140 | | Genuine Miele Electronic unit cpl.EDW2202/81 S2 KD | 10357380 | $77.69Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | From mach.no 124338020 For Miele SBAG1 SBAG1 | noop | Not Available |
| 10 | | Genuine Miele Cap assy | 7820861 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | undefined For Miele SBAG1 SBAG1 | noop | Not Available |
| 20 | Not Available | Electronic unit For Miele SBAG1 SBAG1 | noop | Not Available |

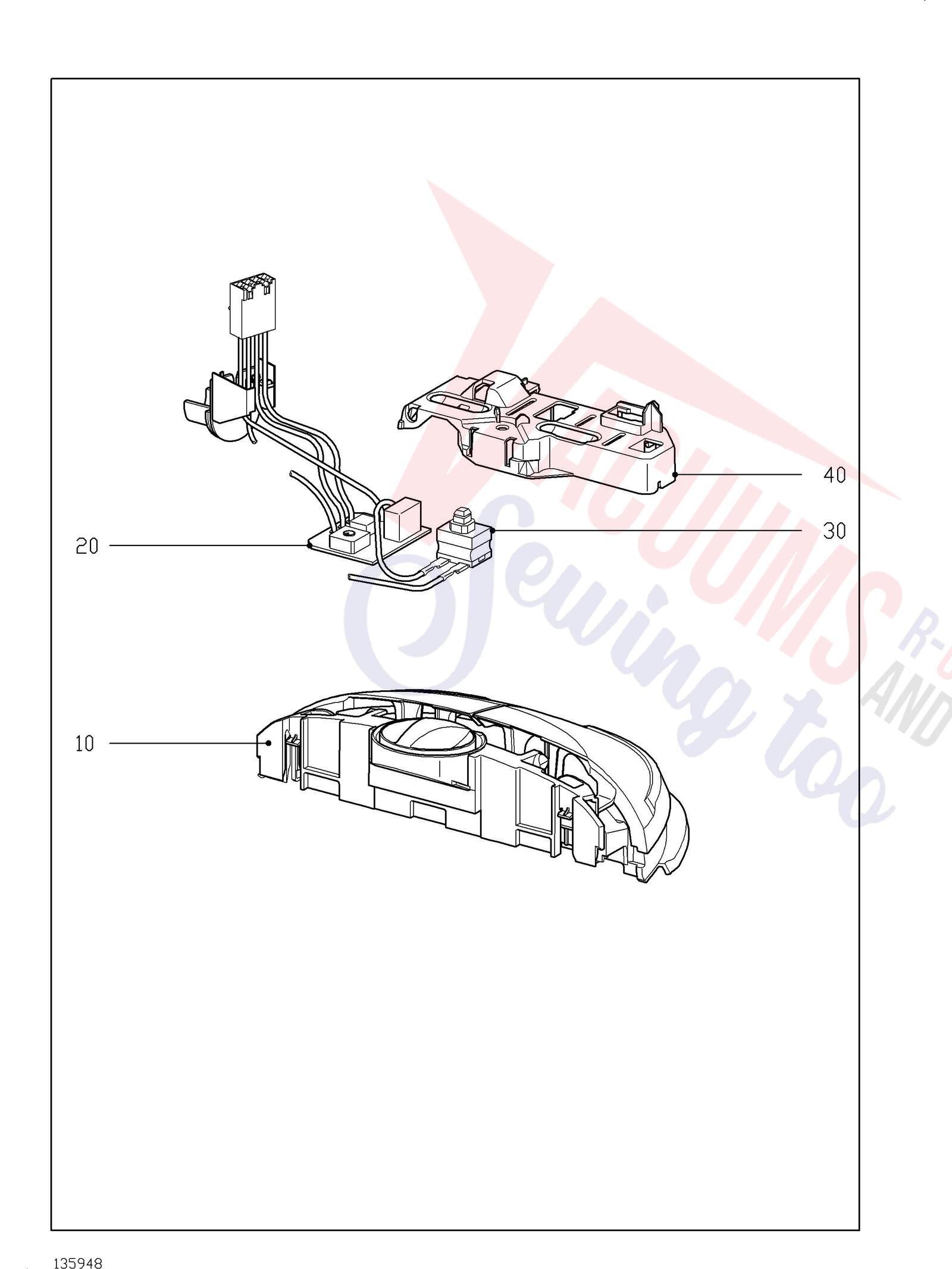

| 20-40 | | Genuine Miele Electronic unit cpl.EDW2202/81 S2 KD | 10357380 | $77.69Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Switch 1 pole 1681.3103 | 9023231 | $7.91Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Bracket Electronic unit S2000 | 7018032 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| xx | Not Available | From mach.no 56/ For Miele SBAG1 SBAG1 | noop | Not Available |
| xx | Not Available | For Miele SBAG1 SBAG1 | noop | Not Available |

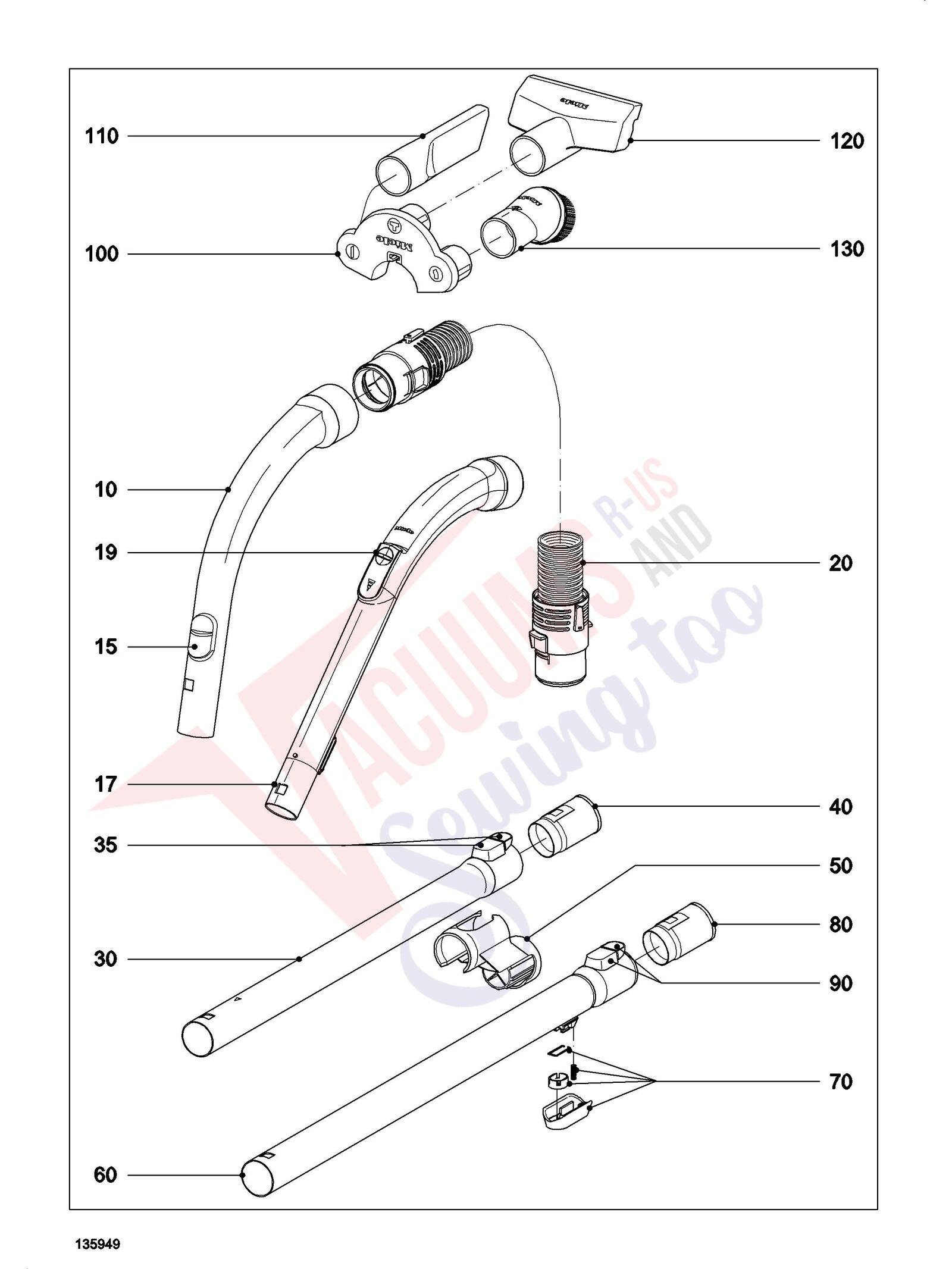

| xx | | Genuine Miele Telescopic pipe HES Compact | 9480845 | $83.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Telescopic pipe HES compact | 9480843 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10+15 | | Genuine Miele Tubular handle anthracite | 9442601 | $27.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Suction control anthracite | 5141090 | $10.99Read more |
| 17+19 | | Genuine Miele Tubular handle XXL assy | 7586094 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | | Genuine Miele Suction control f. Griffr. XXL & 2.0 | 7587200 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Miele Straight Suction Hose for Classic C1 Canister | 10817730 | $43.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30-40 | | Genuine Miele Suction pipe top stainless steel | 9266001 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Holder Suction pipe | 7096871 | $7.49Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60-90 | | Genuine Miele Telescopic pipe HES Compact | 9480845 | $83.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Push button Round | 5780932 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80+90 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 |  | VarioClip Holder Accesory Tool Caddy | 7513820 | $19.99Add to cart |
| 110 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Upholstery nozzle | 9442620 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 | | Genuine Miele Dusting brush L | 12187780 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 | | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $24.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
