Parts list and schematic diagram for Miele Models: SBAJO, SBAJ0, Classic C1 Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
Popular Supplies

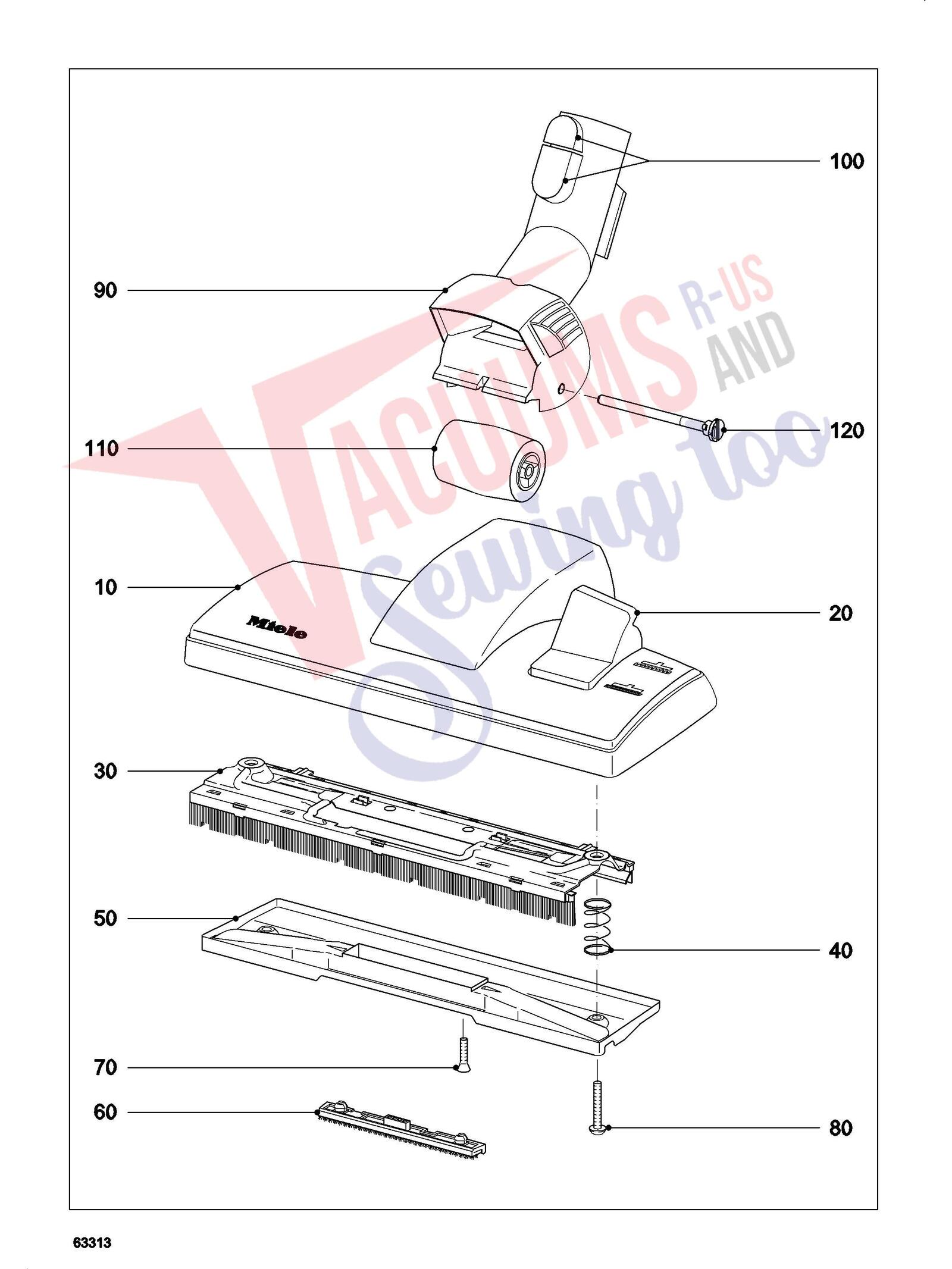

| # | Part image | Description | SKU | Price |
| xx | Not Available | undefined For Miele SBAJO SBAJ0 | noop | Not Available |
| 10 |  | Genuine Miele Top | 6167160 | $36.48Read more |
| 10-120 | Not Available | Floor nozzle SBD470-3 FiberTeQ For Miele SBAJO SBAJ0 | 9274750 | Not Available |
| 20 | | Genuine Miele Foot switch | 6167170 | $18.00Read more |
| 30 | Not Available | undefined For Miele SBAJO SBAJ0 | 6167190 | Not Available |
| 40 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50+60 | | Genuine Miele Lower section | 6167251 | $40.34Read more |
| 60 | | Genuine Miele Thread lifter 2 Pcs. | 6440411 | $22.79Read more |
| 70 | Not Available | --Coun.self-tap.screw SPAX 3 x 9,5Torx T10 For Miele SBAJO SBAJ0 | 6167230 | Not Available |
| 80 | | Genuine Miele Raised head screw 3,5x16 TORX T10 | 6644310 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90+100 | | Genuine Miele Linkage SBD450-3 | 6167150 | $30.74Read more |
| 100 |  | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 |  | Genuine Miele Support roller | 5235530 | $13.64Read more |
| 120 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $11.98Read more |

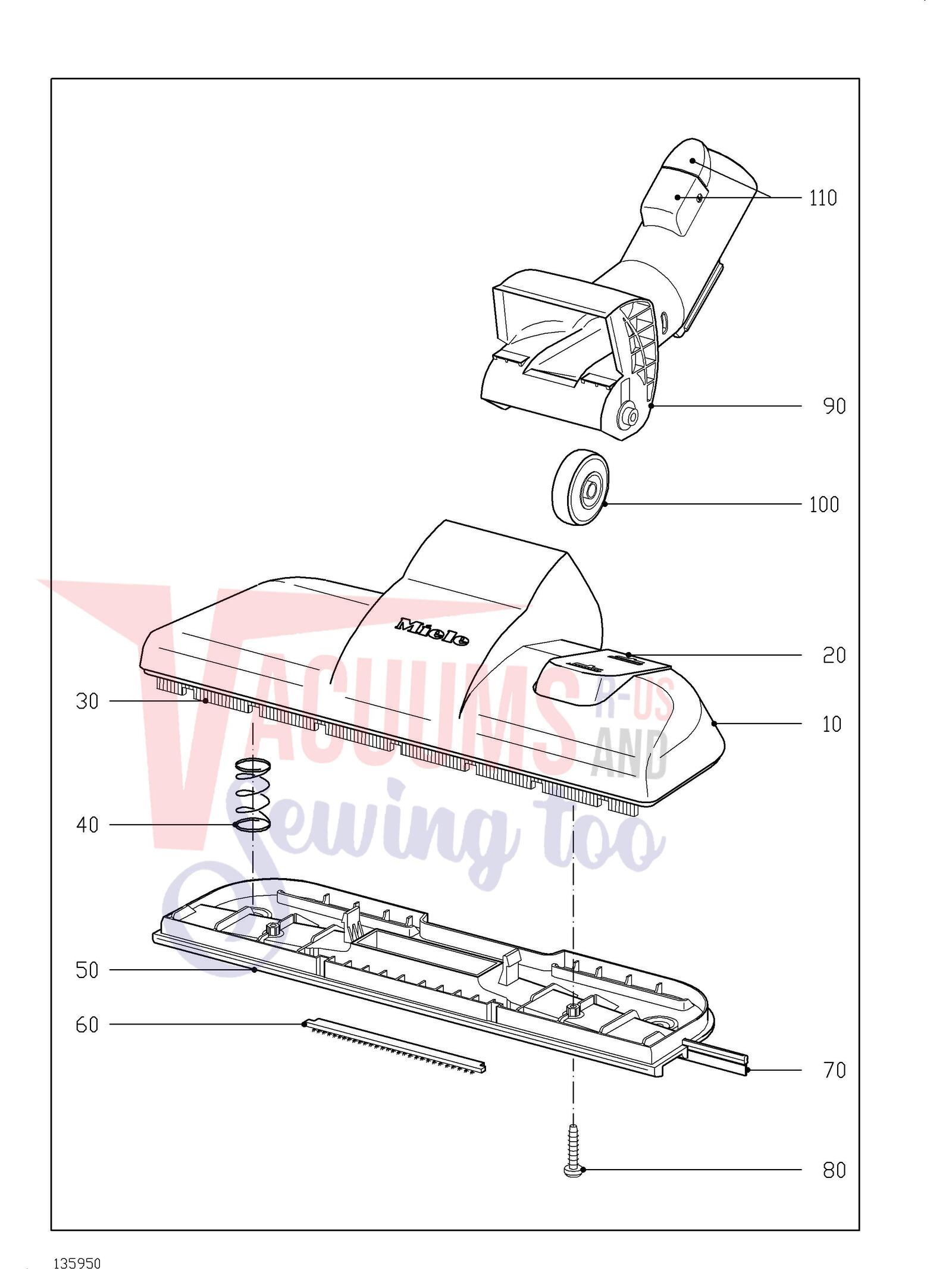

| # | Part image | Description | SKU | Price |
| xx | Not Available | undefined For Miele SBAJO SBAJ0 | noop | Not Available |
| xx | Not Available | undefined For Miele SBAJO SBAJ0 | 9017800 | Not Available |
| 10-110 | Not Available | Floor nozzle SBD470-3 FiberTeQ For Miele SBAJO SBAJ0 | 9274750 | Not Available |
| 20 | | Genuine Miele Foot switch SBD350-3 | 7274671 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Bristle supp.plate | 7274680 | $54.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Coil spring 2 Pcs. | 5478660 | $18.00Read more |
| 50-70 | | Genuine Miele Lower section kpl. | 9010081 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | Not Available | -Thread lifter 2 Pcs. For Miele SBAJO SBAJ0 | 7516080 | Not Available |
| 70 | | Genuine Miele Sealing strip SBD355 | 10242100 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | Not Available | --Screw 3,5x20 For Miele SBAJO SBAJ0 | 7292290 | Not Available |
| 90-110 | | Genuine Miele Linkage | 7274641 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Support roller SBD350/355 | 10455370 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |

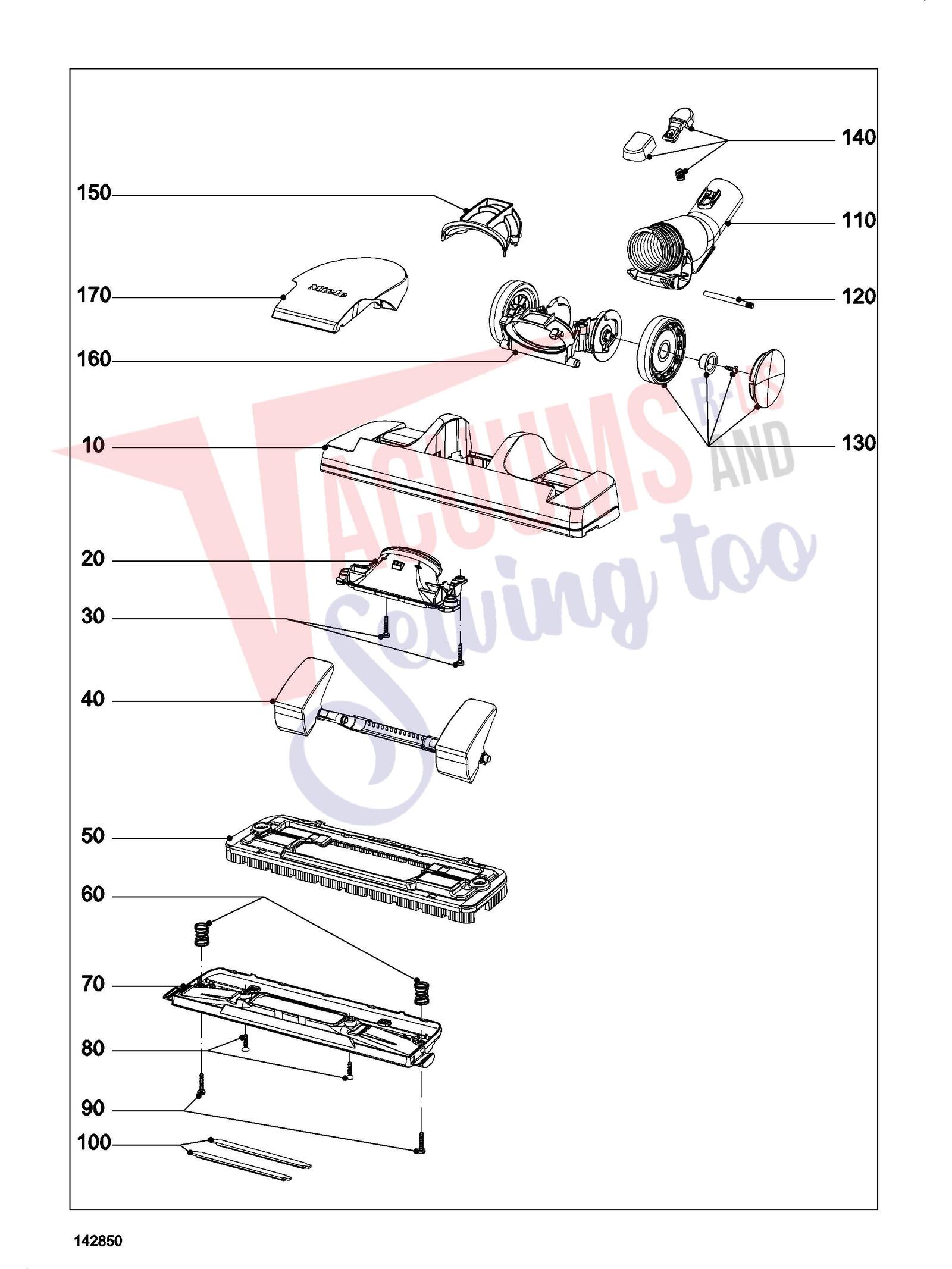

| # | Part image | Description | SKU | Price |
| xx | Not Available | undefined For Miele SBAJO SBAJ0 | noop | Not Available |
| 10 | | Genuine Miele Top | 7874810 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10-170 | Not Available | Floor nozzle AirTeQ SBD650-3 For Miele SBAJO SBAJ0 | 7879500 | Not Available |
| 20 | | Genuine Miele Fixing | 7874800 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Raised head screw 3,5x18 | 6269840 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 |  | Genuine Miele Foot switch Printed | 7874782 | $30.74Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | Genuine Miele Bristle supp.plate | 7874771 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | Not Available | Double cone spring For Miele SBAJO SBAJ0 | 7874640 | Not Available |
| 70+100 | | Genuine Miele Lower section kpl. | 9010110 | $70.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $2.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Raised head screw 3,5x18 | 6269840 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 |  | Genuine Miele Thread lifter 2 Pcs. | 7898590 | $30.74Read more |
| 110+140 |  | Genuine Miele Linkage kpl. | 7874901 | $70.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Shaft | 7874910 | $6.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 | Not Available | Support roller For Miele SBAJO SBAJ0 | 7898700 | Not Available |
| 140 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 | | Genuine Miele Suction channel top | 7874921 | $7.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 160 | | Genuine Miele Suction channel bottom | 7874823 | $11.98Read more |
| 170 | Not Available | Cover Printed For Miele SBAJO SBAJ0 | 7874930 | Not Available |

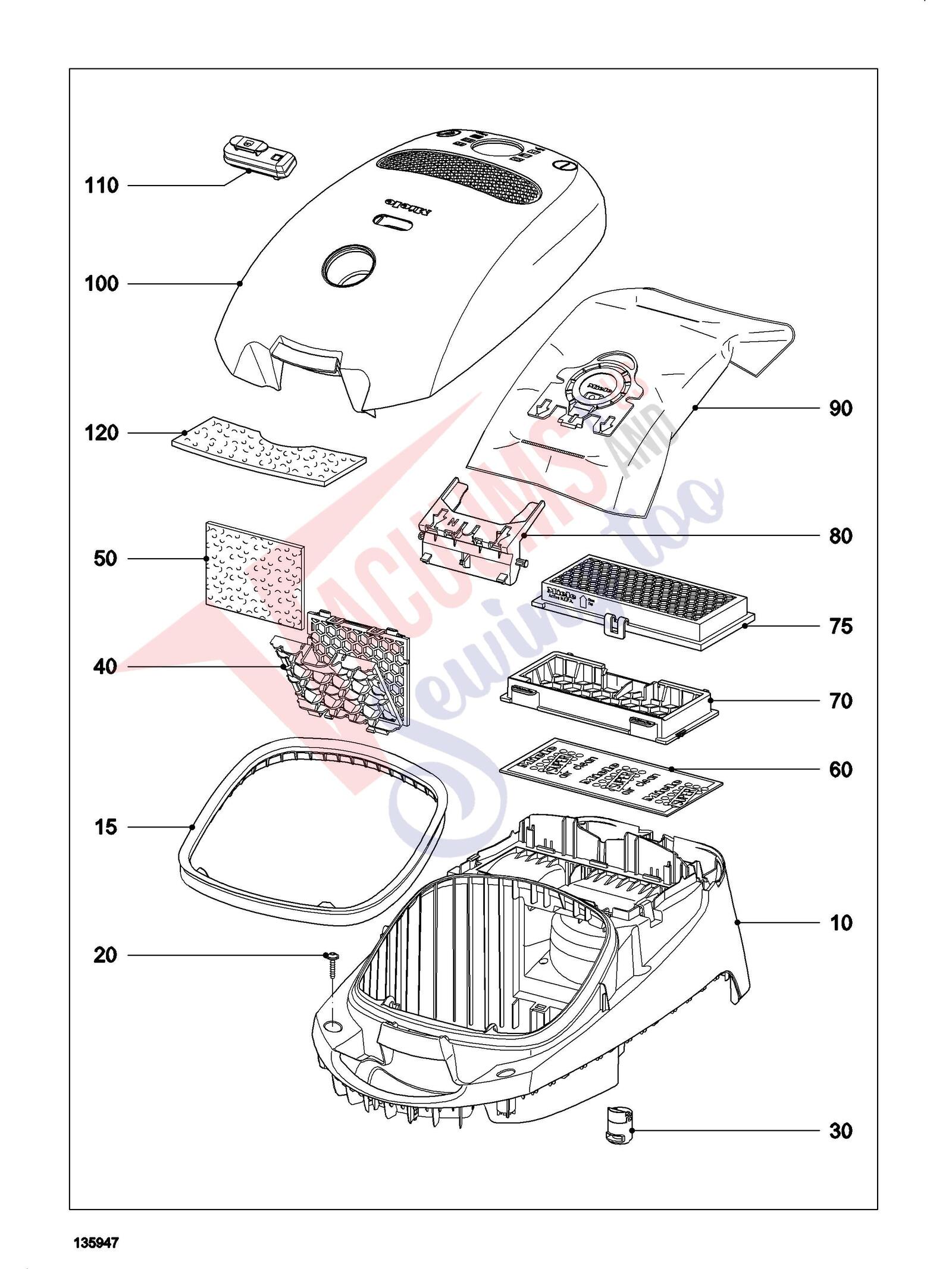

| # | Part image | Description | SKU | Price |
| xx | Not Available | From mach.no 49/ For Miele SBAJO SBAJ0 | noop | Not Available |
| xx |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10+15 | | Genuine Miele Cover frame With seal assy | 10540465 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | | Genuine Miele Seal Staubraum SB* | 10471722 | $40.34Add to cart |
| 20 | Not Available | undefined For Miele SBAJO SBAJ0 | noop | Not Available |
| 30 | | Genuine Miele Suction control S2/S5/S8 | 6455390 | $6.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Filter frame für Motorschutz | 6843091 | $54.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $11.95Add to cart |
| 70 | | Genuine Miele Grille Sup.Air-Cleanfilter | 6843131 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 75 |  | HEPA AirClean filter withTimeStrip SF-HA30 | 4002515315606 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 75 | | Miele ActiveAir Clean Filter SF-AA30 | 9616080 | $39.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 75 |  | Aftermarket Miele AH-30 HEPA Filter | 54236207 | $22.00Add to cart |
| 80 | | Genuine Miele Bracket vacuum cleaner bag | 6843173 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 |  | Miele HEPA Vacuum Bags Type GN - 4pk | 4002515578971 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 |  | Aftermarket Miele GN Bags 5pk with Filters | WP10968 | $14.99Add to cart |
| 100+110 | | Genuine Miele Casing top Graphite grey | 10713233 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100+110 | | Genuine Miele Casing top Lotos white | 7839906 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100+110 | | Genuine Miele Casing top Graphite grey | 10713233 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100+110 | | Genuine Miele Casing top Graphite grey | 10713230 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100+110 | | Genuine Miele Casing top Technoblue | 10713223 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100+110 | | Genuine Miele Casing top Autumn red | 7839925 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100+110 | | Genuine Miele Casing top Graphite grey | 10713233 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100+110 | | Genuine Miele Casing top Sprint blue | 9969073 | $90.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele Change filter ind. kpl. | 10386521 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Insulation matting Air shield | 7295010 | $6.10Add to cart Product is special order please allow 2-4 weeks for delivery. |

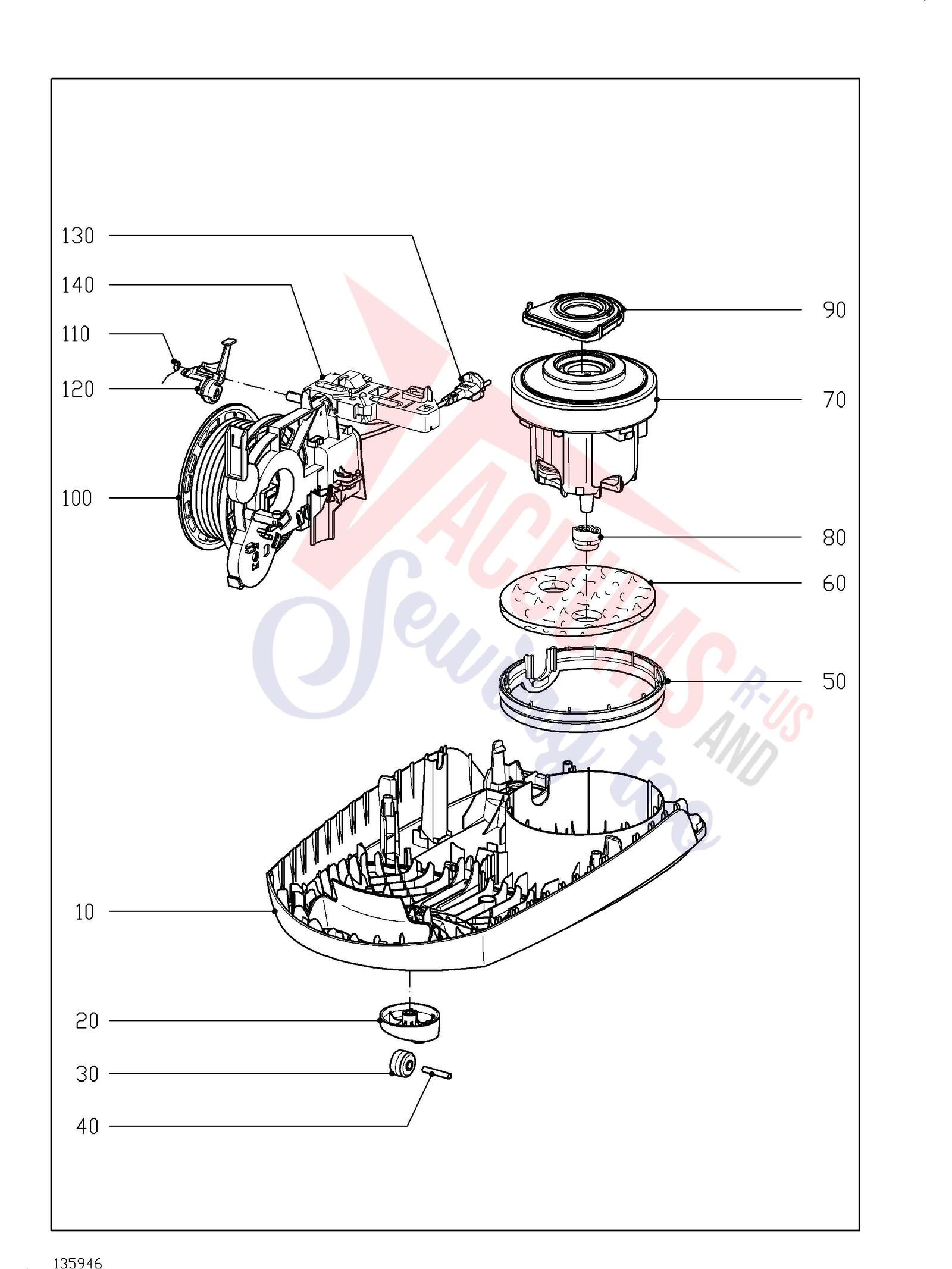

| # | Part image | Description | SKU | Price |
| xx | Not Available | From mach.no 124338020 For Miele SBAJO SBAJ0 | noop | Not Available |
| xx | Not Available | For Miele SBAJO SBAJ0 | noop | Not Available |
| xx | | Genuine Miele Casing bottom anthracite | 7275801 | $97.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20-40 |  | Genuine Miele Slide skid assy | 10459340 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Slide skid assy | 10459340 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Shaft Support roller | 3928151 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | Not Available | Seal For Miele SBAJO SBAJ0 | 7293590 | Not Available |
| 60 | | Genuine Miele Damping plate | 6843121 | $6.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Fan Mrg136-42/2 230-240V | 7000873 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Rubber cushion 2 Pcs. | 7290080 | $22.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Bearing ring | 6976850 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100-140 | | Genuine Miele Cable reel S2000 EU 5,5m 230V | 10483193 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele Torsion spring S2000 | 5708570 | $2.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Brake lever compl. S2000 | 7227152 | $6.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 | Not Available | -Supply cable 5,65m 0,75qmm EU For Miele SBAJO SBAJ0 | 7256311 | Not Available |
| 140 | | Genuine Miele Electronic unit cpl. EDW2202 S2 KD | 10357391 | $77.69Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 140 | | Genuine Miele Electronic unit cpl. EDW2202 S2 | 7018047 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |

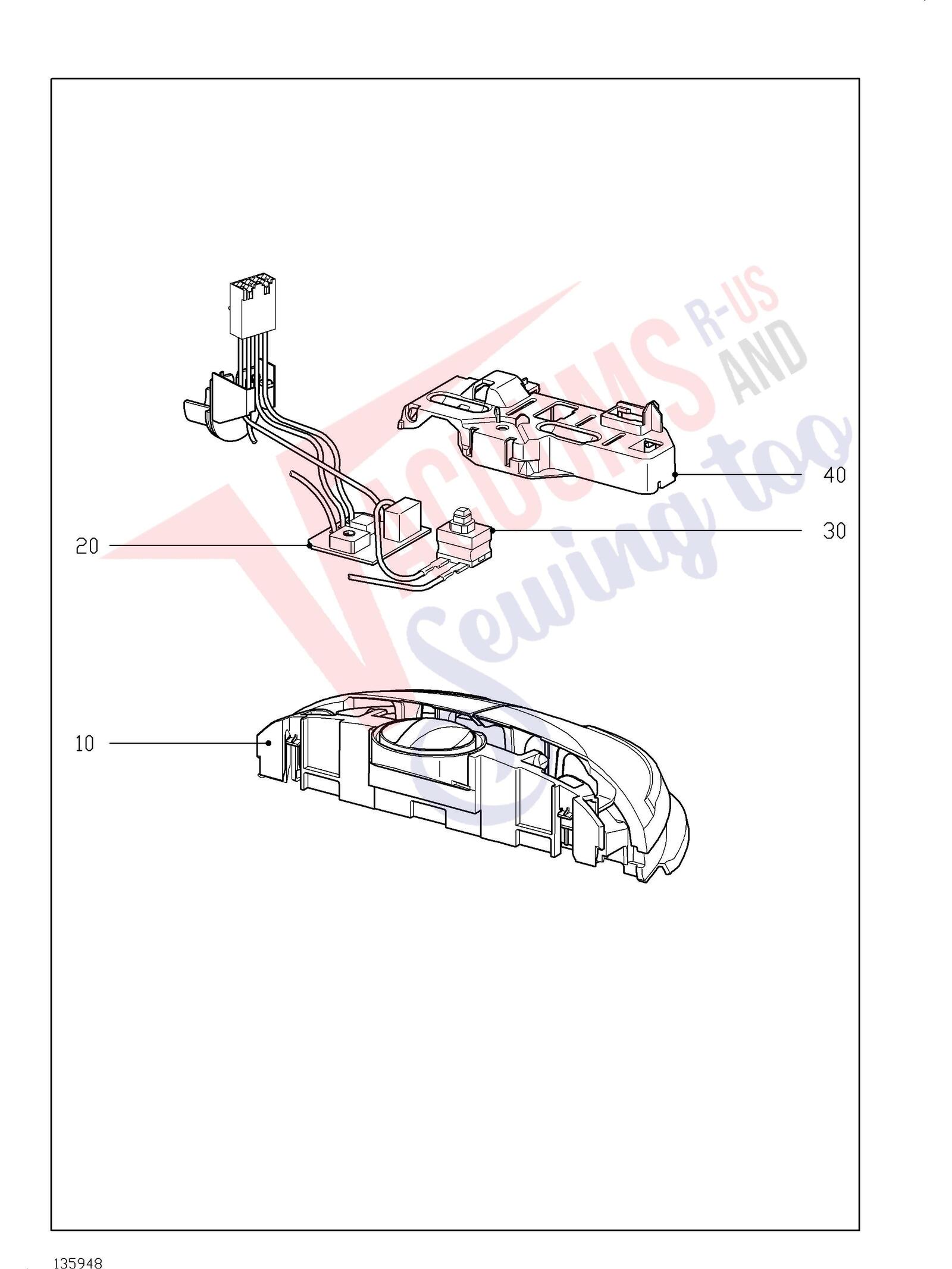

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | From mach.no 124338020 For Miele SBAJO SBAJ0 | noop | Not Available |
| 10 | | Genuine Miele Cap assy | 7820861 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | undefined For Miele SBAJO SBAJ0 | noop | Not Available |
| 20 | Not Available | Electronic unit For Miele SBAJO SBAJ0 | noop | Not Available |
| 20-40 | | Genuine Miele Electronic unit cpl. EDW2202 S2 KD | 10357391 | $77.69Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20-40 | | Genuine Miele Electronic unit cpl. EDW2202 S2 | 7018047 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Switch 1 pole 1681.3103 | 9023231 | $7.91Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Bracket Electronic unit S2000 | 7018032 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |

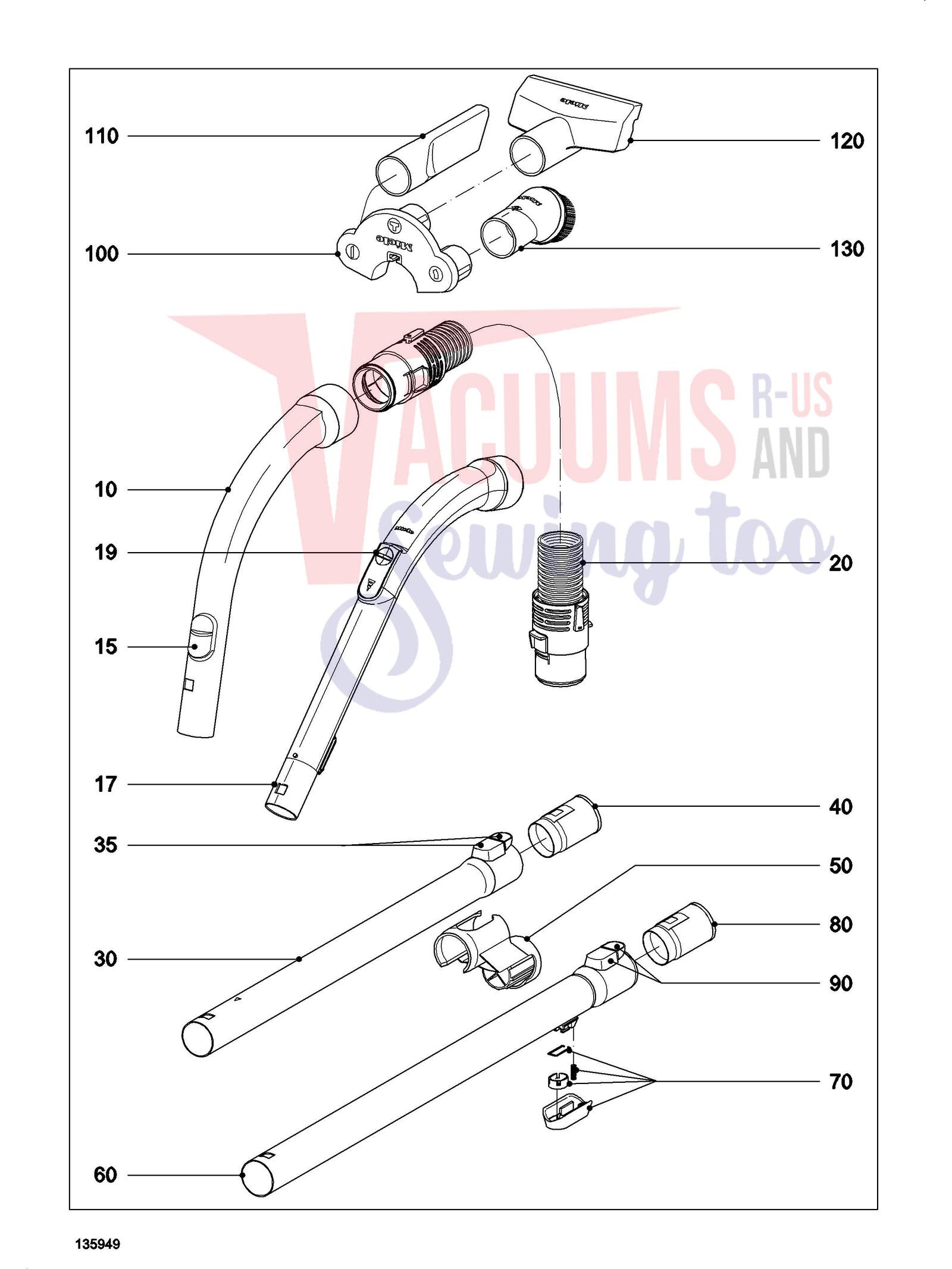

| # | Part image | Description | SKU | Price |
| xx | Not Available | From mach.no 56/ For Miele SBAJO SBAJ0 | noop | Not Available |
| xx | Not Available | For Miele SBAJO SBAJ0 | noop | Not Available |
| xx | | Genuine Miele Telescopic pipe HES Compact | 9480845 | $83.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Telescopic pipe HES compact | 9480843 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10+15 | | Genuine Miele Tubular handle anthracite | 9442601 | $27.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Suction control anthracite | 5141090 | $10.99Read more |
| 17+19 | | Genuine Miele Tubular handle XXL assy | 7586094 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | | Genuine Miele Suction control f. Griffr. XXL & 2.0 | 7587200 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Miele Straight Suction Hose for Classic C1 Canister | 10817730 | $43.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30-40 | | Genuine Miele Suction pipe top stainless steel | 9266001 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Holder Suction pipe | 7096871 | $7.49Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60-90 | | Genuine Miele Telescopic pipe HES Compact | 9480845 | $83.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Push button Round | 5780932 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80+90 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele interlock anthracite | 3595181 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 |  | VarioClip Holder Accesory Tool Caddy | 7513820 | $19.99Add to cart |
| 110 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Upholstery nozzle | 9442620 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 | | Genuine Miele Dusting brush L | 12187780 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 | | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $24.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
