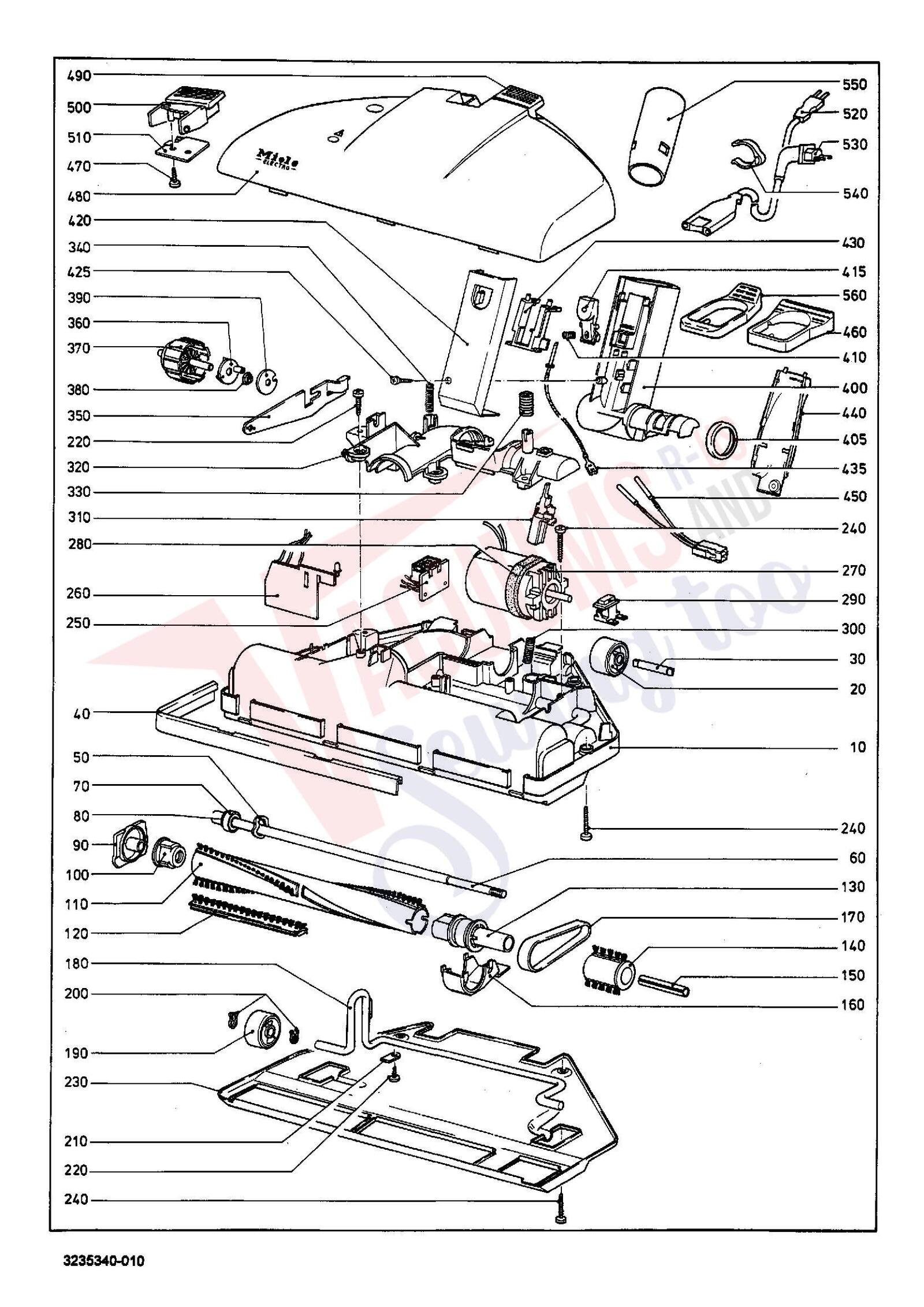

Parts list and schematic diagram for Miele Models: SEB 226, SEB226 Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
| # | Part image | Description | SKU | Price |
| xx |  | Genuine Miele Raised head screw 4X20 | 2364630 | $2.01Read more |
| xx | | Genuine Miele Raised head screw 4,0X10 | 3092030 | $2.01Read more |
| xx | Not Available | For Miele SEB 226 SEB226 | noop | Not Available |
| xx | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $1.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | | Genuine Miele Raised head screw 4X20 | 2364630 | $2.01Read more |
| xx | | Genuine Miele Raised head screw 4,0x14 TORX T20 | 6106980 | $1.73Read more |
| xx | Not Available | --Raised head screw 3.5x6.5 For Miele SEB 226 SEB226 | 5135710 | Not Available |
| xx | Not Available | Casing bottom anthracite For Miele SEB 226 SEB226 | 3666020 | Not Available |
| 20+30 | Not Available | undefined For Miele SEB 226 SEB226 | 3666140 | Not Available |
| 40 | Not Available | Buffer anthracite For Miele SEB 226 SEB226 | 3643200 | Not Available |
| 50-150+ | Not Available | For Miele SEB 226 SEB226 | noop | Not Available |
| 50-80 | Not Available | undefined For Miele SEB 226 SEB226 | 3246420 | Not Available |
| 70 | Not Available | Drive Lava grey For Miele SEB 226 SEB226 | 3246401 | Not Available |
| 90 | Not Available | undefined For Miele SEB 226 SEB226 | 3246412 | Not Available |
| 100 | | Genuine Miele Counter bearing anthracite | 3047711 | $13.64Read more |
| 110+120 | | Genuine Miele Roller | 3246381 | $139.36Read more |
| 120+140 | | Genuine Miele Bristle strip anthracite | 3246391 | $70.93Read more |
| 130+50+ | Not Available | For Miele SEB 226 SEB226 | noop | Not Available |
| 150 | | Genuine Miele Sleeve | 3047681 | $6.10Read more |
| 160 | Not Available | Cover strip anthracite For Miele SEB 226 SEB226 | 3047522 | Not Available |
| 170 | | Genuine Miele Flat belt | 3854940 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 170 | | Genuine Miele Brush roller anthracite | 3647653 | $216.43Read more |
| 180-200 | Not Available | Angle lever anthracite For Miele SEB 226 SEB226 | 3246311 | Not Available |
| 190+200 | Not Available | undefined For Miele SEB 226 SEB226 | 3259211 | Not Available |
| 210 | Not Available | Clamping strip For Miele SEB 226 SEB226 | 3046600 | Not Available |
| 220 | Not Available | undefined For Miele SEB 226 SEB226 | noop | Not Available |
| 230 | Not Available | Floor plate For Miele SEB 226 SEB226 | 3446760 | Not Available |
| 240 | Not Available | undefined For Miele SEB 226 SEB226 | noop | Not Available |
| 250+260 | Not Available | Electronic unit ER201 120V 60HZ For Miele SEB 226 SEB226 | 3121313 | Not Available |
| 270 | | Genuine Miele AC motor 120V 60HZ | 3121410 | $216.43Read more |
| 280 | Not Available | Sealing ring black For Miele SEB 226 SEB226 | 3047540 | Not Available |
| 290 | Not Available | Switch 13A 120V For Miele SEB 226 SEB226 | 3085940 | Not Available |
| 300 | Not Available | Spring For Miele SEB 226 SEB226 | 3092710 | Not Available |
| 310 | Not Available | Feeler For Miele SEB 226 SEB226 | 3042081 | Not Available |
| 320 | Not Available | Cover anthracite For Miele SEB 226 SEB226 | 3643110 | Not Available |
| 330 | | Genuine Miele Spring | 3092700 | $4.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 340 | Not Available | Spring For Miele SEB 226 SEB226 | 3092720 | Not Available |
| 350 | Not Available | Switch lever For Miele SEB 226 SEB226 | 3042100 | Not Available |
| 360-380 | Not Available | Regulator wheel anthracite For Miele SEB 226 SEB226 | 3246321 | Not Available |
| 390 | Not Available | Disc For Miele SEB 226 SEB226 | 3046660 | Not Available |
| 400-425 | Not Available | For Miele SEB 226 SEB226 | noop | Not Available |
| 400-425 | Not Available | For Miele SEB 226 SEB226 | noop | Not Available |
| 400 | | Genuine Miele Connection socket SEB226 | 5014611 | $47.37Read more |
| 405 | Not Available | undefined For Miele SEB 226 SEB226 | 3246360 | Not Available |
| 410+415 | Not Available | undefined For Miele SEB 226 SEB226 | 3246342 | Not Available |
| 420 | Not Available | undefined For Miele SEB 226 SEB226 | 5014630 | Not Available |
| 425 | Not Available | undefined For Miele SEB 226 SEB226 | noop | Not Available |
| 440-460 | | Genuine Miele Connection socket SEB226 | 5014601 | $119.11Read more |
| 440 | Not Available | undefined For Miele SEB 226 SEB226 | 5014650 | Not Available |
| 450 | | Genuine Miele Connecting cable 2 pole | 5290620 | $47.37Read more |
| 460 | | Genuine Miele Foot switch SEB226 | 5014640 | $25.32Read more |
| 470+ | Not Available | For Miele SEB 226 SEB226 | noop | Not Available |
| 470 | Not Available | undefined For Miele SEB 226 SEB226 | noop | Not Available |
| 480-510 | Not Available | Casing top anthracite For Miele SEB 226 SEB226 | 3676720 | Not Available |
| 490+500 | Not Available | Foot switch anthracite For Miele SEB 226 SEB226 | 3992760 | Not Available |
| 510 | Not Available | undefined For Miele SEB 226 SEB226 | 3042160 | Not Available |
