Parts list and schematic diagram for Miele Models: SMML5 TRIFLEX HX1R, SMML5 Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
| # | Part image | Description | SKU | Price |
| xx | Not Available | For Miele SMML5 TRIFLEX HX1R SMML5 | noop | Not Available |
| xx |  | Genuine Miele Casing insert | 10834884 | $22.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Genuine Miele Linkage Light GPHGR Flash assy | 12214680 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10-90+ | | Genuine Miele SEB435 Floor brush GrGr Bl | 12288080 | $345.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Genuine Miele Linkage Light OBSW/ RG assy | 11683975 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10-90+ | | Genuine Miele SEB435 Floor brush ObSw Rg | 11792270 | $365.00Read more |
| 20 | | Genuine Miele Casing top assy | 11024743 | $54.95Read more |
| 30 | | Genuine Miele Flap | 10834871 | $6.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Drive Mgb 02 | 11689734 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | | Genuine Miele Support roller | 10835062 | $7.49Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Raised head screw 4,0X14 | 11058150 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60-85 | | Genuine Miele KB Casing bottom HX2/HX1R | 12157951 | $70.93Read more |
| 70 | | Genuine Miele Brush Seal 5Stck. | 11564270 | $7.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Support roller front | 10835083 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 85 | | Genuine Miele Shaft front | 10835070 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Sealing lip Short | 11507700 | $0.00Read more |
| 110 | | Genuine Miele HX-HC Hardfloor Care | 11724550 | $69.99Read more |
| 120 | | Genuine Miele Handle Brush roller assy | 10832394 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130-170 | Not Available | For Miele SMML5 TRIFLEX HX1R SMML5 | noop | Not Available |
| 140 | | Genuine Miele Electronic unit EZ HX1003 | 11107851 | $54.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 160 | | Genuine Miele Reflector | 10847652 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 170 | | Genuine Miele Optic light guide | 10847641 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |

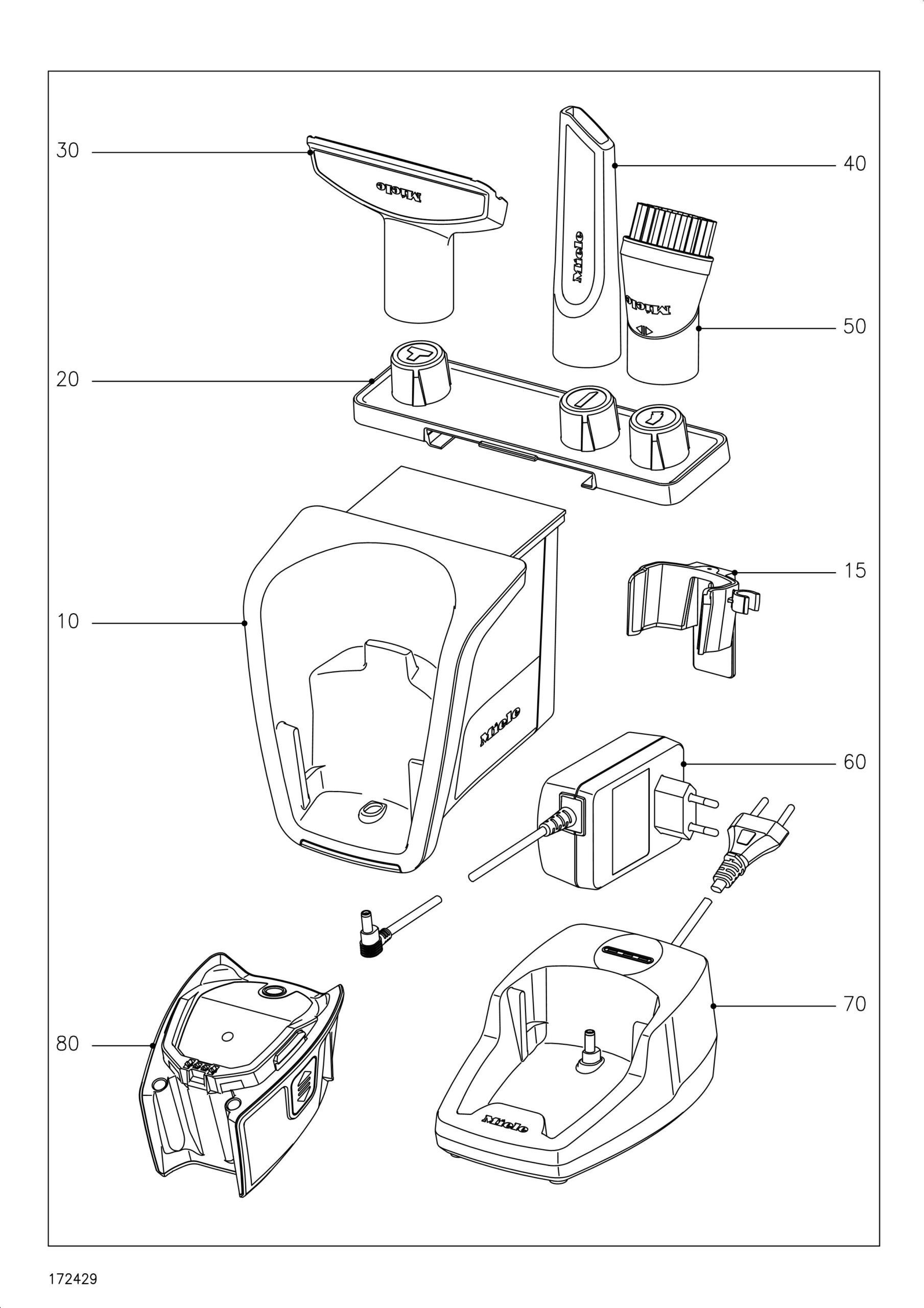

| # | Part image | Description | SKU | Price |
| xx | Not Available | For Miele SMML5 TRIFLEX HX1R SMML5 | noop | Not Available |
| 10 | | Genuine Miele Wall bracket Bagged assy | 12014871 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Shelf Accessory | 10833651 | $7.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Upholstery nozzle XL SPD20 | 11483910 | $37.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Dusting brush L | 12187780 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 |  | Genuine Miele Recharger US, JP Type A | 11684361 | $102.82Add to cart |
| 70 | | Genuine Miele HX-LS USA Charger cradle Lithium-ion bat | 11607500 | $132.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele HX-LA Lithium-ion battery | 11384710 | $210.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Cover Motor housing | 11970750 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20+35 | | Genuine Miele Ring Set | 11561830 | $7.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Fan Mgg 03 | 11705701 | $101.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Air outlet filter Hygiene-Lifetime E10 | 11864681 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Seal Suction channel | 11725631 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Genuine Miele Bracket Electric HX1003-B assy | 11748954 | $281.63Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Casing insert left assy | 10832432 | $54.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Casing insert right assy | 10832422 | $54.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Raised head screw 4,0X14 | 11058150 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | Not Available | Cover frame Printed GPHGR/ BL For Miele SMML5 TRIFLEX HX1R SMML5 | 12016890 | Not Available |
| 100 | | Genuine Miele Cover frame Printed LOWS/ RG | 12016810 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Cover frame Printed OBSW/ RG | 12016780 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Cover frame Printed GPHGR/ RG | 11239591 | $65.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Cover frame Printed IGRPF/ RG | 12016820 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Cover frame Printed KAGR/ RG | 12016840 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Cover frame Printed OBSW/ RT | 12016870 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | Not Available | Cover frame Printed LOWS/ RT For Miele SMML5 TRIFLEX HX1R SMML5 | 12016900 | Not Available |
| 110 | Not Available | Cover bottom USA/CDN/MEX For Miele SMML5 TRIFLEX HX1R SMML5 | 11749360 | Not Available |
| 120 | | Genuine Miele Raised head screw 4,0X14 | 11058150 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Centering ring | 10833366 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Genuine Miele Handle GPHGR Eco assy | 11844360 | $119.11Read more |
| 10 | | Genuine Miele Handle LOWS Eco assy | 11844332 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Genuine Miele Handle OBSW Eco assy | 11844343 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Suction pipe LOWS assy | 11062305 | $83.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Suction pipe OBSW assy | 10832126 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Suction pipe GPHGR assy | 11256264 | $83.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Suction pipe IGRPF assy | 11062346 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Suction pipe KAGR assy | 11636663 | $119.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35-80 | | Genuine Miele Separator BLMT assy | 11685298 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35-80 | | Genuine Miele Separator RTMT assy | 11627048 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | | Genuine Miele HX-FSF-2 Fine dust filter | 11945240 | $44.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | Top Pre-filter For Miele SMML5 TRIFLEX HX1R SMML5 | 11836771 | Not Available |
| 45 | | Genuine Miele Pre-filter BLMT assy | 11685285 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45+50 | | Genuine Miele Pre-filter | 12431950 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | Not Available | Pre-filter RTMT assy For Miele SMML5 TRIFLEX HX1R SMML5 | 11682135 | Not Available |
| 50 | Not Available | Vent duct For Miele SMML5 TRIFLEX HX1R SMML5 | 10833433 | Not Available |
| 60 | | Genuine Miele Cover Air channel | 10833502 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Container Stuck TP assy | 11685260 | $97.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Flap | 11969530 | $70.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
