Parts list and schematic diagram for Miele Models: SNCE0 BOOST CX1, SNCE0, Miele Boost CX1 Parquet Pure Suction Lotus White SNCE0 Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.

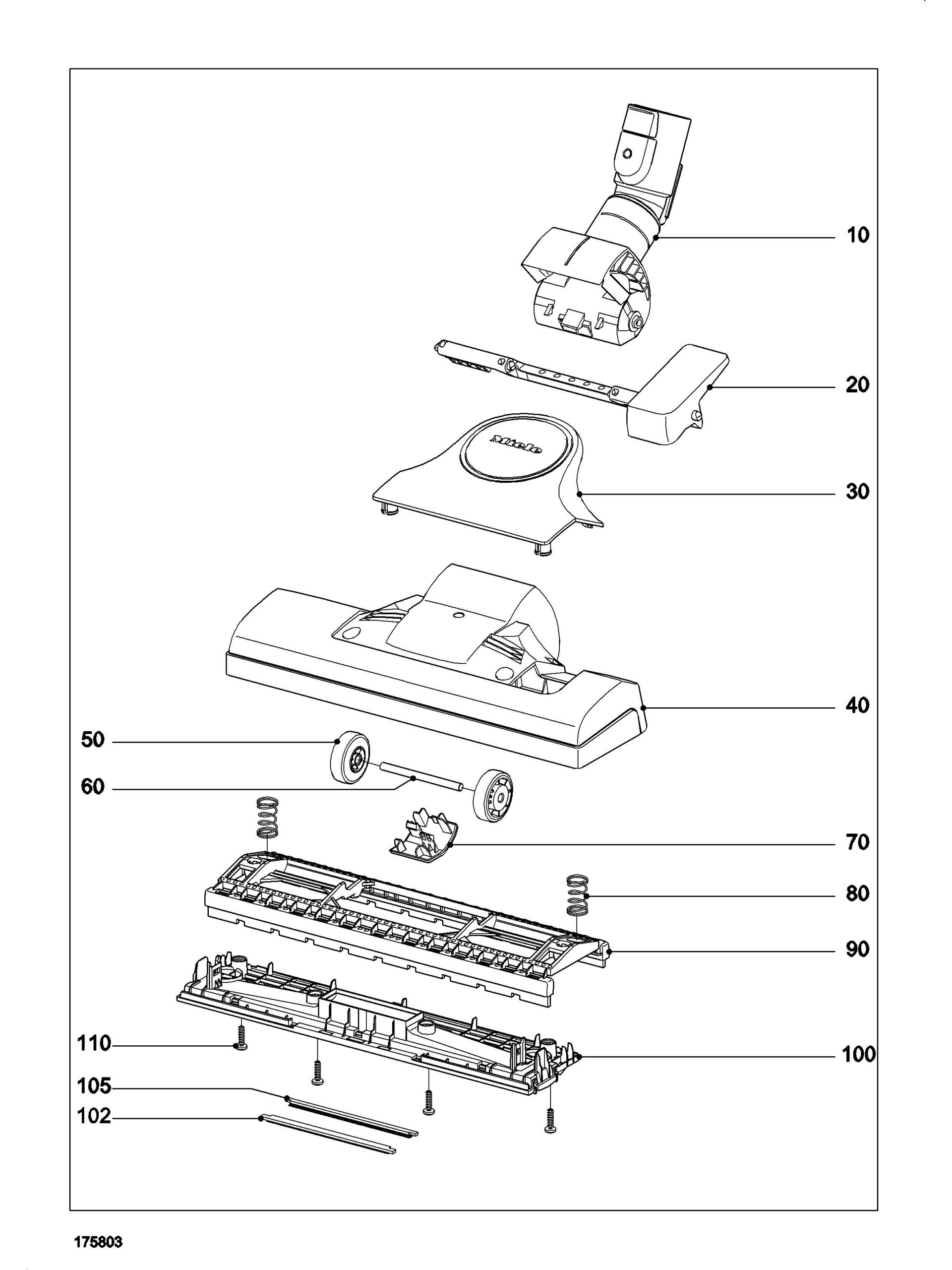

| # | Part image | Description | SKU | Price |
| 10 |  | Genuine Miele Swivel joint Component AZ | 12837660 | $30.74Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10-110 |  | Genuine Miele AllTeQ Floor nozzle SBD 365-3 | 11805640 | $97.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Genuine Miele Foot switch printed SBD365 | 11263320 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | Cover pad printed SBD365 For Miele SNCE0 BOOST CX1 SNCE0 | 11263270 | Not Available |
| 40 |  | Genuine Miele Top SBD365 | 11119760 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | Genuine Miele Support roller SBD470 compl. 2K | 12224470 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 |  | Genuine Miele Shaft SBD470 | 10004101 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 |  | Genuine Miele Extra components SBD365 | 11119830 | $7.49Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | Not Available | Coil spring SBD470-3 For Miele SNCE0 BOOST CX1 SNCE0 | 9316860 | Not Available |
| 90 |  | Genuine Miele Bristle plate assy. SBD365 | 11263773 | $30.74Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 |  | Genuine Miele Lower section vollst. SBD355 | 11263523 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 102 | Not Available | Thread lifter SBD475 For Miele SNCE0 BOOST CX1 SNCE0 | 10242110 | Not Available |
| 105 | Not Available | Thread lifter SBD470-3 For Miele SNCE0 BOOST CX1 SNCE0 | 10514640 | Not Available |
| 110 | Not Available | Low head screw SBD365 For Miele SNCE0 BOOST CX1 SNCE0 | 11119890 | Not Available |

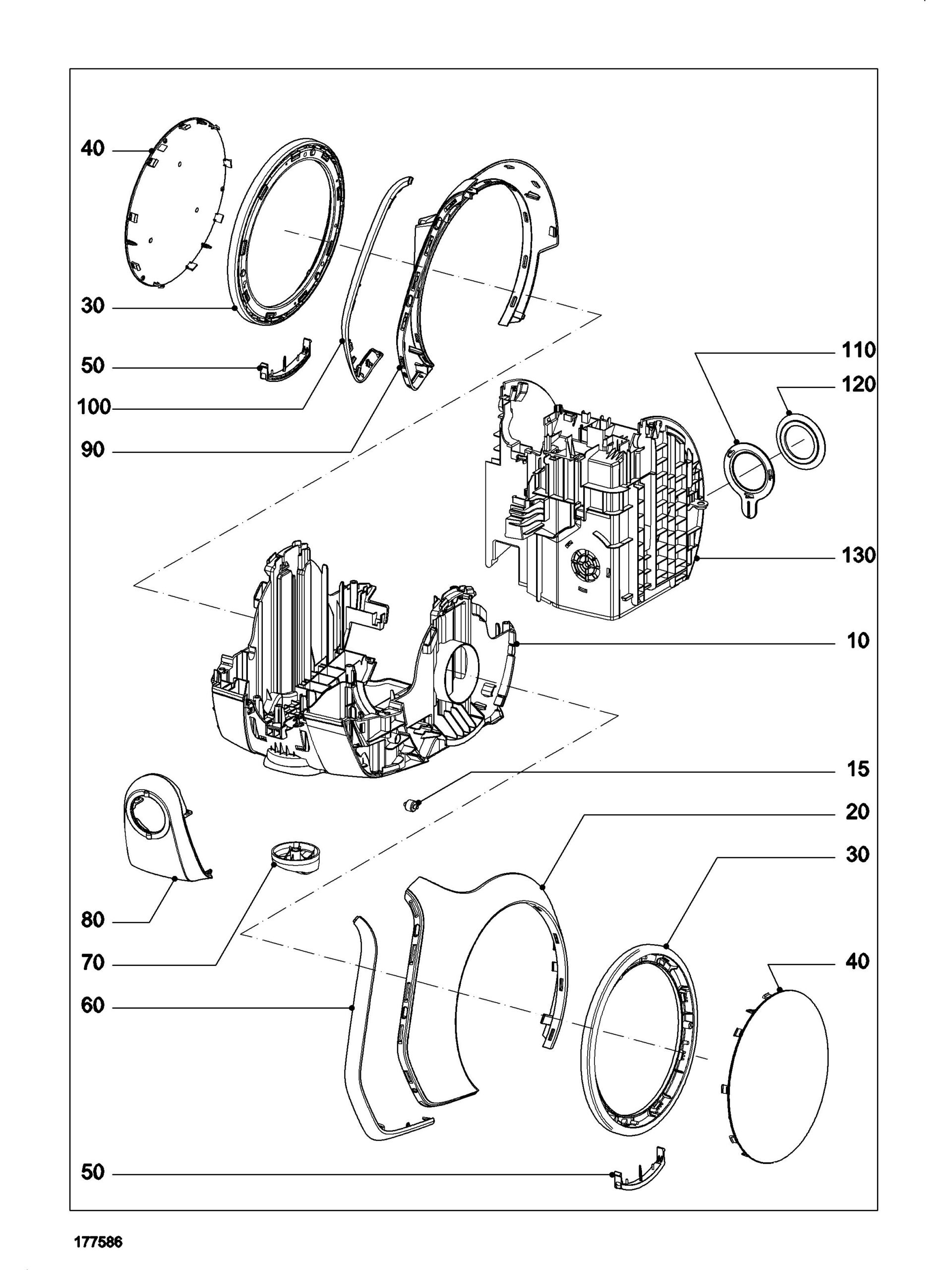

| # | Part image | Description | SKU | Price |
| 10 |  | Genuine Miele Casing bottom | 11168053 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | | Genuine Miele Support roller B20 | 12536990 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Side panel left KAGR For Miele SNCE0 BOOST CX1 SNCE0 | 11895580 | Not Available |
| 20 | Not Available | Side panel left LOWE For Miele SNCE0 BOOST CX1 SNCE0 | 11168962 | Not Available |
| 20 | Not Available | Side panel left GRGR For Miele SNCE0 BOOST CX1 SNCE0 | 11510722 | Not Available |
| 20 | Not Available | Side panel left OBSW For Miele SNCE0 BOOST CX1 SNCE0 | 11510732 | Not Available |
| 30 | | Genuine Miele Wheel (black) | 11585272 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Wheel (red) | 11360931 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Wheel (blue) | 11360921 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Cap Wheel OBSW | 11510531 | $22.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | Cap Wheel GRGR For Miele SNCE0 BOOST CX1 SNCE0 | 11510541 | Not Available |
| 40 | | Genuine Miele Cap Wheel KAGR printed | 11996400 | $30.74Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Cap Wheel LOWE | 11169041 | $22.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | Not Available | Bearing Wheel For Miele SNCE0 BOOST CX1 SNCE0 | 11689780 | Not Available |
| 60 | | Genuine Miele Buffer left | 11168993 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 |  | Genuine Miele Slide skid assy | 10459340 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Dust channel | 11168111 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | Not Available | Side panel right LOWE For Miele SNCE0 BOOST CX1 SNCE0 | 11168972 | Not Available |
| 90 | Not Available | Side panel right OBSW For Miele SNCE0 BOOST CX1 SNCE0 | 11510762 | Not Available |
| 90 | Not Available | Side panel right KAGR For Miele SNCE0 BOOST CX1 SNCE0 | 11895590 | Not Available |
| 90 | Not Available | Side panel right GRGR For Miele SNCE0 BOOST CX1 SNCE0 | 11510772 | Not Available |
| 100 | | Genuine Miele Buffer right | 11169013 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele Seal Holder | 11368950 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Seal Central filter | 11368960 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 | | Genuine Miele Rear panel | 11168170 | $40.34Add to cart Product is special order please allow 2-4 weeks for delivery. |

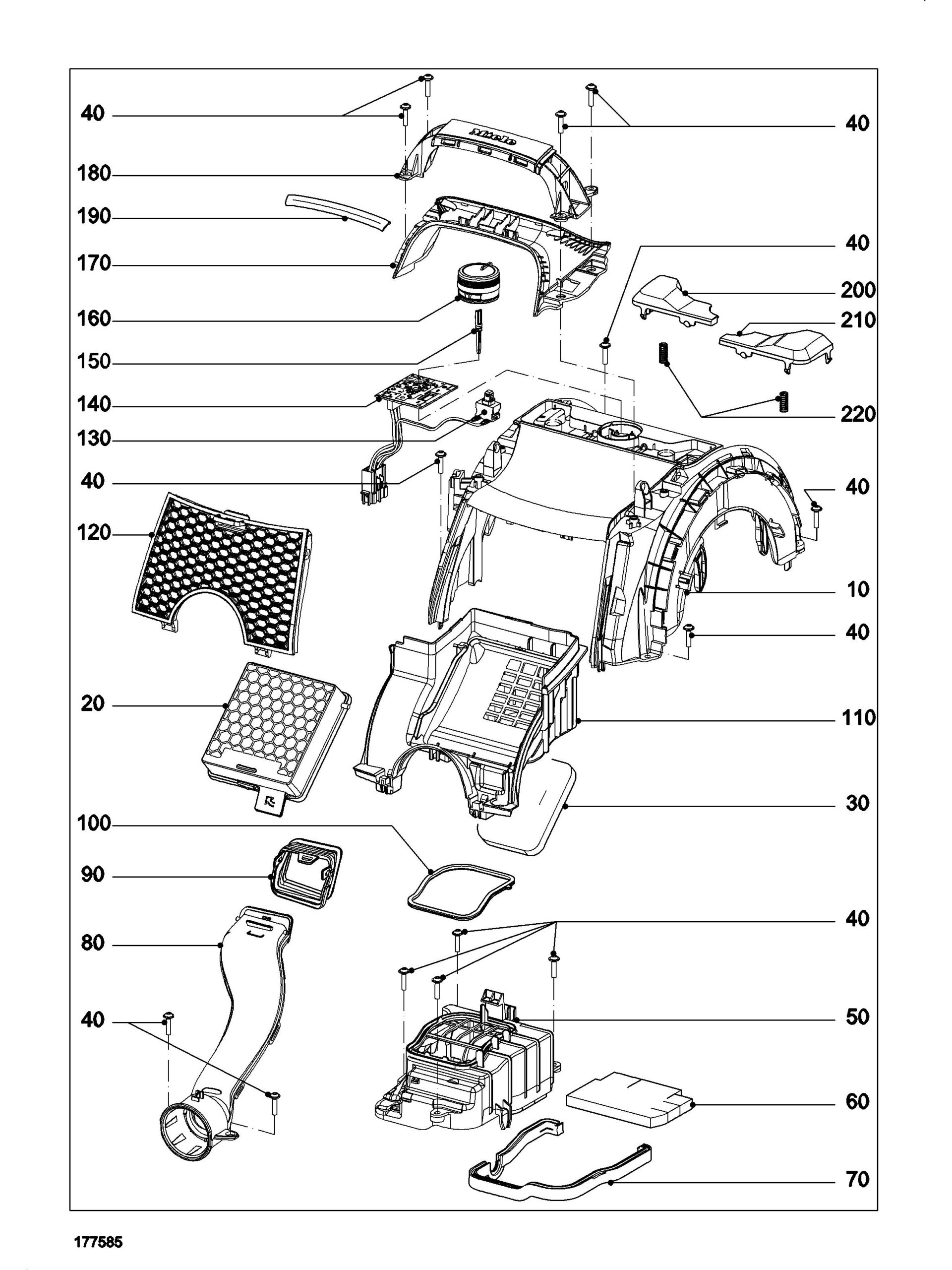

| # | Part image | Description | SKU | Price |
| xx | Not Available | Seal Suction channel For Miele SNCE0 BOOST CX1 SNCE0 | 11168160 | Not Available |
| 10 | | Genuine Miele B20 Casing top | 11168212 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Hygiene Filter SF HY 60 | 11639240 | $43.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Foam insert Filter holder | 11508260 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | Raised head screw 4.0X18 EJOT-DELTA-PT For Miele SNCE0 BOOST CX1 SNCE0 | 10441610 | Not Available |
| 50 | | Genuine Miele Cover | 11168101 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | Not Available | Damping plate Cover For Miele SNCE0 BOOST CX1 SNCE0 | 11508270 | Not Available |
| 70 | | Genuine Miele Seal Motor housing | 11168092 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Suction channel assy USA | 11368930 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Lip seal | 11168150 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Seal Filter holder | 11168191 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele Filter holder | 11168183 | $22.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Grille assy | 11168293 | $30.74Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 | | Genuine Miele Switch 1 pole 1681.3103 | 9023231 | $7.91Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 140 | | Genuine Miele Electronic unit EDW S20213/81 assy | 11980740 | $90.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 | | Genuine Miele Adapter | 11168251 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 160 | | Genuine Miele Rotary knob | 11168240 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 170 | | Genuine Miele Handle B20 | 11168230 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 180 | Not Available | Side panel middle KAGR hot stamp For Miele SNCE0 BOOST CX1 SNCE0 | 11895540 | Not Available |
| 180 | Not Available | Side panel middle white hot stamp For Miele SNCE0 BOOST CX1 SNCE0 | 11510570 | Not Available |
| 180 | Not Available | Side panel middle OBSW hot stamp For Miele SNCE0 BOOST CX1 SNCE0 | 11510580 | Not Available |
| 180 | Not Available | Side panel middle red hot stamp For Miele SNCE0 BOOST CX1 SNCE0 | 11510590 | Not Available |
| 190 | | Genuine Miele Buffer middle | 11169000 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 200 | Not Available | Foot switch Cable printed For Miele SNCE0 BOOST CX1 SNCE0 | 11168261 | Not Available |
| 210 | Not Available | Foot switch Power printed For Miele SNCE0 BOOST CX1 SNCE0 | 11168271 | Not Available |
| 220 | Not Available | Spring Foot switch For Miele SNCE0 BOOST CX1 SNCE0 | 11168280 | Not Available |

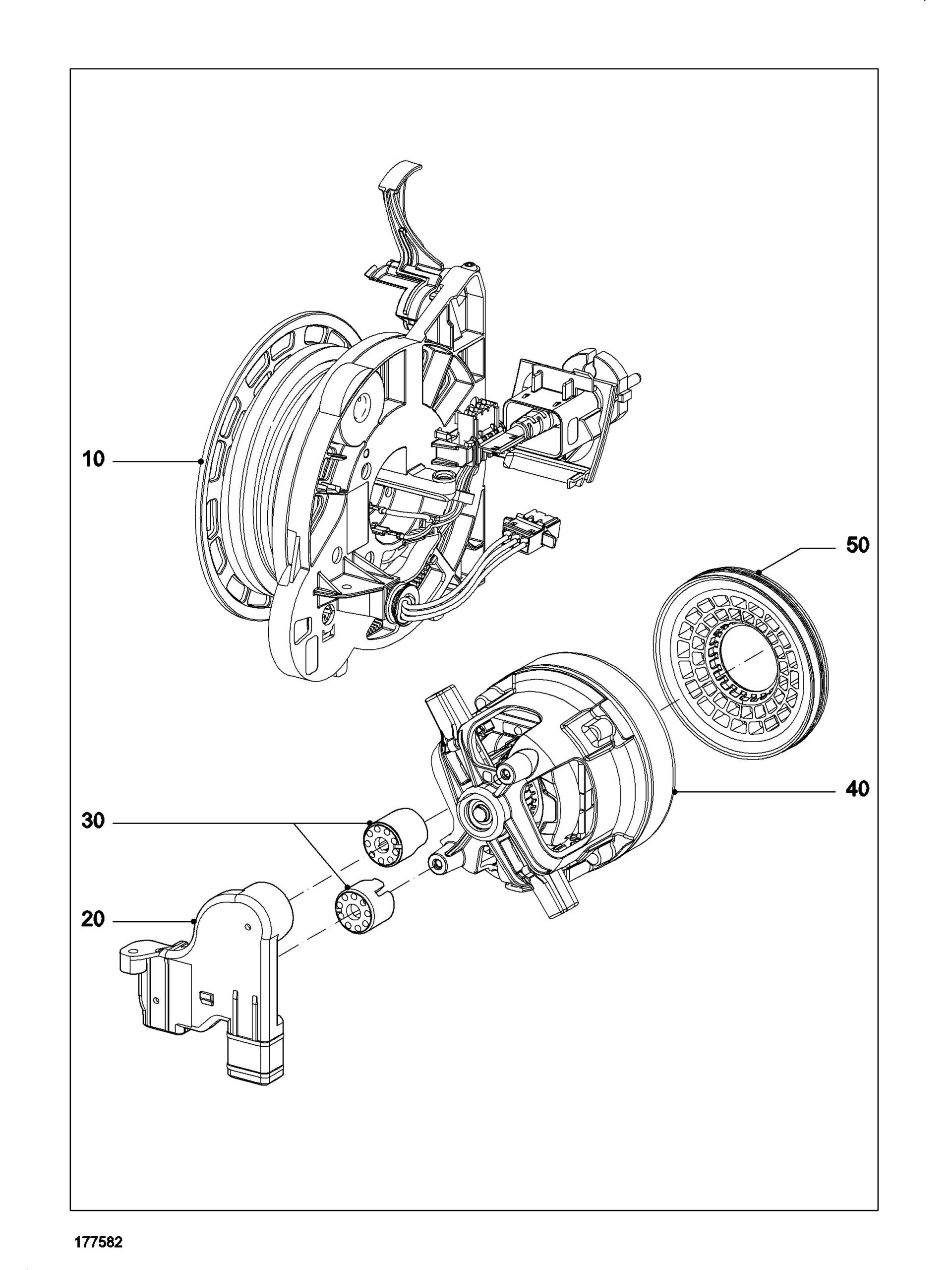

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Cable reel BCC 6,5m USA | 11151694 | $93.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Fan Holder For Miele SNCE0 BOOST CX1 SNCE0 | 11327170 | Not Available |
| 30 | | Genuine Miele Rubber cushion 2 Pcs. | 6207001 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Fan Mrg30/81-120-01 | 11704122 | $101.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Bearing ring B20 | 11168200 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |

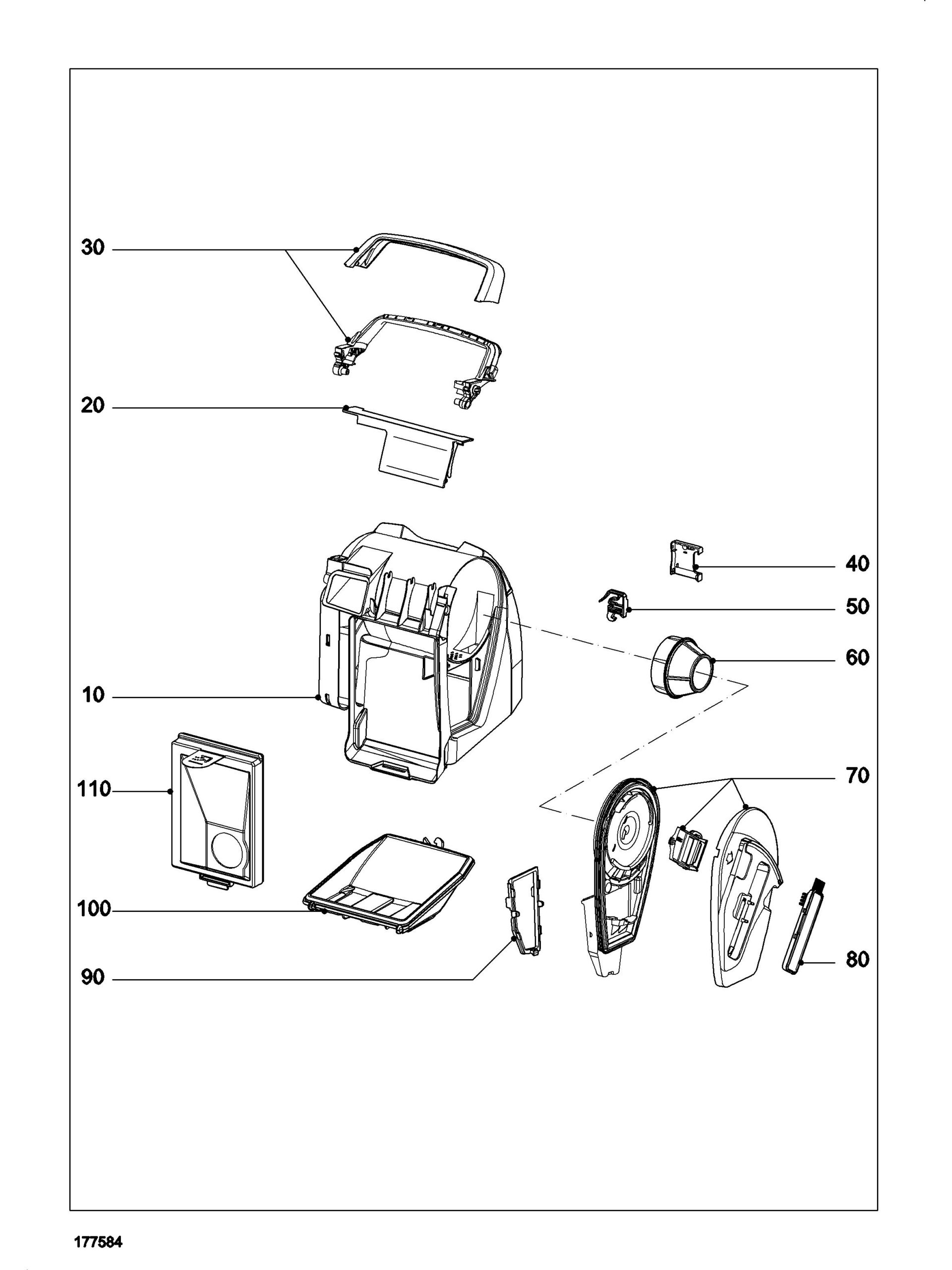

| # | Part image | Description | SKU | Price |
| 10-110 | | Genuine Miele Interceptor assy transparent | 11169064 | $270.17Read more |
| 20 | | Genuine Miele Cover top printed | 11169192 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Handle Assy | 11689792 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Cover interlock | 11169142 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele interlock Flap | 11169151 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Genuine Miele Pre-filter Separator | 12040490 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Lid | 11689800 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Cleaning tool | 11169304 | $25.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Filter frame Lid | 11169263 | $22.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Flap assy | 11169214 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele Feinstaub Filter CX FSF | 11639250 | $52.99Read more |

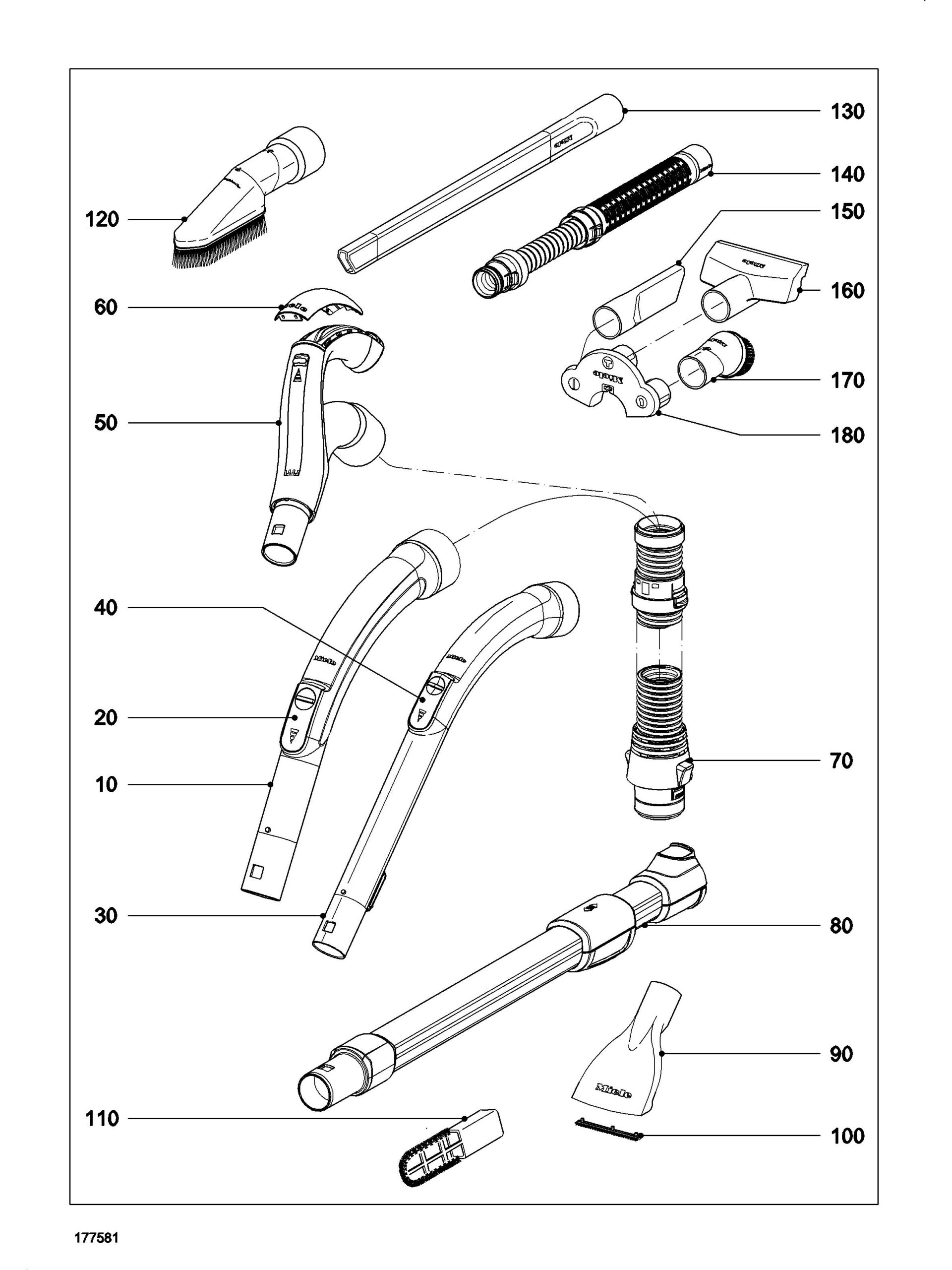

| # | Part image | Description | SKU | Price |
| -80 | | Genuine Miele KB Suction pipe EasySlide midsize | 12840870 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10+20 | | Genuine Miele Tubular handle anthracite | 9442601 | $27.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Suction control f. Griffr. XXL & 2.0 | 7587200 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30+40 | | Genuine Miele Tubular handle XXL Parking assy | 7586107 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Suction control f. Griffr. XXL & 2.0 | 7587200 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50+60 | Not Available | Tubular handle Comfort S4/S5/S6/S8 For Miele SNCE0 BOOST CX1 SNCE0 | 6163665 | Not Available |
| 60 |  | Genuine Miele Inset handle Printed | 6157660 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Suction hose 1820mm (B20) | 11368972 | $57.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 |  | HES Telescopic Wand for Miele | 10615280 | $65.45Add to cart |
| 90+100 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $30.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Thread lifter | 5056530 | $7.49Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele ST Radiator brush SHB30 | 9660490 | $30.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele ST Universal brush SUB20 | 11607330 | $45.00Read more |
| 130 | | Genuine Miele ST Flex. crev. nozzle SFD20 560mm | 7252100 | $34.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 140 |  | Genuine Miele ST Flexible hose SFS10 | 7252210 | $39.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 160 | | Genuine Miele Upholstery nozzle | 9442620 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 170 | | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $24.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 180 |  | VarioClip Holder Accesory Tool Caddy | 7513820 | $19.99Add to cart |
