Parts list and schematic diagram for Miele Models: TRIFLEX HX1 SMML0, SMML0, Triflex HX1 Facelift Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.

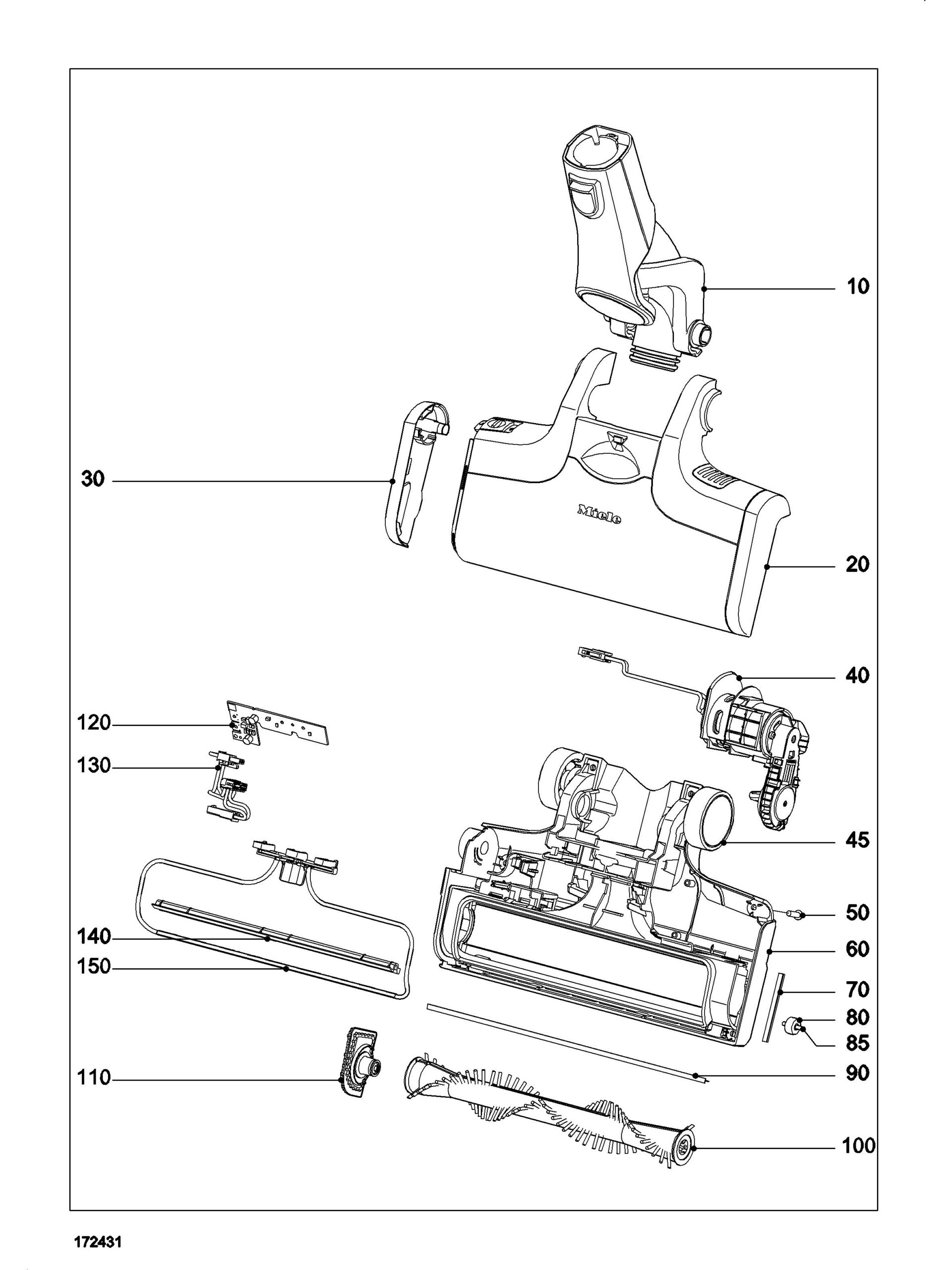

| # | Part image | Description | SKU | Price |
| xx | Not Available | For Miele TRIFLEX HX1 SMML0 SMML0 | noop | Not Available |
| xx |  | Genuine Miele Casing insert | 10834884 | $22.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Genuine Miele Linkage LOWS assy | 11268099 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10-150 | | Genuine Miele SEB435 Floor brush InfGr | 11670900 | $249.00Read more |
| 10-150 | | Genuine Miele SEB435 Floor brush ObSw | 11670890 | $249.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10-150 | | Genuine Miele SEB435 Floor brush RuRo | 11670880 | $249.00Read more |
| 10 | | Genuine Miele Linkage RBRT/ SI assy | 11268119 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Genuine Miele Linkage IGRPF assy | 11268129 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Genuine Miele Linkage GPHGR/ SI assy | 11268109 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Genuine Miele Linkage OBSW assy | 10832158 | $90.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Casing top HX2/HX1R For Miele TRIFLEX HX1 SMML0 SMML0 | 12261400 | Not Available |
| 30 | | Genuine Miele Flap | 10834871 | $6.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Conv.kit for drive Mgb02 | 12475730 | $0.00Read more |
| 45 | | Genuine Miele Support roller | 10835062 | $7.49Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Raised head screw 4,0X14 | 11058150 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60-85 | | Genuine Miele KB Casing bottom HX2/HX1R | 12157951 | $70.93Read more |
| 70 | Not Available | Brush Seal For Miele TRIFLEX HX1 SMML0 SMML0 | 11268050 | Not Available |
| 70 | | Genuine Miele Brush Seal 5Stck. | 11564270 | $7.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Support roller front | 10835083 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 85 | | Genuine Miele Shaft front | 10835070 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Sealing lip Short | 11507700 | $0.00Read more |
| 100+110 | | Genuine Miele Brush roller Handle | 11509641 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele Handle Brush roller assy | 10832394 | $11.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Electronic unit EZ HX1003 | 11107851 | $54.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 130 | | Genuine Miele Connecting cable SEB "Y" | 10888152 | $36.48Read more |
| 140 | | Genuine Miele Reflector | 10847652 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 150 | | Genuine Miele Optic light guide | 10847641 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Top SEB20/23 | 11332190 | $47.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10-110 | | Genuine Miele HX-SEB23 Hand-held brush Electro Compact | 11384950 | $146.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | For Miele TRIFLEX HX1 SMML0 SMML0 | noop | Not Available |
| 30 | | Genuine Miele Motor 18V SEB23 | 11332170 | $109.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele printed circ. board 18V SEB23 | 11332160 | $70.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Tooth belt SEB20/23 | 11332150 | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Genuine Miele Motor bracket SEB20/23 | 11332180 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Bearing plate SEB20/23 | 11332120 | $6.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Brush roller SEB20/23 | 11332130 | $54.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Suction channel SEB20/23 | 11332110 | $22.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Lower section Connection socket SEB23 | 11464910 | $139.36Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele Raised head screw 3,5x16 TORX T10 | 6644310 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |

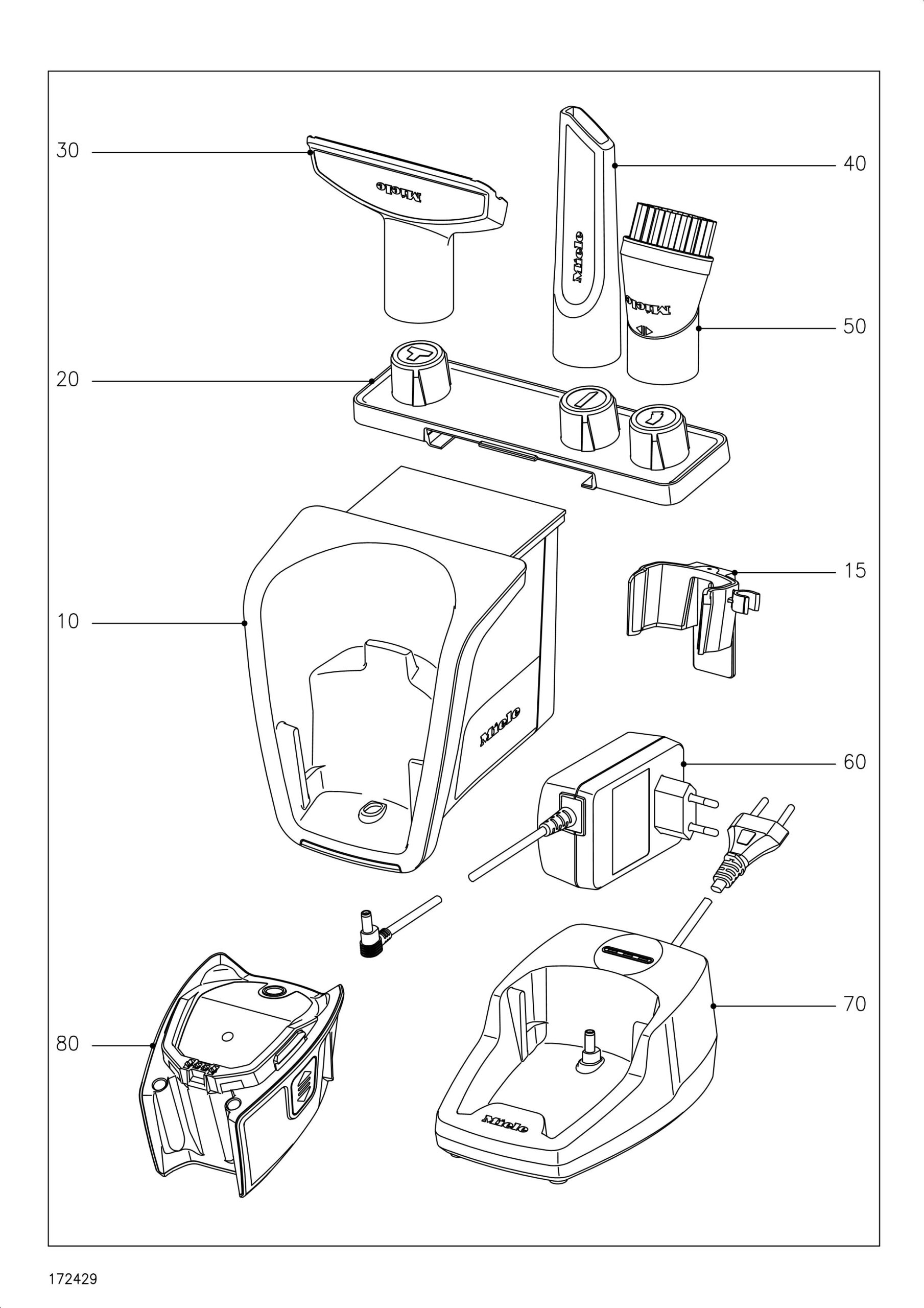

| # | Part image | Description | SKU | Price |
| xx | Not Available | For Miele TRIFLEX HX1 SMML0 SMML0 | noop | Not Available |
| 10 | | Genuine Miele Wall bracket Bagged assy | 12014871 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | | Genuine Miele Wall bracket Bagged XS assy | 12229720 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Shelf Accessory | 10833651 | $7.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Upholstery nozzle XL SPD20 | 11483910 | $37.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $16.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Dusting brush L | 12187780 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 |  | Genuine Miele Recharger US, JP Type A | 11684361 | $102.82Add to cart |
| 60 | | Genuine Miele Recharger EU Type C | 11681701 | $119.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele HX-LS USA Charger cradle Lithium-ion bat | 11607500 | $132.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele HX-LA Lithium-ion battery | 11384710 | $210.00Add to cart Product is special order please allow 2-4 weeks for delivery. |

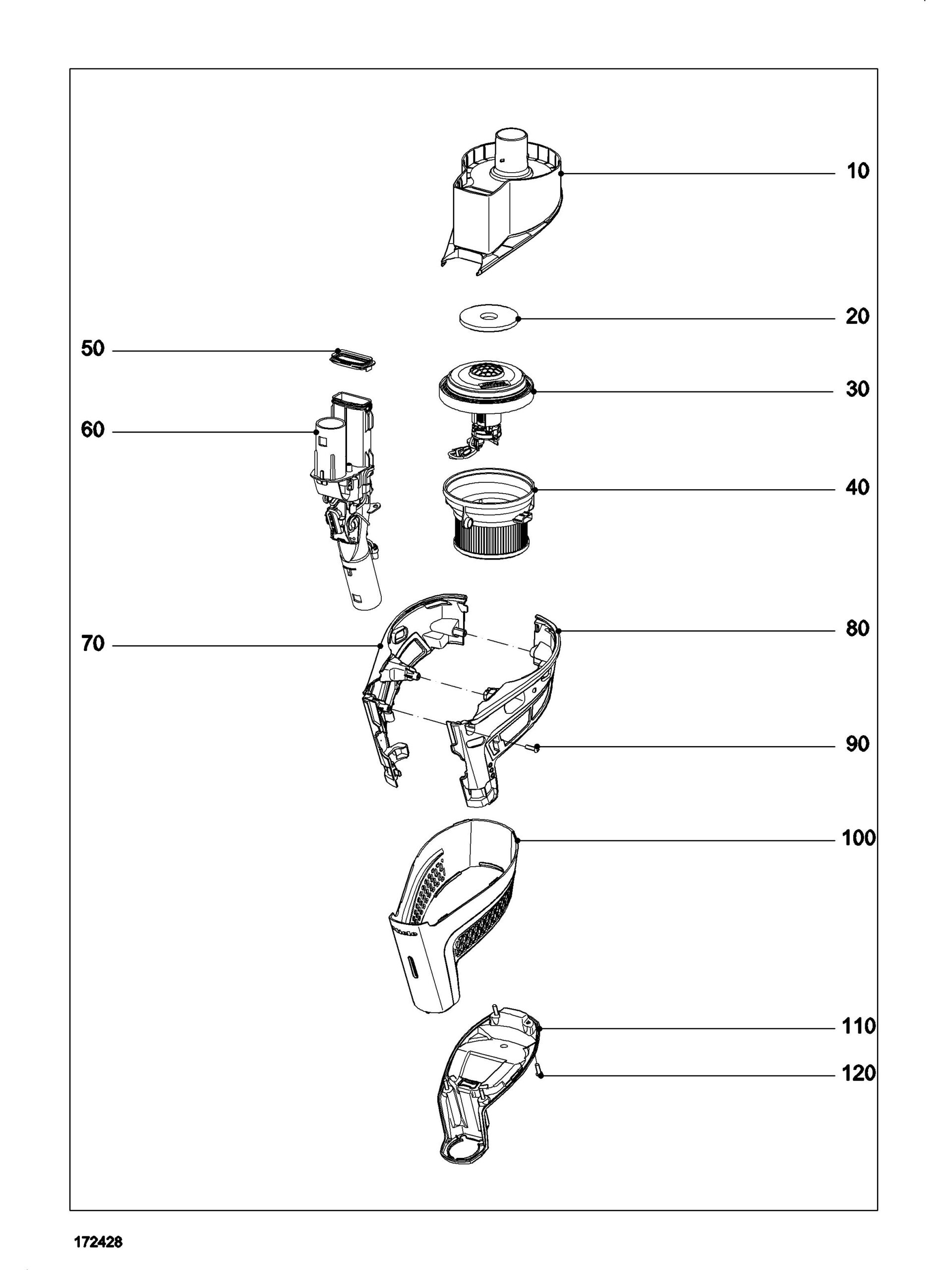

| # | Part image | Description | SKU | Price |
| xx | Not Available | For Miele TRIFLEX HX1 SMML0 SMML0 | noop | Not Available |
| 10 | | Genuine Miele Cover Motor housing | 10832477 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Ring Set | 11561830 | $7.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Fan Mgg 01 KD | 11954340 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele Air outlet filter HEPA-Lifetime H13 | 10832261 | $90.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Seal Suction channel | 10834681 | $6.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | Not Available | Bracket Electric HX1003-E assy For Miele TRIFLEX HX1 SMML0 SMML0 | 11935273 | Not Available |
| 70 | | Genuine Miele Casing insert left assy | 10832432 | $54.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Casing insert right assy | 10832422 | $54.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | | Genuine Miele Raised head screw 4,0X14 | 11058150 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Cover frame Printed GPHGR/ RG | 11239591 | $65.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Cover frame Printed RBRT/ SI | 11068662 | $65.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Cover frame Printed LOWS/ RG | 12016810 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Cover frame Printed KAGR/ RG | 11635050 | $36.48Read more |
| 100 | | Genuine Miele Cover frame Printed IGRPF/ RG | 11068672 | $83.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Cover frame Printed OBSW/ RG | 10832461 | $65.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele Cover bottom | 10832444 | $36.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | | Genuine Miele Raised head screw 4,0X14 | 11058150 | $2.01Add to cart Product is special order please allow 2-4 weeks for delivery. |

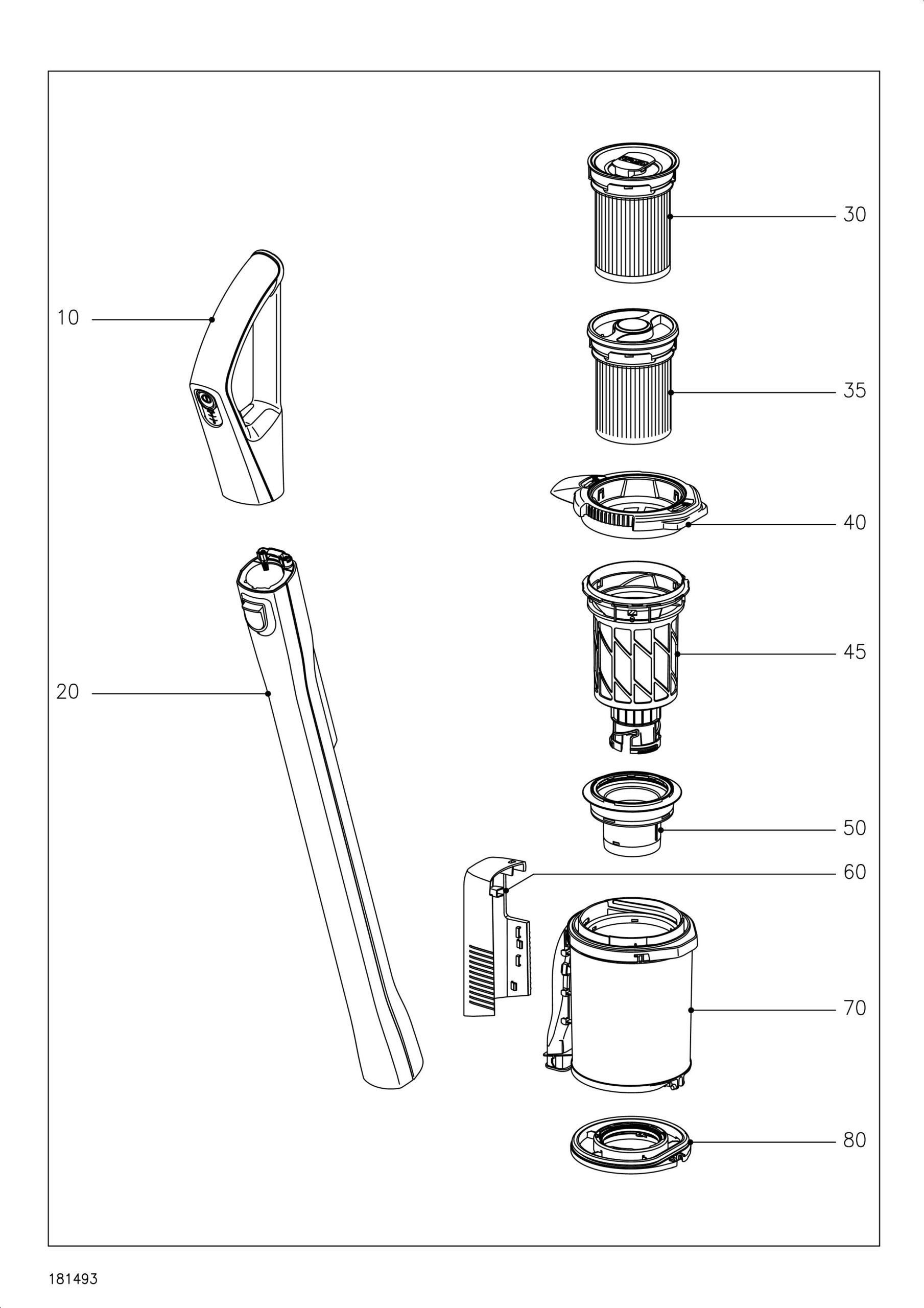

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Handle LOWS assy | 12281100 | $139.36Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Genuine Miele Handle OBSW assy | 12281110 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Genuine Miele Handle RBRT assy | 12281120 | $139.36Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Genuine Miele Handle GPHGR assy | 12281130 | $139.36Add to cart |
| 10 | | Genuine Miele Handle IGRPF assy | 11052359 | $139.36Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Genuine Miele Handle KAGR assy | 11646675 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Suction pipe KAGR assy | 11636663 | $119.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Suction pipe IGRPF assy | 11062346 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Suction pipe GPHGR assy | 11256264 | $83.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Suction pipe RBRT assy | 11062315 | $83.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Suction pipe OBSW assy | 10832126 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Suction pipe LOWS assy | 11062305 | $83.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele HX-FSF Fine dust filter | 11385020 | $44.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30-80 | | Genuine Miele Separator HX1 KD assy | 12307260 | $148.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45+50 | | Genuine Miele Pre-filter | 12431950 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Genuine Miele Cover Air channel | 10833502 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | Genuine Miele Container | 11509672 | $97.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Flap | 11969530 | $70.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
