Parts book and Schematics for Simplicity Models S12test

Parts book and Schematics for Simplicity Models S12



BODY ASSEMBLY schematic and parts book for Simplicity Model/s S12


# Part image Description SKU Price
1Product ThumbnailBody Part Number 3620406300 for Simplicity Models S12

More Product Details

3620406300



Product is special order please allow 2-4 weeks for delivery.
2Product ThumbnailRoller Back Part Number 3624703410 for Simplicity Models S12

More Product Details

3624703410



Product is special order please allow 2-4 weeks for delivery.
3Not AvailableRoller FrontNot AvailableNot Available
4Not AvailableShaft RollerNot AvailableNot Available
5Product ThumbnailBracket Roller Part Number 3620601900 for Simplicity Models S12

More Product Details

3620601900



Product is special order please allow 2-4 weeks for delivery.
6Product ThumbnailHolder Filter Part Number 3623004000 for Simplicity Models S12

More Product Details

3623004000



Product is special order please allow 2-4 weeks for delivery.
7Not AvailableGasketNot AvailableNot Available
8Product ThumbnailFilter In Part Number 3621904200 for Simplicity Models S12

More Product Details

3621904200



Product is special order please allow 2-4 weeks for delivery.
9Product ThumbnailBag Cloth Part Number 3621904600 for Simplicity Models S12

More Product Details

3621904600



Product is special order please allow 2-4 weeks for delivery.
10Product ThumbnailScrew Tapping Part Number 7128401212 for Simplicity Models S12,S18,S24.4,S24.6

More Product Details

7128401212



Product is special order please allow 2-4 weeks for delivery.
10Product ThumbnailElectrostatic Post Filter Part Number 3621904310 for Simplicity Models S12

More Product Details

3621904310



Product is special order please allow 2-4 weeks for delivery.
10Not Available(Not Shown)Not AvailableNot Available




# Part image Description SKU Price
Not AvailableNot AvailablePart of above assemblyNot Available

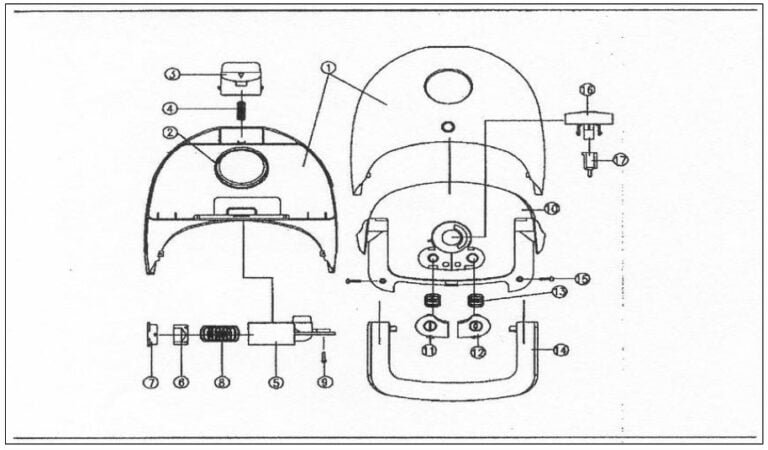

1Product ThumbnailDust Cover Assembly Part Number 3621417980 for Simplicity Models S12

More Product Details

3621417980



Product is special order please allow 2-4 weeks for delivery.
1Product ThumbnailPart Number 3621417983 for Simplicity Models S12

More Product Details

3621417983



Product is special order please allow 2-4 weeks for delivery.
1Product ThumbnailPart Number 3621417981 for Simplicity Models S12

More Product Details

3621417981



Product is special order please allow 2-4 weeks for delivery.
2Not AvailableSocketPart of above assemblyNot Available
4Not AvailableSpring ClampPart of above assemblyNot Available
5Not AvailableDust Meter HouisngPart of Dust Meter AssyNot Available
6Product ThumbnailDust Meter Assembly Part Number 3629702011 for Simplicity Models S12

More Product Details

3629702011



Product is special order please allow 2-4 weeks for delivery.
7Not AvailableCap DMPart of Dust Meter AssyNot Available
8Not AvailableSpring DMPart of Dust Meter AssyNot Available
9Product ThumbnailCanister Screw (4x14) Part Number 7121401411 for Simplicity Models QS1,QS1,QS1,S12,S12,S18,S18,S18,S24.4,S24.4,S24.4,S24.6,S24.6,S36, S36L,S36, S36L,S36, S36L,S36, S36L,S38,S38,S38,S38

More Product Details

7121401411



Product is special order please allow 2-4 weeks for delivery.
10Product ThumbnailCover Top Part Number 3621417150 for Simplicity Models S12

More Product Details

3621417150



Product is special order please allow 2-4 weeks for delivery.
11Product ThumbnailButton Power Part Number 3626603653 for Simplicity Models S12

More Product Details

3626603653



Product is special order please allow 2-4 weeks for delivery.
11Product ThumbnailPart Number 3626603650 for Simplicity Models S12

More Product Details

3626603650

$0.00


Product is special order please allow 2-4 weeks for delivery.
12Product ThumbnailButton Cord Reel Part Number 3626603753 for Simplicity Models S12

More Product Details

3626603753



Product is special order please allow 2-4 weeks for delivery.
12Product ThumbnailPart Number 3626603750 for Simplicity Models S12

More Product Details

3626603750



Product is special order please allow 2-4 weeks for delivery.
13Product ThumbnailSpring Part Number 3625103400 for Simplicity Models S12

More Product Details

3625103400



Product is special order please allow 2-4 weeks for delivery.
14Product ThumbnailHandle Part Number 3622601400 for Simplicity Models S12

More Product Details

3622601400



Product is special order please allow 2-4 weeks for delivery.
15Not AvailableScrew TappingPart of Cover Top AssyNot Available
16Product ThumbnailKnob Control Part Number 3623101000 for Simplicity Models S12

More Product Details

3623101000



Product is special order please allow 2-4 weeks for delivery.
16Product ThumbnailPart Number 3623404003 for Simplicity Models S12

More Product Details

3623404003



Product is special order please allow 2-4 weeks for delivery.
17Product ThumbnailCap Knob Part Number 3620903800 for Simplicity Models S12

More Product Details

3620903800



Product is special order please allow 2-4 weeks for delivery.




# Part image Description SKU Price

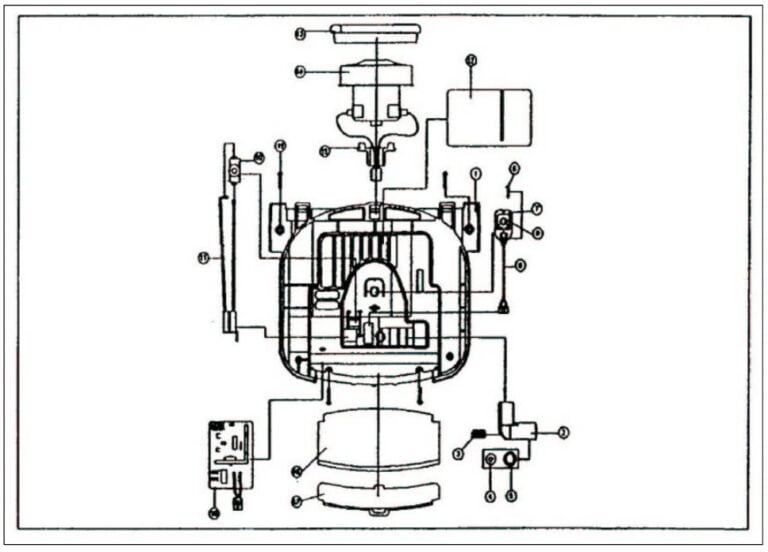

1Product ThumbnailBody Cover Part Number 3621416950 for Simplicity Models S12

More Product Details

3621416950



Product is special order please allow 2-4 weeks for delivery.
2Product ThumbnailLever Cr Part Number 3623702000 for Simplicity Models S12

More Product Details

3623702000



Product is special order please allow 2-4 weeks for delivery.
3Product ThumbnailSpring Lever Part Number 3625104300 for Simplicity Models S12

More Product Details

3625104300



Product is special order please allow 2-4 weeks for delivery.
4Not AvailableFrame StopperPart of AssemblyNot Available
5Not AvailableStopper CrPart of AssemblyNot Available
6Product ThumbnailScrew Tapping Part Number 7121301211 for Simplicity Models S12,S36, S36L,S38

More Product Details

7121301211



Product is special order please allow 2-4 weeks for delivery.
7Product ThumbnailPCB S/V Part Number 3624308401 for Simplicity Models S12

More Product Details

3624308401



Product is special order please allow 2-4 weeks for delivery.
8Product ThumbnailHarness Part Number 3622710100 for Simplicity Models S12

More Product Details

3622710100



Product is special order please allow 2-4 weeks for delivery.
9Product ThumbnailVR Rotary Part Number 5V2204009B for Simplicity Models S12

More Product Details

5V2204009B



Product is special order please allow 2-4 weeks for delivery.
10Product ThumbnailSwitch Push Part Number 3629002000 for Simplicity Models S12,S18,S24.4,S24.6

More Product Details

3629002000



Product is special order please allow 2-4 weeks for delivery.
11Product ThumbnailHarness Part Number 3622710200 for Simplicity Models S12

More Product Details

3622710200



Product is special order please allow 2-4 weeks for delivery.
12Product ThumbnailFilter Part Number 3621905600 for Simplicity Models S12

More Product Details

3621905600



Product is special order please allow 2-4 weeks for delivery.
13Product ThumbnailPacking Motor Part Number 3624004900 for Simplicity Models S12

More Product Details

3624004900



Product is special order please allow 2-4 weeks for delivery.
14Product ThumbnailMotor Universal Part Number 3962820710 for Simplicity Models S12

More Product Details

3962820710



Product is special order please allow 2-4 weeks for delivery.
15Product ThumbnailMount Motor Part Number 3627900900 for Simplicity Models S12

More Product Details

3627900900



Product is special order please allow 2-4 weeks for delivery.
16Product ThumbnailFilter Exhaust Part Number 3621904300 for Simplicity Models S12

More Product Details

3621904300



Product is special order please allow 2-4 weeks for delivery.
17Product ThumbnailCase Filter Part Number 3621103000 for Simplicity Models S12

More Product Details

3621103000



Product is special order please allow 2-4 weeks for delivery.
18Product ThumbnailPCB Power Control/Old Part Number 3624308530 for Simplicity Models S12

More Product Details

3624308530



Product is special order please allow 2-4 weeks for delivery.
18Product ThumbnailPCB Power Control/New Part Number 3624308555 for Simplicity Models S12

More Product Details

3624308555



Product is special order please allow 2-4 weeks for delivery.
19Not AvailableScrew TappingPart of AssemblyNot Available




# Part image Description SKU Price
1Product ThumbnailCord Reel Assy Part Number 3629506250 for Simplicity Models S12

More Product Details

3629506250



Product is special order please allow 2-4 weeks for delivery.
1Product ThumbnailBobbin Part Number 3629200600 for Simplicity Models S12,S18,S24.4

More Product Details

3629200600



Product is special order please allow 2-4 weeks for delivery.
2Product ThumbnailHolder Terminal Part Number 4565A36020 for Simplicity Models S12,S18,S24.4

More Product Details

4565A36020

$0.00


Product is special order please allow 2-4 weeks for delivery.
3Product ThumbnailTerminal Part Number 4565A36024 for Simplicity Models S12,S18,S24.4

More Product Details

4565A36024

$0.00


Product is special order please allow 2-4 weeks for delivery.
4Product ThumbnailTerminal Part Number 4565A36034 for Simplicity Models S12,S18,S24.4

More Product Details

4565A36034

$0.00


Product is special order please allow 2-4 weeks for delivery.
5Product ThumbnailCord Power Part Number 3621302100 for Simplicity Models S12,S18,S24.4

More Product Details

3621302100



Product is special order please allow 2-4 weeks for delivery.
6Product ThumbnailScrew Tapping Part Number 7121301411 for Simplicity Models S12,S12,S18,S18,S24.4,S24.4,S24.6,S36, S36L,S38

More Product Details

7121301411



Product is special order please allow 2-4 weeks for delivery.
7Product ThumbnailSpring AS Part Number 3625102005 for Simplicity Models S12,S18,S24.4

More Product Details

3625102005



Product is special order please allow 2-4 weeks for delivery.
8Product ThumbnailScrew Tapping Part Number 7121301411 for Simplicity Models S12,S12,S18,S18,S24.4,S24.4,S24.6,S36, S36L,S38

More Product Details

7121301411



Product is special order please allow 2-4 weeks for delivery.
9Not AvailableBracketPart of AssemblyNot Available
10Product ThumbnailTerminals AS Part Number 3628709800 for Simplicity Models S12

More Product Details

3628709800



Product is special order please allow 2-4 weeks for delivery.
11Not AvailableScrew TappingPart of AssemblyNot Available
12Not AvailableShaft ReelPart of AssemblyNot Available
13Product ThumbnailCanister Screw (4x14) Part Number 7121401411 for Simplicity Models QS1,QS1,QS1,S12,S12,S18,S18,S18,S24.4,S24.4,S24.4,S24.6,S24.6,S36, S36L,S36, S36L,S36, S36L,S36, S36L,S38,S38,S38,S38

More Product Details

7121401411



Product is special order please allow 2-4 weeks for delivery.




# Part image Description SKU Price
1Product ThumbnailHose Assembly Part Number 3623206200 for Simplicity Models S12

More Product Details

3623206200



Product is special order please allow 2-4 weeks for delivery.
1Not AvailableAdapter PipePart of AssemblyNot Available
2Not AvailableHolder HosePart of AssemblyNot Available
3Not AvailableRing HosePart of AssemblyNot Available
4Not AvailableHosePart of AssemblyNot Available
5Not AvailableCuff HosePart of AssemblyNot Available
6Not AvailablePipe HosePart of AssemblyNot Available
7Not AvailablePacking HolePart of AssemblyNot Available
8Product ThumbnailValve Air Part Number 3625400400 for Simplicity Models S12

More Product Details

3625400400



Product is special order please allow 2-4 weeks for delivery.




# Part image Description SKU Price
1Product ThumbnailBrush Assembly Part Number 3629304920 for Simplicity Models S12

More Product Details

3629304920



Product is special order please allow 2-4 weeks for delivery.
1Product ThumbnailBody Brush Part Number 3620406400 for Simplicity Models S12

More Product Details

3620406400



Product is special order please allow 2-4 weeks for delivery.
2Product ThumbnailCover Brush Part Number 3621417200 for Simplicity Models S12

More Product Details

3621417200



Product is special order please allow 2-4 weeks for delivery.
3Product ThumbnailNeck Brush Part Number 3628001600 for Simplicity Models S12

More Product Details

3628001600



Product is special order please allow 2-4 weeks for delivery.
4Product ThumbnailPipe Brush Part Number 3624408300 for Simplicity Models S12

More Product Details

3624408300



Product is special order please allow 2-4 weeks for delivery.
5Product ThumbnailRoller-B Brush Part Number 3624703000 for Simplicity Models S12

More Product Details

3624703000



Product is special order please allow 2-4 weeks for delivery.
6Product ThumbnailRoller-F Brush Part Number 3624703100 for Simplicity Models S12

More Product Details

3624703100



Product is special order please allow 2-4 weeks for delivery.
7Product ThumbnailFront Wheel Axle Part Number 3624900900 for Simplicity Models QS1,S12

More Product Details

3624900900



Product is special order please allow 2-4 weeks for delivery.
8Product ThumbnailRed Lint Strip Part Number 3627000700 for Simplicity Models QS1,S12,S12

More Product Details

3627000700



Product is special order please allow 2-4 weeks for delivery.
9Product ThumbnailScrew Tapptite Part Number 7171401411 for Simplicity Models S12

More Product Details

7171401411



Product is special order please allow 2-4 weeks for delivery.




# Part image Description SKU Price
1Product ThumbnailPipe Extension Part Number 3624408500 for Simplicity Models S12

More Product Details

3624408500



Product is special order please allow 2-4 weeks for delivery.
2Product ThumbnailBrush Dusting Part Number 3629305000 for Simplicity Models S12,S18,S24.4,S24.6

More Product Details

3629305000



Product is special order please allow 2-4 weeks for delivery.
3Product ThumbnailHolder Nozzle Part Number 3623004200 for Simplicity Models S12

More Product Details

3623004200



Product is special order please allow 2-4 weeks for delivery.
4Product ThumbnailRed Lint Strip Part Number 3627000700 for Simplicity Models QS1,S12,S12

More Product Details

3627000700



Product is special order please allow 2-4 weeks for delivery.
5Product ThumbnailNozzle Upholstery Part Number 3628100720 for Simplicity Models S12,S18,S24.4,S24.6

More Product Details

3628100720



Product is special order please allow 2-4 weeks for delivery.
6Product ThumbnailNozzle Crevice Part Number 3628100600 for Simplicity Models S12,S18,S24.4,S24.6

More Product Details

3628100600



Product is special order please allow 2-4 weeks for delivery.
6Product ThumbnailAluminum Telescopic Wand Part Number 3624411510 for Simplicity Models S12

More Product Details

3624411510



Product is special order please allow 2-4 weeks for delivery.



Report errors on this page HERE
