Schematic and parts list for: 274 Model: 274
This is a list of parts and a diagram and schematic for: 274 Model: 274
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

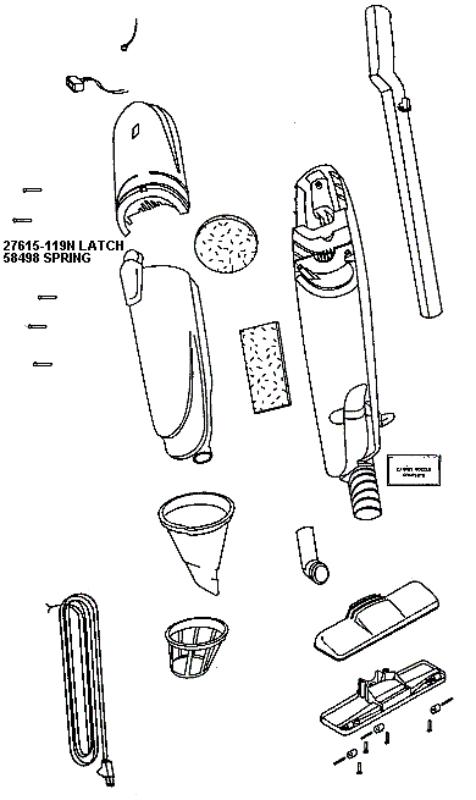

Parts for: Stick Vac
| # | Part image | Description | SKU | Price |
| xx | Not Available | 274 Filter Support | 15212-119N | Not Available |
| 01 | Not Available | 274 Carpet Nozzle Assembly | 01882-119N | Not Available |
| 02 | Not Available | 274 Rear Housing | FNLA | Not Available |
| 03 | Not Available | 274 Elbow | 27116-119N | Not Available |
| 04 | Not Available | 274 Latch | FNLA | Not Available |
| 05 | Not Available | 274 Rocker Switch/285 | FNLA | Not Available |
| 06 | Not Available | 274 Supply Cord Assembly | FNLA | Not Available |
| 07 | Not Available | 274 Wire & Terminal | FNLA | Not Available |
| 08 | Not Available | 274 Final Filter | 38596 | Not Available |
| 09 | Not Available | 274 Sound Foam | FNLA | Not Available |
| 10 | Not Available | 274 Handle Assy | FNLA | Not Available |
| 11 | Not Available | 274 Screws (55372-1 | 53197-1 | Not Available |
| 12 | Not Available | 274 Screw Package | 53197-5 | Not Available |
| 13 | No Image | 8280 HANDLE SCREWS(6 PER PACK) Part Number: 53257-1 for Eureka | 532571 | $4.92Read more |
| 14 | Not Available | 274 Whole/Axle-Fr -155513 | 53984-1 | Not Available |
| 15 | Not Available | 274 Discontinued Use 54231 | FNLA | Not Available |
| 16 | Not Available | 274 Carpet Nozzle Assy | 54235-1 | Not Available |
| 17 | Not Available | 274 Filter Assembly | FNLA | Not Available |
| 18 | Not Available | 274 Spring | FNLA | Not Available |
| 19 | Not Available | 274 Dirt Cup & Graphics | 60013-1 | Not Available |
| 20 | No Image | COVER, MOTOR 274 BROOM Part Number: 60014-1 for Eureka | 600141 | $23.46Read more |

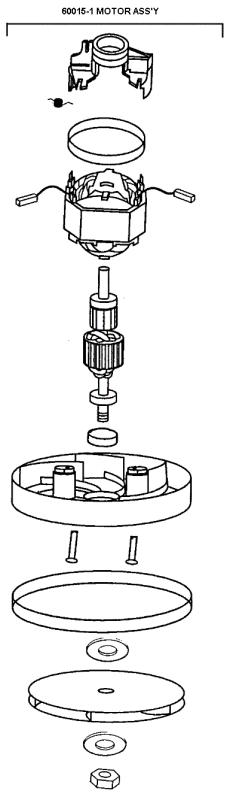

| # | Part image | Description | SKU | Price |
| 01 | Not Available | 274 Fan - Stationary | FNLA | Not Available |
| 02 | Not Available | 274 End Cap (Commutator) | FNLA | Not Available |
| 03 | No Image | SPRING, CARBON BRUSH 180A BROOM Part Number: 38038 for Eureka | 38038 | $2.29Read more |
| 04 | Not Available | 274 Suction Fan | FNLA | Not Available |
| 05 | Not Available | 274 Discontinued Use 53088 | FNLA | Not Available |
| 06 | Not Available | 274 Screws - Package 10 | 53237-6 | Not Available |
| 07 | No Image | RUBBER BAND, WET/DRY VAC 3 PK 2827A Part Number: 54796 for Eureka | 54796 | $6.66Read more |
| 08 | Not Available | 274 Spacer | 56453 | Not Available |
| 09 | Not Available | 274 Washer | 56467 | Not Available |
| 10 | Not Available | 274 Gasket - Motor Stack | FNLA | Not Available |
| 11 | Not Available | 274 Washer Spring | FNLA | Not Available |
| 12 | Not Available | 274 Cup - Bearing | 58491 | Not Available |
| 13 | Not Available | 274 Motor Assembly | FNLA | Not Available |
| 14 |  | Perfect Cotton Plus Sewing Thread 60 WT-Porcelain | QST600161 | $5.99Read more |
