Schematic and parts list for: Cirrus Model: LB102
This is a list of parts and a diagram and schematic for: Cirrus Model: LB102
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

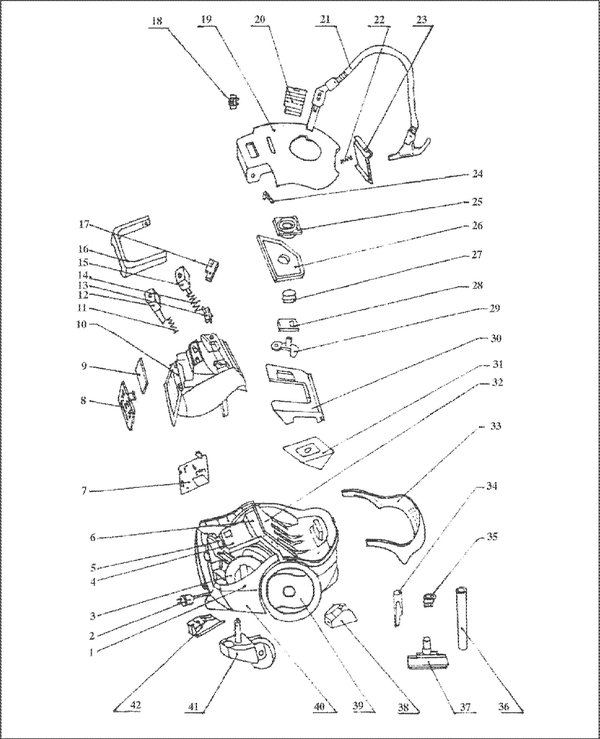

Parts for: LB102 Ladybug Canister
| # | Part image | Description | SKU | Price |
| 1 | No Image | COVER, FRONT LADY BUG LB102 Part Number: LB102-19 for Cirrus | LB10219 | $19.18Read more |
| 2 | Not Available | Cirrus Powercord | C-1022 | Not Available |
| 3 | Not Available | Cirrus Cord Reel | C-1023 | Not Available |
| 4 | Not Available | Cirrus Motor | CP-ST01-53-1 | Not Available |
| 5 | Not Available | Cirrus Motor Mount | C-1025 | Not Available |
| 6 | Not Available | Cirrus Rear Motor Mount | C-1026 | Not Available |
| 7 | Not Available | Cirrus Circuit Board | LB102-7 | Not Available |
| 8 | Not Available | Cirrus Outlet Grill | LB102-8 | Not Available |
| 9 | Not Available | Cirrus Outlet Filter | C-1029 | Not Available |
| 10 | Not Available | Cirrus Rear Cover | C-10210 | Not Available |
| 11 | Not Available | Cirrus Spring | C-10211 | Not Available |
| 12 | Not Available | Cirrus Cord Rewind Button | C-10212 | Not Available |
| 13 | Not Available | Cirrus Power Switch | LB102-13 | Not Available |
| 14 | Not Available | Cirrus Spring | C-10214 | Not Available |
| 15 | Not Available | Cirrus Switch Button | C-10215 | Not Available |
| 16 | Not Available | Cirrus Handle | C-10216 | Not Available |
| 17 | Not Available | Cirrus Switch Fixing Plate | C-10217 | Not Available |
| 18 | Not Available | Cirrus Sliding Knob | C-10218 | Not Available |
| 19 | No Image | COVER, FRONT LADY BUG LB102 Part Number: LB102-19 for Cirrus | LB10219 | $19.18Read more |
| 20 | Not Available | Cirrus Swivel Cover | C-10220 | Not Available |
| 21 | Not Available | Cirrus Hose | LB102-21 | Not Available |
| 22 | Not Available | Cirrus Spring | C-10222 | Not Available |
| 23 | Not Available | Cirrus Cover Latch | C-10223 | Not Available |
| 24 | Not Available | Cirrus Airflow Indicator | C-10224 | Not Available |
| 25 | Not Available | Cirrus Swivel | C-10225 | Not Available |
| 26 | Not Available | Cirrus Swivel Supporting Board | C-10226 | Not Available |
| 27 | Not Available | Cirrus Swivel Seal Ring | C-10227 | Not Available |
| 28 | Not Available | Cirrus Protective Hook Cover | C-10228 | Not Available |
| 29 | Not Available | Cirrus Protective Hook | C-10229 | Not Available |
| 30 | Not Available | Cirrus Dust Bag Frame | C-10230 | Not Available |
| 31 | Not Available | Cirrus Dust Bag W/Filter 5 Pk | LB-102B5-2 | Not Available |
| 32 | Not Available | Cirrus Inlet Filter | C-10232 | Not Available |
| 33 | Not Available | Cirrus Body Seal Ring | C-10233 | Not Available |
| 34 | No Image | CREVICE TOOL, LADY BUG LB102 Part Number: LB102-34 for Cirrus | LB10234 | $1.18Read more |
| 35 | No Image | DUST BRUSH, LADY BUG LB102 Part Number: LB102-35 for Cirrus | LB10235 | $2.73Read more |
| 36 |  | Genuine Pre-Owned Rainbow E2 Series Water Pan 4qt | R7876R | $35.00Read more |
| 37 | Not Available | Cirrus Floor Brush | LB102-37 | Not Available |
| 38 | Not Available | Cirrus Hanging Block | C-10238 | Not Available |
| 39 | Not Available | Cirrus Wheel | C-10239 | Not Available |
| 40 | Not Available | Cirrus Lower Body | C-10240 | Not Available |
| 41 | Not Available | Cirrus Castor | CP-ST01-53-1 | Not Available |
| 42 | Not Available | Cirrus Castor Fixing Block | C-10242 | Not Available |
