Schematic and parts list for: Cirrus Model: VC248

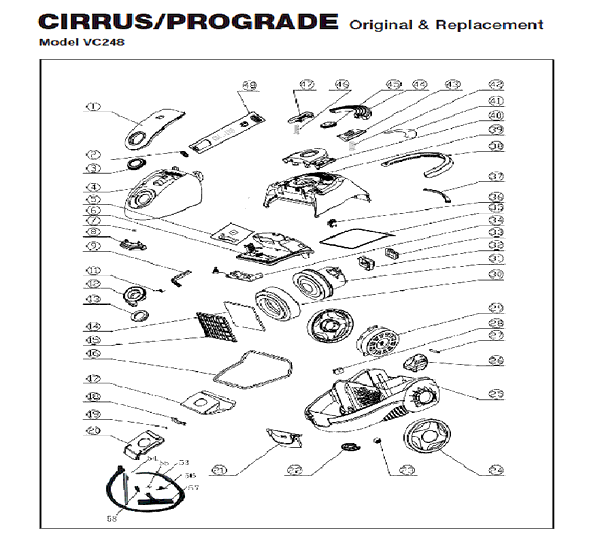

This is a list of parts and a diagram and schematic for: Cirrus Model: VC248
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: VC248 Canister
| # | Part image | Description | SKU | Price |
| 1 | No Image | COVER, FRONT PANEL 248 Part Number: VC248 KEY 1 for Cirrus | VC248KEY1 | $9.09Read more |
| 2 | No Image | SEAL, DUST FULL INDICATOR TUBE 248 Part Number: VC248 KEY 2 for Cirrus | VC248KEY2 | $3.00Read more |
| 3 |  | HOLDER, SUCTION VC248 Part Number: VC248 KEY 3 for Cirrus | VC248KEY3 | $1.12Read more |
| 4 | No Image | COVER, MAIN BODY 248 Part Number: VC248 KEY 4 for Cirrus | VC248KEY4 | $28.51Read more |
| 5 | No Image | ACTUATOR, CORD REWIND VC248 Part Number: VC248 KEY 5 for Cirrus | VC248KEY5 | $3.73Read more |
| 6 | No Image | COVER, MOTOR 248 Part Number: VC248 KEY 6 for Cirrus | VC248KEY6 | $20.27Read more |
| 7 |  | SPRING, FRONT COVER LOCK VC248 Part Number: VC248 KEY 7 for Cirrus | VC248KEY7 | $0.82Read more |
| 8 | Not Available | Cirrus Front Cover Lock VC248 KEY | VC248 KEY 8 | Not Available |
| 9 | Not Available | Cirrus Bag Door Lockout Lever VC248 KEY | VC248 KEY 9 | Not Available |
| 11 |  | Spring, Bag Door Lockout Lever VC248 Part Number: VC248 KEY 11 for Cirrus | VC248KEY11 | $0.91Read more |
| 12 | Not Available | Cirrus Suction Inlet VC248 KEY | VC248 KEY 12 | Not Available |
| 13 | Not Available | Cirrus Dirt Seal VC248 KEY | VC248 KEY 13 | Not Available |
| 14 |  | Filter, Inlet VC248 Canister Part Number: VC248 KEY 14 for Cirrus | VC248KEY14 | $1.93Read more |
| 15 | No Image | Frame, Inlet Motor Filter 248 Part Number: VC248 KEY 15 for Cirrus | VC248KEY15 | $5.98Read more |
| 16 | No Image | SEAL, FRONT COVER VC248 Part Number: VC248 KEY 16 for Cirrus | VC248KEY16 | $7.58Read more |
| 17 | Not Available | Cirrus Paper Bag 6 PK | C-14020 | Not Available |
| 18 | Not Available | Cirrus Bag Holder Lock VC248 KEY | VC248 KEY 18 | Not Available |
| 19 | Not Available | Cirrus Bag Holder Lock Spring VC248 KEY | VC248 KEY 19 | Not Available |
| 20 |  | Retainer, Paper Bag Holder VC248 Canister Part Number: VC248 KEY 20 for Cirrus | VC248KEY20 | $10.49Read more |
| 21 | Not Available | Cirrus Bag Door Cover Release Lever VC248 KEY | VC248 KEY 21 | Not Available |
| 22 | Not Available | Cirrus Wheel Caster VC248 | VC248 22 | Not Available |
| 23 | Not Available | Cirrus Front Wheel VC248 KEY | VC248 KEY 23 | Not Available |
| 24 | Not Available | Cirrus Rear Wheel VC248 KEY | VC248 KEY 24 | Not Available |
| 25 | No Image | BASE, LOWER HOUSING 248 Part Number: VC248 KEY 25 for Cirrus | VC248KEY25 | $25.28Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Cirrus Cord Outlet VC248 KEY | VC248 KEY 26 | Not Available |
| 27 | Not Available | Cirrus Cord Rewind Roller VC248 KEY | VC248 KEY 27 | Not Available |
| 28 | Not Available | Cirrus Cord Insert VC248 KEY | VC248 KEY 28 | Not Available |
| 29 | Not Available | Cirrus Cord Reel VC248 KEY | VC248 KEY 29 | Not Available |
| 30 | No Image | SUPPORT, MOTOR FAN END 248 Part Number: VC248 KEY 30 for Cirrus | VC248KEY30 | $21.27Read more |
| 31 | Not Available | Cirrus Motor Ass'y VC248 KEY | VC248 KEY 31 | Not Available |
| 32 | No Image | HOLDER, MOTOR SOCKET 248 Part Number: VC248 KEY 32 for Cirrus | VC248KEY32 | $8.60Read more |
| 33 | No Image | SOCKET, MOTOR 248 Part Number: VC248 KEY 33 for Cirrus | VC248KEY33 | $4.55Read more |
| 34 | Not Available | Cirrus PCB VC248 KEY | VC248 KEY 34 | Not Available |
| 35 | No Image | GASKET, MOTOR HOUSING VC248 Part Number: VC248 KEY 35 for Cirrus | VC248KEY35 | $3.38Read more |
| 36 | Not Available | Cirrus Switch VC248 KEY | VC248 KEY 36 | Not Available |
| 37 |  | Cover, Handle VC248 Canister Part Number: VC248 KEY 37 for Cirrus | VC248KEY37 | $8.85Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | Cirrus Handle VC248 KEY | VC248 KEY 38 | Not Available |
| 39 |  | Base, Rear Top VC248 Canister Part Number: VC248 KEY 39 for Cirrus | VC248KEY39 | $10.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 |  | COVER, REAR BASE TOP VC248 Part Number: VC248 KEY 40 for Cirrus | VC248KEY40 | $5.01Read more |
| 41 |  | Filter, Exhaust VC248 Part Number: VC248KEY 41 for Cirrus | VC248KEY41 | $1.99Read more |
| 42 | No Image | SPRING, SWITCH PEDAL 248 Part Number: VC248 KEY 42 for Cirrus | VC248KEY42 | $2.62Read more |
| 43 | Not Available | Cirrus Switch Pedal VC248 KEY | VC248 KEY 43 | Not Available |
| 44 | Not Available | Cirrus Exhaust Filter Frame VC248 KEY | VC248 KEY 44 | Not Available |
| 45 | Not Available | Cirrus Speed Control Knob VC248 KEY | VC248 KEY 45 | Not Available |
| 46 | No Image | SPRING, CORD REEL PEDAL 248 Part Number: VC248 KEY 46 for Cirrus | VC248KEY46 | $2.26Read more |
| 47 | Not Available | Cirrus Cord Rewind Pedal VC248 KEY | VC248 KEY 47 | Not Available |
| 48 | No Image | INDICATOR, FULL DUST VC248 Part Number: VC248 KEYS 49-52 for Cirrus | VC248KEYS4952 | $3.88Read more |
