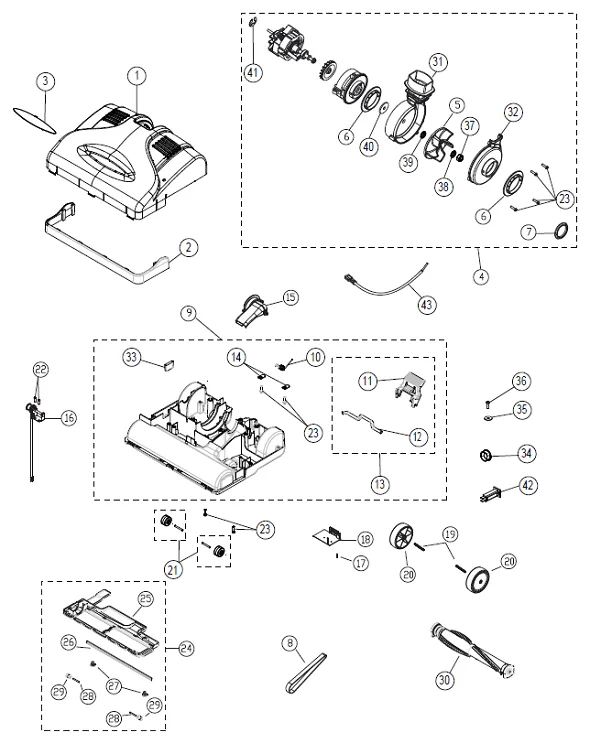

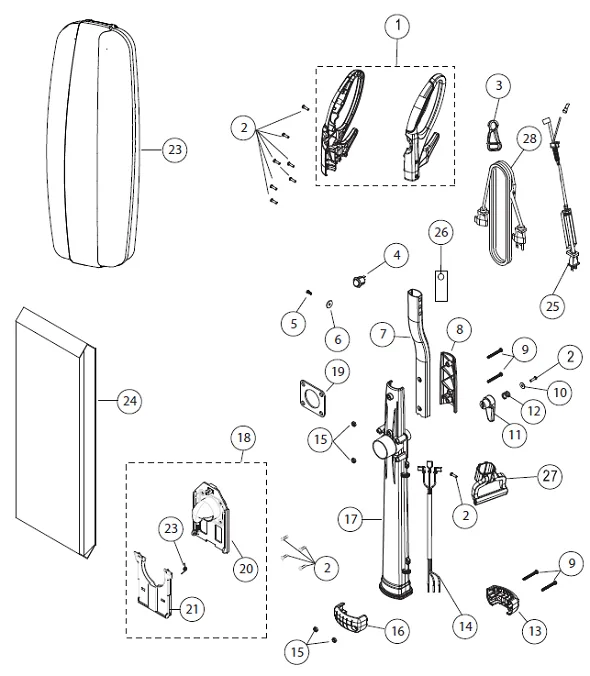

This is a list of parts and a diagram and schematic for: CleanMax Model: ZM-500
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: ZM-500 Upright Vacuum
Popular Supplies
Product is special order please allow 2-4 weeks for delivery.
Original price was: $25.99.$23.99Current price is: $23.99.Add to cart
Original price was: $5.99.$4.99Current price is: $4.99.Add to cart
Original price was: $4.99.$3.99Current price is: $3.99.Add to cart
Original price was: $6.00.$4.99Current price is: $4.99.Add to cart
Product is special order please allow 2-4 weeks for delivery.
Original price was: $88.99.$70.99Current price is: $70.99.Add to cart
Product is special order please allow 2-4 weeks for delivery.
Original price was: $39.99.$31.99Current price is: $31.99.Add to cart
Helpful Repair Videos
| # | Part image | Description | SKU | Price |
| 1 |  | Handle Grip Assembly Part Number C220-3514 for Maytag and Riccar Models M500,R10S, R10D, R10P, R10SAND, R17 | C2203514 | Original price was: $27.99.$22.99Current price is: $22.99.Add to cart |
| 2 |  | s10s r10s screw hi lo | WP10362 | $1.99Add to cart |
| 3 |  | Cord Restraint Part Number B352-6900 for Cleanmax Models CMPS-QD, VPPB, CMPS-Q | B3526900 | Original price was: $4.99.$3.99Current price is: $3.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Riccar and Simplicity 2 Speed Round Switch for Supralites | A3281700 | Original price was: $3.99.$2.99Current price is: $2.99.Add to cart |
| 5 |  | Screw HI-LO #8 x 7/16” Part Number A732-8414 for Simplicity and Maytag and Riccar Models 7250, 7350, 7450, 7750, 7850, 7950,7200, 7250, 7300, 7350, 7400, 7450, 7700, 7750, 7850, 7900, 7950,6100, 63... | A7328414 | $1.99Add to cart |
| 6 |  | Nylon Washer Part Number B017-2500 for Simplicity and Maytag and Riccar Models 6100, 6370, 6400, 6470, 6550, 6570, 6600, 6670, 6700, 6770, 6770T, 6-5AE, 6800, 6870, 6900, 6970,M500,M700,R10S, R10D,... | B0172500 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Handle Tube Part Number B220-3400 for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND, R17,S10CV S10CV.2 S10CV.4 | B2203400 | Original price was: $12.99.$10.99Current price is: $10.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Handle Back Cover Part Number B220-3114 for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND, R17,S10CV S10CV.2 S10CV.4 | B2203114 | Original price was: $3.99.$2.99Current price is: $2.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Screws #10 Handle Bolts S10E r10E | A432-0705 | $1.99Add to cart |
| 10 |  | Upper Cord Hook Washer Hardened | A430-0405 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Swivel Cord Hook Part Number B220-3314 for Maytag and Riccar Models M500,R10S, R10D, R10P, R10SAND, R17 | B2203314 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Upper Cork Hook Spring | B430-0200 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | s10s r10s Back Neck Coupling | WP10361 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | CleanMax Handle Wire Harness for ZM-500 ZM700 ZM-800 Vacuums | A4343514 | Original price was: $17.99.$13.99Current price is: $13.99.Read more |
| 15 |  | Hex Nut #10-32 Nylon Part Number A432-0805 for Simplicity and Maytag and Riccar Models F3100, F3300, F3300C, S10E,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,R10CV, R10CV.2, R10CV.4... | A4320805 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Neck Coupling Front Black | WP10347 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | Handle Duct Part Number B220-3014C for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND, R17,S10CV S10CV.2 S10CV.4 | B2203014C | Original price was: $34.99.$29.99Current price is: $29.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | Bag Mount Assembly Part Number D484-2282 for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND, R17,S10CV S10CV.2 S10CV.4 | D4842282 | Original price was: $13.99.$11.99Current price is: $11.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Bag Mount Seal Part Number B220-3900 for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND, R17,S10CV S10CV.2 S10CV.4 | B2203900 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | Bag Mount for CleanMax and Riccar Vacuums R10S ZM-500 R10D ZM-700 R10P R17 | B2203814 | $2.99Read more |
| 21 | No Image | Bag Mount (Green) for Riccar Simplicity and CleanMax Vacuum Models R10S S10S ZM-500 R10D S10D ZM-700 R10P S10P R17 ZM-800 | B4342282 | $2.99Read more |
| 22 | Not Available | CleanMax Bag Collar Spring | B434-3400 | Not Available |
| 23 |  | Riccar R10S R10D R10P R17 hard cloth body external bag assy | D2205100 | Original price was: $87.99.$70.99Current price is: $70.99.Add to cart |
| 23 | No Image | CleanMax Hard Shell Outer Bag for ZM500, ZM700, ZM800 | B2206800 | Original price was: $76.99.$60.99Current price is: $60.99.Read more |
| 24 |  | Riccar HEPA Vacuum Bags Charcoal Infused Type L for R10S R10P R10CV and R17 - 6pk green dock | RLH6 | Original price was: $25.99.$23.99Current price is: $23.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | CleanMax Zoom Series HEPA Filtration Bags - 6pk | CLH6 | Original price was: $27.99.$21.99Current price is: $21.99.Read more |
| 24 | | Paper Bag (Bulk Single) Part Number B211-8800 for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND, R17,S10CV S10CV.2 S10CV.4 | B2118800 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | | HEPA Bag (Bulk Single) Part Number B220-5382C for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND, R17,S10CV S10CV.2 S10CV.4 | B2205382C | Original price was: $4.99.$3.99Current price is: $3.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Aftermarket Riccar Type L HEPA Vacuum Bags - 6pk | TACONYLBAG | $18.99Add to cart |
| 25 |  | D434-3814 Pigtail Cord Assembly For Zoom 500 & 700 | D4343814 | Original price was: $34.99.$27.99Current price is: $27.99.Read more |
| 26 | | Polyurethane Handle Spacer Part Number B388-5900 for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND, R17,S10CV S10CV.2 S10CV.4 | B3885900 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Carry Handle Part Number B220-6214 for Maytag and Riccar Models M500,R10S, R10D, R10P, R10SAND, R17 | B2206214 | Original price was: $6.99.$4.99Current price is: $4.99.Add to cart |
| 28 |  | CleanMax Extension Cord Yellow - 30ft | WP11737 | Original price was: $67.99.$53.99Current price is: $53.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| XX |  | Nylon brush strip short metal agitator RSL5 F3700 ZM600 ULW | B0131000 | Original price was: $5.99.$4.99Current price is: $4.99.Add to cart |
| XX |  | Long Nylon Brush Strip R30P R30D R30PET BRLD BRLS | B4750400B | Original price was: $4.99.$3.99Current price is: $3.99.Add to cart |
| 1B | No Image | Nozzle Assembly CleanMax ZM-700, ZM-500 Black | D22024ZM | Original price was: $47.99.$37.99Current price is: $37.99.Read more |
| 2 | No Image | CleanMax Furniture Bumber for ZM-500 ZM-700 ZM-800.6 and Above Furniture Guard | B2202600 | $5.99Read more |
| 3 | No Image | CleanMax Lens Cover Black Commerical ZM-500 ZM-700 Zoom | B0180414 | $1.99Read more |
| 4 |  | Riccar Simplicity Direct Air Motor Assembly ULW with Pulley R10P S10P SAND R10 S10 | D2204100 | Original price was: $159.99.$127.99Current price is: $127.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Motor Assembly for Riccar and Simplicity ULW S10 | D2204000 | Original price was: $169.99.$135.99Current price is: $135.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | DIRECT AIR MOTOR FAN 5 BLADE DC M500 R10 S10 ULW | B2204314 | Original price was: $19.99.$15.99Current price is: $15.99.Add to cart |
| 6 |  | Pivot Bushing for Riccar Vacuums | WP10773 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Direct Air Motor Inlet Seal ULW | WP10774 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | CleanMax Flat Belt 2 Pack (Zm-500) | CMZM-B2 | Not Available |
| 8 |  | Replacement aftermarket belt for Simplicity Freedom And Riccar Supralite R10 and S10 bissell style 1 and 4 pn: ULW-B2 | 36310001 | Original price was: $6.00.$4.99Current price is: $4.99.Add to cart |
| 8 |  | Single Belt for Riccar, Simplicity, and CleanMax Lightweight Vacuums | B0140814B | $7.99Read more |
| 9 |  | Basetray Assembly M500 S10 R10 | D220-0114 | Original price was: $47.99.$37.99Current price is: $37.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Foot spring for riccar r10 and simplicity s10 freedom supralights | B2200900 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Foot pedal for Riccar R10 SupraLight and Simplicity S10 Freedom | B2200714 | Original price was: $2.99.$1.99Current price is: $1.99.Add to cart |
| 12 | No Image | Upright Stop Pedal Pivot for Riccar R10 and Simplicity S10 | B2200800 | Original price was: $3.99.$2.99Current price is: $2.99.Add to cart |
| 13 |  | UPRIGHT STOP PEDAL ASSEMBLY WITH PIVOT DC M500 R10 S10 | D2200714 | Original price was: $13.99.$11.99Current price is: $11.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Axle clamp for simplicity s10 freedom and riccar r10 supralights | WP10350 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Inlet Duct Cover Part Number B220-0214 for Maytag and Riccar and Simplicity Models M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND,S10CV S10CV.2 S10CV.... | B2200214 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | | Plastic Dowel Pin(F3700/ F3700.SAND/F3700C) Part Number A018-1300 for Simplicity and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C | A0181300 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | PC Board (F3600) Part Number B317-0000K for Simplicity and Maytag and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700C,M500, R10S, R10D, RSL4 | B3170000K | Original price was: $22.99.$18.99Current price is: $18.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Large Wheel Axis for Riccar and Simplicity Machines | WP11836 | $1.99Add to cart |
| 20 |  | Rear Wheel Part Number C220-0531C for Maytag and Riccar and Simplicity Models M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND,S10CV S10CV.2 S10CV.4,WON... | C2200531C | Original price was: $4.99.$3.99Current price is: $3.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | | Wheel Assembly and Axle Part Number * D010-2631 for Riccar Models R100, R200, R300, R300C, R500, R600, R700, R800, R800C, 4-5AE | * D0102631 | $0.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | | Screw HI-LO #8 x 7/16” Part Number A732-8414 for Simplicity and Maytag and Riccar Models 7250, 7350, 7450, 7750, 7850, 7950,7200, 7250, 7300, 7350, 7400, 7450, 7700, 7750, 7850, 7900, 7950,6100, 63... | A7328414 | $1.99Add to cart |
| 23 | | s10s r10s screw hi lo | WP10362 | $1.99Add to cart |
| 24 |  | ULW Baseplate Assembly for Soft Carpet | D220-1414 | Original price was: $22.99.$17.99Current price is: $17.99.Add to cart |
| 24 |  | Standard Base Plate for Riccar R10S, R10D, R10P, R10SAND, the Simplicity S10S, S10D, S10P, S10SAND and the Maytag M500 | D2200414 | Original price was: $17.99.$13.99Current price is: $13.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | CleanMax Baseplate Cover Order | Order #24 | Not Available |
| 26 |  | Baseplate Squeegee Part Number B015-3000B for Simplicity and Maytag and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV... | B0153000B | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Base Plate Cover Screw Black for R10 and S10 | B2200414 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 |  | Base Plate Axle Part Number B370-1700B for Simplicity and Maytag and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10... | B3701700B | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 |  | Base Plate Wheel Part Number B370-1843 for Simplicity and Maytag and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV.4,... | B3701843 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 |  | Brushroll Agitator for ULW Uprights | D0130500 | Original price was: $88.99.$70.99Current price is: $70.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 |  | Agitator Wood ULW Assembly S10E, R10E,F3300 | D012-2800 | Original price was: $39.99.$31.99Current price is: $31.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 |  | Scroll Housing RH Black DC 10 Series riccar R10 simplicity S10 maytag M500 D220-4014 | B220-4014 | Original price was: $7.99.$5.99Current price is: $5.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 |  | Scroll Housing Lefthand Fan Cover for Riccar R10 and Simplicity S10 | B220-4114 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 |  | Basetray Plug Non Hall Sensor Models (F3400 F3500 F3500C F3600) Part Number B016-1914 for Simplicity and Maytag and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,PRIMAP.... | B0161914 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | | Plug For Circuit Breaker Hole (F3700, F3700.
SAND, F3700C) Part Number A018-1414 for Simplicity and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,R10CV, R10CV.2, R10CV.4, R10... | A0181414 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | Strain Relief Washer Part Number B034-0100 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M12... | B0340100 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 |  | Combination Screw M4x12Combination Screw M4x12 Part Number A732-2500 for Simplicity and Maytag and Riccar Models 7300, 7350, 7850,7200, 7250, 7400, 7450, 7700, 7750, 7900, 7950,6100, 6370, 6400, 64... | A7322500 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 |  | HANDLE BOLT NUT 4000 & 6000 1/4-20 for R10 and other Motors | WP10349 | $1.99Add to cart |
| 38 |  | Washer (TEK Motor) Part Number A733-2200 for Simplicity and Maytag and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV.... | A7332200 | Original price was: $2.99.$1.99Current price is: $1.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 |  | Behind Fan Washer (TEK Motor) Part Number A733-3300 for Simplicity and Maytag and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10C... | A7333300 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 |  | Felt Seal Part Number B220-4500 for Maytag and Riccar and Simplicity Models M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND,S10CV S10CV.2 S10CV.4,WONDE... | B2204500 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 |  | E-Clip .250 Part Number A732-3000 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,F3400, F3500, F... | A7323000 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 |  | Circuit Breaker 5 Amp for Riccar | A028-0114B | Original price was: $4.99.$3.99Current price is: $3.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | No Image | CleanMax Commercial Ground Wire ULW for ZM-500 | B3331100B | $2.99Read more |
