Schematic and parts list for: CleanMax Model: ZM-600 Zoom 600
This is a list of parts and a diagram and schematic for: CleanMax Model: ZM-600
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: ZM-600 Upright Vacuum
Popular Supplies
Original price was: $5.99.$4.99Current price is: $4.99.Add to cart
Original price was: $4.99.$3.99Current price is: $3.99.Add to cart
Product is special order please allow 2-4 weeks for delivery.
Original price was: $12.99.$9.99Current price is: $9.99.Add to cart
Original price was: $88.99.$70.99Current price is: $70.99.Add to cart
Helpful Repair Videos

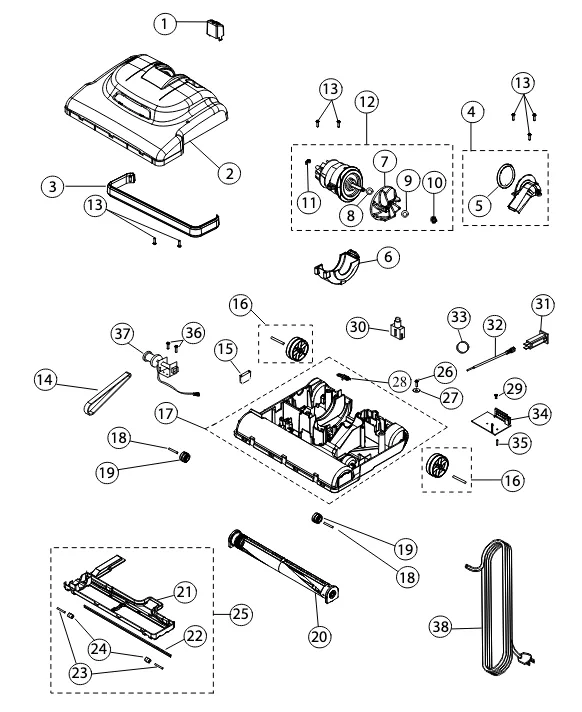

| # | Part image | Description | SKU | Price |
| xx |  | Nylon brush strip short metal agitator RSL5 F3700 ZM600 ULW | B0131000 | Original price was: $5.99.$4.99Current price is: $4.99.Add to cart |
| xx |  | Long Nylon Brush Strip R30P R30D R30PET BRLD BRLS | B4750400B | Original price was: $4.99.$3.99Current price is: $3.99.Add to cart |
| 1 | No Image | CleanMax Nozzle Assembly Black for ZM-600 Vacuums | D0175014 | $31.99Read more |
| 2 |  | Furniture Guard Part Number B029-0314 for Simplicity and Riccar Models F3100, F3300, F3300C, S10E,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RSL1, RSL1A, RSL1AC, R10E,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C | B0290314 | Original price was: $4.99.$3.99Current price is: $3.99.Add to cart |
| 3 | No Image | s10s r10s screw hi lo | WP10362 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Poly V Belt ULW R10P S10P RSL5/C F3700/C ZM-600 S10SAND R10SAND riccar and simplicity | B0141200 | Original price was: $12.99.$9.99Current price is: $9.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Idler and Hall Sensor Assy for ULW F3700 ZM600 | D3751400 | Original price was: $51.99.$40.99Current price is: $40.99.Add to cart |
| 6 |  | Large Rear Wheel and Axle Part Number D350-6631 for Simplicity and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C | D3506631 | Original price was: $12.99.$9.99Current price is: $9.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | ULW Basetray Assembly with Plastic Stop RSL1-5 F3300-3700 | D016-1114 | Original price was: $54.99.$43.99Current price is: $43.99.Add to cart |
| 8 |  | Wheel Assembly and Axle Part Number * D010-2631 for Riccar Models R100, R200, R300, R300C, R500, R600, R700, R800, R800C, 4-5AE | * D0102631 | $0.00 Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Brushroll Agitator for ULW Uprights | D0130500 | Original price was: $88.99.$70.99Current price is: $70.99.Add to cart |
| 10 |  | Base Tray cover Tacony- B015-3114 | WP11350 | Original price was: $6.99.$4.99Current price is: $4.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Base Plate Wheel Part Number B370-1843 for Simplicity and Maytag and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C,S10CV S10CV.2 S10CV.4,WONDERP.TAD, WONDERP.TAP | B3701843 | $1.99Add to cart |
| 12 | | Bottom Plate Axle Part Number B370-1700 for Riccar Models PRIMAP.TAD, PRIMA.TAP, R50TAP | B3701700 | $0.00 Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Baseplate Squeegee Part Number B015-3000B for Simplicity and Maytag and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C,S10CV S10CV.2 S10CV.4,WONDERP.TAD, WONDERP.TAP | B0153000B | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Hex Nut #10-32 Nylon Part Number A432-0805 for Simplicity and Maytag and Riccar Models F3100, F3300, F3300C, S10E,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND, R17,RSL1, RSL1A, RSL1AC, R10E,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C,S10CV S10CV.2 S10CV.4 | A4320805 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Handle and Upper Fan Housing Assembly for Riccar Ultralite Vacuums | WP10164 | Original price was: $45.00.$39.99Current price is: $39.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Fan Duct Cover Assembly with Seal for Ultralight Weight | D1233814 | Original price was: $6.99.$5.99Current price is: $5.99.Add to cart |
| 17 |  | ULW Motor Seal Kit RSL ZM200 ZM400 ZM600 | C1210000 | Original price was: $10.99.$8.99Current price is: $8.99.Add to cart |
| 18 |  | Lower Fan Housing ULW Four Screw Style | WP10165 | Original price was: $3.99.$2.99Current price is: $2.99.Add to cart |
| 19 |  | Motor Fan ULW Xenoy Material | B123-3000 | Original price was: $11.99.$5.99Current price is: $5.99.Add to cart |
| 20 |  | Behind Fan Washer (Ametek Motor) Part Number A732-9305 for Simplicity and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RAD, RADP,RSL1, RSL1A, RSL1AC, R10E,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C,X9, G9 | A7329305 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | | Motor Assembly Pulley Shaft (F3700/F3700.SAND/F3700C) Part Number D113-1400 for Simplicity and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C | D1131400 | Original price was: $521.99.$417.99Current price is: $417.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 |  | Combination Screw M4x12Combination Screw M4x12 Part Number A732-2500 for Simplicity and Maytag and Riccar Models 7300, 7350, 7850,7200, 7250, 7400, 7450, 7700, 7750, 7900, 7950,6100, 6370, 6400, 6470, 6550, 6570, 6600, 6670, 6700, 6770, 6770T, 6-5AE, 6800, 6870, 6900, 6970,BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,F3100, F3300, F3300C, S10E,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M1200,M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, | A7322500 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | ULW UPRIGHT STOP - PLASTIC RED | B016-1230 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | Strain Relief Washer Part Number B034-0100 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M1200,M500,PRIMAP.TAD, PRIMA.TAP, R50TAP,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND,R30D, R30P, R30P.DS, R30PET, R30D.4, R30D.6, R30PET.4,R40.LE, R40, R40.2, R40P.LE, R40P, R40P.2, R40P.4, R40P.6,RAD, RADP,RSL1, RSL1A, RSL1AC, R10E,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C,S10CV S10CV.2 S1 | B0340100 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | ULW HALL SENSOR BOARD KIT W IMPROVED MOLEX CONNECTOR | B3171000BK | Original price was: $74.99.$59.99Current price is: $59.99.Add to cart |
| 27 | | Plastic Dowel Pin(F3700/ F3700.SAND/F3700C) Part Number A018-1300 for Simplicity and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C | A0181300 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 |  | Baseplate Assembly w/ Squeegee for Riccar and Simplicity Ultralite Vacuums | WP11665 | Original price was: $16.99.$12.99Current price is: $12.99.Add to cart |
| 29 |  | Screw #5X0.5 Hi-Lo Self Threading | A7329206 | $1.99Add to cart |

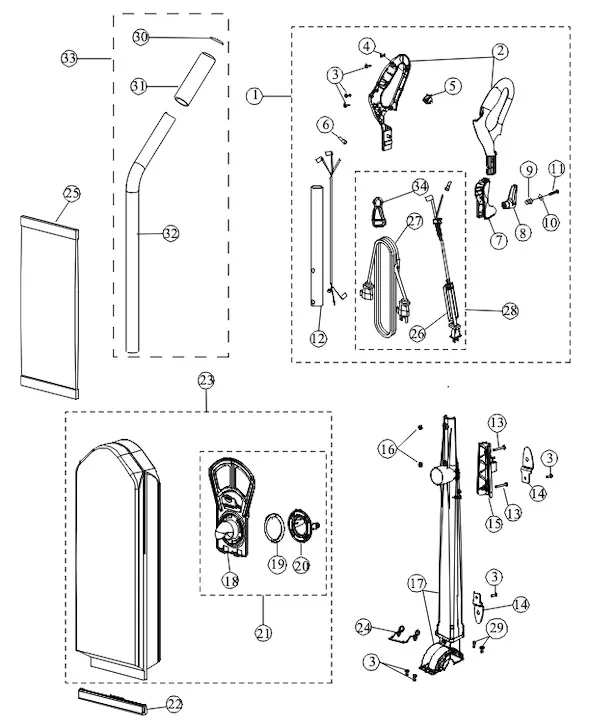

| # | Part image | Description | SKU | Price |
| xx | Not Available | CleanMax Papter Bag (6 Pack) | CMZM-P6 | Not Available |
| 1 |  | Two Speed Handle Assembly Household (F3600) Part Number D431-3714 for Simplicity and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C | D4313714 | Original price was: $114.99.$91.99Current price is: $91.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Commercial Handle Grip Assembly for Ultralight Weight Uprights | WP10644 | Original price was: $12.99.$10.99Current price is: $10.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | s10s r10s screw hi lo | WP10362 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Screw HI-LO #8 x 7/16” Part Number A732-8414 for Simplicity and Maytag and Riccar Models 7250, 7350, 7450, 7750, 7850, 7950,7200, 7250, 7300, 7350, 7400, 7450, 7700, 7750, 7850, 7900, 7950,6100, 6370, 6400, 6470, 6550, 6570, 6600, 6670, 6700, 6770, 6770T, 6-5AE, 6800, 6870, 6900, 6970,BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,GUSTO,M1200,M1200,M500,M700,MOXIE,SPB-200S, SPB-220S | A7328414 | $1.99Add to cart |
| 5 |  | Two Speed Main Switch for Simplicity Freedom F3600 F3700 | WP10664 | $2.99Add to cart |
| 6 | | Wire Connector Md. Part Number B123-0100 for Simplicity and Cleanmax and Maytag and Riccar Models BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,CMPB, CMPS1N,CMPS-QD, VPPB, CMPS-Q,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M700,SPB-200S, SPB-220S, SPB-224S, SPB-300S, SPB-226S.4,R20S, R20D, R20P, R20UP,RAD, RADP,RSL1, RSL1A, RSL1AC, R10E,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C,S20S, S20D, S20P, S20UP,SCRD.FETCH,SHD-1T,SPB-200S, SPB-220S, SPB-224S, SPB-300S, SPB-226S.4, SPB-F,SC | B1230100 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Tacony B431-3314C Handle Back New Strain Relief Commercial ULW Black Xenoy | WP11178 | Original price was: $5.99.$4.99Current price is: $4.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Upper Cord Hook Part Number B384-0900 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD.RETRIEVER, BRLP,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M1200,R30D, R30P, R30P.DS, R30PET, R30D.4, R30D.6, R30D.8, R30PET.4,R40.LE, R40, R40.2, R40P.LE, R40P, R40P.2, R40P.4, R40P.6,RAD, RADP,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C,S30D, S30P, S30P.DS, S30PET,S40, S40.2, S40P.LE, S40P, S40P.2,SCRD.FETCH,SCRS, SCRD, SCRD.FETCH, SCRD.LE, SCRP,X9, G9 | B3840900 | Original price was: $8.99.$7.99Current price is: $7.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | CleanMax Upper Cord Hook Washer for ZM-400 | A4301100 | $1.99Read more |
| 10 | No Image | CleanMax 8-16 x 2.500 Phillips Pan Head Screw | A4300205 | $1.99Read more |
| 11 | No Image | CleanMax Handle Wire Harness for ZM-500 ZM700 ZM-800 Vacuums | A4343514 | Original price was: $17.99.$13.99Current price is: $13.99.Read more |
| 12 |  | Steel Handle Tube Part Number B431-3504E for Simplicity and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C | B4313504E | Original price was: $9.99.$7.99Current price is: $7.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Screws #10 Handle Bolts S10E r10E | A432-0705 | $1.99Add to cart |
| 14 |  | Cord Hook Part Number B430-1205 for Simplicity and Riccar Models F3100, F3300, F3300C, S10E,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RSL1, RSL1A, RSL1AC, R10E,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C | B4301205 | Original price was: $4.99.$3.99Current price is: $3.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Handle Tube Bracket S10E R10e | B431-2914E | Original price was: $4.99.$3.99Current price is: $3.99.Add to cart |
| 16 | | Hex Nut #10-32 Nylon Part Number A432-0805 for Simplicity and Maytag and Riccar Models F3100, F3300, F3300C, S10E,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,M500,R10CV, R10CV.2, R10CV.4, R10CV.6,R10S, R10D, R10P, R10SAND, R17,RSL1, RSL1A, RSL1AC, R10E,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C,S10CV S10CV.2 S10CV.4 | A4320805 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | | Handle and Upper Fan Housing Assembly for Riccar Ultralite Vacuums | WP10164 | Original price was: $45.00.$39.99Current price is: $39.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | | Fan Duct Cover Assembly with Seal for Ultralight Weight | D1233814 | Original price was: $6.99.$5.99Current price is: $5.99.Add to cart |
| 19 | | ULW Motor Seal Kit RSL ZM200 ZM400 ZM600 | C1210000 | Original price was: $10.99.$8.99Current price is: $8.99.Add to cart |
| 20 | | Lower Fan Housing ULW Four Screw Style | WP10165 | Original price was: $3.99.$2.99Current price is: $2.99.Add to cart |
| 21 | | Motor Fan ULW Xenoy Material | B123-3000 | Original price was: $11.99.$5.99Current price is: $5.99.Add to cart |
| 23 | | Motor Assembly Pulley Shaft (F3700/F3700.SAND/F3700C) Part Number D113-1400 for Simplicity and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C | D1131400 | Original price was: $521.99.$417.99Current price is: $417.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Hinged Bag Holder Kit for Riccar Ultra Light Weight | D2113614 | Original price was: $14.99.$11.99Current price is: $11.99.Add to cart |
| 25 | Not Available | CleanMax Cloth Bag | B211-6500D | Not Available |
| 26 |  | Lower Bag Spring Part Number B211-1204 for Simplicity and Riccar Models F3100, F3300, F3300C, S10E,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RSL1, RSL1A, RSL1AC, R10E,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C | B2111204 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Lower Bag Clip Commercial Print (F3300C) Part Number B211-1914F for Simplicity and Riccar Models F3100, F3300, F3300C, S10E,F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RSL1, RSL1A, RSL1AC, R10E,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C | B2111914F | Original price was: $4.99.$3.99Current price is: $3.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 |  | Riccar HEPA Vacuum Bags Type F for Supralite Models - 6pk | RFH6 | $25.99Add to cart |
| 28 |  | Aftermarket Riccar Paper Bags Type F - 6pk | RSR-1437 | $14.99Add to cart |
| 28 | Not Available | CleanMax Hepa Bag (6 Pack) | CMZM-H6 | Not Available |
| 28 |  | Bulk 25 Pack Riccar and Simplicity Type F Bags for Commercial Light Weight and CleanMax Zoom 200 | F25PK | $64.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | CleanMax Cord Upgrade Kit for ZM400 ZM600 - Includes Pigtail and Extension Cord | D4343714 | Original price was: $106.99.$85.99Current price is: $85.99.Read more |
| 30 | | Behind Fan Washer (Ametek Motor) Part Number A732-9305 for Simplicity and Riccar Models F3400, F3500, F3500C, F3600, F3700, F3700.SAND, F3700C,RAD, RADP,RSL1, RSL1A, RSL1AC, R10E,RSL3, RSL3C, RSL4, RSL5, RSL5.SAND, RSL5C,X9, G9 | A7329305 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | | Screw #5X0.5 Hi-Lo Self Threading | A7329206 | $1.99Add to cart |
| 32 | Not Available | CleanMax Bag Collar Seal | D211-5700 | Not Available |
| 33 | No Image | CleanMax Yellow Power Cord for ZM-200 | A4343341 | Original price was: $64.99.$51.99Current price is: $51.99.Read more |
| 34 | No Image | CleanMax Commercial Strain Relief for ZM-400 | A4342714C | $1.99Read more |
