Schematic and parts list for: Dirt Devil Model: 084700

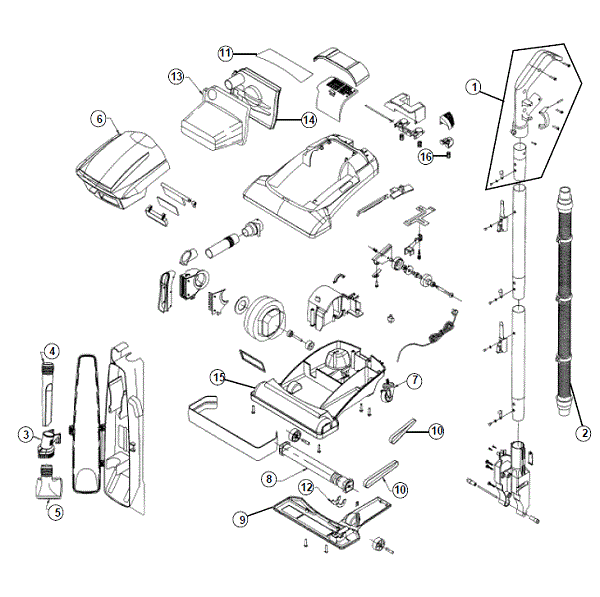

This is a list of parts and a diagram and schematic for: Dirt Devil Model: 084700
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Powerlite
Popular Supplies
| # | Part image | Description | SKU | Price |
| 01 | No Image | HANDLE ASSEMBLY, 084700 Part Number: 2480100000 for Royal | 2480100000 | $15.52Read more |
| 02 | Not Available | Dirt Devil Hose Assembly | 2480180600 | Not Available |
| 03 | Not Available | Dirt Devil Corner Tool Assembly | 2863400600 | Not Available |
| 04 | Not Available | Dirt Devil Crevice Tool | 1920035600 | Not Available |
| 05 | Not Available | Dirt Devil 2 In 1 Brush Assembly | 2920215600 | Not Available |
| 06 | Not Available | Dirt Devil Dust Cup Assembly | 2480250000 | Not Available |
| 07 | Not Available | Dirt Devil Caster Assembly | 2863038600 | Not Available |
| 08 | Not Available | Dirt Devil Revolving Brush Assembly | 2480380000 | Not Available |
| 09 | Not Available | Dirt Devil Nozzle Guard Assembly | 2480355000 | Not Available |
| 10 |  | Style 8 Dirt Devil Powerlite 2pk belt | 81312902 | $5.95Add to cart |
| 11 | Not Available | Dirt Devil Exhaust Filter - Microfresh | 1480480000 | Not Available |
| 12 | Not Available | Dirt Devil Brushroll Felt | 1480357000 | Not Available |
| 13 | Not Available | Dirt Devil Filter Assembly | 2480230000 | Not Available |
| 14 | Not Available | Dirt Devil Filter Frame Holder | 1480240600 | Not Available |
| 15 | Not Available | Dirt Devil Nozzle Base | 1480350600 | Not Available |
| 16 | No Image | SPRING, SWITCH PEDAL 08400 ROOMATE Part Number: 1400212000 for Royal | 1400212000 | $1.00Read more |
