Schematic and parts list for: Dirt Devil Model: 085435

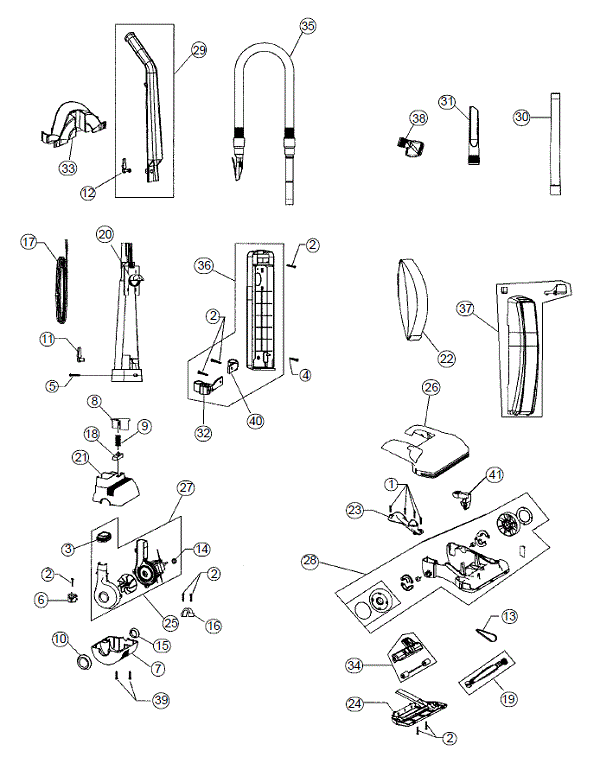

This is a list of parts and a diagram and schematic for: Dirt Devil Model: 085435
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Featherlite
Popular Supplies
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Dirt Devil Screw | 1250100000 | Not Available |
| 02 |  | Screw, :( Handle - Machine 6200 Series Part Number: 1503819000 for Royal | 1503819000 | $0.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 03 | Not Available | Dirt Devil Handle Gasket | 1520060700 | Not Available |
| 04 | Not Available | Dirt Devil Screw | 1520180000 | Not Available |
| 05 | Not Available | Dirt Devil Screw Package | 2520415000 | Not Available |
| 06 | Not Available | Dirt Devil Strain Relief | 1863130600 | Not Available |
| 07 | Not Available | Dirt Devil Lower Motor Housing | 1540145600 | Not Available |
| 08 | Not Available | Dirt Devil Pedal - Switch | 1620180B00 | Not Available |
| 09 | Not Available | Dirt Devil Spring - Switch | 1620185600 | Not Available |
| 10 | Not Available | Dirt Devil Pivot Seal | 1620215600 | Not Available |
| 11 | Not Available | Dirt Devil Cord Hook - Lower | 1620295600 | Not Available |
| 12 | Not Available | Dirt Devil Cord Hook - Upper | 1720120600 | Not Available |
| 13 |  | Belt, Dirt Devil Upright Style 4/5 2 Pk Part Number: 3720310001 for Royal | 3720310001 | $9.26Add to cart |
| 14 | Not Available | Dirt Devil Motor Grommet | 1720325600 | Not Available |
| 15 | Not Available | Dirt Devil Pivot Bushing | 1720355000 | Not Available |
| 16 | Not Available | Dirt Devil Pivot Clamp | 1820351600 | Not Available |
| 17 | Not Available | Dirt Devil Power Cord - 20' | 1999120600 | Not Available |
| 18 | Not Available | Dirt Devil Switch Assembly | 2210385000 | Not Available |
| 19 |  | BRUSHROLL, MULTI ROW DIRT DEVIL NLA | 2520125000 | $29.99Read more |
| 20 | Not Available | Dirt Devil Lower Handle Assembly | 2540011600 | Not Available |
| 21 | Not Available | Dirt Devil Upper Motor Housing Assembly | 2540141600 | Not Available |
| 22 |  | Paper Bag, Royal Type D Soft Body Dirt Devil 3 Pk Part Number: 3670147001 for Royal | 3670147001 | $5.89Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | Dirt Devil Dirt Passage Cover | 1530111600 | Not Available |
| 24 | Not Available | Dirt Devil Nozzle Guard | 1530120600 | Not Available |
| 26 | Not Available | Dirt Devil Nozzle Cover Assembly | 2543021E0A | Not Available |
| 27 | No Image | MOTOR, 085435 085440 085470 Part Number: 2540077000 for Royal | 2540077000 | $88.38Read more |
| 28 | Not Available | Dirt Devil Nozzle Base Assembly | 2530106600 | Not Available |
| 29 | Not Available | Dirt Devil Handle Assembly - Upper | 2540035600 | Not Available |
| 30 | Not Available | Dirt Devil Extension Wand | 1402803600 | Not Available |
| 31 | Not Available | Dirt Devil Crevice Tool | 1502801600 | Not Available |
| 32 | Not Available | Dirt Devil Wand Cup | 1540060600 | Not Available |
| 33 | Not Available | Dirt Devil Upper Tool Caddy Assembly | 2530050600 | Not Available |
| 34 | Not Available | Dirt Devil Roller Lifter Assembly | 2540095600 | Not Available |
| 35 | Not Available | Dirt Devil Hose Assembly | 2855750600 | Not Available |
| 36 | Not Available | Dirt Devil Back Panel Assembly | 2540010600 | Not Available |
| 37 | Not Available | Dirt Devil Front Panel Assembly | 2540016E01 | Not Available |
| 38 | Not Available | Dirt Devil 2 In 1 Brush Assembly | 2920215600 | Not Available |
| 39 | Not Available | Dirt Devil Screw | 1520180000 | Not Available |
| 40 | No Image | CUP, HOSE FEATHERLITE 085435 085440 085470 085520 Part Number: 1540050600 for Royal | 1540050600 | $1.48Read more |
| 41 | Not Available | Dirt Devil Handle Release Pedal | 1620070600 | Not Available |
