Schematic and parts list for: Dirt Devil Model: 085535

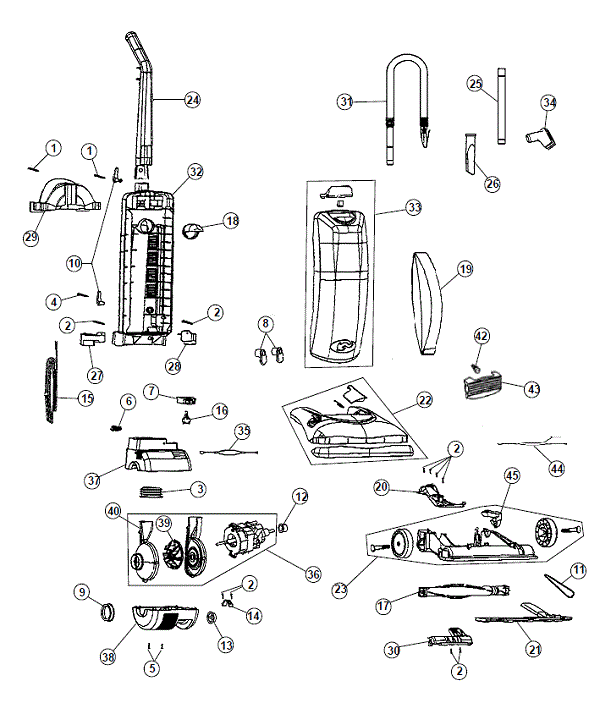

This is a list of parts and a diagram and schematic for: Dirt Devil Model: 085535
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Featherlite
Popular Supplies
Product is special order please allow 2-4 weeks for delivery.
$10.52Add to cart
Product is special order please allow 2-4 weeks for delivery.
$5.89Add to cart
# | Part image | Description | SKU | Price |
01 | Not Available | Dirt Devil Screw | 1250100000 | Not Available |
02 | Screw, Combo Head O86900 Part Number: 1720430000 for Royal | 1720430000 | $0.24Read more | |
03 | No Image | GASKET, HANDLE Part Number: 1855185700 for Royal | 1855185700 | $5.35Read more |
04 | Not Available | Dirt Devil Screw Package | 2520415000 | Not Available |
05 | Not Available | Dirt Devil Screw | 1520180000 | Not Available |
06 | Not Available | Dirt Devil Pigtail Strain Relief | 1UA0199600 | Not Available |
07 | Not Available | Dirt Devil Pedal - Switch | 1855140B00 | Not Available |
08 | Not Available | Dirt Devil Tab Latch | 1855155600 | Not Available |
09 | Not Available | Dirt Devil Pivot Seal | 1855105600 | Not Available |
10 | Not Available | Dirt Devil Cord Hook | 1920015B00 | Not Available |
11 | Belt. Dirt Devil Scorpion Upright Part Number: 1540310001 for Royal | 1540310001 | $10.52Add to cart Product is special order please allow 2-4 weeks for delivery. | |
12 | Not Available | Dirt Devil Motor Grommet | 1720325600 | Not Available |
13 | Not Available | Dirt Devil Pivot Bushing | 1720355000 | Not Available |
14 | Not Available | Dirt Devil Pivot Clamp | 1820351600 | Not Available |
15 | Not Available | Dirt Devil Power Cord - 25 | 1855240600 | Not Available |
16 | Switch, Black Power Button 085500/UD70105 Part Number: 1860081000 for Royal | 1860081000 | $5.75Read more | |
17 | BRUSHROLL, MULTI ROW DIRT DEVIL NLA | 2520125000 | $29.99Read more | |
18 | Not Available | Dirt Devil Air Deflector | 1520011600 | Not Available |
19 | Paper Bag, Royal Type D Soft Body Dirt Devil 3 Pk Part Number: 3670147001 for Royal | 3670147001 | $5.89Add to cart Product is special order please allow 2-4 weeks for delivery. | |
19 | No Image | DVC Royal Dirt Devil D Microlined Paper Vacuum Bags 3 Pack | 748167002559 | $7.99Add to cart |
20 | Not Available | Dirt Devil Dirt Passage Cover | 1855100600 | Not Available |
21 | Not Available | Dirt Devil Nozzle Guard | 1855135600 | Not Available |
22 | Not Available | Dirt Devil Nozzle Cover Assembly | 2855350AX0 | Not Available |
23 | Not Available | Dirt Devil Nozzle Base Assembly | 2855110600 | Not Available |
24 | Not Available | Dirt Devil Handle Assembly - Upper | 1855160600 | Not Available |
25 | Not Available | Dirt Devil Extension Wand | 1402803600 | Not Available |
26 | Not Available | Dirt Devil Crevice Tool | 1920035600 | Not Available |
27 | Not Available | Dirt Devil Hose Cup | 1855500600 | Not Available |
28 | Not Available | Dirt Devil Wand Cup | 1855205600 | Not Available |
29 | Not Available | Dirt Devil Upper Tool Caddy Assembly | 1855290600 | Not Available |
30 | Not Available | Dirt Devil Roller Lifter Assembly | 2540095600 | Not Available |
31 | Not Available | Dirt Devil Stretch Hose Assembly | 2855750600 | Not Available |
32 | Not Available | Dirt Devil Back Panel Assembly | 1855145600 | Not Available |
33 | Not Available | Dirt Devil Front Panel Assembly - Sand | 2855150AX0 | Not Available |
34 | Not Available | Dirt Devil 2 In 1 Tool | 2920215600 | Not Available |
35 | Not Available | Dirt Devil Internal Black Wire W/Fuse | 1855127600 | Not Available |
36 | No Image | MOTOR, FEATHERLITE 085500 085550 SER A & B 085530 Part Number: 2855338000 for Royal | 2855338000 | $122.62Read more |
37 | No Image | HOUSING, MOTOR 085550 Part Number: 9855330000 for Royal | 9855330000 | $4.75Read more |
39 | Not Available | Dirt Devil Motor Fan W/Insert - Slip On | 1855170700 | Not Available |
40 | COVER, FAN 085500 FEATHERLITE UPRIGHTS Part Number: 1855175600 for Royal | 1855175600 | $13.31Read more | |
41 | Not Available | Dirt Devil Fan Bracket | 1855180600 | Not Available |
45 | Not Available | Dirt Devil Handle Release Pedal | 1620070600 | Not Available |
