Schematic and parts list for: Dirt Devil Model: 086900

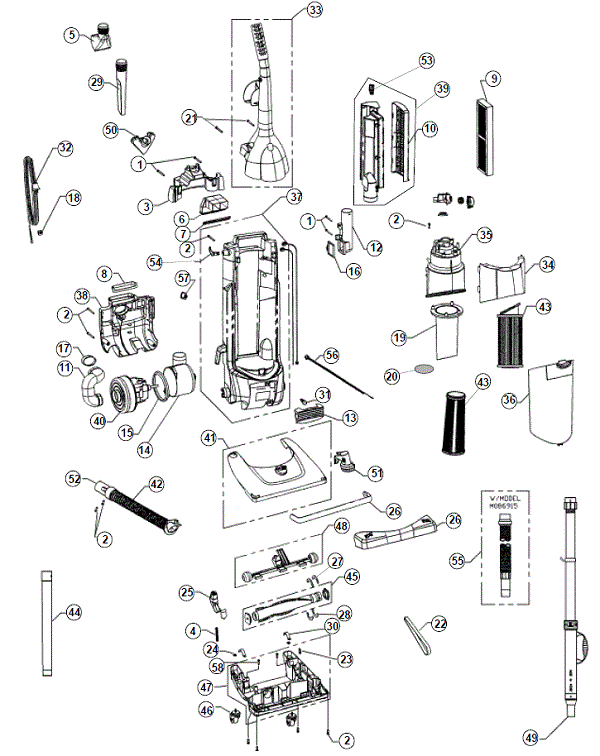

This is a list of parts and a diagram and schematic for: Dirt Devil Model: 086900
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Vision
Popular Supplies
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Dirt Devil Screw | 1250100000 | Not Available |
| 02 |  | Screw, Combo Head O86900 Part Number: 1720430000 for Royal | 1720430000 | $0.24Read more |
| 03 | Not Available | Dirt Devil Tool Caddy | 1690015600 | Not Available |
| 04 | Not Available | Dirt Devil Handle Release Spring | 1690350000 | Not Available |
| 05 | Not Available | Dirt Devil 2 In 1 Brush Assembly | 2920215600 | Not Available |
| 06 | Not Available | Dirt Devil Thru Series J Upper Air Duct | 1690039600 | Not Available |
| 07 | No Image | GASKET, UPPER AIR DUCT 086900,086905,089100 Part Number: 1690068700 for Royal | 1690068700 | $0.27Read more |
| 08 | No Image | GASKET, MOTOR COVER 086910 Part Number: 1690054000 for Royal | 1690054000 | $1.36Read more |
| 09 | Not Available | Dirt Devil Except Series L F-29 Exhaust Hepa Filter | 3690320001 | Not Available |
| 10 | Not Available | Dirt Devil Except Series L Hinged Filter Cover | 1690066600 | Not Available |
| 11 | Not Available | Dirt Devil Thru Series J Motor Duct Assembly | 1690070700 | Not Available |
| 12 | Not Available | Dirt Devil Hose Inlet | 1690095Q00 | Not Available |
| 13 | Not Available | Dirt Devil Lens | 1690125Q00 | Not Available |
| 14 | No Image | HOUSING, MOTOR VISION Part Number: 1690130600 for Royal | 1690130600 | $3.85Read more |
| 15 | No Image | GASKET, MOTOR HOUSING 089890 089900 Part Number: 1690135000 for Royal | 1690135000 | $0.61Read more |
| 16 | No Image | GASKET, HOSE INLET 086900 Part Number: 1690140B00 for Royal | 1690140B00 | $0.27Read more |
| 17 | No Image | GASKET, MOTOR DUCT VISION 086900-086930 Part Number: 1690145000 for Royal | 1690145000 | $0.37Read more |
| 18 | Not Available | Dirt Devil Strain Relief | 1690150600 | Not Available |
| 19 | Not Available | Dirt Devil Thru Series J Upper Housing Tube | 1690280600 | Not Available |
| 20 | Not Available | Dirt Devil Thru Series J Foam Filter | 1690290500 | Not Available |
| 21 | Not Available | Dirt Devil Handle Screw Package | 2690330000 | Not Available |
| 22 |  | Belt, Dirt Devil Upright Style 4/5 2 Pk Part Number: 3720310001 for Royal | 3720310001 | $9.26Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | Dirt Devil Belt Guide Clip | 1720380000 | Not Available |
| 24 | Not Available | Dirt Devil Caster Pal Nut | 1863054000 | Not Available |
| 25 | Not Available | Dirt Devil Handle Release Pedal | 1863060B00 | Not Available |
| 26 | Not Available | Dirt Devil Bumper | 1863080B00 | Not Available |
| 29 | Not Available | Dirt Devil Crevice Tool | 1920035600 | Not Available |
| 30 | Not Available | Dirt Devil Pivot Clamp | 1920140000 | Not Available |
| 31 | Not Available | Dirt Devil Bulb | 1920906000 | Not Available |
| 32 | Not Available | Dirt Devil Thru Series J Power Cord | 2997232600 | Not Available |
| 33 | Not Available | Dirt Devil Handle Assembly - Black | 2990012600 | Not Available |
| 34 | No Image | COVER, UPPER 086900 Part Number: 2690035A00 for Royal | 2690035A00 | $5.09Read more |
| 35 | Not Available | Dirt Devil Upper Housing Assembly | 2690037600 | Not Available |
| 36 | Not Available | Dirt Devil Thru Series J Dirt Cup Assembly W/Graphics | 2690044H00 | Not Available |
| 37 | Not Available | Dirt Devil Thru Series J Back Panel Assembly | 2990050600 | Not Available |
| 39 |  | HOUSING, FILTER W/COVER 086940 VISION WIDE GLIDE Part Number: 2690222600 for Royal | 2690222600 | $16.93Read more |
| 40 | No Image | MOTOR, VISION GLIDE 086900 SERIES Part Number: 2690172000 for Royal | 2690172000 | $104.62Read more |
| 40 |  | Main blower motor for Dirt DeviL Vision Models 086900, 086905, 086910, 086915, 086920, 086921, 086925, 086930 | 2690174000 | $59.99Read more |
| 41 | Not Available | Dirt Devil Nozzle Cover Assembly - Ext | 2690190A00 | Not Available |
| 42 | Not Available | Dirt Devil Lower Hose Assembly | 2863087Q00 | Not Available |
| 43 |  | Royal Dirt Devil HEPA Filter for Vision Series | WP11160 | $29.99Read more |
| 44 | Not Available | Dirt Devil Telescopic Wand | 2863360600 | Not Available |
| 45 | Not Available | Dirt Devil Brush Roll Assembly | 2863050000 | Not Available |
| 46 | Not Available | Dirt Devil Caster | 2863038600 | Not Available |
| 47 | Not Available | Dirt Devil Nozzle Base Assembly | 2863544600 | Not Available |
| 48 | Not Available | Dirt Devil Height Adjustment Assembly | 2863040000 | Not Available |
| 49 | Not Available | Dirt Devil ca Hose Assembly Extend-A-Wand | 2864176600 | Not Available |
| 50 | Not Available | Dirt Devil Triangle Tool Assembly | 2863320600 | Not Available |
| 51 | Not Available | Dirt Devil ca Corner Tool Assembly 1.74 2.90 | 2863400600 | Not Available |
| 52 | Not Available | Dirt Devil Wand Adaptor Assembly | 2690030600 | Not Available |
| 53 | Not Available | Dirt Devil Switch W/Arch Suppressing Fiber | 1720128300 | Not Available |
| 54 | Not Available | Dirt Devil Cord Hook | 1920015B00 | Not Available |
| 55 | Not Available | Dirt Devil Hose | 2820162300 | Not Available |
| 56 | Not Available | Dirt Devil Thru Series J Socket Assembly W/Diode | 1690240000 | Not Available |
| 57 | Not Available | Dirt Devil Tool Clip | 1690360600 | Not Available |
| 58 | Not Available | Dirt Devil Bracket Screw | 1990248000 | Not Available |
