Schematic and parts list for: Dirt Devil Model: 120000

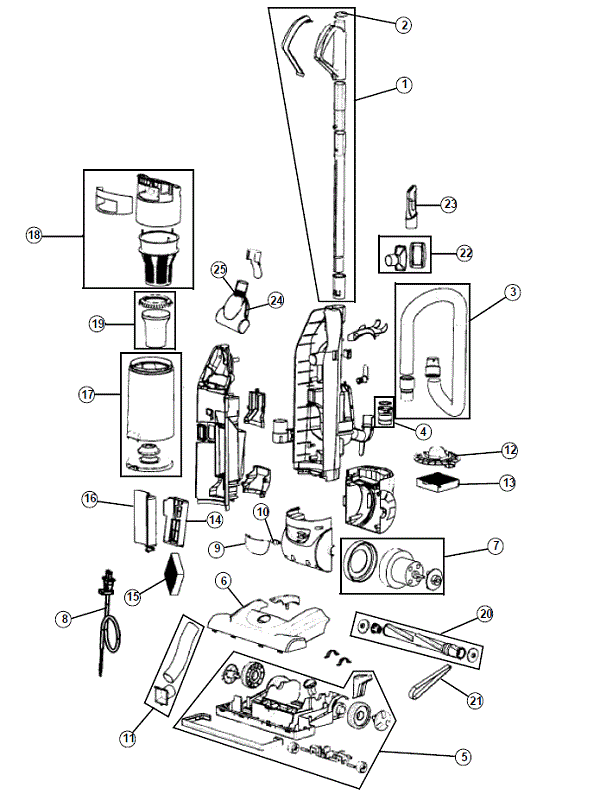

This is a list of parts and a diagram and schematic for: Dirt Devil Model: 120000

Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

Parts for: Spinnergy

Popular Supplies



# Part image Description SKU Price
01Not AvailableDirt Devil Handle Assembly 2JZ0650000Not Available
02Not AvailableDirt Devil Handle Cap 1JZ0670000Not Available
03Not AvailableDirt Devil Upper Hose Assembly 2JZ0580000Not Available
04Not AvailableDirt Devil Upper Hose Connector With Gasket 2JZ0500000Not Available
05Not AvailableDirt Devil Nozzle Base Assembly 2JZ0150000Not Available
06No ImageHOOD, NOZZLE COVER 120000 UH70055 Part Number: 2JZ0160000 for Royal

More Product Details

2JZ0160000

$16.15Read more

07Not AvailableDirt Devil Motor Assembly 2JZ0300000Not Available
08Not AvailableDirt Devil Power Cord 1JZ0565000Not Available
09Not AvailableDirt Devil Lens Cover 1JZ0310000Not Available
10Not AvailableDirt Devil Light Bulb 27313107Not Available
11Not AvailableDirt Devil Lower Hose 1JZ0205000Not Available
12Product ThumbnailCOVER, EXHAUST FILTER Part Number: 1JZ0360000 for Royal

More Product Details

1JZ0360000

$6.40Read more

13Product ThumbnailFilter, Exhaust F23 HEPA 12000/UH70055 Sq, NLA

More Product Details

2JZ0380000

$21.99Read more

14Not AvailableDirt Devil Air Inlet Filter Frame Assembly 2JZ0475000Not Available
15Not AvailableDirt Devil Air Inlet Foam Filter 1JZ0485000Not Available
16Not AvailableDirt Devil Air Inlet Filter Cover 1JZ0465000Not Available
17Not AvailableDirt Devil Dirt Cup Assembly 2JZ0090000Not Available
18Not AvailableDirt Devil Dirt Cip Lid With Cyclone Assembly 2JZ0010000Not Available
19Not AvailableDirt Devil Inner Dirt Cup Lower Tube With Skirt 1JZ0085000Not Available
20Product ThumbnailBrushroll, :( Dirt Devil Spinnergy 120000 Part Number: 2JZ0220000 for Royal

More Product Details

2JZ0220000

$31.09Read more

21Product ThumbnailEureka Ext U Royal/Dirt Devil Style 20 Belt, Bravo Worldvac Powerline Eureka Type U Flat Royal dirt devil type 20

More Product Details

1JZ0900000

$5.99Add to cart

22Not AvailableDirt Devil Dust Brush Assembly 2JZ0610000Not Available
23Not AvailableDirt Devil Crevice Tool 1KD192000Not Available
25Not AvailableDirt Devil Turbo Tool Lock Nut Ring 1UTT030000Not Available
