Schematic and parts list for: Dirt Devil Model: UD40305

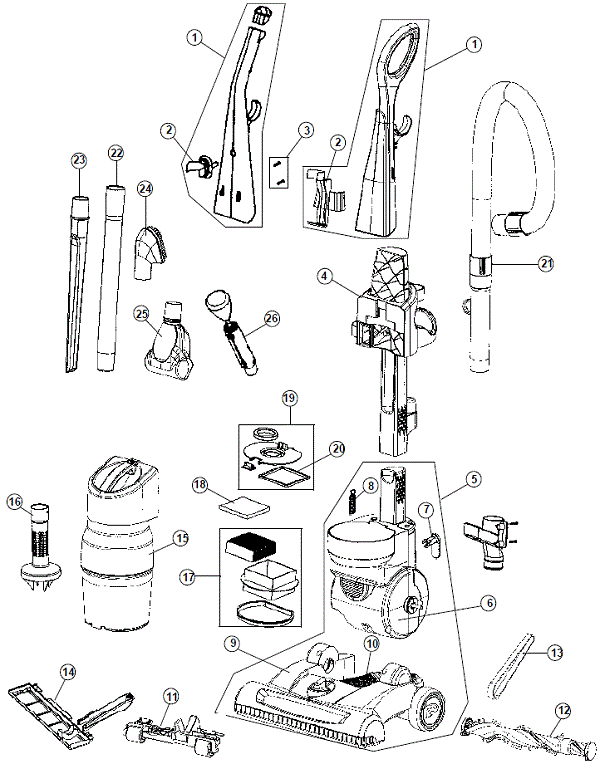

This is a list of parts and a diagram and schematic for: Dirt Devil Model: UD40305
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Vision Cyclonic
Popular Supplies
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Dirt Devil Handle Assembly - Red / | 304467001 | Not Available |
| 02 | Not Available | Dirt Devil Turbo Tool Clip - Red | 520685001 | Not Available |
| 03 | Not Available | Dirt Devil Handle Screw Assembly | 2LY2108000 | Not Available |
| 04 | Not Available | Dirt Devil Back Panel Assembly | 2LY2106000 | Not Available |
| 05 | Not Available | Dirt Devil Motor Assembly | 304472001 | Not Available |
| 06 |  | HOUSING, LOWER MOTOR 140000 140005 Part Number: 2LY2107000 for Royal | 2LY2107000 | $13.80Read more |
| 07 | Not Available | Dirt Devil Quick Release Cord Hook - | 515710003 | Not Available |
| 08 | Not Available | Dirt Devil Proformance Indicator Assembly | 304471001 | Not Available |
| 09 | Not Available | Dirt Devil Nozzle Assembly No Lower Hose | 304468001 | Not Available |
| 10 | Not Available | Dirt Devil Lower Hose | 580836003 | Not Available |
| 11 | Not Available | Dirt Devil Roller Lifter Assembly | 303274001 | Not Available |
| 12 |  | Brushroll, 140000/140005/UD70080/UD40275/UD40305 Part Number: 302094004 for Royal | 302094004 | $26.60Read more |
| 13 | Not Available | Dirt Devil Style 22 Belt | 561670002 | Not Available |
| 14 | Not Available | Dirt Devil Nozzle Guard | 304469001 | Not Available |
| 15 | Not Available | Dirt Devil Dirt Cup Assembly - Red | 301969005 | Not Available |
| 16 | Not Available | Dirt Devil Air Diverter - Red | 515722002 | Not Available |
| 17 |  | Dirt devil f27 aftermarket filter 140000/UD40275/UD40305 | 301973011 | $14.99Add to cart |
| 18 | Not Available | Dirt Devil Foam Exhaust Filter | 561845002 | Not Available |
| 19 | Not Available | Dirt Devil Exhaust Filter Cover Lid - | 304470001 | Not Available |
| 20 | Not Available | Dirt Devil Exhaust Filter Cover Gasket | 1LY2103000 | Not Available |
| 21 | Not Available | Dirt Devil Upper Hose Assembly | 301975002 | Not Available |
| 22 | Not Available | Dirt Devil Extension Wand | 590768009 | Not Available |
| 23 | Not Available | Dirt Devil Crevice Tool | 515362004 | Not Available |
| 24 | Not Available | Dirt Devil Upholstery Tool - Pet | 1LY2106000 | Not Available |
| 25 | Not Available | Dirt Devil Turbo Tool - Pet | 2UTT000000 | Not Available |
