Schematic and parts list for: DustCare Model: FJ-113

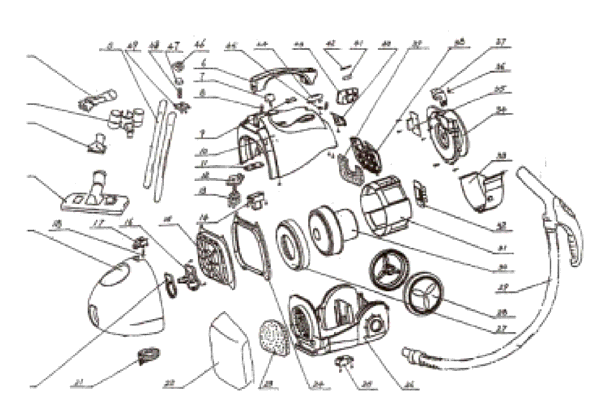

This is a list of parts and a diagram and schematic for: DustCare Model: FJ-113
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: FJ-113 Lil Sucker Blue Bagless Canister
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | DustCare Plastic Floor Brush | FJ113-1 | Not Available |
| 2 | Not Available | DustCare Sofa Brush | FJ113-2 | Not Available |
| 3 | Not Available | DustCare Accessory Holder | FJ113-3 | Not Available |
| 4 | Not Available | DustCare Nozzle and Small Brush | FJ113-4 | Not Available |
| 5 | Not Available | DustCare Tube | FJ113-5 | Not Available |
| 6 | Not Available | DustCare Handle | FJ113-6 | Not Available |
| 7 | Not Available | DustCare On/Off Button | FJ113-7 | Not Available |
| 8 | Not Available | DustCare Button Spring | FJ113-8 | Not Available |
| 9 | Not Available | DustCare Plastic Plate | FJ113-9 | Not Available |
| 10 | Not Available | DustCare Back Cover | FJ113-10 | Not Available |
| 11 | Not Available | DustCare Speed Control Button Cover | FJ113-11 | Not Available |
| 12 | Not Available | DustCare Circuit Parts | FJ113-12 | Not Available |
| 13 | Not Available | DustCare On/Off Switch | FJ113-13 | Not Available |
| 14 | Not Available | DustCare On/Off Switch Stand | FJ113-14 | Not Available |
| 15 | Not Available | DustCare Filter Bag Bracket | FJ113-1-15 | Not Available |
| 16 | Not Available | DustCare Front Cover Press Plate | FJ113-16 | Not Available |
| 17 | Not Available | DustCare Front Cover Clip | FJ113-17 | Not Available |
| 18 | Not Available | DustCare Front Cover Clip Spring | FJ113-18 | Not Available |
| 19 | Not Available | DustCare Front Cover | FJ113-19 | Not Available |
| 20 | Not Available | DustCare Seal Ring of Front Cover | FJ113-20 | Not Available |
| 21 | Not Available | DustCare Universal Wheel | FJ113-21 | Not Available |
| 22 |  | Paper Bag, :( Filter Lil Sucker Canister Part Number: FJ113-15 for Dust Care | FJ11315 | $3.41Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | DustCare Secondary Filter | FJ113-23 | Not Available |
| 24 | Not Available | DustCare Filter Bag Seal Ring | FJ113-24 | Not Available |
| 25 | Not Available | DustCare Brush Clip | FJ113-25 | Not Available |
| 26 | Not Available | DustCare Base | FJ113-26 | Not Available |
| 27 | Not Available | DustCare Motor Seal Ring | FJ113-27 | Not Available |
| 28 |  | Wheel, Rear Lil Sucker Canister Part Number: FJ113-28 for Dust Care | FJ11328 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | Not Available | DustCare Hose Assembly | FJ113-29 | Not Available |
| 30 | Not Available | DustCare Motor | FJ113-30 | Not Available |
| 31 | Not Available | DustCare Motor Cover | FJ113-31 | Not Available |
| 32 | Not Available | DustCare Shakeproof Ring | FJ113-32 | Not Available |
| 33 | Not Available | DustCare Cord Rewinder Cover | FJ113-33 | Not Available |
| 34 | Not Available | DustCare Cord Rewinder | FJ113-34 | Not Available |
| 35 | Not Available | DustCare Circuit Parts | FJ113-35 | Not Available |
| 36 | Not Available | DustCare Stop Wheel Bracket Spring | FJ113-36 | Not Available |
| 37 | Not Available | DustCare Stop Wheel Bracket | FJ113-37 | Not Available |
| 38 | Not Available | DustCare Exhaust Plate | FJ113-38 | Not Available |
| 39 | Not Available | DustCare Exhaust Filter | FJ113-39 | Not Available |
| 40 | Not Available | DustCare Handle Plate | FJ113-40 | Not Available |
| 41 | Not Available | DustCare Shaft Cover | FJ113-41 | Not Available |
| 42 | Not Available | DustCare Cord Rewinder Shaft | FJ113-42 | Not Available |
| 43 | Not Available | DustCare Cord Protection Plastic Ring | FJ113-43 | Not Available |
| 44 | Not Available | DustCare Cord Rewinder Button | FJ113-44 | Not Available |
| 45 | Not Available | DustCare Cord Rewinder Press Pole | FJ113-45 | Not Available |
| 46 | Not Available | DustCare By-Pass Valve Cover | FJ113-46 | Not Available |
| 47 | Not Available | DustCare By-Pass Valve | FJ113-47 | Not Available |
| 48 | Not Available | DustCare By-Pass Valve Spring | FJ113-48 | Not Available |
| 49 | Not Available | DustCare By-Pass Valve Base | FJ113-49 | Not Available |
