Schematic and parts list for: Dyson Model: DC11
This is a list of parts and a diagram and schematic for: Dyson model: DC11
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

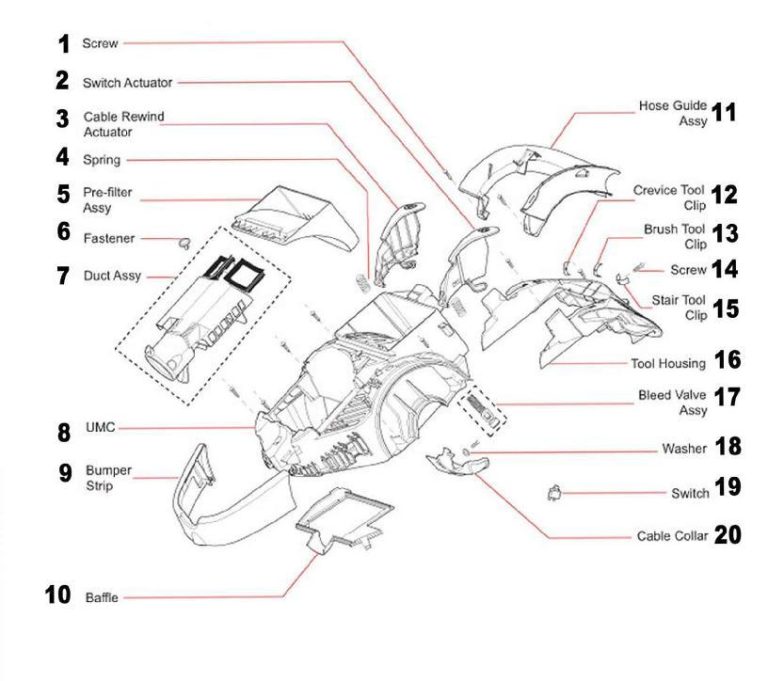

| 1 |  | Screw, M3.5X12-T15 AB02/AM06/AM07/AM08/AM09/AM11 Part Number: 910703-03 for Dyson | 91070303 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Actuator, Yellow Switch DC11 Part Number: 905225-01 for Dyson | 90522501 | $9.37Read more |
| 2 | No Image | ACTUATOR, SWITCH DC11 VIOLET Part Number: 905225-07 for Dyson | 90522507 | $4.63Read more |
| 3 |  | ACTUATOR, DC11 CORD REWIND Part Number: 905224-01 for Dyson | 90522401 | $4.63Read more |
| 3 | No Image | ACTUATOR, CORD REWIND DC11 VIOLET Part Number: 905224-07 for Dyson | 90522407 | $4.63Read more |
| 4 | No Image | SPRING, DC11 Part Number: 900199-63 for Dyson | 90019963 | $4.63Read more |
| 5 | No Image | Dyson vacuum part Pre-Filter Assy Part number: 905446-02 | 90544602 | $41.60Read more |
| 6 |  | Fastener, Dark Steel Gray Soleplate DC07/DC14/DC15 Part Number: 900130-17 for Dyson | 90013017 | $9.37Read more |
| 6 |  | ***USE DY-90013017 FASTENER,:( SOLEPLATE ST Part Number: 900130-04 for Dyson | 90013004 | $4.24Read more |
| 7 | No Image | DUCT ASSY, UPPER MOTOR COVER DC11 STEEL GRAY Part Number: 907212-01 for Dyson | 90721201 | $45.14Read more |
| 7 | No Image | DUCT ASSY, UPPER MOTOR COVER DC11 DARK STEEL GRAY Part Number: 907212-03 for Dyson | 90721203 | $45.14Read more |
| 8 | No Image | COVER, UPPER MOTOR DC11 STEEL GRAY Part Number: 905216-01 for Dyson | 90521601 | $78.28Read more |
| 8 | No Image | COVER, UPPER MOTOR DC11 DARK GRAY Part Number: 905216-03 for Dyson | 90521603 | $78.28Read more |
| 9 | No Image | BUMPER, STRIP DC11 STEEL GRAY Part Number: 905227-01 for Dyson | 90522701 | $4.63Read more |
| 9 | No Image | BUMPER, STRIP DC11 DARK GRAY Part Number: 905227-03 for Dyson | 90522703 | $4.63Read more |
| 10 | No Image | BAFFLE, UPPER MOTOR COVER DC11 Part Number: 906177-01 for Dyson | 90617701 | $4.63Read more |
| 11 |  | GUIDE, HOSE ASSY DC11 LIGHT GRAY Part Number: 907211-04 for Dyson | 90721104 | $45.14Read more |
| 11 | No Image | GUIDE, HOSE ASSY DC11 STEEL GRAY Part Number: 907211-01 for Dyson | 90721101 | $45.14Read more |
| 12 | No Image | CLIP, CREVICE TOOL DC11 STEEL GRAY Part Number: 906145-01 for Dyson | 90614501 | $4.63Read more |
| 12 | No Image | CLIP, CREVICE TOOL DC11 LIGHT GRAY Part Number: 906145-07 for Dyson | 90614507 | $4.63Read more |
| 13 |  | Clip, Steel Gray Brush Tool DC15 Part Number: 906416-01 for Dyson | 90641601 | $4.63Read more |
| 13 | No Image | CLIP, BRUSH TOOL DC11, DC15 LIGHT GRAY Part Number: 906416-07 for Dyson | 90641607 | $4.63Read more |
| 14 | Not Available | Dyson vacuum part Screw Part Number: Not | Not | Not Available |
| 15 | No Image | CLIP, STAIR TOOL DC11 LIGHT GRAY Part Number: 906417-07 for Dyson | 90641707 | $4.63Read more |
| 15 | No Image | CLIP, STAIR TOOL DC11 STEEL GRAY Part Number: 906417-01 for Dyson | 90641701 | $4.63Read more |
| 16 | No Image | HOUSING, TOOL DC11 STEEL GRAY Part Number: 905763-01 for Dyson | 90576301 | $45.14Read more |
| 16 | No Image | HOUSING, TOOL DC11 LIGHT GRAY Part Number: 905763-07 for Dyson | 90576307 | $45.14Read more |
| 17 |  | Valve Assembly, Yellow/metal Bleed DC11 Part Number: 907210-02 for Dyson | 90721002 | $18.76Read more |
| 18 | No Image | WASHER, UPPER MOTOR COVER ASSY DC11 Part Number: 907570-01 for Dyson | 90757001 | $4.63Read more |
| 19 |  | Dyson Switch | DY-91097101 | $9.99Add to cart |
| 20 | No Image | COLLAR, CABLE DC11 STEEL GRAY Part Number: 905226-01 for Dyson | 90522601 | $4.63Read more |
| 20 | No Image | COLLAR, CABLE DC11 LIGHT GRAY Part Number: 905226-07 for Dyson | 90522607 | $4.63Read more |
| # | Part image | Description | SKU | Price |

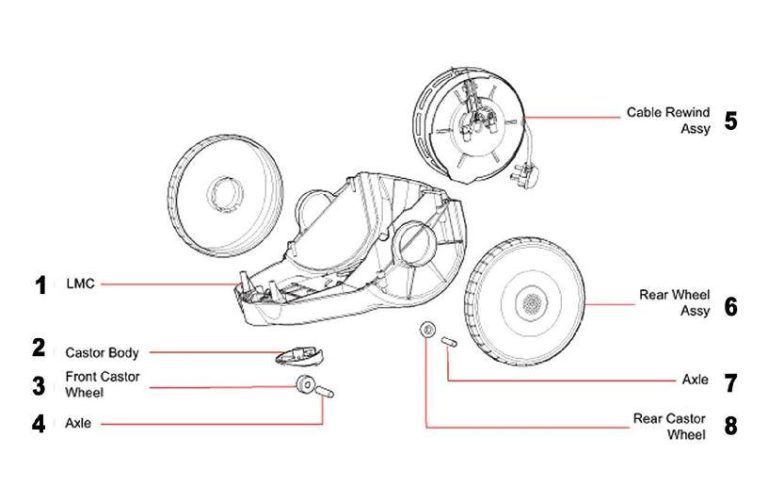

| 1 | No Image | COVER, LOWER MOTOR DC11 STEEL GRAY Part Number: 905217-01 for Dyson | 90521701 | $78.28Read more |
| 1 | No Image | COVER, LOWER MOTOR DC11 DARK GRAY Part Number: 905217-03 for Dyson | 90521703 | $78.28Read more |
| 2 | No Image | Dyson vacuum part Steel Castor Body Part number: 903988-01 | 90398801 | $8.63Read more |
| 3 |  | WHEEL, FRONT CASTOR DC11, DC21 Part Number: 900463-05 for Dyson | 90046305 | $9.37Read more |
| 4 |  | Axle, Metal Wheel DC21/DC23 Part Number: 900464-02 for Dyson | 90046402 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Dyson vacuum part Cable Rewind Assy Part number: 904031-10 | 90403110 | $56.22Read more |
| 6 | No Image | WHEEL, REAR DC11 YELLOW/GRAY Part Number: 906365-01 for Dyson | 90636501 | $23.87Read more |
| 6 | No Image | WHEEL, REAR DC11 GRAY Part Number: 906365-07 for Dyson | 90636507 | $23.87Read more |
| 7 | No Image | Dyson vacuum part Axle Part number: 904578-01 | 90457801 | $4.24Read more |
| 8 | No Image | WHEEL, :( REAR CASTOR DC11 Part Number: 904579-01 for Dyson | 90457901 | $9.37Read more |
| # | Part image | Description | SKU | Price |

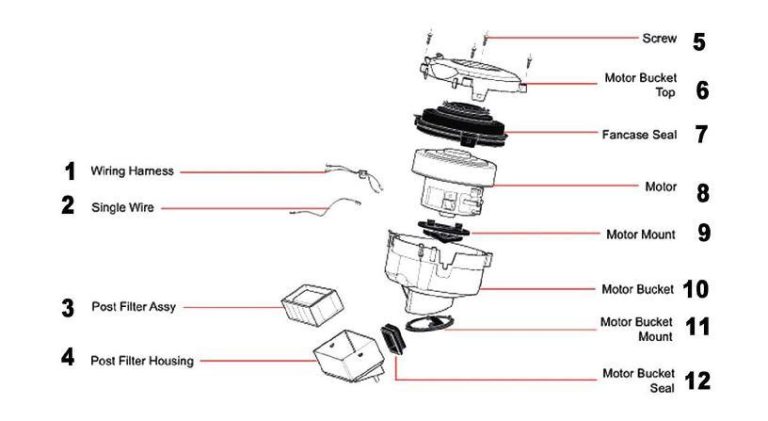

| 1 | No Image | HARNESS, WIRING MOTOR HOUSING DC11 Part Number: 907839-01 for Dyson | 90783901 | $18.76Read more |
| 2 | Not Available | Dyson vacuum part Single Wire 3 HEPA Filter Assy Part Number: Given | Given | Not Available |
| 3 | No Image | Dyson vacuum part HEPA Filter Assy Part number: 905386-02 | 90538602 | $41.60Read more |
| 4 | No Image | HOUSING, EXHAUST HEPA FILTER DC11 BLACK Part Number: 906093-01 for Dyson | 90609301 | $45.14Read more |
| 5 | Not Available | Dyson vacuum part Screw Part Number: Given | Given | Not Available |
| 6 | No Image | COVER, MOTOR HOUSING DC11 BLACK Part Number: 905324-01 for Dyson | 90532401 | $4.63Read more |
| 7 | No Image | SEAL, PAN FANCASE DC11 Part Number: 907509-01 for Dyson | 90750901 | $33.38Read more |
| 8 |  | Motor, Panasonic DC11 Part Number: 907880-01 for Dyson | 90788001 | $114.42Read more |
| 9 | No Image | HOUSING, PAN MOTOR DC11 Part Number: 905330-02 for Dyson | 90533002 | $18.76Read more |
| 10 | No Image | HOUSING, PAN MOTOR DC11 Part Number: 905330-02 for Dyson | 90533002 | $18.76Read more |
| 11 | No Image | MOUNT, MOTOR HOUSING DC11 Part Number: 906097-01 for Dyson | 90609701 | $4.63Read more |
| 12 | No Image | SEAL, MOTOR HOUSING DC11 Part Number: 906100-01 for Dyson | 90610001 | $4.63Read more |
| # | Part image | Description | SKU | Price |

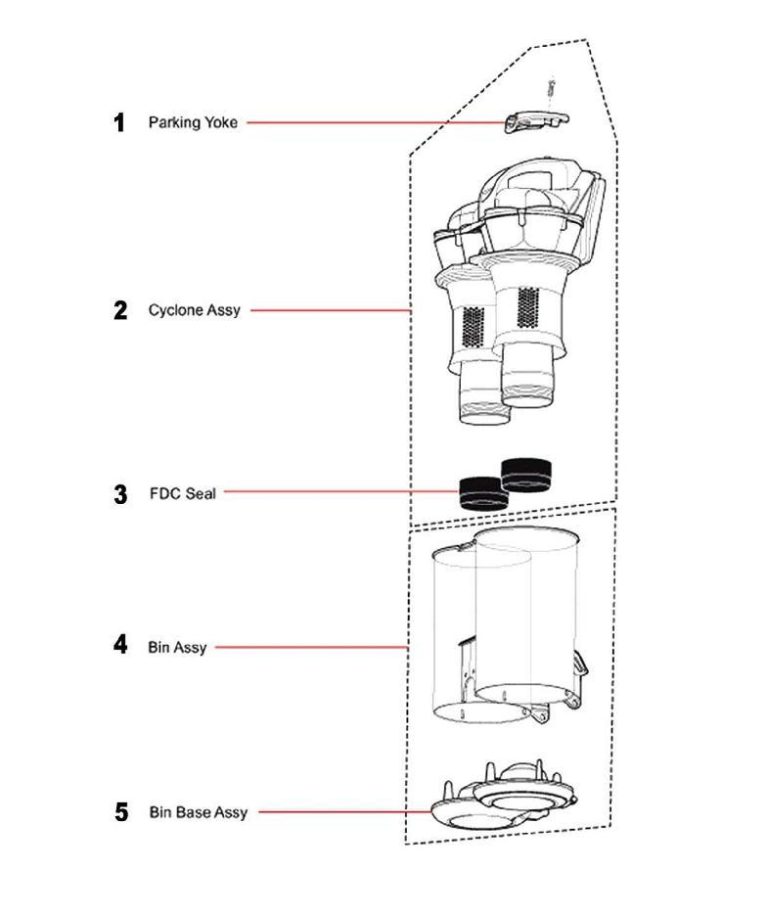

| 1 | No Image | YOKE, CYCLONE ASSY DC11 YELLOW Part Number: 907007-01 for Dyson | 90700701 | $18.76Read more |
| 1 | No Image | Dyson vacuum part Light Steel Parking Yoke 2 Yellow Cyclone Assy Part number: 907007-03 | 90700703 | $4.24Read more |
| 2 | No Image | Cyclone, Assembly DC11 Yellow Part Number: 907215-01 for Dyson | 90721501 | $144.52Read more |
| 2 | No Image | CYCLONE ASSY, DC11 STEEL GRAY Part Number: 907215-03 for Dyson | 90721503 | $126.44Read more |
| 3 | No Image | SEAL, CYCLONE DC11 Part Number: 905236-01 for Dyson | 90523601 | $4.63Read more |
| 4 | No Image | Dyson vacuum part Yellow Bin Assy 4 Light Steel Bin Assy Part number: 907214-01 | 90721401 | $72.14Read more |
| 4 | No Image | DIRT CUP, DC11 TRANS GRAY Part Number: 907214-03 for Dyson | 90721403 | $78.28Read more |
| 5 | No Image | Dyson vacuum part Yellow Bin Base Assy 5 Light Steel Bin Base Assy Part number: 907213-01 | 90721301 | $31.91Read more |
| 5 | No Image | BIN BASE, DC11 LIGHT GRAY Part Number: 907213-03 for Dyson | 90721303 | $33.38Read more |
| # | Part image | Description | SKU | Price |

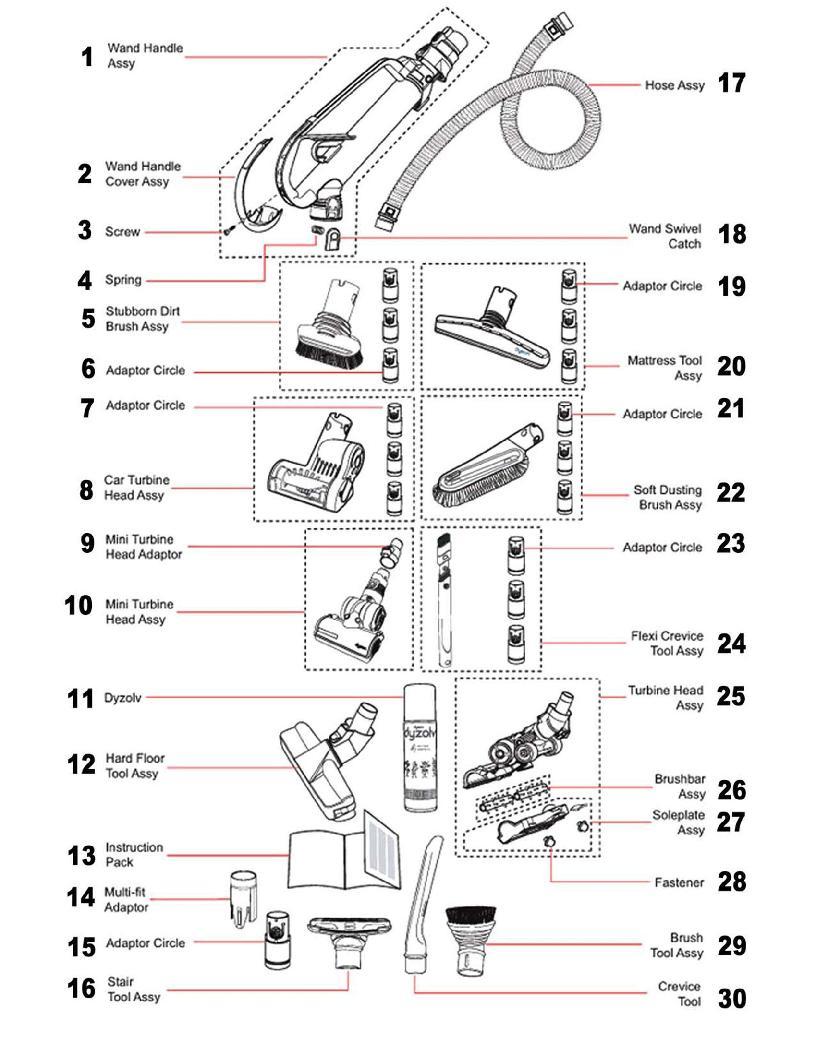

| 1 | No Image | Dyson vacuum part Steel/Trans Yellow Wand Handle Assy Part number: 907216-07 | 90721607 | $116.54Read more |
| 2 | No Image | COVER, WAND HANDLE DC11 STEEL GRAY Part Number: 906564-01 for Dyson | 90656401 | $18.76Read more |
| 2 | No Image | COVER, WAND HANDLE DC11 LIGHT GRAY Part Number: 906564-06 for Dyson | 90656406 | $18.76Read more |
| 3 | No Image | SCREW, FLAT WAND COVER DC11 Part Number: 905858-01 for Dyson | 90585801 | $4.63Read more |
| 4 |  | Spring, DC14/DC18/DC21/DC22/DC23/DC24/DC25 Part Number: 900199-21 for Dyson | 90019921 | $9.37Read more |
| 5 |  | Dust Brush, :( Universal Stubborn Dirt Part Number: 918508-01 for Dyson | 91850801 | $34.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Dyson vacuum part Adaptor Circle Part Number: Given | Given | Not Available |
| 7 | Not Available | Dyson vacuum part Adaptor Circle Part Number: Given | Given | Not Available |
| 8 | Not Available | Dyson vacuum part Car Turbine Head Assy 9 Mini Turbine Head Adaptor Part Number: Given | Given | Not Available |
| 9 |  | Adaptor, Gray Mini Turbine Head DC11/DC15 Part Number: 907256-02 for Dyson | 90725602 | $9.37Read more |
| 10 |  | Dyson turbo tool universal for dc27 dc28 dc33 dc41 dc40 dc65 up13 up14 and all dyson uprights manufactured since 2014 | 91502204 | $100.12Read more |
| 10 |  | This part is available CERTIFIED RECONDITIONED pre owned Dyson turbo tool universal for dc27 dc28 dc33 dc41 dc40 dc65 up13 up14 and all dyson uprights manufactured since 2014 More Product Details | 91502204R | Original price was: $29.99.$16.90Current price is: $16.90.Add to cart |
| 11 | No Image | Dyson vacuum part Dyzolv Spot Cleaner Part number: 903888-06 | 90388806 | $29.22Read more |
| 12 |  | Floor Brush, Gray Part Number: 906562-01 for Dyson | 90656201 | $45.76Read more |
| 12 | No Image | Dyson vacuum part A r t i c u l a t i n g Hard Floor Tool (Retail Pack) Part number: 920018-02 | 92001802 | $0.00Read more |
| 12 |  | Floor Tool, Articulating Dc27/Dc23-Slvr Part Number: 920019-01 for Dyson | 92001901 | $76.28Read more |
| 13 | No Image | OWNER'S MANUAL, DC11 Part Number: 907020-02 for Dyson | 90702002 | $33.38Read more |
| 13 | No Image | OWNER'S MANUAL, DC11 Part Number: 907020-06 for Dyson | 90702006 | $33.38Read more |
| 14 | No Image | Dyson vacuum part Multi-Fit Adaptor 15 Adaptor Circle Part number: 910592-01 | 91059201 | $0.00Read more |
| 15 | Not Available | Dyson vacuum part Adaptor Circle Part Number: Given | Given | Not Available |
| 16 |  | Stair Tool, Gray DC11 Part Number: 906960-01 for Dyson | 90696001 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Dyson vacuum part Hose Assy Part Number: Given | Given | Not Available |
| 18 | No Image | CATCH, WAND SWIVEL DC11 YELLOW Part Number: 905856-01 for Dyson | 90585601 | $4.63Read more |
| 18 | No Image | CATCH, :( WAND SWIVEL DC11 VIOLET Part Number: 905856-03 for Dyson | 90585603 | $4.63Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Dyson vacuum part Adaptor Circle Part Number: Given | Given | Not Available |
| 20 |  | Upholstery Tool, Gray Mattress Part Number: 908887-02 for Dyson | 90888702 | $33.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Dyson vacuum part Adaptor Circle Part Number: Given | Given | Not Available |
| 22 | Not Available | Dyson vacuum part Soft Dusting Brush Part Number: Given | Given | Not Available |
| 23 | Not Available | Dyson vacuum part Adaptor Circle Part Number: Given | Given | Not Available |
| 24 |  | Crevice Tool, :( Flexible Universal Fit Part Number: 917633-01 for Dyson | 91763301 | $45.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Dyson vacuum part Universal Turbine Head Assy (Mail Order) Part number: 912969-02 | 91296902 | $134.96Read more |
| 26 |  | ***USE DY-92349201 0BRUSHROLL, DC23 Part Number: 907304-03 for Dyson | 90730403 | $31.63Read more |
| 27 | No Image | Dyson vacuum part Steel/Steel Soleplate Assy Part number: 907303-11 | 90730311 | $35.97Read more |
| 28 | No Image | FASTENER, BOTTOM PLATE TURBO TOOL DC11 YELLOW Part Number: 905768-01 for Dyson | 90576801 | $4.63Read more |
| 28 | No Image | FASTENER, BOTTOM PLATE TURBO TOOL DC11 GRAY Part Number: 905768-02 for Dyson | 90576802 | $4.63Read more |
| 29 | No Image | Dyson vacuum part Steel Brush Tool Assy Part number: 905903-01 | 90590301 | $23.78Read more |
| 30 |  | ***USE DY-90590606 CREVICE TOOL,:DC11 Part Number: 905906-01 for Dyson | 90590601 | $4.24Read more |
| # | Part image | Description | SKU | Price |

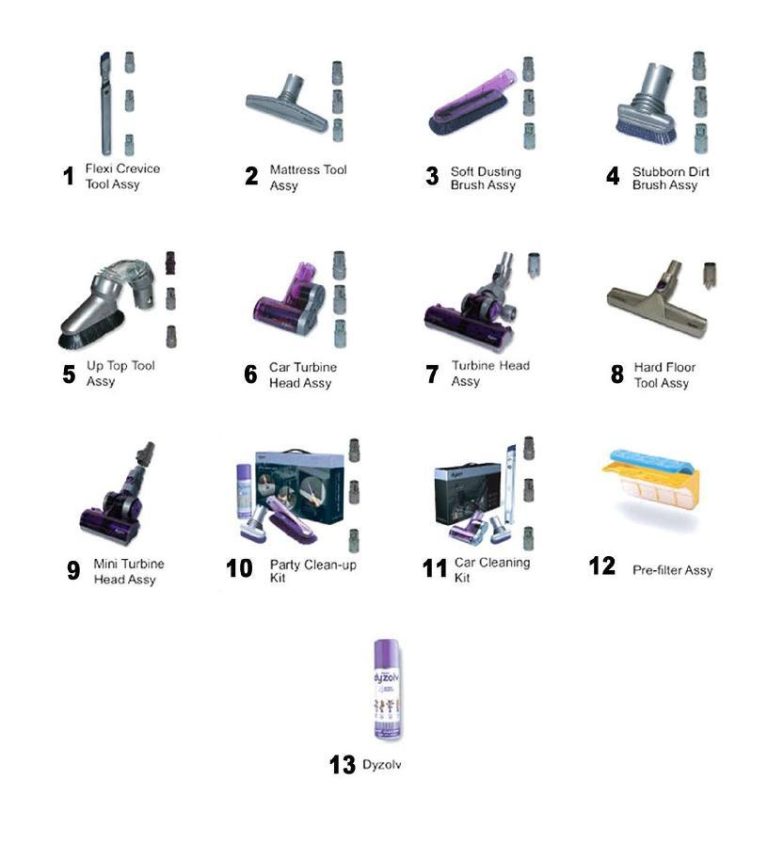

| 1 | No Image | Dyson vacuum part Flexi Crevice Tool Assy (Retail Pack) Part number: 908032-01 | 90803201 | $0.00Read more |
| 1 | | Crevice Tool, :( Flexible Universal Fit Part Number: 917633-01 for Dyson | 91763301 | $45.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | | Upholstery Tool, Gray Mattress Part Number: 908887-02 for Dyson | 90888702 | $33.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Dyson vacuum part M a t t r e s s T o o l Assy (Retail Pack) Part number: 908940-05 | 90894005 | $0.00Read more |
| 3 | No Image | Dyson vacuum part Soft Dusting Brush Assy (Retail Pack) Part number: 908877-01 | 90887701 | $0.00Read more |
| 4 | | Dust Brush, :( Universal Stubborn Dirt Part Number: 918508-01 for Dyson | 91850801 | $34.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Dyson Multi-Angle Curved Dusting Brush - 917645-05 | 91764505 | $50.06Add to cart |
| 5 |  | Dust Brush, :( Universal Up Top Tool Assembly Part Number: 917646-01 for Dyson | 91764601 | $53.40Add to cart |
| 6 | Not Available | Dyson vacuum part Car Turbine Head Assy Part Number: Given | Given | Not Available |
| 7 | No Image | Dyson vacuum part Universal Turbine Head Assy (Mail Order) Part number: 912969-02 | 91296902 | $134.96Read more |
| 8 | | Floor Brush, Gray Part Number: 906562-01 for Dyson | 90656201 | $45.76Read more |
| 8 | No Image | Dyson vacuum part A r t i c u l a t i n g Hard Floor Tool (Retail Pack) Part number: 920018-02 | 92001802 | $0.00Read more |
| 8 | | Floor Tool, Articulating Dc27/Dc23-Slvr Part Number: 920019-01 for Dyson | 92001901 | $76.28Read more |
| 9 | | Dyson turbo tool universal for dc27 dc28 dc33 dc41 dc40 dc65 up13 up14 and all dyson uprights manufactured since 2014 | 91502204 | $100.12Read more |
| 9 | | This part is available CERTIFIED RECONDITIONED pre owned Dyson turbo tool universal for dc27 dc28 dc33 dc41 dc40 dc65 up13 up14 and all dyson uprights manufactured since 2014 More Product Details | 91502204R | Original price was: $29.99.$16.90Current price is: $16.90.Add to cart |
| 10 | Not Available | Dyson vacuum part Party Clean-up Kit Part Number: Given | Given | Not Available |
| 11 |  | Kit, :( Car Cleaning Inlc Dust Brush/Turbo To Part Number: 908909-06 for Dyson | 90890906 | $120.94Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Dyson vacuum part Car Cleaning Kit (Mail Order) Part number: 920434-01 | 92043401 | $0.00Read more |
| 12 | Not Available | Dyson vacuum part Pre-filter Assy Part Number: Given | Given | Not Available |
| 13 | No Image | Dyson vacuum part Dyzolv Spot Cleaner Part number: 903888-06 | 90388806 | $29.22Read more |
