Schematic and parts list for: Dyson Model: DC21
This is a list of parts and a diagram and schematic for: Dyson model: DC21
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

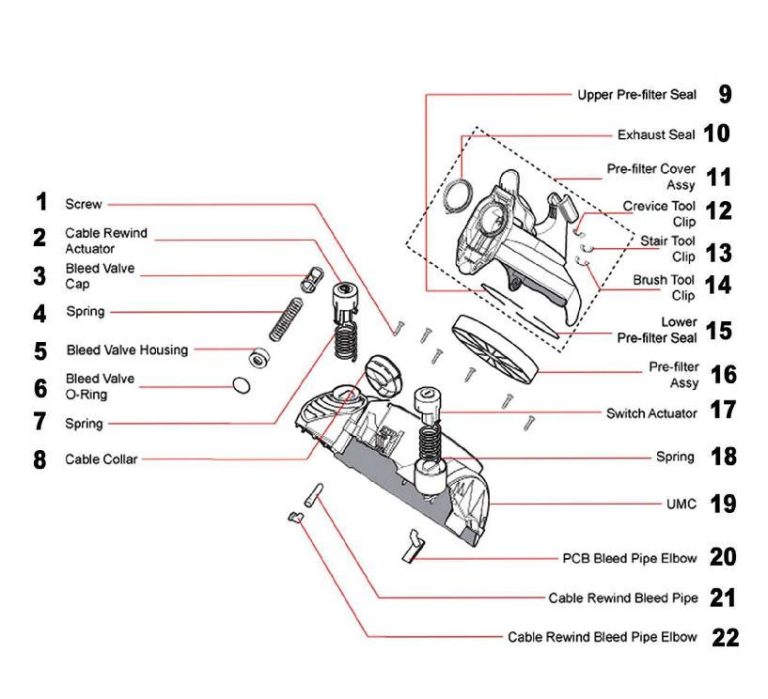

| 1 | Not Available | Dyson vacuum part Screw 2 Titanium Cable Rewind Actuator Part Number: Given | Given | Not Available |
| 2 |  | ACTUATOR, CORD REWIND DC21 TITANIUM Part Number: 912643-01 for Dyson | 91264301 | $4.63Read more |
| 3 | No Image | Dyson vacuum part Black Bleed Valve Cap Part number: 908672-01 | 90867201 | $9.37Read more |
| 4 |  | SPRING, UPPER MOTOR COVER DC21 Part Number: 919900-18 for Dyson | 91990018 | $4.63Read more |
| 5 |  | HOUSING, BLEED VALVE DC21 YELLOW Part Number: 905425-01 for Dyson | 90542501 | $4.63Read more |
| 6 |  | O-Ring, Black Bleed Valve DC21/DC23/DC27/DC28 Part Number: 900170-19 for Dyson | 90017019 | $9.37Read more |
| 7 |  | Spring, DC21/DC23 Part Number: 900199-48 for Dyson | 90019948 | $9.37Read more |
| 8 |  | COLLAR, CORD DC21 Part Number: 904080-12 for Dyson | 90408012 | $4.63Read more |
| 9 |  | SEAL, UPPER PRE-FILTER DC21 Part Number: 912856-01 for Dyson | 91285601 | $9.37Read more |
| 10 |  | Seal, Pre-Filter Cover Exhaust DC21 Part Number: 903767-01 for Dyson | 90376701 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Cover, Pre-Filter Gray DC21 Part Number: 909825-01 for Dyson | 90982501 | $45.76Read more |
| 12 | No Image | Dyson vacuum part Crevice Tool Clip 13 Stair Tool Clip Part number: 909755-01 | 90975501 | $4.63Read more |
| 13 |  | CLIP, STAIR TOOL DC21 GRAY Part Number: 909754-01 for Dyson | 90975401 | $4.63Read more |
| 14 | No Image | Dyson vacuum part Brush Tool Clip 15 Lower Pre-Filter Seal Part number: 909753-01 | 90975301 | $4.63Read more |
| 15 |  | SEAL, LOWER PRE-FILTER DC21 Part Number: 912857-01 for Dyson | 91285701 | $9.37Read more |
| 16 |  | New Genuine Dyson DC21 pre filter pn 917819-01 91781901 | 91781901 | $33.66Read more |
| 17 |  | Actuator, Translucent Scarlet On/Off DC19/DC21 Part Number: 912644-01 for Dyson | 91264401 | $9.37Read more |
| 18 | | Spring, DC21/DC23 Part Number: 900199-48 for Dyson | 90019948 | $9.37Read more |
| 19 |  | COVER, UPPER MOTOR DC21 IRON GRAY Part Number: 909822-01 for Dyson | 90982201 | $45.14Read more |
| 20 |  | ELBOW, PCB BLEED PIPE DC21 Part Number: 909823-01 for Dyson | 90982301 | $4.63Read more |
| 21 |  | PIPE, CORD REEL BLEED DC21 Part Number: 912847-01 for Dyson | 91284701 | $4.63Read more |
| 22 |  | ELBOW, CORD REWIND BLEED PIPE DC21 Part Number: 910016-01 for Dyson | 91001601 | $4.63Read more |
| # | Part image | Description | SKU | Price |

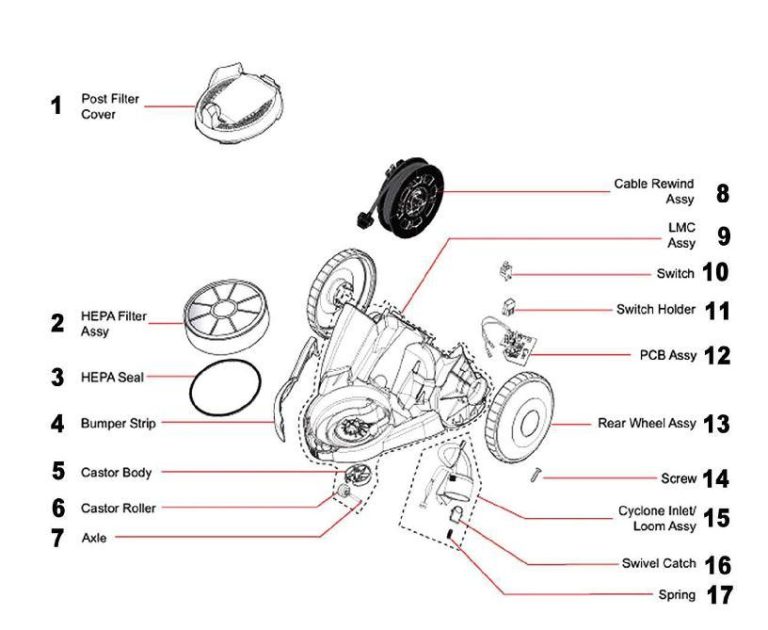

| 1 |  | Cover, Exhaust/Post Filter DC21 Part Number: 903519-07 for Dyson | 90351907 | $45.76Read more |
| 2 |  | genuine Dyson Filter, Exhaust Hepa Dc21 | 91209502 | $45.76Read more |
| 3 |  | Gasket, Black HEPA Seal DC21 Part Number: 904047-01 for Dyson | 90404701 | $20.33Read more |
| 4 |  | BUMPER, STRIP DC21 IRON GRAY Part Number: 904194-06 for Dyson | 90419406 | $4.63Read more |
| 5 | No Image | Dyson vacuum part Steel Castor Body Part number: 903988-01 | 90398801 | $8.63Read more |
| 6 |  | WHEEL, FRONT CASTOR DC11, DC21 Part Number: 900463-05 for Dyson | 90046305 | $9.37Read more |
| 7 |  | Axle, Metal Wheel DC21/DC23 Part Number: 900464-02 for Dyson | 90046402 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Cord Reel, Cable Rewind Assembly DC21 | DY90403144 | $73.10Read more |
| 9 |  | COVER, LOWER MOTOR DC21 IRON GRAY Part Number: 913044-01 for Dyson | 91304401 | $79.32Read more |
| 10 |  | Dyson Switch | DY-91097101 | $9.99Add to cart |
| 11 |  | HOLDER, DC21 SWITCH Part Number: 910970-01 for Dyson | 91097001 | $4.63Read more |
| 12 | No Image | Dyson vacuum part PCB Assy 13 Iron Rear Wheel Assy Part number: 912458-01 | 91245801 | $45.76Read more |
| 13 |  | WHEEL, REAR DC21 IRON GRAY Part Number: 904903-14 for Dyson | 90490314 | $20.33Read more |
| 14 | Not Available | Dyson vacuum part Screw Part Number: Given | Given | Not Available |
| 15 | No Image | Dyson vacuum part Cyclone Inlet/Hose Loom Assy Part number: 909818-01 | 90981801 | $35.69Read more |
| 16 |  | Catch, Titanium Swivel DC21/DC23 Part Number: 907641-07 for Dyson | 90764107 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | Spring, DC14/DC18/DC21/DC22/DC23/DC24/DC25 Part Number: 900199-21 for Dyson | 90019921 | $9.37Read more |
| # | Part image | Description | SKU | Price |

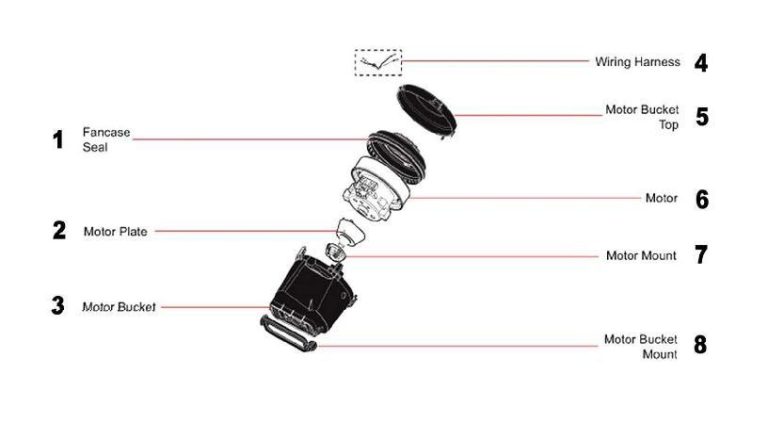

| 1 |  | SEAL, PAN FANCASE DC21 Part Number: 905357-01 for Dyson | 90535701 | $20.33Read more |
| 2 |  | Plate, Motor DC21 Part Number: 903524-01 for Dyson | 90352401 | $9.37Read more |
| 3 |  | HOUSING, MOTOR DC21 BLACK Part Number: 903521-01 for Dyson | 90352101 | $37.35Read more |
| 4 |  | HARNESS, WIRING MOTOR HOUSING DC21 Part Number: 910193-01 for Dyson | 91019301 | $18.76Read more |
| 5 |  | COVER, MOTOR HOUSING DC21 BLACK Part Number: 903522-01 for Dyson | 90352201 | $4.63Read more |
| 6 |  | Dyson DC17 and DC21 main motor Motor, Main Panasonic | DY91160401 | $134.96Read more |
| 7 |  | MOUNT, MOTOR DC21 Part Number: 903525-01 for Dyson | 90352501 | $4.63Read more |
| 8 |  | MOUNT, MOTOR HOUSING DC21 Part Number: 903527-01 for Dyson | 90352701 | $4.63Read more |
| # | Part image | Description | SKU | Price |

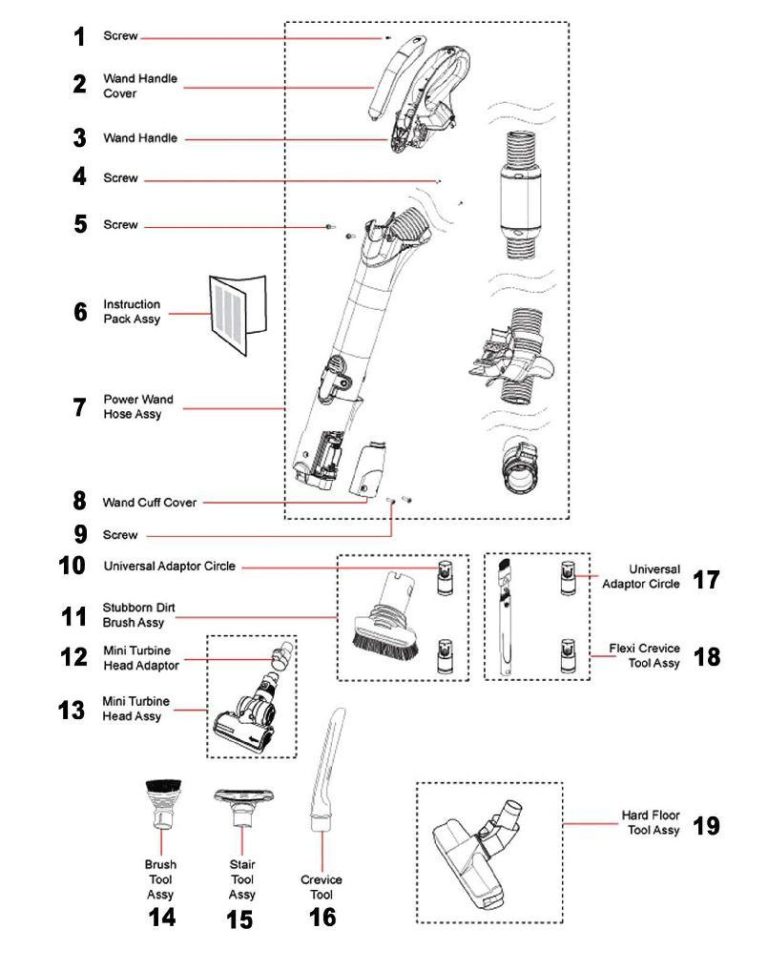

| 1 |  | Screw, DC21 Part Number: 910703-04 for Dyson | 91070304 | $4.63Read more |
| 2 |  | Cover, Wand Handle Scarlet DC21/DC23 Part Number: 910858-01 for Dyson | 91085801 | $9.37Read more |
| 3 |  | Handle, Wand DC21/DC23 Part Number: 910856-01 for Dyson | 91085601 | $33.66Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | | Screw, DC21 Part Number: 910703-04 for Dyson | 91070304 | $4.63Read more |
| 5 |  | Screw, M3/5x16-T15 AB09/AB10/AB11/CY22/CY23/DC18 Part Number: 910703-01 for Dyson | 91070301 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | OWNERS MANUAL, DC21 Part Number: 912584-01 for Dyson | 91258401 | $18.76Read more |
| 7 |  | Hose, Gray W/Telescopic Wand DC21 Part Number: 913017-09 for Dyson | 91301709 | $198.32Read more |
| 8 |  | COVER, WAND CUFF DC21, DC23 Part Number: 910860-01 for Dyson | 91086001 | $4.63Read more |
| 9 | | Screw, M3/5x16-T15 AB09/AB10/AB11/CY22/CY23/DC18 Part Number: 910703-01 for Dyson | 91070301 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Adaptor, Iron Gray Universal Circle Part Number: 911768-03 for Dyson | 91176803 | $20.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Dust Brush, :( Universal Stubborn Dirt Part Number: 918508-01 for Dyson | 91850801 | $34.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Dyson vacuum part Mini Turbine Head Adaptor Part Number: # | # | Not Available |
| 13 | Not Available | Dyson vacuum part Mini Turbine Head Assy Part Number: # | # | Not Available |
| 14 |  | Dust Brush, Iron Gray Tool DC21 Part Number: 905903-06 for Dyson | 90590306 | $25.34Read more |
| 15 | No Image | Dyson vacuum part Iron Stair Tool Assy 16 Iron Crevice Tool Part number: 906960-11 | 90696011 | $23.16Read more |
| 16 | No Image | Dyson vacuum part Iron Crevice Tool 17 Iron Universal Adaptor Circle Part number: 905906-06 | 90590606 | $9.37Read more |
| 17 | | Adaptor, Iron Gray Universal Circle Part Number: 911768-03 for Dyson | 91176803 | $20.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | Dyson vacuum part Flexi Crevice Tool Assy (Retail Pack) Part number: 908032-01 | 90803201 | $0.00Read more |
| 19 |  | Floor Tool, Iron Gray Hard Tool Assy DC21/DC23 Part Number: 906562-08 for Dyson | 90656208 | $45.76Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Dyson vacuum part A r t i c u l a t i n g Hard Floor Tool (Retail Pack) Part number: 920018-02 | 92001802 | $0.00Read more |
| 19 |  | Floor Tool, Articulating Dc27/Dc23-Slvr Part Number: 920019-01 for Dyson | 92001901 | $76.28Read more |
| # | Part image | Description | SKU | Price |

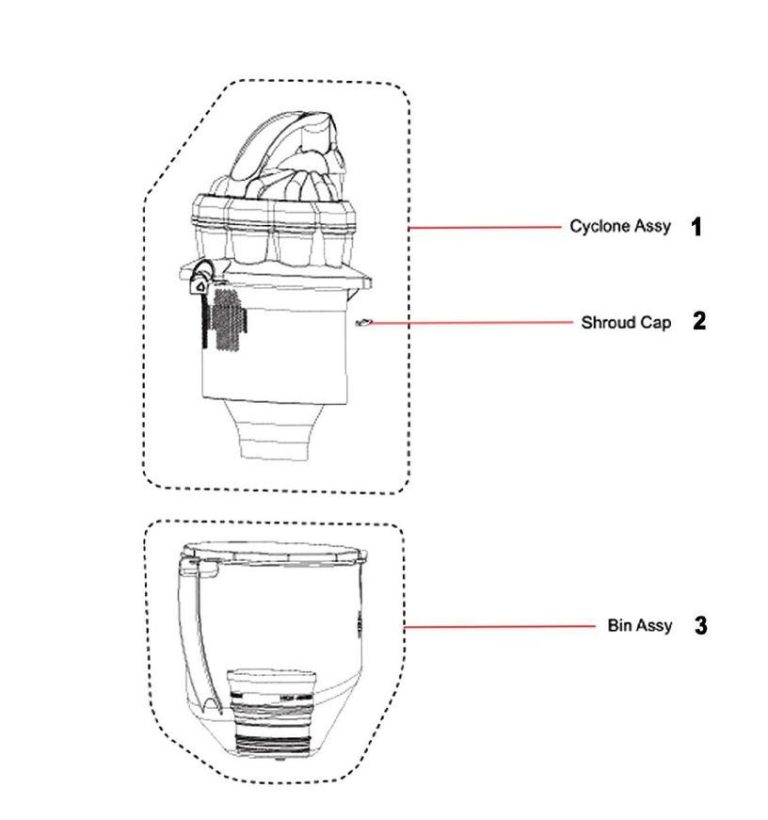

| 1 | No Image | Dyson vacuum part Yellow Cyclone Assy 2 Titanium Shroud Cap Part number: 910885-06 | 91088506 | $106.84Read more |
| 2 |  | Cover, Titanium Shroud DC21 Part Number: 911902-01 for Dyson | 91190201 | $4.63Read more |
| 3 |  | Dirt Cup, Clear DC21 Part Number: 910897-01 for Dyson | 91089701 | $115.94Read more |
| # | Part image | Description | SKU | Price |

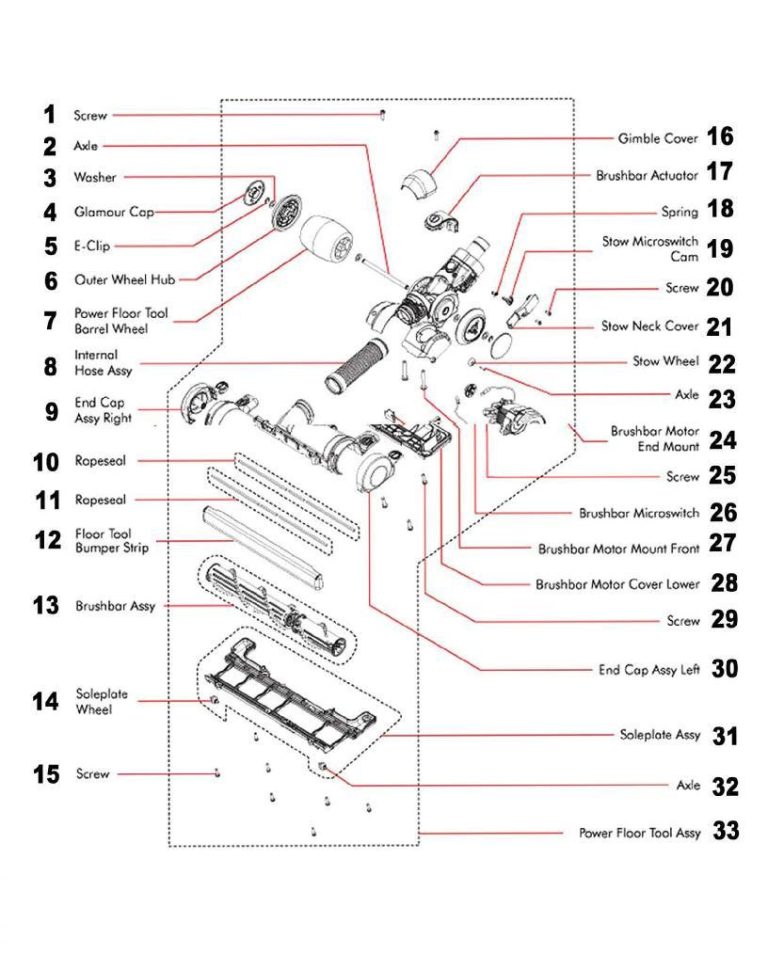

| 1 | | Screw, M3/5x16-T15 AB09/AB10/AB11/CY22/CY23/DC18 Part Number: 910703-01 for Dyson | 91070301 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | AXLE, POWER NOZZLE REAR WHEEL DC21, DC23 Part Number: 909804-01 for Dyson | 90980401 | $4.63Read more |
| 3 |  | Washer, Metal DC07/DC14/DC15/DC21/DC23/DC27/DC28 Part Number: 900534-01 for Dyson | 90053401 | $9.37Read more |
| 4 |  | Cap, Glamour DC21 DC23 Titanium Part Number: 900049-18 for Dyson | 90004918 | $4.63Read more |
| 5 |  | E-clip, Black DC07/DC14/DC18/DC21/DC23/DC27/DC28 Part Number: 900146-01 for Dyson | 90014601 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Hub, Outer Wheel DC21/DC23 Part Number: 909797-01 for Dyson | 90979701 | $19.49Read more |
| 7 | Not Available | Dyson vacuum part Power Floor Tool Barrel Wheel Part Number: # | # | Not Available |
| 8 |  | Hose, Internal DC21/DC23 Part Number: 910986-01 for Dyson | 91098601 | $19.49Read more |
| 9 |  | End Cap Left Assembly DC15 DC21 DC23 | DY90954801 | $19.49Read more |
| 10 |  | SEAL, DC23 ROPE Part Number: 912641-02 for Dyson | 91264102 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | | SEAL, DC23 ROPE Part Number: 912641-01 for Dyson | 91264101 | $9.37Read more |
| 12 |  | Bumper Strip, DC21/DC23 Floor Tool Part Number: 909811-01 for Dyson | 90981101 | $9.37Read more |
| 13 |  | Brushroll, Without Endcaps DC21/DC23 | DY-91310201 | $38.22Read more |
| 14 |  | Wheel, :( Iron Soleplate/Bottom Plate DC18/DC Part Number: 909747-02 for Dyson | 90974702 | $9.37Read more |
| 15 |  | Screw, M3.5x16 Phillips AB09/AB10/AB11/AB12/DC15 Part Number: 910702-10 for Dyson | 91070210 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | COVER, GIMBLE DC21 DC23 IRON Part Number: 909760-01 for Dyson | 90976001 | $9.37Read more |
| 17 |  | Actuator, Trans Scarlet Brushroll DC21/DC23 Part Number: 910196-01 for Dyson | 91019601 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | Dyson vacuum part Spring 19 Stow Microswitch Cam Part number: 910987-01 | 91098701 | $4.24Read more |
| 19 |  | CAM, MICROSWITCH DC21, DC23 Part Number: 910969-01 for Dyson | 91096901 | $4.63Read more |
| 20 | No Image | Dyson vacuum part Screw M3.5X10-T15 21 Iron Stow Neck Cover Part number: 910703-02 | 91070302 | $9.37Read more |
| 21 |  | COVER, POWER NOZZLE SWIVEL NECK SIDE DC21, DC23 GR Part Number: 909803-01 for Dyson | 90980301 | $4.63Read more |
| 22 |  | WHEEL, STOW DC21, DC23 Part Number: 904579-02 for Dyson | 90457902 | $9.37Read more |
| 23 | No Image | Dyson vacuum part Axle 24 Brushbar Motor End Mount Part number: 904578-02 | 90457802 | $9.37Read more |
| 24 |  | Mount, Black Brushbar Motor End DC15/DC21/DC23 Part Number: 907353-01 for Dyson | 90735301 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | SCREW, TORX DC21, DC23, DC27, DC28 Part Number: 910702-15 for Dyson | 91070215 | $9.37Read more |
| 26 | No Image | Dyson vacuum part Brushbar Microswitch 27 Brushbar Motor Mount Front Part number: 913958-01 | 91395801 | $19.00Read more |
| 27 |  | MOUNT, BRUSHROLL MOTOR FRONT DC21, DC23 Part Number: 910499-01 for Dyson | 91049901 | $4.63Read more |
| 28 | No Image | Dyson vacuum part Iron Brushbar Motor Cover Lower Part number: 910192-01 | 91019201 | $18.76Read more |
| 29 | | Screw, M3/5x16-T15 AB09/AB10/AB11/CY22/CY23/DC18 Part Number: 910703-01 for Dyson | 91070301 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | End Cap, Iron Gray Assembly Left DC21/DC23 | DY90954903 | $19.49Read more |
| 31 |  | Bottom Plate, Assembly Iron DC21/DC23 Part Number: 913101-01 for Dyson | 91310101 | $33.66Read more |
| 32 |  | Axle, Metal Part Number: 911165-01 for Dyson | 91116501 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | Dyson vacuum part Power Floor Tool Assy Key # Part Name Part number: 913031-01 | 91303101 | $182.78Read more |
| # | Part image | Description | SKU | Price |

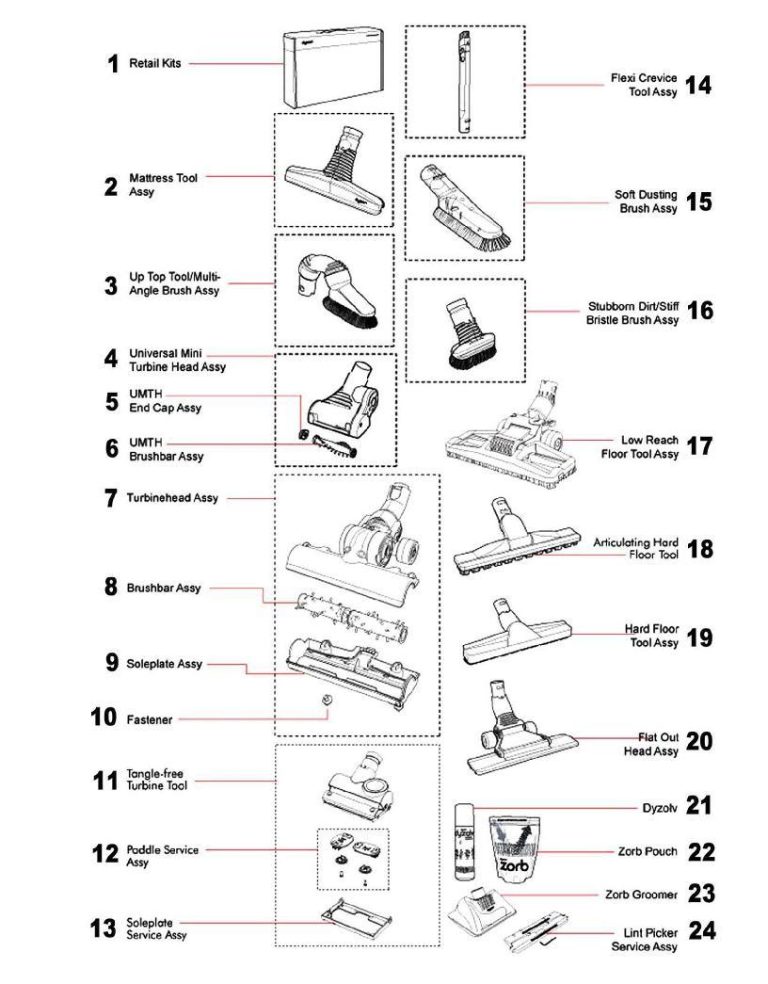

| 1 | No Image | Dyson vacuum part Car Cleaning Kit Assy (Retail Pack) Part number: 908909-08 | 90890908 | $0.00Read more |
| 1 |  | Tool Bag, Holds Tools For All Dyson Models Part Number: 965530-01 for Dyson | 96553001 | $61.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | No Image | Dyson vacuum part Clean and Tidy Kit (Retail Pack) 1 Dyson Tool Bag Part number: 920807-02 | 92080702 | $0.00Read more |
| 1 | No Image | KIT, PET CLEAN UP W/MATTRESS TOOL, ZORB POUCH & GR Part Number: 920436-01 for Dyson | 92043601 | $150.60Read more |
| 1 |  | Kit, Home Cleaning W/Dust Brush, Multi-Angle Tool Part Number: 920435-01 for Dyson | 92043501 | $118.32Read more |
| 1 | No Image | Dyson vacuum part Car Cleaning Kit (Mail Order) Part number: 920434-01 | 92043401 | $0.00Read more |
| 1 |  | KIT, ALLERGY CLEANING W/FLEX CREVICE, DUST BRUSH, Part Number: 920111-01 for Dyson | 92011101 | $126.48Read more |
| 1 |  | Kit, :( Pet Clean-Up Part Number: 918675-01 for Dyson | 91867501 | $131.12Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 |  | Dust Brush, Full Clean Kit Part Number: 918482-01 for Dyson | 91848201 | $79.32Read more |
| 1 |  | Kit, :( Total Gear Part Number: 917743-02 for Dyson | 91774302 | $169.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 |  | Kit, Home Cleaning Part Number: 912772-05 for Dyson | 91277205 | $92.96Read more |
| 2 |  | Upholstery Tool, Gray Mattress Part Number: 908887-02 for Dyson | 90888702 | $33.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Dyson vacuum part M a t t r e s s T o o l Assy (Retail Pack) Part number: 908940-05 | 90894005 | $0.00Read more |
| 3 |  | Dust Brush, :( Universal Up Top Tool Assembly Part Number: 917646-01 for Dyson | 91764601 | $53.40Add to cart |
| 3 |  | Dyson Multi-Angle Curved Dusting Brush - 917645-05 | 91764505 | $50.06Add to cart |
| 4 | Not Available | Dyson vacuum part Universal Mini Turbine Head Assy Part Number: # | # | Not Available |
| 5 | Not Available | Dyson vacuum part UMTH End Cap Assy Part Number: # | # | Not Available |
| 6 | Not Available | Dyson vacuum part UMTH Brushbar Assy Part Number: # | # | Not Available |
| 7 | No Image | Dyson vacuum part Universal Turbine Head Assy (Mail Order) Part number: 912969-02 | 91296902 | $134.96Read more |
| 8 | Not Available | Dyson vacuum part Brushbar Assy Part Number: # | # | Not Available |
| 9 | Not Available | Dyson vacuum part Soleplate Assy Part Number: # | # | Not Available |
| 10 | Not Available | Dyson vacuum part Fastener Part Number: # | # | Not Available |
| 11 | No Image | Dyson vacuum part T a n g l e - f r e e T u r b i n e Tool (Retail Pack) Part number: 925067-02 | 92506702 | $0.00Read more |
| 11 |  | Dyson Tangle Free Turbo Tool for modern Dyson uprights | 92506706 | Original price was: $48.99.$26.99Current price is: $26.99.Read more |
| 12 |  | Brushes, Tangle Free Turbo Tool Part Number: 963556-01 for Dyson | 96355601 | $20.33Read more |
| 13 |  | Bottom Plate, Tangle Free Turbo Tool Part Number: 963826-01 for Dyson | 96382601 | $25.34Read more |
| 14 |  | Crevice Tool, :( Flexible Universal Fit Part Number: 917633-01 for Dyson | 91763301 | $45.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Dyson vacuum part Flexi Crevice Tool Assy (Retail Pack) Part number: 908032-01 | 90803201 | $0.00Read more |
| 15 | No Image | Dyson vacuum part Soft Dusting Brush Assy (Retail Pack) Part number: 908877-01 | 90887701 | $0.00Read more |
| 16 |  | Dust Brush, Universal Stiff Bristle Assembly Part Number: 918507-05 for Dyson | 91850705 | $32.76Read more |
| 16 | | Dust Brush, :( Universal Stubborn Dirt Part Number: 918508-01 for Dyson | 91850801 | $34.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Dyson vacuum part Dual Mode Floor Tool (Mail Order) Part number: 913223-01 | 91322301 | $0.00Read more |
| 17 | No Image | Dyson vacuum part Steel/Yellow Dual Mode Floor Tool (Retail Pack) Part number: 908027-03 | 90802703 | $0.00Read more |
| 18 | No Image | Dyson vacuum part A r t i c u l a t i n g Hard Floor Tool (Retail Pack) Part number: 920018-02 | 92001802 | $0.00Read more |
| 18 | | Floor Tool, Articulating Dc27/Dc23-Slvr Part Number: 920019-01 for Dyson | 92001901 | $76.28Read more |
| 19 | | Floor Tool, Iron Gray Hard Tool Assy DC21/DC23 Part Number: 906562-08 for Dyson | 90656208 | $45.76Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Flat Floor Tool for Dyson DC27 | DY-91461702 | $76.28Read more |
| 20 |  | Floor Tool, Flat Out Head Assembly Part Number: 914606-05 for Dyson | 91460605 | $71.52Read more |
| 21 | No Image | Dyson vacuum part Dyzolv Spot Cleaner Part number: 903888-06 | 90388806 | $29.22Read more |
| 22 | No Image | Dyson vacuum part Z o r b Pouch 17 Universal Z o r b Part number: 903914-07 | 90391407 | $27.37Read more |
| 23 | Not Available | Dyson vacuum part Zorb Groomer Part Number: # | # | Not Available |
| 24 | Not Available | Dyson vacuum part Link Picker Service Assy Part Number: # | # | Not Available |
