Schematic and parts list for: Dyson Model: DC22
This is a list of parts and a diagram and schematic for: Dyson model: DC22
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

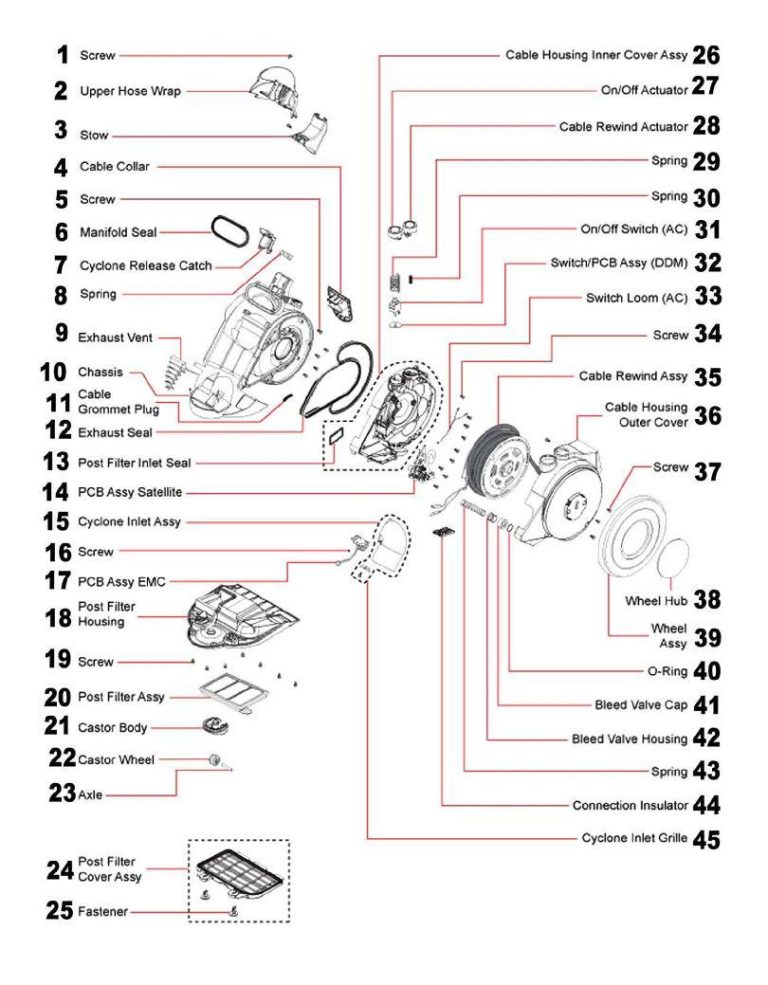

| # | Part image | Description | SKU | Price |
| 1 |  | Screw, M3.5X12-T15 AB02/AM06/AM07/AM08/AM09/AM11 Part Number: 910703-03 for Dyson | 91070303 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | WRAP, UPPER HOSE DC22 IRON GRAY Part Number: 913134-01 for Dyson | 91313401 | $18.76Read more |
| 3 | No Image | STOW, DC22 IRON GRAY Part Number: 913132-01 for Dyson | 91313201 | $60.20Read more |
| 4 |  | COLLAR, CORD DC22 IRON GRAY Part Number: 913127-01 for Dyson | 91312701 | $4.63Read more |
| 5 |  | SCREW, MAIN BODY CHASSIS DC22 Part Number: 914426-01 for Dyson | 91442601 | $4.63Read more |
| 6 | No Image | SEAL, MANIFOLD MAIN BODY DC22 Part Number: 913133-01 for Dyson | 91313301 | $4.63Read more |
| 7 | No Image | Dyson vacuum part Silver Cyclone Release Catch Part number: 913131-02 | 91313102 | $9.37Read more |
| 8 |  | SPRING, CYCLONE RELEASE DC22 Part Number: 919900-25 for Dyson | 91990025 | $4.63Read more |
| 9 | No Image | Dyson vacuum part Iron Exhaust Vent Part number: 913439-01 | 91343901 | $4.24Read more |
| 10 | No Image | Dyson vacuum part Iron Chassis Part number: 913243-01 | 91324301 | $4.24Read more |
| 11 | Not Available | Dyson vacuum part Cable Grommet Plug Part Number: Not | Not | Not Available |
| 12 | No Image | SEAL, EXHAUST CHASSIS DC22 Part Number: 913360-01 for Dyson | 91336001 | $18.76Read more |
| 13 | No Image | SEAL, POST FILTER INLET DC22 Part Number: 913166-01 for Dyson | 91316601 | $4.63Read more |
| 14 |  | PCB, ASSEMBLY SATELLITE DC22 Part Number: 916212-01 for Dyson | 91621201 | $78.28Read more |
| 14 |  | PCB, Assembly Satellite DDM DC22 Part Number: 916213-01 for Dyson | 91621301 | $126.44Read more |
| 15 | No Image | INLET, CYCLONE PASSIVE DC22 IRON GRAY Part Number: 914923-01 for Dyson | 91492301 | $18.76Read more |
| 15 | No Image | INLET, CYCLONE ACTIVE DC22 IRON GRAY Part Number: 915045-01 for Dyson | 91504501 | $33.38Read more |
| 16 |  | Screw, DC18 M2.5x6xT8 Part Number: 911338-01 for Dyson | 91133801 | $4.63Read more |
| 17 |  | PCB, EMC DDM PASSIVE DC22 Part Number: 915375-01 for Dyson | 91537501 | $18.76Read more |
| 17 |  | Circuit Board, PCB DC22 Part Number: 915374-01 for Dyson | 91537401 | $18.76Read more |
| 18 | No Image | HOUSING, POST FILTER DC22 IRON GRAY Part Number: 913162-01 for Dyson | 91316201 | $18.76Read more |
| 19 | | Screw, M3.5X12-T15 AB02/AM06/AM07/AM08/AM09/AM11 Part Number: 910703-03 for Dyson | 91070303 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Filter, Exhaust HEPA DC22 Part Number: 914324-09 for Dyson | 91432409 | $37.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | CASTOR BODY, DC22 GRAY Part Number: 918464-02 for Dyson | 91846402 | $4.63Read more |
| 22 |  | Wheel, Gray Castor DC22/DC28C/DC33C/DC37C/DC39C Part Number: 907093-01 for Dyson | 90709301 | $9.37Read more |
| 23 |  | AXLE, CASTOR DC22 Part Number: 907838-02 for Dyson | 90783802 | $4.63Read more |
| 24 |  | COVER, HEPA EXHAUST FILTER DC22 IRON GRAY Part Number: 914925-03 for Dyson | 91492503 | $45.14Read more |
| 25 |  | FASTENER, DC22 Blueberry Part Number: 900130-28 for Dyson | 90013028 | $9.37Read more |
| 26 |  | COVER, INNER CORD REEL HOUSING DC22 GRAY Part Number: 914950-02 for Dyson | 91495002 | $33.38Read more |
| 27 |  | BUTTON, POWER DC22 Part Number: 914948-01 for Dyson | 91494801 | $4.63Read more |
| 28 | No Image | ACTUATOR, CORD REWIND DC22 SILVER Part Number: 913230-01 for Dyson | 91323001 | $18.76Read more |
| 29 |  | SPRING, POWER SWITCH DC22 Part Number: 919900-37 for Dyson | 91990037 | $4.63Read more |
| 30 |  | Spring, DC22/DC25 | DY-90019955 | $9.37Read more |
| 31 | Not Available | Dyson vacuum part On/Off Switch (AC) Part Number: # | # | Not Available |
| 32 | | Screw, M3.5X12-T15 AB02/AM06/AM07/AM08/AM09/AM11 Part Number: 910703-03 for Dyson | 91070303 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | Dyson vacuum part Switch Loom Part Number: # | # | Not Available |
| 34 | | Screw, M3.5X12-T15 AB02/AM06/AM07/AM08/AM09/AM11 Part Number: 910703-03 for Dyson | 91070303 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | Cord Reel, Cable Rewind Assembly DC22 Part Number: 907456-46 for Dyson | 90745646 | $79.32Read more |
| 36 | No Image | HOUSING, OUTER CORD REEL DC22 IRON GRAY Part Number: 913128-01 for Dyson | 91312801 | $45.14Read more |
| 37 | | Screw, M3.5X12-T15 AB02/AM06/AM07/AM08/AM09/AM11 Part Number: 910703-03 for Dyson | 91070303 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | No Image | HUBCAP, REAR WHEEL DC22 IRON GRAY Part Number: 913126-01 for Dyson | 91312601 | $18.76Read more |
| 39 | No Image | WHEEL, REAR DC22 IRON GRAY Part Number: 913125-02 for Dyson | 91312502 | $18.76Read more |
| 40 | Not Available | Dyson vacuum part O-Ring Part Number: # | # | Not Available |
| 41 | Not Available | Dyson vacuum part Bleed Valve Cap Part Number: # | # | Not Available |
| 42 | Not Available | Dyson vacuum part Bleed Valve Housing Part Number: # | # | Not Available |
| 43 | Not Available | Dyson vacuum part Spring Part Number: # | # | Not Available |
| 44 | Not Available | Dyson vacuum part Connection Insulator Part Number: # | # | Not Available |
| 45 | No Image | GRILLE, CYLCONE INLET DC22 IRON GRAY Part Number: 913314-01 for Dyson | 91331401 | $4.63Read more |
| # | Part image | Description | SKU | Price |

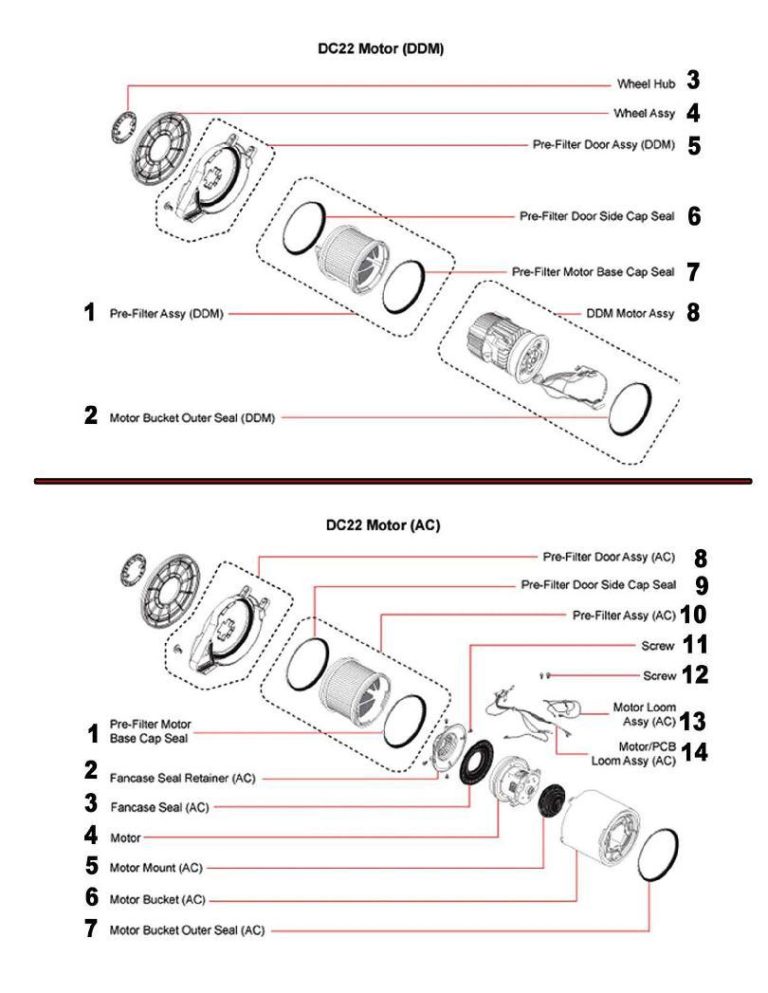

| 1 |  | Filter, Premotor DC22 Round Pleated Part Number: 914949-02 for Dyson | 91494902 | $61.00Read more |
| 1 | No Image | SEAL, PRE-FILTER MOTOR BASE CAP DC22 Part Number: 913160-01 for Dyson | 91316001 | $4.63Read more |
| 2 |  | SEAL, OUTER MOTOR HOUSING DC22 Part Number: 913998-01 for Dyson | 91399801 | $4.63Read more |
| 2 | Not Available | Dyson vacuum part Fancase Seal Retainer (AC) Part Number: Not | Not | Not Available |
| 3 | No Image | HUBCAP, REAR WHEEL DC22 IRON GRAY Part Number: 913126-01 for Dyson | 91312601 | $18.76Read more |
| 3 | Not Available | Dyson vacuum part Fancase Seal (AC) Part Number: Not | Not | Not Available |
| 4 | Not Available | Dyson vacuum part Motor Part Number: Not | Not | Not Available |
| 4 | No Image | WHEEL, REAR DC22 IRON GRAY Part Number: 913125-02 for Dyson | 91312502 | $18.76Read more |
| 5 |  | DOOR, PRE-FILTER DC22 IRON GRAY Part Number: 914951-03 for Dyson | 91495103 | $45.14Read more |
| 5 | Not Available | Dyson vacuum part Motor Mount (AC) Part Number: Not | Not | Not Available |
| 6 | No Image | SEAL, PRE-FILTER SIDECAP DOOR DC22 Part Number: 913159-01 for Dyson | 91315901 | $4.63Read more |
| 6 | Not Available | Dyson vacuum part Motor Bucket (AC) Part Number: Not | Not | Not Available |
| 7 | Not Available | Dyson vacuum part Motor Bucket Outer Seal (AC) Part Number: Not | Not | Not Available |
| 7 | No Image | SEAL, PRE-FILTER MOTOR BASE CAP DC22 Part Number: 913160-01 for Dyson | 91316001 | $4.63Read more |
| 8 | Not Available | Dyson vacuum part Pre-Filter Door Assy (AC) Part Number: Not | Not | Not Available |
| 8 | No Image | Dyson vacuum part DDM Motor Assy Part number: 914952-05 | 91495205 | $180.38Read more |
| 9 | No Image | SEAL, PRE-FILTER SIDECAP DOOR DC22 Part Number: 913159-01 for Dyson | 91315901 | $4.63Read more |
| 10 | Not Available | Dyson vacuum part Pre-Filter Assy (AC) Part Number: Not | Not | Not Available |
| 11 | Not Available | Dyson vacuum part Screw Part Number: Not | Not | Not Available |
| 12 | Not Available | Dyson vacuum part Screw Part Number: Not | Not | Not Available |
| 13 | Not Available | Dyson vacuum part Motor Loom Assy (AC) Part Number: Not | Not | Not Available |
| 14 | Not Available | Dyson vacuum part Motor/PCB Loom Assy (AC) Part Number: Not | Not | Not Available |
| # | Part image | Description | SKU | Price |

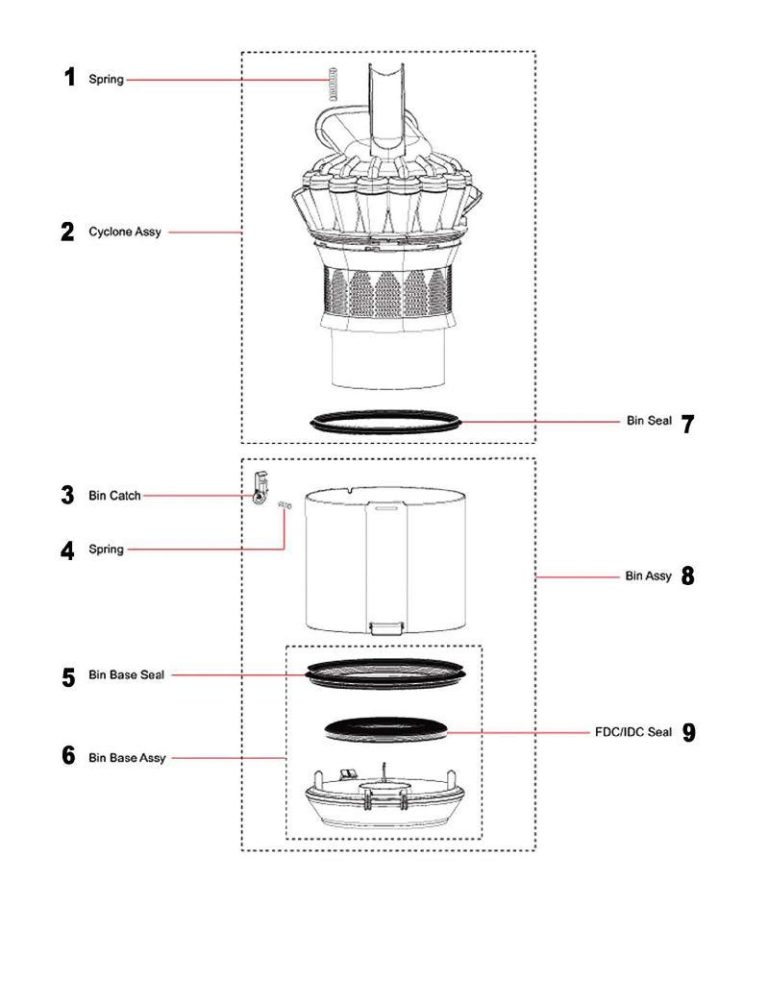

| 1 |  | Spring, DC22 Part Number: 900199-42 for Dyson | 90019942 | $4.63Read more |
| 2 |  | Cyclone Assy, Yellow/Iron DC22 Part Number: 914336-03 for Dyson | 91433603 | $96.34Read more |
| 2 |  | CYCLONE ASSY, DC22 VIOLET/GRAY Part Number: 914336-11 for Dyson | 91433611 | $78.28Read more |
| 3 |  | LATCH, DIRT CUP DC22, DC26 SILVER Part Number: 913286-01 for Dyson | 91328601 | $4.63Read more |
| 4 |  | Spring, DC14/DC18/DC21/DC22/DC23/DC24/DC25 Part Number: 900199-21 for Dyson | 90019921 | $9.37Read more |
| 5 | No Image | SEAL, OUTER DIRT CUP BASE DC22 Part Number: 913289-01 for Dyson | 91328901 | $18.76Read more |
| 6 | No Image | BASE, DIRT CUP W/ SEALS DC22 Part Number: 914334-01 for Dyson | 91433401 | $37.35Read more |
| 7 | No Image | SEAL, DIRT CUP DC22 Part Number: 913284-01 for Dyson | 91328401 | $4.63Read more |
| 8 | No Image | DIRT CUP, WITH BASE AND SEAL DC22 Part Number: 914335-01 for Dyson | 91433501 | $45.76Read more |
| 9 | No Image | SEAL, INNER DIRT CUP BASE DC22 Part Number: 913288-01 for Dyson | 91328801 | $4.63Read more |
| # | Part image | Description | SKU | Price |

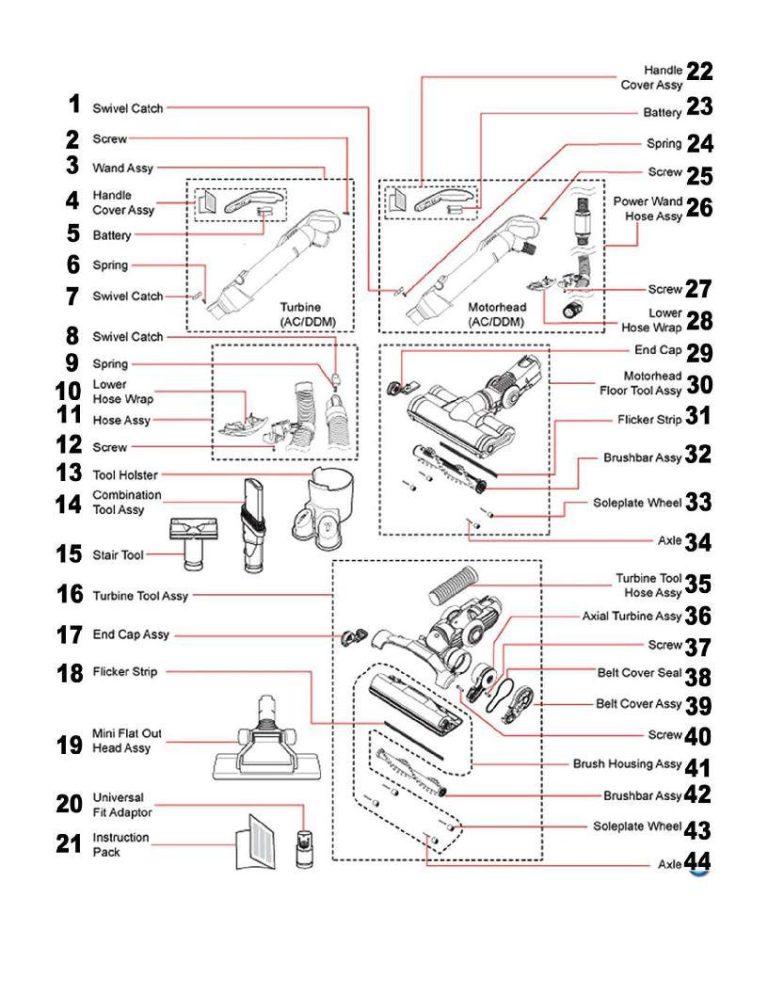

| 1 | No Image | Dyson vacuum part Silver Swivel Catch Part number: 913202-02 | 91320202 | $9.37Read more |
| 1 | No Image | Dyson vacuum part Red Swivel Catch 2 Screw M3.5X16-Philips Part number: 913202-03 | 91320203 | $9.37Read more |
| 2 |  | Screw, M3.5x16-Phillips AM10/MF01/DC22 Part Number: 914501-01 for Dyson | 91450101 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Dyson vacuum part Iron/Red Wand Handle Assy 4 Trans Scarlet Wand Cover Assy Part number: 919043-01 | 91904301 | $126.44Read more |
| 4 |  | COVER, WAND HANDLE DC22 SCARLET Part Number: 913531-16 for Dyson | 91353116 | $45.14Read more |
| 5 | No Image | Dyson vacuum part AAA Battery Part number: 905860-01 | 90586001 | $17.51Read more |
| 6 | | Spring, DC14/DC18/DC21/DC22/DC23/DC24/DC25 Part Number: 900199-21 for Dyson | 90019921 | $9.37Read more |
| 7 | No Image | Dyson vacuum part Silver Swivel Catch Part number: 913202-02 | 91320202 | $9.37Read more |
| 8 | No Image | Dyson vacuum part Silver Swivel Catch Part number: 913202-02 | 91320202 | $9.37Read more |
| 9 | | Spring, DC14/DC18/DC21/DC22/DC23/DC24/DC25 Part Number: 900199-21 for Dyson | 90019921 | $9.37Read more |
| 10 | No Image | WRAP, LOWER HOSE DC22 IRON GRAY Part Number: 913359-01 for Dyson | 91335901 | $18.76Read more |
| 11 | No Image | Dyson vacuum part Iron Hose Assy 12 Screw M3.5X12-T15 Part number: 913534-01 | 91353401 | $61.00Read more |
| 12 | | Screw, M3.5X12-T15 AB02/AM06/AM07/AM08/AM09/AM11 Part Number: 910703-03 for Dyson | 91070303 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Tool Holder, Iron Gray Holster DC22 Part Number: 913663-01 for Dyson | 91366301 | $18.76Read more |
| 14 |  | Genuine Dyson Parts Combination Tool, DC22/DC25/DC27/DC28/DC33 | DY-91433801 | $20.33Read more |
| 15 |  | Stair Tool, Gray DC22/DC26 Part Number: 914417-01 for Dyson | 91441701 | $19.49Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Turbo Brush, :( Gray DC22 Part Number: 916094-01 for Dyson | 91609401 | $115.94Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Dyson vacuum part Iron End Cap Assy 18 Flicker Strip Part number: 913435-01 | 91343501 | $4.24Read more |
| 18 |  | Strip, Flicker Floor Tool DC22 Part Number: 902579-08 for Dyson | 90257908 | $9.37Read more |
| 19 | Not Available | Dyson vacuum part Mini Flat Out Head Assy Part Number: # | # | Not Available |
| 20 |  | Adaptor, Iron Gray Universal Circle Part Number: 911768-03 for Dyson | 91176803 | $20.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | OWNERS MANUAL, DC22 Part Number: 914217-22 for Dyson | 91421722 | $18.76Read more |
| 21 | No Image | Dyson vacuum part Instruction Pack Assy 22 Trans Scarlet Wand Cover Assy Part number: 914217-23 | 91421723 | $18.76Read more |
| 22 | No Image | COVER, POWER WAND HANDLE DC22 SCARLET Part Number: 913531-17 for Dyson | 91353117 | $24.74Read more |
| 23 | No Image | Dyson vacuum part AAA Battery Part number: 905860-01 | 90586001 | $17.51Read more |
| 24 | | Spring, DC14/DC18/DC21/DC22/DC23/DC24/DC25 Part Number: 900199-21 for Dyson | 90019921 | $9.37Read more |
| 25 | | Screw, M3.5x16-Phillips AM10/MF01/DC22 Part Number: 914501-01 for Dyson | 91450101 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 |  | Hose, Iron/Scarlet W/Telescopic Wand DC22 Part Number: 913533-14 for Dyson | 91353314 | $198.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | | Screw, M3.5X12-T15 AB02/AM06/AM07/AM08/AM09/AM11 Part Number: 910703-03 for Dyson | 91070303 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | WRAP, LOWER HOSE DC22 IRON GRAY Part Number: 913359-01 for Dyson | 91335901 | $18.76Read more |
| 29 |  | End Cap, Iron Gray Assembly DC22 Part Number: 915048-01 for Dyson | 91504801 | $9.37Read more |
| 30 | No Image | Dyson vacuum part Motorhead Assy 31 Flicker Strip Part number: 914941-09 | 91494109 | $182.78Read more |
| 31 | No Image | Strip, Flicker Turbo Tool DC22 Part Number: 902579-07 for Dyson | 90257907 | $9.37Read more |
| 31 | | Strip, Flicker Floor Tool DC22 Part Number: 902579-08 for Dyson | 90257908 | $9.37Read more |
| 32 |  | Brushroll, Motorized Floor Tool DC22 Part Number: 913870-02 for Dyson | 91387002 | $24.74Read more |
| 32 |  | Brushroll, Iron Gray Motorized Floor Tool DC22 Part Number: 914326-02 for Dyson | 91432602 | $24.74Read more |
| 33 |  | WHEEL, DC22 BOTTOM PLATE Part Number: 911433-01 for Dyson | 91143301 | $9.37Read more |
| 34 |  | Axle, Metal Sole Plate DC22/DC24/DC50/UP15 Part Number: 911434-01 for Dyson | 91143401 | $9.37Read more |
| 35 | No Image | HOSE, TURBO BRUSH DC22 Part Number: 907150-01 for Dyson | 90715001 | $45.14Read more |
| 36 | No Image | END CAP, FLOOR BRUSH PIVOT LEFT SIDE DC22 Part Number: 913293-01 for Dyson | 91329301 | $45.14Read more |
| 37 | | Screw, M3.5X12-T15 AB02/AM06/AM07/AM08/AM09/AM11 Part Number: 910703-03 for Dyson | 91070303 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | No Image | Dyson vacuum part Belt Cover Seal 39 Iron Belt Cover Assy Part number: 913736-01 | 91373601 | $4.63Read more |
| 39 | No Image | COVER, FLOOR BRUSH BELT DC22 IRON GRAY Part Number: 913307-01 for Dyson | 91330701 | $4.63Read more |
| 40 |  | Screw, M3/5x16-T15 AB09/AB10/AB11/CY22/CY23/DC18 Part Number: 910703-01 for Dyson | 91070301 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | No Image | HOUSING, BRUSHROLL TURBO TOOL DC22 IRON GRAY Part Number: 913436-01 for Dyson | 91343601 | $37.35Read more |
| 42 | Not Available | Dyson vacuum part Brushbar Assy Part Number: # | # | Not Available |
| 43 | | WHEEL, DC22 BOTTOM PLATE Part Number: 911433-01 for Dyson | 91143301 | $9.37Read more |
| 44 | | Axle, Metal Sole Plate DC22/DC24/DC50/UP15 Part Number: 911434-01 for Dyson | 91143401 | $9.37Read more |
| # | Part image | Description | SKU | Price |

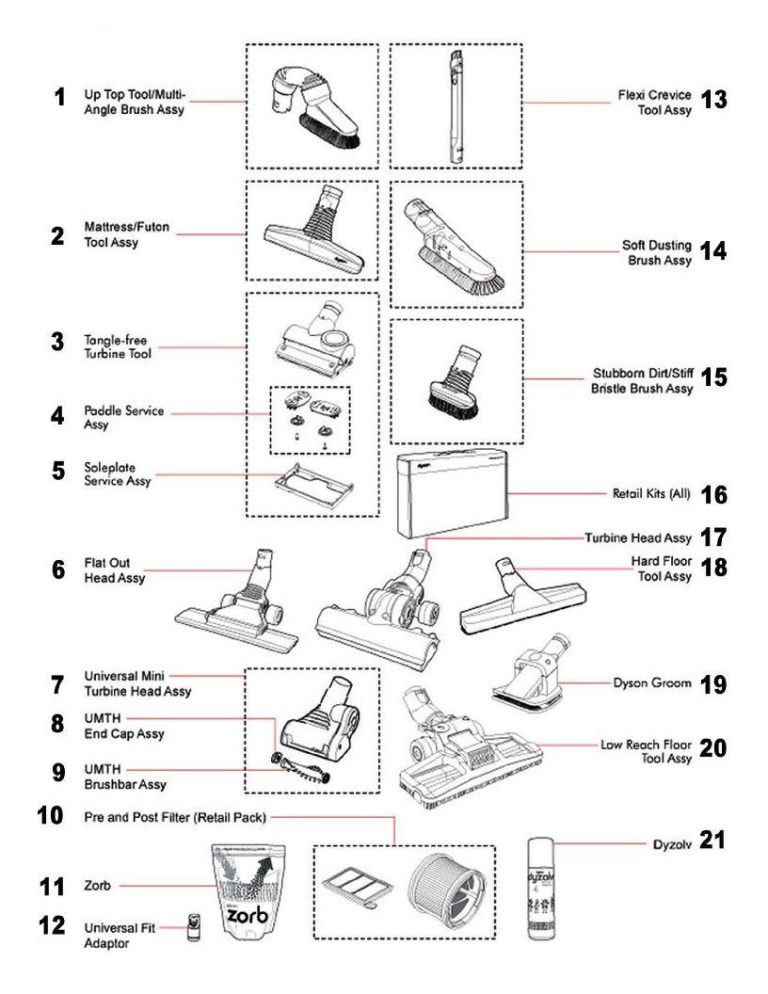

| 1 |  | Dyson Multi-Angle Curved Dusting Brush - 917645-05 | 91764505 | $50.06Add to cart |
| 1 |  | Dust Brush, :( Universal Up Top Tool Assembly Part Number: 917646-01 for Dyson | 91764601 | $53.40Add to cart |
| 2 |  | Upholstery Tool, Gray Mattress Part Number: 908887-02 for Dyson | 90888702 | $33.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Dyson vacuum part M a t t r e s s T o o l Assy (Retail Pack) Part number: 908940-05 | 90894005 | $0.00Read more |
| 3 | No Image | Dyson vacuum part T a n g l e - f r e e T u r b i n e Tool (Retail Pack) Part number: 925067-02 | 92506702 | $0.00Read more |
| 3 |  | Dyson Tangle Free Turbo Tool for modern Dyson uprights | 92506706 | $26.99Read more |
| 4 |  | Brushes, Tangle Free Turbo Tool Part Number: 963556-01 for Dyson | 96355601 | $20.33Read more |
| 5 |  | Bottom Plate, Tangle Free Turbo Tool Part Number: 963826-01 for Dyson | 96382601 | $25.34Read more |
| 6 | Not Available | Dyson vacuum part Flat Out Head Assy Part Number: # | # | Not Available |
| 7 | Not Available | Dyson vacuum part Universal Mini Turbin Head Assy Part Number: # | # | Not Available |
| 8 | Not Available | Dyson vacuum part UMTH End Cap Assy Part Number: # | # | Not Available |
| 9 | Not Available | Dyson vacuum part UMTH Brushbar Assy Part Number: # | # | Not Available |
| 10 | Not Available | Dyson vacuum part Pre & Post Filter (Retail Pack) Part Number: # | # | Not Available |
| 11 | No Image | Dyson vacuum part Z o r b Pouch 17 Universal Z o r b Part number: 903914-07 | 90391407 | $27.37Read more |
| 12 | | Adaptor, Iron Gray Universal Circle Part Number: 911768-03 for Dyson | 91176803 | $20.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Dyson vacuum part Flexi Crevice Tool Assy (Retail Pack) Part number: 908032-06 | 90803206 | $0.00Read more |
| 13 |  | Crevice Tool, :( Flexible Universal Fit Part Number: 917633-01 for Dyson | 91763301 | $45.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Dust Brush, :( Carbon Fiber Soft Part Number: 966450-02 for Dyson | 96645002 | $51.46Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Dust Brush, Universal Stiff Bristle Assembly Part Number: 918507-05 for Dyson | 91850705 | $32.76Read more |
| 15 |  | Dust Brush, :( Universal Stubborn Dirt Part Number: 918508-01 for Dyson | 91850801 | $34.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | KIT, PET CLEAN UP W/MATTRESS TOOL, ZORB POUCH & GR Part Number: 920436-01 for Dyson | 92043601 | $150.60Read more |
| 16 | No Image | Dyson vacuum part Clean and Tidy Kit (Retail Pack) 1 Dyson Tool Bag Part number: 920807-02 | 92080702 | $0.00Read more |
| 16 | No Image | Dyson vacuum part Groom Tool + Clean Up Kit (Retail Pack) Part number: 920999-01 | 92099901 | $143.04Read more |
| 16 | No Image | Kit, :( Groom W/Zorb Powder/Groomer/Stiff Brush Part Number: 921002-01 for Dyson | 92100201 | $152.54Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Tool Bag, Holds Tools For All Dyson Models Part Number: 965530-01 for Dyson | 96553001 | $61.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Kit, Home Cleaning W/Dust Brush, Multi-Angle Tool Part Number: 920435-01 for Dyson | 92043501 | $118.32Read more |
| 16 | No Image | Dyson vacuum part Car Cleaning Kit (Mail Order) Part number: 920434-01 | 92043401 | $0.00Read more |
| 16 |  | KIT, ALLERGY CLEANING W/FLEX CREVICE, DUST BRUSH, Part Number: 920111-01 for Dyson | 92011101 | $126.48Read more |
| 16 |  | Kit, :( Pet Clean-Up Part Number: 918675-01 for Dyson | 91867501 | $131.12Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Dust Brush, Full Clean Kit Part Number: 918482-01 for Dyson | 91848201 | $79.32Read more |
| 16 |  | Kit, :( Total Gear Part Number: 917743-02 for Dyson | 91774302 | $169.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Kit, Home Cleaning Part Number: 912772-05 for Dyson | 91277205 | $92.96Read more |
| 16 | No Image | Dyson vacuum part Car Cleaning Kit Assy (Retail Pack) Part number: 908909-08 | 90890908 | $0.00Read more |
| 17 | No Image | Dyson vacuum part Universal Turbine Head Assy (Mail Order) Part number: 912969-02 | 91296902 | $134.96Read more |
| 17 | No Image | Dyson vacuum part Universal Turbine Head Assy (Retail Pack) Part number: 911566-02 | 91156602 | $0.00Read more |
| 18 | No Image | Dyson vacuum part A r t i c u l a t i n g Hard Floor Tool (Retail Pack) Part number: 920018-02 | 92001802 | $0.00Read more |
| 18 |  | Floor Tool, Articulating Dc27/Dc23-Slvr Part Number: 920019-01 for Dyson | 92001901 | $76.28Read more |
| 19 | No Image | Dyson vacuum part Dyson Groom (Retail Pack) 19 Dyson Groom (Mail Order) Part number: 921000-02 | 92100002 | $100.10Read more |
| 19 |  | Pet Tool, Groom DC28 Part Number: 921001-01 for Dyson | 92100101 | $106.82Read more |
| 20 | Not Available | Dyson vacuum part Low Reach Floor Tool Assy Part Number: # | # | Not Available |
| 21 | No Image | Dyson vacuum part Dyzolv Spot Cleaner Part number: 903888-06 | 90388806 | $29.22Read more |
Report errors on this page HERE
