Schematic and parts list for: Dyson Model: DC39
This is a list of parts and a diagram and schematic for: Dyson model: DC39
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

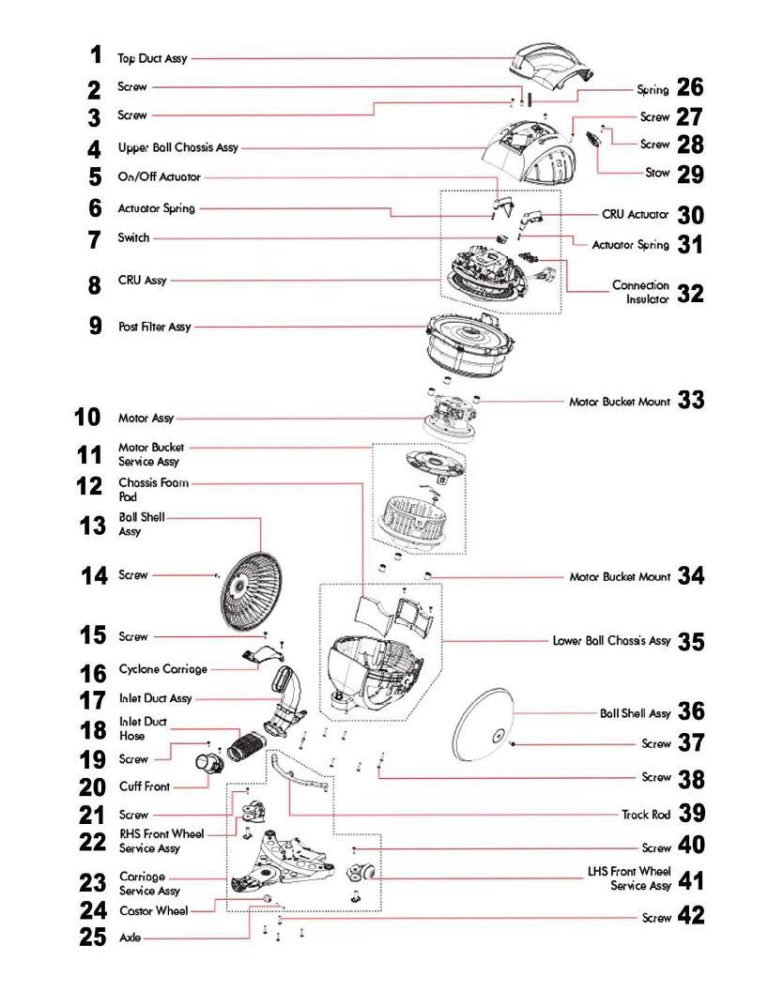

| # | Part image | Description | SKU | Price |
| 1 |  | Duct, Gray Top Assy DC52/DC54/DC78/CY18 Part Number: 923311-05 for Dyson | 92331105 | $33.66Read more |
| 2 |  | Screw, M3/5x16-T15 AB09/AB10/AB11/CY22/CY23/DC18 Part Number: 910703-01 for Dyson | 91070301 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Dyson vacuum part Screw Part Number: Not | Not | Not Available |
| 3 |  | Ball, Upper Chassis Assy DC28C/DC33C/DC37C Part Number: 923312-01 for Dyson | 92331201 | $45.76Read more |
| 4 | | Ball, Upper Chassis Assy DC28C/DC33C/DC37C Part Number: 923312-01 for Dyson | 92331201 | $45.76Read more |
| 5 |  | Actuator, Trans Scarlet On/Off Button, DC28C/DC33C Part Number: 921899-01 for Dyson | 92189901 | $9.37Read more |
| 6 | No Image | Dyson vacuum part Actuator Spring Part number: 919901-43 | 91990143 | $9.37Read more |
| 7 |  | Dyson Switch | DY-91097101 | $9.99Add to cart |
| 8 |  | Cord Reel, Cable Rewind Assy DC28C/DC33C/DC37C Part Number: 923323-05 for Dyson | 92332305 | $115.94Read more |
| 9 |  | Genuine Dyson 92244402 922444-02 post HEPA filter for model DC39 ONLY | 92244402 | $61.00Read more |
| 10 |  | Motor, YDK/DC28/DC33C/DC37C/DC39C/DC41C/DC39 Orign Part Number: 918954-03 for Dyson | 91895403 | $97.62Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Housing, Motor Bucket Serv Assy DC28C/DC33C/DC37C Part Number: 965332-02 for Dyson | 96533202 | $61.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Foam, Chassis Pad DC39/DC52/DC54/DC78/CY18 Part Number: 922461-01 for Dyson | 92246101 | $9.37Read more |
| 13 | No Image | Dyson vacuum part Ball Shell Assy Part number: 923300-02 | 92330002 | $0.00Read more |
| 14 | No Image | Dyson vacuum part S c r e w M 4 X 14 -T 15 Part number: 922048-01 | 92204801 | $0.00Read more |
| 15 |  | Screw, M3.5x16-Phillips AM10/MF01/DC22 Part Number: 914501-01 for Dyson | 91450101 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Carriage, Gray Cyclone DC28C/DC33C/DC37C Part Number: 922176-01 for Dyson | 92217601 | $9.37Read more |
| 17 |  | Duct, Gray Inlet Assy DC28C/DC33C/DC37C Part Number: 923240-01 for Dyson | 92324001 | $33.66Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | Hose, Inlet Duct ,DC39 Part Number: 922081-01 for Dyson | 92208101 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Dyson vacuum part Screw Part Number: Not | Not | Not Available |
| 20 |  | Cuff, Gray Front DC28C/DC33C/DC37C/DC39C Origin Part Number: 922018-01 for Dyson | 92201801 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | | Screw, M3/5x16-T15 AB09/AB10/AB11/CY22/CY23/DC18 Part Number: 910703-01 for Dyson | 91070301 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | Wheel, :( Gry Right Front Service Assy DC39/DC52/D Part Number: 924291-01 for Dyson | 92429101 | $25.34Read more |
| 23 |  | Carriage, :( Gray Service Assembly DC39/DC52/DC54 Part Number: 924292-01 for Dyson | 92429201 | $45.76Read more |
| 24 |  | Wheel, Gray Castor DC22/DC28C/DC33C/DC37C/DC39C Part Number: 907093-01 for Dyson | 90709301 | $9.37Read more |
| 25 |  | Axle, Metal DC39 Part Number: 907838-03 for Dyson | 90783803 | $9.37Read more |
| 26 |  | Spring, DC28C/DC33C/DC37C/DC39C Origin/DC41C/DC39 Part Number: 919901-45 for Dyson | 91990145 | $4.63Read more |
| 27 | Not Available | Dyson vacuum part Screw Part Number: Not | Not | Not Available |
| 28 | | Screw, M3.5x16-Phillips AM10/MF01/DC22 Part Number: 914501-01 for Dyson | 91450101 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | Not Available | Dyson vacuum part Stow Part Number: 921954-01 | 921954-01 | Not Available |
| 30 |  | BUTTON, CORD REWIND DC28, DC33, DC37, DC39, DC41 Part Number: 921900-01 for Dyson | 92190001 | $9.37Read more |
| 31 | No Image | Dyson vacuum part Actuator Spring Part number: 919901-43 | 91990143 | $9.37Read more |
| 32 |  | Insulator, :( Gray Connection Part Number: 911041-01 for Dyson | 91104101 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 |  | Mount, Motor Bucket DC28C/DC33C/DC37C/DC39C Origin Part Number: 921918-01 for Dyson | 92191801 | $9.37Read more |
| 34 | | Mount, Motor Bucket DC28C/DC33C/DC37C/DC39C Origin Part Number: 921918-01 for Dyson | 92191801 | $9.37Read more |
| 35 |  | Ball, Gray Lower Chassis Assembly DC39 Part Number: 923239-01 for Dyson | 92323901 | $45.76Read more |
| 36 | No Image | Dyson vacuum part Ball Shell Assy Part number: 923300-02 | 92330002 | $0.00Read more |
| 37 | No Image | Dyson vacuum part S c r e w M 4 X 14 -T 15 Part number: 922048-01 | 92204801 | $0.00Read more |
| 38 | Not Available | Dyson vacuum part Screw Part Number: Not | Not | Not Available |
| 39 | No Image | Dyson vacuum part T r a c k Rod Part number: 922172-01 | 92217201 | $9.37Read more |
| 40 | | Screw, M3/5x16-T15 AB09/AB10/AB11/CY22/CY23/DC18 Part Number: 910703-01 for Dyson | 91070301 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 |  | Wheel, Gray Left Front Service Assy DC39/DC52/DC54 Part Number: 924290-01 for Dyson | 92429001 | $18.97Read more |
| 42 | | Screw, M3/5x16-T15 AB09/AB10/AB11/CY22/CY23/DC18 Part Number: 910703-01 for Dyson | 91070301 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |

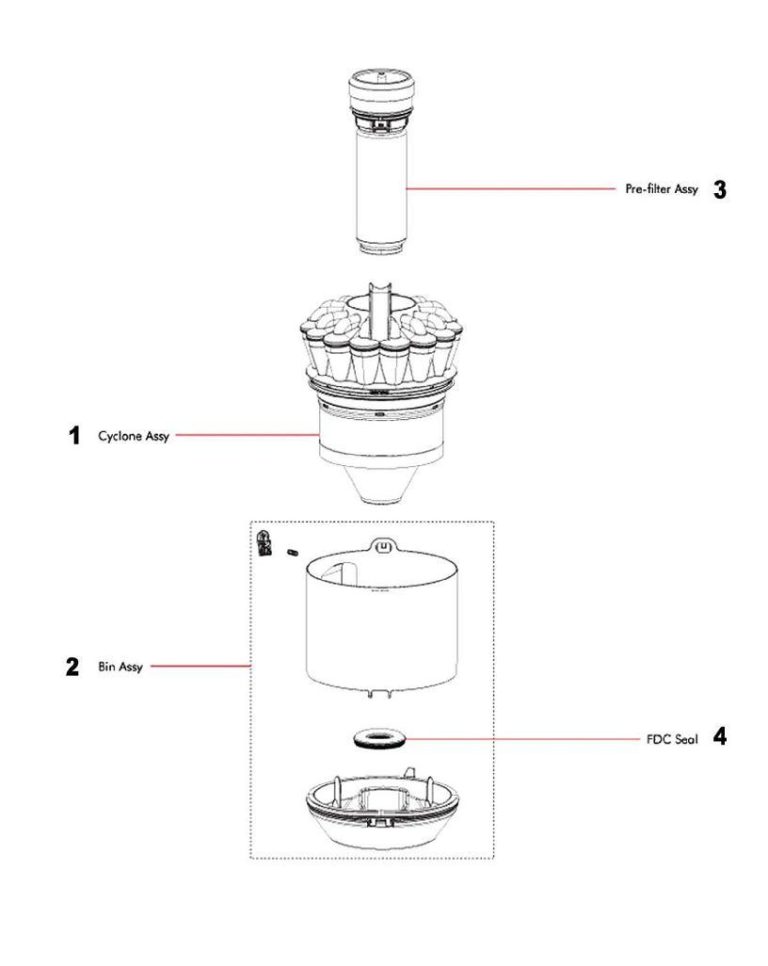

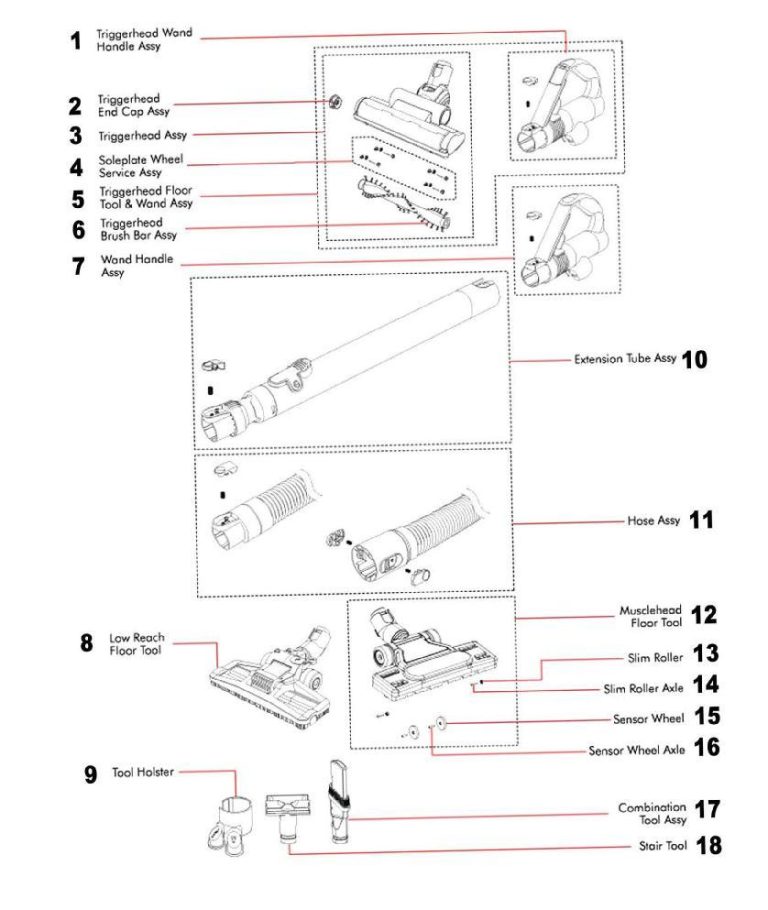

| # | Part image | Description | SKU | Price |
| 1 |  | Cyclone, :( Assembly Satin Royal Yellow DC39 Part Number: 923410-02 for Dyson | 92341002 | $97.62Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 |  | CYCLONE ASSY, DC39 RED Part Number: 923410-03 for Dyson | 92341003 | $97.62Read more |
| 1 |  | CYCLONE ASSY, DC39 BLUE Part Number: 923410-05 for Dyson | 92341005 | $97.62Read more |
| 1 |  | Cylone, :( Assembly Satin Royal Purple DC39 Part Number: 923410-07 for Dyson | 92341007 | $97.62Read more |
| 1 |  | Cyclone, Assembly Satin Fuchsia DC39 Part Number: 923410-09 for Dyson | 92341009 | $97.62Read more |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Dyson vacuum part Satin Silver Cyclone Assy 2 Bin Assy Part number: 923410-13 | 92341013 | $73.10Read more |
| 1 |  | Handle, Wand Trigger DC28C/DC33C/DC37C/DC39C/DC39 Part Number: 923081-01 for Dyson | 92308101 | $45.76Read more |
| 2 |  | Dirt Cup, Clear Bin Assy DC28C/DC33C/DC37C Part Number: 923411-01 for Dyson | 92341101 | $45.76Read more |
| 2 |  | End Cap, Gray Triggerhead Assembly DC28C/DC33C Part Number: 922241-01 for Dyson | 92224101 | $9.37Read more |
| 3 | Not Available | Dyson vacuum part Pre-Filter Assy Part Number: DY-92341301 | DY-92341301 | Not Available |
| 3 | No Image | Dyson Genuine DC39 Nozzle Assembly | WP11427 | $69.99Read more |
| 4 |  | Gasket, FDC Seal DC28C/DC33C/DC37C/DC39C Origin Part Number: 921927-01 for Dyson | 92192701 | $9.37Read more |
| 4 |  | Wheel, Soleplate/Bottom Plate Srv Assy DC28C/DC Part Number: 923830-02 for Dyson | 92383002 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Dyson vacuum part Triggerhead Floor Tool & Wand Assy Part Number: Not | Not | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Dyson vacuum part M a t t r e s s T o o l Assy (Retail Pack) Part number: 908940-05 | 90894005 | $0.00Read more |
| 1 |  | Upholstery Tool, Gray Mattress Part Number: 908887-02 for Dyson | 90888702 | $33.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Dust Brush, :( Universal Stubborn Dirt Part Number: 918508-01 for Dyson | 91850801 | $34.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Dust Brush, Universal Stiff Bristle Assembly Part Number: 918507-05 for Dyson | 91850705 | $32.76Read more |
| 3 | No Image | Dyson vacuum part T a n g l e - f r e e T u r b i n e Tool (Retail Pack) Part number: 925067-02 | 92506702 | $0.00Read more |
| 6 |  | Brushroll, DC39 Part Number: 923179-01 for Dyson | 92317901 | $37.61Read more |
| 7 | Not Available | Dyson vacuum part Wand Handle Assy Part Number: Not | Not | Not Available |
| 8 | Not Available | Dyson vacuum part Low Reach Floor Tool Part Number: Not | Not | Not Available |
| 9 |  | Holder, Gray Tool DC26 Part Number: 918064-01 for Dyson | 91806401 | $25.34Read more |
| 10 |  | Wand, Extension Tube Assembly DC23/DC39/CY18 Part Number: 917260-01 for Dyson | 91726001 | $47.22Read more |
| 11 |  | Hose, Silver Attachment DC39 Part Number: 966252-02 for Dyson | 96625202 | $39.31Read more |
| 12 | No Image | Dyson vacuum part M u s c l e h e a d Floor Tool (Mail O r d e r ) Part number: 963412-01 | 96341201 | $0.00Read more |
| 13 | Not Available | Dyson vacuum part Slim Roller Part Number: Not | Not | Not Available |
| 14 | Not Available | Dyson vacuum part Slim Roller Axle Part Number: Not | Not | Not Available |
| 15 | Not Available | Dyson vacuum part Sensor Wheel Part Number: Not | Not | Not Available |
| 16 | Not Available | Dyson vacuum part Sensor Wheel Axle Part Number: Not | Not | Not Available |
| 17 |  | Combination Tool, DC26/DC39 Part Number: 918068-02 for Dyson | 91806802 | $25.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | Stair Tool, Gray DC22/DC26 Part Number: 914417-01 for Dyson | 91441701 | $19.49Add to cart Product is special order please allow 2-4 weeks for delivery. |

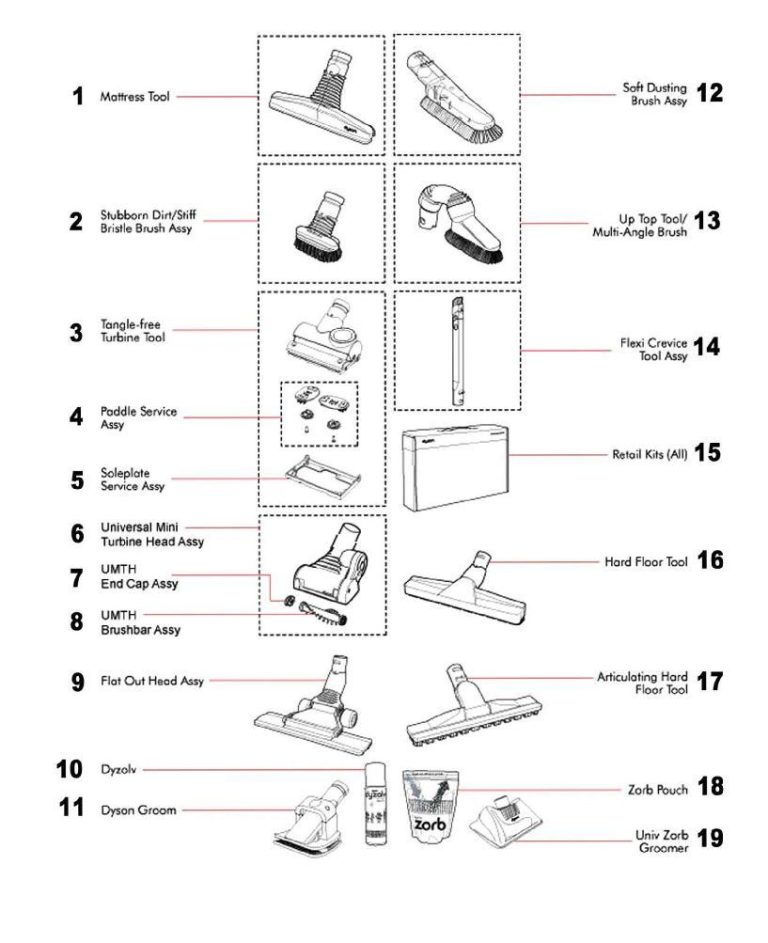

| # | Part image | Description | SKU | Price |
| 3 |  | Dyson Tangle Free Turbo Tool for modern Dyson uprights | 92506706 | $26.99Read more |
| 4 | No Image | SWITCH, TOUCH LAMP Part Number: 6523ASSY for Fitall | 6523ASSY | $30.69Read more |
| 5 | No Image | SWITCH, TOUCH LAMP Part Number: 6523ASSY for Fitall | 6523ASSY | $30.69Read more |
| 6 | Not Available | Dyson vacuum part Part Number: Turbine | Turbine | Not Available |
| 7 | No Image | SWITCH, TOUCH LAMP Part Number: 6523ASSY for Fitall | 6523ASSY | $30.69Read more |
| 8 | No Image | SWITCH, TOUCH LAMP Part Number: 6523ASSY for Fitall | 6523ASSY | $30.69Read more |
| 9 |  | Flat Floor Tool for Dyson DC27 | DY-91461702 | $76.28Read more |
| 10 | No Image | Dyson vacuum part Dyzolv Spot Cleaner Part number: 903888-06 | 90388806 | $29.22Read more |
| 11 | No Image | Dyson vacuum part Dyson Groom (Retail Pack) 19 Dyson Groom (Mail Order) Part number: 921000-02 | 92100002 | $100.10Read more |
| 12 | No Image | SWITCH, TOUCH LAMP Part Number: 6523ASSY for Fitall | 6523ASSY | $30.69Read more |
| 12 | Not Available | Dyson vacuum part Part Number: Dusting | Dusting | Not Available |
| 13 |  | Dust Brush, :( Universal Up Top Tool Assembly Part Number: 917646-01 for Dyson | 91764601 | $53.40Add to cart |
| 13 |  | Dyson Multi-Angle Curved Dusting Brush - 917645-05 | 91764505 | $50.06Add to cart |
| 14 | No Image | SWITCH, TOUCH LAMP Part Number: 6523ASSY for Fitall | 6523ASSY | $30.69Read more |
| 14 | No Image | Collar Tool, Dual Stack Upright DS1600RY/DS1700HY Part Number: COLLARTOOL for Oreck | COLLARTOOL | $345.62Read more |
| 15 |  | Kit, :( Total Gear Part Number: 917743-02 for Dyson | 91774302 | $169.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Upholstery Tool, :( Allergy Kit Part Number: 916130-05 for Dyson | 91613005 | $100.06Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Kit, Home Cleaning Part Number: 912772-05 for Dyson | 91277205 | $92.96Read more |
| 16 | No Image | Collar Tool, Dual Stack Upright DS1600RY/DS1700HY Part Number: COLLARTOOL for Oreck | COLLARTOOL | $345.62Read more |
| 17 |  | Motorized Floor Nozzle for shark model NV681 | 1112FT680 | $85.00Read more |
| 17 |  | Floor Tool, Articulating Dc27/Dc23-Slvr Part Number: 920019-01 for Dyson | 92001901 | $76.28Read more |
| 18 | No Image | Dyson vacuum part Z o r b Pouch 17 Universal Z o r b Part number: 903914-07 | 90391407 | $27.37Read more |
| 19 | Not Available | Dyson vacuum part Univ Zorb Groomer Part Number: Not | Not | Not Available |
