Schematic and parts list for: Dyson Model: DC58 DC61
This is a list of parts and a diagram and schematic for: Dyson model: DC58
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

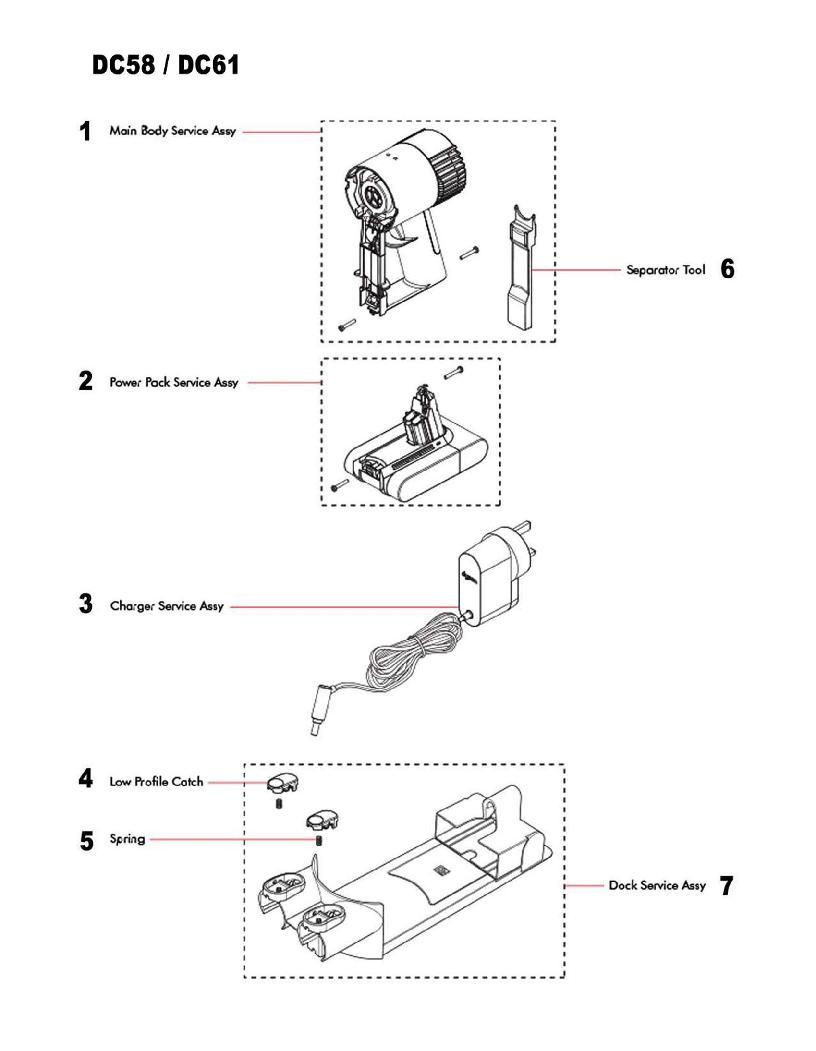

| # | Part image | Description | SKU | Price |
| 1 |  | Body, Gray V6 Main W/Screws Serv Assy DC58/DC61 Part Number: 965774-01 for Dyson | 96577401 | $364.82Read more |
| 2 |  | Aftermarket Dyson Battery Pack 21.6V 3000mAh for DC58 DC59 DC61 DC62 DC72 DC74 SV03 SV05 SV06 SV07 SV09 Animal, V6 | WP10643 | $64.99Add to cart |
| 3 |  | Aftermarket Dyson Charger for V8 V6 DC58 DC59 DC61 DC62 SV03 SV04 SV05 SV06 SV11 | WP11604 | $19.99Add to cart |
| 4 |  | Catch, Gray Low Profile DC58/DC61/DC59 Motorhead Part Number: 965662-01 for Dyson | 96566201 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | NO LONGER AVAILABLE Spring, DC58/DC61/DC59 Motorhead/DC72/SV04/DC59 Part Number: 965667-01 for Dyson | 96566701 | $9.37Read more |
| 6 | Not Available | Dyson vacuum part Separator Tool Part Number: 965691-01 | 965691-01 | Not Available |
| 7 | | Aftermarket Dyson Charger for V8 V6 DC58 DC59 DC61 DC62 SV03 SV04 SV05 SV06 SV11 | WP11604 | $19.99Add to cart |

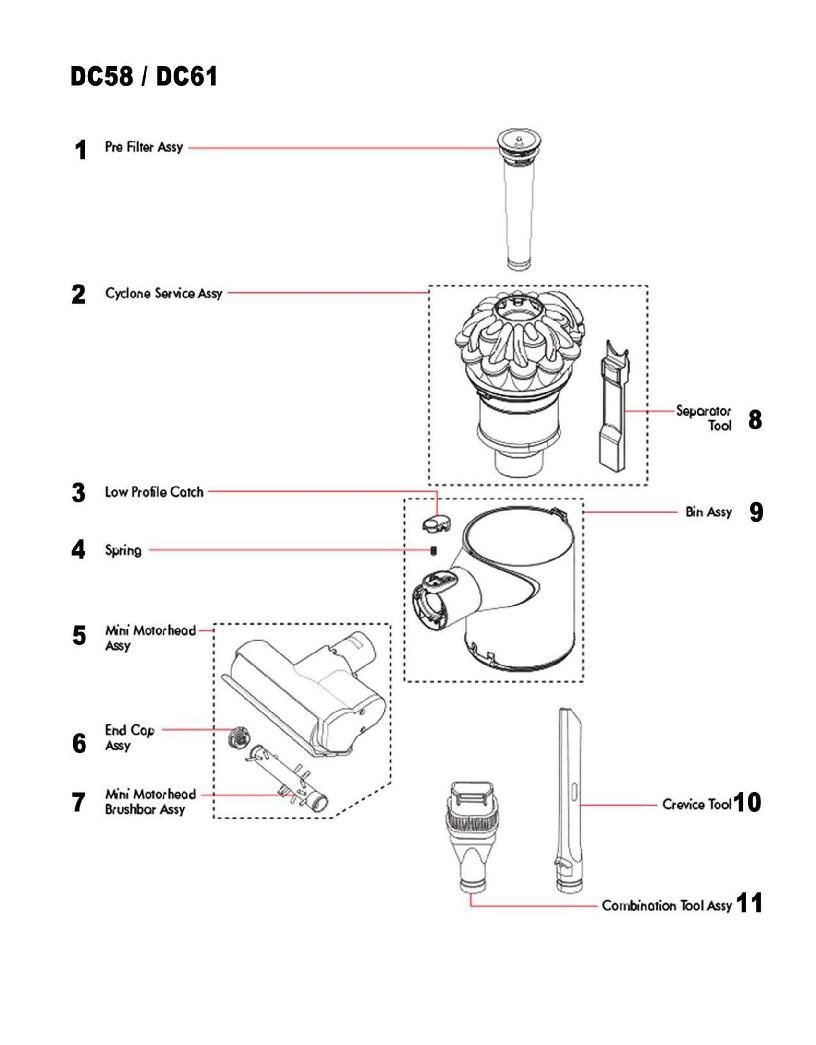

| # | Part image | Description | SKU | Price |
| 1 |  | Dyson Pre-motor Filter for DC58, DC59, and V6 v7 Cordless | 96566101 | $29.15Read more |
| 1 |  | Aftermarket Dyson Pre-motor Filter for DC58, DC59, V6, v8, and SV11 96566101 | WP11269 | $12.99Add to cart |
| 2 |  | Cyclone, Satin Nickel/Iron Service Assy DC58/DC61 Part Number: 965878-02 for Dyson | 96587802 | $44.36Read more |
| 2 |  | Cyclone, Satin Nickel/Purple Service Assy DC58 Part Number: 965878-01 for Dyson | 96587801 | $41.82Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | | Catch, Gray Low Profile DC58/DC61/DC59 Motorhead Part Number: 965662-01 for Dyson | 96566201 | $9.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | | NO LONGER AVAILABLE Spring, DC58/DC61/DC59 Motorhead/DC72/SV04/DC59 Part Number: 965667-01 for Dyson | 96566701 | $9.37Read more |
| 5 | No Image | Dyson vacuum part Mini Motorhead Assy 6 End Cap Part number: 962748-01 | 96274801 | $0.00Read more |
| 6 | No Image | Dyson vacuum part End Cap 7 Mini Motorhead Brushbar Assy Part number: 965666-01 | 96566601 | $0.00Read more |
| 7 |  | Brushroll, Mini Motor Head DC44/DC59/DC62/DC74/V6 Part Number: 923903-01 for Dyson | 92390301 | $25.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Dyson vacuum part Separator Tool Part Number: 965691-01 | 965691-01 | Not Available |
| 9 |  | Dirt Cup, Iron Gray Bin Assy DC58/DC59/DC61/DC62 | DY96566001 | $37.02Read more |
| 10 |  | Crevice Tool, DC58/DC61/DC59 Motorhead/DC72/SV04 Part Number: 965815-01 for Dyson | 96581501 | $31.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Combination Tool, DC24 Part Number: 914361-01 for Dyson | 91436101 | $20.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 1 |  | Genuine Dyson Extension Hose for DC16 DC24 DC30 and DC31 | DY-91270001 | $34.79Read more |
| 2 |  | Dust Brush, :( Universal Stubborn Dirt Part Number: 918508-01 for Dyson | 91850801 | $34.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Dyson Multi-Angle Curved Dusting Brush - 917645-05 | 91764505 | $50.06Add to cart |
| 3 |  | Dust Brush, :( Universal Up Top Tool Assembly Part Number: 917646-01 for Dyson | 91764601 | $53.40Add to cart |
| 4 |  | Kit, Attachment DC35 Part Number: 913049-01 for Dyson | 91304901 | $110.04Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Dust Brush, Clear Soft Bristles Assembly Part Number: 912697-01 for Dyson | 91269701 | $39.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Dyson vacuum part Wide Nozzle Tool (Mail Order) Part number: 912698-02 | 91269802 | $16.17Read more |
| 7 | No Image | Dyson vacuum part Flexi Crevice Tool Assy (Retail Pack) Part number: 908032-06 | 90803206 | $0.00Read more |
| 8 |  | Adaptor, Iron Gray Universal Circle Part Number: 911768-03 for Dyson | 91176803 | $20.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
