Schematic and parts list for: Dyson Model: v8 SV10
This is a list of parts and a diagram and schematic for: Dyson model: SV10
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
We recommend buying your favorite at super low prices with free shipping, https://www.swisswatch.is/product-category/patek-philippe/grand-complications/ and you can also pick up your order at the store on the same day.
Popular Supplies
Helpful Repair Videos

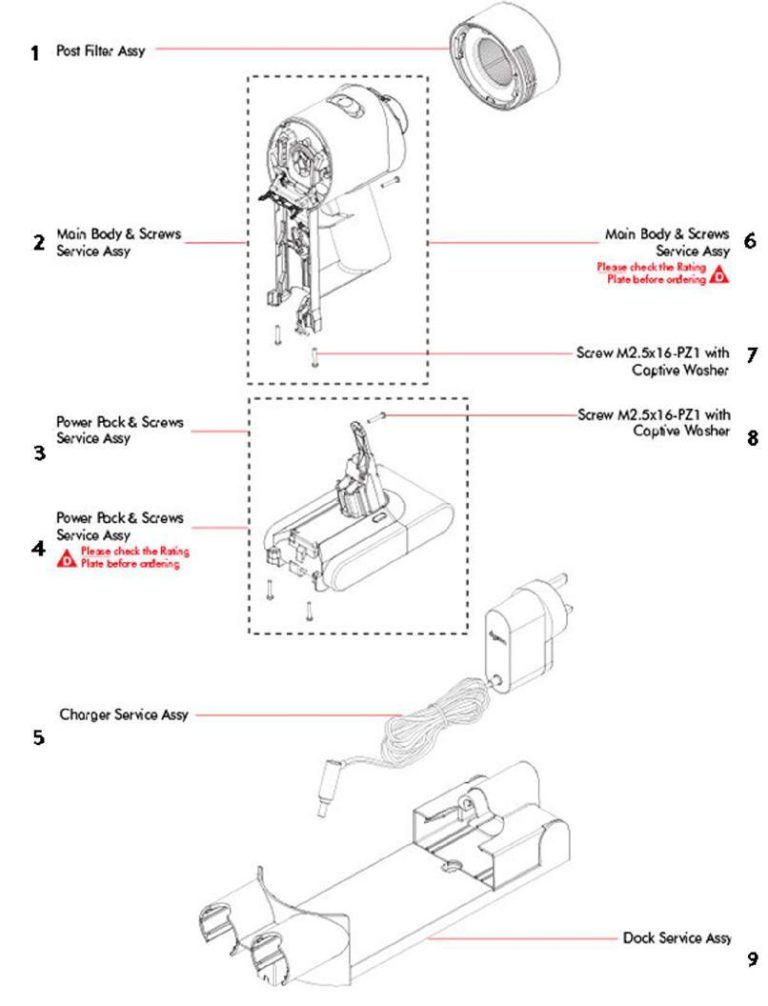

| # | Part image | Description | SKU | Price |
| 1 |  | Aftermarket Dyson Post Motor HEPA Filter for HH11 SV10 SV11 and V8 | WP10943 | $12.99Add to cart |
| 2 |  | Main Motor Housing for Dyson V8 SV10 w/ Motor PCB and Trigger | 96781201 | $76.90Read more |
| 3 | Not Available | Dyson vacuum part Power Pack & Screws Service Part Number: Given | Given | Not Available |
| 4 |  | Aftermarket Dyson V8 (SV10) Battery Pack | DY96783405 | $69.99Add to cart |
| 5 |  | Charger, Iron Gray Service Assembly alternative pns: 64506-07 and 965875-07 | WP11263 | $47.22Read more |
| 6 | Not Available | Dyson vacuum part Main Body & Screws Service Part Number: Given | Given | Not Available |
| 7 | No Image | Dyson vacuum part Screw M2.5X16 PZ1 with Captive Part number: 969216-01 | 96921601 | $0.00Read more |
| 8 | No Image | Dyson vacuum part Screw M2.5X16 PZ1 with Captive Part number: 969216-01 | 96921601 | $0.00Read more |
| 9 | No Image | Dyson vacuum part Doct Service Assy Part number: 967741-01 | 96774101 | $22.58Read more |

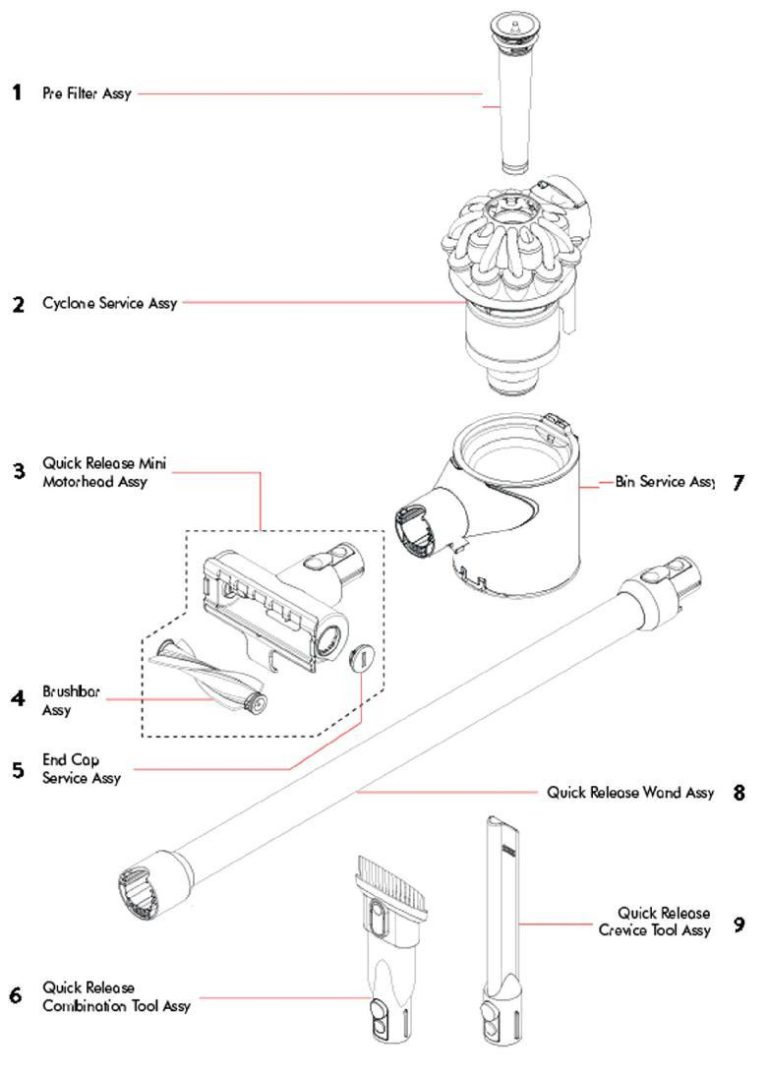

| # | Part image | Description | SKU | Price |
| 1 |  | Dyson Pre-motor Filter for DC58, DC59, and V6 v7 Cordless | 96566101 | $29.15Read more |
| 1 |  | Aftermarket Dyson Pre-motor Filter for DC58, DC59, V6, v8, and SV11 96566101 | WP11269 | $12.99Add to cart |
| 2 |  | Dyson V8 Cyclone Canister for Dyson V8 vacuums | 96769812 | $42.16Read more |
| 3 |  | Motorhead, Mini Motorized Tool SV10/V8 Part Number: 967479-01 for Dyson | 96747901 | $110.12Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Brushroll, Assembly Red Bristles SV10/SV10E Part Number: 967480-01 for Dyson | 96748001 | $20.05Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | End Cap, Service Assembly HH11/SV10/SV11/SV12 Part Number: 967481-01 for Dyson | 96748101 | $9.37Read more |
| 6 |  | Combo Tool, Gray Quick Release Assy HH11/SV10/SV11 Part Number: 967482-01 for Dyson | 96748201 | $30.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Aftermarket Combo Tool, Gray Quick Release for Dyson V7 V8 V10 V11 V15 | 96748201AM | $10.99Add to cart |
| 7 |  | Bin, Iron/Red Service Assembly HH11/SV10/SV11 Part Number: 967699-01 for Dyson | 96769901 | $37.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Dyson vacuum part QR Wand Assy Bu Part number: 967477-01 | 96747701 | $0.00Read more |
| 9 |  | Crevice Tool, Gray Quick Release Assy HH11 Part Number: 967612-01 for Dyson | 96761201 | $35.48Read more |

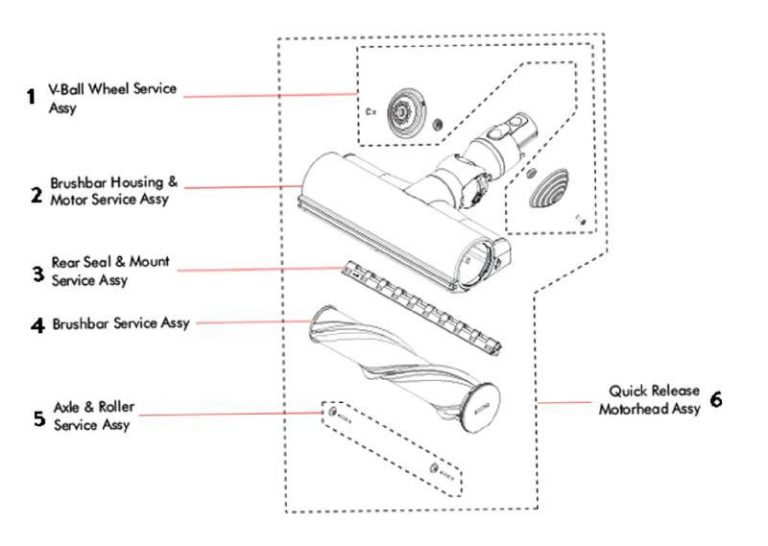

| # | Part image | Description | SKU | Price |
| 1 | No Image | Dyson vacuum part V-Ball Wheel Service Assy Part number: 966817-01 | 96681701 | $0.00Read more |
| 1 |  | Replacement Dyson Power Nozzle power head brush for V7 V8 V10, V11, and V15 Models | WP12204 | $59.99Add to cart |
| 2 |  | Housing, Brushroll Motor Assembly SV10 Part Number: 967487-01 for Dyson | 96748701 | $94.66Read more |
| 3 | No Image | Seal, W/Mount Service Assemble SV10 Part Number: 967486-01 for Dyson | 96748601 | $19.02Read more |
| 4 |  | Replacement Dyson V8 (SV10) Stick Vacuum Brush Roller | WP12205 | $44.36Add to cart |
| 5 | No Image | Dyson vacuum part Axle & Roller Service Assy Part number: 967484-01 | 96748401 | $0.00Read more |
| 5 | No Image | Dyson vacuum part Axle & Roller Service Assy Part number: 967619-01 | 96761901 | $0.00Read more |
| 6 | | Replacement Dyson Power Nozzle power head brush for V7 V8 V10, V11, and V15 Models | WP12204 | $59.99Add to cart |
| 6 |  | Motorhead, Quick Release Assembly SV10 Part Number: 967483-03 for Dyson | 96748303 | $112.42Read more |

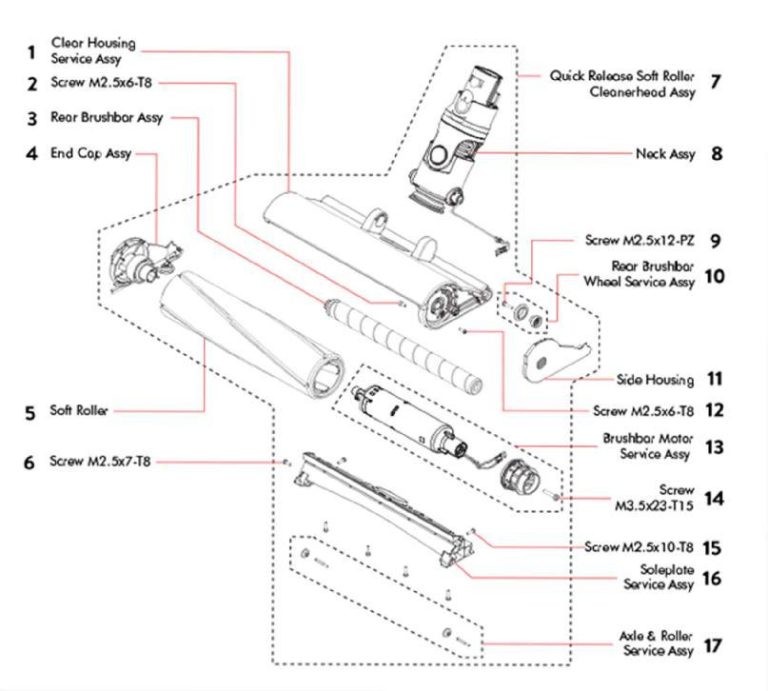

| # | Part image | Description | SKU | Price |
| 1 | No Image | Dyson vacuum part Clear Housing Service Assy Part number: 966682-01 | 96668201 | $0.00Read more |
| 2 | No Image | Dyson vacuum part Screw M2.5x6-T8 Part number: 965832-01 | 96583201 | $0.00Read more |
| 3 |  | BRUSHROLL, :( REAR SV06/SV09 ABSOLUTE/SV10 Part Number: 966492-01 for Dyson | 96649201 | $37.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Dyson vacuum part End Cap Assy Part number: 966490-02 | 96649002 | $0.00Read more |
| 5 |  | Brushroll, Soft Cordless HH08/SV06/09/SV10/SV11 Part Number: 966488-01 for Dyson | 96648801 | $59.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | SCREW, M2.5X7-T8 Part Number: 910703-21 for Dyson | 91070321 | $4.63Read more |
| 7 |  | Dyson Soft Fluffy Cleaner Head V8 Models Part No.966489-04 | 96648904 | $0.00Read more |
| 8 | No Image | Dyson vacuum part Neck Assy Part number: 966494-02 | 96649402 | $0.00Read more |
| 9 | No Image | Dyson vacuum part Screw M2.5x12-PZ Part number: 966079-01 | 96607901 | $0.00Read more |
| 10 | No Image | Dyson vacuum part Rear Brushbar Wheel Service Assy Part number: 966680-01 | 96668001 | $0.00Read more |
| 11 | No Image | Dyson vacuum part Side Housing Part number: 966496-01 | 96649601 | $0.00Read more |
| 12 | No Image | Dyson vacuum part Screw M2.5x6-T8 Part number: 965832-01 | 96583201 | $0.00Read more |
| 13 | No Image | Dyson vacuum part Brushbar Motor Service Assy Part number: 966792-02 | 96679202 | $0.00Read more |
| 14 | Not Available | Dyson vacuum part Screw M3.5x23-T15 Part Number: Given | Given | Not Available |
| 15 | No Image | Dyson vacuum part Screw M2.5x10-T8 Part number: 910703-22 | 91070322 | $0.00Read more |
| 16 |  | Dyson Sole Plate Service Assembly for V10 Absolute Stick Vaccum | 96668101 | $25.34Read more |
| 17 | No Image | Dyson vacuum part Axle & Roller Service Assy Part number: 967484-01 | 96748401 | $0.00Read more |

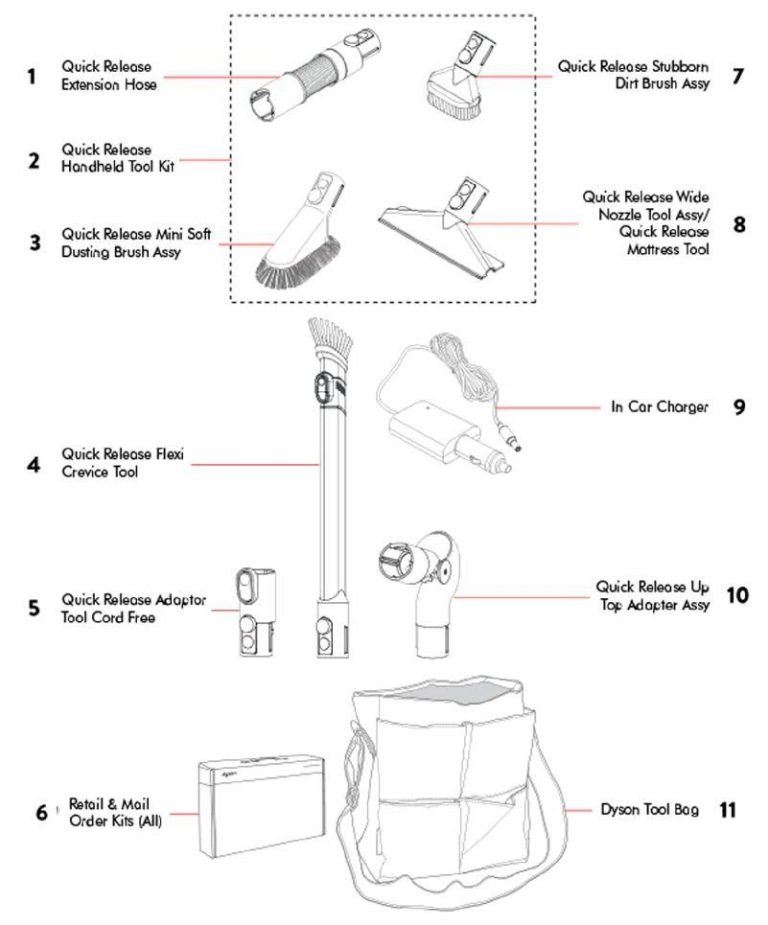

| # | Part image | Description | SKU | Price |
| 1 |  | Hose, :( Quick Release Extension SV10 Part Number: 967490-01 for Dyson | 96749001 | $31.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Tool Kit, Qck Release Handheld HH11/SV10/11/SV10E Part Number: 967768-01 for Dyson | 96776801 | $44.70Read more |
| 3 | No Image | Dyson vacuum part QR Mini Soft Dusting Brush Assy Part number: 967669-01 | 96766901 | $0.00Read more |
| 3 |  | Dusting Brush, Soft Mini QR MO HH11/SV10/SV11/SV12 Part Number: 967766-01 for Dyson | 96776601 | $33.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Crevice Tool, 2-Pc Flexible Quick Release V7-8/V10 Part Number: 968433-01 for Dyson | 96843301 | $39.52Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Adaptor Tool, Quick Release Cord F Part Number: 968235-01 for Dyson | 96823501 | $20.05Read more |
| 6 | | Tool Kit, Qck Release Handheld HH11/SV10/11/SV10E Part Number: 967768-01 for Dyson | 96776801 | $44.70Read more |
| 7 |  | Brush, Stubborn Dirt QR | DY96776501 | $45.34Read more |
| 8 | No Image | Dyson vacuum part QR Wide Nozzle Tool Part number: 967488-01 | 96748801 | $0.00Read more |
| 8 | No Image | Dyson vacuum part QR Mattress Tool MO Part number: 967763-01 | 96776301 | $20.33Read more |
| 9 | No Image | Dyson vacuum part In Car Charger Part number: 967837-02 | 96783702 | $0.00Read more |
| 10 |  | Quick Release Up-top adaptor | DY96776201 | $85.56Read more |
| 11 |  | Tool Bag, Holds Tools For All Dyson Models Part Number: 965530-01 for Dyson | 96553001 | $61.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
