Schematic and parts list for: Dyson Model: SV11 V7
This is a list of parts and a diagram and schematic for: Dyson model: SV11
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
![](https://www.vacuumsrus.com/wp-content/uploads/2024/06/SV11_V7-Schematic_Complete_a-parts-book-list-1x1-1-709x1024.jpg)
![](https://www.vacuumsrus.com/wp-content/uploads/2024/06/SV11_V7-Schematic_Complete_a-parts-book-list-5x1-1-782x1024.jpg)
![](https://www.vacuumsrus.com/wp-content/uploads/2024/06/SV11_V7-Schematic_Complete_a-parts-book-list-9x1-1.jpg)
![](https://www.vacuumsrus.com/wp-content/uploads/2024/06/SV11_V7-Schematic_Complete_a-parts-book-list-12x1-1.jpg)
![](https://www.vacuumsrus.com/wp-content/uploads/2024/06/SV11_V7-Schematic_Complete_a-parts-book-list-15x1-1.jpg)
Popular Supplies
Product is special order please allow 2-4 weeks for delivery.
$59.16Add to cart
Helpful Repair Videos
![](https://www.vacuumsrus.com/wp-content/uploads/2024/06/SV11_V7-Schematic_Complete_a-parts-book-list-1x1-1-709x1024.jpg)

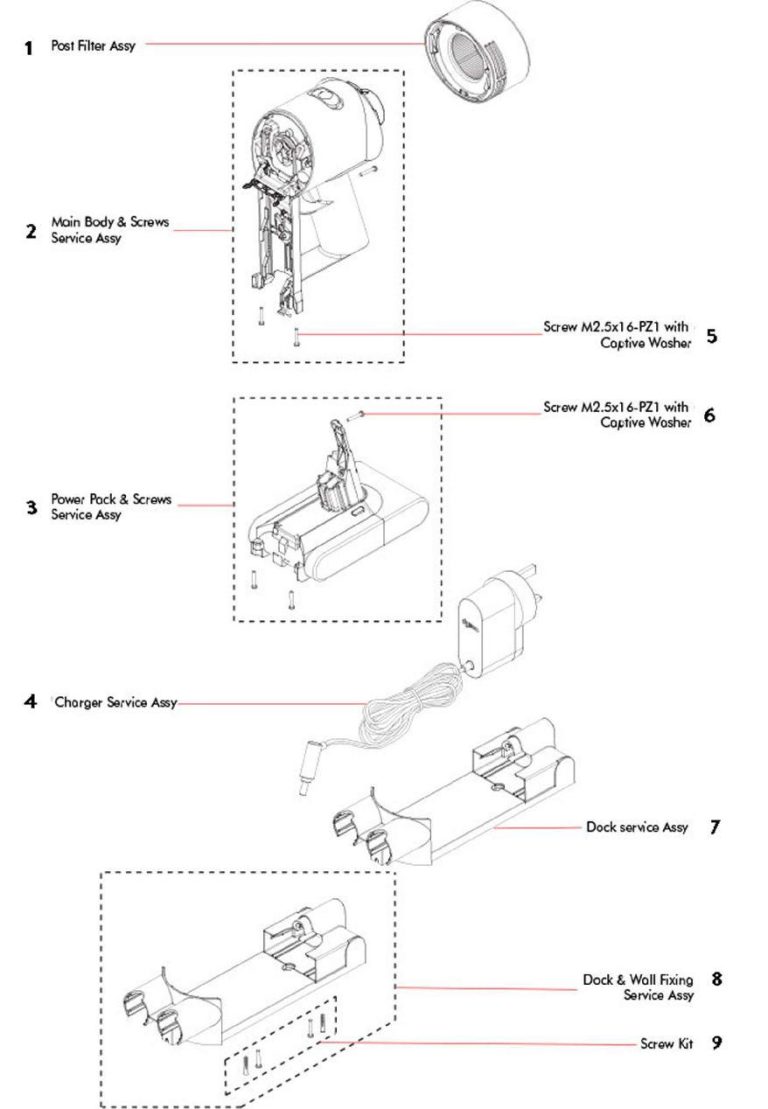

# | Part image | Description | SKU | Price |
1 | ![]() | Aftermarket Dyson Post Motor HEPA Filter for HH11 SV10 SV11 and V8 | WP10943 | $12.99Add to cart |
2 | No Image | Dyson vacuum part V7 HEPA Main Body & Screws Part number: 968676-01 | 96867601 | $0.00Read more |
3 | ![]() | Aftermarket Dyson Battery Pack for Dyson V7, HH11, and SV11 | WP11275 | $59.99Read more |
4 | ![]() | Charger, Iron Gray Service Assembly alternative pns: 64506-07 and 965875-07 | WP11263 | $47.22Read more |
5 | No Image | Dyson vacuum part Screw M2.5X16 PZ1 with Captive Part number: 969216-01 | 96921601 | $0.00Read more |
6 | No Image | Dyson vacuum part Screw M2.5X16 PZ1 with Captive Part number: 969216-01 | 96921601 | $0.00Read more |
7 | No Image | Dyson vacuum part Doct Service Assy Part number: 967741-01 | 96774101 | $22.58Read more |
8 | ![]() | Mount, Wall Assembly SV10/SV11 Part Number: 967741-02 for Dyson | 96774102 | $35.61Read more |
9 | No Image | Dyson vacuum part Screw Kit Part number: 968019-01 | 96801901 | $0.00Read more |
![](https://www.vacuumsrus.com/wp-content/uploads/2024/06/SV11_V7-Schematic_Complete_a-parts-book-list-5x1-1-782x1024.jpg)

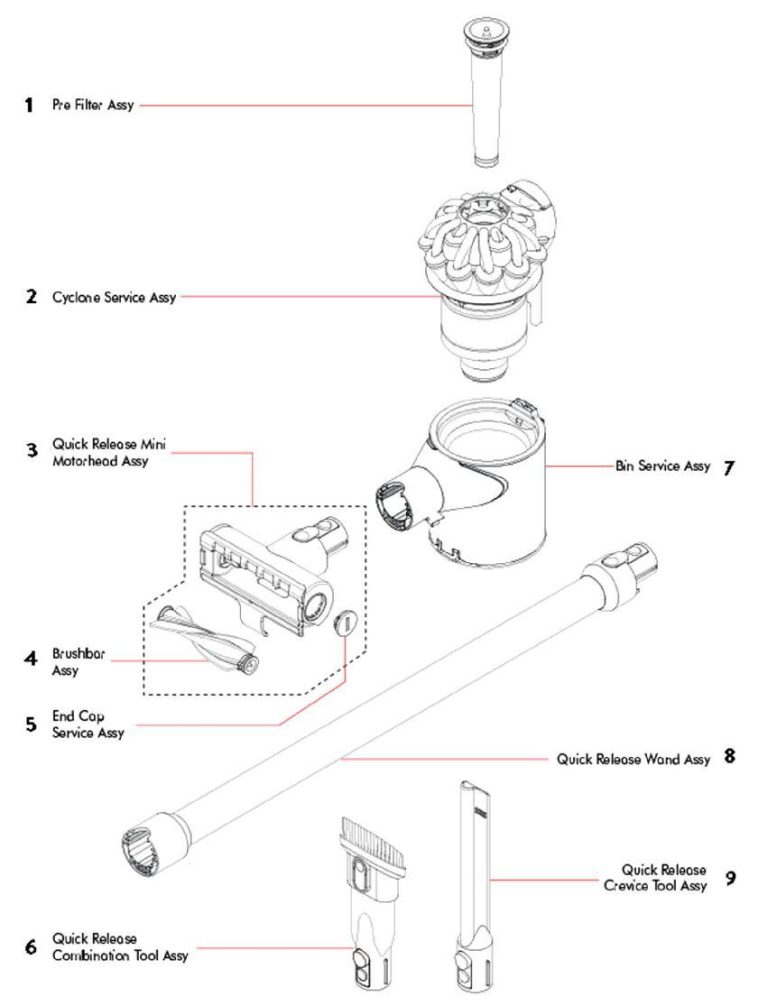

# | Part image | Description | SKU | Price |
1 | ![]() | Dyson Pre-motor Filter for DC58, DC59, and V6 v7 Cordless | 96566101 | $29.15Read more |
1 | ![]() | Aftermarket Dyson Pre-motor Filter for DC58, DC59, V6, v8, and SV11 96566101 | WP11269 | $12.99Add to cart |
2 | No Image | Dyson vacuum part Cyclone Service Assy Wh/Rd/Ir Part number: 967698-06 | 96769806 | $0.00Read more |
3 | ![]() | Dyson Mini Motorized Turbine Head for V7 | 96747904 | $110.12Read more |
4 | ![]() | Brushroll, Assembly Carbon Fiber DC59 4 Pr Part Number: 967157-01 for Dyson | 96715701 | $39.31Read more |
5 | No Image | Dyson vacuum part End Cap Assy Part number: 966490-02 | 96649002 | $0.00Read more |
6 | ![]() | Combo Tool, Gray Quick Release Assy HH11/SV10/SV11 Part Number: 967482-01 for Dyson | 96748201 | $30.27Add to cart Product is special order please allow 2-4 weeks for delivery. |
6 | ![]() | Aftermarket Combo Tool, Gray Quick Release for Dyson V7 V8 V10 V11 V15 | 96748201AM | $10.99Add to cart |
7 | ![]() | Bin, Iron/Red Service Assembly HH11/SV10/SV11 Part Number: 967699-01 for Dyson | 96769901 | $37.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
8 | No Image | Dyson vacuum part QR Wand Assy Bu Part number: 967477-01 | 96747701 | $0.00Read more |
9 | ![]() | Crevice Tool, Gray Quick Release Assy HH11 Part Number: 967612-01 for Dyson | 96761201 | $35.48Read more |
![](https://www.vacuumsrus.com/wp-content/uploads/2024/06/SV11_V7-Schematic_Complete_a-parts-book-list-9x1-1.jpg)

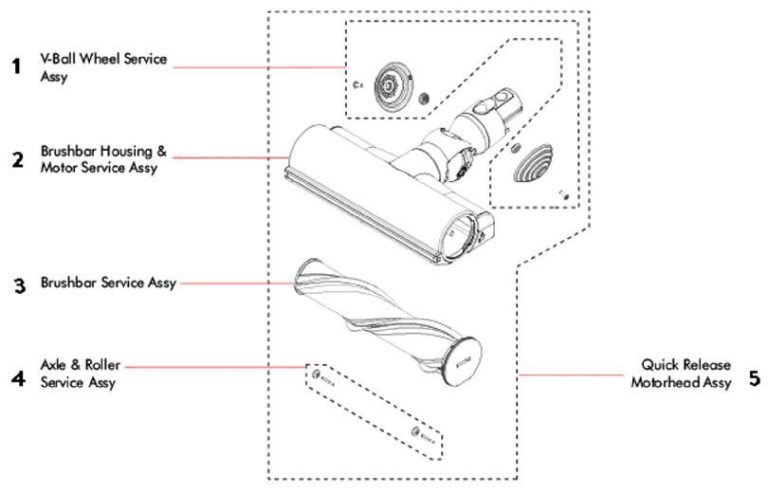

# | Part image | Description | SKU | Price |
1 | No Image | Dyson vacuum part V-Ball Wheel Service Assy Part number: 966817-01 | 96681701 | $0.00Read more |
1 | ![]() | Replacement Dyson Power Nozzle power head brush for V7 V8 V10, V11, and V15 Models | WP12204 | $0.00Add to cart |
2 | Not Available | Dyson vacuum part Brushbar Housing & Motor Service Assy Part Number: Given | Given | Not Available |
3 | ![]() | Brushroll, Assembly Carbon Fiber DC59 4 Pr Part Number: 967157-01 for Dyson | 96715701 | $39.31Read more |
4 | No Image | Dyson vacuum part Axle & Roller Service Assy Part number: 967484-01 | 96748401 | $0.00Read more |
5 | No Image | Dyson Motor Head for Stick Vacuums | WP11421 | $99.99Read more |
![](https://www.vacuumsrus.com/wp-content/uploads/2024/06/SV11_V7-Schematic_Complete_a-parts-book-list-12x1-1.jpg)
# | Part image | Description | SKU | Price |
1 | Not Available | Dyson vacuum part Screw M2.5x10-T8 Part Number: Given | Given | Not Available |
2 | No Image | Dyson vacuum part Rear Soleplate Service Assy Part number: 968473-01 | 96847301 | $0.00Read more |
3 | No Image | Dyson vacuum part End Cap Assy Part number: 966490-02 | 96649002 | $0.00Read more |
4 | ![]() | Brushroll, Soft Cordless HH08/SV06/09/SV10/SV11 Part Number: 966488-01 for Dyson | 96648801 | $59.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
5 | ![]() | Cleanerhead, Soft Roller Assy Quick Release SV11~ Part Number: 966489-08 for Dyson | 96648908 | $124.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
6 | No Image | Dyson vacuum part Screw M2.5x6-T8 Part number: 965832-0 | 9658320 | $0.00Read more |
7 | No Image | Dyson vacuum part Brushbar Motor Service Assy Part number: 966792-03 | 96679203 | $0.00Read more |
8 | No Image | Dyson vacuum part Axle & Roller Service Assy Part number: 967484-01 | 96748401 | $0.00Read more |
![](https://www.vacuumsrus.com/wp-content/uploads/2024/06/SV11_V7-Schematic_Complete_a-parts-book-list-15x1-1.jpg)

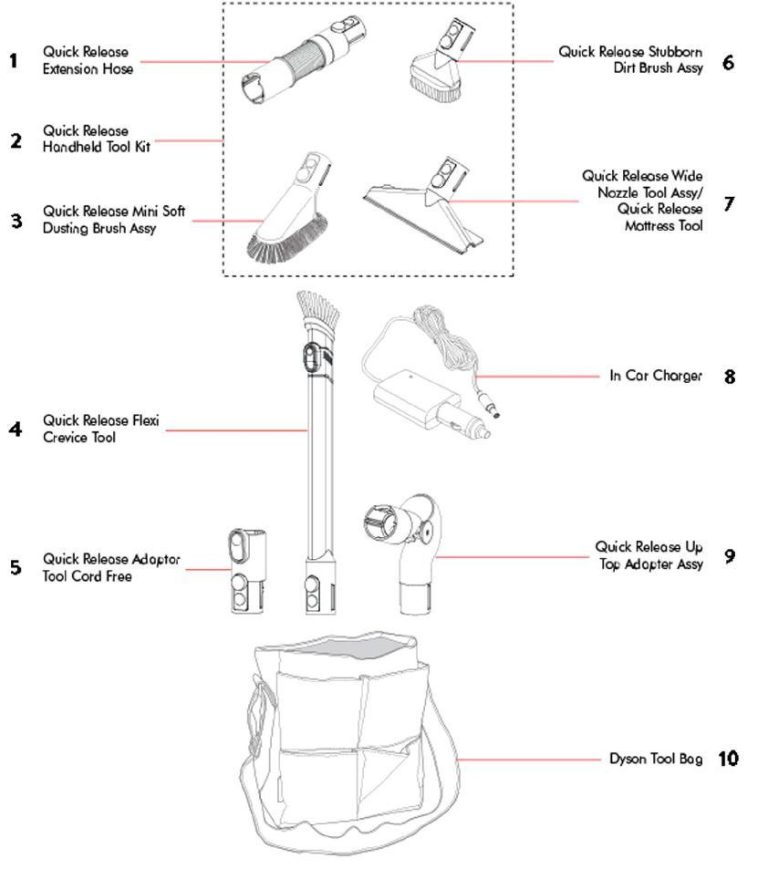

# | Part image | Description | SKU | Price |
1 | ![]() | Hose, :( Quick Release Extension SV10 Part Number: 967490-01 for Dyson | 96749001 | $31.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
2 | ![]() | Tool Kit, Qck Release Handheld HH11/SV10/11/SV10E Part Number: 967768-01 for Dyson | 96776801 | $44.70Read more |
3 | ![]() | Dusting Brush, Soft Mini QR MO HH11/SV10/SV11/SV12 Part Number: 967766-01 for Dyson | 96776601 | $33.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
4 | ![]() | Crevice Tool, 2-Pc Flexible Quick Release V7-8/V10 Part Number: 968433-01 for Dyson | 96843301 | $39.52Add to cart Product is special order please allow 2-4 weeks for delivery. |
5 | ![]() | Adaptor Tool, Quick Release Cord F Part Number: 968235-01 for Dyson | 96823501 | $20.05Read more |
6 | ![]() | Brush, Stubborn Dirt QR | DY96776501 | $45.34Read more |
7 | Not Available | Dyson vacuum part QR Release Wide Nozzle Tool Assy/Quick Release Mattress Part Number: Given | Given | Not Available |
8 | No Image | Dyson vacuum part In Car Charger Part number: 967837-02 | 96783702 | $0.00Read more |
9 | ![]() | Quick Release Up-top adaptor | DY96776201 | $85.56Read more |
10 | ![]() | Tool Bag, Holds Tools For All Dyson Models Part Number: 965530-01 for Dyson | 96553001 | $61.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
Report errors on this page HERE
