Schematic and parts list for: Eureka Model: 2970
This is a list of parts and a diagram and schematic for: Eureka Model: 2970
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
Popular Supplies

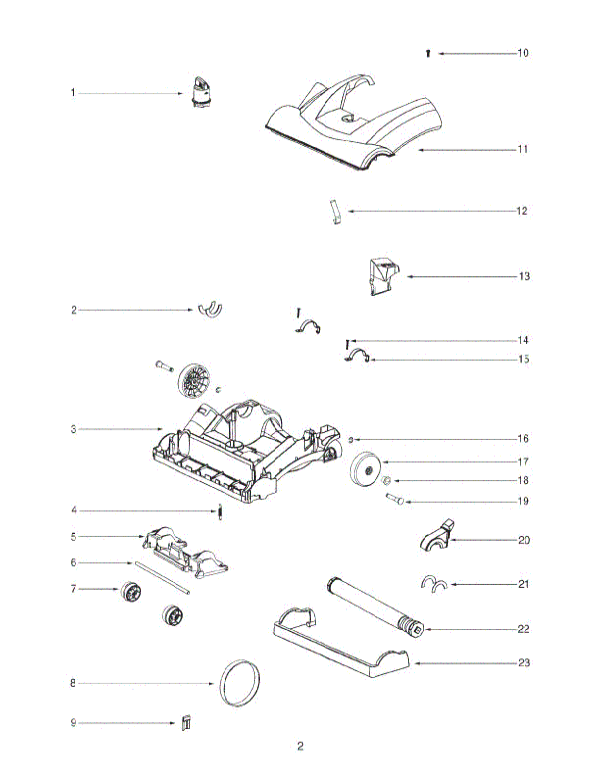

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Knob - Height Adjustment | 72472-355N | Not Available |
| 02 | Not Available | Eureka Felt - Base | 73114 | Not Available |
| 03 | Not Available | Eureka Base Assembly - Packaged Includes Items 1,2,4,5,6,7,9,12,13,16,17,18 & 19 | 62090-1 | Not Available |
| 04 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $12.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 | Not Available | Eureka Wheel Carriage | 72521-119N | Not Available |
| 06 |  | Axle, Front SC5713/SC5815/SC5845 Uprights Part Number: 71478 for Eureka | 71478 | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 07 |  | Wheel, Front 5191/5847AV Part Number: 39173A119N for Eureka | 39173A119N | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 08 |  | Eureka Extended U belt aftermarket pn: 61120F | 20310801 | $9.99Add to cart |
| 09 |  | Axle, Rear 68C7 Upright/12B1 PowerForce Helix Part Number: 203-8063 for Bissell | 2038063 | $4.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Screw, Bottom Plate Part Number: 54669-2 for Eureka | 546692 | $9.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Eureka Hood Assembly - Packaged | 62091-5 | Not Available |
| 12 |  | SPRING, HANDLE RELEASE 2903 Part Number: 71574 for Eureka | 71574 | $5.30Read more |
| 13 | Not Available | Eureka Handle Release | 72473-355N | Not Available |
| 14 | Not Available | Eureka Screw Package | 53238-27 | Not Available |
| 15 | No Image | Clamp, Motor Part Number: 71487 for Eureka | 71487 | $8.52Read more |
| 16 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Eureka Wheel - Rear | 72117-119N | Not Available |
| 18 | Not Available | Eureka Bushing - Axle | 73432 | Not Available |
| 19 |  | Axle, Rear 4458A/4468A/4499A/2903A/2905A Part Number: 38590A for Eureka | 38590A | $8.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Eureka Belt Cap Assembly Includes Item 21 | 73289 | Not Available |
| 21 | Not Available | Eureka Felt - Base | 73114 | Not Available |
| 22 | Not Available | Eureka Brushroll Assembly - Cart | 62228-3 | Not Available |
| 23 | No Image | BUMPER, 2924AV Part Number: 73150-355N for Eureka | 73150355N | $6.66Read more |

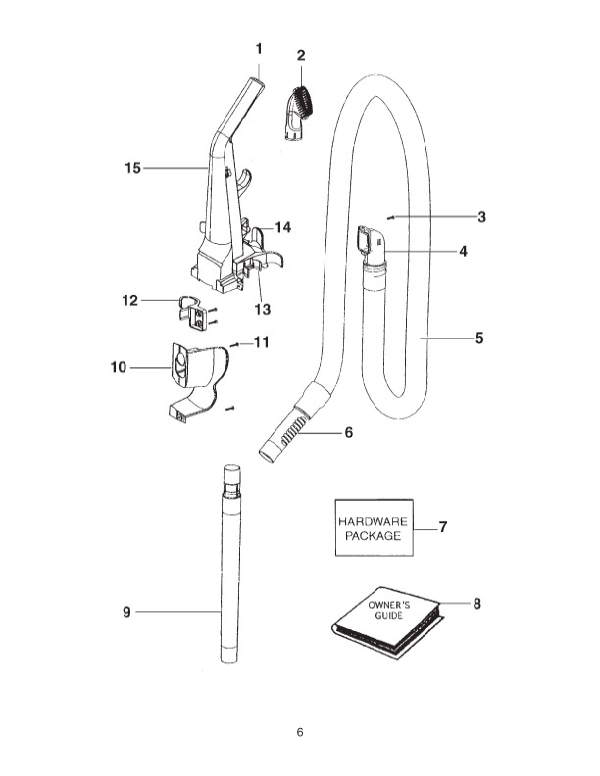

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Cap - Handle | 72221-374M | Not Available |
| 02 |  | Adapter Wand Lower Bissell repair part number: 1609902 | 1609902 | $2.97Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 03 | Not Available | Eureka Screw Package Pkg. Of 10 | 53238-27 | Not Available |
| 04 | Not Available | Eureka Hose Adapter Assembly | 74093 | Not Available |
| 05 | Not Available | Eureka Hose Assembly - Cartoned | 62293-2 | Not Available |
| 06 | Not Available | Eureka Coupling - Hose | 28472A-355N | Not Available |
| 07 | Not Available | Eureka Package - Hardware | 73012 | Not Available |
| 08 | Not Available | Eureka Owner's Guide | 74149 | Not Available |
| 09 | Not Available | Eureka Nesting Wand Assembly Includes 71973-119N Outer Wand And 71956A-355N Crevice Wand | 71492A | Not Available |
| 10 | Not Available | Eureka Lower Hose Holder | 73649-355N | Not Available |
| 11 | Not Available | Eureka Screw Package Pkg. Of 10 | 53238-27 | Not Available |
| 12 | Not Available | Eureka Hose Hook | 74217-355N | Not Available |
| 13 | Not Available | Eureka Clip - Wand | 73694-355N | Not Available |
| 14 | Not Available | Eureka Hook - Cord | 39977-355N | Not Available |
| 15 | Not Available | Eureka Handle Assembly | 73710 | Not Available |

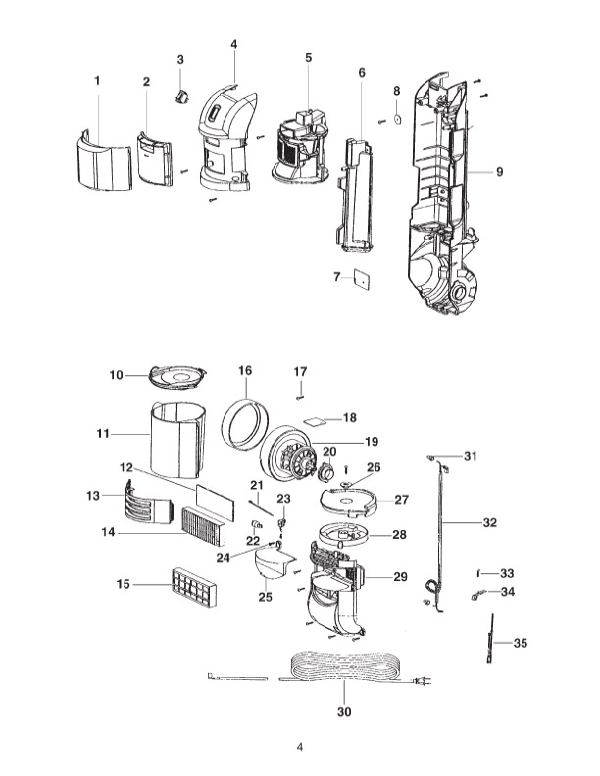

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Filter Door & Graphics Assembly | 74119-1 | Not Available |
| 02 |  | Eureka 74482A Style "DCF-9" Vacuum Dust Cup Filter | 023169116450 | $9.95Read more |
| 03 | Not Available | Eureka Switch - Rocker | 39455-1 | Not Available |
| 04 | Not Available | Eureka Cyclone Cover Assembly | 74099 | Not Available |
| 05 | Not Available | Eureka Cyclone Assembly | 74098 | Not Available |
| 06 | Not Available | Eureka Air Duct Assembly | 74092 | Not Available |
| 07 | Not Available | Eureka Shield - Wiring | 74169 | Not Available |
| 08 | Not Available | Eureka Washer - Fiber | 74178 | Not Available |
| 09 | Not Available | Eureka Rear Housing Assembly | 74096 | Not Available |
| 10 | Not Available | Eureka Cup Lid Assembly | 74094 | Not Available |
| 11 | Not Available | Eureka Dust Cup Assembly - Packaged | 73301-357N | Not Available |
| 13 | Not Available | Eureka Exhaust Fltr Door&Grphcs | 74333-2 | Not Available |
| 15 |  | Filter, HF7 HEPA Allergen 2270 2900 Series Exhaust Part Number: 61850F for Eureka | 61850F | $16.76Read more |
| 16 | Not Available | Eureka Gasket - Motor Can | 72476-119N | Not Available |
| 17 | Not Available | Eureka Screw Package Pkg. Of 10 | 62082 | Not Available |
| 18 | Not Available | Eureka Shield - Motor | 73526 | Not Available |
| 19 | Not Available | Eureka Motor Assembly - Ctnd | 62075-1 | Not Available |
| 20 | Not Available | Eureka Bushing - Motor | 72650-119N | Not Available |
| 21 | Not Available | Eureka Tie - Cable (Purchased) | 46713-3 | Not Available |
| 22 | Not Available | Eureka Lamp - Headlight | 57940-3 | Not Available |
| 23 | Not Available | Eureka Headlight Assembly | 38828B-5 | Not Available |
| 24 | | Screw, Bottom Plate Part Number: 54669-2 for Eureka | 546692 | $9.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | Eureka Opaque Lens Cover | 73313-357N | Not Available |
| 26 | Not Available | Eureka Cap - Elevator | 73704-355N | Not Available |
| 27 | Not Available | Eureka Platform - Cup | 73623-355N | Not Available |
| 28 | Not Available | Eureka Actuator - Cup | 73624-355N | Not Available |
| 29 | Not Available | Eureka Motor Cover & Graphics Assembly | 74335-2 | Not Available |
| 30 | Not Available | Eureka Supply Cord & Terminal Assembly | 39585-5 | Not Available |
| 31 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| 32 | Not Available | Eureka Cord & Terminal Assembly | 73001-1 | Not Available |
| 33 | Not Available | Eureka Screw Package | 61803-3 | Not Available |
| 34 | No Image | CLIP, THERMOSTAT 2903AE Part Number: 72443 for Eureka | 72443 | $4.55Read more |
| 35 | Not Available | Eureka Thermostat & Terminal Assembly | 74719 | Not Available |
