Schematic and parts list for: Eureka Model: 297A
This is a list of parts and a diagram and schematic for: Eureka Model: 297A
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

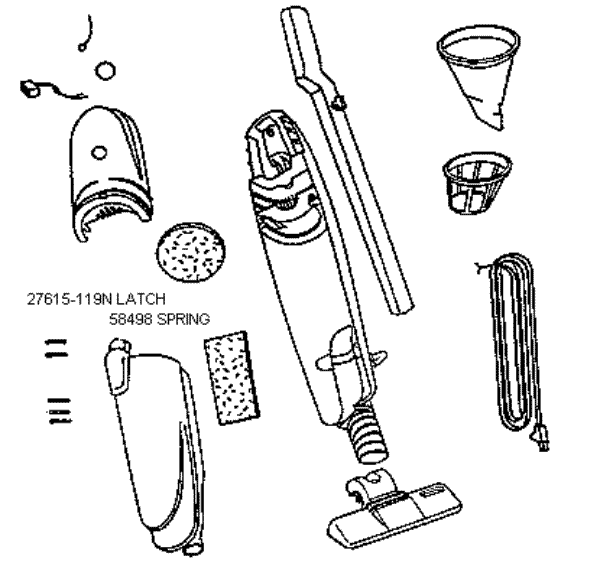

Parts for: Stick Vac
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Eureka Rear Housing | 02144-119N | Not Available |
| 2 | Not Available | Eureka Support - Filter | 15212-119N | Not Available |
| 3 | Not Available | Eureka Latch | 27615-119N | Not Available |
| 4 | Not Available | Eureka Switch | 38148-1 | Not Available |
| 5 | Not Available | Eureka Knob-Control | 38566A-119N | Not Available |
| 6 | Not Available | Eureka Supply Cord Assembly | 38588-2 | Not Available |
| 7 | Not Available | Eureka Wire & Terminal Assembly | 38589-2 | Not Available |
| 8 | Not Available | Eureka Final Filter | 38596 | Not Available |
| 9 | Not Available | Eureka Sound Foam | 38599 | Not Available |
| 10 | No Image | HANDLE ASSY, 274A BROOM Part Number: 38649-1 for Eureka | 386491 | $16.20Read more |
| 11 | Not Available | Eureka Floor Tool | 39134-5 | Not Available |
| 12 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 13 | Not Available | Eureka Filter Assembly | 54865 | Not Available |
| 14 |  | Night Blue Mettler silk finish egyptian cotton 50WT (164 yd) thread spool. 9105-0823 alternate: 10550-0957 | 91050823 | $3.25Add to cart |
| 15 | Not Available | Eureka Dirt Cup & Graphics - Package | 60013-7 | Not Available |
| 16 | Not Available | Eureka Motor Cover - Packaged | 60014-6 | Not Available |

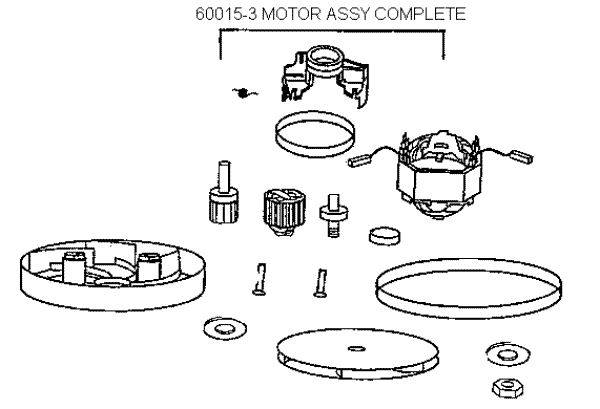

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Eureka Fan - Stationary | 15214-1 | Not Available |
| 2 | Not Available | Eureka End Cap (Commutator) | 15216 | Not Available |
| 3 | No Image | SPRING, CARBON BRUSH 180A BROOM Part Number: 38038 for Eureka | 38038 | $2.29Read more |
| 4 | Not Available | Eureka Suction Fan | 38585 | Not Available |
| 5 |  | Bearing, 8MM Common/Fits Many Motors Part Number: 530885 for Eureka | 530885 | $18.79Read more |
| 6 | Not Available | Eureka Screws - Package 10 | 53237-8 | Not Available |
| 7 | No Image | RUBBER BAND, WET/DRY VAC 3 PK 2827A Part Number: 54796 for Eureka | 54796 | $6.66Read more |
| 8 | Not Available | Eureka Spacer | 56453 | Not Available |
| 9 | Not Available | Eureka Washer | 56467 | Not Available |
| 10 | Not Available | Eureka Gasket - Motor Stack | 57364 | Not Available |
| 11 | Not Available | Eureka Washer Spring | 57529 | Not Available |
| 12 | Not Available | Eureka Cup - Bearing | 58491 | Not Available |
| 13 | No Image | MOTOR, ASS'Y BROOM 296 Part Number: 60015-3 for Eureka | 600153 | $61.84Read more |
| 14 | Not Available | Eureka Field Assembly - Package | 60016-3 | Not Available |
| 15 | Not Available | Eureka Armature Assembly - Package | 60017-3 | Not Available |
