Schematic and parts list for: Eureka Model: 3276BVZ
This is a list of parts and a diagram and schematic for: Eureka Model: 3276BVZ
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright Vacuum
Popular Supplies

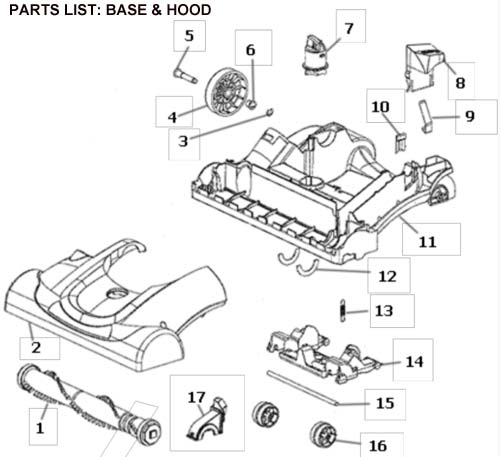

| # | Part image | Description | SKU | Price |
| x | Not Available | Eureka Base Hose Assembly | 74104 | Not Available |
| A8 | Not Available | Eureka Handle Release | 72473-355N | Not Available |
| A7 | Not Available | Eureka Knob - Height Adjustment | 72472-355N | Not Available |
| A6 | Not Available | Eureka Bushing - Axle | 73432 | Not Available |
| A5 |  | Axle, Rear 4458A/4468A/4499A/2903A/2905A Part Number: 38590A for Eureka | 38590A | $8.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| A4 | Not Available | Eureka Wheel - Rear | 72117-119N | Not Available |
| A3 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| A2 | Not Available | Eureka Hood Assembly - Packaged | 15928-5 | Not Available |
| A17 | Not Available | Eureka Belt Cap Assembly | 73289 | Not Available |
| A16 |  | Wheel, Front 5191/5847AV Part Number: 39173A119N for Eureka | 39173A119N | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| A15 |  | Axle, Front SC5713/SC5815/SC5845 Uprights Part Number: 71478 for Eureka | 71478 | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| A14 | Not Available | Eureka Wheel Carriage | 72521-119N | Not Available |
| A13 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $12.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| A12 | Not Available | Eureka Felt - Base | 73114 | Not Available |
| A11 | Not Available | Eureka Base Assembly - Packaged | 62090-3 | Not Available |
| A10 |  | Axle, Rear 68C7 Upright/12B1 PowerForce Helix Part Number: 203-8063 for Bissell | 2038063 | $4.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
| A1 | Not Available | Eureka Brushroll Assembly - Cart | 15929-1 | Not Available |
| x |  | Eureka Extended U belt aftermarket pn: 61120F | 20310801 | $9.99Add to cart |
| A9 |  | SPRING, HANDLE RELEASE 2903 Part Number: 71574 for Eureka | 71574 | $5.30Read more |

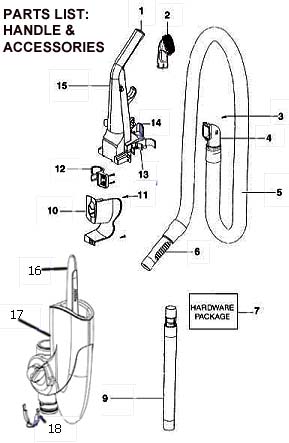

| # | Part image | Description | SKU | Price |
| ** | Not Available | Eureka Pet Turbo Nozzle Assembly | 80027-7 | Not Available |
| B7 | Not Available | Eureka Package - Hardware | 73012 | Not Available |
| B6 | Not Available | Eureka Coupling - Hose | 70559A-355N | Not Available |
| B5 | Not Available | Eureka Hose Assembly | 60038-17 | Not Available |
| B4 | Not Available | Eureka Adapter - Hose | 80415-313N | Not Available |
| B3 | Not Available | Eureka Screw Package | 53238-27 | Not Available |
| B2 | Not Available | Eureka Brush - Overmolded W/Bris | 80014-1 | Not Available |
| B18 | Not Available | Eureka Hardware Pack | 82701-2 | Not Available |
| B17 | Not Available | Eureka Petbrush Assembly | 82697-2 | Not Available |
| B16 | Not Available | Eureka Petbrush Brush Assembly | 82195-2 | Not Available |
| B15 | Not Available | Eureka Clip - Turbo | 75405-540N | Not Available |
| B14 | Not Available | Eureka Cord Release | 80442-333N | Not Available |
| B13 | Not Available | Eureka Clip - Wand | 73694-355N | Not Available |
| B11 | Not Available | Eureka Screw Package | 53238-27 | Not Available |
| B10 | Not Available | Eureka Lower Hose Holder | 80414-355N | Not Available |
| B1 | Not Available | Eureka Handle Assembly | 80161-8 | Not Available |
| B9 | Not Available | Eureka Nesting Wand Assembly | 71492A-13 | Not Available |

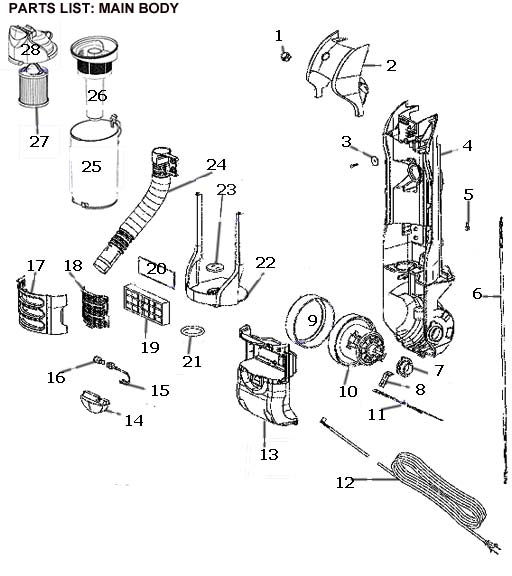

| # | Part image | Description | SKU | Price |
| ** | Not Available | Eureka Gasket-Bottom Lid | 83816-355N | Not Available |
| C24 | Not Available | Eureka Base Hose Assembly | 74104-3 | Not Available |
| C25 | Not Available | Eureka Cup & Bottom Lid Assembly | 80448-8 | Not Available |
| C27 | Not Available | Eureka Filter | 68931-2 | Not Available |
| C28 | Not Available | Eureka Top Cover Assembly | 80447-7 | Not Available |
| C3 | Not Available | Eureka Washer - Fiber | 74178 | Not Available |
| C4 | Not Available | Eureka Rear Housing Assembly | 80498 | Not Available |
| C5 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| C6 | Not Available | Eureka Cord & Terminal Assy | 73001-2 | Not Available |
| C7 | Not Available | Eureka Bushing - Motor | 72650-316N | Not Available |
| C8 | No Image | CLIP, THERMOSTAT 2903AE Part Number: 72443 for Eureka | 72443 | $4.55Read more |
| C23 | Not Available | Eureka Filter - Premotor | 80443-333N | Not Available |
| C22 | Not Available | Eureka Air Duct & Graphics Assem | 81191-6 | Not Available |
| C1 |  | Switch, 15A Rocker Tool On/Off Power Part Number: 76621 for Eureka | 76621 | $3.53Add to cart Product is special order please allow 2-4 weeks for delivery. |
| C10 | Not Available | Eureka Motor Assembly Ctnd | 62075-1 | Not Available |
| C11 | Not Available | Eureka Thermostat & Terminal Ass | 74719 | Not Available |
| C12 | Not Available | Eureka Supply Cord & Terminal As | 39585-39 | Not Available |
| C17 | Not Available | Eureka Cover - Exhaust Filter | 80436-540N | Not Available |
| C18 | Not Available | Eureka Grill - Exhaust | 80532-355N | Not Available |
| C19 | Not Available | Eureka Hepa Filter Pkg - Style H | 61850C | Not Available |
| C2 | Not Available | Eureka Cover - Switch | 80417-540N | Not Available |
| C20 | Not Available | Eureka Pad - Odor Absorbing | 81139 | Not Available |
| C21 | Not Available | Eureka Gasket - Air Duct | 80501 | Not Available |
| C9 | Not Available | Eureka Gasket - Motor Can | 72476-141N | Not Available |
