Schematic and parts list for: Eureka Model: 3320
This is a list of parts and a diagram and schematic for: Eureka Model: 3320
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Carpet Nozzle & Elbow | 13491A-1 | Not Available |
| 02 | Not Available | Eureka Wand - Straight | 14070-1 | Not Available |
| 03 | Not Available | Eureka Tool - Crevice | 23713A-7 | Not Available |
| 04 | Not Available | Eureka Elbow | FNLA | Not Available |
| 05 | Not Available | Eureka Hose Assembly - Cartoned | 26201-3 | Not Available |
| 06 | Not Available | Eureka Insert - Ringlock Brush | FNLA | Not Available |
| 07 | Not Available | Eureka Upholstery Nozzle Assembly | 34691-6 | Not Available |
| 08 | Not Available | Eureka Spring - Carpet Nozzle | 42797 | Not Available |
| 09 | Not Available | Eureka Dusting Brush - Packaged | 45947-6 | Not Available |
| 10 | Not Available | Eureka Brush Insert | FNLA | Not Available |

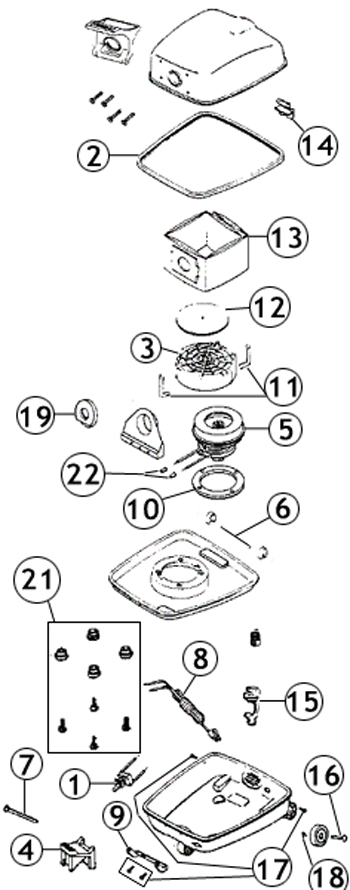

| # | Part image | Description | SKU | Price |
| 01 |  | Switch, Black Push Button Uprt/Canister 2 Wire | E541513 | $10.99Add to cart |
| 02 | Not Available | Eureka Furn Guard 38 Front | 23792-10 | Not Available |
| 03 | No Image | SUPPORT, FILTER 3300 713 1510 1756 Part Number: 24128A for Eureka | 24128A | $10.81Read more |
| 04 | Not Available | Eureka Pedal - Switch | FNLA | Not Available |
| 05 | Not Available | Eureka Motor | FNLA | Not Available |
| 06 | Not Available | Eureka Locator | FNLA | Not Available |
| 07 | Not Available | Eureka Pin | FNLA | Not Available |
| 08 | Not Available | Eureka Cord & Polarized Plug Assembly | 36528-3 | Not Available |
| 09 | Not Available | Eureka Hinge Bracket | 37028 | Not Available |
| 10 | Not Available | Eureka Motor Mounting Ring | FNLA | Not Available |
| 11 | Not Available | Eureka Clip - Filter Support | FNLA | Not Available |
| 12 | Not Available | Eureka Package 15 Filters | 52015 | Not Available |
| 13 | Not Available | Eureka Paper Bag - Style H | 52323B-6 | Not Available |
| 14 | Not Available | Eureka Latch Replacement | FNLA | Not Available |
| 15 | No Image | BUSHING, HOOD 5134 UPRIGHT Part Number: 530891 for Eureka | 530891 | $9.55Read more |
| 16 | No Image | NUT & BOLT, WHEELS Part Number: 53108 for Eureka | 53108 | $2.32Read more |
| 17 | Not Available | Eureka Screws-Pkg 10 | FNLA | Not Available |
| 18 | Not Available | Eureka Cttr. Pins Pkg.1 | FNLA | Not Available |
| 19 | Not Available | Eureka Gasket - Bag | 55056 | Not Available |
| 20 | Not Available | Eureka Nut - Hex | 55446 | Not Available |
| 21 | Not Available | Eureka Screw & Bushing Assembly | FNLA | Not Available |
| 22 | Not Available | Eureka Wire Splice 5 | EW22-37 | Not Available |
