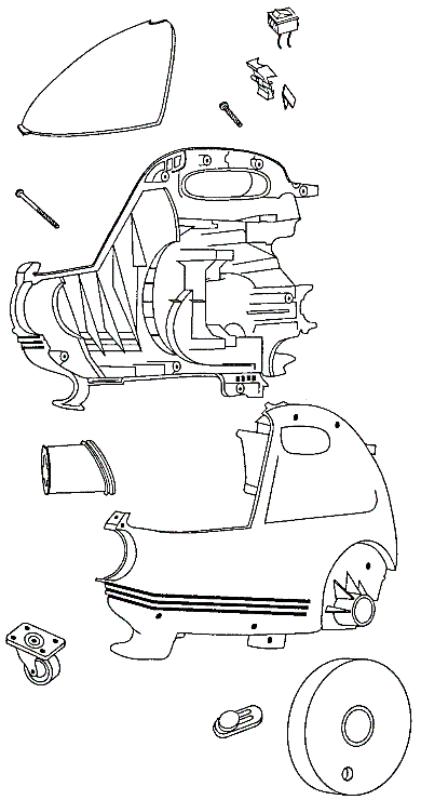

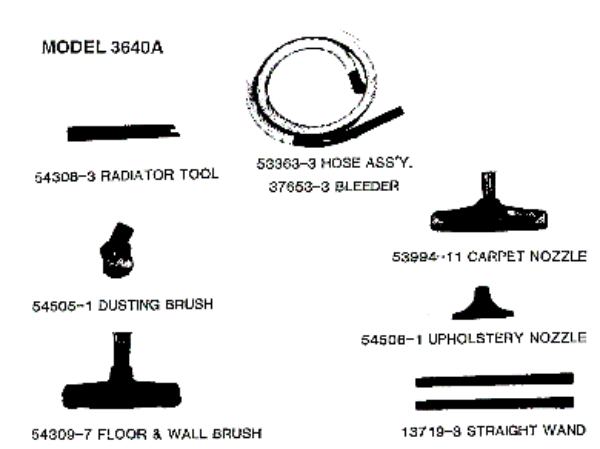

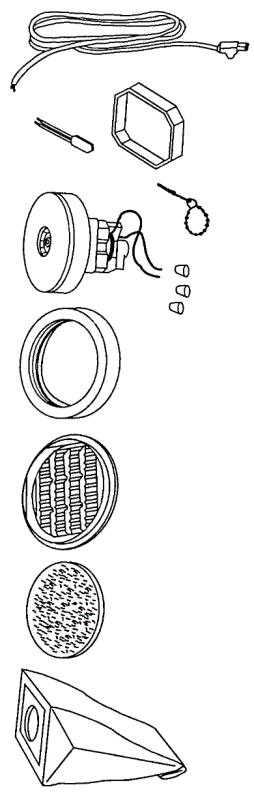

Schematic and parts list for: Eureka Model: 3640
This is a list of parts and a diagram and schematic for: Eureka Model: 3640
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Mighty Mite
Popular Supplies
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Straight Wand | 13719-3 | Not Available |
| 02 | Not Available | Eureka Bleeder | 37653-3 | Not Available |
| 03 | Not Available | Eureka Hose Assembly - Cartoned | 53363-3 | Not Available |
| 04 | Not Available | Eureka Carpet Nozzle & Elbow | 53994-11 | Not Available |
| 05 | Not Available | Eureka Tool - Crevice | 54308-3 | Not Available |
| 06 | Not Available | Eureka Floor & Wall Brush & Elbow | 54309-7 | Not Available |
| 07 | Not Available | Eureka Dusting Brush | 54505-1 | Not Available |
| 08 |  | Upholstery Tool, Black Excalibur Part Number: 382843 for Eureka | 382843 | $9.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 01 | No Image | PLATE, HOSE COUPLING MM 3621 Part Number: 27281-1 for Eureka | 272811 | $10.55Read more |
| 02 | Not Available | Eureka Hook - Cord Release | 37115-4 | Not Available |
| 03 | Not Available | Eureka Latch - Cover | 38280-1 | Not Available |
| 04 | Not Available | Eureka 38329-2 Discontinued, Use 38944 | 38944 | Not Available |
| 05 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 06 | Not Available | Eureka Screw Package | 53197-2 | Not Available |
| 07 | Not Available | Eureka Bag Cover - Packaged | 54549-1 | Not Available |
| 08 | Not Available | Eureka 54550-1 Rear Wheel Use 14762-1 | 14762-1 | Not Available |
| 09 | Not Available | Eureka Caster Assembly | 55406 | Not Available |
| 10 | Not Available | Eureka Spring-Latch | 57867 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | No Image | MOTOR PLATE Part Number: 14757-1 for Eureka | 147571 | $8.79Read more |
| 02 | Not Available | Eureka Gasket - Motor Mounting | 26715A | Not Available |
| 03 | Not Available | Eureka Cord Assembly | 27382-1 | Not Available |
| 04 |  | Cord, 25' Blk 1/4 Terminal WindTunnel and Bagless | H-46383331 | $26.99Read more |
| 05 | Not Available | Eureka Tie - Cable | 53141 | Not Available |
| 06 | Not Available | Eureka Wire Splice 5 | 53214-2 | Not Available |
| 07 | Not Available | Eureka Motor Assembly | 54551-1 | Not Available |
| 08 | No Image | HOOD, WITH BASE BI-5701 POWER NOZZLE Part Number: 155463 for Built-In | 155463 | $66.90Read more |
| 09 | Not Available | Eureka Thermostat | 56146 | Not Available |
| 10 |  | Eureka EnviroCare Paper Bags for Mighty Mite II Type N - 3pk | 107SW | $7.99Add to cart |
