Schematic and parts list for: Eureka Model: 3685
This is a list of parts and a diagram and schematic for: Eureka Model: 3685
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Mighty Mite

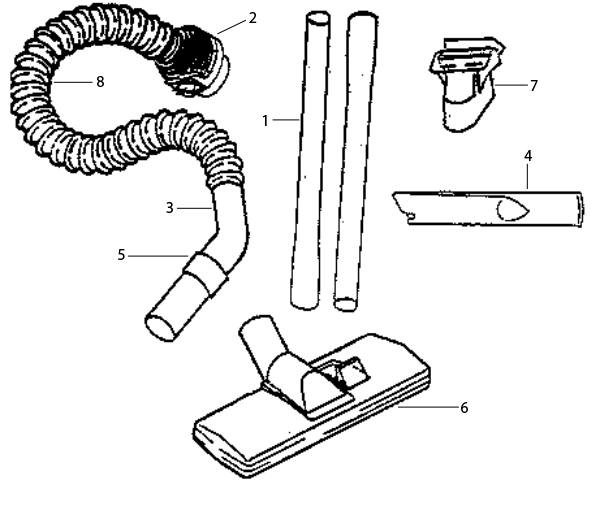

| # | Part image | Description | SKU | Price |
| 01 |  | Wand, 19" Blk Plstc Ext 1-Pc Upright/Canister Part Number: 140703 for Eureka | 140703 | $11.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 |  | Coupling, Hose Sanitaire 3670A/3682 Part Number: 15355119N for Eureka | 15355119N | $21.82Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 03 |  | Wand, Curved for Mighty Might Part Number: 261933 for Eureka | 261933 | $21.65Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 04 | Not Available | Eureka Tool-Crevice | 27238-3 | Not Available |
| 05 | Not Available | Eureka Bleeder | 37653-3 | Not Available |
| 06 | Not Available | Eureka Carpet & Floor Nozzle Assembly | 38702-1 | Not Available |
| 07 | Not Available | Eureka Combination Tool | 54784 | Not Available |
| 08 |  | Hose, Black Pistol Grip Mighty Mite | E-60289-1 | $39.99Read more |

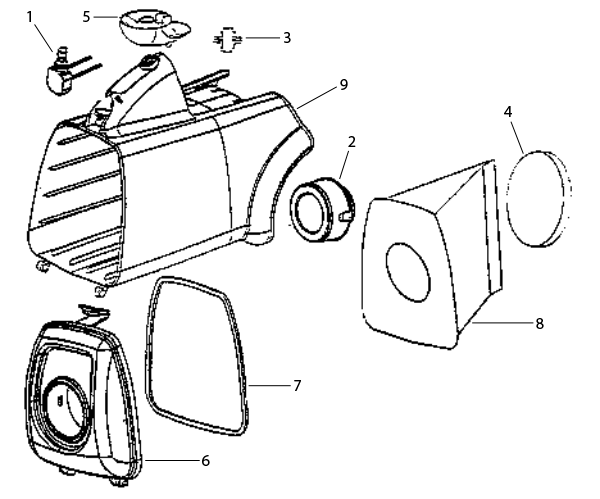

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Switch | 15377-10 | Not Available |
| 02 |  | Extension Tube, Black Mighty Might Canister Series Part Number: 27964119N for Eureka | 27964119N | $5.98Read more |
| 03 | No Image | ***USE E-38805-1 WHEEL, FRONT CASTOR Part Number: 37409-1 for Eureka | 374091 | $6.24Read more |
| 04 |  | Cord, 25' Blk 1/4 Terminal WindTunnel and Bagless | H-46383331 | $26.99Read more |
| 05 | Not Available | Eureka Castor Assembly | 38805-1 | Not Available |
| 06 | Not Available | Eureka Front Cover Assembly | 38956-1 | Not Available |
| 07 |  | Gasket, Strip Front Door Mighty Mite Part Number: 590461 for Eureka | 590461 | $7.50Read more |
| 08 | Not Available | Eureka Paper Bag Assembly 3Mm | 60296 | Not Available |
| 09 | Not Available | Eureka Housing Assembly | 60487-2 | Not Available |

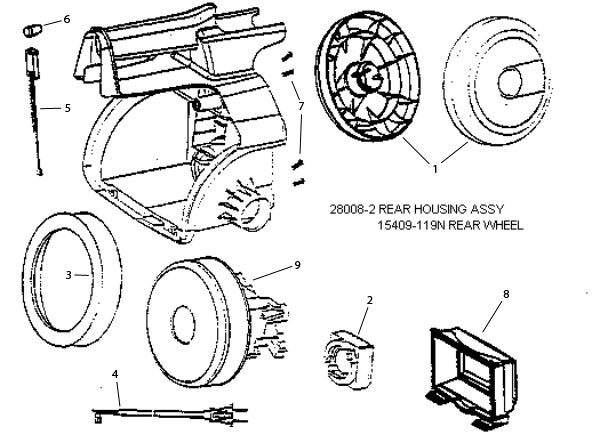

| # | Part image | Description | SKU | Price |
| 01 |  | Wheel, Rear Mighty Mite 3600 | 15409A119N | $9.99Read more |
| 03 | Not Available | Eureka Gasket - Motor Mounting | 28261 | Not Available |
| 04 | No Image | USE E-38680-12 3685 Part Number: 59499 for Eureka | 59499 | $14.33Read more |
| 05 | No Image | Cord Set, Machine End Plug 6XP/10XP Part Number: 1403859500 for Advance | 1403859500 | $41.60Read more |
| 06 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| 07 | Not Available | Eureka Screw Package | 60610 | Not Available |
| 08 |  | Dust Brush, 1-1/4" Black Hard Vinyl Black 3" Part Number: 32-1606-66 for Fitall | 32160666 | $7.47Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 09 | Not Available | Eureka Hepa Motor Assembly | FNLA | Not Available |
