Schematic and parts list for: Eureka Model: 4381
This is a list of parts and a diagram and schematic for: Eureka Model: 4381
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Victory Whirlwind
Popular Supplies

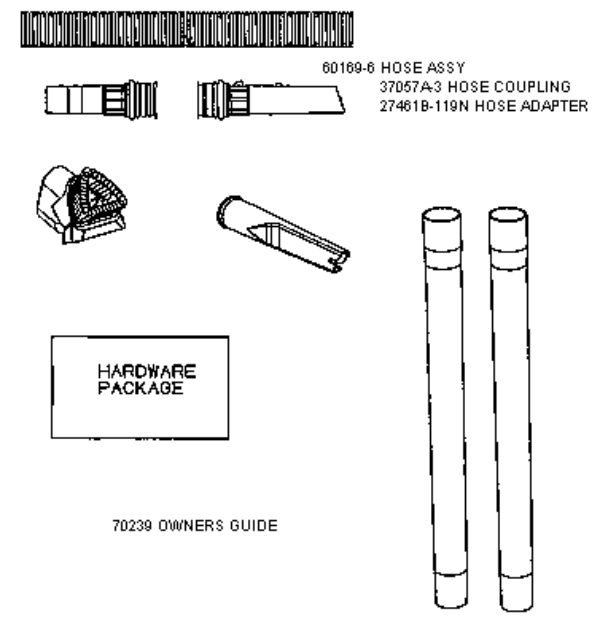

| # | Part image | Description | SKU | Price |
| 01 |  | ***USEE-27237-3 CREVICE TOOL, 8" W/HOLE TOBACCO Part Number: 26708-119N for Eureka | 26708119N | $5.98Read more |
| 02 |  | ADAPTOR, HOSE VICTORY UPRIGHT Part Number: 27461B-119N for Eureka | 27461B119N | $6.66Read more |
| 03 | Not Available | Eureka Coupling - Hose | 37057A-3 | Not Available |
| 04 | Not Available | Eureka Screw Package | 58607 | Not Available |
| 05 | Not Available | Eureka Nesting Wand Assembly | 58728B | Not Available |
| 06 | Not Available | Eureka Hose Assembly | 60169-6 | Not Available |
| 07 | Not Available | Eureka Combination Tool - Package | 61037 | Not Available |

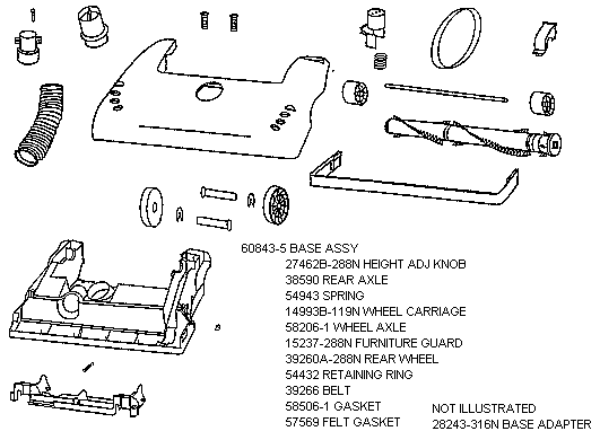

| # | Part image | Description | SKU | Price |
| XX | Not Available | Eureka Adapter - Base | 28243-316N | Not Available |
| 01 | Not Available | Eureka Carriage - Wheel | 14993B-119N | Not Available |
| 02 | Not Available | Eureka Guard - Furniture (12") | 15237-288N | Not Available |
| 03 | No Image | HEIGHT ADJUSTMENT KNOB/VICTORY Part Number: 27462B-288N for Eureka | 27462B288N | $1.63Read more |
| 04 | Not Available | Eureka Release - Handle | 27467A-288N | Not Available |
| 05 | Not Available | Eureka Hose Cuff Use 27468D-119N | 27468C-119N | Not Available |
| 07 | Not Available | Eureka Hose - Compression | 38479-4 | Not Available |
| 08 |  | Brushroll, 18 In Vs18/Vsp18 Part Number: 8.613-859.0 for Windsor | 86138590 | $293.92Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 09 |  | Wheel, Front 5191/5847AV Part Number: 39173A119N for Eureka | 39173A119N | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Eureka Wheel/Bushing Package | 39260A-288N | Not Available |
| 11 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 12 | Not Available | Eureka Belt Cap & Gasket | 54376-2 | Not Available |
| 13 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | HOOD, 4381 Part Number: 54933-24 for Eureka | 5493324 | $17.48Read more |
| 15 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $12.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | GASKET, FELT VICTORY Part Number: 57569 for Eureka | 57569 | $4.55Read more |
| 17 | Not Available | Eureka Axle - Wheel | 58206-1 | Not Available |
| 18 | Not Available | Eureka Gasket | 58506-1 | Not Available |
| 19 |  | SPRING, HANDLE RELEASE VICTORY 5PK Part Number: 60133 for Eureka | 60133 | $4.46Read more |
| 20 | Not Available | Eureka Push On Nut Package | 60613 | Not Available |
| 21 | Not Available | Eureka Base Assembly | 60843-5 | Not Available |
| 22 | Not Available | Eureka 60844-2 12" Discontinued, Use 60251-2 | 60251-2 | Not Available |

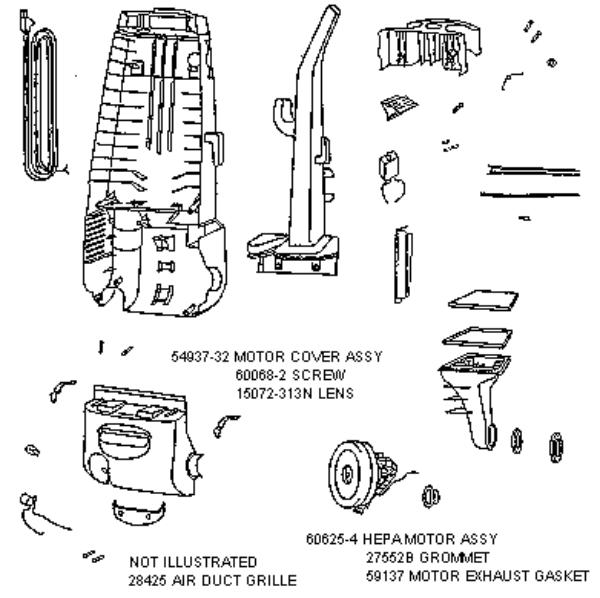

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Lens - Motor Cover | 15072-313N | Not Available |
| 02 | Not Available | Eureka Handle & Cap Assembly | 15352A-1 | Not Available |
| 03 | Not Available | Eureka Air Duct/ Victory Series | 15408B-119N | Not Available |
| 04 | Not Available | Eureka Tool Caddy | 15443A-119N | Not Available |
| 05 | No Image | GASKET, FAN COVER BRAVO ALL MODELS Part Number: 27171A for Eureka | 27171A | $4.55Read more |
| 06 | Not Available | Eureka Switch - Button | 27474C-288N | Not Available |
| 07 | Not Available | Eureka Grommet | 27552B | Not Available |
| 08 | No Image | BRUSHROLL, MODEL EBK280 Part Number: 12.9 283-04 for Built-In | 12928304 | $48.28Read more |
| 09 | Not Available | Eureka Grille - Air Duct | 28425 | Not Available |
| 10 | Not Available | Eureka Clamp | 38420-2 | Not Available |
| 11 | Not Available | Eureka Headlamp Socket & Terminal | 38611 | Not Available |
| 12 | Not Available | Eureka Supply Cord & Terminal Assembly | 38680-16 | Not Available |
| 13 | Not Available | Eureka Flange - Motor Intake | 39023 | Not Available |
| 14 | Not Available | Eureka Thermostat & Terminal Asssembly | 39252-2 | Not Available |
| 15 | Not Available | Eureka Filter, Use 39334 | 39292 | Not Available |
| 16 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $4.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 18 | No Image | COVER, MOTOR 4431 Part Number: 54937-32 for Eureka | 5493732 | $18.04Read more |
| 19 | No Image | GASKET, MOTOR Part Number: 59137 for Eureka | 59137 | $4.55Read more |
| 20 | Not Available | Eureka Gasket - Air Duct | 59297SV | Not Available |
| 21 | Not Available | Eureka Adapter - Tube | 59361A | Not Available |
| 22 | Not Available | Eureka Tube | 59362B | Not Available |
| 23 | Not Available | Eureka Screw Package | 60068-2 | Not Available |
| 24 | Not Available | Eureka Tors Spring Package | 60134 | Not Available |
| 25 | Not Available | Eureka Retaining Ring Package | 60165 | Not Available |
| 26 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| 27 |  | Filter, HF9 HEPA Exhaust 4300/4400 Series Victory | E-60285 | $14.99Read more |
| 28 | Not Available | Eureka Hepa Motor & Shroud Assembly | 60625-4 | Not Available |
| 29 | Not Available | Eureka Rear Housing | 60703-2 | Not Available |

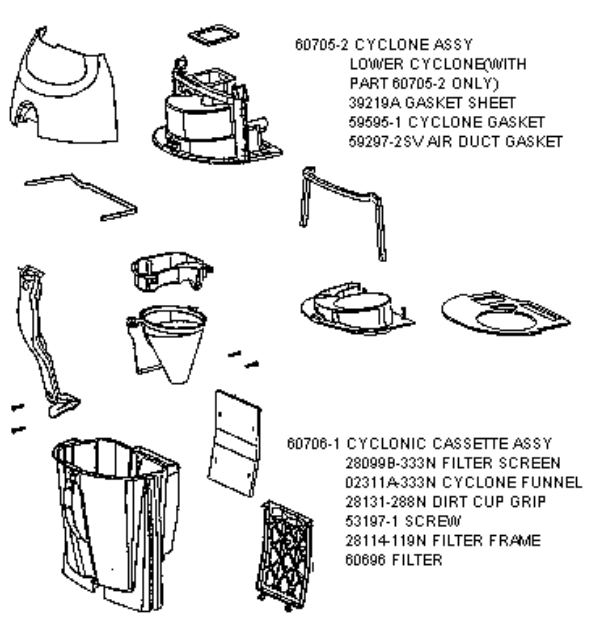

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Funnel - Cyclone | 02311A-333N | Not Available |
| 02 | Not Available | Eureka Filter - Screen | 28099B-333N | Not Available |
| 03 | Not Available | Eureka Frame - Filter | 28114-119N | Not Available |
| 04 | Not Available | Eureka Grip - Dirt Cup | 28131-288N | Not Available |
| 05 | Not Available | Eureka Cyclone Gasket Sheet | 39219A | Not Available |
| 06 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 07 | Not Available | Eureka Gasket - Air Duct | 59297-2SV | Not Available |
| 08 | Not Available | Eureka Gasket - Cyclone | 59595-1 | Not Available |
| 09 | Not Available | Eureka Victory Whirlwind Filter | 60696 | Not Available |
| 10 | Not Available | Eureka Front Cover Assembly | 60704-15 | Not Available |
| 11 | Not Available | Eureka Upper Cyclone Assembly | 60705-2 | Not Available |
| 12 | Not Available | Eureka Cyclonic Cassette Assembly | 60706-1 | Not Available |
