Schematic and parts list for: Eureka Model: 4390A
This is a list of parts and a diagram and schematic for: Eureka Model: 4390A
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Victory Whirlwind
Popular Supplies

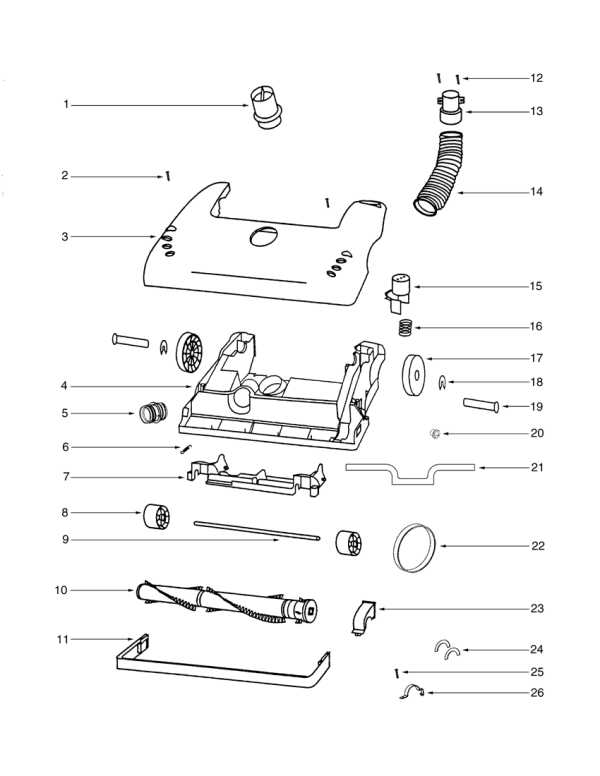

| # | Part image | Description | SKU | Price |
| 1 |  | KNOB, HIEGHT ADJUSTMENT VICTORY UPRIGHT Part Number: 27462E-288N for Eureka | 27462E288N | $6.66Read more |
| 2 |  | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $7.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Eureka Hood Assembly - Packaged | 54933-22 | Not Available |
| 4 | Not Available | Eureka Base Assembly (Nla) | 60843-11 | Not Available |
| 5 | Not Available | Eureka Adapter - Base | 28243A-316N | Not Available |
| 6 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $12.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Eureka Carriage - Wheel | 14993C-119N | Not Available |
| 8 |  | Wheel, Front 5191/5847AV Part Number: 39173A119N for Eureka | 39173A119N | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Eureka Axle - Wheel | 71551 | Not Available |
| 10 | Not Available | Eureka 12" Disturbulator Assy - | 60844-2 | Not Available |
| 11 | Not Available | Eureka Furniture Guard 12" (Nla) | 15237A-288N | Not Available |
| 13 |  | CUFF, HOSE NOZZLE HSG VICTORY SERIES Part Number: 27468D-119N for Eureka | 27468D119N | $8.24Read more |
| 14 | Not Available | Eureka Hose - Compression (Purch | 38479-4 | Not Available |
| 15 | Not Available | Eureka Release - Handle | 27467A-288N | Not Available |
| 16 |  | SPRING, HANDLE RELEASE VICTORY 5PK Part Number: 60133 for Eureka | 60133 | $4.46Read more |
| 17 | Not Available | Eureka Wheel - Rear | 72117-119N | Not Available |
| 18 | Not Available | Eureka Retaining Ring | 54432-1 | Not Available |
| 19 |  | Axle, Rear 4458A/4468A/4499A/2903A/2905A Part Number: 38590A for Eureka | 38590A | $8.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Eureka Bushing - Axle | 72113-1 | Not Available |
| 21 | Not Available | Eureka Gasket | 58506-1 | Not Available |
| 22 |  | Eureka Extended U belt aftermarket pn: 61120F | 20310801 | $9.99Add to cart |
| 23 | Not Available | Eureka Belt Cap & Gasket - Packa | 54376-2 | Not Available |
| 24 |  | GASKET, FELT VICTORY Part Number: 57569 for Eureka | 57569 | $4.55Read more |
| 25 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 26 | Not Available | Eureka Clamp | 38420-2 | Not Available |

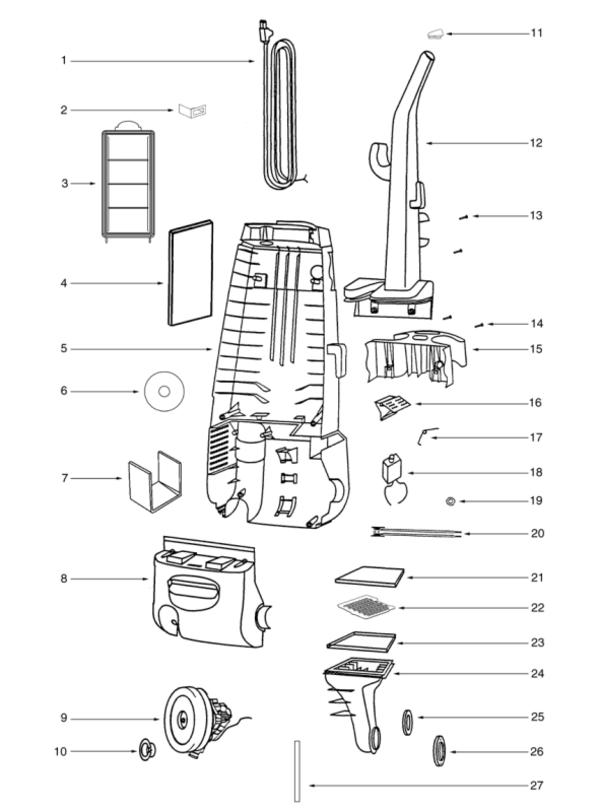

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Eureka Supply Cord & Terminal As | 39585-1 | Not Available |
| 2 | Not Available | Eureka Shield Switch (Nla) | 71645 | Not Available |
| 3 | Not Available | Eureka Filter Frame | 28457-8 | Not Available |
| 4 |  | DUST BRUSH, 1-1/4" Round Black Part Number: 90615-00 for Shop Vac | 9061500 | $25.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | HOUSING, REAR 4640 Part Number: 71608A-119N for Eureka | 71608A119N | $29.83Read more |
| 6 | Not Available | Eureka Motor Shield | 38688A | Not Available |
| 7 | No Image | FOAM, SOUND Part Number: 722241 for Eureka | 722241 | $4.63Read more |
| 8 | No Image | COVER, MOTOR Part Number: 60788-7 for Eureka | 607887 | $24.48Read more |
| 9 | Not Available | Eureka Motor Assy. (Nla) | 60261-11 | Not Available |
| 10 | Not Available | Eureka Grommet | 27552B | Not Available |
| 11 | Not Available | Eureka Handle Cap (38482-119N) (Nla) | 38482A-119N | Not Available |
| 12 | Not Available | Eureka Handle & Cap Assembly | 71139-1 | Not Available |
| 13 | | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $7.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 15 | Not Available | Eureka Tool Caddy (Nla) | 15443B-119N | Not Available |
| 16 | Not Available | Eureka Switch-Button (27474B-288N) | 27474C-288N | Not Available |
| 17 | Not Available | Eureka Pkg.5 Springs (Nla) | 60134 | Not Available |
| 18 |  | Switch, Red Push Button Mighty Mite 3684/3690/3695 mpn: 28304A2 for Eureka Mighty Mite 3684, 3690 and 3695 Sanitaire SC3683 Series, SC3686 Series and SC3681 | E-15376-5 | $9.99Add to cart |
| 19 | Not Available | Eureka Retaining Ring Pkg | 60165-1 | Not Available |
| 20 | Not Available | Eureka Thermostat (Nla) | 39252-2 | Not Available |
| 21 | Not Available | Eureka Motor Filter Package | 61333 | Not Available |
| 22 | Not Available | Eureka Metal Grill | 28425 | Not Available |
| 23 | Not Available | Eureka Gasket-Air Duck (Nla) | 59297SV | Not Available |
| 24 | Not Available | Eureka Air Duct | 15536A-119N | Not Available |
| 25 | No Image | GASKET, FAN COVER BRAVO ALL MODELS Part Number: 27171A for Eureka | 27171A | $4.55Read more |
| 26 | Not Available | Eureka Flange/Motor Intake (Nla) | 39023 | Not Available |
| 27 | Not Available | Eureka Gasket | 27962A | Not Available |

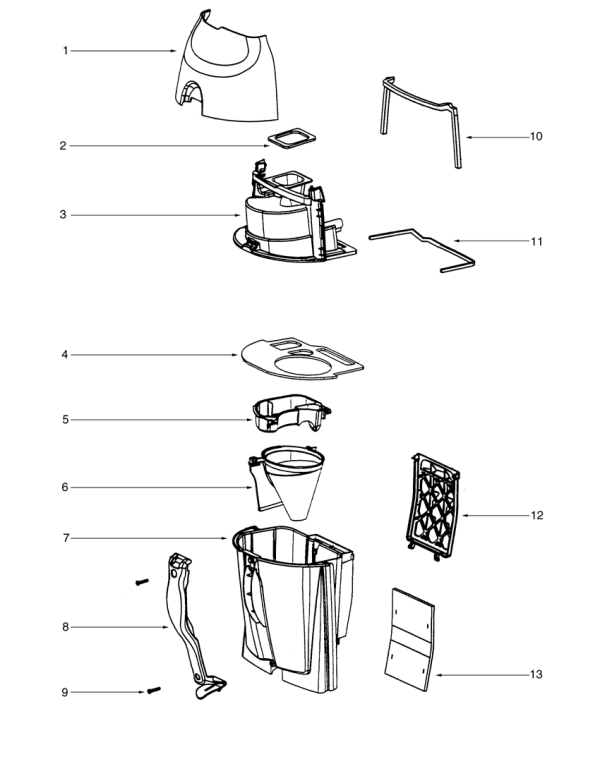

| # | Part image | Description | SKU | Price |
| 1 | No Image | FRONT COVER ASS'Y, 4386 Part Number: 60704-35 for Eureka | 6070435 | $8.00Read more |
| 3 | Not Available | Eureka Upper Cyclone Assy - Pkgd | 60705-5 | Not Available |
| 4 | Not Available | Eureka Cyclone Gasket Sheet | 39219B-1 | Not Available |
| 5 | Not Available | Eureka Filter - Screen | 28099B-119N | Not Available |
| 6 | Not Available | Eureka Funnel-Cyclone(02311A-333N) | 71568-1 | Not Available |
| 7 | Not Available | Eureka Cyclonic Cass.Assy.(6070 (Nla) | 60706-3 | Not Available |
| 8 | Not Available | Eureka Grip - Dirt Cup | 28131-288N | Not Available |
| 9 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 10 | Not Available | Eureka Gasket - Cyclone | 59595-1 | Not Available |
| 11 | Not Available | Eureka Gasket - Air Duct | 59297-2SV | Not Available |
| 12 | Not Available | Eureka Frame - Filter | 28114-119N | Not Available |
| 13 |  | Eureka CMF-1 Filter 61940B - 2 motor filters, 2 micron cassette filters | 023169112896 | $8.95Read more |

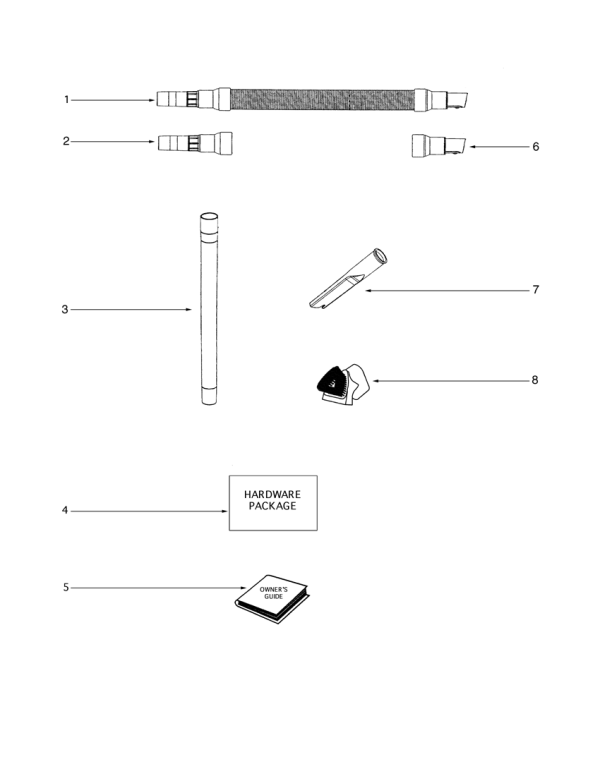

| # | Part image | Description | SKU | Price |
| xx | Not Available | Eureka Package - Hardware | 59930A | Not Available |
| 1 | Not Available | Eureka Hose Assembly - Cartoned | 61028-1 | Not Available |
| 2 | Not Available | Eureka Coupling - Hose | 37057A-3 | Not Available |
| 3 | Not Available | Eureka Nesting Wand Assembly | 13104-4 | Not Available |
| 4 | Not Available | Eureka Hardware Package (Nla) | 59930B | Not Available |
| 5 | Not Available | Eureka Owners Guide | 70239B | Not Available |
| 6 |  | ADAPTOR, HOSE VICTORY UPRIGHT Part Number: 27461B-119N for Eureka | 27461B119N | $6.66Read more |
| 7 |  | Crevice Tool, 4467 Part Number: 272373 for Eureka | 272373 | $7.53Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Eureka Combination Tool - Packag | 61037 | Not Available |
