Schematic and parts list for: Eureka Model: 4440
This is a list of parts and a diagram and schematic for: Eureka Model: 4440
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
Popular Supplies

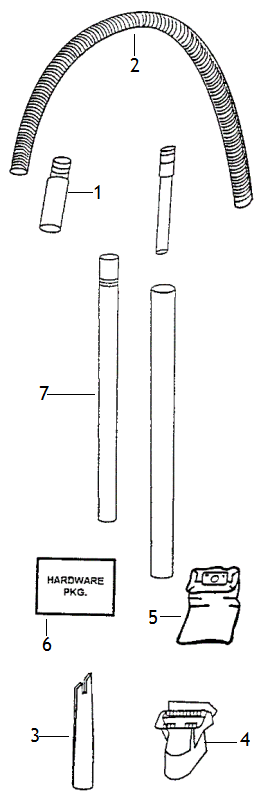

| # | Part image | Description | SKU | Price |
| 01 |  | ADAPTOR, HOSE VICTORY UPRIGHT Part Number: 27461B-119N for Eureka | 27461B119N | $6.66Read more |
| 02 | Not Available | Eureka Hose Assembly | 54646A | Not Available |
| 03 | Not Available | Eureka Tool - Crevice | 54780 | Not Available |
| 04 | Not Available | Eureka Combination Tool - Package | 54784 | Not Available |
| 05 |  | Peony Mettler silk finish egyptian cotton 50WT (547 yd) thread spool. 9104-1417 alternate: 10450-0959 | 91041417 | $7.45Read more |
| 06 | Not Available | Eureka Screw Package | 58607 | Not Available |
| 07 | Not Available | Eureka Nested Wand | 58728A | Not Available |

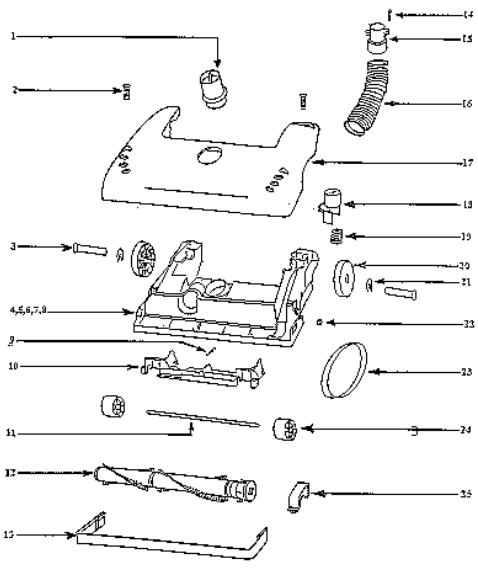

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Carriage - Wheel | 14993-119N | Not Available |
| 02 | Not Available | Eureka Carriage - Wheel | 14993A-119N | Not Available |
| 03 | Not Available | Eureka Guard - Furniture (14") | 15234-288N | Not Available |
| 04 | Not Available | Eureka Operator - Height Adjustment | 27462-288N | Not Available |
| 05 | Not Available | Eureka Operator - Height Adjustment | 27462A-288N | Not Available |
| 06 | Not Available | Eureka Release - Handle | 27467-288N | Not Available |
| 07 | Not Available | Eureka Cuff-Hose | 27468A-119N | Not Available |
| 08 | Not Available | Eureka Wheel - Rear | 27493-288N | Not Available |
| 09 |  | Axle, Rear 68C7 Upright/12B1 PowerForce Helix Part Number: 203-8063 for Bissell | 2038063 | $4.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Eureka Wheel - Front | 38236A-119N | Not Available |
| 11 | Not Available | Eureka Hose - Compression | 38479-2 | Not Available |
| 12 |  | Brushroll, 18 In Vs18/Vsp18 Part Number: 8.613-859.0 for Windsor | 86138590 | $293.92Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 14 |  | Eureka Extended U belt aftermarket pn: 61120F | 20310801 | $9.99Add to cart |
| 15 | Not Available | Eureka Belt Cap & Gasket - Package | 54376-1 | Not Available |
| 16 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Eureka 14" Disturbulator Assembly | 54647 | Not Available |
| 18 |  | Screw, Bottom Plate Part Number: 54669-2 for Eureka | 546692 | $9.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Eureka Push-On Nut - Packaged | 54942 | Not Available |
| 20 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $12.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | GASKET, FELT VICTORY Part Number: 57569 for Eureka | 57569 | $4.55Read more |
| 22 | Not Available | Eureka Axle - Wheel | 58206-1 | Not Available |
| 23 | Not Available | Eureka Compression Spring - Pack | 58371 | Not Available |
| 24 | Not Available | Eureka Package Of Brush Roll Rib | 58417 | Not Available |
| 25 | No Image | GASKET, NOZ.BASE VICTORY SERIES Part Number: 58506-2 for Eureka | 585062 | $4.55Read more |
| 26 | Not Available | Eureka Hood Assembly - Packaged | 60069-3 | Not Available |
| 27 | Not Available | Eureka Base Assembly - Packaged | 60071-1 | Not Available |

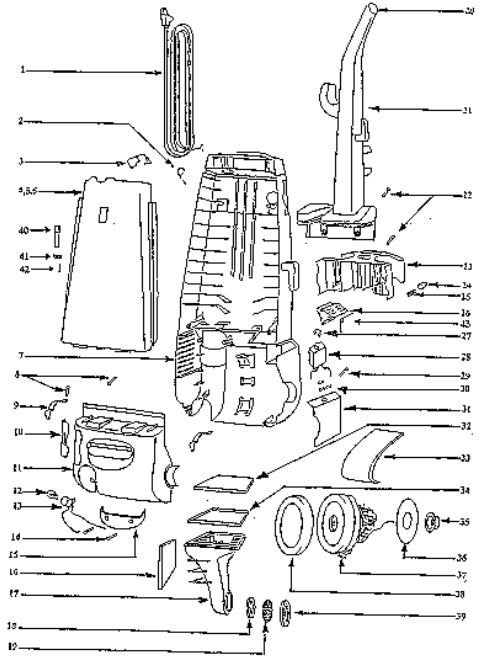

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Caddy - Tool | 02093-288N | Not Available |
| 02 | Not Available | Eureka Lens - Motor Cover | 15072-313N | Not Available |
| 03 | Not Available | Eureka Handle & Graphics Assembly | 15294-1 | Not Available |
| 04 | Not Available | Eureka Switch Assembly | 15377-1 | Not Available |
| 05 | Not Available | Eureka Switch - Button | 27474A-288N | Not Available |
| 06 | No Image | GASKET, MOTOR VICTORY UPRIGHT Part Number: 27492 for Eureka | 27492 | $2.44Read more |
| 07 | Not Available | Eureka Door - Filter | 27549-288N | Not Available |
| 08 | Not Available | Eureka Bag Indicator Assembly | 37761-2 | Not Available |
| 09 | Not Available | Eureka Clamp | 38420-2 | Not Available |
| 10 | Not Available | Eureka Filter - Secondary | 38469 | Not Available |
| 11 | Not Available | Eureka Hook - Cord Release | 38517-119N | Not Available |
| 12 | No Image | CORD HOOK, UPPER VICTORY UPRIGHTS Part Number: 38517A-119N for Eureka | 38517A119N | $2.44Read more |
| 13 | Not Available | Eureka Headlamp Sckt & Terminal | 38611 | Not Available |
| 14 |  | Hoover Upholstery Tool for Shampooers | WP11565 | $9.99Add to cart |
| 15 | Not Available | Eureka Motor Intake Flange | 38638 | Not Available |
| 16 | Not Available | Eureka Foam - Sound | 38661 | Not Available |
| 17 |  | Paper Bag, Type N Porta- Power 5 Pk Part Number: 4010038N for Hoover | 4010038N | $6.12Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Eureka Plunger | 38678-119N | Not Available |
| 19 | Not Available | Eureka Supply Cord & Terminal Assembly | 38680-3 | Not Available |
| 20 | Not Available | Eureka Motor Shield | 38688 | Not Available |
| 21 | Not Available | Eureka Shield - Rear Hsg | 38689 | Not Available |
| 22 | Not Available | Eureka Filter-Exhaust | 38755 | Not Available |
| 23 | Not Available | Eureka Tie - Cable | 46713-1 | Not Available |
| 24 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $4.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | GROMMET, VICTORY CORD 10PK Part Number: 53190-1 for Eureka | 531901 | $6.52Read more |
| 26 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 27 | Not Available | Eureka Wire Splice 5 | 53214-2 | Not Available |
| 28 | Not Available | Eureka Screw Pkg | 53238-1 | Not Available |
| 29 | Not Available | Eureka Bag Cover Assembly - Packaged | 54936-5 | Not Available |
| 30 | No Image | MOTOR, 12 AMP VICTORY UPRIGHTS Part Number: 54940 for Eureka | 54940 | $89.52Read more |
| 31 | Not Available | Eureka Spring | 55794 | Not Available |
| 32 | No Image | SWITCH, 125V SP MOM LIT RCK Part Number: 8.625.675.0 for Windsor | 86256750 | $55.02Read more |
| 33 | Not Available | Eureka Gasket - Bag Cover | 58505 | Not Available |
| 34 | Not Available | Eureka Rear Housing - Packaged | 60126-1 | Not Available |
| 35 | Not Available | Eureka Tors Spring Pkg | 60134 | Not Available |
| 36 | Not Available | Eureka Retaining Ring Pkg | 60165 | Not Available |
