Schematic and parts list for: Eureka Model: 4463
This is a list of parts and a diagram and schematic for: Eureka Model: 4463
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Victory Upright
Popular Supplies

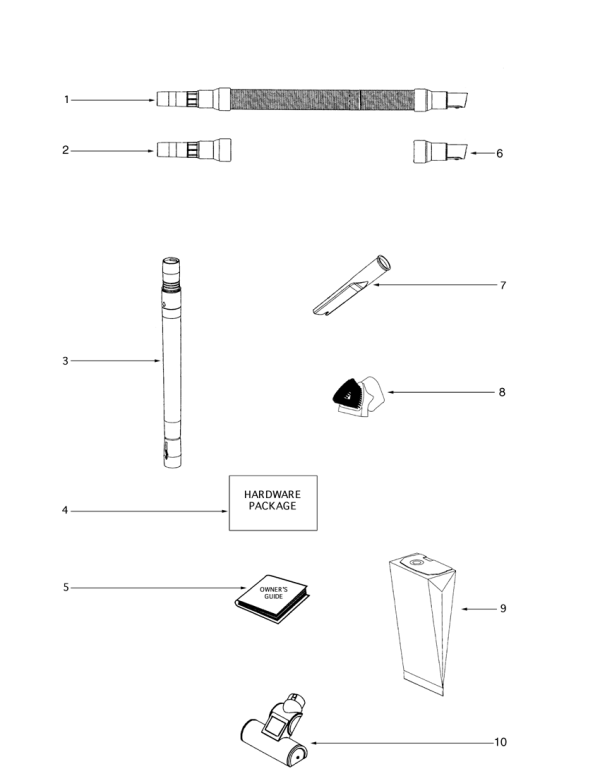

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Hose Assembly | 61028-1 | Not Available |
| 02 |  | ADAPTOR, HOSE VICTORY UPRIGHT Part Number: 27461B-119N for Eureka | 27461B119N | $6.66Read more |
| 03 | Not Available | Eureka Nesting Wand Assembly | 58728B | Not Available |
| 04 | Not Available | Eureka Package - Hardware | 59930A | Not Available |
| 05 | Not Available | Eureka Owner's Guide | 70262B | Not Available |
| 06 | Not Available | Eureka Coupling - Hose | 37057A-3 | Not Available |
| 07 |  | Crevice Tool, 4467 Part Number: 272373 for Eureka | 272373 | $7.53Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 08 | Not Available | Eureka Combination Tool | 61037 | Not Available |
| 09 | Not Available | Eureka Filteraire Style AA | 58623A | Not Available |
| 10 | Not Available | Eureka Turbo Nozzle Assembly | 28612A | Not Available |

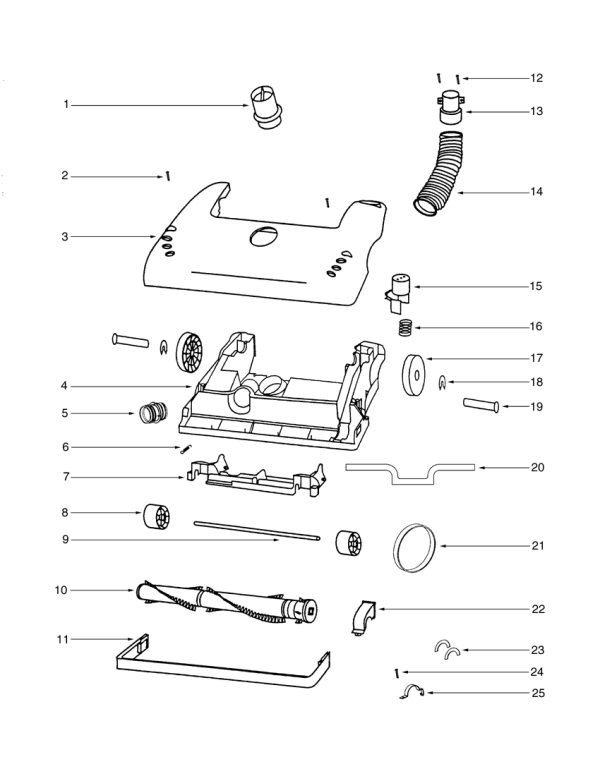

| # | Part image | Description | SKU | Price |
| xx |  | Hose, Assembly UP15 Multi Floor Iron/Yellow Part Number: 967274-02 for Dyson | 96727402 | $39.31Read more |
| 01 |  | KNOB, HIEGHT ADJUSTMENT VICTORY UPRIGHT Part Number: 27462E-288N for Eureka | 27462E288N | $6.66Read more |
| 02 |  | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $7.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 03 | Not Available | Eureka Hood | FNLA | Not Available |
| 04 |  | BASE, :( 4473 VICTORY Part Number: 60701-11 for Eureka | 6070111 | $43.84Read more |
| 05 | Not Available | Eureka Adapter - Base | 28243A-316N | Not Available |
| 06 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $12.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 07 | Not Available | Eureka Carriage - Wheel | 14993C-119N | Not Available |
| 08 |  | Wheel, Front 5191/5847AV Part Number: 39173A119N for Eureka | 39173A119N | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 09 | Not Available | Eureka Wheel Axle | 71551 | Not Available |
| 10 | Not Available | Eureka Brushroll Assembly | 61308-2 | Not Available |
| 11 | No Image | BUMPER, S4170 Part Number: 15591A-288N for Eureka | 15591A288N | $23.90Read more |
| 12 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 13 |  | CUFF, HOSE NOZZLE HSG VICTORY SERIES Part Number: 27468D-119N for Eureka | 27468D119N | $8.24Read more |
| 14 | Not Available | Eureka Hose - Compression | 38479-4 | Not Available |
| 15 | Not Available | Eureka Release - Handle | 27467A-288N | Not Available |
| 16 |  | SPRING, HANDLE RELEASE VICTORY 5PK Part Number: 60133 for Eureka | 60133 | $4.46Read more |
| 17 | No Image | Wheel, Rear 4458/4459/4463/4467/4468/4488 Upright Part Number: 27493A-119N for Eureka | 27493A119N | $6.80Read more |
| 18 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Axle, Rear 4458A/4468A/4499A/2903A/2905A Part Number: 38590A for Eureka | 38590A | $8.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Eureka Gasket | 58506-4 | Not Available |
| 21 |  | Eureka Extended U belt aftermarket pn: 61120F | 20310801 | $9.99Add to cart |
| 22 | Not Available | Eureka Belt Cap & Gasket | 54376-2 | Not Available |
| 23 |  | GASKET, FELT VICTORY Part Number: 57569 for Eureka | 57569 | $4.55Read more |
| 25 | Not Available | Eureka Clamp | 38420-2 | Not Available |

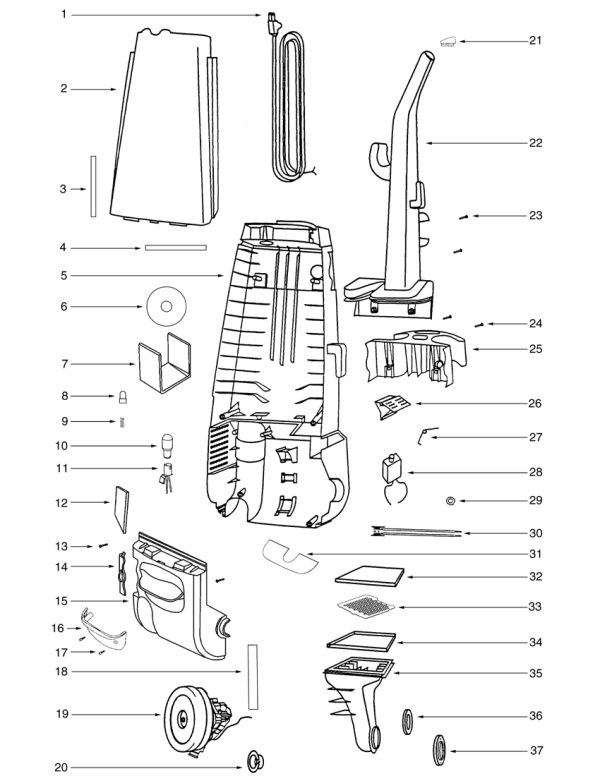

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Supply Cord & Terminal Assembly | 38680-16 | Not Available |
| 02 | Not Available | Eureka Bag Cover Assembly | 54936-91 | Not Available |
| 03 | Not Available | Eureka Gasket - Bag Cover | 58505 | Not Available |
| 04 |  | Hoover Upholstery Tool for Shampooers | WP11565 | $9.99Add to cart |
| 05 | Not Available | Eureka Rear Housing | 60126-22 | Not Available |
| 06 | Not Available | Eureka Motor Shield | 38688A | Not Available |
| 07 | Not Available | Eureka Foam - Sound | 38661 | Not Available |
| 08 | Not Available | Eureka Plunger | 38678-119N | Not Available |
| 09 | Not Available | Eureka Spring | 55794 | Not Available |
| 10 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $4.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Eureka Light Socket | FNLA | Not Available |
| 12 | Not Available | Eureka Hepa Filter Package - Style H | 61505 | Not Available |
| 13 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 14 | Not Available | Eureka Door - Filter | 27549-288N | Not Available |
| 15 | Not Available | Eureka Motor Cover Assembly Without Lens | 61432-22 | Not Available |
| 16 | Not Available | Eureka Lens - Motor Cover | 15072-313N | Not Available |
| 17 | Not Available | Eureka Screw Package | 60068-2 | Not Available |
| 18 | Not Available | Eureka Gasket | FNLA | Not Available |
| 19 | Not Available | Eureka Motor Assembly | FNLA | Not Available |
| 20 | Not Available | Eureka Grommet | 27552B | Not Available |
| 21 | Not Available | Eureka Cap - Handle | 38482A-119N | Not Available |
| 22 | Not Available | Eureka Handle & Cap Assembly | 71139-1 | Not Available |
| 23 | | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $7.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | Eureka Caddy - Tool | 02093A-119N | Not Available |
| 26 | Not Available | Eureka Switch - Button | 27474C-288N | Not Available |
| 27 | Not Available | Eureka Tors Spring Package | 60134 | Not Available |
| 28 |  | Switch, Red Push Button Mighty Mite 3684/3690/3695 mpn: 28304A2 for Eureka Mighty Mite 3684, 3690 and 3695 Sanitaire SC3683 Series, SC3686 Series and SC3681 | E-15376-5 | $9.99Add to cart |
| 29 | Not Available | Eureka Retaining Ring Package | 60165-1 | Not Available |
| 30 | Not Available | Eureka Thermostat & Terminal Assembly | 39252-2 | Not Available |
| 31 | Not Available | Eureka Shield - Light | 38696 | Not Available |
| 32 | Not Available | Eureka Motor Filter Package | 61333 | Not Available |
| 33 | Not Available | Eureka Grille - Air Duct | 28425 | Not Available |
| 34 | Not Available | Eureka Gasket - Air Duct | 59297SV | Not Available |
| 35 | Not Available | Eureka Air Duct | 15536A-119N | Not Available |
| 36 | No Image | GASKET, FAN COVER BRAVO ALL MODELS Part Number: 27171A for Eureka | 27171A | $4.55Read more |
| 37 | Not Available | Eureka Flange - Motor Intake | 39023 | Not Available |
