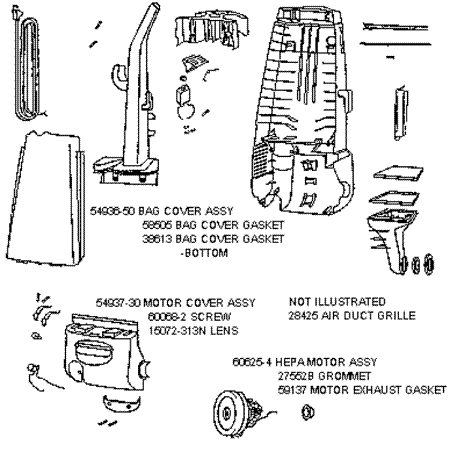

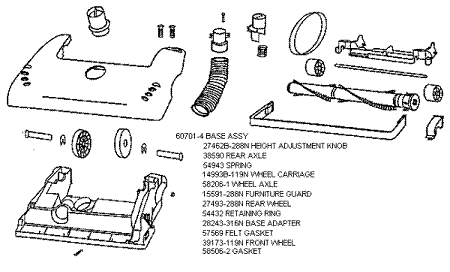

Schematic and parts list for: Eureka Model: 4469
This is a list of parts and a diagram and schematic for: Eureka Model: 4469
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Victory Upright
Popular Supplies
| # | Part image | Description | SKU | Price |
| xx |  | ADAPTOR, HOSE VICTORY UPRIGHT Part Number: 27461B-119N for Eureka | 27461B119N | $6.66Read more |
| 01 |  | ***USEE-27237-3 CREVICE TOOL, 8" W/HOLE TOBACCO Part Number: 26708-119N for Eureka | 26708119N | $5.98Read more |
| 03 | Not Available | Eureka Coupling - Hose | 37057A-3 | Not Available |
| 04 |  | Screw, Bottom Plate Part Number: 54669-2 for Eureka | 546692 | $9.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 | Not Available | Eureka Combination Tool - Package | 54784 | Not Available |
| 06 | Not Available | Eureka Paper Bag Filteraire | 58623 | Not Available |
| 07 | Not Available | Eureka Nesting Wand Assembly | 58728B | Not Available |
| 08 | Not Available | Eureka Hose Assembly - Cartoned | 61028-1 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Carriage - Wheel | 14993B-119N | Not Available |
| 02 | Not Available | Eureka Furniture Guard(15591A-288N) | 15591-288N | Not Available |
| 03 | No Image | HEIGHT ADJUSTMENT KNOB/VICTORY Part Number: 27462B-288N for Eureka | 27462B288N | $1.63Read more |
| 04 | Not Available | Eureka Release - Handle | 27467A-288N | Not Available |
| 05 | Not Available | Eureka Hose Cuff Use 27468D-119N | 27468C-119N | Not Available |
| 06 | Not Available | Eureka Wheel - Rear | 27493-288N | Not Available |
| 07 | Not Available | Eureka Adapter - Base | 28243-316N | Not Available |
| 08 | Not Available | Eureka Hose - Compression | 38479-4 | Not Available |
| 09 |  | Brushroll, 18 In Vs18/Vsp18 Part Number: 8.613-859.0 for Windsor | 86138590 | $293.92Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Wheel, Front 5191/5847AV Part Number: 39173A119N for Eureka | 39173A119N | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 12 | Not Available | Eureka Belt Cap & Gasket | 54376-2 | Not Available |
| 13 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | | Screw, Bottom Plate Part Number: 54669-2 for Eureka | 546692 | $9.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $12.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | GASKET, FELT VICTORY Part Number: 57569 for Eureka | 57569 | $4.55Read more |
| 17 | Not Available | Eureka Axle - Wheel | 58206-1 | Not Available |
| 18 | No Image | GASKET, NOZ.BASE VICTORY SERIES Part Number: 58506-2 for Eureka | 585062 | $4.55Read more |
| 19 | Not Available | Eureka Hood Assembly | 60069-45 | Not Available |
| 20 |  | SPRING, HANDLE RELEASE VICTORY 5PK Part Number: 60133 for Eureka | 60133 | $4.46Read more |
| 21 | Not Available | Eureka 14" Disturbulator | 60252-2 | Not Available |
| 22 | Not Available | Eureka Push On Nut Pkg | 60613 | Not Available |
| 23 | Not Available | Eureka Base Assembly | 60701-4 | Not Available |
| # | Part image | Description | SKU | Price |
| XX | Not Available | Eureka 26. Spring Pk | 60134 | Not Available |
| 01 | Not Available | Eureka Lens - Motor Cover | 15072-313N | Not Available |
| 02 | Not Available | Eureka Air Duct/ Victory Series | 15408B-119N | Not Available |
| 03 | Not Available | Eureka Tool Caddy | 15443A-119N | Not Available |
| 04 | No Image | GASKET, FAN COVER BRAVO ALL MODELS Part Number: 27171A for Eureka | 27171A | $4.55Read more |
| 05 | Not Available | Eureka Switch - Button | 27474C-288N | Not Available |
| 06 | Not Available | Eureka Grommet | 27552B | Not Available |
| 07 | No Image | BRUSHROLL, MODEL EBK280 Part Number: 12.9 283-04 for Built-In | 12928304 | $48.28Read more |
| 08 | Not Available | Eureka Metal Grill | 28425 | Not Available |
| 09 | Not Available | Eureka Clamp | 38420-2 | Not Available |
| 10 | Not Available | Eureka Discontinued | 38611 | Not Available |
| 11 |  | Hoover Upholstery Tool for Shampooers | WP11565 | $9.99Read more |
| 12 | Not Available | Eureka Cord Assembly | 38680-16 | Not Available |
| 13 | Not Available | Eureka Flange Cord & Terminal Assembly | 39023 | Not Available |
| 14 | Not Available | Eureka Thermostat - Motor Intake | 39252-2 | Not Available |
| 15 | Not Available | Eureka Filter, & Terminal Assembly | 39292 | Not Available |
| 16 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $4.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 18 | Not Available | Eureka Bag Cover | FNLA | Not Available |
| 19 | Not Available | Eureka Motor Cover Assembly | 54937-30 | Not Available |
| 20 | Not Available | Eureka Gasket - Bag Cover | 58505 | Not Available |
| 21 | No Image | GASKET, MOTOR Part Number: 59137 for Eureka | 59137 | $4.55Read more |
| 22 | Not Available | Eureka Adapter - Air Duct | 59297SV | Not Available |
| 23 | Not Available | Eureka Tube Adaptor | 59361A | Not Available |
| 24 | Not Available | Eureka Tube | 59362B | Not Available |
| 25 | Not Available | Eureka Screw Package | 60068-2 | Not Available |
| 27 | Not Available | Eureka Retainer Clip Package | 60165 | Not Available |
| 28 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| 29 |  | Filter, HF9 HEPA Exhaust 4300/4400 Series Victory | E-60285 | $14.99Read more |
| 30 | Not Available | Eureka Hepa Motor & Shroud Assembly | 60625-4 | Not Available |
| 31 | Not Available | Eureka Rear Handle Housing | 60703-2 | Not Available |
| 32 | Not Available | Eureka Handle & Cap Assembly | 71139-1 | Not Available |
