Schematic and parts list for: Eureka Model: 4480
This is a list of parts and a diagram and schematic for: Eureka Model: 4480
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Victory Whirlwind
Popular Supplies
| # | Part image | Description | SKU | Price |
| 01 |  | ADAPTOR, HOSE VICTORY UPRIGHT Part Number: 27461B-119N for Eureka | 27461B119N | $6.66Read more |
| 02 | Not Available | Eureka Tool - Crevice | 54780 | Not Available |
| 03 | Not Available | Eureka Combination Tool - Package | 54784 | Not Available |
| 04 | Not Available | Eureka Screw Package | 58607 | Not Available |
| 05 | Not Available | Eureka Nested Wand | 58728A | Not Available |
| 06 | Not Available | Eureka Hose Assembly - (54945A-2) | 60169-1 | Not Available |
| # | Part image | Description | SKU | Price |

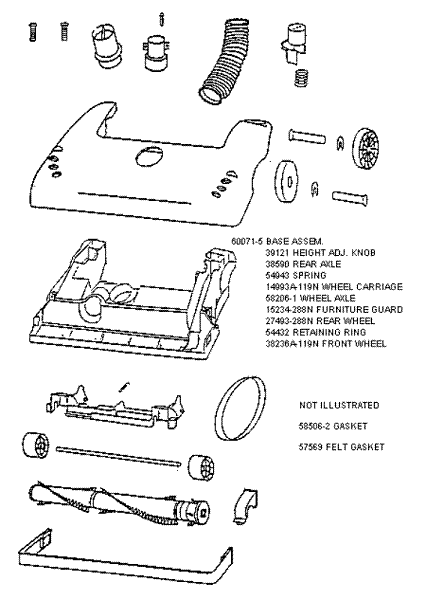

| 01 | Not Available | Eureka Carriage - Wheel | 14993A-119N | Not Available |
| 02 | Not Available | Eureka Guard - Furniture (14") | 15234-288N | Not Available |
| 03 | Not Available | Eureka Release - Handle | 27467-288N | Not Available |
| 04 | Not Available | Eureka Cuff-Hose | 27468B-119N | Not Available |
| 05 | Not Available | Eureka Wheel - Rear | 27493-288N | Not Available |
| 06 | Not Available | Eureka Wheel - Front | 38236A-119N | Not Available |
| 07 | Not Available | Eureka Hose - Compression (Purch | 38479-2 | Not Available |
| 08 |  | Brushroll, 18 In Vs18/Vsp18 Part Number: 8.613-859.0 for Windsor | 86138590 | $293.92Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 09 | Not Available | Eureka Height Adj. Knob | 39121 | Not Available |
| 10 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 11 |  | Eureka Extended U belt aftermarket pn: 61120F | 20310801 | $9.99Add to cart |
| 12 | Not Available | Eureka Belt Cap & Gasket | 54376-2 | Not Available |
| 13 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Screw, Bottom Plate Part Number: 54669-2 for Eureka | 546692 | $9.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $12.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | GASKET, FELT VICTORY Part Number: 57569 for Eureka | 57569 | $4.55Read more |
| 17 | Not Available | Eureka Axle - Wheel | 58206-1 | Not Available |
| 18 | No Image | GASKET, NOZ.BASE VICTORY SERIES Part Number: 58506-2 for Eureka | 585062 | $4.55Read more |
| 19 | Not Available | Eureka Base Assembly | 60071-5 | Not Available |
| 20 |  | SPRING, HANDLE RELEASE VICTORY 5PK Part Number: 60133 for Eureka | 60133 | $4.46Read more |
| 21 | Not Available | Eureka 14" Dist. Use 60252-2 | 60252-1 | Not Available |
| 22 | Not Available | Eureka Hood Assembly - Packaged | 60707-1 | Not Available |
| # | Part image | Description | SKU | Price |

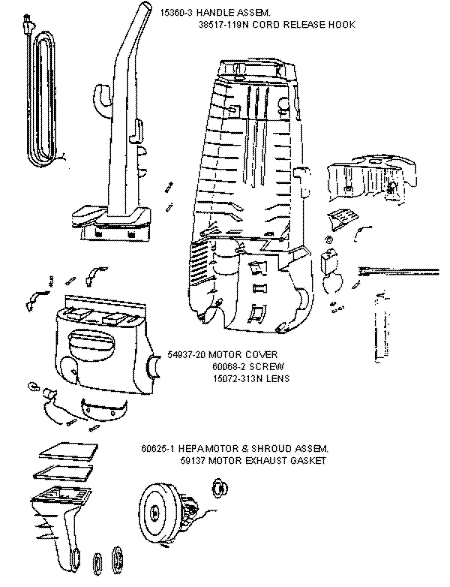

| 01 | Not Available | Eureka Lens - Motor Cover | 15072-313N | Not Available |
| 02 | Not Available | Eureka Handle & Graphics Assembly | 15360-3 | Not Available |
| 03 | Not Available | Eureka Switch Assembly | 15377-6 | Not Available |
| 04 | Not Available | Eureka Duct - Air | 15408A-119N | Not Available |
| 05 | Not Available | Eureka Tool Caddy | 15443-119N | Not Available |
| 06 | Not Available | Eureka Gasket | 27171 | Not Available |
| 07 | Not Available | Eureka Switch Button | 27474C-288N | Not Available |
| 08 | Not Available | Eureka Grommet | 27552B | Not Available |
| 09 | Not Available | Eureka Clamp | 38420-2 | Not Available |
| 10 | Not Available | Eureka Filter - Secondary | 39334 | Not Available |
| 11 | Not Available | Eureka Hook - Cord Release | 38517-119N | Not Available |
| 12 | Not Available | Eureka Headlamp Sckt & Terminal | 38611 | Not Available |
| 13 | Not Available | Eureka Supply Cord & Terminal | 38680-9 | Not Available |
| 14 | Not Available | Eureka Flange - Motor Intake | 39023 | Not Available |
| 15 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $4.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 17 | Not Available | Eureka Motor Cover Assembly Without Lens | 54937-20 | Not Available |
| 18 | No Image | GASKET, MOTOR Part Number: 59137 for Eureka | 59137 | $4.55Read more |
| 19 | Not Available | Eureka Thermostat 110 Deg | 59213 | Not Available |
| 20 | Not Available | Eureka Screw Package | 60068-2 | Not Available |
| 21 | Not Available | Eureka Tors Spring Pkg | 60134 | Not Available |
| 22 | Not Available | Eureka Retaining Ring Pkg | 60165 | Not Available |
| 23 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| 24 |  | Filter, HF9 HEPA Exhaust 4300/4400 Series Victory | E-60285 | $14.99Read more |
| 25 | Not Available | Eureka Hepa Motor & Shroud Assembly | 60625-1 | Not Available |
| 26 | Not Available | Eureka Rear Housing - Pkg | 60703-1 | Not Available |
| # | Part image | Description | SKU | Price |

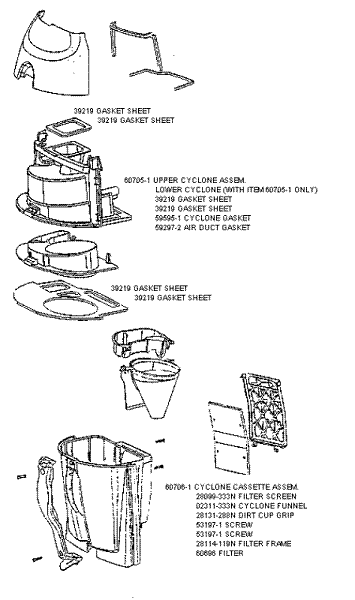

| 01 | Not Available | Eureka Funnel & Gasket Assembly | 02311-333N | Not Available |
| 02 | Not Available | Eureka Filter - Screen | 28099-333N | Not Available |
| 03 | Not Available | Eureka Frame - Filter | 28114-119N | Not Available |
| 04 | Not Available | Eureka Grip - Dirt Cup | 28131-288N | Not Available |
| 05 | Not Available | Eureka Cyclone Gasket Sheet | 39219 | Not Available |
| 06 | Not Available | Eureka Screw Package | 53197-1 | Not Available |
| 07 | No Image | GASKET, AIR DUCT 4380 4481 Part Number: 59297-2 for Eureka | 592972 | $2.44Read more |
| 08 | Not Available | Eureka Gasket - Cyclone | 59595-1 | Not Available |
| 09 | Not Available | Eureka Victory Whirlwind Filter | 60696 | Not Available |
| 10 | Not Available | Eureka Front Cover Assembly | 60704-1 | Not Available |
| 11 | Not Available | Eureka Upper Cyclone Assembly - Pkgd | 60705-1 | Not Available |
| 12 | Not Available | Eureka Cyclonic Cassette Assembly | 60706-1 | Not Available |
